Allen-Bradley 1769-L30ER — CompactLogix 5370 Specs & Buyer Guide

By Abdullah Zahid
14 min read

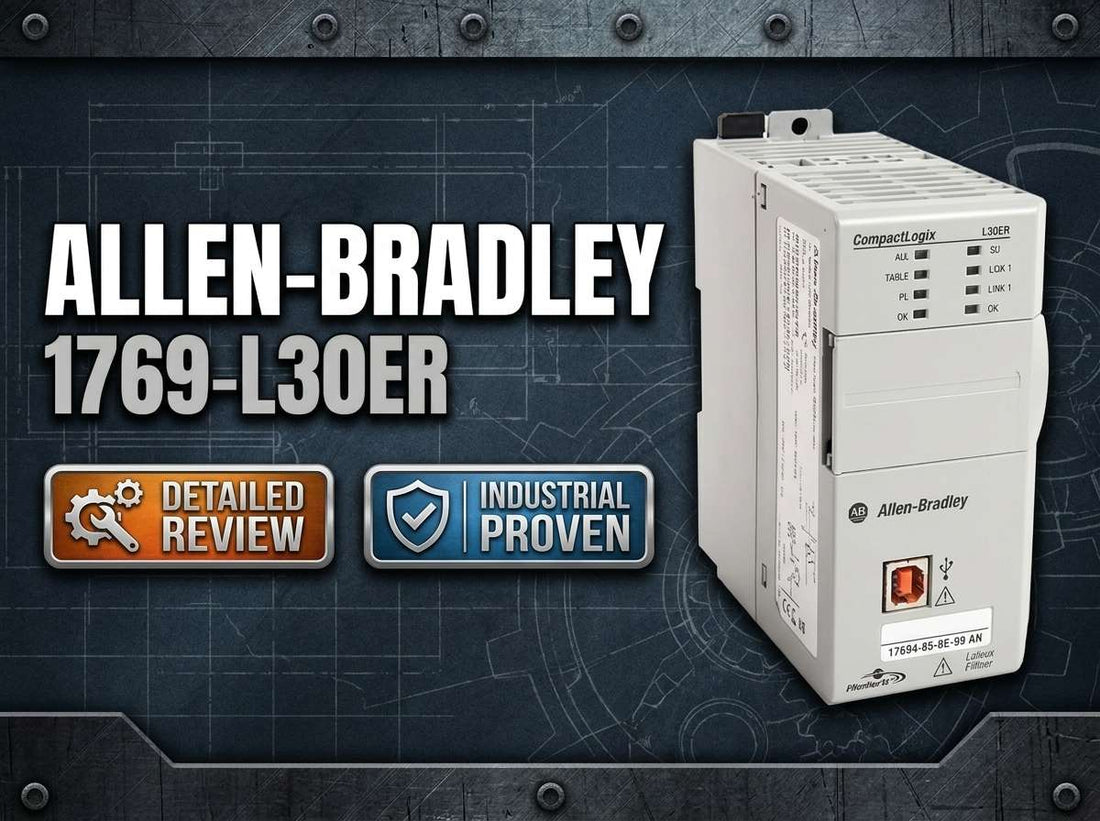

Allen-Bradley 1769-L30ER CompactLogix 5370 L3 controller with dual Ethernet ports mounted on DIN rail in industrial control panel

Allen-Bradley 1769-L30ER CompactLogix 5370 L3 Controller, Dual Ethernet with DLR, 1 MB Memory — Specs, Pricing and Selection Guide

Controls engineers specifying a mid-size machine controller are usually facing the same decision: confirm the I/O count, verify network capacity, and close out the bill of materials without discovering a lead time problem three weeks before build. The Allen-Bradley 1769-L30ER is a CompactLogix 5370 L3 programmable automation controller with 1 MB of controller memory, dual embedded EtherNet/IP ports with Device Level Ring support, and capacity for up to 8 local 1769 I/O modules and up to 16 EtherNet/IP nodes. It sits at a practical midpoint in the CompactLogix 5370 L3 family — above the smaller L16ER and L18ER models, below the expanded capacity of the 1769-L33ER and 1769-L36ERM — and it is the controller that shows up most often on OEM machine panels and process skids built around Studio 5000 Logix Designer.

If you have already confirmed this is the right part for your project, check current pricing and availability for the 1769-L30ER at LeadTime.ca — we ship worldwide.

Who Should Buy the 1769-L30ER — and Who Shouldn't

The 1769-L30ER is the right controller when your project meets all of the following criteria:

  • Your program and data memory requirement fits within 1 MB of controller memory, with SD card support for non-volatile firmware and application storage.
  • Your local 1769 I/O count — including future expansion — fits within 8 expansion module slots.
  • Your EtherNet/IP device count, including drives, HMIs, remote I/O, and instruments, stays at or below 16 nodes.
  • You need dual embedded Ethernet ports with Device Level Ring capability for network resiliency on the controls network.
  • Your facility or OEM standard is built around Studio 5000 Logix Designer, 1769 I/O modules, PanelView HMIs, and PowerFlex drives.
  • The application does not require SIL-rated integrated safety functions — the 1769-L30ER is a standard, non-safety controller.

If your I/O count or EtherNet/IP device list pushes past those limits, the 1769-L33ER or 1769-L36ERM is the correct next step. If your application is smaller and cost is the primary driver, the 1769-L16ER or the Micro800 series may be a better fit. Both alternatives are discussed in the variant comparison section below.

On this page:

What the 1769-L30ER Actually Does in a Running System

The 1769-L30ER serves as the main CPU in a CompactLogix 5370-based control system. It executes ladder, function block, structured text, or sequential function chart logic written in Studio 5000 Logix Designer, manages communications across EtherNet/IP to connected devices, and handles the I/O data exchange with up to 8 local 1769-series I/O modules mounted directly on the same backplane. Unlike older CPU architectures that relied on battery-backed RAM, the 1769-L30ER uses an SD card for non-volatile storage of firmware and application files. The controller ships with a 1 GB SD card and supports cards up to 2 GB, which means a fully configured spare controller can be loaded from the card without a laptop present — a significant advantage for plant maintenance teams.

The dual embedded EtherNet/IP ports support Device Level Ring topology, giving machine designers the ability to wire field devices in a ring rather than a star. If a single cable or connector fails, the ring heals and communication continues — a meaningful reliability improvement on machines where cable damage is a real-world risk. Up to 16 EtherNet/IP nodes can be connected, covering typical combinations of PanelView HMIs, PowerFlex drives, and remote EtherNet/IP I/O adapters. When 16 nodes is not enough, the architecture strategy is to step up to the 1769-L33ER rather than try to force more devices onto this controller.

Typical System Architecture: Where the 1769-L30ER Sits

The 1769-L30ER sits between the engineering workstation and the physical I/O and field devices in a typical machine or skid control system. Here is how the component chain typically looks:

  • Engineering workstation running Studio 5000 Logix Designer connects to the controller over EtherNet/IP for programming, download, and diagnostics.
  • The 1769-L30ER CPU mounts on DIN rail alongside a compatible 1769 power supply module, forming the left end of the 1769 I/O bank.
  • Up to 8 local 1769 I/O modules — digital input, digital output, analog input, analog output, or specialty modules — attach directly to the right of the controller on the same backplane.
  • The dual Ethernet ports connect downstream to EtherNet/IP devices: PanelView HMIs, PowerFlex drives, remote EtherNet/IP I/O adapters, and instruments — up to 16 nodes total, wired in linear or Device Level Ring topology.
  • One or both Ethernet ports may connect upstream to a plant SCADA or DCS system, depending on network segmentation design.

Typical Applications and Deployment Scenarios

OEM machine builders account for the largest share of 1769-L30ER deployments. A packaging line or filling machine with a handful of servo axes controlled via EtherNet/IP drives, a PanelView touchscreen HMI, and several 1769 digital and analog I/O modules fits comfortably within the 8-module and 16-node limits. The dual Ethernet ports with DLR are particularly valued on machines where the field device ring runs through the machine frame and cable routing makes a single-cable failure likely.

Process skid builders — pump skids, CIP systems, dosing panels, and small utility systems — use the 1769-L30ER as a standalone controller that also reports data upstream to a plant historian or SCADA over EtherNet/IP. The compact footprint and DIN rail mounting fit into standard control cabinet widths, and the 0 to 60 °C operating range covers most indoor industrial enclosure environments.

Retrofit projects replacing legacy SLC 500 or PLC-5 systems are another common deployment. The 1769-L30ER provides a modern EtherNet/IP-capable CPU while keeping the panel footprint manageable, and the Studio 5000 environment with Logix Designer is familiar to any controls engineer working in a Rockwell-standardized plant.

Distributed production line architectures — where each machine section gets its own CompactLogix CPU networked together over EtherNet/IP — rely on controllers like the 1769-L30ER for each node, providing independent local control with centralized supervision.

Application Typical Deployment
Packaging or filling machine 1769-L30ER as main CPU with local 1769 I/O, EtherNet/IP drives, and PanelView HMI in DLR topology
Process pump or CIP skid Standalone CompactLogix controller with 1769 analog and digital I/O, EtherNet/IP connection to plant SCADA
Assembly or material handling cell Controller managing local I/O plus EtherNet/IP remote I/O and robot interface
SLC 500 or PLC-5 retrofit 1769-L30ER replacing legacy CPU, 1769 I/O replacing legacy I/O racks, Studio 5000 re-engineering
Distributed production line segment One 1769-L30ER per machine section, all networked over EtherNet/IP with section-level HMIs

Key Specifications for Purchase Decision

Parameter Value
Catalog Number 1769-L30ER
Product Family CompactLogix 5370 L3
Controller Memory 1 MB
Non-Volatile Storage SD card — ships with 1 GB, supports up to 2 GB
Local 1769 I/O Expansion Up to 8 modules
EtherNet/IP Node Capacity Up to 16 nodes
Ethernet Ports Dual embedded RJ45 with Device Level Ring (DLR) support
Operating Temperature 0 to 60 °C
Mounting DIN rail or panel mount
Programming Software Studio 5000 Logix Designer

Full technical specifications are available on the product page at LeadTime.ca.

1769-L30ER vs. Other CompactLogix 5370 Models: Which One Do You Actually Need?

Model Controller Memory (approx.) Local I/O Modules EtherNet/IP Nodes When to Choose vs. 1769-L30ER
1769-L16ER Smaller Fewer Fewer Very compact machines where the 1769-L30ER is oversized and cost reduction is priority
1769-L18ER Smaller Fewer Fewer Similar to L16ER — use when application is smaller than the 1769-L30ER's capacity class
1769-L24ER Mid-range Mid-range Mid-range When you need a step between L18ER and L30ER in capacity
1769-L30ER 1 MB 8 16 Mid-size machines and skids — the subject of this article
1769-L33ER Larger More More When I/O count or EtherNet/IP node count exceeds the 1769-L30ER's limits
1769-L36ERM Higher More More High-end midrange applications with more motion or network demands than L33ER alone handles
Compact GuardLogix variants Varies Varies Varies Any application requiring SIL-rated integrated safety — do not use standard 1769-L30ER for safety functions

If your I/O count or connected device list is already close to 8 modules or 16 EtherNet/IP nodes, the 1769-L33ER is the right move — check current availability and compare options at LeadTime.ca before finalizing your bill of materials.

Expert Verdict: Is the 1769-L30ER the Right Choice for Your Project?

For controls engineers and OEM machine builders working within a Rockwell Allen-Bradley ecosystem, the 1769-L30ER hits a practical sweet spot. It delivers 1 MB of controller memory, dual Ethernet ports with Device Level Ring capability, and support for up to 8 local 1769 I/O modules and 16 EtherNet/IP nodes — the combination that covers the majority of mid-size packaging, assembly, process skid, and retrofit applications without requiring a step up to ControlLogix budgets or chassis. The SD card-based non-volatile storage is a genuine operational advantage: a trained technician can load a replacement controller from a card without a laptop, which matters in plant environments where rapid recovery from a controller failure is critical. The platform's familiarity to any engineer who has worked with Logix is also not a trivial benefit — commissioning and troubleshooting are faster on a known platform.

The honest limits are real, and they matter at specification time. Eight local I/O modules and 16 EtherNet/IP nodes are firm ceilings, not soft guidelines. Engineers who discover mid-project that they need a 9th I/O module or a 17th EtherNet/IP device face a controller swap, not a configuration change. If your application has any meaningful growth potential, the 1769-L33ER deserves serious consideration at the outset. Similarly, the 1769-L30ER is a standard non-safety controller — any application with SIL-rated safety requirements needs a Compact GuardLogix variant instead. For cost-constrained or physically small applications where dual Ethernet with DLR is not a requirement, the Micro850 or a smaller CompactLogix model may eliminate unnecessary cost from the BOM.

On the procurement side, the CompactLogix 5370 family is widely used but also subject to the lead time variability that affects the broader Allen-Bradley catalog. At any given time, availability ranges from in-stock at authorized distributors to extended factory lead times depending on demand cycles. Buying through a specialist automation distributor gives you current, accurate lead time visibility, access to in-family alternatives when stock is constrained, and support for firmware and migration planning that a generalist channel simply does not provide. Check current pricing and availability for the 1769-L30ER at LeadTime.ca — stock status and lead time are visible directly on the product page.

For volume pricing, project-level quotations, or to confirm lead time before committing to a build schedule, contact the LeadTime.ca team directly — we ship worldwide and work with procurement teams and controls engineers at every stage of the project cycle.

What Engineers Say About the 1769-L30ER in Practice

Across Rockwell Automation user forums, PLCTalk, PLCS.net, MrPLC, and Reddit's PLC and automation communities, the recurring theme around the 1769-L30ER and the CompactLogix 5370 family is one of professional comfort. Engineers consistently describe it as the natural choice when they are already working in the Logix environment — the same Studio 5000 language, the same tag-based architecture, the same diagnostic approach as a ControlLogix system, but in a compact and cost-effective package. Users who maintain multiple machines built around this controller report that standardization has real value: technicians learn one platform, spare parts are interchangeable across the installed base, and new machine projects move faster because the engineering team is not relearning tools.

The complaints that surface repeatedly are not about the hardware itself but about capacity planning and ecosystem overhead. Engineers describe hitting the 8-module or 16-node ceiling sooner than expected — often when a machine specification evolves after the original controller selection was made, or when a customer requests additional smart devices later in the machine lifecycle. The advice that appears consistently in community threads is to count every EtherNet/IP device on the network diagram, including HMIs, drives, and remote I/O adapters, against the 16-node limit before finalizing the controller selection. Studio 5000 licensing costs and the need to match software versions across engineering workstations are also recurring friction points for teams managing multiple sites or machines at different firmware levels.

Supply chain is the third persistent topic. During periods of high demand, community members have reported unpredictable lead times and allocation constraints on CompactLogix 5370 controllers, with some projects delayed when deliveries slipped from expected stock dates to extended factory lead times. The practical advice from experienced buyers is to confirm real-time availability with an authorized distributor before finalizing project schedules, and to identify the next-up family member as a contingency if the specific catalog number is on allocation.

Wiring, Mounting, and Installation: What to Verify Before You Build

  • The 1769-L30ER mounts on DIN rail or panel; verify panel layout, clearances, and that the operating environment stays within 0 to 60 °C before installing.
  • Power is supplied via a compatible 1769 power supply module — confirm the correct supply part number and verify that external 24V DC source and external protection devices are in the design.
  • Local 1769 I/O modules attach to the right of the controller on the backplane; verify that bus connectors are properly aligned, end caps and terminators are installed as specified, and that the total module count does not exceed 8.
  • For Ethernet wiring, plan the topology — linear or Device Level Ring — before pulling cable; DLR requires both Ethernet ports and all ring-connected devices to support the ring protocol.
  • Before applying power, confirm IP address assignments for the controller and all EtherNet/IP devices, verify Studio 5000 firmware compatibility, and check that the SD card is properly seated and configured for the intended load behavior.

Wrong-Part Prevention Checklist Before You Order

Before placing your order for the 1769-L30ER, verify each of the following points — these are the most common sources of ordering errors on this catalog number:

  1. Confirm the controller family: must be CompactLogix 5370 L3 and catalog number exactly 1769-L30ER (no additional suffix like -NSE, -B, etc.).
  2. Verify required local 1769 I/O count does not exceed 8 expansion modules.
  3. Verify EtherNet/IP node count requirement is at or below 16 devices for this controller.
  4. Confirm 24V DC power and required 1769 power supply modules are available; this CPU requires external power and external protection.
  5. Check that the firmware revision is compatible with your version of Studio 5000 Logix Designer and existing installed base.
  6. Ensure environmental ratings (0 to 60 °C operating, panel/DIN mounting, certifications) match the site requirements.
  7. Confirm that an SD card (typically 1 GB supplied) is available/used if non-volatile storage and firmware load behavior are required.
  8. Verify this non-safety controller is acceptable; do not select it for SIL-rated safety functions that require GuardLogix.

If any item on this checklist raises a question, contact the LeadTime.ca team before ordering — we can verify part numbers, confirm compatibility, and identify the correct variant for your application.

Frequently Asked Questions

How many local I/O modules can the 1769-L30ER support, and what happens if my project grows beyond that limit?

The 1769-L30ER supports up to 8 local 1769 I/O modules connected directly on the backplane. If your project exceeds 8 local modules, the only in-family resolution is to step up to the 1769-L33ER or 1769-L36ERM, or to move additional I/O to remote EtherNet/IP I/O adapters — subject to the 16-node limit. Planning for this ceiling before the controller is specified is the only reliable way to avoid a mid-project redesign.

How many EtherNet/IP devices can I connect to the 1769-L30ER, and does the PanelView HMI count as a node?

The 1769-L30ER supports up to 16 EtherNet/IP nodes. Yes, every device that holds an EtherNet/IP connection to the controller counts toward that limit — HMIs, drives, remote I/O adapters, and instruments all count. Count every device on your network diagram before finalizing the controller selection.

Can the dual Ethernet ports be used to connect two separate networks simultaneously?

The dual embedded Ethernet ports on the 1769-L30ER are designed for linear and Device Level Ring topologies on the EtherNet/IP network — they are not a managed switch providing independent connections to two different subnets. Network segmentation between OT and IT or between machine and plant networks requires separate switching infrastructure, not the controller's embedded ports.

What Studio 5000 version and firmware do I need, and how do I match them to an existing installed base?

The 1769-L30ER is programmed with Studio 5000 Logix Designer, and the firmware version running on the controller must be compatible with the version of Studio 5000 on the engineering workstation. Before purchasing or commissioning, confirm the firmware version required for your controller revision and check that your installed Studio 5000 version supports it. Rockwell's firmware compatibility notes and the Product Lifecycle Status tool are the authoritative references — verify current supported versions before any firmware update on an existing site.

Is the 1769-L30ER still an active product, and should I be concerned about long-term lifecycle support?

Lifecycle status for the CompactLogix 5370 family should be confirmed directly on Rockwell Automation's Product Lifecycle Status page before specifying this controller for a new design with a long intended service life. If the family status has moved to active mature, it is worth evaluating whether a newer CompactLogix platform better serves a greenfield project, while understanding that installed base support and spare parts availability typically continue well into and beyond the active mature phase.

What are realistic lead times, and how do I protect my project schedule?

Lead times on CompactLogix 5370 controllers vary between in-stock and extended factory lead times depending on demand cycles and regional allocation. The most reliable approach is to check real-time availability with an authorized distributor at the earliest stage of your project, confirm a delivery date before locking your build schedule, and identify the 1769-L33ER as a contingency if the 1769-L30ER is on allocation at the time of ordering.

Why Order the 1769-L30ER Through LeadTime.ca

  • Real-time stock and lead time visibility on the product page — no waiting for a quote to learn whether the part is available.
  • Global shipping to procurement teams and system integrators worldwide — not limited to any single country or region.
  • Specialist knowledge of the CompactLogix 5370 family and in-family alternatives when a specific catalog number is on allocation or extended lead time.
  • Volume pricing and project quotations available through direct contact — suitable for OEM programs, MRO stocking orders, and multi-machine builds.
  • Support for sourcing hard-to-find industrial automation parts beyond standard channel availability.

At-a-Glance Summary

  • Catalog number: 1769-L30ER — CompactLogix 5370 L3 controller.
  • Controller memory: 1 MB; non-volatile storage via SD card, ships with 1 GB, supports up to 2 GB.
  • Local I/O capacity: up to 8 local 1769 I/O modules on the backplane.
  • EtherNet/IP network capacity: up to 16 nodes, covering drives, HMIs, remote I/O, and instruments.
  • Dual embedded RJ45 Ethernet ports with Device Level Ring (DLR) support for network resiliency.
  • Operating temperature: 0 to 60 °C; mounts on DIN rail or panel in an industrial control cabinet.
  • Programmed with Studio 5000 Logix Designer; firmware version must match the engineering workstation version.
  • Standard non-safety controller — not suitable for SIL-rated safety functions; GuardLogix variants required for safety applications.
  • Step up to 1769-L33ER or 1769-L36ERM when I/O count or EtherNet/IP nodes exceed this controller's limits.
  • Pricing is available on the product page; contact LeadTime.ca for volume or project quotations.
