Allen-Bradley 1769-L32E — CompactLogix Controller Buying Guide

By Abdullah Zahid
14 min read

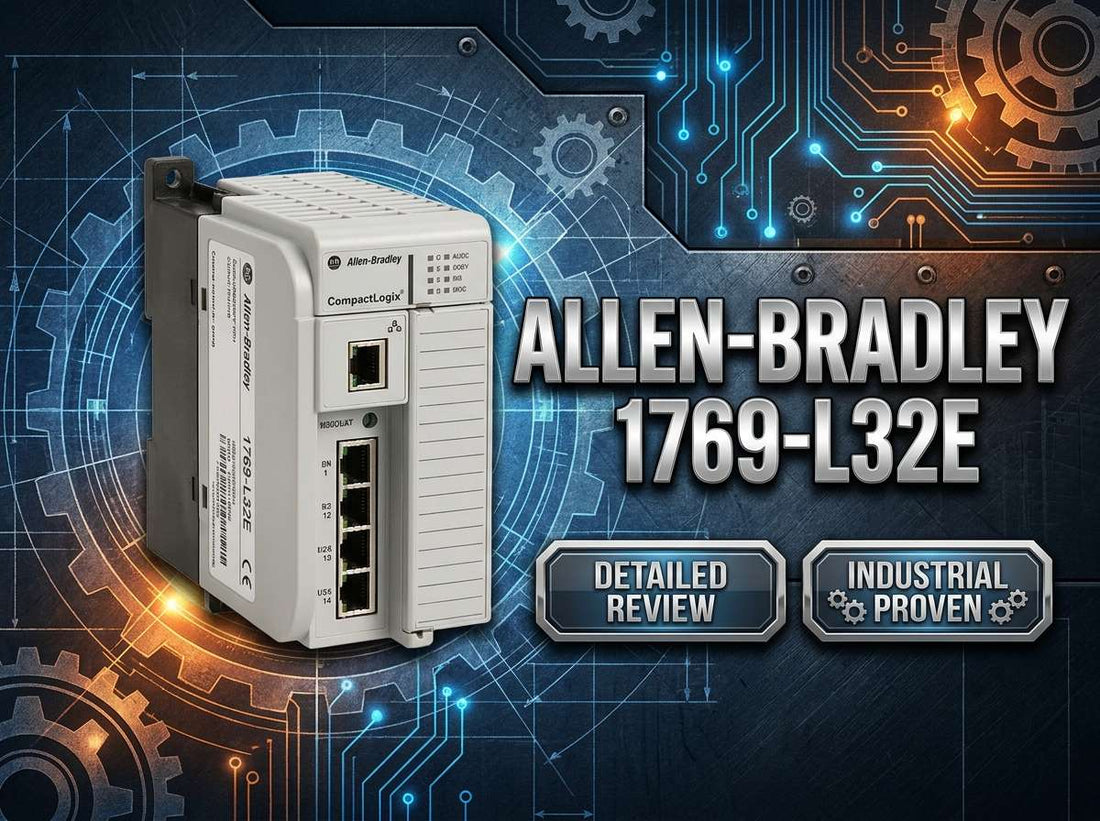

Allen-Bradley 1769-L32E CompactLogix Ethernet controller for OEM machine and line control applications

CompactLogix 1769-L32E Ethernet Controller: Specs, Pricing, and Best Alternatives

Controls engineers evaluating the Allen-Bradley 1769-L32E CompactLogix controller are typically making one of two decisions: confirming it as a like-for-like replacement in an existing 1769 installation, or deciding whether its 750 KB user memory and single EtherNet/IP port are still adequate for a new or expanded system. The 1769-L32E is a mid-range Programmable Automation Controller within the CompactLogix 1769-L3x family, offering embedded EtherNet/IP and RS-232 communications, support for up to 16 local 1769 Compact I/O modules, and a well-established software footprint in RSLogix 5000 and Studio 5000 Logix Designer. If you already know this is the right part, proceed directly to the product page.

If you have already confirmed this is the right part, check current pricing and availability for the 1769-L32E at LeadTime.ca — ships worldwide.

Who Should Buy the 1769-L32E — and Who Shouldn't

The Allen-Bradley 1769-L32E CompactLogix controller is the right choice when all of the following conditions are true for your project:

  • Your program and data footprint fits comfortably within 750 KB user memory, including planned growth.
  • You need embedded EtherNet/IP for programming, HMI, and supervisory integration, plus RS-232 for serial devices — and do not require ControlNet.
  • Your local I/O count is within 16 1769 Compact I/O modules, and the planned module arrangement is compatible with your power supply distance rating.
  • You are maintaining, expanding, or reproducing an existing CompactLogix 1769 system where code, I/O hardware, and spares continuity matter.
  • Your Studio 5000 or RSLogix 5000 project firmware major revision has been confirmed to match the controller unit you are sourcing.

If your application requires a larger memory footprint, more local I/O capacity, dual Ethernet ports, or a longer hardware lifecycle horizon, the 1769-L35E or newer CompactLogix 5370 L3 controllers are the more appropriate choices and should be evaluated before committing to this model.

On this page:

What the 1769-L32E Actually Does in a Control System

The Allen-Bradley 1769-L32E serves as the central CPU in a CompactLogix 1769-based control system. It executes the Logix controller program, manages the 1769 Compact I/O backplane, and handles both EtherNet/IP and RS-232 communications simultaneously. Its embedded EtherNet/IP port handles programming from Studio 5000, HMI connections to PanelView terminals, drive coordination with PowerFlex products, and integration into plant-level Ethernet/IP networks or SCADA systems. The RS-232 Channel 0 port supports DF1 protocol, ASCII serial devices, and Modbus where applicable via logical driver configuration.

The 1769-L32E sits between MicroLogix systems and ControlLogix platforms in Rockwell's portfolio. It offers more memory, Ethernet capability, and expansion flexibility than MicroLogix, while remaining more compact and cost-aligned than a full ControlLogix chassis system. With approximately 750 KB of user memory, it handles discrete control, analog signal management, and typical mid-size machine logic without difficulty — though complex process programs with large data arrays should be evaluated carefully against that memory ceiling before specifying this model.

Typical System Architecture for a 1769-L32E Deployment

The 1769-L32E sits at the center of the signal and data chain — downstream from the plant Ethernet network and upstream from local and remote I/O devices. Here is how a typical deployment is structured:

  • Plant Ethernet/IP network or standalone HMI connects directly to the 1769-L32E's embedded EtherNet/IP port for programming, data collection, and supervisory visibility.
  • The 1769-L32E CPU is mounted as the left-most module in the first 1769 bank, immediately adjacent to the 1769 power supply.
  • Up to 16 local 1769 Compact I/O modules extend to the right of the CPU along the 1769 backplane, subject to the power supply distance rating.
  • A right-hand end cap (ECR or ECL) terminates the 1769 I/O bus; additional banks can be added using 1769 expansion adapters where the application demands it.
  • Remote I/O adapters, drives, and other EtherNet/IP devices connect over the Ethernet network, extending the system without additional local backplane slots.

Industries and Applications Where the 1769-L32E Is Specified

The 1769-L32E is most commonly found in OEM machine designs where a compact controller with Ethernet HMI connectivity and a manageable I/O count is the baseline requirement. Packaging machines, filling lines, labeling systems, and small assembly cells with discrete and analog I/O are its natural home. The embedded EtherNet/IP port allows direct connection to PanelView HMIs and PowerFlex drives without additional communication hardware.

In plant environments, the 1769-L32E appears frequently in conveyor control, multi-station assembly coordination, and small production line management where the controller needs to report data back to a plant SCADA or MES system over Ethernet. Its RS-232 port also makes it a practical choice for integrating legacy serial devices into otherwise Ethernet-based systems.

Brownfield upgrade projects represent a significant portion of 1769-L32E specifications. Engineers replacing SLC or MicroLogix panels often specify this controller specifically to reuse existing 1769 I/O hardware, maintain familiarity with the Logix programming environment, and minimize the scope of wiring and commissioning changes. Remote skids and standalone process cells requiring Ethernet diagnostics with a limited I/O point count also fit the 1769-L32E profile well.

Application Typical Deployment
Packaging and filling machines Standalone OEM machine with PanelView HMI over EtherNet/IP and local 1769 discrete/analog I/O
Conveyor and material handling Line cell controller coordinating sensors, drives, and discrete I/O with plant network integration
Brownfield SLC/MicroLogix replacement Drop-in CPU replacement reusing existing 1769 I/O modules and porting RSLogix 5000 code
Remote process skid Compact controller on skid with Ethernet connection back to plant SCADA and limited I/O point count
Food and beverage line control Multi-zone discrete control with analog signal management and EtherNet/IP supervisory integration
Small assembly and test stations Station-level logic controller with serial device integration via RS-232 Channel 0

Key Specifications and How the 1769-L32E Compares to Close Variants

Parameter Value Notes
Catalog Number 1769-L32E Confirm suffix and series as printed on nameplate before ordering
Product Family CompactLogix 1769-L3x Part of the 1769-L31, L32C, L32E, L35E family
User Memory Approx. 750 KB Confirm from current datasheet; evaluate margin for future program growth
Local I/O Capacity Up to 16 1769 I/O modules Subject to power supply distance rating and module loading
Communication Ports 1 x EtherNet/IP, 1 x RS-232 (Channel 0) EtherNet/IP for programming, HMI, drives; RS-232 for DF1 and serial devices
Programming Software RSLogix 5000 / Studio 5000 Logix Designer Firmware major revision must match software version and project
Power Supply Input 24 V DC, approx. 1.2 A max Requires external protection; confirm exact rating from installation manual
1769 Backplane Current Draw Approx. 800 mA at 5 V DC Ensure 1769 power supply budget covers CPU plus all I/O modules
Mounting Style DIN rail or panel with 1769 I/O modules CPU must be left-most module in first bank; follow spacing guidelines
Certifications Standard industrial certifications per datasheet (UL/CE) Verify required approvals for your jurisdiction before installation

Full technical specifications are available on the product page at LeadTime.ca.

1769-L32E vs. Close CompactLogix Variants

Model User Memory Communications Local I/O Modules Best For
1769-L31 Lower capacity EtherNet/IP, RS-232 Up to 16 Simpler, smaller machine applications
1769-L32E Approx. 750 KB EtherNet/IP, RS-232 Up to 16 Mid-size machines with Ethernet, brownfield upgrades
1769-L32C Approx. 750 KB ControlNet, RS-232 Up to 16 Systems requiring ControlNet instead of EtherNet/IP
1769-L35E Larger capacity EtherNet/IP, RS-232 Up to 30 Larger I/O counts and more complex logic requirements
CompactLogix 5370 L3 Larger, scalable Dual EtherNet/IP, USB Expanded New designs requiring modern lifecycle and dual Ethernet

If your application has already exceeded the 1769-L32E's memory or I/O headroom, the 1769-L35E or a 5370 L3 controller is the correct upgrade path — confirm current availability and pricing at LeadTime.ca before finalizing your selection.

Expert Verdict: Is the 1769-L32E Still a Smart Buy?

The Allen-Bradley 1769-L32E CompactLogix controller earns its place on the shortlist for a specific and well-defined buyer: engineers maintaining installed CompactLogix 1769 systems, OEMs reproducing proven machine designs where 1769 I/O and existing Logix code must be preserved, and plants sourcing a like-for-like replacement where reuse is the priority. The controller's embedded EtherNet/IP and RS-232 ports cover the communication requirements of the vast majority of discrete machine and line control applications, and its 750 KB memory is sufficient for typical programs in this class. Its track record of reliability and the deep familiarity most Rockwell-focused engineers have with the Logix environment mean that commissioning time is predictable and troubleshooting is well understood.

Where the 1769-L32E shows its age is in greenfield projects with a long lifecycle horizon. Engineers who need dual Ethernet ports, integrated USB, a larger memory ceiling with meaningful headroom for future feature additions, or who are standardizing on newer hardware families for spares and support consistency should evaluate the CompactLogix 5370 L3 controllers directly. Similarly, if your installed system uses ControlNet infrastructure, the 1769-L32E is the wrong model — the 1769-L32C covers that network requirement within the same I/O family. The honest assessment is that for brownfield replacements and OEM continuity this controller is a confident buy; for new long-horizon designs it is a starting point for comparison, not an automatic choice.

From a procurement standpoint, the 1769-L32E's position as a mature platform means that sourcing strategy matters more than it would for a current-production controller. New units can carry longer lead times, and the mix of new, surplus, and remanufactured stock in the market introduces firmware and series variability that can create commissioning friction if not verified before shipment. Buying through a specialist distributor who can confirm the series suffix, firmware major revision, and compatibility with your I/O list before the unit ships is the difference between a clean installation and an unplanned delay. View current availability and request a quote for the 1769-L32E at LeadTime.ca — we verify compatibility and ship worldwide.

For volume pricing, project-specific lead time commitments, or compatibility review before you finalize your bill of materials, contact the LeadTime.ca team directly — we support procurement and engineering teams worldwide.

What Engineers Get Wrong When Specifying the 1769-L32E

The 1769-L32E has accumulated a strong track record across many machine builders and plant environments. Engineers who work with it regularly describe it as a workhorse CompactLogix CPU that runs reliably for years in properly installed and powered systems. Its Ethernet/IP integration with PanelView HMIs and PowerFlex drives is well understood, and the Logix 5000 programming environment is familiar enough to most Rockwell-experienced engineers that configuration and fault diagnosis are straightforward. For teams that already have technicians trained on this platform, there is genuine operational value in maintaining continuity rather than introducing a new hardware generation.

The recurring concerns that appear in controls engineering communities center on three issues. Memory limitations surface most often in projects that evolve after initial commissioning — features added late in the development cycle can push a program toward the 750 KB ceiling in ways that were not anticipated at the specification stage. The controller's lifecycle status is a second consistent theme; engineers planning long-horizon installations flag the availability and support outlook of the 1769-L3x generation compared with current CompactLogix families as a genuine risk factor. The third issue is firmware mismatch, which appears repeatedly as a source of integration delays: units sourced with an unexpected series or firmware level require re-flashing or project adjustments before they can accept an existing program download, and this is a well-documented ordering trap for anyone buying in a hurry.

Ordering mistakes cluster around three patterns that specialist distributor teams see regularly. The most common is specifying 1769-L32E when the existing system actually uses a 1769-L35E or a ControlNet-based 1769-L32C — a quick check of the installed controller nameplate prevents this entirely. The second pattern is incomplete bill of materials: arriving on site without the correct 1769 power supply, right-hand end cap, or a sufficient quantity of I/O modules. The third is purchasing a surplus unit without verifying the firmware major revision against the target Studio 5000 or RSLogix 5000 project, which surfaces as a download failure during commissioning. All three mistakes are preventable with the checklist in the next section.

Wiring and Installation Overview for the 1769-L32E

  • Mount the 1769-L32E as the left-most module in the first 1769 bank on DIN rail or panel, immediately adjacent to the 1769 power supply; follow required clearances and ventilation spacing from the installation manual.
  • Connect 24 V DC supply to the designated power terminals via appropriately rated external fuse or circuit breaker; connect protective earth and ground the enclosure per the installation instructions to minimize electrical noise.
  • Add 1769 I/O modules to the right of the CPU in the planned sequence, respecting the power supply distance rating for each module; install the right-hand end cap (ECR or ECL) to terminate the 1769 bus.
  • Connect Ethernet cabling to the embedded EtherNet/IP port using industrial-grade Cat5e or better; connect RS-232 Channel 0 using shielded cable with correct pinout per the manual for DF1 or ASCII device wiring.
  • Apply power and verify status LEDs — RUN, OK, I/O, and ENET indicators — are in a healthy, unfaulted state before proceeding with IP address assignment and program download.

For complete wiring diagrams, connector pinouts, and installation procedures, refer to the official Rockwell Automation installation instructions and user manual for the 1769-L32E.

Compatible 1769 Accessories and System Expansion Hardware

The 1769-L32E requires a specific set of accessories to form a complete, functional control system. The following hardware is essential or commonly used alongside this controller:

  • 1769 Power Supply modules — Required to power the CPU and all local I/O modules on the 1769 backplane; selection depends on the total current draw of the CPU (approx. 800 mA at 5 V DC) plus all installed I/O modules.
  • 1769 Right-Hand End Cap (ECR / ECL) — Required to terminate the 1769 I/O bus at the end of each bank; omitting this will prevent the system from operating correctly.
  • 1769 Compact I/O modules (discrete and analog) — Supported discrete and analog I/O modules mount directly on the 1769 backplane up to the 16-module local limit.
  • 1769 Expansion Adapters — Allow additional I/O banks to be added beyond the first bank when local I/O expansion is needed.
  • PanelView HMIs — Connect over EtherNet/IP for operator interface; supported via the embedded Ethernet port without additional communication hardware.
  • PowerFlex drives — Integrate over EtherNet/IP for speed and torque control in conveyor, pump, and machine drive applications.

Wrong-Part Prevention Checklist Before Ordering the 1769-L32E

Before placing your order, verify every item on this checklist against your project documentation. These are the exact points where specification errors occur most frequently:

  1. Confirm you truly need catalog number 1769-L32E (EtherNet/IP) and not 1769-L32C (ControlNet) or a newer 1769-L3xER model.
  2. Verify firmware major revision matches your existing project or target Studio/RSLogix 5000 version.
  3. Check that 750 KB user memory is sufficient for the program, data, and future expansions.
  4. Confirm you have or are ordering the correct 1769 power supply and right-hand end cap (ECR/ECL) for the I/O bank.
  5. Verify that up to 16 local 1769 I/O modules is adequate, and account for the power supply distance rating.
  6. Ensure power source is 24 V DC and that upstream protection devices are sized according to the manual.
  7. Check environmental ratings (temperature, vibration, enclosure) against the installation site.
  8. Confirm that the Ethernet/IP topology and IP addressing plan are compatible with the controller's capabilities.

If any item on this checklist raises a question before you order, contact the LeadTime.ca team for a compatibility review — or view the 1769-L32E product page for current stock and pricing information.

Frequently Asked Questions

How many local 1769 I/O modules can the 1769-L32E support, and what limits that count in practice?

The 1769-L32E supports up to 16 local 1769 Compact I/O modules per the manufacturer's documentation. In practice, the 1769 power supply distance rating further constrains how modules can be positioned relative to the power supply module — exceeding this rating causes bus faults or instability regardless of total module count. Always plan the module sequence and calculate power budget before ordering the full I/O complement.

Which version of Studio 5000 or RSLogix 5000 do I need to program the 1769-L32E?

The correct software version depends on the firmware major revision of the specific 1769-L32E unit you have sourced. Firmware major revision and software version must be aligned — a mismatch will prevent a successful program download or produce unexpected behavior. Check the controller nameplate and consult the Rockwell Automation firmware/software compatibility matrix before opening or converting an existing project.

I can ping the 1769-L32E but Studio 5000 cannot go online — what should I check first?

This is one of the most commonly reported EtherNet/IP issues with this controller. First confirm that the programming PC's RSLinx Classic or Studio 5000 Ethernet driver is configured with the correct IP address and subnet, and that no firewall or managed switch VLAN is blocking the EtherNet/IP ports. Also verify that the controller is not already in an online connection with another programming station, and that the firmware revision on the controller matches the project file's target revision.

If my 1769-L32E fails and I cannot source a replacement quickly, what is the recommended migration path?

Rockwell Automation documents migration paths from 1769-L3x controllers to newer CompactLogix families. The 1769-L35E is the closest in-family upgrade for additional memory and I/O capacity. For longer-term modernization, the CompactLogix 5370 L3 controllers offer dual Ethernet, USB programming, and extended lifecycle support, though they require a project conversion and may involve I/O and wiring updates. Contact LeadTime.ca to check current stock of both the 1769-L32E and potential replacement options before your system is down.

Does the 1769-L32E have a battery, and how do I prevent program loss?

CompactLogix 1769-L3x controllers use a battery to retain program and data memory during a power outage. Periodic battery replacement is part of the preventive maintenance routine for this platform — Rockwell Automation's user manual specifies the replacement interval and procedure. Maintaining an up-to-date offline backup of the project in Studio 5000 or RSLogix 5000 is the most reliable protection against program loss regardless of battery status, and should be treated as a standard maintenance practice.

Is the 1769-L32E a direct drop-in replacement for a 1769-L35E, or does it require rewiring?

The 1769-L32E and 1769-L35E are not direct drop-in replacements for one another. The 1769-L35E supports more local I/O modules and has a larger memory capacity than the 1769-L32E. If the installed system was designed around the 1769-L35E's I/O count or memory, replacing it with a 1769-L32E may result in an I/O configuration that exceeds the replacement controller's limits. Verify that the replacement controller's specifications match the original design before installation.

Why Order the 1769-L32E Through LeadTime.ca

  • LeadTime.ca ships worldwide — no regional restrictions on sourcing or quoting.
  • Specialist team can verify series suffix, firmware major revision, and I/O accessory compatibility before shipment to reduce commissioning risk.
  • Access to both new and remanufactured inventory channels for mature CompactLogix hardware where standard new stock has extended lead times.
  • Volume pricing and project BOM reviews available on request — contact us before finalizing a multi-unit or spares order.
  • Hard-to-source parts are a core competency — if stock is limited, the team can advise on verified alternatives with equivalent functionality.

At-a-Glance Summary: Allen-Bradley 1769-L32E CompactLogix Controller

  • Catalog number: 1769-L32E — part of the CompactLogix 1769-L3x Ethernet controller family.
  • User memory: approximately 750 KB — sufficient for typical mid-size discrete and analog machine programs with moderate complexity.
  • Local I/O capacity: up to 16 1769 Compact I/O modules, subject to 1769 power supply distance rating.
  • Built-in communications: 1 x EtherNet/IP port, 1 x RS-232 (Channel 0) — no ControlNet on this model.
  • Power requirement: 24 V DC input, approximately 1.2 A max; backplane draw approximately 800 mA at 5 V DC.
  • Programming environment: RSLogix 5000 / Studio 5000 Logix Designer — firmware major revision must match project and software version.
  • CPU must be mounted as the left-most module in the first 1769 bank; requires compatible 1769 power supply and right-hand end cap.
  • Best fit: maintaining or expanding existing CompactLogix 1769 systems, OEM machine continuity, brownfield SLC/MicroLogix upgrades reusing 1769 I/O.
  • Evaluate instead: 1769-L35E for more I/O or memory; 1769-L32C for ControlNet; CompactLogix 5370 L3 for new designs requiring dual Ethernet and extended lifecycle.
  • Sourcing note: mature platform — verify series, firmware revision, and accessory completeness before ordering from any channel.
