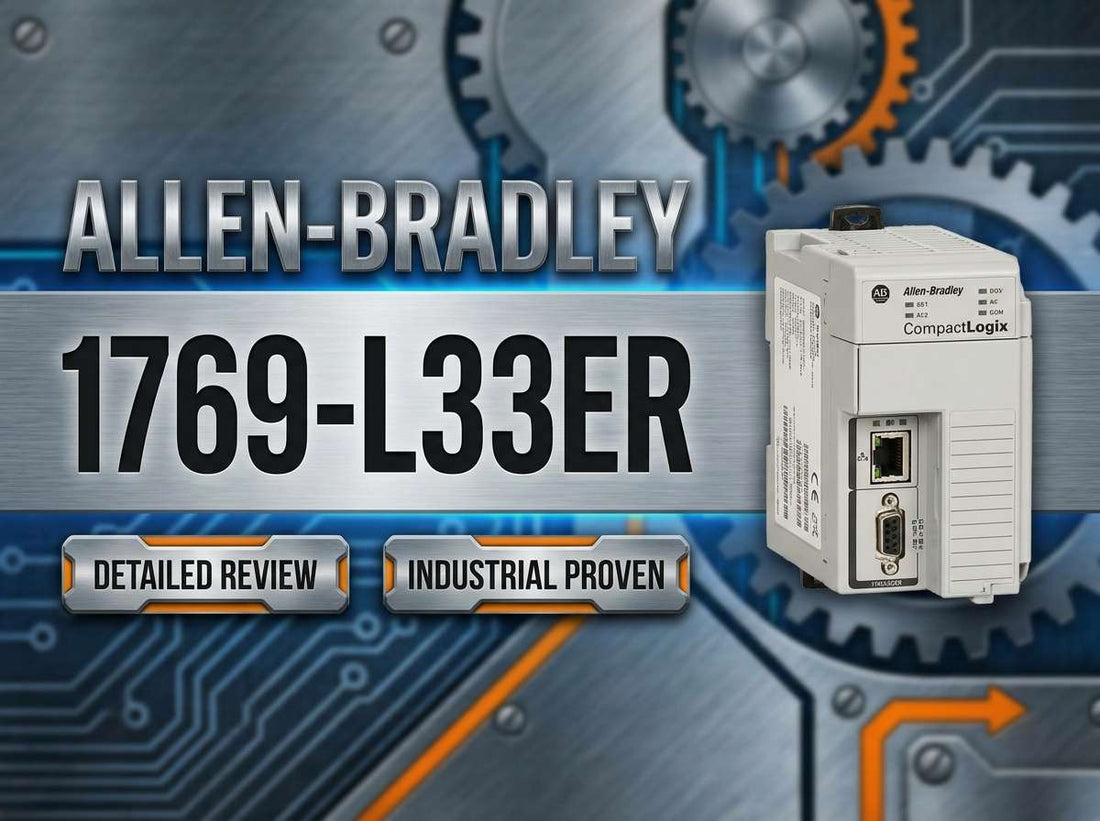

Allen-Bradley 1769-L33ER CompactLogix 5370 L3 controller with dual EtherNet/IP ports for OEM machine and cell-level automation

Allen-Bradley 1769-L33ER CompactLogix 2 MB ENet Controller: Specs, Pricing and Selection Guide

Controls engineers specifying a mid-range CompactLogix CPU are almost always asking the same question at the bottom of the funnel: does this exact catalog number fit my memory, I/O, and network requirements, or will I be replacing the controller six months after commissioning? The Allen-Bradley 1769-L33ER is a CompactLogix 5370 L3 programmable automation controller carrying 2 MB of user memory, dual EtherNet/IP ports with Device Level Ring capability, support for up to 16 local 1769 Compact I/O modules across up to 3 expansion banks, and a maximum of 32 EtherNet/IP nodes — a specification set that covers a wide range of OEM machine and cell-level applications without requiring a larger, costlier platform.

If you have already confirmed this is the right part for your project, check current pricing and availability for the 1769-L33ER at LeadTime.ca — we ship worldwide.

Who Should Specify the 1769-L33ER — and Who Should Not

The 1769-L33ER is the right controller when your application sits comfortably within its documented capacity limits and your platform standard is Allen-Bradley CompactLogix with 1769 Compact I/O. Specify it with confidence if all of the following are true:

  • Your application logic, data tables, and any motion configuration fit within 2 MB of user memory with reasonable headroom for future changes.
  • Your local I/O requirement is 16 or fewer 1769 Compact I/O modules, arranged in up to 3 expansion banks.
  • The total count of EtherNet/IP nodes — drives, HMIs, remote I/O adapters, scanners, and other connected devices — stays at or below 32 nodes.
  • You need dual Ethernet ports with Device Level Ring for network resiliency without adding a managed switch at every cabinet location.
  • Your environment is 0 to 60 °C and your enclosure, power supply, and cabling are 1769-family compatible with Studio 5000 Logix Designer.

If your program is already close to 2 MB, your node count is approaching 32, or you anticipate significant expansion, the 1769-L36ER or 1769-L38ER models in the same 5370 L3 family offer higher memory and node capacity and are the correct step up. For very small, cost-sensitive machines, a Micro800-series controller may be the more economical fit.

On this page:

What the 1769-L33ER Actually Does in a Control System

The Allen-Bradley 1769-L33ER is the main CPU in a CompactLogix 5370 L3 control system. It executes the application program, manages the 1769 Compact I/O backplane, and acts as the EtherNet/IP scanner for all connected field devices and remote nodes. With 2 MB of user memory, the controller holds all logic tasks, data tables, motion configuration, and add-on instructions for a mid-scale machine or production cell. The included 1 GB SD card — expandable to 2 GB — provides nonvolatile storage for program backups, recipes, and data logging, which matters for fast recovery after a hardware swap or power event.

The dual EtherNet/IP ports go beyond a simple convenience feature. With Device Level Ring support, the two ports allow the controller to participate in a DLR ring topology, providing automatic network recovery if a single cable or device in the ring fails — without requiring a separate managed switch at every node. This makes the 1769-L33ER a practical choice for cabinet-level and machine-level networks where wiring simplicity and resiliency are both priorities. The USB port is present for local programming and initial commissioning but is not intended for permanent plant network connections.

In Rockwell Automation's portfolio, the 1769-L33ER sits above the Micro800 and MicroLogix families in capability and memory, and below the higher-capacity CompactLogix 5380 and ControlLogix platforms. That positioning makes it a natural fit for OEM machine builders and system integrators who need a full Logix-family PAC without the footprint or cost of a larger chassis-based controller.

Typical System Architecture: Where the 1769-L33ER Sits

The 1769-L33ER acts as the cell or machine controller, sitting between the plant-level EtherNet/IP network and the local 1769 Compact I/O modules that connect directly to field devices. A typical deployment chain looks like this:

  • Plant EtherNet/IP network or managed switch — upstream connection to SCADA, historian, or plant-level PLC.
  • 1769-L33ER controller — CPU, program execution, EtherNet/IP scanner, and Compact I/O backplane manager.
  • 1769 power supply — adjacent to the controller, sized for the backplane load of the local I/O bank.
  • Up to 16 local 1769 Compact I/O modules in up to 3 banks via expansion cables — discrete, analog, and specialty modules wired directly to field sensors, actuators, and drives.
  • Up to 32 EtherNet/IP nodes on the Ethernet network — variable frequency drives, remote I/O adapters, HMI panels, servo drives, or other EtherNet/IP-capable devices.

Typical Applications and Deployment Scenarios

The 1769-L33ER is a common choice for OEM packaging and assembly machines that rely on 1769 Compact I/O for field wiring and EtherNet/IP for drives, HMIs, and remote I/O. The controller's 2 MB memory accommodates the logic and data scope of most single-machine programs at this scale, and 32 EtherNet/IP nodes is sufficient for a machine with several variable frequency drives, a local HMI, and an upstream network connection.

Material handling systems and conveyor cells with moderate I/O point counts and EtherNet/IP-connected motor starters or drives are a natural fit. The DLR capability is particularly valuable in linear or loop-topology conveyor systems where ring wiring follows the physical machine layout and network resiliency is a maintenance requirement.

Retrofit and modernization projects replacing aging SLC 500 or MicroLogix systems represent a significant use case. Engineers moving legacy ladder logic into the Studio 5000 environment can retain their existing 1769 Compact I/O wiring while gaining modern EtherNet/IP networking, a larger memory space, and a current-generation Logix programming environment.

Cell-level controllers in multi-line manufacturing plants — where one CompactLogix CPU handles a defined production cell and reports upward to a plant-level system — also match the 1769-L33ER's node and memory profile well, provided the cell does not grow beyond 32 EtherNet/IP connected devices.

Application Typical Deployment
OEM packaging machine 1769-L33ER as main CPU, 1769 I/O for field wiring, EtherNet/IP drives and HMI
Conveyor or material handling cell DLR ring topology connecting motor starters and remote I/O along the machine frame
SLC 500 / MicroLogix modernization Drop-in CompactLogix upgrade retaining 1769 I/O wiring, migrating to Studio 5000
Food and beverage line control Cell-level controller managing discrete and analog I/O plus EtherNet/IP-connected instrumentation
OEM standard platform Common 1769-L33ER CPU across multiple machine variants, differentiated by I/O configuration and firmware
Water/wastewater skid Standalone skid controller with EtherNet/IP remote I/O and SCADA connection via dual Ethernet ports

Key Specifications and Capacity Limits

Parameter Value
Catalog Number 1769-L33ER
Product Family CompactLogix 5370 L3 controller
User Memory 2 MB
Included SD Card 1 GB (expandable to 2 GB)
Local I/O Expansion Up to 16 Compact I/O (1769) modules, max 3 expansion banks
Ethernet Ports 2x EtherNet/IP (embedded switch, DLR capable)
Max EtherNet/IP Nodes 32 nodes
USB Port 1x USB (programming and local configuration)
Operating Temperature 0 to 60 °C
Mounting DIN rail or panel mount

Full technical specifications are available on the product page at LeadTime.ca.

1769-L33ER vs Nearby CompactLogix 5370 L3 Models: Which CPU Do You Actually Need?

The CompactLogix 5370 L3 family offers several CPU variants that share the same 1769 Compact I/O backplane and Studio 5000 programming environment but differ in user memory, EtherNet/IP node count, and overall capacity. The table below summarizes the key differences to help you select the right model without over- or under-specifying.

Model User Memory Max EtherNet/IP Nodes Max Local I/O Modules Best Fit
1769-L33ER 2 MB 32 16 (3 banks) Mid-range machines and cells with moderate logic and networking
1769-L36ER Higher than 1769-L33ER (per 5370 L3 family) Higher than 32 (per 5370 L3 family) 16 (3 banks) Applications needing more memory or more EtherNet/IP nodes than L33ER provides
1769-L38ER Highest in 5370 L3 family Highest in 5370 L3 family 16 (3 banks) Largest programs or broadest EtherNet/IP networks within the 5370 L3 platform

If your logic scope, I/O count, and node count all fit comfortably within the 1769-L33ER's documented limits, it is the right choice. If you are already close to 2 MB of memory or 32 EtherNet/IP nodes during the design phase, stepping up to the 1769-L36ER or 1769-L38ER now avoids a controller change at commissioning. Check current availability and confirm your selection at LeadTime.ca.

Expert Verdict: Is the 1769-L33ER the Right CompactLogix CPU for Your Project?

The 1769-L33ER is a reliable, well-positioned CompactLogix 5370 L3 controller for controls engineers and OEM machine builders who need a full Logix-family PAC without jumping to a larger platform. Its 2 MB user memory handles the logic and data scope of most single-machine programs at the mid-range scale, and 32 EtherNet/IP nodes covers a typical mix of drives, HMI panels, remote I/O adapters, and upstream network connections without overbuilding. The dual EtherNet/IP ports with Device Level Ring capability add real network resiliency in a compact form factor — a practical advantage on machines where a ring topology follows the physical layout and a managed switch at every node is not warranted. Support for up to 16 local 1769 Compact I/O modules across 3 expansion banks also means OEMs and integrators can reuse existing Compact I/O wiring and module investments, which reduces redesign cost on retrofit and upgrade projects.

The 1769-L33ER has genuine limits, and being honest about them is part of specifying it correctly. If your application program is already consuming most of the 2 MB memory, or your node count is close to 32 during the design phase, specify the 1769-L36ER or 1769-L38ER instead — both sit in the same 5370 L3 family, use the same 1769 I/O and Studio 5000 environment, and offer higher capacity. For projects requiring integrated safety functions, the GuardLogix platform is the correct choice. For very small or highly cost-sensitive machines where 2 MB and 32 nodes are far more than needed, the Micro800 family may be the more economical fit. The 1769-L33ER is not the right answer for those applications, and no amount of creative programming workarounds changes the underlying capacity limits.

From a procurement standpoint, the 1769-L33ER is a mainstream catalog item in the CompactLogix family, and lead times can range from immediately available to several weeks depending on regional inventory and current demand. Ordering through a specialist distributor rather than a generic channel means you get a real-time stock and lead time check before committing to a build schedule, plus confirmation that the firmware revision and accessory compatibility align with your site standard — not just a catalog lookup. Pricing for the 1769-L33ER reflects its position as a mid-range CompactLogix CPU; it is available on the product page, and current pricing is displayed there automatically. View current availability and pricing for the 1769-L33ER at LeadTime.ca.

For volume pricing on multi-unit OEM builds or to confirm lead time before locking a project schedule, contact the LeadTime.ca team directly — we ship worldwide.

What Engineers Need to Know Before Ordering the 1769-L33ER

Model-specific community discussion for the 1769-L33ER is sparse across PLC forums and automation communities. Searches across Reddit r/PLC, r/automation, r/industrialautomation, PLCTalk, PLCS.net, MrPLC, and Rockwell Automation user forums did not surface consistent, model-specific feedback tied to this catalog number. Comments that did appear were generic to the CompactLogix platform rather than the L33ER specifically. This is not unusual for a mainstream, well-established CompactLogix CPU: engineers who have used it extensively tend to treat it as a known quantity within plant standards, and there is less forum activity around parts that work predictably when specified correctly.

What that means in practice is that the most reliable pre-purchase intelligence for the 1769-L33ER comes from Rockwell Automation's own documentation and from distributor-level sizing conversations — not from community anecdote. The recurring themes that do appear at the CompactLogix platform level are almost entirely about capacity planning: engineers who underestimated memory needs, miscounted EtherNet/IP nodes, or did not account for firmware revision alignment before ordering. These are exactly the risks the Wrong-Part Prevention Checklist below addresses. When community feedback is thin, that checklist becomes your primary safeguard.

LeadTime.ca's team works with controls engineers and procurement specialists globally on exactly these pre-order validation questions — confirming memory and I/O headroom, checking firmware and lifecycle status, and providing real-time lead time data before a purchase order is committed. If you are specifying the 1769-L33ER for the first time or stepping into a new project environment, that conversation is worth having before the order is placed rather than after the controller arrives on site.

Installation and Wiring Overview

The following points summarize the key installation requirements for the 1769-L33ER. For full wiring diagrams, torque specifications, and installation procedures, refer to the Allen-Bradley CompactLogix 5370 L3 controllers installation and user manual from Rockwell Automation.

  • Mount the 1769-L33ER on DIN rail or panel according to manufacturer clearance and orientation guidelines; operating temperature must remain within 0 to 60 °C and enclosure conditions must meet the controller's environmental ratings.
  • Attach the 1769 power supply directly adjacent to the controller, then connect 1769 Compact I/O modules in sequence across up to 3 expansion banks, respecting backplane current limits and the 16-module maximum.
  • Connect Ethernet cabling to the dual EtherNet/IP ports following the intended topology — star or Device Level Ring — and do not treat the two ports as generic switch ports or use them for improvised daisy chains with unmanaged devices.
  • Provide external branch circuit protection and main disconnect as required by the applicable electrical code and Rockwell Automation wiring guidelines; the USB port is for initial programming and local configuration only, not permanent plant network use.
  • After powering up, verify status LEDs on the controller and I/O modules before downloading the application program; confirm that all Ethernet nodes are recognized in the Studio 5000 project before placing the controller in RUN mode.

Wrong-Part Prevention Checklist

Before placing your order for the Allen-Bradley 1769-L33ER, work through each item in this checklist. Skipping any one of these is the most common cause of a mid-project controller change.

  1. Confirm your application's logic, data, and motion requirements fit within 2 MB user memory; otherwise move to a higher memory CompactLogix CPU.
  2. Count required local I/O modules (1769 series) and verify you do not exceed 16 modules and 3 expansion banks.
  3. Count all EtherNet/IP nodes (drives, HMIs, remote I/O, scanners, etc.) and ensure 32 nodes or fewer are needed.
  4. Verify that 1769 Compact I/O, power supplies, and expansion cables you plan to use are compatible with the 5370 L3 family and your mounting configuration (DIN rail or panel).
  5. Check required temperature range and enclosure conditions; controller is rated for 0…60 °C, so high-temperature or harsh environments may need special enclosures or a different platform.
  6. Match controller firmware revision with your Studio 5000 Logix Designer version and site standard to avoid compatibility issues.

If any item on this checklist raises a question, contact LeadTime.ca before ordering — our team can validate your configuration and confirm current availability worldwide.

Frequently Asked Questions

How many EtherNet/IP nodes can the 1769-L33ER support, and what counts as a node?

The 1769-L33ER supports a maximum of 32 EtherNet/IP nodes. Every device that the controller communicates with over EtherNet/IP counts toward this limit — including variable frequency drives, servo drives, remote I/O adapters, HMI panels, smart instrumentation, and other EtherNet/IP-capable devices. Count every node during the design phase, not just the obvious ones, and include headroom for future additions.

Can I reuse my existing 1769 Compact I/O modules when upgrading from a legacy SLC 500 or MicroLogix system?

The 1769-L33ER is part of the CompactLogix 5370 L3 family and uses 1769 Compact I/O modules, so existing 1769-series I/O modules from a compatible system can generally be reused in the new architecture. You should verify that each specific module catalog number is supported in the 5370 L3 family and that your power supply selection accounts for the full backplane current load of the combined I/O bank. Rockwell Automation's migration documentation is the authoritative reference for this confirmation.

What is the difference between the 1769-L33ER and the 1769-L36ER or 1769-L38ER?

All three are CompactLogix 5370 L3 controllers sharing the same 1769 Compact I/O backplane and a maximum of 16 local I/O modules across 3 banks. The primary differences are user memory capacity and the maximum number of supported EtherNet/IP nodes — the 1769-L36ER and 1769-L38ER offer higher values on both parameters than the 1769-L33ER's 2 MB and 32 nodes. If your application is close to those limits during design, specifying the next model up is the lower-risk choice.

How should I design my EtherNet/IP network when using the dual-port 1769-L33ER — star topology or Device Level Ring?

Both topologies are supported. A star topology with a managed switch at the center is the most common approach for general plant networks. Device Level Ring uses both Ethernet ports on the 1769-L33ER to create a ring without a separate switch at the ring level, providing automatic recovery from a single cable or device failure. DLR is particularly useful on machines where ring wiring follows the physical layout and switch elimination simplifies the cabinet. Choose your topology deliberately based on your resiliency requirements — avoid improvised daisy chains using unmanaged switches, which can create intermittent communication faults.

What does the SD card in the 1769-L33ER do, and can I upgrade it?

The 1769-L33ER ships with a 1 GB SD card and supports cards up to 2 GB. The SD card provides nonvolatile storage for program backups, recipe files, and data logging, which enables fast program recovery after a controller replacement without requiring a laptop connection. Maintaining a current backup on the SD card is a standard best practice for any Logix controller installation.

What are the typical lead times for the 1769-L33ER, and is it stocked in Canada?

The 1769-L33ER is a mainstream CompactLogix catalog item and is generally stocked by major automation distributors in North America. Lead times vary with regional inventory levels and market demand — some distributors carry it in stock for immediate shipment, while others may quote several weeks depending on supply chain conditions at the time of order. LeadTime.ca ships worldwide and can provide current availability and lead time information before you commit to a purchase order. Contact us or check the product page for live stock status.

Why Order the 1769-L33ER from LeadTime.ca

  • Global shipping — LeadTime.ca sources and ships the 1769-L33ER to customers worldwide, not limited to any single region or country.
  • Real-time stock and lead time confirmation before you commit — no surprises on delivery timing when your build schedule depends on it.
  • Specialist distributor support for CompactLogix sizing questions, firmware compatibility checks, and accessory selection before the order is placed.
  • Volume pricing available for OEM multi-unit builds and plant-wide standardization projects — contact us directly for a quote.
  • Hard-to-source parts and urgent replacement support — we locate inventory across our global supplier network when local stock is unavailable.

At-a-Glance Summary

  • Catalog number: Allen-Bradley 1769-L33ER, CompactLogix 5370 L3 family.
  • User memory: 2 MB — confirm your logic, data, and motion configuration fits within this limit before ordering.
  • Local I/O: up to 16 Compact I/O (1769) modules in up to 3 expansion banks.
  • EtherNet/IP nodes: maximum 32 — count every connected device including drives, HMIs, and remote I/O adapters.
  • Ethernet ports: 2x EtherNet/IP with Device Level Ring capability and embedded switch function.
  • SD card: ships with 1 GB, supports up to 2 GB for program backup and nonvolatile storage.
  • Operating temperature: 0 to 60 °C; DIN rail or panel mount.
  • Programming environment: Studio 5000 Logix Designer — confirm firmware revision matches your site standard before ordering.
  • Step up to 1769-L36ER or 1769-L38ER if memory or node count is close to the 1769-L33ER's limits during design.
