Allen-Bradley 1769-L36ERM — CompactLogix 5370 L3 Buying Guide

By Abdullah Zahid
16 min read
Allen-Bradley 1769-L36ERM CompactLogix 5370 L3 3MB motion controller for OEM packaging and material handling machines

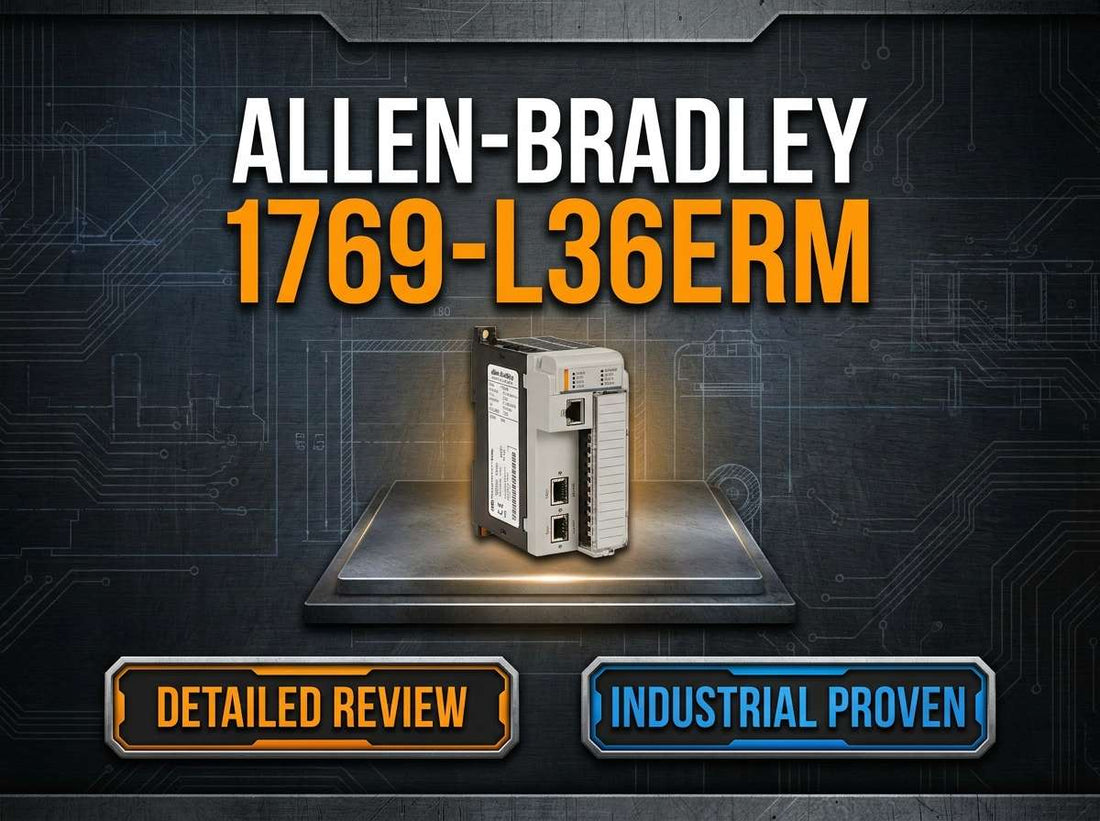

Allen-Bradley 1769-L36ERM CompactLogix 5370 L3, 3 MB Motion Controller: Specs, Pricing, and Selection Guide

Controls engineers and OEM machine designers searching for the Allen-Bradley 1769-L36ERM are typically at the same crossroads: they need a compact Rockwell controller that handles coordinated multi-axis motion over EtherNet/IP without stepping up to a full ControlLogix chassis. The 1769-L36ERM is the CompactLogix 5370 L3, 3 MB Motion Controller — a mid-range PAC with 3 MB of user memory, support for up to 16 CIP Motion axes on EtherNet/IP, dual Ethernet ports with Device Level Ring, and capacity for up to 30 local 1769 I/O modules across up to 3 expansion banks. It sits at a deliberate sweet spot: more capability than the L30 or L33 variants, without the footprint or cost of ControlLogix.

If you have already confirmed this is the right part, check current pricing and availability at LeadTime.ca — we ship worldwide.

Who Should Buy the 1769-L36ERM — and Who Shouldn't

The 1769-L36ERM is the right choice for engineers and OEMs who need all of the following in a single compact controller:

  • Integrated EtherNet/IP motion control for up to 16 axes via CIP Motion (servo drives, motion modules)
  • 3 MB of user memory for mid-complexity machine programs with multiple tasks and AOIs
  • Capacity for up to 30 local 1769 I/O modules across up to 3 expansion banks
  • Dual EtherNet/IP ports supporting Device Level Ring for resilient ring topology networks
  • Full Studio 5000 compatibility and Logix ecosystem interoperability without a ControlLogix chassis

If your project requires integrated safety alongside motion, the 1769-L36ERM is not the correct part — evaluate the 1769-L36ERMS instead. If axis count and memory requirements are lower, the 1769-L33ERM or 1769-L30ER may deliver the same result at a lower cost.

On this page:

What the 1769-L36ERM Actually Does in a Machine System

The 1769-L36ERM functions as the central logic and motion controller for mid-range machine cells and OEM equipment. It executes ladder, structured text, function block, and sequential function chart programs in Studio 5000, manages local 1769 I/O communications, and simultaneously coordinates up to 16 motion axes over EtherNet/IP using CIP Motion — all from a single compact controller without an external motion coprocessor or separate chassis.

The dual EtherNet/IP ports are not simply two connections to the same network. They support Device Level Ring, meaning you can wire all your drives, HMIs, remote I/O adapters, and barcode scanners in a physical ring. If a cable break occurs anywhere in that ring, the network self-heals and continues communicating — a capability that matters on packaging lines and material handling systems where unplanned downtime is expensive.

The 3 MB of user memory accommodates complex programs with multiple tasks, Add-On Instructions, and coordinated motion profiles. It sits between the 1769-L33ERM and the next tier up — enough for serious OEM machines, but bounded. If your program is growing past that ceiling, the migration path points toward the CompactLogix 5380 series rather than trying to squeeze more from the 5370 L3 platform.

The USB port on the controller is used for programming and initial configuration only. It is not a field network connection and carries no real-time data during operation.

Typical System Architecture for the 1769-L36ERM

The 1769-L36ERM sits at the controller layer, directly above the device network and below any supervisory SCADA or MES systems. Here is how a typical machine cell is assembled around it:

  • Engineering workstation running Studio 5000 connects via USB or Ethernet for program download and diagnostics
  • 1769 power supply mounted adjacent to the controller feeds the local I/O bank; end caps terminate each bank correctly
  • Up to 30 local 1769 Compact I/O modules mounted in up to 3 expansion banks provide digital and analog I/O directly on the rail
  • Dual EtherNet/IP ports connect downstream to servo drives, remote I/O adapters, HMI panels, and barcode scanners — wired as a linear chain or DLR ring depending on resilience requirements
  • CIP Motion axis objects in Studio 5000 map directly to EtherNet/IP servo drives for coordinated motion without additional hardware

Typical Applications and Deployment Scenarios

Multi-axis packaging lines are among the most common homes for the 1769-L36ERM. A horizontal flow wrapper, cartoner, or case packer with four to twelve servo axes, remote I/O for infeed and outfeed conveyors, and an HMI panel on the same EtherNet/IP ring represents an almost ideal fit for this controller's capabilities.

Material handling and intralogistics cells — sortation systems, palletizing cells, and automated conveyor junctions — benefit from the DLR topology because the network ring survives cable damage during maintenance without stopping the line. The combination of local 1769 I/O and distributed EtherNet/IP devices on a single controller simplifies the cabinet layout.

OEM machine builders in food and beverage, consumer goods, and light automotive assembly regularly standardize on the 1769-L36ERM as a platform controller. The Studio 5000 code developed for one machine family is largely reusable across other machines in the same fleet, reducing engineering time per project.

Retrofit projects where existing EtherNet/IP drives and remote I/O adapters need to be preserved are another strong use case. Because the 1769-L36ERM communicates using standard CIP and EtherNet/IP, existing field devices typically remain compatible without rewiring, provided firmware and IP addressing are handled correctly.

Skid-based process systems that need modest motion, a contained I/O count, and reliable Ethernet connectivity in a space-constrained panel also suit this controller. The compact 1769 form factor helps where a full ControlLogix rack would consume too much real estate.

Application Typical Deployment
Multi-axis packaging line Up to 16 servo axes over EtherNet/IP with local 1769 I/O for machine safety interlocks and pneumatics
Material handling cell DLR ring connecting drives, remote I/O, and HMI; local I/O for sensors and solenoids
OEM standard machine platform Single controller per machine with reusable Studio 5000 code base across fleet
Retrofit of existing EtherNet/IP system Existing drives and remote I/O preserved; controller replaced with 1769-L36ERM and firmware aligned
Skid-based process system Compact 1769 rail with moderate I/O count and EtherNet/IP connectivity to plant network
Pick-and-place or assembly cell Coordinated motion axes with vision system and barcode scanner on shared EtherNet/IP network

Specs That Drive the Purchase Decision

Parameter Value Notes
Catalog Number 1769-L36ERM Verify catalog number against project documents before ordering
Product Family CompactLogix 5370 L3 1769 CompactLogix platform
User Memory 3 MB As specified in Rockwell Automation documentation
Integrated Motion Axes Up to 16 axes over EtherNet/IP (CIP Motion) Confirm axis count against all drives and servo requirements
Local I/O Capacity Up to 30 1769 I/O modules Spread across up to 3 expansion banks
Expansion Banks Up to 3 banks of 1769 I/O Each bank requires correct power supply and end caps
Ethernet Ports 2 x EtherNet/IP with Device Level Ring Supports linear or DLR ring topology
USB Port 1 x USB (programming only) Not for field network use during operation
SD Card Ships with 1 GB SD card; supports up to 2 GB Use only Rockwell-approved SD cards for nonvolatile storage
Supply Voltage 24V DC via 1769 system power supply External protection required; verify with Rockwell datasheet

Full technical specifications are available on the product page at LeadTime.ca.

1769-L36ERM vs. CompactLogix 5370 Family Variants: Which One Do You Actually Need?

Model User Memory Motion Axes Safety Best For
1769-L30ER Lower than L36 None No Standard logic and I/O, no motion requirement, cost-sensitive applications
1769-L33ER / L33ERM Mid-tier Up to 16 (L33ERM) No Applications where 3 MB is more than needed; moderate I/O and motion
1769-L36ERM 3 MB Up to 16 No Mid-range OEM machines needing full 3 MB memory, 16-axis motion, and DLR
1769-L36ERMS 3 MB Up to 16 Yes (integrated safety) Applications requiring SIL-rated safety alongside motion — safety-rated sibling
1769-L37ERM Higher than L36 Up to 16 No Larger systems within the 5370 L3 family needing more memory headroom
CompactLogix 5380 series Higher More Variants available Performance and lifecycle upgrade path from 5370 L3; larger systems, higher axis counts

If your application requires integrated safety alongside coordinated motion, the 1769-L36ERMS is the correct catalog number — not the 1769-L36ERM. For systems that are already pushing axis count or network load limits, the CompactLogix 5380 series offers a natural upgrade path before stepping up to ControlLogix. Check current availability of the 1769-L36ERM at LeadTime.ca and contact the team if you need help comparing variants.

Expert Verdict: Where This Controller Earns Its Place and Where It Doesn't

The 1769-L36ERM is a well-defined tool for a well-defined job. It delivers 3 MB of user memory, up to 16 axes of CIP Motion over EtherNet/IP, dual ports with Device Level Ring, and local 1769 I/O capacity up to 30 modules — all in the compact 1769 form factor that OEMs and integrators already know how to panel, wire, and program. For controls engineers building multi-axis packaging machines, material handling cells, or OEM standard platforms inside the Rockwell ecosystem, this controller checks every box without the cost or footprint of a ControlLogix chassis. The Studio 5000 code base transfers cleanly from existing Logix projects, and the dual Ethernet ports make DLR ring design straightforward with drives and remote I/O from the same ecosystem.

The honest limits are just as clear. The 1769-L36ERM carries no integrated safety — if your machine safety analysis points to an integrated safety controller, the 1769-L36ERMS is the required part, not an option. If the axis count or EtherNet/IP connection load for your system is pushing against the limits of this platform, the CompactLogix 5380 series is the right migration target rather than trying to engineer around those constraints. For cost-sensitive applications where 16 axes and 3 MB are more than the machine genuinely requires, the 1769-L33ERM or 1769-L30ER will deliver the same core capability at a lower price point. And for large multi-cell systems with heavy motion and network demands, ControlLogix remains the appropriate platform.

From a procurement standpoint, the 1769-L36ERM is not a commodity item you pick off a generic catalog. Firmware major revision alignment with your plant standard is a non-negotiable pre-order check — controllers that ship on a different major revision than your existing Studio 5000 projects require a firmware update before they will accept a download, and that adds commissioning time. Supply availability fluctuates with Rockwell production cycles, and lead times can extend without warning when demand spikes. Buying through a specialist automation distributor gives you access to current lifecycle guidance, firmware advisory, and realistic lead time visibility that a generic channel simply cannot provide. View current pricing and lead time for the 1769-L36ERM at LeadTime.ca — we ship worldwide and carry both new and replacement stock.

For volume pricing, project-level quantities, or to confirm lead time before committing to a build schedule, contact the LeadTime.ca team directly — we ship worldwide and can advise on alternatives when stock is constrained.

What Engineers Are Saying About the 1769-L36ERM in the Field

Across communities including Reddit r/PLC, PLCTalk, PLCS.net, MrPLC, and the Rockwell Automation user forums, the 1769-L36ERM consistently earns the label of a solid, well-understood mid-range controller. Integrators and plant engineers who have deployed it on packaging lines and material handling cells regularly describe it as a reliable motion platform that behaves predictably within the Logix ecosystem. The convenience of dual Ethernet ports with DLR is a recurring positive — users note that ring wiring simplifies network design and that integration with Rockwell drives and remote I/O adapters is straightforward. The fact that Studio 5000 treats this controller similarly to larger Logix platforms means code libraries and Add-On Instructions developed for ControlLogix projects can often be reused with minimal modification.

The criticisms are equally consistent and worth taking seriously. Price is the most common complaint — community members frequently flag the 1769-L36ERM as expensive relative to smaller PLCs and some competitor platforms offering comparable I/O capacity. Connection and performance limits under heavy EtherNet/IP loading generate regular discussion: users who have attached large numbers of drives, remote I/O adapters, and HMIs simultaneously describe hitting practical ceilings earlier than they expected, with recommendations to leave meaningful headroom rather than designing to the limit. Firmware revision mismatches are the third recurring frustration — threads describing controllers that arrived from the warehouse on a different major revision than the plant standard appear frequently enough that experienced users now flag it as a standard pre-commissioning check, not an edge case.

On the ordering side, the community has identified three mistakes that come up repeatedly. The most costly is confusing the 1769-L36ERM with the 1769-L36ERMS — one is a standard controller, the other includes integrated safety, and the two are not interchangeable. The second is ordering an L33 or L30 variant to reduce cost, only to discover the axis count or memory is insufficient once the final machine design is locked. The third is forgetting to order the correct 1769 power supply, end caps, and enough local I/O module slots alongside the controller, which generates rework and expedited rush orders that eliminate the cost savings of the original substitution decision. These patterns confirm what any experienced controls engineer will tell you: specification discipline before the purchase order is placed saves significantly more time and cost than any price optimization at the point of ordering.

Wiring and Installation Overview

The following points summarize key installation requirements for the 1769-L36ERM. For complete wiring diagrams and step-by-step procedures, refer to Rockwell Automation installation and user manual documentation for the CompactLogix 5370 L3 platform.

  • Mount the controller on DIN rail or panel adjacent to the 1769 power supply, following Rockwell clearance and orientation guidelines for airflow and cabling access
  • The 1769 power supply must be positioned correctly relative to the controller and I/O modules; each expansion bank requires its own power supply and properly installed end caps at both ends of the bank
  • The 24V DC supply requires external protection; verify supply current capacity against the total load of all attached 1769 I/O modules using the Rockwell power budget tool
  • For EtherNet/IP cabling, use industrial-rated Ethernet cable and physically segregate it from power wiring; configure both Ethernet ports for linear topology or DLR ring depending on network resilience requirements
  • Verify that all 1769 I/O module keying is set correctly before applying power, and confirm module slot assignments match the Studio 5000 I/O tree configuration to prevent bus fault conditions at startup

Compatible Modules and System Expansion

The 1769-L36ERM supports a broad range of local and distributed expansion options within the 1769 CompactLogix and EtherNet/IP ecosystems. The following module types are used in typical 1769-L36ERM system builds:

  • 1769 Compact I/O modules — digital input, digital output, analog input, analog output, and specialty modules for up to 30 modules across up to 3 local expansion banks
  • 1769 power supply modules — required for each local I/O bank; selection depends on total module current draw and power budget
  • 1769 end caps — required at the end of each I/O bank; missing or incorrect end caps will cause an I/O bus fault
  • EtherNet/IP remote I/O adapters — extend I/O capacity beyond the local banks over the EtherNet/IP network
  • EtherNet/IP servo drives compatible with CIP Motion — connect directly to the EtherNet/IP ports for integrated axis control up to the 16-axis limit
  • Rockwell-approved SD cards up to 2 GB — used for nonvolatile program backup, automatic restore on startup, and data logging; only Rockwell-approved cards are supported

Wrong-Part Prevention Checklist Before You Order the 1769-L36ERM

Review every item on this checklist before issuing a purchase order. Each point addresses a documented ordering mistake or specification error that has caused project delays or rework in the field.

  1. Confirm you need a standard (non-safety) CompactLogix 5370 L3 controller, not the safety-rated 1769-L36ERMS.
  2. Verify that 16 motion axes on EtherNet/IP are sufficient for the application; if not, consider different platform.
  3. Count required 1769 I/O modules and ensure they do not exceed 30 modules and 3 expansion banks.
  4. Check available panel/rail space and that you have the correct 1769 power supply and end caps for the local I/O bank.
  5. Confirm dual Ethernet ports with DLR are required and compatible with your existing EtherNet/IP network design.
  6. Match the controller firmware major revision to the existing Studio 5000 project and plant standard.
  7. Ensure a suitable SD card (Rockwell-supported) is specified if you need nonvolatile storage and automatic program load.
  8. Check environmental ratings (temperature, shock, vibration) against the installation location and enclosure design.

If any item on this checklist raises a question, contact the LeadTime.ca team before ordering — we can help you validate the catalog number, check current firmware guidance, and confirm that the 1769-L36ERM fits your exact application.

Frequently Asked Questions

Will the 1769-L36ERM handle a large number of EtherNet/IP drives and remote I/O nodes without performance degradation?

The 1769-L36ERM supports EtherNet/IP communications for drives, remote I/O adapters, HMIs, and other devices across its dual ports. However, community feedback and Rockwell documentation consistently emphasize that connection counts and network load have practical ceilings. Engineers should count all EtherNet/IP connections planned for the system, verify them against the controller's documented limits in current Rockwell specification sheets, and leave meaningful headroom for future expansion. Designing to the absolute limit of the controller is a recognized source of performance problems.

What is the actual difference between the 1769-L36ERM and the 1769-L36ERMS — can I substitute one for the other?

The 1769-L36ERMS is the safety-rated sibling of the 1769-L36ERM and includes integrated safety functionality alongside the same motion and memory capabilities. The 1769-L36ERM is a standard controller with no integrated safety. These two catalog numbers are not interchangeable — if your machine safety assessment requires an integrated safety controller, the 1769-L36ERMS is the required specification. Ordering the wrong variant results in either a safety compliance gap or an overspend on unused safety capability.

How do I recover from a major non-recoverable fault after a failed firmware update on the 1769-L36ERM?

Major non-recoverable faults following a firmware update are typically addressed by using a Rockwell-approved SD card with a valid project and firmware image stored on it, following the controller's nonvolatile memory restore procedure documented in the CompactLogix 5370 L3 user manual. In some cases, a full firmware reflash using Rockwell tools via USB is required. Always back up the existing project from the controller before initiating any firmware update, and confirm the target firmware major revision matches your Studio 5000 project before beginning the process.

How does Device Level Ring work on the 1769-L36ERM, and what happens if the ring is physically broken?

Device Level Ring is an EtherNet/IP network topology where all devices are connected in a physical ring using the two Ethernet ports on the 1769-L36ERM and the ring ports on each participating device. If a cable break occurs anywhere in the ring, the network reconfigures automatically and communication continues through the remaining path. The 1769-L36ERM's dual EtherNet/IP ports enable it to act as the ring supervisor or participate in a supervised ring. DLR requires all devices in the ring to support the protocol — verify compatibility for every node before designing the ring topology.

Which Studio 5000 version and firmware major revision should I standardize on for 1769-L36ERM projects?

The firmware major revision that a 1769-L36ERM controller runs must match the major revision used when the Studio 5000 project was created or last saved. Mismatches between the controller's installed firmware and the project's target revision prevent successful downloads and are one of the most common commissioning delays reported in the field. The best practice is to establish a single firmware major revision standard across all controllers in a plant or machine fleet, verify the firmware on any new or replacement controller before installation, and update it using Rockwell tools before attempting a project download.

Is 3 MB of user memory sufficient for a complex OEM machine program?

For mid-range OEM machines with multiple tasks, coordinated motion routines, Add-On Instructions, and a moderate number of I/O points, 3 MB is generally sufficient. It is the defined capacity of the 1769-L36ERM as specified in Rockwell Automation documentation. If your program architecture involves very large data tables, extensive historian buffering, or dense motion profiles across many axes simultaneously, it is worth auditing your program memory usage against this limit during the design phase. If projections suggest 3 MB will be tight with room for future code growth, the 1769-L37ERM or the CompactLogix 5380 series warrants evaluation.

Why Order the 1769-L36ERM from LeadTime.ca

  • Global shipping — LeadTime.ca ships the 1769-L36ERM and related 1769 system components worldwide, not restricted to any single region
  • Specialist sourcing — access to current stock status, lead time visibility, and alternate sourcing options when manufacturer lead times extend
  • Pre-order validation support — the team can help confirm catalog numbers, firmware guidance, and accessory requirements before a purchase order is placed
  • Volume and project pricing — contact for framework orders, project quantities, and MRO sparing programs
  • Hard-to-find and replacement stock — capability to source controllers for retrofit and maintenance scenarios where standard distribution channels show extended lead times

At-a-Glance Summary

  • Catalog number: 1769-L36ERM — CompactLogix 5370 L3, 3 MB Motion Controller
  • User memory: 3 MB as specified in Rockwell Automation documentation
  • Integrated motion: up to 16 axes over EtherNet/IP using CIP Motion
  • Local I/O capacity: up to 30 1769 I/O modules across up to 3 expansion banks
  • Ethernet ports: 2 x EtherNet/IP with Device Level Ring support for linear or ring topologies
  • USB port: 1 x USB for programming only — not a field network port
  • SD card: ships with 1 GB card, supports up to 2 GB with Rockwell-approved cards
  • Supply voltage: 24V DC via 1769 system power supply with external protection required
  • Safety: standard controller only — integrated safety requires 1769-L36ERMS
  • Programming environment: Studio 5000; firmware major revision must match project standard before commissioning
  • Typical use: multi-axis packaging lines, material handling cells, OEM machine platforms, skid-based systems with moderate motion and I/O
  • Pricing: available on the product page at LeadTime.ca; contact for current pricing and lead time
