Allen-Bradley 1769-IQ16 — CompactLogix DC Input Module Review

By Abdullah Zahid
15 min read

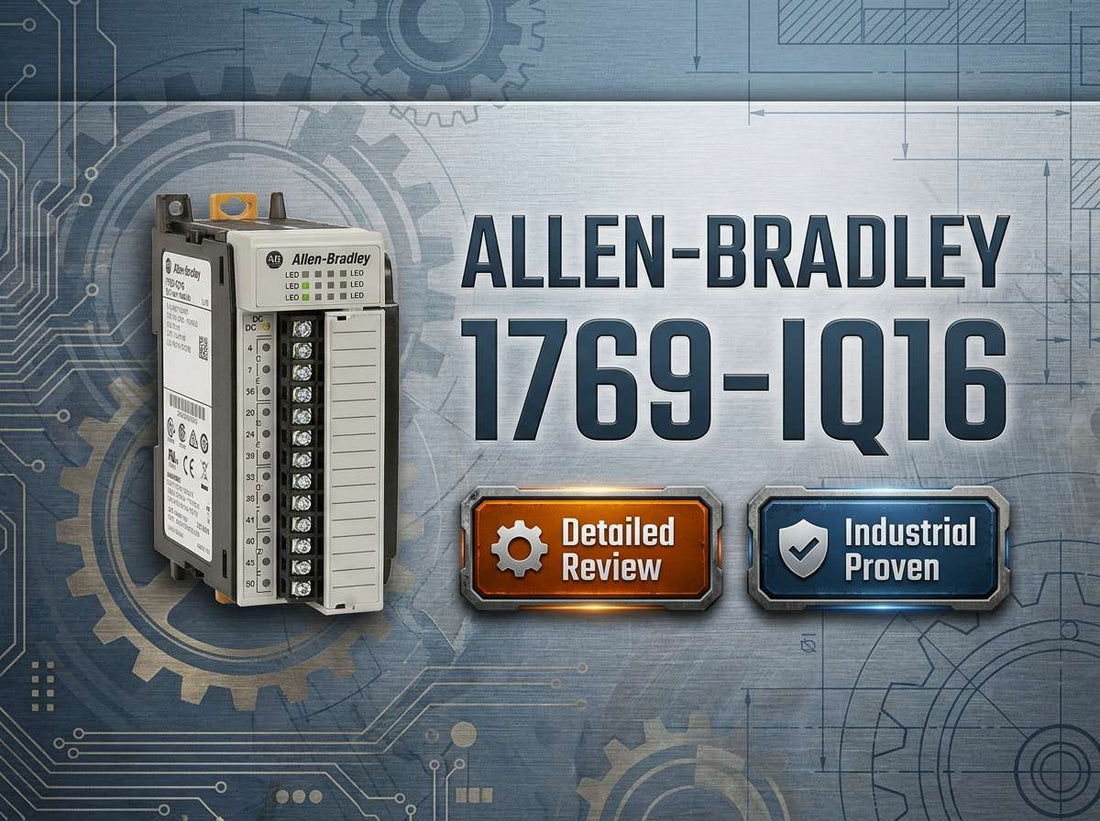

Allen-Bradley 1769-IQ16 16-point 24V DC digital input module for CompactLogix and MicroLogix 1500 systems

Allen-Bradley 1769-IQ16 CompactLogix 16 Pt 24VDC D/I Module: Specs, Selection Guide & Procurement Review

When a controls engineer or MRO buyer searches for the Allen-Bradley 1769-IQ16, the decision is almost always already narrowed: they need a 16-point 24V DC discrete input module that fits a 1769 Compact I/O stack on a CompactLogix or MicroLogix 1500 system, and they need to confirm they have the right catalog number before placing the order. The 1769-IQ16 is a sink/source module arranged in two groups of eight inputs, operating across a 10–30V DC range, and drawing a defined current from the 5V backplane supply — all of which must be verified against the existing system before committing to a purchase. If you have already confirmed this is the right part, check current pricing and availability at LeadTime.ca — we ship worldwide.

Who Should Buy the 1769-IQ16 — and Who Shouldn't

The Allen-Bradley 1769-IQ16 is the right choice when all of the following apply to your project:

  • Your controller is CompactLogix with a 1769 backplane, or you are expanding a MicroLogix 1500 system — this module does not fit ControlLogix chassis directly.
  • Your field devices are 24V DC discrete signals — proximity sensors, photo-eyes, limit switches, pushbuttons, or auxiliary contacts.
  • You need exactly 16 input points per module, arranged in two groups of eight with shared commons per group.
  • Standard-speed input response is sufficient — no encoder counting or high-frequency pulse capture required.
  • Your 5V backplane power supply has sufficient remaining capacity to absorb this module's current draw when added to the existing 1769 stack.
  • You are operating within the 0–60 °C ambient temperature range and standard industrial vibration conditions.

If you need 32 input points on one module, consider the 1769-IQ32. If your field devices are 120V AC, you need the 1769-IA16. If even a few channels require high-speed input capture, evaluate the 1769-IQ16F before finalizing your BOM.

On this page:

What the 1769-IQ16 Actually Does in a Running System

The Allen-Bradley 1769-IQ16 is a 16-point 24V DC sinking and sourcing digital input module within the 1769 Compact I/O product family. Its job is straightforward and critical: it reads the on/off state of field devices — sensors, switches, contacts — and passes that status information to the CompactLogix controller or MicroLogix 1500 system it is attached to. Every input channel monitors whether the field device has presented sufficient voltage and current to cross the ON threshold, and the module reports that state across the 5V backplane bus to the controller's input image table.

The 16 inputs are organized into two groups of eight. Each group shares a common terminal, which means your wiring scheme — sink or source — must be applied consistently within each group. The module supports both wiring types, giving design flexibility when field devices with different output configurations are present, as long as each group's common is wired correctly for the devices connected to it. The operating voltage range of 10–30V DC at typical ambient conditions provides tolerance for real-world 24V DC supply variations common in industrial panels.

Two verified proof points underpin the module's role in system design: the 1769-IQ16 draws a defined current from the 5V backplane supply that must be counted in total 1769 stack load calculations, and the module includes isolation between the field input side and the backplane at a specified test level — meaning your 24V DC field wiring is not directly referenced to the controller's logic supply, which matters for panel safety and noise immunity.

Typical System Architecture for the 1769-IQ16

The 1769-IQ16 sits between the field device layer and the controller's I/O image, occupying one slot in a 1769 Compact I/O stack mounted on DIN rail or panel inside a control enclosure.

  • CompactLogix CPU (e.g., 1769-L series) or MicroLogix 1500 — provides the controller and manages the 1769 backplane.
  • 1769 power supply module — feeds the 5V backplane; the 1769-IQ16's backplane current draw must be budgeted here alongside all other modules in the stack.
  • 1769-IQ16 — occupies one slot on the 1769 backplane; field wiring lands on the removable terminal block (RTB) on the front of the module.
  • 24V DC field wiring from the RTB — runs to proximity sensors, limit switches, photo-eyes, pushbuttons, or auxiliary contacts located on the machine.
  • Field devices — generate the discrete on/off signals that the 1769-IQ16 reads and reports to the controller via the backplane.

Where the 1769-IQ16 Gets Used: Industries and Machine Types

The most common deployment is as a standard building block in CompactLogix-based OEM machine panels. Packaging machinery, conveyor systems, and material handling equipment almost universally use 24V DC discrete sensors and switches as their field device layer, making the 1769-IQ16 the default input module selection for engineers building on the 1769 Compact I/O platform.

In food and beverage facilities, the module reads proximity sensors on filling heads, limit switches on gates and doors, and photoelectric sensors on product presence detection — all operating at 24V DC with standard sink or source output types. In automotive and general manufacturing, it monitors interlock contacts, overload relay auxiliary contacts, and cycle-complete signals from pneumatic and hydraulic actuators.

MRO replacement is a significant use case. When a 1769-IQ16 fails on an existing production line, the replacement priority is speed and confirmed one-to-one compatibility — no reprogramming, no reconfiguration, just a verified catalog number match and a module that arrives before the line sits idle. Water and wastewater facilities and small process skids also use the module as an economical way to expand MicroLogix 1500 systems with additional discrete input capacity without migrating to a different controller platform.

Application Typical Deployment
Packaging machinery Reading proximity sensors, photo-eyes, and jam detection switches on CompactLogix-controlled lines
Conveyor and material handling Monitoring limit switches, position sensors, and divert confirmation contacts
Automotive and general manufacturing Reading interlock contacts, overload relay auxiliaries, and cycle-complete signals
MRO replacement One-for-one swap in existing CompactLogix panels to restore production with no software changes
MicroLogix 1500 expansion Adding 24V DC input capacity to small systems as production requirements grow
OEM machine design Standard 1769 I/O building block for new CompactLogix panel designs across multiple machine types

Purchase-Decision Specs and Variant Comparison

Parameter Value
Catalog Number 1769-IQ16
Product Family 1769 Compact I/O
I/O Type 24V DC digital inputs, sink/source
Number of Input Points 16 (2 groups of 8)
Operating Voltage Range 10–30V DC at typical ambient
Compatible Controllers CompactLogix 1769-based systems; MicroLogix 1500 expansion
Backplane Supply 5V DC backplane current draw (verify total stack load against power supply rating)
Isolation Field side isolated from backplane at specified test level
Operating Temperature 0–60 °C
Terminal Block Removable terminal block (RTB); DIN rail or panel mount

Full technical specifications are available on the product page at LeadTime.ca.

Module Input Points Voltage Type Speed Best For
1769-IQ16 16 (2 × 8) 24V DC sink/source Standard General-purpose 24V DC inputs in CompactLogix or MicroLogix 1500 systems
1769-IQ16F 16 24V DC sink/source High-speed Applications requiring fast input capture or simple counting on dedicated channels
1769-IQ32 32 24V DC sink/source Standard Higher input density where rail space is limited and 32 DC inputs are needed per slot
1769-IA16 16 120V AC Standard Field devices wired at 120V AC — not interchangeable with 1769-IQ16
1769-OB16 16 outputs 24V DC transistor Standard 24V DC discrete outputs — outputs, not inputs; different module type entirely

If your application requires 32 points in a single slot or high-speed input capture on dedicated channels, the 1769-IQ32 or 1769-IQ16F is the correct selection — check current availability and confirm the right variant at LeadTime.ca.

Expert Verdict: Is the 1769-IQ16 the Right Part for Your Application?

For controls engineers and OEM panel designers already working within the CompactLogix ecosystem, the Allen-Bradley 1769-IQ16 is the logical default when 24V DC discrete inputs are required. The 16-point density in two groups of eight aligns well with typical field device counts on small to mid-size machines, and the sink/source flexibility means you are not locked into one wiring polarity at the design stage. The module integrates cleanly with the 1769 backplane without additional adapters, and its long history in CompactLogix systems means maintenance teams are already familiar with the wiring layout, LED diagnostics, and how to swap it under pressure. The 10–30V DC operating range provides the tolerance you need against real-world 24V DC supply variation on the plant floor.

Where the 1769-IQ16 has genuine limits: it is not a safety-rated device, so applications with safety function requirements need a dedicated safety I/O module instead. The cost per input point is higher than what you would see on lower-tier PLC platforms, which makes it a harder sell on greenfield projects where no Allen-Bradley investment exists. If even a handful of channels need high-speed pulse capture or encoder input, the 1769-IQ16F is the better selection for those points — or plan a dedicated high-speed module alongside standard 1769-IQ16 modules for the remaining channels. Buyers who need more density per slot should look at the 1769-IQ32 before finalizing the module count and rail layout.

On the procurement side, the 1769-IQ16 is a well-established, widely stocked module in the 1769 Compact I/O family, which means availability from specialist distributors is generally better than for more niche catalog numbers. That said, for MRO replacements where a line is down, confirming actual stock — not just catalog listing — before placing the order matters. A specialist distributor can verify compatibility with your specific CPU and power supply, flag any lifecycle or substitution considerations, and source new or legacy stock faster than general catalog channels. Check live pricing and stock status for the 1769-IQ16 at LeadTime.ca — we ship worldwide and carry both new and available surplus stock to serve urgent MRO and planned project timelines.

For volume pricing or to confirm lead time before committing to a build, contact the LeadTime.ca team directly — we ship worldwide.

What Controls Engineers and Buyers Are Saying About the 1769-IQ16

Across PLC forums including PLCTalk, PLCS.net, MrPLC, Reddit r/PLC, Reddit r/automation, and Rockwell Automation's own support forums, the recurring description for the 1769-IQ16 is a workhorse. Engineers who have run these modules in packaging lines, conveyors, and general manufacturing report very few unexpected failures when the module is installed correctly and the 24V DC supply is stable. The 16-point density is consistently praised as a practical fit for small to mid-size machines — enough inputs to handle a typical machine zone without leaving unused channels and wasted cost. The front-panel status LEDs earn repeated mentions for making field diagnostics fast: when a sensor fails or a wire pulls loose, the LED state on the module immediately narrows the troubleshooting location without requiring a laptop and a live software session.

The main criticism that surfaces consistently is cost. Engineers comparing the 1769-IQ16 against input modules from lower-cost PLC ecosystems note the price premium, particularly on greenfield projects where no existing Allen-Bradley investment justifies the platform lock-in. For plants already standardized on CompactLogix, the cost is accepted as the price of ecosystem consistency and long-term parts availability. A second recurring complaint is sink and source wiring confusion — specifically around shared commons within each group of eight. Technicians new to Allen-Bradley I/O occasionally land commons incorrectly across groups or wire sourcing and sinking devices against the wrong common, resulting in inputs that appear stuck or show unexpected behavior. A third community-reported issue is physical: bus connector or side latch damage during module swaps, usually when the module is pulled without fully releasing the bus lever first. This is a handling practice issue rather than a module design defect, but it shows up in enough posts that it is worth noting before any hot-swap or maintenance procedure.

Ordering mistakes reported across these communities follow a clear pattern. The most frequent is confusing the standard 1769-IQ16 with the 1769-IQ16F high-speed variant — the catalog numbers are close enough that a copy-paste error or a misremembered BOM item results in receiving the wrong module. The second common mistake is purchasing 24V DC input modules when the field devices are wired at 120V AC, requiring a reorder of the 1769-IA16. The third is attempting to install 1769 Compact I/O modules directly into a ControlLogix chassis without an appropriate communication interface — a system architecture mismatch that is entirely avoidable with a quick platform compatibility check before ordering.

Wiring and Installation Overview

  • The 1769-IQ16 supports both sinking and sourcing wiring configurations; the wiring scheme must be consistent within each group of eight inputs, as each group shares a single common terminal — mixing wiring types across a group's common will cause unpredictable input behavior.
  • Before mounting or wiring, isolate power to the panel and verify no voltage is present at the 1769 power supply or 24V DC field supply — the removable terminal block can be landed and inspected off the module before installation.
  • Secure the module to adjacent 1769 modules on DIN rail or panel using the bus lever; confirm the side connector is fully engaged and the locking mechanism is seated before applying power — forcing a module out without releasing the lever is the primary cause of connector damage reported in community feedback.
  • Land 24V DC supply, group commons, and individual input conductors on the RTB per the wiring diagram in the manufacturer's installation documentation; add external fusing or circuit protection on the 24V DC field supply feeding the module's input group circuits.
  • After energizing, verify the module status LED indicates normal operation and trigger each field device individually to confirm the corresponding channel LED changes state before proceeding to software commissioning.

Compatible Modules and System Expansion

The 1769-IQ16 coexists in a 1769 Compact I/O stack with a wide range of other 1769-series modules. Planning a mixed stack requires confirming total 5V backplane current draw against the selected 1769 power supply rating. Common modules paired with the 1769-IQ16 in typical CompactLogix panel designs include:

  • 1769-IQ32 — 32-point 24V DC digital input module for higher-density input requirements in the same 1769 stack
  • 1769-IQ16F — 16-point high-speed 24V DC input module for channels requiring fast response or simple pulse capture
  • 1769-IA16 — 16-point 120V AC input module when AC field devices are present alongside DC devices in the same panel
  • 1769-OB16 — 16-point 24V DC transistor output module for driving solenoids, contactors, and indicators
  • 1769-OW16 — 16-point relay output module for mixed voltage output applications or where dry contact outputs are required
  • 1769 power supply modules — sized to cover total backplane current draw across all modules in the local and expansion 1769 segments

Wrong-Part Prevention Checklist Before You Order

Before placing your order for the 1769-IQ16, verify every item on this checklist against your project documentation:

  1. Confirm controller family: 1769 backplane (CompactLogix or MicroLogix 1500) is required; not for ControlLogix chassis.
  2. Verify signal type: 24V DC discrete devices only; not suitable for 120V AC or analog.
  3. Confirm sink/source wiring requirements match device commons and wiring standards on the machine.
  4. Check that 16 inputs are enough; if not, consider additional modules or higher-density options.
  5. Verify module is standard-speed; for encoder or high-speed counting, check if a high-speed input module is required.
  6. Confirm environmental ratings (0…60 °C, vibration, panel space) align with panel design and site conditions.
  7. Check backplane current and power supply capacity to ensure total 1769 stack load is within limits.
  8. Confirm lifecycle/availability (active, active mature, or limited) and if a long-term support strategy is needed.

If any item on this checklist raises a question before you finalize the order, contact the LeadTime.ca team — our team can confirm compatibility with your specific CPU, power supply, and 1769 stack configuration before you commit.

Frequently Asked Questions

Can I use the 1769-IQ16 with any CompactLogix CPU, or are there firmware or catalog restrictions?

The 1769-IQ16 is compatible with CompactLogix controllers that use the 1769 backplane. Confirm your specific CPU catalog number supports 1769 Compact I/O expansion — controllers outside the 1769 family, including ControlLogix, require a communication interface and are not direct backplane mounts. Always verify your Studio 5000 or RSLogix project recognizes the catalog number at your installed firmware revision.

Can I wire sinking and sourcing sensors on the same 1769-IQ16, and how do I do it safely?

Yes, but not within the same group of eight. Each group of eight inputs shares a common terminal, so all devices connected to one group must use the same wiring convention — all sinking or all sourcing — to avoid short circuits or incorrect input states. If you have a mix of sensor types, split them across the two groups and wire each group's common appropriately for the devices on that group.

Why is an input LED lit on the 1769-IQ16 but the PLC tag is not changing state in Studio 5000?

This is most often a configuration mismatch — the slot is defined in hardware configuration but the tag is not mapped to the correct input address, or the slot index is wrong in the project. Verify the module's slot number matches the hardware configuration, confirm the input tag path, and check that the controller is in Run mode with the program downloaded and active. If the LED and tag agree but the logic is not responding, the issue is typically in the program logic referencing a different tag address.

Is the 1769-IQ16 fast enough for counting pulses from a proximity sensor, or do I need the 1769-IQ16F?

The 1769-IQ16 is a standard-speed input module suited for general discrete device monitoring — sensors, switches, and contacts where response time is measured in milliseconds aligned with normal controller scan rates. For pulse counting, encoder feedback, or any application where input transitions happen faster than the controller's input filter and scan cycle can reliably capture, the 1769-IQ16F or a dedicated high-speed counter module is the correct selection. If in doubt, check the pulse frequency of your application against the standard filter times documented in the manufacturer's datasheet.

What is the safest way to replace a failed 1769-IQ16 without damaging the bus connector or causing a controller fault?

Power down the 24V DC field supply feeding that module group before removing the terminal block. Follow the manufacturer's procedure for releasing the bus lever before pulling the module from the stack — forcing the module without fully releasing the latch is the leading cause of connector damage reported in community forums. After installing the replacement module, verify the hardware configuration in Studio 5000 matches the replacement catalog number and slot position, then restore power and confirm channel LED status before returning the machine to service.

Does the 1769-IQ16 count as one slot in the 1769 stack, and how many modules can I add to my CompactLogix system?

Yes, the 1769-IQ16 occupies one slot on the 1769 backplane. The maximum number of 1769 modules per system depends on the specific CompactLogix CPU catalog number and the expansion power supply configuration — refer to your controller's user manual for the exact limits applicable to your CPU. Each module's backplane current draw at 5V must be summed across the entire local and expansion bank and compared against the power supply's rated output before finalizing the module count.

Why Order the 1769-IQ16 From LeadTime.ca

  • LeadTime.ca ships worldwide — whether you are sourcing from Canada, the US, or internationally, we process and ship to your location.
  • We carry both new and available surplus 1769 Compact I/O modules, which matters when a production line is down and standard channel lead times are too long for your timeline.
  • Our team can confirm compatibility with your specific CompactLogix CPU and 1769 power supply before the order ships — reducing the risk of receiving the wrong variant.
  • Volume pricing is available for OEM builds and planned project orders — contact us with your BOM for a consolidated quote.
  • Hard-to-find and legacy 1769 modules are a specialty; if the standard catalog is on extended lead time, we source alternatives through verified channels.

At-a-Glance Summary

  • The Allen-Bradley 1769-IQ16 is a 16-point 24V DC sink/source digital input module in the 1769 Compact I/O family.
  • Inputs are arranged in two groups of eight, each with a shared common terminal that must be wired consistently for sink or source configuration.
  • Operating voltage range is 10–30V DC at typical ambient, providing tolerance against real-world 24V DC supply variation.
  • Compatible with CompactLogix controllers on the 1769 backplane and with MicroLogix 1500 as expansion I/O — not directly compatible with ControlLogix chassis.
  • Operating temperature range is 0–60 °C; module mounts on DIN rail or panel and uses a removable terminal block for field wiring.
  • The 5V backplane current draw must be counted against total 1769 stack load and verified against the power supply rating before adding the module.
  • Standard-speed input response — not suitable for high-frequency pulse capture; use 1769-IQ16F for high-speed channels.
  • The most common ordering mistakes are confusing 1769-IQ16 with 1769-IQ16F or 1769-IA16, and attempting to use the module in non-1769 chassis without an interface.
  • Field-reported community sentiment: reliable workhorse for CompactLogix systems; cost and sink/source wiring nuances are the primary points of friction.
  • Available through LeadTime.ca with worldwide shipping — check current pricing and stock status on the product page.
