Allen-Bradley 1769-IF8 — CompactLogix Analog Input Buyer Review

By Abdullah Zahid
15 min read

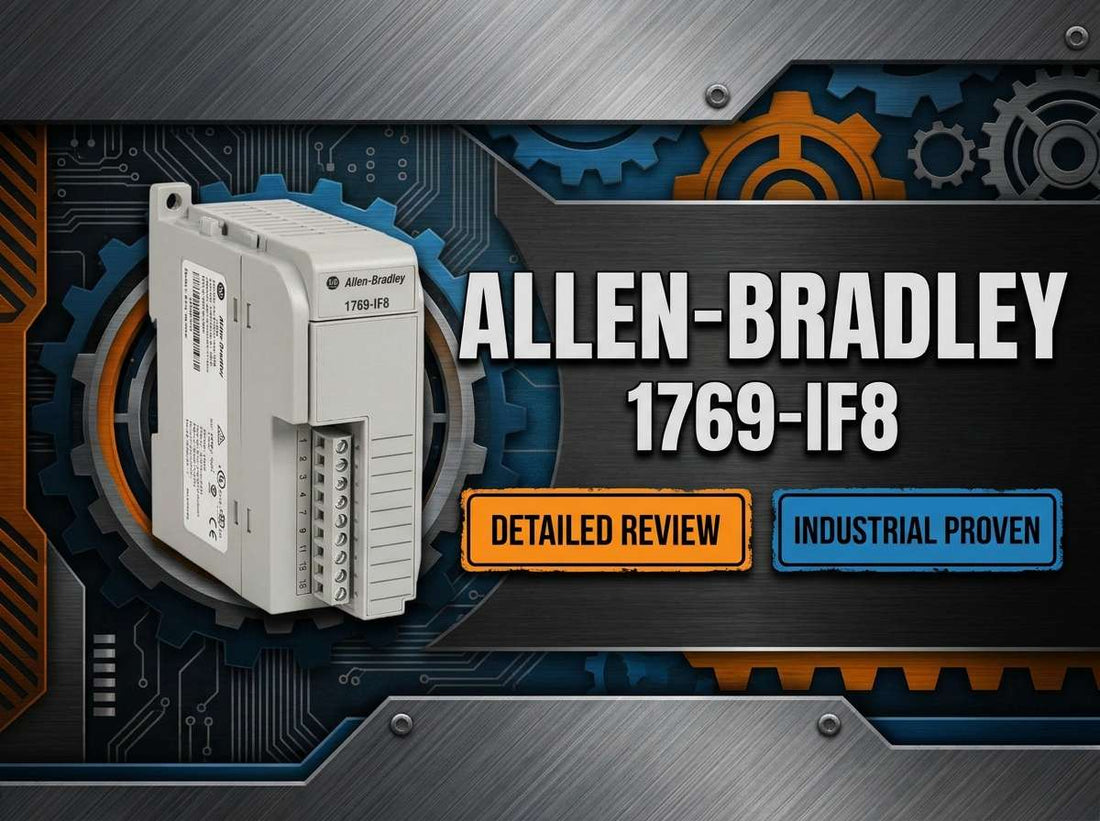

Allen-Bradley 1769-IF8 8-channel analog current voltage input module for CompactLogix and MicroLogix 1500 systems

Allen-Bradley 1769-IF8 Compact I/O 8 Channel Analog Current/Voltage Input Module: Specs, Review, Pricing & Alternatives

When a controls engineer is adding or replacing analog input capacity on a CompactLogix or MicroLogix 1500 system, the Allen-Bradley 1769-IF8 is one of the most frequently specified parts in the 1769 Compact I/O family. This 8-channel module accepts both current and voltage signals — including the industry-standard 4–20 mA and 0–10 V DC ranges — and delivers 16-bit signed resolution, making it the default choice for reading pressure, flow, level, and position signals into a CompactLogix rack. If you are at the final selection stage and need to confirm compatibility, pricing, and availability, this review gives you everything required to order with confidence.

If you have already confirmed this is the right part, check current pricing and availability for the Allen-Bradley 1769-IF8 at LeadTime.ca — ships worldwide.

Who Should Buy the 1769-IF8 — and Who Shouldn't

The Allen-Bradley 1769-IF8 is the right module when all of the following are true for your project:

  • Your controller platform is CompactLogix or MicroLogix 1500 using the 1769 Compact I/O bus — not ControlLogix 1756 or Compact 5000.
  • You need exactly 8 analog input channels on a single module slot, covering current and voltage signals from standard process transmitters.
  • Your field devices output signals within the supported ranges: 0–20 mA, 4–20 mA, ±10 V DC, 0–10 V DC, 0–5 V DC, or 1–5 V DC.
  • You require 16-bit signed resolution for fine measurement granularity on process signals such as pressure or flow.
  • You are programming in RSLogix 5000 or Studio 5000 and want fully native Rockwell integration with complete documentation and tag support.
  • You can provide external loop power for 2-wire transmitters — the 1769-IF8 does not supply loop power.

If you need fewer channels at lower cost, the 1769-IF4 is the correct choice. If your signals are temperature-based (RTD or thermocouple), look at the 1769-IR or 1769-IT series instead. For greenfield projects on the latest CompactLogix hardware, compare the 1769 family lifecycle against current Compact 5000 I/O options before committing.

On this page:

What the 1769-IF8 Actually Does in a Control System

The Allen-Bradley 1769-IF8 is a Compact I/O analog input module that bridges field instrumentation and the CompactLogix or MicroLogix 1500 processor. Its job is straightforward: it receives analog electrical signals from sensors and transmitters — pressure transducers, flow meters, level sensors, position feedback devices, drive output signals — converts them to digital values at 16-bit signed resolution, and presents those values as data tags in the PLC program. Each of the 8 channels is independently configurable for either current or voltage input, which means a single module can simultaneously read a 4–20 mA pressure transmitter on channel 0, a 0–10 V DC drive feedback on channel 3, and a 1–5 V DC position sensor on channel 6 — all within one slot.

The module sits on the 1769 Compact I/O backplane alongside other 1769-series digital and specialty modules. It requires a 1769 end cap (1769-ECR or 1769-ECL) at the end of the I/O group and draws power from the 1769 backplane. Because the 1769-IF8 does not supply loop power to transmitters, 2-wire 4–20 mA devices must be powered by a separate Class 2 supply. Over-range and under-range detection is built in, allowing the PLC program to respond to broken loops or failed sensors without ambiguity.

Typical System Architecture: Where the 1769-IF8 Sits

The 1769-IF8 occupies one slot in the 1769 Compact I/O expansion group, sitting between the CompactLogix controller (or MicroLogix 1500 base) and the field terminal strip. Here is the typical component chain:

  • CompactLogix processor or MicroLogix 1500 base unit — runs the PLC program and communicates via the 1769 backplane.
  • 1769 Compact I/O group — one or more 1769 modules in sequence, including the 1769-IF8 in its assigned slot, terminated with a 1769-ECR or 1769-ECL end cap.
  • Removable terminal block on the 1769-IF8 — field wiring lands here using shielded twisted pair cable from the field junction box or instrument.
  • External Class 2 loop power supply — powers 2-wire 4–20 mA transmitters; this supply is separate from the module and must be sized for all connected loops.
  • Field instruments — pressure, flow, level, temperature transmitters, drive analog outputs, or position sensors wired to individual channels, each configured independently in Studio 5000 or RSLogix 5000.

Typical Applications and Industries

In food and beverage processing, the 1769-IF8 is frequently used to read multiple 4–20 mA transmitters — tank level, line pressure, and flow — into a single CompactLogix rack controlling a mixing or filling skid. The ability to handle 8 channels per slot makes it practical to consolidate analog inputs without consuming multiple rack positions.

Packaging and material handling engineers use the module to monitor drive feedback, web tension signals, and position analog outputs from servo amplifiers or linear transducers, all within the same 0–10 V or ±10 V ranges the 1769-IF8 supports natively.

Water and wastewater treatment facilities rely on 4–20 mA instrumentation almost exclusively, and the 1769-IF8's current input channels map directly to flow meters, dissolved oxygen sensors, pH transmitters, and pressure transducers distributed across a CompactLogix-controlled process train.

Machine OEMs standardize on the 1769-IF8 as a common analog input card across machine variants, reducing spares inventory complexity and ensuring that field service technicians work with a single, well-documented module type regardless of which machine revision is installed at a customer site.

Retrofit projects — converting legacy analog panels to CompactLogix-based control — represent a major use case, where the 1769-IF8 acts as the direct receiver for existing 4–20 mA field wiring without requiring signal conditioners or protocol converters.

Application Typical Deployment
Process skid analog monitoring 4–20 mA pressure, flow, and level transmitters on a single 1769-IF8 in a CompactLogix rack
Packaging machine feedback 0–10 V drive analog outputs and position sensors on mixed-channel configuration
Water/wastewater treatment Multiple 4–20 mA field instruments (pH, flow, dissolved oxygen) wired to current-configured channels
MicroLogix 1500 analog expansion Additional 8-channel analog input capacity added to an existing MicroLogix 1500 system via 1769 I/O bus
Legacy panel retrofit Existing 4–20 mA field wiring re-terminated to 1769-IF8 terminal block during CompactLogix migration
OEM machine standardization Single 1769-IF8 catalog number used across multiple machine variants for spares simplification

Key Specifications for Purchase Decisions

Specification Value
Catalog Number 1769-IF8
Analog Input Channels 8, independently configurable
Supported Current Ranges 0–20 mA, 4–20 mA
Supported Voltage Ranges ±10 V DC, 0–10 V DC, 0–5 V DC, 1–5 V DC
Resolution 16-bit signed
Input Mode Single-ended and differential (per Rockwell documentation)
Compatible Controllers CompactLogix controllers and MicroLogix 1500 with 1769 I/O bus
Operating Temperature 0 °C to 60 °C
Relative Humidity Up to 95% non-condensing
Certifications UL / CSA industrial control (confirm current markings on product label)

Full technical specifications are available on the product page at LeadTime.ca.

1769-IF8 vs 1769-IF4 and Close Alternatives: Which One Do You Need?

Module Channels Signal Types Resolution Best For
1769-IF8 8 analog inputs Current and voltage (0–20 mA, 4–20 mA, ±10 V, 0–10 V, 0–5 V, 1–5 V) 16-bit signed Applications needing up to 8 mixed current/voltage inputs per slot on CompactLogix or MicroLogix 1500
1769-IF4 4 analog inputs Current and voltage 16-bit signed Lower channel count applications where cost per slot or panel space is a constraint
1769-IR series Varies RTD inputs Per Rockwell spec Temperature measurement via resistance temperature detectors
1769-IT series Varies Thermocouple inputs Per Rockwell spec Temperature measurement via thermocouples
1769-OF8C / 1769-OF8V 8 analog outputs Current or voltage outputs Per Rockwell spec Analog output applications — not an input module
Compact 5000 analog input modules Varies by catalog Current and voltage Per Rockwell spec New CompactLogix designs requiring latest-generation I/O platform and lifecycle

If your channel count is 4 or fewer and slot cost matters, the 1769-IF4 is the correct choice — check current availability for the 1769-IF8 and related 1769 analog modules at LeadTime.ca.

Expert Verdict: Is the 1769-IF8 the Right Long-Term Choice?

The Allen-Bradley 1769-IF8 is the natural default analog input choice when you are expanding or maintaining an existing CompactLogix or MicroLogix 1500 system and need up to eight mixed current/voltage channels per slot. It covers the full range of standard industrial analog signals — 4–20 mA process transmitters, 0–10 V drive feedback, 1–5 V position sensors — at 16-bit signed resolution, and it integrates directly into RSLogix 5000 and Studio 5000 without add-on instruction complexity or third-party driver overhead. For brownfield upgrades, warranty replacements, and OEM machine standardization within the Rockwell ecosystem, it earns its specification on reliability, documentation depth, and community knowledge base alone.

Where the 1769-IF8 has real limits: it is not the right choice for temperature inputs, which require the 1769-IR (RTD) or 1769-IT (thermocouple) modules instead. It does not provide loop power, so every 2-wire 4–20 mA transmitter in the system requires an external Class 2 supply — a cost and panel-space factor that sometimes tips the balance toward distributed remote I/O with integrated loop power on larger installations. For greenfield projects without an existing Rockwell Compact I/O infrastructure, comparing the 1769 family's lifecycle position against current Compact 5000 I/O alternatives is a step that should not be skipped before committing to a design.

From a procurement standpoint, the 1769-IF8 is widely available through North American distributors and is frequently listed as in-stock or ships-same-day, which matters when a failed module is holding up production. Factory lead times, when stock is depleted, vary by region and supply conditions — verifying current availability before finalizing a project schedule is always the right move. Buying through a specialist automation distributor rather than a generic channel means you get compatibility confirmation against your specific controller firmware, honest lifecycle guidance, and sourcing support for both new and remanufactured stock. Check current pricing and availability for the Allen-Bradley 1769-IF8 at LeadTime.ca — we ship worldwide.

For volume pricing, project quantities, or to confirm lead time before committing to a build schedule, contact the LeadTime.ca team directly — we ship worldwide.

What Engineers Report After Using the 1769-IF8

Across controls engineering forums including PLCTalk, PLCS.net, MrPLC, Reddit r/PLC, and Rockwell's own support community, the 1769-IF8 consistently draws positive long-term reliability feedback. Engineers working in food and beverage, water treatment, and general manufacturing report that modules installed correctly — with proper shielding and adequate panel cooling — run for years without hardware failure. The configuration workflow in Studio 5000 draws specific praise: once a controls engineer has set up channel types and ranges the first time, subsequent projects go faster because the process is identical and the documentation is thorough. The ability to cover both current and voltage inputs on a single module is a recurring practical advantage, particularly for OEM machine builders who want one part number to handle the full range of customer-specified sensors.

The most consistent complaint in the community is cost. Engineers comparing the 1769-IF8 against third-party analog I/O or non-Rockwell platforms note that the price premium is real, and on cost-sensitive projects with large analog point counts, it becomes a line-item discussion. A secondary but persistent complaint is commissioning confusion around 2-wire versus 4-wire transmitter wiring and the distinction between current and voltage input mode configuration in software. Forum threads show that most noise and instability issues reported as module defects are ultimately traced back to incorrect shield termination, analog cables routed alongside VFD wiring, or a missing loop power supply — not to hardware faults in the module itself. Getting those three things right at installation eliminates the majority of reported field problems.

Ordering mistakes are also well-documented in the community. The most common error is selecting an analog output module (1769-OF8C or 1769-OF8V) or a temperature input module (1769-IR or 1769-IT series) instead of the 1769-IF8, because the catalog number structure is similar across the analog family. The second frequent mistake is buying a 1769-IF4 when 8 channels are needed — or the reverse, buying the 1769-IF8 when only 3 or 4 channels are actually required. A third recurring issue is forgetting the 1769-ECR or 1769-ECL end cap when adding the module to an existing I/O group, which results in configuration errors that delay commissioning until the correct hardware arrives.

Wiring and Installation: What to Know Before You Start

  • The 1769-IF8 mounts within a 1769 Compact I/O group using tongue-and-groove alignment with adjacent modules; the group must be terminated with a 1769-ECR or 1769-ECL end cap, and backplane power budget must be confirmed before adding the module.
  • Each channel must be configured in software (RSLogix 5000 or Studio 5000) for either current or voltage mode and the appropriate range before field signals will read correctly — there is no hardware switch; all configuration is software-defined.
  • The 1769-IF8 does not supply loop power; 2-wire 4–20 mA transmitters require an external Class 2 power supply, with the supply positive feeding the transmitter and the return side completing the loop through the module's input terminal.
  • Shielded twisted pair cable is required for all analog signal wiring; shields must be bonded to earth ground at the module end only, with the field end left floating, and analog cables must be routed in separate conduit or cable trays away from power and VFD wiring.
  • Before powering the PLC, verify each loop independently with a multimeter to confirm correct polarity, continuity, and current output from the transmitter; over-range and under-range faults visible after power-up are frequently caused by wiring errors that a pre-power loop check would catch.

Compatible Modules and System Expansion

The 1769-IF8 operates within the 1769 Compact I/O ecosystem alongside a range of complementary modules. When planning a system that includes the 1769-IF8, the following 1769-family components are typically specified together:

  • 1769-IF4 — 4-channel analog current/voltage input module for applications requiring fewer input points per slot.
  • 1769-OF8C / 1769-OF8V — 8-channel analog current or voltage output modules for closed-loop control requiring analog command signals to drives or actuators.
  • 1769-IR6 — RTD analog input module for resistance temperature detector signals (not interchangeable with the 1769-IF8 for temperature measurement).
  • 1769-IT6 — Thermocouple analog input module for thermocouple signals.
  • 1769-ECR / 1769-ECL — Right-hand or left-hand end caps required to terminate every 1769 I/O group; must be ordered separately if not already present in the panel.
  • 1769-PA2 / 1769-PB2 — 1769 power supplies for AC or DC input, providing backplane power to the I/O group when a standalone power supply is required rather than drawing from the controller base.

Wrong-Part Prevention Checklist

Before placing your order for the Allen-Bradley 1769-IF8, work through each item on this checklist. These are the exact checks that prevent wrong-part orders and commissioning delays:

  1. Confirm controller family uses 1769 Compact I/O (CompactLogix / MicroLogix 1500) and not ControlLogix 1756 or Compact 5000.
  2. Verify you need an 8-channel analog INPUT module (1769-IF8), not analog output (e.g., 1769-OF8C/OF8V) or RTD/thermocouple (1769-IR/IT series).
  3. Check that required signal types and ranges (0–10 V, ±10 V, 4–20 mA, etc.) are supported for all planned field devices.
  4. Confirm you have sufficient 1769 slot capacity and required end cap (1769-ECR/ECL) for the I/O group.
  5. Ensure you have external power/loop power supplies for transmitters (1769-IF8 does not provide loop power).
  6. Check environmental ratings (temperature, humidity, enclosure) against panel conditions.
  7. Verify firmware/software support in your RSLogix/Studio 5000 or MicroLogix programming environment.
  8. For Canadian projects, confirm CSA/UL approvals satisfy local inspection requirements.

If any item on this checklist raises a question about your specific system, contact LeadTime.ca before ordering — our team can validate compatibility against your controller hardware and confirm what additional components are needed.

Frequently Asked Questions

Can I configure some channels for 4–20 mA current and others for 0–10 V voltage on the same 1769-IF8?

Yes. Each of the 8 channels is independently configurable in RSLogix 5000 or Studio 5000 — you select current or voltage mode and the specific range per channel. A single 1769-IF8 can simultaneously read 4–20 mA transmitters on some channels and 0–10 V signals on others without any hardware modification.

Does the 1769-IF8 supply loop power for 2-wire 4–20 mA transmitters?

No. The 1769-IF8 does not provide loop power. For 2-wire transmitters, you must supply an external Class 2 power supply to power the loop. The transmitter's current output flows through the supply and returns through the module's input terminal. Four-wire transmitters have their own power supply and connect signal wires only to the module terminals.

Why does the 1769-IF8 show an over-range or under-range condition on a channel connected to a healthy transmitter?

The most common causes are a mismatch between the channel's configured input mode and the actual signal type (for example, the channel is set to voltage but a current loop is connected), an open loop due to a wiring error, or a transmitter output that falls outside the configured range. Verify that the channel mode and range in Studio 5000 match the transmitter output type, and use a multimeter to confirm the signal is present at the terminal before suspecting a module fault.

Is the 1769-IF8 still appropriate for new CompactLogix installations, or should I be moving to Compact 5000 I/O?

For systems already built on the 1769 Compact I/O platform — expansions, replacements, or OEM machine builds standardized on 1769 — the 1769-IF8 remains a supportable choice. For brand-new CompactLogix designs without an existing 1769 infrastructure, it is worth comparing the 1769 family's current lifecycle position against Compact 5000 I/O offerings, particularly for long service life requirements. A specialist distributor can advise on the current Rockwell lifecycle status before you commit to a platform.

What is the raw count range I should expect for a 4–20 mA input, and how do I scale to engineering units in Studio 5000?

The 1769-IF8 provides 16-bit signed resolution on its analog inputs. The specific raw count values corresponding to the minimum and maximum of each range are documented in Rockwell's installation instructions and user manual for the 1769-IF8. In Studio 5000, the SCL (Scale) instruction or CPT (Compute) instruction is typically used to map the raw integer count from the channel input tag to the appropriate engineering unit range (for example, 0 to 100 PSI for a 4–20 mA pressure transmitter). Refer to the Rockwell documentation for the verified count breakpoints before building your scaling code.

What is the typical lead time for the 1769-IF8, and how do I confirm availability before committing to a project schedule?

The 1769-IF8 is widely stocked by North American distributors and is frequently available for same-day or next-day shipment. Factory lead times apply when distributor stock is exhausted and can range from days to several weeks depending on region and supply conditions. Current availability and lead time should always be confirmed with a distributor before finalizing a project schedule — contact LeadTime.ca for a current stock and lead time check.

Why Order the 1769-IF8 from LeadTime.ca

  • Global shipping — LeadTime.ca sources and ships the Allen-Bradley 1769-IF8 to customers worldwide, not just within Canada or North America.
  • Compatibility validation — our team can confirm that the 1769-IF8 is the correct module for your specific CompactLogix or MicroLogix 1500 hardware before the order ships.
  • Stock and lead time transparency — we provide current availability and realistic lead time information, including access to remanufactured stock when new units have extended factory lead times.
  • Volume and project pricing — for multi-unit orders or project bills of materials, contact us for pricing that reflects order quantity.
  • Specialist sourcing — we handle hard-to-find 1769-family parts and can source companion components (end caps, power supplies, related analog modules) in the same order.

At-a-Glance Summary

  • The Allen-Bradley 1769-IF8 provides 8 independently configurable analog input channels within a single 1769 Compact I/O slot.
  • Supported current ranges: 0–20 mA and 4–20 mA; supported voltage ranges: ±10 V DC, 0–10 V DC, 0–5 V DC, and 1–5 V DC.
  • Resolution is 16-bit signed on all channels, providing fine measurement granularity for standard process signals.
  • Compatible controllers: CompactLogix and MicroLogix 1500 using the 1769 Compact I/O bus — not ControlLogix 1756 or Compact 5000.
  • Operating temperature: 0 °C to 60 °C; relative humidity: up to 95% non-condensing.
  • The module does not supply loop power — external Class 2 supply required for 2-wire 4–20 mA transmitters.
  • A 1769-ECR or 1769-ECL end cap is required to terminate the I/O group and must be ordered separately if not already present.
  • UL / CSA industrial control certifications apply — confirm current markings satisfy local inspection requirements for Canadian projects.
  • Pricing is available on the product page; contact LeadTime.ca for volume or project pricing.
