Common ET 200SP Wiring Mistakes

By Abdullah Zahid
26 min read

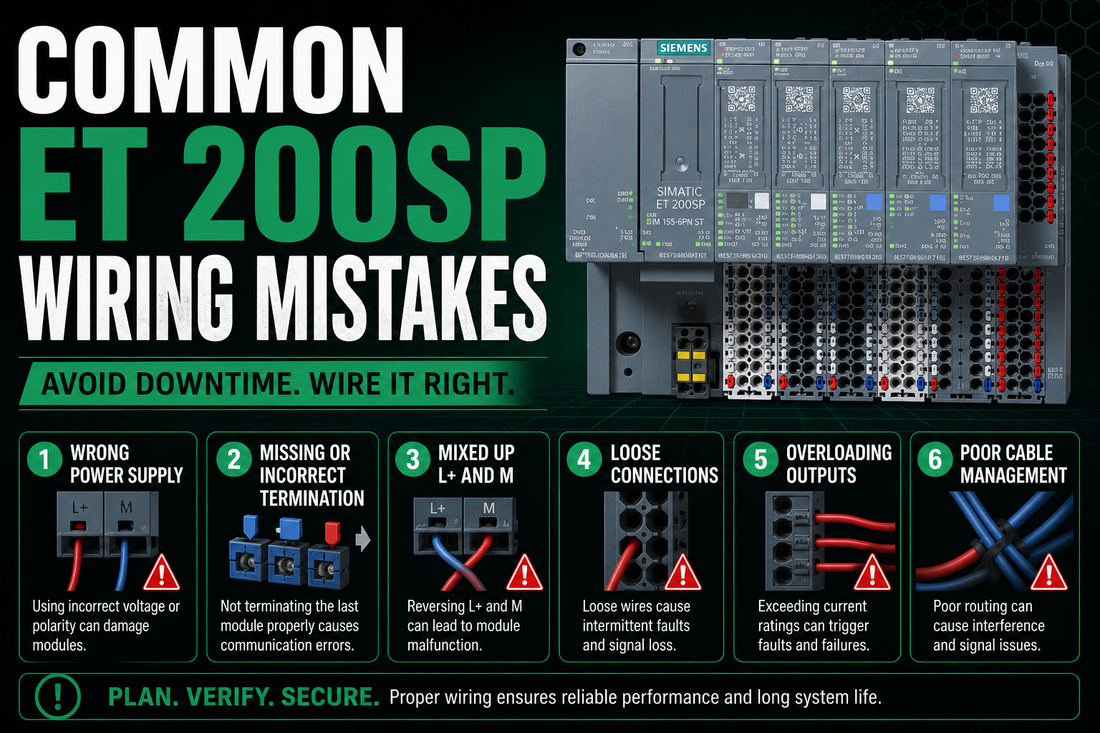

Siemens SIMATIC ET 200SP distributed I/O station showing BaseUnits and I/O modules wired in an industrial control panel

ET 200SP Wiring Errors and How to Troubleshoot Them

Controls engineers and technicians searching for answers on SIMATIC ET 200SP wiring mistakes are usually mid-installation or staring at a blinking red diagnostic LED with a commissioning deadline approaching. The SIMATIC ET 200SP distributed I/O system is a modular, scalable platform — but that modularity means wiring accuracy matters at every BaseUnit, every potential group, and every channel. A single miswired sensor type or missing 24 V DC supply can bring an entire station's diagnostics to red while the root cause sits two steps back in the wiring sequence.

This guide covers the most common ET 200SP wiring errors reported by engineers and technicians in the field, from missing BaseUnit power to RTD miswiring that triggers persistent wire-break alarms. Use it alongside the official Siemens system manual and your module-specific data sheets — those documents contain the exact terminal assignments and wiring diagrams for your catalog number combination, which this guide cannot replicate in full.

If troubleshooting has identified a damaged module or an incorrect variant that needs to be sourced quickly, check current availability at LeadTime.ca — the team ships ET 200SP modules worldwide and can help confirm the right part before you order.

Is This Wiring Guide Right for Your Situation?

This troubleshooting guide is written for engineers and technicians who already have an ET 200SP station installed and are diagnosing active faults. It is most useful when:

  • One or more ET 200SP modules show a solid or blinking red diagnostic LED and TIA Portal is reporting wire-break, missing supply, or channel errors
  • Digital input channels are not registering sensor signals despite apparent correct wiring
  • Analog input channels are reading 32767 or a constant maximum or minimum value with wire-break diagnostics active
  • Digital outputs are not energizing relays or solenoid valves
  • Modules show no power after installation or after a hardware configuration download
  • Wiring was recently modified — new modules added, sensors replaced, or station expanded — and symptoms appeared afterward

If your ET 200SP station has never been commissioned and you are building from scratch, refer directly to the Siemens SIMATIC ET 200SP System Manual and your module data sheets as primary references. This guide is a diagnostic complement, not a replacement for that documentation.

On this page:

Safety and Pre-Diagnostic Checks Before Touching ET 200SP Wiring

Before tracing any ET 200SP wiring fault, de-energize circuits where possible and apply lockout/tagout procedures appropriate to your site. Only qualified personnel with proper PPE should perform live voltage measurements on powered panels. This is not a formality — 24 V DC control wiring on ET 200SP BaseUnits can coexist in enclosures with higher-voltage field wiring, and safety-related circuits such as F-modules and motor starters require particular care.

Have the following available before starting:

  • The Siemens SIMATIC ET 200SP System Manual and data sheets for every module variant in the station — terminal assignments differ by catalog number and cannot be assumed to match across module types
  • Your TIA Portal project with online diagnostics access and permission to view the CPU diagnostics buffer
  • A calibrated multimeter for voltage, current, and continuity checks
  • Accurate panel wiring diagrams reflecting the current as-built state — if these do not exist or are out of date, treat everything as unverified until measured

If you observe overheating, damaged insulation, burned terminals, or repeated tripping of protective devices, stop diagnostic work and escalate. Do not attempt to clear safety circuit faults — F-modules and motor starters require formal safety validation procedures that are outside the scope of field wiring correction.

Understanding ET 200SP Hardware: What Affects Your Wiring

The SIMATIC ET 200SP system consists of a CPU or interface module, BaseUnits, and plug-in I/O modules. Understanding how these elements interact is the foundation for any wiring diagnosis.

BaseUnits are the wiring interface between field devices and plug-in I/O modules. They include the screw or push-in terminals used to connect sensors, actuators, supply voltages, and common potentials. Critically, BaseUnits have mechanical coding that reduces the risk of installing incompatible module types — but coding alone does not ensure the wiring is correct. Each BaseUnit type has a defined terminal assignment that is specific to the I/O module it is paired with. Never assume a terminal designation on one BaseUnit matches the same position on a different BaseUnit variant.

Potential groups define how 24 V DC supply voltage (L+) and common return (M) are distributed across BaseUnits in the station. White BaseUnits start a new potential group and require their own L+ and M wiring. Dark or gray BaseUnits continue the potential group from the preceding white BaseUnit. A common and persistent wiring mistake is failing to supply L+ and M on white BaseUnits, which results in dead channels and red diagnostic LEDs on all modules in that potential group.

Module types — digital input (DI), digital output (DO), analog input (AI), analog output (AO), high-availability (HA), and safety modules — each have distinct wiring requirements. Sensor type, channel count, common configurations, and supply routing all vary. The wiring diagram in the module-specific data sheet for your exact catalog number is the only reliable reference.

Symptom-to-Cause Map: Diagnosing ET 200SP Wiring Faults Fast

The tables below map the most common reported symptoms to their likely causes, what to check, corrective actions, and the point at which you should stop and escalate. Use these as a structured starting point — not a substitute for measuring and verifying against the Siemens system manual.

Wiring Faults

Symptom Likely Causes What to Check Corrective Action Escalation Point
No inputs change state on a new ET 200SP station Missing 24 V DC supply on BaseUnits (L+ and M), wrong potential group wiring Measure 24 V between L+ and M on relevant BaseUnits; verify power feed modules and fuses Wire L+ and M correctly, restore supply, verify potential groups If supply is correct but modules remain dead, suspect hardware damage or wrong module/BaseUnit combination
Single DI channel never turns on despite sensor actuation Sensor miswired (wrong terminals, wrong common), sensor type mismatch (PNP/NPN) Compare wiring with module manual; verify sensor datasheet; check common and supply connections Rewire sensor according to ET 200SP terminal diagram and sensor type; adjust sensor supply Escalate if diagnostics still show channel fault with correct wiring and configuration
Digital output does not energize relay or solenoid Load wired to wrong terminals; missing common; supply not present at L+ Verify wiring from output terminal to load and back to supply; measure voltage when output is on Correct output and load wiring; ensure correct L+ and common connections Escalate if output channel reports short circuit or permanent fault after rewiring
Analog input fixed at 0 or maximum value Open circuit, wrong sensor type wiring, channel configured for wrong mode Check continuity of sensor loop; verify correct terminals for 2-wire/3-wire/4-wire; review TIA Portal channel mode Repair wiring, match channel configuration to sensor type; ensure correct external power where required Escalate if values remain wrong with verified wiring and configuration

Configuration Faults

Symptom Likely Causes What to Check Corrective Action Escalation Point
Analog input shows wire-break alarm and max value Channel set to mode incompatible with actual wiring (e.g., 4-wire RTD with 2-wire connection) Review channel configuration in TIA Portal hardware; compare with sensor wiring diagram Set correct channel mode; re-download hardware; re-check diagnostics Escalate if wire-break persists and continuity is confirmed
Digital input shows active diagnostics despite apparently correct wiring Wrong sensor type (NPN on PNP module), incorrect reference potential, or disabled channel Verify module type vs sensor type; check commons and parameter settings Replace sensor or use appropriate input module; correct reference wiring; enable channel Escalate if module-level diagnostics suggests internal fault
Modules not powered after download Hardware configuration not matching physical modules/BaseUnits, or station not assigned correctly Check that actual modules match configured ones; check PROFINET name and topology Adjust hardware config to match physical layout; re-download and test Escalate if station remains unreachable despite correct configuration

Power Faults

Symptom Likely Causes What to Check Corrective Action Escalation Point
Several modules show red diag LEDs after power-up Missing potential group supply; incorrect power module wiring Measure voltage at each BaseUnit L+ and M; check power feed modules Restore correct power wiring and fusing; ensure separate potential groups are fed correctly Escalate if LEDs remain red and manuals indicate potential internal fault
Motor starter or HA module reports wire break/fault Incorrect outgoing feeder wiring, undersized cables, or open circuit Verify outgoing feeder cable sizing and continuity; check terminals per manual Correct cable selection and wiring; tighten terminals; re-test diagnostics Escalate for safety-related circuits if faults cannot be cleared confidently

Commissioning Faults

Symptom Likely Causes What to Check Corrective Action Escalation Point
Newly added ET 200SP module shows diag LED and does not operate Wrong BaseUnit type, incorrect keyed position, or mismatched product key Verify catalog numbers and coding; confirm correct BaseUnit for module type Replace BaseUnit or module with compatible variant; follow system manual Escalate if mechanical fit is correct but diagnostics indicate unsupported combination
After sensor replacement, diagnostics appear that were not present before New sensor type incompatible with existing wiring or module Check sensor datasheet vs module capabilities; verify wiring scheme Select compatible sensor or module; rewire to match supported configuration Escalate if application requirements demand a change in architecture (e.g., safety rating)

Power and Potential Group Checks on ET 200SP BaseUnits

The single most common cause of widespread channel failures and multiple red diagnostic LEDs on an ET 200SP station is missing or incorrect 24 V DC supply on BaseUnit L+ and M terminals. Engineers migrating from other ET 200 families sometimes assume that the interface module or CPU supplies field terminal power by default — it does not. Each potential group in the ET 200SP station requires its own 24 V DC feed at the L+ and M terminals on the white BaseUnit that starts that group.

To check power on the station:

  • Measure 24 V DC between the L+ and M terminals on each BaseUnit associated with the faulty channels — do not assume supply continuity from one BaseUnit to the next across a potential group boundary
  • Verify that power feed modules and fuses in the supply path are intact and correctly rated for the load
  • Confirm that white BaseUnits — which initiate new potential groups — have their own dedicated L+ and M connections and are not relying on carry-over from an adjacent group
  • Check that common return paths (M) are correctly connected and not inadvertently shared between incompatible supply sources
  • Use a multimeter to measure actual voltage at the BaseUnit terminals, not just at the power supply output — voltage drop across undersized or damaged cabling can cause marginal supply conditions that produce intermittent faults

Siemens ET 200SP wiring rules specify permitted copper conductor cross-sections typically in the range of approximately 0.2 to 2.5 mm² for solid and flexible cables, with defined ranges for ferrules and twin end sleeves. Strip length is specified at around 8 to 10 mm. Undersized conductors or incorrectly stripped and terminated wires can cause resistance-related voltage loss even when the supply itself is correct.

Digital Input Wiring: PNP, NPN, and Common Mistakes

Digital input modules on the SIMATIC ET 200SP accept signals from proximity sensors, push buttons, limit switches, and other discrete field devices. The most frequent wiring problem is a mismatch between sensor output type and module input type — specifically, wiring an NPN (sinking) sensor to a module input designed for PNP (sourcing) sensors, or vice versa.

Key checks for digital input wiring:

  • Confirm the sensor's output type (PNP or NPN) from its datasheet and verify the ET 200SP module type you have installed matches — module type is variant-specific and defined in the catalog number, not assumed from the module family
  • Trace sensor supply wiring: some configurations source sensor power from the module terminals, others require an external 24 V DC supply — verify which applies to your module per its wiring diagram
  • Verify that input common (M) and reference potential connections are correctly wired and that the common is connected to the correct supply return
  • Check that conductors are connected to the exact terminal designations shown in the module-specific wiring diagram — do not assume terminal numbering is consistent across DI module variants
  • If a single channel is the only one not responding, suspect the individual sensor connection, its supply, or the common terminal for that channel group before suspecting the module itself

Digital Output Wiring: Loads, Relays, and What Goes Wrong

Digital output modules on ET 200SP drive relay coils, solenoid valves, indicator lights, and other resistive or inductive DC loads. The most reported failure is an output that does not energize its load even though TIA Portal shows the output bit as active.

Key checks for digital output wiring:

  • Verify that the load is wired between the correct output terminal and the supply return — not between two output terminals or from output to L+ without a load in circuit
  • Confirm that L+ and the common terminal (M) for the output group are correctly wired and that the supply voltage is present at the module terminals when the output is commanded on
  • Check relay coil polarity if applicable, and verify that inductive loads have appropriate suppression — missing freewheel diodes or varistors can cause voltage spikes that trigger diagnostic events on the output module
  • Measure voltage at the output terminal when the output is forced on in TIA Portal — if voltage is present at the terminal but the load does not operate, the fault is in the field wiring or the load device itself
  • Review the module diagnostics in TIA Portal for short circuit or overload events — these indicate the output has detected an overcurrent condition, which typically points to a wiring fault or a shorted load rather than an open circuit

Analog Input and Output Wiring: 2-Wire, 3-Wire, 4-Wire, and RTD Errors

Analog input wiring errors are responsible for the majority of the most frustrating ET 200SP symptoms — channels reading 32767, constant maximum or minimum values, and persistent wire-break diagnostics that survive multiple wiring checks. The reason this is so common is straightforward: there are at least four distinct sensor wiring configurations (2-wire, 3-wire, 4-wire transmitters, and RTD configurations), each uses different terminals, and the TIA Portal channel configuration must match the physical wiring exactly or the module reports a fault condition even when the wiring itself is mechanically correct.

Key checks for analog wiring:

  • Identify the exact wiring type of your sensor or transmitter from its datasheet — 2-wire transmitters are loop-powered (require external supply through the loop), 3-wire sensors have a separate supply conductor, and 4-wire transmitters have fully isolated supply and signal connections
  • Consult the wiring diagram in the specific ET 200SP analog module data sheet for your catalog number and verify every terminal connection against it — terminal assignments differ between AI modules and cannot be transferred from one module type to another
  • For RTD modules, verify the number of wires connected to the sensor and confirm the TIA Portal channel mode matches — a 4-wire RTD configured as a 2-wire connection, or vice versa, will produce a wire-break alarm and a maximum reading (commonly 32767) regardless of how good the wiring connections are
  • Confirm that external sensor supply, where required (typically for 3-wire sensors and some 2-wire configurations), is present and at the correct voltage at the module terminals
  • After correcting the wiring, always verify that the channel mode in TIA Portal hardware configuration matches the actual sensor type and connection, and re-download the configuration before testing — failure to re-download leaves the old, incorrect parameters active

The Siemens SIMATIC ET 200SP documentation highlights wire-break diagnostics for certain HA and analog input modules, enabling detection of open circuits at the channel level when wired and configured correctly. This feature is a diagnostic tool, not a symptom of module failure — when it activates, it is telling you exactly that an open circuit exists in the sensor loop, which is almost always a wiring or configuration issue, not a hardware defect.

Configuration Mismatches in TIA Portal That Look Like Wiring Faults

One of the most commonly misdiagnosed situations in ET 200SP troubleshooting is a configuration mismatch that presents identically to a wiring fault. Engineers rewire the sensor, confirm continuity, and the wire-break alarm stays active — because the channel mode in TIA Portal still does not match the physical wiring.

Configuration checks to perform in parallel with wiring checks:

  • Open the hardware configuration in TIA Portal for the affected module and inspect the channel properties — verify that voltage versus current mode, RTD sensor type, and 2-wire versus 4-wire selection all match the actual sensor and wiring connected to that channel
  • Confirm that the physical modules installed in the station match the modules configured in the TIA Portal project — mismatches (wrong catalog number, added or removed modules) cause entire sections of the station to report faults and show red LEDs
  • Verify the PROFINET device name and IP address assigned to the ET 200SP station match the configuration — if these were changed during hardware modifications, the station may not be recognized by the PLC even with correct wiring
  • After any configuration change, download the hardware configuration to the CPU and allow the station to reinitialize before checking diagnostics — changes are not active until downloaded
  • Review the CPU diagnostics buffer in TIA Portal online mode for timestamped events related to the affected ET 200SP station — this often reveals the sequence of events and whether the fault predates or postdates any wiring changes

Reading ET 200SP Diagnostic LEDs and TIA Portal Online Diagnostics

The ET 200SP system uses LED indicators on each module to communicate status at a glance. Understanding LED patterns is the fastest first step in narrowing down a wiring fault before connecting a laptop.

General LED interpretation guidance (refer to the module-specific manual for exact LED definitions, which vary by module type):

  • A solid green LED on a module indicates normal operation with no active diagnostics — if the channel is still not working, the fault is in the field wiring or the sensor, not the module
  • A blinking or solid red diagnostic LED indicates an active fault at the module or channel level — common causes include wire-break on an analog channel, missing supply, short circuit on an output, or a module and BaseUnit combination that does not match the configuration
  • Multiple red LEDs across several modules simultaneously after power-up is a strong indicator of a missing potential group supply (L+ and M not wired on a white BaseUnit) rather than individual module failures
  • In TIA Portal, use the online module status view to see channel-level diagnostics — this narrows the fault to a specific channel and tells you the fault type (wire-break, short circuit, missing supply, invalid mode) without requiring physical measurements at that point
  • Cross-reference LED patterns and TIA Portal diagnostic messages with the LED state tables in your module data sheet — Siemens uses a consistent notation across the ET 200SP family, but the exact LED layout varies by module

What Engineers in the Field Are Running Into

Across automation communities — including PLC forums, Siemens support channels, and practitioner groups focused on TIA Portal — a consistent set of ET 200SP wiring problems appears repeatedly. The most reported symptom by a wide margin is the analog input channel reading 32767 combined with an active wire-break diagnostic. Engineers encountering this for the first time almost always start by checking physical wiring continuity — and when the wiring checks out mechanically, they assume a module fault. In the majority of reported cases, the actual cause is a mismatch between the channel configuration in TIA Portal (RTD type, 2-wire versus 4-wire, voltage versus current mode) and the physical sensor connected. The fix is a configuration correction and re-download, not a hardware replacement.

The second most common reported issue is digital inputs that do not register sensor signals after installation or after a sensor replacement. Community discussions consistently trace this to three causes: the sensor's PNP or NPN output type does not match the module input type, the common reference potential is not correctly wired, or the sensor supply at the module terminals is missing. Engineers who have migrated from other ET 200 families sometimes carry assumptions about wiring conventions that do not apply to ET 200SP — the recommendation from experienced users is to treat every module as its own wiring exercise and consult the specific terminal diagram rather than inferring from prior experience with similar-looking hardware.

A third recurring theme in community discussions is the BaseUnit power wiring oversight. Engineers installing new stations or expanding existing ones report that forgetting to wire L+ and M on white BaseUnits — the ones that start a new potential group — results in entire groups of modules going dark with red LEDs. This mistake is particularly common when expanding a station beyond its original design, because the installer adds BaseUnits and modules but does not check whether a new potential group has been created that requires its own supply. The community-verified corrective action aligns precisely with Siemens documentation: check power at each BaseUnit with a multimeter before suspecting individual module faults. Once power is confirmed correct at every BaseUnit, persistent faults almost always resolve to a configuration issue or, in rare cases, actual hardware damage identifiable by physical inspection.

Corrective Actions and Verification After Fixing Wiring

After identifying and correcting a wiring fault, verification must be systematic rather than a single observation. A cleared LED or a channel that briefly reads correctly does not confirm the fault is fully resolved.

Verification steps after correction:

  • Power up the station and observe all module LEDs — confirm that red diagnostic LEDs have cleared and no new faults have appeared on adjacent modules
  • In TIA Portal online mode, view the module and channel diagnostics for the corrected channels and confirm no active faults remain — pay particular attention to whether the wire-break alarm has cleared for analog channels
  • Exercise the corrected channels: actuate digital inputs and verify they change state correctly in TIA Portal; command digital outputs on and off and verify the load operates; verify analog channels read within expected range for the connected sensor
  • Review the CPU diagnostics buffer for any new events generated after the correction — events logged after power-up that were not present before indicate residual issues
  • Update wiring diagrams and documentation to reflect the corrected state — undocumented wiring corrections create the same problem for the next technician

Prevention: Wiring Practices That Keep ET 200SP Stations Reliable

Most ET 200SP wiring faults that appear during commissioning or after modifications are preventable with consistent wiring discipline at installation time.

  • Follow Siemens wiring rules on copper conductor cross-sections — the permitted range is typically approximately 0.2 to 2.5 mm² for solid and flexible cables, with defined ranges for ferrules and twin end sleeves, and a recommended strip length of around 8 to 10 mm
  • Plan potential groups explicitly in panel schematics before installation — mark white BaseUnits and their required L+ and M supply connections so that every technician working on the panel can identify power boundaries at a glance
  • Standardize sensor types within a station where possible — mixing PNP and NPN sensors across a station increases the chance of a miswiring error; where both types are required, label them clearly on the schematic and at the terminal
  • Keep module-specific data sheets and wiring diagrams for every installed catalog number in the panel or accessible at the machine — generic wiring knowledge is not sufficient when each module has its own terminal assignment
  • After any modification — adding a module, replacing a sensor, or changing a supply — perform a configuration review in TIA Portal before powering up, to confirm that channel parameters match the new wiring before creating a fault condition

When to Replace a Module or Escalate to Support

The vast majority of ET 200SP wiring fault reports are resolved through power verification, wiring correction, and TIA Portal configuration alignment — without module replacement. Replacement is justified only after power, wiring, and configuration have all been verified against official Siemens documentation and the fault persists.

Indicators that replacement may be warranted:

  • Physical evidence of damage: burned terminals, discolored or brittle insulation on module connectors, or visible component damage on the module body
  • A TIA Portal internal module error that does not clear after correct wiring and configuration are confirmed
  • A BaseUnit with terminals that no longer make reliable contact even with correctly sized and stripped conductors
  • A module or BaseUnit variant that is confirmed to be the wrong catalog number for the application — in this case, sourcing the correct part is the corrective action, not rewiring

Escalate to Siemens technical support or a qualified systems integrator when safety-related circuits — F-modules, motor starters — continue to report faults after careful rewiring according to the manual, or when communication issues persist despite verified wiring and configuration. Safety circuit troubleshooting requires formal validation procedures beyond standard field diagnostic work.

Expert Troubleshooting Guidance for ET 200SP Wiring Problems

For any ET 200SP wiring problem, the correct starting point is always power verification — not channel-level investigation. Measure 24 V DC between L+ and M on each BaseUnit associated with the faulty channels, confirm fuses are intact, and verify that every white BaseUnit starting a potential group has its own supply connection. This single step resolves a significant share of reported cases before any channel-level work begins. Only once power is confirmed correct at every BaseUnit should the investigation move to individual sensor and actuator wiring. At that point, trace each connection against the wiring diagram in the module-specific data sheet for the exact catalog number installed — terminal assignments differ by module variant and cannot be inferred from the module family or from prior ET 200 experience.

Where power and physical wiring both check out, the fault is almost always in TIA Portal channel configuration. The most direct indicator is a wire-break alarm with a 32767 reading on an analog channel — this pattern consistently points to a mismatch between the configured sensor type or connection mode and the actual wiring, rather than a hardware failure. Check the channel properties in TIA Portal hardware configuration: confirm RTD type, 2-wire versus 4-wire selection, and voltage versus current mode all match the physical sensor, then re-download the hardware configuration and retest. Only after power, physical wiring, and configuration have all been verified against official documentation should module damage be considered — and at that point, physical inspection will usually confirm the diagnosis through visible evidence of overheating or contact damage.

When troubleshooting has identified a module or BaseUnit that needs replacement — whether due to confirmed damage, a wrong variant, or a part that does not match the application requirements — sourcing the correct catalog number matters. The ET 200SP system relies on mechanical coding and specific BaseUnit and module pairings; ordering a close-but-not-exact catalog number creates the same diagnostic problems all over again. For replacement parts and help confirming the right variant before ordering, contact the LeadTime.ca team — we ship ET 200SP modules worldwide and can support procurement from anywhere in the world.

For volume requirements or to check lead time before committing to a build schedule, contact LeadTime.ca directly — the team responds to technical and procurement inquiries from controls engineers and procurement specialists globally.

Before You Call It a Hardware Fault: The ET 200SP Wiring Verification Checklist

Work through this checklist in sequence before concluding that a module or BaseUnit needs replacement. Each item addresses a confirmed common source of ET 200SP wiring faults.

  1. Confirm that 24 V DC is present between L+ and M on every BaseUnit associated with the faulty channels — measure at the terminals, not at the power supply output.
  2. Verify that white BaseUnits starting new potential groups have their own dedicated L+ and M supply connections, not carried over from adjacent groups.
  3. Confirm fuses and protective devices in the supply path are intact and correctly rated.
  4. Identify the exact catalog number of the installed module and BaseUnit, and retrieve the wiring diagram from the corresponding Siemens data sheet — do not use wiring diagrams from a different module variant.
  5. Trace every sensor and actuator connection from the field device to the exact terminal number on the BaseUnit and verify against the wiring diagram.
  6. Confirm the sensor output type (PNP or NPN for digital, 2-wire/3-wire/4-wire for analog and RTD) from the sensor datasheet and verify the module type and wiring match.
  7. Open TIA Portal hardware configuration and verify that channel mode settings (voltage/current, RTD type, 2-wire/4-wire) match the actual physical wiring and sensor type.
  8. Confirm that the physical modules installed in the panel match the modules configured in TIA Portal — added, removed, or swapped modules must be reflected in the project.
  9. Re-download the hardware configuration to the CPU after any configuration change and allow the station to reinitialize before checking diagnostics.
  10. Review the CPU diagnostics buffer in TIA Portal for fault events and their timestamps to confirm whether faults are cleared after corrections.
  11. Verify conductor cross-sections, strip lengths, and ferrule use comply with Siemens ET 200SP wiring rules — approximately 0.2 to 2.5 mm² permitted range, approximately 8 to 10 mm strip length.
  12. Confirm that the PROFINET device name and IP address of the ET 200SP station match the TIA Portal configuration if any hardware changes were made.

If all items on this checklist are confirmed correct and faults persist, contact LeadTime.ca for specialist sourcing support and technical assistance in identifying the correct replacement hardware.

Frequently Asked Questions

Why does my ET 200SP analog input show 32767 and a wire-break alarm?

A reading of 32767 combined with an active wire-break diagnostic almost always indicates either an open circuit in the sensor loop or a mismatch between the TIA Portal channel configuration and the physical sensor wiring. Before assuming a hardware fault, check the channel mode in TIA Portal hardware configuration — confirm that RTD type, 2-wire versus 4-wire selection, and voltage versus current mode match the actual sensor and wiring. If the configuration is wrong, correct it, re-download the hardware configuration, and retest. If the configuration is correct, check continuity of the sensor loop and verify that external supply is present at the module terminals where required by the wiring diagram.

Do white ET 200SP BaseUnits need a separate 24 V DC supply, or do they get power from the interface module?

White BaseUnits start a new potential group in the ET 200SP station and require their own dedicated 24 V DC supply at the L+ and M terminals. They do not receive field terminal power from the interface module or from adjacent BaseUnits. Failing to wire L+ and M on a white BaseUnit is one of the most commonly reported causes of multiple red diagnostic LEDs and dead channels in an ET 200SP station. Measure voltage at the BaseUnit terminals directly — do not assume supply continuity from the panel power supply without measuring.

My digital input channel does not change state when I actuate the sensor — where do I start?

Start by confirming the sensor's output type from its datasheet: PNP (sourcing) or NPN (sinking). Verify that the installed ET 200SP digital input module supports that sensor type — this is defined by the module's catalog number and is not adjustable through configuration on most standard DI modules. Next, check that the sensor supply voltage is present at the module terminals and that the common reference potential is correctly wired. If the sensor type and supply are correct, trace the wiring terminal by terminal against the module-specific wiring diagram from the Siemens data sheet for your exact catalog number.

How do I tell if my analog sensor is 2-wire, 3-wire, or 4-wire for ET 200SP wiring?

Count the number of conductors coming out of the sensor or transmitter and consult the sensor datasheet. A 2-wire transmitter has two conductors and is loop-powered — the 24 V DC supply passes through the loop and the signal is a current variation (typically 4 to 20 mA). A 3-wire sensor has three conductors: supply, signal, and common. A 4-wire transmitter has four conductors: a fully isolated supply pair and a separate signal pair. Each configuration uses different terminal connections on the ET 200SP analog module, and the TIA Portal channel mode must be set to match. The module-specific wiring diagram in your Siemens data sheet shows the correct terminal assignments for each configuration.

Can I mix an external sensor power supply with the ET 200SP module's supply terminals?

This depends on the specific module type and the sensor configuration. Some ET 200SP analog modules supply power to certain sensor types through the module terminals, while others require an external supply for 3-wire or 4-wire sensors. Mixing supply sources without following the module wiring diagram can create incorrect reference potentials, false readings, or diagnostic faults. Always determine the supply routing from the wiring diagram in the data sheet for your specific module catalog number before connecting any external supply to a channel.

The ET 200SP module diagnostic LED blinks red after I added a new sensor — what does this indicate?

A blinking red diagnostic LED after a sensor addition typically indicates a channel-level fault such as wire-break, short circuit, missing supply, or a sensor type mismatch on the newly connected channel. Open TIA Portal online diagnostics and view the channel-level fault detail for the affected module — this will identify the specific fault type without requiring additional physical measurements. Common causes after sensor additions are: the new sensor type does not match the channel configuration, the wiring does not follow the terminal diagram for that module variant, or the TIA Portal configuration was not updated and re-downloaded after the hardware change.

Why Engineers Source Replacement ET 200SP Hardware from LeadTime.ca

  • LeadTime.ca ships ET 200SP modules and BaseUnits worldwide — procurement support is available regardless of your location
  • The team can assist in confirming the correct catalog number before ordering, reducing the risk of receiving an incompatible module or BaseUnit variant
  • Hard-to-source ET 200SP variants and specialist modules can be located and quoted on request
  • Volume pricing and lead time information is available for larger builds or planned maintenance stock
  • Contact the team directly with the catalog number identified during troubleshooting — they will confirm availability and advise on lead time before you commit to an order

At-a-Glance Summary

  • The SIMATIC ET 200SP distributed I/O system uses BaseUnits, plug-in I/O modules, and a CPU or interface module — each BaseUnit has a variant-specific terminal assignment that must be followed exactly
  • White BaseUnits start new potential groups and require dedicated 24 V DC supply at L+ and M terminals — this is the most common cause of multiple red diagnostic LEDs on a new or expanded station
  • Permitted copper conductor cross-sections are typically approximately 0.2 to 2.5 mm² for solid and flexible cables; recommended strip length is approximately 8 to 10 mm per Siemens ET 200SP wiring rules
  • Analog input channels reading 32767 with a wire-break alarm indicate either an open circuit in the sensor loop or a TIA Portal channel configuration mismatch — configuration errors are the more common cause
  • RTD channel wire-break alarms are frequently caused by configuring a 4-wire mode for a 2-wire connection, or vice versa — the channel mode in TIA Portal must match the physical wiring exactly
  • PNP and NPN sensor type mismatches are among the most commonly reported digital input wiring errors — sensor type must match the module type, which is defined by catalog number and is not configurable
  • TIA Portal hardware configuration must be re-downloaded after every wiring or configuration change — changes are not active until the download is complete and the station has reinitialized
  • Mechanical coding on BaseUnits reduces the risk of installing incompatible modules, but does not prevent incorrect wiring to correct terminals
  • Module replacement is justified only after power, physical wiring, and TIA Portal configuration have all been verified against official Siemens documentation and faults persist — most reported cases resolve without hardware replacement
  • Safety-related circuits (F-modules, motor starters) that continue to report faults after rewiring must be escalated to Siemens technical support or a qualified systems integrator — do not attempt to clear safety circuit faults through field correction alone

You may also be interested in:
