Buy genuine Siemens 6ES71366DB000CA0 online

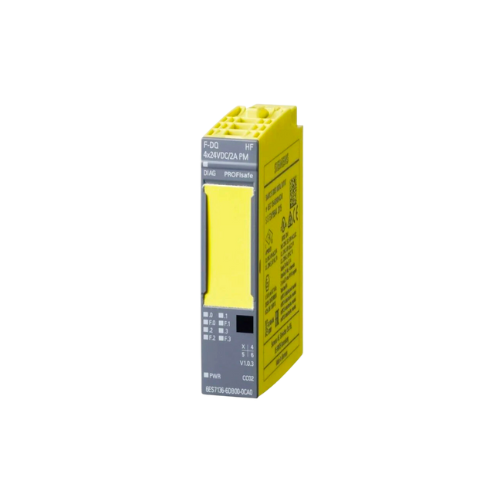

The Siemens 6ES71366DB000CA0, known as the Digital Output Module F-DQ 4x24VDC/2A PM HF, is a high-quality SIMATIC DP electronics module designed for the ET 200SP automation system. This factory-grade module features four digital outputs with a 24 V DC rating and a maximum current output of 2 A per channel. Its compact design with just 15 mm width makes it ideal for tight control panel spaces. The 6ES71366DB000CA0 is engineered to deliver reliable performance in industrial automation environments, supporting high-speed switching and diagnostic capabilities, which ensure robust machine and process control.
Key Features of Siemens 6ES71366DB000CA0
- Four digital transistor outputs with 24 V DC and 2 A max current per channel
- Compact 15 mm width, height 73 mm, depth 58 mm for space-efficient installation
- Rated bus power consumption at 70 mW, power loss of 4 W ensuring energy efficiency
- High switching frequency: up to 30 Hz with resistive load and advanced short circuit/overload protection
- Supports up to PL E (ISO 13849) and SIL 3 (IEC 61508) safety standards for fail-safe operation
- Operates reliably in industrial temperature ranges from 0 to 60 °C
- Diagnostic functions and parameter reassignment available to optimize monitoring and control
- Designed for easy integration with SIMATIC ET 200SP distributed I/O systems
Technical Specs of 6ES71366DB000CA0
Explore Siemens 6ES71366DB000CA0 technical data for detailed parameters covering voltage, I/O, and communication to ensure system compatibility.
| Parameter | Value |
|---|---|
| Rated input voltage | 24 V DC |
| Output current per channel | 2 A max |
| Number of digital outputs | 4 transistor outputs |
| Width | 15 mm |
| Height | 73 mm |
| Depth | 58 mm |
| Power loss | 4 W |
| Rated bus power | 70 mW |
Applications / Use Case
This Siemens 6ES71366DB000CA0 is commonly used in industrial automation worldwide. It is ideal for controlling actuators, signaling devices, and machine components in packaging, conveyor systems, process control, and factory automation panels. Its robust design supports safety-critical applications requiring fail-safe performance, such as emergency shutdowns and safety interlocks in manufacturing lines. The compact module integrates seamlessly with SIMATIC ET 200SP configurations, making it a preferred choice for modernization and new automation projects.
