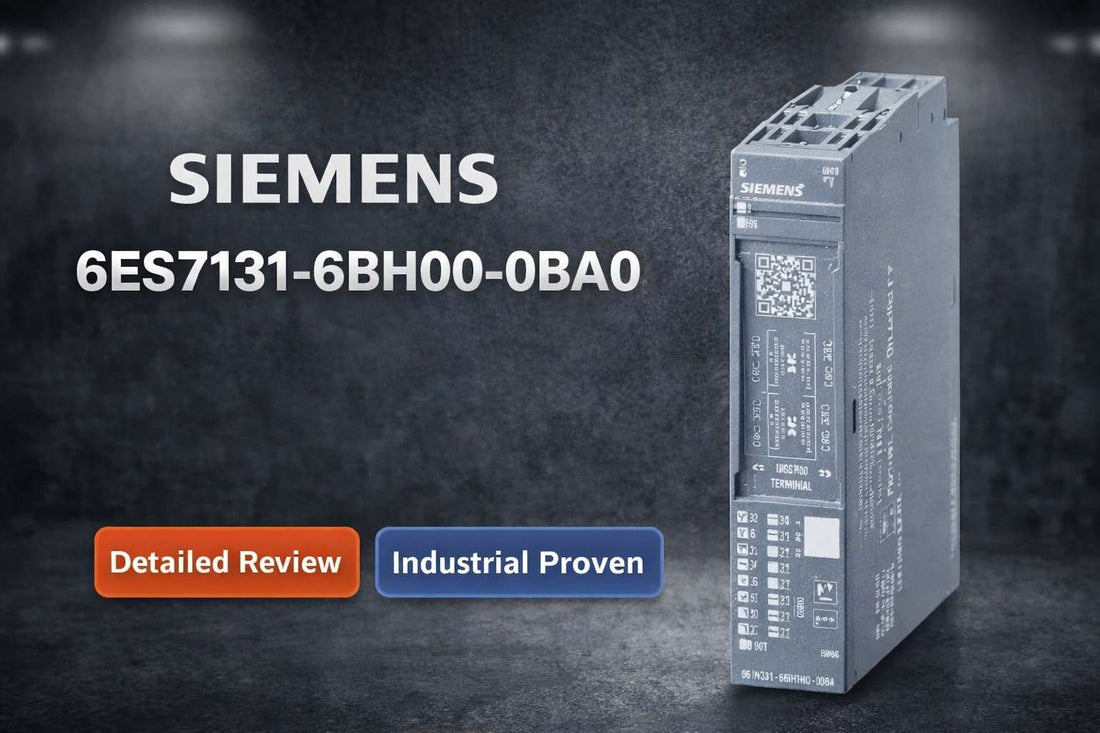

Siemens 6ES7131-6BH00-0BA0 SIMATIC ET 200SP 16-channel 24V DC digital input module for distributed I/O automation systems

Siemens 6ES7131-6BH00-0BA0 — SIMATIC ET 200SP Digital Input Module DI 16x 24V DC Standard: Specifications, Compatibility, and Procurement Guide

Controls engineers sourcing a 16-channel 24V DC digital input module for an existing SIMATIC ET 200SP installation are typically at the final confirmation stage — validating BU-type A0 compatibility, checking diagnostic feature set, and deciding whether to order the 6ES7131-6BH00-0BA0 or migrate to its successor. This article covers every specification, compatibility constraint, and procurement consideration needed to make that call without ambiguity. The 6ES7131-6BH00-0BA0 is a discontinued Siemens module carrying firmware V1.1, designed for 16 discrete 24V DC inputs with parameterizable input delay from 0.05 to 20 ms, wire-break detection, and supply voltage monitoring — all within the modular ET 200SP distributed I/O architecture.

If you have already confirmed this is the right part, check current pricing and availability at LeadTime.ca — ships worldwide.

Who Should Buy the 6ES7131-6BH00-0BA0 — and Who Shouldn't

This module is the right choice for engineers maintaining or expanding an existing SIMATIC ET 200SP system that was built around this specific SKU. Before ordering, confirm all of the following:

  • Your system uses a BU-type A0 base unit — this module is not compatible with A1, A2, or A3 variants
  • All input sources operate at 24V DC — AC signals and isolated supply lines are not supported
  • You require exactly 16 discrete digital input channels with parameterizable input delay between 0.05 and 20 ms
  • Your engineering environment is STEP 7 TIA Portal V13 SP1 or later, or STEP 7 V5.5 for legacy projects
  • Wire-break detection and supply voltage monitoring diagnostics are required or desirable for your application
  • Your system color code is CC00 (relevant when color-coded base units are in use)

If your project is new-build or requires current Siemens active support, the successor model 6ES7131-6BH01-0BA0 is the correct choice — it is pin-compatible, mechanically identical, and carries Type 3 IEC 61131 input characteristics with full production-status supply.

On this page:

What the 6ES7131-6BH00-0BA0 Actually Does in a Live System

The 6ES7131-6BH00-0BA0 is classified under Siemens' official product descriptor as: SIMATIC ET 200SP, Digital Input Module, DI 16x 24V DC Standard, suitable for BU-type A0, color code CC00, module diagnostics. In plain terms, it is the field-side input gateway that collects binary 24V DC signals from sensors — limit switches, photoelectric sensors, proximity switches — and delivers those signal states to a central PLC or controller over PROFINET or PROFIBUS. Each of its 16 channels independently receives a logic-high (11 to 30V DC) or logic-low (-30 to +5V DC) signal, with the full channel map occupying 2 bytes of the controller's input address space plus 2 bytes of quality information for diagnostics.

What separates this module from a passive terminal block is the embedded intelligence: supply voltage monitoring, wire-break detection with optional 25 to 45 kOhm protective circuit for encoder contacts, group error detection, and three categories of LED status indication. Parameterizable input delay — selectable at 0.05, 0.1, 0.4, 0.8, 1.6, 3.2, 12.8, or 20 ms — allows the same module to be tuned for high-speed detection or aggressive noise filtering depending on the application. Power consumption from the 24V supply is a maximum of 90 mA with typical power loss of 1.7 W, keeping enclosure thermal load predictable. The module was manufactured in Germany, carries firmware V1.1 with update capability, and has a net weight of 0.082 lb.

Where This Module Sits in a Typical ET 200SP Architecture

The 6ES7131-6BH00-0BA0 occupies the field I/O layer of a distributed automation system — between the physical sensors on the machine and the PROFINET or PROFIBUS network that connects back to the central controller.

  • Central PLC or controller (e.g., Siemens CPU) communicates over PROFINET Industrial Ethernet or PROFIBUS fieldbus
  • ET 200SP interface module (head station) sits on the DIN rail and manages network communication for all modules in the station
  • BU-type A0 base unit mounts to the DIN rail and provides the mechanical and electrical interface for the 6ES7131-6BH00-0BA0
  • The 6ES7131-6BH00-0BA0 slides onto the BU-type A0 base unit, receiving 24V DC supply and presenting 16 input terminals to field wiring
  • Binary sensors (limit switches, proximity detectors, photoelectric sensors) wire to input terminals; signal states are transmitted upstream to the PLC input map via the interface module

Industries and Applications That Use This Module

Automotive assembly lines are one of the most common deployment environments for this module. End-of-stroke switches, parts-presence sensors, and fixture confirmation signals are routed from distributed points on the line to a central controller, with the ET 200SP station handling local I/O aggregation and reducing cable runs across the floor.

Food and beverage and pharmaceutical batch processing facilities use this module to aggregate sensor arrays monitoring fill levels, valve states, and conveyor positions. Wire-break detection is particularly valued in these environments because sensor cabling is frequently disturbed during washdown or equipment changeover.

Packaging machinery OEMs specify this module to collect position feedback and alarm signals from pneumatic cylinders, registration sensors, and safety interlock switches. The parameterizable input delay allows configuration tuning to match the specific sensor response times of a given machine build.

CNC machine tool builders and injection molding equipment designers use the module to monitor spindle status signals, coolant level switches, and mold position sensors — applications where the 0.05 to 0.1 ms delay setting provides fast state detection without additional hardware.

Application Typical Deployment
Automotive assembly line End-of-stroke and parts-presence sensors feeding central PLC via distributed ET 200SP stations
Food and beverage batch processing Valve state and fill-level sensor arrays with wire-break diagnostics for hygiene-zone installations
Pharmaceutical monitoring Multiple sensor arrays across production suites routed to single controller with group error alarming
Packaging machinery Registration sensor and interlock signal collection with delay tuned per sensor response spec
CNC machine tools Spindle status and coolant level monitoring using short (0.05–0.1 ms) input delay for fast detection
Industrial conveyors and water treatment Distributed position switches across long conveyor runs or pump station arrays

Key Specifications Engineers Need Before Ordering

Parameter Value
Number of Input Channels 16 discrete digital inputs
Input Voltage (Rated) 24V DC
Supply Voltage (Permissible Range) 19.2 to 28.8V DC
Signal "1" Voltage Range +11 to +30V DC
Signal "0" Voltage Range -30 to +5V DC
Input Current (Signal "1", Typical) 2.5 mA
Input Delay (Parameterizable) 0.05, 0.1, 0.4, 0.8, 1.6, 3.2, 12.8, or 20 ms
Address Space 2 bytes input + 2 bytes quality information
Compatible Base Unit BU-type A0 only
Product Lifecycle Status Discontinued — successor: 6ES7131-6BH01-0BA0

Full technical specifications are available on the product page at LeadTime.ca.

6ES7131-6BH00-0BA0 vs. 6ES7131-6BH01-0BA0: Which One Do You Actually Need?

Feature 6ES7131-6BH00-0BA0 6ES7131-6BH01-0BA0
IEC 61131 Input Characteristic Type 1 and Type 3 Type 3 only
Input Configuration Source/sink capable PNP/sink with P-reading
Firmware Version V1.1 Newer generation
Compatible Base Unit BU-type A0 BU-type A0
TIA Portal Support V13 SP1 or later V13 SP1 or later
Mechanical Compatibility Pin-compatible with successor Pin-compatible with predecessor
Product Lifecycle Status Discontinued Current production (active support)
Recommended Use Spare/replacement for existing systems New projects and system expansions

For existing systems where 6ES7131-6BH00-0BA0 is already deployed, sourcing spares from current stock is a reasonable strategy. For any new-build or expansion, the 6ES7131-6BH01-0BA0 eliminates future obsolescence risk with minimal engineering change — check current stock and pricing for both at LeadTime.ca.

Expert Verdict: Honest Assessment for Procurement and Engineering Teams

The 6ES7131-6BH00-0BA0 does exactly what a well-designed distributed input module should: it collects 16 binary 24V DC signals reliably, reports faults clearly through supply voltage monitoring, wire-break detection, and group error alarms, and integrates without custom driver work into TIA Portal V13 SP1 or later environments. The 0.05 to 20 ms parameterizable input delay range covers the vast majority of industrial sensor types, and the reverse polarity protection reduces installation error risk during commissioning. For OEMs, systems integrators, and plant maintenance teams already running SIMATIC ET 200SP infrastructure, this module has a proven track record across automotive, food processing, and packaging environments.

The honest constraint is lifecycle status. This is a discontinued product. Stock exists at authorized resellers, but future availability is not guaranteed once current inventory depletes. If your project requires more than a handful of units or you are designing a multi-year production run, building a spare stock strategy around a discontinued SKU carries meaningful risk. The 6ES7131-6BH01-0BA0 is the direct mechanical and functional replacement with current Siemens production support — engineering impact is minimal given both modules share BU-type A0 compatibility and TIA Portal V13 SP1 support. There is also no isochronous operation capability on the 6ES7131-6BH00-0BA0; if your application requires time-synchronized terminal input capture, this module is not the right fit regardless of availability.

From a procurement standpoint, confirmed availability before committing a build schedule is essential given the discontinued status. LeadTime.ca sources hard-to-find Siemens components from global authorized channels and can advise on both current stock levels and realistic lead times. If you are purchasing multiple modules for a larger station build, volume pricing may apply. View current stock and pricing at LeadTime.ca before finalizing your purchase order.

For volume pricing or to confirm lead time before committing to a build, contact the LeadTime.ca team directly — we ship worldwide.

Wiring and Installation Overview

  • Confirm BU-type A0 base unit is correctly mounted on the DIN rail and that the 24V DC supply to the base unit is within the 19.2 to 28.8V DC permissible range before installing the module
  • Align the mechanical coding element (color code CC00) with the BU-type A0 connector opening and slide the module straight onto the base unit until it fully seats and locks; restore power and confirm the green PWR LED illuminates
  • Connect 24V DC binary sensors — limit switches, proximity detectors, photoelectric sensors — to the input terminals; 1-wire, 2-wire, 3-wire, and 4-wire connection variants are all supported via the BU-type A0 connectors
  • For 2-wire sensor connections, verify the sensor quiescent current does not exceed 1.5 mA maximum; add an optional 25 to 45 kOhm protective resistor circuit if simple encoder contacts are used with wire-break detection enabled
  • In TIA Portal, import the GSDML V2.3 file, assign the PROFINET device name and IP address, and set the input delay parameter to match your application — 0.4 to 0.8 ms is typical for machine control; 0.05 to 0.1 ms for high-speed detection

Engineers requiring full wiring diagrams and step-by-step commissioning procedures should consult the Siemens SIMATIC ET 200SP digital input module manual and GSDML V2.3 documentation.

Compatible Base Units and System Expansion

The 6ES7131-6BH00-0BA0 is mechanically and electrically compatible exclusively with BU-type A0 base units within the SIMATIC ET 200SP family. The broader ET 200SP platform supports mixed-module stations — combining digital input, digital output, analog input, analog output, and communication modules on the same DIN rail segment under a single interface module. Relevant components for system expansion include:

  • BU-type A0 base unit — required mechanical and electrical carrier; supports 1-wire through 4-wire sensor connections
  • ET 200SP interface module (IM 155-6 family) — manages PROFINET or PROFIBUS communication for all modules in the station; required for network connectivity
  • 6ES7131-6BH01-0BA0 — successor digital input module; pin-compatible, mechanically identical, recommended for new expansion slots within existing stations
  • SIMATIC ET 200SP analog input and output modules — expand the same station for mixed I/O architectures; verify BU-type compatibility per module selected

What Engineers Get Wrong When Ordering This Part

Before submitting your purchase order, run through this checklist drawn directly from the most common ordering errors on this module:

  1. Confirm base unit type is BU-type A0 (not A1, A2, or A3); this module is compatible only with A0
  2. Verify all input sources are 24V DC; module does not support AC voltage or isolated supply lines
  3. Check STEP 7 TIA Portal version is V13 SP1 or later (or STEP 7 V5.5); older versions lack GSD integration
  4. Ensure no isochronous operation requirement; this module does not support time-synchronized terminal input
  5. Confirm color code CC00 matches your system configuration (if color-coded base units are in use)
  6. Check successor model 6ES7131-6BH01-0BA0 is not required by your PROFINET device discovery settings

If any item on this checklist raises a question, contact the LeadTime.ca team before ordering — we can confirm compatibility against your system drawings or help identify the correct alternative.

Frequently Asked Questions

Can the 6ES7131-6BH00-0BA0 be used as a direct drop-in replacement for the 6ES7131-6BH01-0BA0 in a running system?

Mechanically and electrically, both modules share BU-type A0 compatibility and support TIA Portal V13 SP1 or later. The primary functional difference is that the 6BH00 supports both Type 1 and Type 3 IEC 61131 input characteristics, while the 6BH01 supports Type 3 only. In most machine control applications parameterized for Type 3 behavior, the swap will work with minimal configuration adjustment — but verify your existing parameterization in TIA Portal and confirm PROFINET device discovery settings are consistent before going live.

What does the DIAG LED red state mean, and how do I identify which fault triggered it?

A red DIAG LED indicates the module has detected a fault and generated a diagnostic alarm. The three most likely causes are: supply voltage out of the 19.2 to 28.8V DC permissible range, a wire-break condition on one or more input channels, or a group error across the input group. To identify the specific fault, query the controller's diagnostic buffer in TIA Portal — the alarm message will identify the fault type and, in the case of wire-break, the affected channel.

Is the 6ES7131-6BH00-0BA0 still available to purchase, and what are realistic lead times?

The module has been discontinued by Siemens, meaning it is no longer manufactured, but existing inventory remains at authorized distributors worldwide. Availability varies and can deplete without notice as stock is consumed. Lead times for in-stock units from major distributors have historically been short, but given the discontinued status, availability should be confirmed before committing to a project schedule. LeadTime.ca sources from global authorized channels and can advise on current stock position.

Does wire-break detection work on all 16 channels simultaneously, and can it be disabled?

Wire-break detection is supported at the module level and can be enabled or disabled through parameterization in TIA Portal. For simple encoder contacts with low quiescent current, an optional 25 to 45 kOhm protective resistor circuit can be added to ensure reliable wire-break detection without false triggering. The 2-wire sensor quiescent current limit of 1.5 mA maximum is the relevant constraint when assessing whether a given sensor type will function correctly with wire-break detection active.

What input delay setting should I use for a standard machine control application?

For the majority of machine control applications — limit switches, proximity sensors, standard photoelectric sensors — a delay of 0.4 to 0.8 ms provides a good balance between noise immunity and response speed. For high-speed detection applications such as CNC spindle monitoring or fast-cycle counting, the 0.05 to 0.1 ms settings are appropriate. Avoid the longest delay settings (12.8 or 20 ms) unless the application explicitly requires heavy noise filtering, as these will noticeably delay PLC response to rapid sensor state changes.

What software is required to configure this module, and is the GSD file freely available?

The module is configurable in STEP 7 TIA Portal V13 SP1 or later using GSDML V2.3 for PROFINET installations, or STEP 7 V5.5 with GSD Revision 5 for PROFIBUS. PCS 7 V8.1 SP1 is also supported for process control environments. The GSDML and GSD files are available for download from the Siemens support portal and must be imported into the engineering environment before device discovery and configuration can proceed.

Why Order From LeadTime.ca

  • Global shipping — LeadTime.ca ships to customers worldwide, not limited to any single region
  • Hard-to-find and discontinued Siemens components sourced through authorized global channels
  • Volume pricing available — contact the team directly for multi-unit orders or project-based procurement
  • Fast response time for availability confirmation and lead time quotes before you commit to a build schedule

At-a-Glance Summary

  • 16 discrete digital input channels, 24V DC, permissible supply range 19.2 to 28.8V DC
  • Signal "1" threshold: +11 to +30V DC; signal "0" threshold: -30 to +5V DC
  • Parameterizable input delay: 0.05, 0.1, 0.4, 0.8, 1.6, 3.2, 12.8, or 20 ms — user-selectable per application
  • Compatible exclusively with BU-type A0 base units; mechanical coding element color code CC00 prevents incorrect installation
  • Embedded diagnostics: supply voltage monitoring, wire-break detection, group error detection, PWR/DIAG/channel status LEDs
  • Address space: 2 bytes input data + 2 bytes quality information; I&M data I&M0 to I&M3 supported
  • Software support: TIA Portal V13 SP1 or later (GSDML V2.3), STEP 7 V5.5 (GSD Revision 5), PCS 7 V8.1 SP1
  • Firmware V1.1 with update capability; net weight 0.082 lb; manufactured in Germany
  • Discontinued product — successor 6ES7131-6BH01-0BA0 is pin-compatible and recommended for new projects
  • Input current consumption maximum 90 mA; typical power loss 1.7 W; reverse polarity protection included
