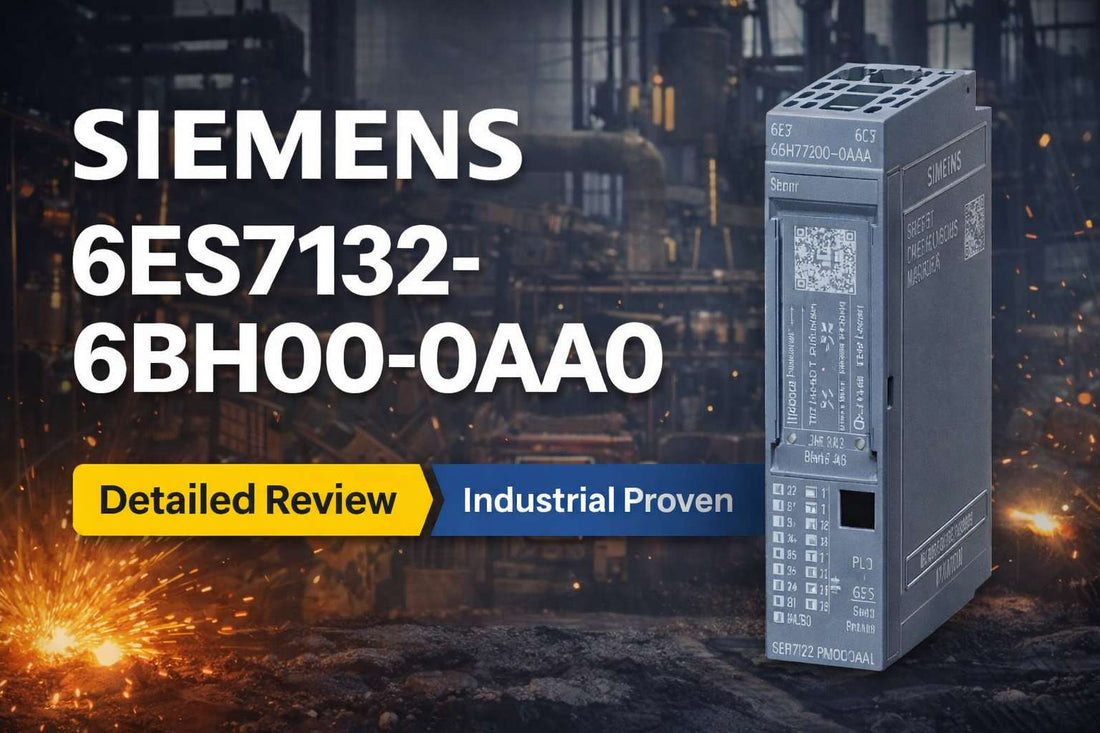

Siemens 6ES7132-6BH00-0AA0 DQ 16x24VDC/0.5A BA digital output module for ET 200SP distributed I/O system

Siemens 6ES7132-6BH00-0AA0 DQ 16x24VDC/0.5A BA Digital Output Module: Specifications, Wiring, and Selection Guide

Controls engineers specifying distributed I/O nodes for SIMATIC ET 200SP systems frequently arrive at the same decision point: confirm that the 16-channel digital output module they have selected matches actual load current, base unit type, and PNP topology before committing to a panel build. The Siemens 6ES7132-6BH00-0AA0 — officially designated the DQ 16x24VDC/0.5A BA — is a PNP source output module rated at 24 V DC and 0.5 A per channel across 16 independently addressable outputs, operating within a 19.2 to 28.8 V DC supply range with built-in short-circuit protection at a 1.4 A threshold. This article gives you the technical verification, honest variant comparison, and wiring fundamentals needed to confirm this is the right part for your system.

If you have already confirmed this is the correct module, check current pricing and availability at LeadTime.ca — ships worldwide.

Who Should Buy the 6ES7132-6BH00-0AA0 — and Who Shouldn't

This module is the right choice for engineers who need a standardized 16-channel PNP discrete output solution within an existing ET 200SP architecture and do not require CPU-level diagnostics feedback on individual channel faults.

  • Your system uses the SIMATIC ET 200SP distributed I/O platform with BU type A0 base units already selected or installed
  • All 16 output loads are PNP-compatible (current-sourcing) and individual load current stays at or below 0.5 A per channel
  • Cabinet supply voltage is confirmed stable within the 19.2 to 28.8 V DC operating band
  • Short-circuit protection at 1.4 A typical threshold is sufficient — no channel-level fault reporting to the CPU is required
  • You are driving solenoid valves, relay coils, pilot lights, or motor starter coils at 24 V DC with known, bounded inrush currents
  • Cost reduction on non-critical output circuits is a priority in the bill of materials

If CPU-level channel diagnostics and fault reporting to TIA Portal are mandatory for your application, the correct alternative is the Standard variant 6ES7132-6BH00-0BA0, which carries a 15 to 25 percent cost premium but delivers channel-level fault codes directly to the controller.

On this page:

What the 6ES7132-6BH00-0AA0 Actually Does in a Live System

The Siemens 6ES7132-6BH00-0AA0 is a discrete signal transmitter. When the ET 200SP CPU issues an output command, this module converts that digital control signal into a physical 24 V DC switched output on one or more of its 16 channels. Each channel can source up to 0.5 A, which is sufficient for the most common industrial actuators: pneumatic solenoid valves drawing 0.3 to 0.4 A, relay coils at 0.2 to 0.3 A, 24 V DC LED pilot lights at 0.15 to 0.2 A, and 24 V DC motor starter coils pushing toward the 0.5 A ceiling.

The module occupies 2 bytes of address space in STEP 7 or TIA Portal, with all 16 outputs mapped as a single output word. Mechanical coding and the ET 200SP plug-in architecture mean the CPU auto-detects the module at power-up — no manual parameter entry is typically required. Short-circuit protection trips at a 1.4 A typical threshold (0.7 to 1.9 A range), automatically disconnecting a faulted channel and recovering when the fault clears. Inductive shutdown transients are limited to approximately -53 V L+, which protects surrounding circuits when solenoids or relay coils de-energize.

What this module does not do: it does not report channel-level fault conditions to the CPU. The onboard LED indicators — a power LED, a diagnostics LED, and 16 individual channel LEDs — provide visual fault indication at the module, but fault data does not propagate to TIA Portal. That limitation is intentional in the Basic (0AA0) variant and is the primary reason engineers upgrade to the Standard (0BA0) for critical circuits.

Where This Module Sits in a Typical ET 200SP Node

The 6ES7132-6BH00-0AA0 sits between the ET 200SP CPU or interface module and the physical field devices — it is the last electronic boundary before current flows into the load. Understanding this position clarifies what the module depends on upstream and what it must deliver downstream.

  • Upstream: A SIMATIC S7-1500 or compatible CPU communicates via PROFINET or PROFIBUS to the ET 200SP interface module at the head of the I/O rail
  • Interface module distributes control signals across the ET 200SP backplane to all modules in the node, including this DQ module
  • The 6ES7132-6BH00-0AA0 is inserted into a BU type A0 base unit, which provides the mechanical socket, power distribution, and wiring terminals for field cables
  • From the base unit terminals, 24 V DC switched outputs run to field devices — solenoid valve coils, relay coil inputs, pilot light anodes, motor starter coils
  • A 24 V DC power supply feeds the module supply input through the base unit; this supply must stay within the 19.2 to 28.8 V DC operating band at all times

Industries and Applications Where This Module Earns Its Place

Automotive supplier assembly lines rely on this module class to control solenoid valve banks on pneumatic actuator circuits — a single ET 200SP node with the 6ES7132-6BH00-0AA0 can independently command 16 separate pneumatic functions from one compact rail section, eliminating the hardwired relay panels that those functions previously required.

Food and beverage packaging equipment commonly uses 16-channel DQ modules for pilot light and alarm annunciation panels. With 16 independent 24 V DC outputs per module, a single node can illuminate status indicators across an entire packaging line section, with each channel individually addressed from TIA Portal.

Material handling systems use the 6ES7132-6BH00-0AA0 to command gate actuators, conveyor divert solenoids, and door barriers. The PNP source output topology is compatible with the 24 V DC coil inputs on the pneumatic or electromechanical actuators common in sortation and accumulation systems.

Legacy cabinet retrofits are a high-value application. Plants replacing hardwired relay logic with distributed ET 200SP architecture frequently standardize on this module because its 16-channel density reduces rail space compared to relay banks while the modular plug-in design accelerates future maintenance and replacement.

Application Typical Deployment
Pneumatic solenoid valve control 16-channel module driving pilot-stage solenoids at 0.3 to 0.4 A per valve in assembly line ET 200SP node
Motor starter and contactor logic Replacing relay panels in machine sequence control; 24 V DC contactor coils at up to 0.5 A per channel
Pilot light and alarm annunciation 16 separate 24 V DC LED indicator circuits per module across multi-node production lines
Conveyor gate and barrier actuation ET 200SP node near sortation zone; outputs command 24 V DC divert solenoids and barrier coils
Batch process sequencing Tank fill/drain pump starts, valve open/close sequences in 24 V DC control circuits
Legacy cabinet retrofit DQ module replaces hardwired relay logic in distributed I/O migration project

Purchase-Decision Specs: What You Need to Know Before Ordering

Specification Value Notes
Rated Supply Voltage 24 V DC Must remain within operating range
Operating Voltage Range 19.2 to 28.8 V DC Reverse polarity protected; no damage if supply inverted
Number of Output Channels 16 Independently controlled, individually addressed
Output Type PNP (Source Output) Current-sourcing topology only; not suitable for NPN-only devices without isolation
Current per Channel 0.5 A maximum Design recommendation: 0.4 A sustained (80% rule)
Short-Circuit Protection Threshold 1.4 A typical (0.7 to 1.9 A range) Auto-recovery when fault clears; channel disconnects on trip
Inductive Shutdown Voltage Limit Approximately -53 V L+ External freewheeling diode still recommended for solenoids
Supply Current (no load) 55 mA maximum Typical idle consumption for cabinet power budget
Address Space 2 bytes Per-module output word in STEP 7 or TIA Portal
Base Unit Requirement BU type A0 Mandatory; do not mix with BU type A4

Full technical specifications are available on the product page at LeadTime.ca.

6ES7132-6BH00-0AA0 vs. 6ES7132-6BH00-0BA0: Which Variant Do You Actually Need?

Feature Basic 6ES7132-6BH00-0AA0 Standard 6ES7132-6BH00-0BA0 Implication for Buyer
Module Diagnostics None; visual LED only Channel-level diagnostics reported to CPU Choose Standard if fault detection at controller level is mandatory
Fault Reporting LED indicators only; not to CPU CPU receives detailed fault codes via TIA Portal Basic suitable for non-critical or manually monitored circuits
Cost Lower (baseline) 15 to 25 percent premium Basic reduces bill of materials on large multi-node installations
Commissioning Effort Minimal; auto-detection typical Requires TIA Portal fault handling logic Basic faster to deploy in straightforward applications
Troubleshooting Higher burden (LED-based only) Lower burden (CPU reports fault type and channel) Standard better for distributed systems with remote nodes
Output Channels 16 (PNP source, 0.5 A) 16 (PNP source, 0.5 A) No difference in electrical output capability
Supply Voltage 24 V DC / 19.2 to 28.8 V DC Same as Basic No difference
Firmware Version V0.0; not updateable Check Siemens documentation Verify CPU firmware compatibility before ordering either variant

If your architecture uses distributed ET 200SP nodes without a hard requirement for CPU-level fault reporting on output channels, the 6ES7132-6BH00-0AA0 is the correct lower-cost choice — check current availability at LeadTime.ca.

Expert Verdict: Honest Assessment for Controls Engineers

The 6ES7132-6BH00-0AA0 is a well-understood, reliable workhorse for discrete output in ET 200SP systems. Its 16-channel PNP topology at 0.5 A per channel covers the overwhelming majority of 24 V DC actuator loads without requiring external amplification or relay interfaces. The built-in short-circuit protection at a 1.4 A threshold and inductive shutdown clamping at approximately -53 V L+ give the module meaningful self-protection for solenoid-heavy applications. The 19.2 to 28.8 V DC operating range provides adequate tolerance for real-world power supply variation, and the automatic reverse polarity protection genuinely reduces installation errors in high-turnover panel shops. These are the three attributes that most directly explain why experienced integrators standardize on this module across modular machine platforms.

Where this module has real limits: the absence of diagnostics feedback to the CPU is a genuine operational constraint in any system where a faulted output channel could create a safety or production hazard without immediate controller awareness. If operators are not physically positioned near the module to observe LED indicators — which is common in large distributed installations — a tripped channel can go undetected until a process fault is noticed at the machine level. For those applications, the 6ES7132-6BH00-0BA0 Standard variant is the correct choice despite the 15 to 25 percent cost premium. Additionally, proportional solenoids drawing 0.4 to 0.6 A exceed the 0.5 A per-channel ceiling and cannot be connected directly — a common specification error that causes field rework. If open-circuit detection is needed on output wiring, this module does not provide it; plan for external circuit monitoring.

From a procurement standpoint, ET 200SP modules in this family are stocked by major industrial automation distributors globally, with standard lead times in the 2 to 4 week range for non-stock orders and potential for longer lead times during supply chain disruptions. Volume pricing is available for OEM and panel builder orders. Spare part planning at 5 to 10 percent of installed module count is standard practice for ET 200SP deployments. If this module matches your system requirements, view current stock and pricing at LeadTime.ca.

For volume pricing or to confirm lead time before committing to a panel build, contact the LeadTime.ca team directly — we ship worldwide.

Wiring and Installation Overview

  • The BU type A0 base unit is mandatory — confirm it is installed and unoccupied before inserting the 6ES7132-6BH00-0AA0; the mechanically keyed connector prevents insertion into incompatible BU types such as BU type A4
  • Supply voltage to the base unit must be within 19.2 to 28.8 V DC; reverse polarity protection is automatic but stable, correctly polarized power within range is required for reliable operation
  • Each of the 16 output terminals can carry up to 0.5 A; apply the 80% design rule (0.4 A sustained per channel) and verify worst-case inrush current for solenoid and motor starter loads before finalizing cable sizing
  • Inductive loads — solenoid coils, relay coils, motor starter coils — require external freewheeling diodes (400 V rating or higher) mounted on the load-side terminal block; do not rely solely on the module's internal -53 V clamping as the primary inductive load protection strategy
  • Upstream fusing or an MCB is required per applicable installation standards; the module includes short-circuit protection at channel level but has no integrated circuit breaker — system-level protection of the ET 200SP node is a design responsibility, not a module feature

Compatible Base Units and System Expansion

The 6ES7132-6BH00-0AA0 is designed for use within the SIMATIC ET 200SP distributed I/O system. The following components are directly relevant to a complete and compatible installation:

  • BU type A0 base unit — mandatory mechanical and electrical interface for this module; provides terminal blocks, backplane connection, and power distribution rails
  • Potential isolation module — required when 2-wire, 3-wire, or 4-wire connection configurations must electrically separate signal ground from power ground; commonly used in installations with variable frequency drives or high-frequency switching noise
  • ET 200SP interface module — connects the I/O rail to the PROFINET or PROFIBUS network and distributes backplane power to all modules in the node including this DQ module
  • Digital input (DI) modules in the same ET 200SP family — paired with this DQ module for complete input/output node coverage in a single rail section
  • TIA Portal or STEP 7 configuration software — required for address assignment, output mapping, and commissioning; the module supports automatic hardware detection so manual parameter entry is typically not required

Wrong-Part Prevention: Verify Before You Order

Before submitting a purchase order for the 6ES7132-6BH00-0AA0, run through every item on this checklist. Each point addresses a documented source of specification errors and field rework on ET 200SP installations.

  1. Verify module part number matches procurement order (6ES7132-6BH00-0AA0) to avoid receiving 0BA0 or 2AA0 variants
  2. Confirm color coding matches your cabinet color scheme (CC00 standard; confirm if custom coding is required)
  3. Check that BU type A0 base unit is already selected; do not mix with BU type A4 (different mechanical interface)
  4. Validate that all 16 output loads are PNP compatible (low-side switched); do NOT use with NPN-only devices without isolation
  5. Confirm power supply can deliver 24 V DC within 19.2 to 28.8 V band; low AC ripple preferred to avoid false triggering
  6. Ensure no output will exceed 0.5 A per channel under worst-case load (inrush current); group high-current outputs across channels
  7. Verify ET 200SP CPU and firmware versions support this module revision (V0.0, FW update not available for this model)
  8. Check physical cabinet space for module dimensions and connector orientation before purchasing

If any item on this checklist raises a compatibility question, contact the LeadTime.ca team before ordering — resolving a specification question before purchase is faster and less expensive than a return or a field retrofit.

Frequently Asked Questions

Can the 6ES7132-6BH00-0AA0 be used with NPN (sink) output devices?

No. The 6ES7132-6BH00-0AA0 uses PNP source output topology exclusively — it sources current from the 24 V DC supply rail to the load. NPN (current-sinking) devices require a different wiring configuration that this module does not support natively. If your field devices are NPN-only, a potential isolation module or a different output module variant is required to bridge the topology difference.

What happens when a short-circuit occurs on one output channel?

The module's built-in short-circuit protection trips the affected channel when current exceeds the 1.4 A typical threshold (within the 0.7 to 1.9 A range). The channel disconnects automatically and recovers when the fault condition clears. The diagnostics LED on the module face will indicate the fault visually, but no fault code is transmitted to the CPU — that capability requires the Standard variant (6ES7132-6BH00-0BA0). Upstream fusing protects the full ET 200SP node from a sustained fault condition.

Is the 6ES7132-6BH00-0AA0 compatible with all ET 200SP CPUs and interface modules?

The module runs firmware V0.0, which is not updateable on this variant. Compatibility depends on the CPU or interface module firmware version in your specific ET 200SP configuration. Before purchasing, verify that your ET 200SP CPU and the installed firmware version are confirmed to support this module revision. Siemens compatibility information is available through TIA Portal's hardware catalog and the Siemens Industry Support portal.

Do I need external freewheeling diodes when driving solenoid valves with this module?

Yes, for solenoid and relay coil loads, external freewheeling diodes rated 400 V or higher are recommended on the load-side terminal block. The module does limit inductive shutdown transients to approximately -53 V L+ internally, but this clamping is a protective minimum — not a substitute for proper inductive load protection in the field wiring design. A standard 1N4007 or equivalent is appropriate for general industrial solenoid duty.

What is the difference between the 0AA0 and 0BA0 variants in practical terms?

Both variants deliver identical electrical performance: 16 PNP source outputs at 24 V DC and 0.5 A per channel with the same short-circuit protection and supply voltage range. The 0AA0 (Basic) provides only local LED fault indication with no fault reporting to the CPU; the 0BA0 (Standard) delivers channel-level diagnostic fault codes to TIA Portal, enabling automated fault handling in the control program. The 0AA0 costs 15 to 25 percent less than the 0BA0 and is the correct choice when diagnostics feedback to the controller is not required.

What base unit is required, and can this module be inserted into any open ET 200SP slot?

The 6ES7132-6BH00-0AA0 requires a BU type A0 base unit specifically. It cannot be inserted into a BU type A4 base unit due to differences in the mechanical interface. The ET 200SP system uses mechanical coding to prevent incorrect module insertion, so an attempt to seat this module in an incompatible base unit will be physically blocked. Confirm BU type A0 is installed in the target slot before purchasing the module.

Why Order From LeadTime.ca

  • LeadTime.ca ships worldwide — no geographic restriction on orders regardless of project location
  • Specialized in sourcing industrial automation components including hard-to-find or lead-time-sensitive SIMATIC ET 200SP modules
  • Volume pricing available for OEM panel builders and multi-node project orders — contact the team directly for project quotes
  • Fast response on lead time confirmation before you commit to a build schedule — reducing procurement risk on time-sensitive projects
  • Both product page and direct contact available for self-serve or assisted purchasing:

At-a-Glance Summary

  • Official designation: DQ 16x24VDC/0.5A BA — 16 PNP source output channels at 24 V DC and 0.5 A per channel
  • Operating supply voltage range: 19.2 to 28.8 V DC with automatic reverse polarity protection
  • Short-circuit protection threshold: 1.4 A typical (0.7 to 1.9 A range); auto-recovery on fault clearance
  • Inductive shutdown voltage clamped to approximately -53 V L+; external freewheeling diodes rated 400 V or higher still required for solenoid loads
  • Mandatory base unit: BU type A0 — do not mix with BU type A4
  • Address space: 2 bytes per module; automatic hardware detection via TIA Portal or STEP 7
  • Firmware: V0.0 — not updateable on this variant; verify CPU firmware compatibility before ordering
  • Module idle current: 55 mA maximum; typical power loss 1 W
  • No CPU-level channel diagnostics — choose 6ES7132-6BH00-0BA0 (Standard, 15 to 25 percent higher cost) if fault reporting to controller is required
