TM3AI8 Schneider Modicon — 8-Channel Analog Input Selection Guide

By Abdullah Zahid
15 min read

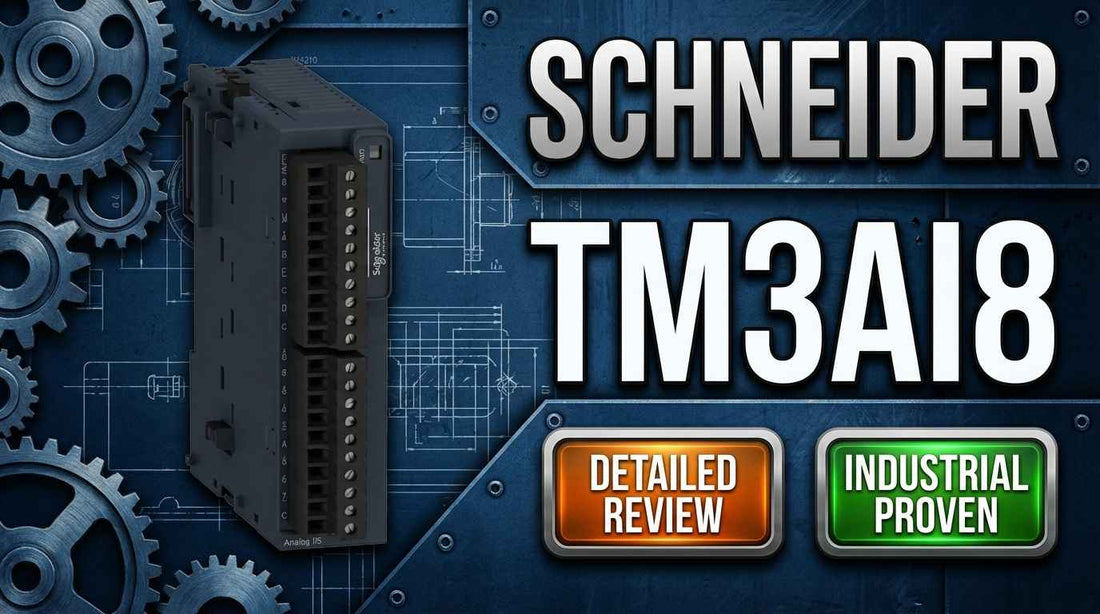

Schneider Electric TM3AI8 8-channel analog input expansion module mounted on DIN rail for Modicon M241 PLC system

TM3AI8 Schneider Modicon Analog Input Module, 8 Inputs (Screw), 24 VDC — Specifications and Selection Guide

Controls engineers specifying analog expansion for a Modicon M-series controller arrive at a familiar crossroads: replace the base unit, add an external gateway, or drop in the right expansion module and move on. For installations running M221, M241, M251, or M262 controllers that need to monitor eight analog signals — pressure transmitters, flow meters, level sensors, or any 4-20mA or ±10V source — the TM3AI8 closes that gap directly on the DIN rail without additional hardware, protocols, or gateways. At 23.6mm wide and with per-channel configurability between voltage and current modes via SoMachine, it is the standard answer for Modicon analog expansion in compact control panels worldwide.

If you have already confirmed this is the right part for your system, check current pricing and availability for the TM3AI8 at LeadTime.ca — we ship worldwide.

Who Should Buy the TM3AI8 — and Who Shouldn't

The TM3AI8 is the right choice for engineers expanding analog monitoring capacity on an existing Modicon M-series installation without replacing the base controller. It is right for you if all of the following are true:

  • Your base controller is confirmed as an M221, M241, M251, or M262 — not an M200, M100, or any other Schneider Electric PLC family
  • You need exactly 8 analog input channels simultaneously — not 4, not 16
  • Your signal types are voltage (±10V) and/or current (0-4mA or 4-20mA) — not thermocouple or RTD temperature inputs
  • You have at least 23.6mm of free DIN rail width available in the enclosure
  • Your 24V DC supply has adequate current headroom to power the module and all connected sensors
  • Screw terminal wiring (3.18mm pitch removable block) is acceptable for your site installation practice

If you need only 4 channels, the TM3AI4 is the correct and lower-cost alternative. If your application requires thermocouple or RTD temperature inputs, the TM3AI8 does not support those signal types and you will need a different module variant. If you are evaluating a new PLC platform rather than expanding an existing Modicon installation, confirm platform compatibility before ordering.

On this page:

What the TM3AI8 Actually Does in a Control System

The TM3AI8 is an 8-channel analog input expansion module in the Modicon TM3 I/O family. Its job is straightforward: it converts eight analog field signals — current loops at 4-20mA or 0-4mA, or voltage sources at ±10V — into 12-bit digital values the controller can act on. Each of the eight channels is individually configurable in software, which means a single module can simultaneously accept a mix of signal types. A pressure transmitter on channel 1 running 4-20mA can coexist with a 0-10V flow meter on channel 5 without any hardware modification.

The module mounts directly alongside the base controller on a standard 35mm DIN rail and communicates via the TM3 local backplane bus — no Ethernet port, no CANopen address, no protocol configuration required. Power comes from the system 24V DC rail. In SoMachine or EcoStruxure Machine Expert, the module appears in the hardware tree after a simple drag-and-drop insertion, and channel addresses (%IW0 through %IW7 in a typical local slot assignment) are available to the control program immediately after compile. The 1500V AC galvanic isolation between the input circuit and the 24V supply means field-side transients stay on the field side, which matters in high-EMI environments like variable frequency drive panels or power distribution switchgear rooms.

The practical argument for using this module instead of replacing the base controller is straightforward: the TM3AI8 adds 8 analog inputs to a running Modicon installation in the time it takes to mount the module, wire the terminals, and update the hardware configuration. No controller swap, no I/O remapping, no additional licensing.

Typical System Architecture for TM3AI8 Deployment

The TM3AI8 sits between field-mounted analog sensors and the Modicon base controller, converting continuous process signals into register values the PLC program can read on every scan cycle. Here is where it fits in a typical control system chain:

  • 24V DC power supply feeds the controller rail and the TM3AI8 power terminal block simultaneously
  • Modicon M241 (or M221, M251, M262) base controller occupies the leftmost position on the DIN rail; TM3AI8 snaps directly to its right via the TM3 expansion bus connector
  • Field devices — pressure transmitters, flow meters, level sensors, temperature transmitters with 4-20mA outputs, or 0-10V analog sources — wire into the TM3AI8 removable screw terminal block
  • SoMachine or EcoStruxure Machine Expert on the engineering workstation handles module configuration; no separate configuration hardware is needed
  • Downstream actuators, HMI displays, or SCADA systems receive processed values via the controller's communication ports (Ethernet, serial, etc.) without any involvement of the TM3AI8 hardware itself

Where Engineers Deploy the TM3AI8

The most common deployment is adding pressure, temperature, flow, and level monitoring to a Modicon M241-based machine control system that was originally specified with fewer analog channels than the application eventually required. Retrofit projects are a recurring use case: an existing panel has an M221 or M241 with two or four built-in analog inputs, the process expands, and the TM3AI8 fills the gap without panel redesign.

In food and beverage manufacturing, eight channels of 4-20mA monitoring maps naturally to a single filling or blending skid — tank level, inlet pressure, outlet flow, product temperature, and conveyor load signals can all terminate at one TM3AI8. In water and wastewater treatment, where a pumping station may have multiple pressure zones and flow measurement points, the module's channel density reduces the module count in the panel.

OEM machine builders standardizing on compact Modicon platforms use the TM3AI8 to keep the base controller size minimal while scaling analog I/O to match each customer's sensor list. The module's 23.6mm width means a panel with seven TM3 expansion slots can fit significant I/O capacity in a very compact enclosure footprint.

In HVAC and building automation applications, the ±10V voltage input mode covers the output range of most building automation sensors — CO2 transmitters, humidity sensors, static pressure probes — without any signal conditioning hardware between the sensor and the module.

Application Typical Deployment
Water and wastewater pumping station Eight 4-20mA pressure and flow transmitters wired to one TM3AI8 on M241 panel controller
Food and beverage filling skid Mixed 4-20mA and 0-10V sensors (level, flow, pressure, temperature transmitters with mA output) on single module
HVAC air handling unit ±10V building automation sensors (CO2, humidity, static pressure) mapped to individual channels in EcoStruxure Machine Expert
OEM packaging machine Modicon M221 base with TM3AI8 added to support servo feedback, web tension, and product weight signals
Retrofit of legacy Modicon M241 panel TM3AI8 added to existing DIN rail alongside base controller to expand analog capacity without controller replacement
Condition-based maintenance system Vibration, current, and temperature transmitter outputs connected for multi-parameter asset monitoring

Key Specifications for Purchase Decisions

Parameter Value
Supply Voltage 24V DC
Analog Input Channels 8
Input Signal Types Voltage ±10V or Current 0-4mA / 4-20mA (configurable per channel)
Resolution 11-bit + sign / 12-bit depending on range selected
Isolation Voltage (Input to Supply) 1500V AC
Isolation Voltage (Input to Internal Logic) 500V AC
Input Impedance (Current Mode) ~250 ohm
Dimensions (W x D x H) 23.6mm x 70mm x 90mm
Weight 0.11 kg
Protection Rating IP20

Full technical specifications are available on the product page at LeadTime.ca.

TM3AI8 vs. TM3AI4 vs. TM3AQ8: Which Module Do You Actually Need?

The Modicon TM3 analog line covers input, output, and mixed configurations. Choosing the wrong variant is the most common ordering mistake in this product family — the part numbers differ by a single character but the functional difference is significant.

Feature TM3AI8 (8-Ch Input) TM3AI4 (4-Ch Input) TM3AQ8 (8-Ch Output)
Channel Count 8 analog inputs 4 analog inputs 8 analog outputs
Signal Direction Input (read from field) Input (read from field) Output (command to field devices)
Supported Signal Types Voltage ±10V / Current 0-4mA, 4-20mA Voltage ±10V / Current 0-4mA, 4-20mA Voltage 0-10V / Current 4-20mA
Resolution 11-bit + sign / 12-bit 11-bit + sign / 12-bit 11-bit + sign / 12-bit
Isolation (Input/Output to Supply) 1500V AC 1500V AC 1500V AC
Compatible Controllers M221, M241, M251, M262 M221, M241, M251, M262 M221, M241, M251, M262
Module Width 23.6mm 23.6mm 23.6mm
Best Use Case Multi-sensor monitoring, 8-channel applications Basic applications, cost-reduction, 4-channel or fewer Valve positioning, drive speed reference, analog actuation

If your application requires analog outputs to drive valve positioners, VFD speed references, or proportional actuators, the TM3AQ8 is the correct module — not the TM3AI8. For mixed analog I/O applications, both modules are often installed together. If you are not certain which configuration fits your signal list, check current availability for the TM3AI8 at LeadTime.ca and contact the team for selection guidance.

Expert Verdict: Is the TM3AI8 Worth Specifying?

The TM3AI8 earns its place on the BOM for any controls engineer already running Modicon M-series hardware who needs to add analog sensing capacity without a controller swap. The combination of per-channel input type configurability, 1500V AC galvanic isolation, and direct SoMachine integration makes it genuinely low-friction to deploy. The 12-bit resolution is appropriate for the vast majority of process monitoring applications — pressure, level, flow, and temperature transmitter signals — and the removable screw terminal block simplifies pre-wiring in panel shop environments. The fact that it is an active product with no end-of-life signals from Schneider Electric as of the time of writing means specifying it into a new machine design does not introduce near-term obsolescence risk.

Where the TM3AI8 has real limits: it is strictly voltage and current — it will not read thermocouples or RTDs directly, so any application with temperature sensing via those probe types needs a dedicated temperature input module. The IP20 rating limits it to clean indoor panels; washdown or outdoor enclosures are outside its operating envelope without additional protection. And if your design calls for more than seven local expansion modules alongside the base controller, you will need to plan a distributed I/O architecture rather than local backplane expansion. Engineers evaluating a platform change rather than expanding an existing Modicon installation should do a proper platform comparison; the TM3AI8's advantages are specific to the Modicon TM3 ecosystem.

From a procurement standpoint, the TM3AI8 is consistently in stock at major distributors with standard lead times of 1 to 5 business days for in-stock units. It is available in single-unit quantities with no minimum order requirement, which matters for maintenance spares and retrofit projects where buying ten units is not practical. Volume orders typically qualify for discounts — contact your distributor account manager when ordering ten or more units. For engineers ordering from outside North America, LeadTime.ca ships the TM3AI8 worldwide. View current pricing and stock status for the TM3AI8 at LeadTime.ca before finalizing your purchase order.

For volume pricing or to confirm lead time before committing to a build, contact the LeadTime.ca team directly — we ship worldwide.

What Engineers Need to Know Before Ordering the TM3AI8

Community discussion on the TM3AI8 specifically is sparse compared to higher-volume PLC CPU products — which itself is informative. When a module generates relatively few forum complaints, it generally means it does what the datasheet says it does without surprises. That said, the ordering mistakes and specification traps that do arise with this product family are consistent enough that specialist knowledge matters more here than crowd-sourced troubleshooting threads.

The most reliably reported source of friction is the channel count confusion between TM3AI8 and TM3AI4. Because distributor listings sometimes group these under the same product family heading and the part numbers differ by one character, procurement errors happen more than they should. A related mistake is ordering the TM3AI8 when the application actually requires analog outputs — confusing AI (analog input) with AQ (analog output). These are not interchangeable. The module you receive will be correct to the part number on the purchase order, and returns take time that most projects do not have.

A second area where specialist input prevents problems is the signal type question. The TM3AI8 handles voltage and current signals — it does not accept thermocouple millivolt signals or RTD resistance signals directly. Engineers migrating from a system where temperature inputs were handled by a different module type sometimes discover this constraint after the module arrives. Confirming the exact signal type list against the TM3AI8's supported input modes before ordering is a five-minute check that prevents a two-week delay. When community feedback is limited and the specification stakes are high, reaching out to a distributor who works with Modicon hardware regularly is the fastest path to a confident order. LeadTime.ca's team handles TM3 module selection inquiries regularly and can confirm compatibility for your specific controller model and application before you commit.

Wiring and Installation Overview

  • The TM3AI8 mounts on a standard 35mm DIN rail (IEC 60715 TH35-15 or TH35-7.5); the removable screw terminal block can be pre-wired on the bench before the module is snapped into the rail, which simplifies panel assembly sequencing
  • Each channel uses a pair of screw terminals (positive and return/common) with 3.18mm pitch; shielded twisted-pair cable is strongly recommended for 4-20mA current loops to minimize EMI pickup, with shield terminated at the controller ground on one end only to prevent ground loops
  • The 24V DC power supply voltage should be verified across the power terminal block before commissioning — the acceptable operating range is typically 18-30V DC; verify your specific supply is within that range before energizing
  • In SoMachine or EcoStruxure Machine Expert, the TM3AI8 must be added to the Hardware Configuration tree and each channel individually enabled and assigned an input type (Voltage ±10V, Current 4-20mA, or Current 0-4mA) before the program will read valid values; unassigned channels should be left disabled
  • Hot-swapping is not recommended — remove 24V DC power from the module rack before inserting or removing the TM3AI8, and allow five seconds before restoring power to allow capacitors to discharge fully

Full wiring diagrams and step-by-step configuration procedures are available in the Schneider Electric TM3AI8 installation sheet and SoMachine help documentation. Engineers requiring complete commissioning procedures should refer to manufacturer documentation directly.

Compatible Modules and System Expansion

The TM3AI8 is one module in the broader Modicon TM3 expansion ecosystem. The following modules are compatible with the same M221, M241, M251, and M262 base controllers and can be combined with the TM3AI8 on the same DIN rail within the local expansion limit of seven modules per controller:

  • TM3AI4 — 4-channel analog input module; same signal types and resolution as TM3AI8; used when fewer than 8 channels are required or to fill remaining channel requirements alongside a TM3AI8
  • TM3AQ8 — 8-channel analog output module; voltage 0-10V or current 4-20mA outputs for valve positioners, VFD speed references, and proportional actuators; frequently deployed alongside TM3AI8 for closed-loop control applications
  • TM3 digital I/O modules — discrete input and output expansion modules in the same TM3 family; mix with analog modules on the same rail without compatibility issues
  • Remote I/O gateway — for applications requiring more than 7 local expansion modules, a distributed I/O architecture using a remote gateway extends total I/O capacity to a maximum of 14 modules per controller across local and remote configurations

Wrong-Part Prevention: 8-Point Checklist Before You Order

Run through every item on this checklist before submitting a purchase order for the TM3AI8. Each point corresponds to a confirmed source of wrong-part orders or installation failures in the field:

  1. Confirm target controller is M221, M241, M251, or M262 (not M200, M100, or other Modicon/Schneider PLC families)
  2. Verify exact channel count needed is 8 (not 4 per TM3AI4 or 16 with cascaded modules)
  3. Confirm input signal types match: voltage input (±10V) and/or current input (0-4mA, 4-20mA) — not thermocouple or RTD
  4. Check DIN rail space available is minimum 23.6mm width and standard 35mm depth for mounting
  5. Verify 24V DC power supply can provide adequate current for module and all connected sensors
  6. Confirm SoMachine or EcoStruxure Machine Expert software version on controller supports TM3AI8 (standard on current firmware)
  7. Validate isolation voltage requirements (1500V AC input-to-supply) meet application safety classification
  8. Ensure screw terminal wiring (3.18mm pitch removable block) is acceptable for site installation practices

If any item on this checklist raises a question before you order, contact the LeadTime.ca team — confirming compatibility before the order ships is faster and less costly than processing a return.

Frequently Asked Questions

Can the TM3AI8 be used with an older Modicon M200 or M100 controller?

No. The TM3AI8 is compatible exclusively with the M221, M241, M251, and M262 controller families. M200 and M100 controllers use the TM2 module architecture, which is a different physical and electrical interface. Attempting to install a TM3 module on an M200 or M100 system will not produce a working installation and may damage hardware. If you are working with M200 or M100 equipment, confirm the appropriate analog input module for that platform with your distributor before ordering.

Can I mix 4-20mA and ±10V inputs on the same TM3AI8 simultaneously?

Yes. Each of the eight channels is individually configurable in SoMachine or EcoStruxure Machine Expert. You can assign channels 1 through 4 to 4-20mA current input and channels 5 through 8 to ±10V voltage input within the same module instance. Configuration is performed in the Hardware Configuration tab under Module Properties, and each channel setting is independent of the others. This flexibility is one of the primary reasons engineers specify the TM3AI8 for mixed-sensor applications rather than using separate single-type modules.

What happens if the analog input signal exceeds the rated input range — does the module shut down or clamp?

The TM3AI8 includes overvoltage protection, with a typical input overvoltage tolerance of ±15V. Inputs beyond that range risk damaging the module input circuitry. The module does not automatically shut down or enter a safe state on overvoltage — it may saturate at a maximum count value and the input circuit may be degraded or damaged by sustained overvoltage conditions. For applications where input voltage excursions above ±15V are possible, external signal conditioning or clamping should be used on the input wiring before the terminal block.

Is the TM3AI8 hot-swappable while the controller is running?

Hot-swapping is not recommended. While some Modicon system configurations may physically allow module insertion with power applied, best practice is to remove 24V DC power from the module rack before inserting or removing the TM3AI8. Power-down the system and allow five seconds for capacitors to discharge before making any module changes. Failing to do so risks data corruption, program faults, or hardware damage to the module or the base controller's expansion bus.

Does the TM3AI8 require any additional software license to configure in SoMachine?

No additional license is required. TM3AI8 support is included in the base SoMachine and EcoStruxure Machine Expert installation at current firmware versions for supported M-series controllers. Configuration is handled entirely through the standard Hardware Configuration interface in the software. If you are running a legacy SoMachine version, verify that your firmware version supports the TM3 module family — this is standard on current firmware releases.

How do I convert the raw 12-bit register value from %IW0 into engineering units like PSI or liters per minute?

The TM3AI8 outputs a 12-bit value (0 to 4095 counts) corresponding to the configured input range. To convert to engineering units, apply a linear scaling formula in the SoMachine control program: Engineering Value = (Raw Value divided by 4095) multiplied by the sensor span, plus the offset. For a 4-20mA transmitter with a 0-100 psi range, a raw value of 2048 corresponds to approximately 50 psi at the midpoint of the current range. This scaling is implemented in ladder logic or structured text and requires no additional hardware.

Why Order the TM3AI8 from LeadTime.ca

  • Ships worldwide — LeadTime.ca processes orders for the TM3AI8 from customers across North America, Europe, Asia, and beyond, with no geographic purchasing restrictions
  • In-stock sourcing for Modicon TM3 modules — the TM3AI8 is an active product with consistent availability; standard lead times of 1 to 5 business days for in-stock units
  • Single-unit orders accepted — no minimum order quantity, which matters for maintenance spares, retrofit one-offs, and pilot projects
  • Volume pricing available — contact the team for quotes on orders of 10 or more units; volume discounts are routinely available for project builds and OEM applications
  • Specialist distributor support — the LeadTime.ca team handles Modicon TM3 module selection inquiries and can confirm compatibility with your specific controller model before you commit to an order

At-a-Glance Summary

  • The TM3AI8 is an 8-channel analog input expansion module in the Modicon TM3 family, rated for 24V DC supply
  • Compatible base controllers: M221, M241, M251, and M262 only — not M200, M100, or other Schneider Electric PLC families
  • Supports voltage input ±10V and current input 0-4mA or 4-20mA, configurable per channel individually in software
  • Resolution: 11-bit + sign or 12-bit depending on range selected; input impedance in current mode is approximately 250 ohm
  • Galvanic isolation: 1500V AC between input circuit and 24V supply; 500V AC between input circuit and internal PLC logic
  • Physical dimensions: 23.6mm width x 70mm depth x 90mm height; weight 0.11 kg; IP20 protection rating
  • Termination: removable screw terminal block with 3.18mm pitch; supports pre-wiring before DIN rail mounting
  • Maximum 7 local expansion modules per M-series controller; up to 14 modules in distributed I/O configuration
  • Active product with no end-of-life indication as of current date; standard in-stock lead time of 1 to 5 business days
  • No additional software license required; configuration handled in SoMachine or EcoStruxure Machine Expert Hardware Configuration tab
