Schneider Electric TM3BCEIP — Modicon Bus Coupler Buyer's Guide

By Abdullah Zahid
15 min read

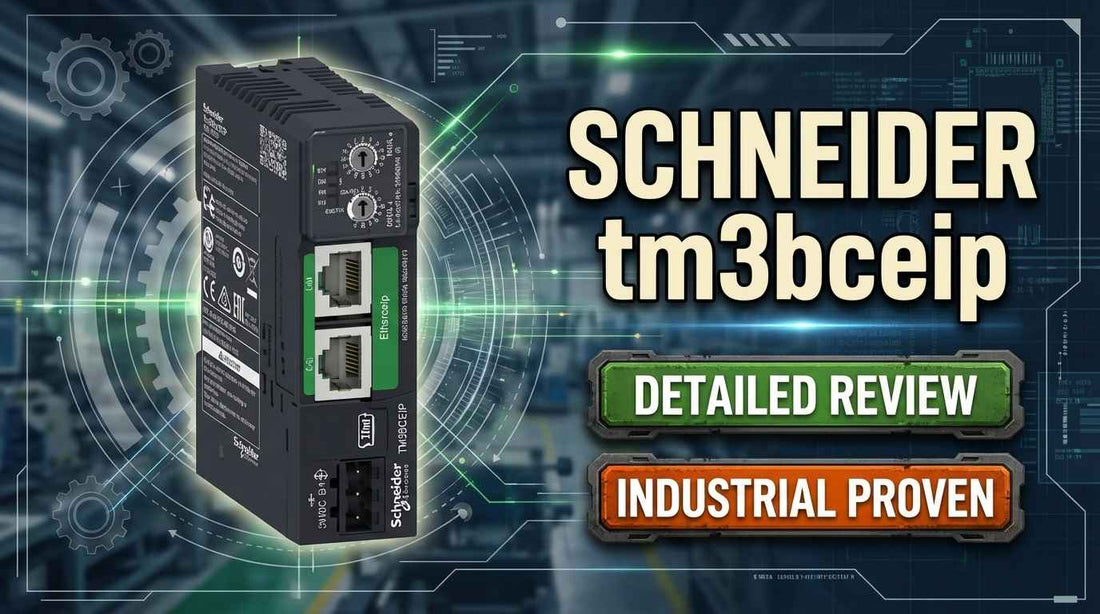

Schneider Electric TM3BCEIP Modicon TM3 IP20 Ethernet bus coupler module for distributed I/O expansion in industrial cabinet

Schneider Electric TM3BCEIP Distributed IO Module; Modicon TM3 IP20 Optimized Bus Coupler; Ethernet Interface — Complete Specifications, Pricing, and Alternatives Guide

Controls engineers expanding a Modicon M-series PLC system to remote sensor and actuator zones face a familiar crossroads: run long hardwired I/O cables to every field device, or deploy a distributed Ethernet-based bus coupler that handles the heavy lifting at the network level. The Schneider Electric TM3BCEIP is built for the second approach — a dedicated IP20-rated Ethernet bus coupler that connects remote TM3 expansion I/O modules to a host Modicon M221, M241, M251, or M262 controller over Ethernet IP or Modbus TCP, drawing just 0.8 A at 24 VDC. If your application involves distributed I/O across multiple zones, multiple buildings, or a modular production line, this module eliminates the cable runs and backplane constraints that make hardwired topologies expensive and slow to reconfigure.

If you have already confirmed compatibility and are ready to move forward, check current pricing and availability for the TM3BCEIP at LeadTime.ca — we ship worldwide.

Who Should Buy the TM3BCEIP — and Who Shouldn't

The TM3BCEIP is the right module if all of the following are true for your project:

  • Your host PLC is a Modicon M221, M241, M251, or M262 — these are the only four models the TM3BCEIP supports; no other PLC brand or legacy Modicon model is compatible.
  • Your network infrastructure supports Ethernet IP or Modbus TCP — the TM3BCEIP has no Profibus, PROFINET, or serial interface.
  • Your 24 VDC power supply can deliver at least 0.8 A to the module, with margin for other devices on the same supply rail.
  • Your installation environment operates between -10°C and 60°C and allows IP20-rated equipment — cabinet-mounted enclosures in climate-controlled facilities are the intended deployment context.
  • You have access to TM3 BC IO Configurator software and a SoMachineBasic or equivalent Modicon configuration toolchain before commissioning begins.
  • Your network topology supports daisy-chain connectivity — if a strict point-to-point star topology is required, your network architecture may need design review before this module can be used.

If your host PLC is from a different manufacturer, or if your environment requires IP67 or higher ingress protection, or if your fieldbus is Profibus or PROFINET, the TM3BCEIP is not the correct part. The Wrong-Part Prevention Checklist further down this page will walk you through each verification step before you commit to an order.

On this page:

What the TM3BCEIP Actually Does in a Modicon System

The TM3BCEIP functions as the Ethernet gateway between a Modicon M-series PLC and a remote cluster of TM3 expansion I/O modules. Without a bus coupler like this one, each additional I/O module must sit in direct physical proximity to the PLC base unit — wired back to the backplane. The TM3BCEIP breaks that constraint by converting the TM3 local bus signals into Ethernet IP or Modbus TCP traffic that travels across your existing plant network, allowing the downstream TM3 I/O modules to be mounted anywhere an Ethernet drop is available.

Daisy-chain topology is the defining scalability feature here. Rather than running a separate Ethernet cable from a central switch to each remote I/O node, the TM3BCEIP modules can be cascaded in sequence — each one feeding the next — which dramatically reduces cable count and installation labor in distributed layouts. Schneider Electric's Modicon TM3 family documentation confirms that this daisy-chain topology is a core design principle of the product family, not an afterthought.

Dual-protocol support is a second genuine advantage. Schneider Electric's official documentation confirms the TM3BCEIP supports Ethernet IP and Modbus TCP simultaneously, meaning the module can coexist in network architectures that mix both protocols without requiring separate hardware variants for each. A 10/100 Mbps Ethernet interface with auto-negotiation between half-duplex and full-duplex modes handles the physical connection via a standard RJ45 jack.

Typical System Architecture for Distributed TM3 I/O

The TM3BCEIP sits between the Modicon PLC's Ethernet port and the remote TM3 I/O expansion modules it governs. Understanding where it fits in the data chain helps clarify both its value and its limits.

  • Modicon M221, M241, M251, or M262 PLC — the host controller running SoMachineBasic or equivalent, which originates all I/O read and write commands over Ethernet.
  • Plant Ethernet network or direct PLC-to-coupler cable — carries Ethernet IP or Modbus TCP traffic between the PLC and each TM3BCEIP node.
  • TM3BCEIP bus coupler — receives Ethernet traffic, translates it to the TM3 local bus, and manages the downstream I/O expansion modules mounted beside it.
  • TM3 expansion I/O modules — digital input, digital output, analog input, and analog output modules physically attached to the TM3BCEIP in a local cluster.
  • Field devices — sensors, actuators, transmitters, and drives connected to the TM3 I/O module terminals at the remote installation point.

Industries and Applications Where the TM3BCEIP Delivers

Food and beverage manufacturing plants are a natural fit for the TM3BCEIP. A central Modicon M241 PLC can monitor temperature, pressure, and flow sensors distributed across separate processing zones — fermentation, pasteurization, filling — without running individual analog signal cables back to a central I/O rack. The Ethernet daisy-chain topology handles the distance and the data.

Wastewater treatment facilities with pump houses, valve actuator stations, and level sensors spread across multiple buildings represent another strong use case. Replacing long analog runs with Ethernet-based remote I/O nodes reduces cable installation labor substantially, and the daisy-chain topology minimizes the number of Ethernet drops required.

Pharmaceutical clean-room environments benefit from the TM3BCEIP's ability to place the host Modicon PLC in a compliant control room while the remote I/O cabinet remains in the controlled zone. As long as the clean-room cabinet maintains adequate IP20 or better protection for the module itself, the Ethernet separation between PLC and I/O is an asset.

Modular or temporary production line setups — common in automotive assembly and packaging machinery — are where the reconfiguration advantage of Ethernet-based I/O becomes tangible. Adding or relocating a TM3 I/O node in a daisy-chain topology does not require rewiring the main backplane; the network address and configuration update handles the change in software.

Application Typical Deployment
Food and beverage processing Remote temperature and pressure sensor clusters connected to central Modicon M241 via Ethernet daisy-chain across production zones
Wastewater treatment Pump and valve I/O nodes in separate buildings; daisy-chain topology reduces cable runs and field labor costs
Pharmaceutical clean room PLC in compliant control room; TM3BCEIP in IP20-rated remote cabinet within controlled environment zone
Automotive / packaging assembly Modular line with reconfigurable I/O nodes; Ethernet topology allows zone reassignment without backplane rewiring
HVAC and building automation Distributed sensor and actuator control across multiple floors or zones connected to Modicon M251 or M262 host
Legacy machine I/O retrofit Replaces hardwired analog I/O runs on existing machinery with Ethernet-based remote I/O nodes; reduces retrofit wiring labor

Key Specifications for Purchase Decisions

Specification Value
Power Supply 24 VDC
Current Consumption 0.8 A
Operating Temperature -10°C to 60°C
Storage Temperature -20°C to 70°C
Degree of Protection IP20
Supported Protocols Ethernet IP, Modbus TCP
Ethernet Speed 10/100 Mbps
Compatible PLCs Modicon M221, M241, M251, M262
Dimensions (W x D x H) 27 mm x 70 mm x 96.5 mm
Weight 0.10 kg

Full technical specifications are available on the product page at LeadTime.ca.

TM3BCEIP vs. Other Modicon TM3 Bus Coupler Variants

Criteria TM3BCEIP Alternative Variant (TM3BCEP01 or equivalent)
Protocol Ethernet IP and Modbus TCP Verify with Schneider documentation for specific variant
Ingress Protection IP20 Verify for variant; IP67 options exist in other product families
PLC Compatibility M221, M241, M251, M262 Confirm per Schneider compatibility matrix for specific variant
Network Topology Daisy-chain supported Verify topology support per variant datasheet
Operating Temperature -10°C to 60°C Verify per variant datasheet
Best For Cabinet-mounted distributed I/O in climate-controlled environments with Ethernet IP or Modbus TCP networks Applications requiring different protocol, higher IP rating, or alternate form factor

If your environment demands IP67 protection, a legacy fieldbus protocol, or PLC compatibility outside the M221/M241/M251/M262 family, the TM3BCEIP is not the correct part — visit the product page at LeadTime.ca or contact our team to confirm the right variant for your system before ordering.

Expert Verdict: When to Buy This Module and When to Walk Away

The TM3BCEIP earns its place in Modicon M-series projects where distributed I/O is a genuine requirement and hardwired topology is either cost-prohibitive or operationally inflexible. The dual Ethernet IP and Modbus TCP support is not a marketing checkbox — it reflects real-world network environments where both protocols coexist, and Schneider Electric's confirmation that both can operate simultaneously removes a hardware procurement variable that affects many competing modules. The daisy-chain scalability is equally concrete: controls engineers deploying across multiple production zones or buildings get a meaningful reduction in cable infrastructure compared to point-to-point analog runs. The 27 mm width keeps DIN rail consumption lean in space-constrained panels, and the 0.10 kg weight makes the module straightforward to handle during installation. For a controls engineer or systems integrator running a Modicon M241 or M251 as the host PLC in a climate-controlled manufacturing environment, the TM3BCEIP is a well-matched, low-integration-risk choice.

That said, this module has firm boundaries that matter before you order. IP20 protection is appropriate for cabinet-mounted installations inside controlled environments — it is explicitly not rated for wet, washdown, high-dust, or outdoor deployments. If your plant floor environment or installation point falls outside those conditions, no amount of configuration expertise will compensate for inadequate ingress protection; you need a different module or a fully sealed enclosure around this one. The PLC compatibility constraint is equally hard: M221, M241, M251, and M262 are the only supported hosts. Legacy Modicon users on M200 or M300 hardware, or buyers working in mixed-vendor automation environments with Siemens or Allen-Bradley controllers, will find the TM3BCEIP non-functional out of the box. The configuration requirement for TM3 BC IO Configurator software is also a real pre-purchase consideration — teams without prior Modicon toolchain experience should factor in setup time and potential integrator support costs before committing to this architecture.

From a procurement standpoint, the TM3BCEIP is normally stocked in authorized distribution, and standard in-stock orders typically move within one to two weeks — though supply chain conditions can extend that window, so confirming actual lead time before locking in a project schedule is always the right move. Ordering through a specialist distributor rather than a generic online channel matters here: pre-sales compatibility verification against your exact PLC model and firmware, transparent inventory visibility, and access to technical resources during commissioning are services that reduce the risk of a costly return or a delayed startup. You can check current availability and pricing for the TM3BCEIP at LeadTime.ca — and if you need compatibility confirmed before committing, our team can assist.

For volume pricing or to verify lead time before committing to a build schedule, contact the LeadTime.ca team directly — we ship worldwide.

What Engineers Need to Know Before Ordering the TM3BCEIP

Community discussion for the TM3BCEIP and the broader Modicon TM3 product family is sparse across the major automation forums — searches of Reddit, PLCTalk, PLCS.net, MrPLC, Schneider's own community platform, and distributor Q&A sections returned no substantive threads for this specific model. That absence is worth naming directly: it means buyers cannot rely on crowdsourced troubleshooting experience or field deployment accounts when evaluating this module. The specification sheets and official Schneider documentation are the primary technical record, and pre-sales consultation with a knowledgeable distributor fills the gap that forum communities typically provide for more widely discussed parts.

What that means practically is that three areas deserve careful attention before the purchase order is placed. First, PLC model verification is non-negotiable and cannot be assumed from a product family name. The TM3BCEIP is supported only on the Modicon M221, M241, M251, and M262; buyers who assume TM3 modules carry broader Modicon compatibility — extending to M200, M300, or other legacy models — will receive a module that cannot connect to their host controller. Confirming your PLC model number from the nameplate or from the SoMachine software system tree, and then validating it against the Schneider compatibility matrix in writing, is the single most important step before ordering. Second, the TM3 BC IO Configurator software requirement is frequently underestimated by teams approaching this module for the first time. This is a separate, dedicated tool — not a function inside SoMachineBasic — and commissioning without it will stall. Confirming that the software is installed, licensed, and functional on your configuration workstation before the module arrives on site avoids a preventable delay. Third, the IP20 rating defines the enclosure requirement, not a suggestion. Engineers deploying in any environment with moisture, airborne particulate, or direct exposure to the plant floor need to either specify a different module or confirm that the installation cabinet provides the additional protection the module itself does not.

When manufacturer documentation is the primary reference and community validation is thin, the distributor relationship becomes the practical backstop. LeadTime.ca's technical team can confirm compatibility against your specific PLC model and firmware version, flag lead time reality before it affects your project schedule, and connect you with the right resources if commissioning questions arise. That is the kind of pre-purchase support that replaces what a well-populated forum thread would otherwise provide — and for a module with this level of ecosystem specificity, it is worth using.

Wiring and Installation Overview

The following points cover the essential installation considerations for the TM3BCEIP. Full wiring diagrams and step-by-step procedures are available in the Schneider Electric official installation manual and TM3 BC IO Configurator user guide.

  • The TM3BCEIP requires a stable 24 VDC supply capable of delivering at least 0.8 A to the module terminals; verify your power supply's aggregate load budget before energizing the module alongside other devices on the same rail.
  • The Ethernet connection uses a standard RJ45 jack; the module supports 10/100 Mbps with auto-negotiation between half-duplex and full-duplex modes, so no manual duplex configuration is required in most installations.
  • Mount the module in a cabinet or enclosure that maintains the IP20 environmental rating — the module itself provides no protection against water ingress or fine particulate; the enclosure must supply that protection if the deployment environment requires it.
  • Four LED indicators — PWR, MS, NS, and I/O — provide real-time status feedback during installation and commissioning; steady versus blinking states on each LED indicate different operating and fault conditions, and the Schneider LED reference guide in the product manual is the authoritative source for interpreting each state.
  • Daisy-chain topology wiring sequences and node addressing must be configured in TM3 BC IO Configurator before the network is brought online; attempting to bring up the module without completing configuration in the software first will result in the module failing to appear on the Ethernet network.

Wrong-Part Prevention Checklist

Before placing your order for the TM3BCEIP, work through each item on this checklist. Every one of these points has caused a preventable return or project delay for buyers who skipped the verification step.

  1. Confirm your PLC base unit model: M221, M241, M251, or M262. If different, TM3BCEIP will NOT function.
  2. Verify your network supports Ethernet IP or Modbus TCP. If your PLC communicates only via USB or serial, TM3BCEIP cannot connect.
  3. Confirm available 24 VDC supply and capacity for 0.8 A draw. If power budget is constrained, verify external power supply can handle aggregate load.
  4. Check installation environment: if IP20 is insufficient (wet, high-dust, washdown), choose a different module or enclosure.
  5. Ensure you have TM3 BC IO Configurator software and Modicon configuration toolchain (SoMachineBasic or equivalent) before ordering.
  6. Verify daisy-chain topology is compatible with your network topology; if point-to-point star topology is required, design may need adjustment.

If any item on this checklist cannot be confirmed before ordering, contact the LeadTime.ca team — we can help verify compatibility against your specific system before you commit to a purchase.

Frequently Asked Questions

Can I use the TM3BCEIP with a Modicon M251, or is it limited to the M241?

The TM3BCEIP is compatible with all four Modicon M-series models: M221, M241, M251, and M262. It is not limited to the M241. What matters is that your specific PLC model matches one of these four exactly — verify using the PLC nameplate or the SoMachine software system tree, not just the product family name.

Does the TM3BCEIP require a separate network switch, or can it connect directly to the PLC Ethernet port?

The TM3BCEIP can connect directly to a PLC Ethernet port in simple single-node installations. In daisy-chain topologies with multiple TM3BCEIP modules, the modules pass traffic between themselves in sequence. Whether a managed switch is required depends on your network architecture, the number of nodes, and any network segmentation requirements in your facility — consult your network design documentation and Schneider's topology guidance before finalizing the layout.

What do the four LED indicators mean, and how do I identify a fault condition during commissioning?

The TM3BCEIP has four LED indicators: PWR shows system power status, MS shows module status, NS shows network status, and I/O shows input/output activity. Each LED uses a combination of steady on, steady off, and blink patterns to communicate operating state and fault conditions. The specific meaning of each state — including fault codes — is documented in Schneider Electric's official LED reference guide included in the product manual; the guide should be on your workstation during commissioning, not referenced after a fault has already occurred.

Is the TM3BCEIP a direct replacement for any earlier Modicon remote I/O module, or does it require new configuration?

The TM3BCEIP is not a plug-in replacement for earlier Modicon remote I/O architectures. It requires TM3 BC IO Configurator software and a compatible SoMachineBasic or equivalent toolchain configuration specific to the TM3 product family. If you are replacing an older remote I/O solution, plan for a full reconfiguration exercise in software rather than a direct hardware swap.

What happens if I try to run the TM3BCEIP in a wet or dusty environment without additional enclosure protection?

IP20 protection covers solid objects larger than 12 mm in diameter — it provides no water ingress protection and minimal particulate protection. Deploying the TM3BCEIP in a wet, washdown, or high-dust environment without an IP-rated enclosure around it creates a direct risk of module failure through moisture or contamination damage. Environmental damage of this type may not be covered under warranty. If your environment requires IP67 or higher, the TM3BCEIP is not the correct module for unenclosed installation.

Can Ethernet IP and Modbus TCP both be active on the TM3BCEIP at the same time?

Yes. Schneider Electric's official product documentation confirms that the TM3BCEIP supports both Ethernet IP and Modbus TCP simultaneously. This is a verified capability confirmed by the manufacturer — not a configuration option that needs to be enabled for one protocol at the expense of the other. Verify your specific network architecture against this capability with your network documentation before commissioning to confirm both protocols are routable in your environment.

Why Order from LeadTime.ca

  • Global shipping — LeadTime.ca fulfills orders worldwide, not limited to any single region or country.
  • Pre-sales compatibility verification — our team can confirm TM3BCEIP compatibility against your specific Modicon PLC model and firmware before you commit to a purchase order.
  • Transparent lead time communication — we provide current stock status and realistic lead time estimates upfront, critical for project scheduling.
  • Volume pricing available — contact us for pricing on multi-unit orders or repeat procurement programs.
  • Specialist distributor support — access to technical resources and configuration guidance that generic online retailers do not provide.

At-a-Glance Summary

  • The TM3BCEIP is a Modicon TM3 Ethernet bus coupler compatible exclusively with Modicon M221, M241, M251, and M262 PLCs — no other host controllers are supported.
  • Power requirement: 24 VDC at 0.8 A; verify your supply rail can support this draw alongside other connected devices.
  • Supported network protocols: Ethernet IP and Modbus TCP, both simultaneously confirmed by Schneider Electric official documentation.
  • Ethernet interface: 10/100 Mbps with RJ45 connector and auto-negotiation between half-duplex and full-duplex modes.
  • Ingress protection: IP20 — suitable for cabinet-mounted installations in climate-controlled environments only; not rated for wet, washdown, or high-dust deployments without additional enclosure protection.
  • Operating temperature range: -10°C to 60°C; storage range: -20°C to 70°C.
  • Physical footprint: 27 mm wide, 70 mm deep, 96.5 mm tall, weighing 0.10 kg.
  • Daisy-chain topology is a core supported feature, enabling multiple TM3BCEIP nodes to cascade on a single Ethernet network and reduce point-to-point cable infrastructure.
  • TM3 BC IO Configurator software and a SoMachineBasic or equivalent Modicon toolchain are required for commissioning — confirm both are available before the module arrives on site.
  • Normally stocked in authorized distribution with typical lead times of one to two weeks for in-stock orders; verify current availability and lead time with LeadTime.ca before finalizing your project schedule.
