Schneider Electric TM251MESE — Dual Ethernet PLC Buying Guide

By Abdullah Zahid
16 min read

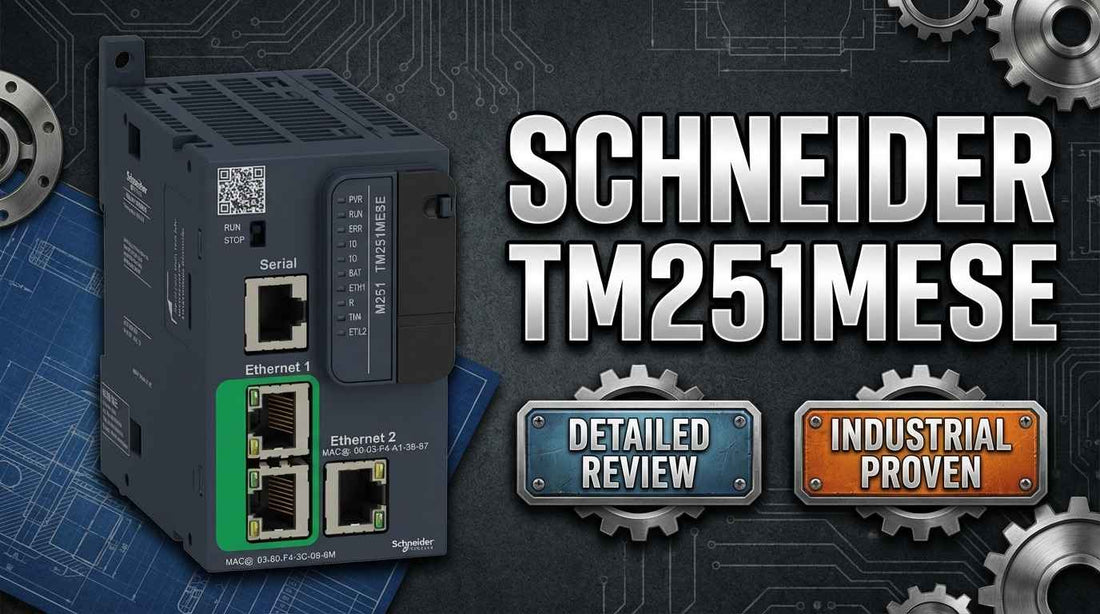

Schneider Electric TM251MESE Modicon M251 Logic Controller 2x Ethernet DIN rail mount panel automation

Schneider Electric TM251MESE Logic Controller Modicon M251 2x Ethernet — Specifications, Alternatives, and Buying Guide

Controls engineers and automation integrators evaluating the Schneider Electric TM251MESE are typically deep into platform selection — comparing dual versus single Ethernet variants, weighing modular I/O expansion capacity against project budget, and confirming whether the Modicon M251 family fits an existing Schneider infrastructure. The TM251MESE is a compact PLC base unit rated at 24V DC with dual RJ45 Ethernet ports, 64MB system RAM, 8MB program memory, and support for up to 7 local and 14 remote I/O expansion modules — making it one of the most versatile base units in the M251 lineup for distributed machine-level automation.

If you have already confirmed this is the right part, check current pricing and availability for the TM251MESE at LeadTime.ca — ships worldwide.

Who Should Specify the TM251MESE — and Who Should Look Elsewhere

The TM251MESE is the right choice for engineers and integrators who need simultaneous connectivity to a central SCADA system and a separate field device network, and who anticipate I/O growth over a 3 to 5 year production roadmap. Specify this model when:

  • Your architecture requires dual Ethernet — one port for plant SCADA or MES, a second port for remote I/O modules or field devices on a separate subnet
  • Your application needs more than a handful of I/O points and you want room to grow — up to 21 total modules (7 local, 14 remote) without replacing the base unit
  • Your panel or enclosure space is constrained — the 95mm x 54mm x 90mm footprint fits tight DIN rail slots where larger base units simply will not clear
  • Your facility or customer site requires CE, CSA, CULus, and RoHS compliance documentation for installation approval
  • You are already working within the Modicon M251 ecosystem with TM3xx expansion modules and do not want to introduce a second programming environment

If your application only needs a single Ethernet connection, the TM251MEL is the correct lower-cost choice. If your network requires managed Ethernet switching built into the controller, the TM251MEMU is the appropriate variant. If your facility is fully standardized on Siemens SIMATIC S7 or Allen-Bradley ControlLogix, switching to Modicon introduces training and support fragmentation that rarely makes technical sense.

On this page:

What the TM251MESE Does Inside a Real Automation System

The Schneider Electric TM251MESE is the central processing and control hub of a modular distributed automation cell. It executes user logic — ladder diagrams, structured text, function block programs — while simultaneously managing communication upstream to a SCADA or MES system and downstream to field devices, remote I/O modules, and sensors. The 8MB program memory handles mid-scale application logic without external processing, and 64MB of system RAM supports runtime variable management across all connected I/O points. A 128MB flash memory provides non-volatile program backup, and the optional SD card slot (up to 32GB) enables on-controller data logging and firmware versioning without external infrastructure.

What distinguishes the TM251MESE from other M251 variants is the dual Ethernet configuration. Each RJ45 port operates independently, allowing Port 1 to carry plant-level traffic toward a SCADA or historian and Port 2 to manage a local field device subnet — a network separation that eliminates the need for external managed switching hardware in many machine-level installations. The embedded web server and FTP server support remote firmware updates and file management over the Ethernet connection, reducing the need for on-site USB access during maintenance windows. The USB 2.0 Mini-B port (rated up to 3m) remains available for direct programming and initial commissioning.

The RS232/RS485 serial interface on the dedicated RJ45 connector rounds out the connectivity picture for legacy device integration — frequency inverters, barcode readers, and older HMI panels that do not carry Ethernet can connect via configurable serial at rates from 1.2 to 115.2 kbps. This matters on retrofit projects where not every field device can be upgraded to Ethernet simultaneously.

Typical System Architecture for the TM251MESE

The TM251MESE sits at the machine-controller layer — below the plant SCADA or MES network and above field devices, sensors, and actuators. Understanding where it sits in the signal chain helps confirm whether it is the right level of controller for your topology.

  • Plant SCADA or MES server communicates upstream via Port 1 (primary Ethernet, plant network IP segment)
  • TM251MESE base unit executes logic, manages I/O states, and stores program in 8MB program memory and 64MB RAM
  • Up to 7 local TM3xx I/O expansion modules connect directly to the base unit via screw terminal interface
  • Up to 14 remote I/O modules connect to Port 2 (secondary Ethernet, Modbus TCP, field device subnet) distributed across machine zones
  • Legacy serial devices (drives, readers, HMI panels) connect via the configurable RS232/RS485 serial port at up to 115.2 kbps

Industries and Applications Where the TM251MESE Fits

Food and beverage packaging operations are a natural fit for the TM251MESE. A filling or sorting line with remote I/O modules distributed across three or four machine zones — each zone handling digital inputs from photoeyes and limit switches and digital outputs to pneumatic valves — takes full advantage of the 14 remote Ethernet I/O slots. The IP20 protection rating with cover is adequate for the enclosed panel environments common in food processing, and the operating temperature range of -10°C to 55°C covers most packaging floor conditions.

Automotive assembly and material handling applications benefit from the dual Ethernet architecture when a conveyor system must report status data upstream to a MES layer while simultaneously polling encoder feedback and safety inputs from field devices on a separate low-latency subnet. The modular expansion capability means a system initially built with 6 local modules can scale to include remote drops without pulling new base unit hardware.

Pharmaceutical and precision dispensing applications value the compliance documentation — CE, CSA, CULus, RoHS 2, REACH, and EN/IEC 61131-2 certifications reduce approval friction in regulated manufacturing environments where every panel component must pass documentation review before installation.

Retrofit projects replacing legacy relay panels are a strong use case. The compact 95mm x 54mm x 90mm footprint and DIN rail compatibility mean the TM251MESE often fits into existing panel structures without enclosure replacement, and the RS232/RS485 serial port preserves connectivity to older devices that would otherwise require hardware upgrades.

Application Typical Deployment
Food and Beverage Packaging Line Base unit with 5-7 local modules controlling local I/O; remote modules across 3-4 machine zones via Port 2 Ethernet
Automotive Material Handling Dual Ethernet connecting MES upstream and distributed conveyor I/O drops downstream; 14 remote modules maximum
Pharmaceutical Dispensing Certified base unit in validated panel with analog I/O expansion for precision measurement; compliance documentation required
Relay Panel Retrofit TM251MESE replacing hard-wired relay logic; RS232/RS485 port retaining connectivity to legacy field devices
Distributed Servo/Stepper Motion Control Base unit coordinating position feedback from remote encoder modules on Ethernet field device subnet

TM251MESE Specifications That Drive Purchase Decisions

Parameter Specification Notes
Rated Supply Voltage 24V DC No AC option; confirm plant voltage standard before ordering
Supply Voltage Limits 20.4V to 28.8V Operating tolerance for reliable function
Power Consumption 32.6W to 40.4W Range with maximum I/O expansion connected
System RAM 64MB Runtime data and variable management
Program Memory 8MB User program storage; large applications may approach limit
Flash Memory 128MB Non-volatile program backup
Local I/O Expansion Slots 7 maximum Direct module connection at base unit
Remote I/O Modules 14 maximum via Ethernet (Modbus TCP) Distributed across field device network on Port 2
Dimensions (L x W x H) 95mm x 54mm x 90mm Compact DIN rail profile; verify panel clearance depth
Operating Temperature -10°C to 55°C IP20 protection rating with cover; indoor panel installation

Full technical specifications are available on the product page at LeadTime.ca.

TM251MESE vs TM251MEL vs TM251MEMU — Which Variant Do You Actually Need

Model Ethernet Ports Switching Max Local Modules Max Remote Modules Best Fit
TM251MESE 2 x RJ45 (dual) None — two independent ports 7 14 Projects requiring SCADA network separation from field device subnet; dual-network architecture without external switch
TM251MEL 1 x RJ45 (single) None 7 14 Single-network applications where secondary Ethernet port not required; lower cost option with same I/O expansion capacity
TM251MEMU Multiple (unmanaged switch) Built-in unmanaged switch 7 14 Larger distributed networks requiring built-in Ethernet switching; reduces external network hardware in complex topologies

If your network topology only has a single subnet connecting all devices — SCADA, I/O modules, and field instruments on the same IP segment — the TM251MEL is the cost-effective correct choice. If your project needs managed switching integrated into the controller to support complex distributed topologies, step up to the TM251MEMU. For the dual-network architecture that defines the TM251MESE's value, confirm availability and current pricing at LeadTime.ca.

Expert Verdict — Is the TM251MESE Worth Specifying for Your Project

The Schneider Electric TM251MESE earns its position in the M251 lineup specifically for engineers and integrators who need two independent Ethernet connections at the controller level without adding external switching hardware. The dual RJ45 ports allow simultaneous plant-level SCADA communication on Port 1 and a separate field device network on Port 2 — a topology requirement that comes up consistently in food and beverage, automotive assembly, and pharmaceutical automation where IT and OT network separation is a design constraint, not an option. Add to that the 21-module total I/O capacity (7 local, 14 remote), 64MB system RAM, and a compact 95mm x 54mm x 90mm body that actually fits in tight panel slots, and you have a base unit that handles mid-scale distributed automation without asking you to compromise on connectivity or I/O headroom. The combination of 8MB program memory, 128MB flash backup, and an SD card slot up to 32GB means data logging and firmware management are handled on-controller without external hardware, which matters on sites where panel simplicity reduces maintenance overhead.

The TM251MESE is not the right answer for every situation, and acknowledging that is how you avoid costly reorders. If your application genuinely only needs one Ethernet port, the TM251MEL is the technically correct and lower-cost choice — the I/O expansion capability is identical. If your project is built entirely around Siemens SIMATIC S7-1200 or Allen-Bradley CompactLogix and your programming staff, spare parts inventory, and support contracts all reflect that standardization, introducing the Modicon M251 creates real fragmentation risk that usually outweighs any technical advantage on the base unit alone. Equally, if your application requires EtherCAT real-time motion control, the TM251MESE uses Modbus TCP — the wrong protocol — and a different controller family is required. For projects where CapEx is the dominant decision driver and per-I/O-point cost matters more than network architecture elegance, Mitsubishi FX5U and comparable platforms can deliver equivalent function at lower total system cost.

From a procurement standpoint, the TM251MESE is generally available through major authorized Schneider distributors worldwide, with typical lead times in the 2 to 4 week range for base unit stock. The critical pre-order step is confirming your total I/O module count — including a 3-year expansion roadmap — before issuing the purchase order. The 21-module ceiling is adequate for most mid-scale applications, but arriving at that limit mid-project without a phased expansion plan in place creates real schedule pressure. Buying through a specialist distributor rather than a generic online channel gives you access to pre-sales technical support to validate that count before the order ships, not after delivery. View current availability and pricing for the TM251MESE at LeadTime.ca — we ship worldwide and can support volume and project-level inquiries directly.

For volume pricing confirmation or to verify lead time before committing to a build schedule, contact the LeadTime.ca team directly — we ship worldwide and support both single-unit and project-volume orders.

What Engineers Need to Know Before Ordering the TM251MESE

Because verified community forum discussions specific to the TM251MESE are not widely indexed — this is a specialist industrial component, not a consumer product with broad online community coverage — the most useful guidance for engineers comes from the technical specification record and the documented ordering mistakes that specialist distributors and Schneider application teams see repeatedly. The following addresses the questions and errors that matter most before a purchase order is issued.

The most common ordering error with this product is model number confusion between the TM251MESE and the TM251MEL. Both models support identical I/O expansion capacity — 7 local modules, 14 remote — and both carry the same certifications. The only hardware difference is the number of Ethernet ports: two on the TM251MESE, one on the TM251MEL. Engineers who specify the wrong variant often do so because the model number suffix (MESE vs MEL) is easy to misread under time pressure, and because the project requirement for dual Ethernet is sometimes documented at the system architecture level but not explicitly called out on the purchase requisition. The fix is straightforward: include the phrase "dual Ethernet required" explicitly on the PO and verify the received unit's serial label before accepting delivery.

The second area where engineers run into problems is I/O capacity planning. The 21-module ceiling (7 local, 14 remote) is sufficient for most mid-scale machine cells, but it is a hard limit. Projects that start at 16 to 18 modules and do not account for production line changes or additional field device integrations over a 3 to 5 year horizon sometimes reach that limit faster than planned. The right approach is to document the current I/O count, add a realistic growth margin, and confirm the result against the 21-module maximum before the order is placed — not after the base unit is installed and the production line is running. If your analysis shows you will approach the ceiling, confirm an expansion strategy with your Schneider application engineer before finalizing the base unit selection.

A third practical constraint worth flagging is the 24V DC supply requirement. The TM251MESE has no AC input option — the operating range is 20.4V to 28.8V DC only. On sites where 24V DC infrastructure is already standard, this is a non-issue. On retrofit projects where the existing panel was designed around AC-powered control hardware, verifying DC supply availability and capacity — including the 50A inrush current on power-up — is a required pre-installation check, not an afterthought. The terminal torque specification of 0.5 Nm is a second site-practice item: over-tightening power and signal terminals beyond this value strips the terminal thread or cracks the block, causing intermittent faults that are time-consuming to diagnose once the system is in service. Using a calibrated torque wrench set specifically to 0.5 Nm is the correct practice, not hand-tightening by feel.

Wiring, Mounting, and Commissioning Overview

The following covers the key installation requirements for the TM251MESE. Engineers requiring full wiring diagrams and detailed commissioning procedures should refer to the Modicon M251 Hardware Guide published by Schneider Electric.

  • Mount on standard DIN rail in the specified 95mm x 54mm x 90mm footprint; confirm panel depth clearance before installation and verify mechanical stops are engaged before applying power
  • Connect 24V DC supply within the 20.4V to 28.8V operating range; tighten all supply and signal terminals to exactly 0.5 Nm using a calibrated torque wrench — do not exceed this value
  • External inrush current protection may be required — the TM251MESE draws 50A transiently at power-on; verify your upstream supply and protection device ratings before energizing
  • For dual Ethernet configuration: assign Port 1 to the plant SCADA or MES network subnet and Port 2 to the local field device subnet using static IP addressing confirmed against your network documentation before power-up
  • Install or remove local I/O expansion modules only with 24V power disconnected; powering down and waiting for internal capacitor discharge before module insertion prevents data corruption and arcing at the connector

Compatible I/O Expansion Modules

The TM251MESE is compatible with the TM3xx series of Schneider Electric I/O expansion modules. Up to 7 local modules connect directly at the base unit; up to 14 remote modules connect via Port 2 Ethernet using Modbus TCP. Module types supported include:

  • TM3 Digital Input modules — discrete field signal acquisition from sensors, proximity switches, and push buttons
  • TM3 Digital Output modules — control signals to solenoids, contactors, and indicator lights
  • TM3 Analog Input modules — process variable measurement from temperature, pressure, and flow transmitters
  • TM3 Analog Output modules — setpoint signals to drives, positioners, and proportional control valves
  • TM3 Mixed I/O modules — combined digital and analog I/O in a single module slot for applications where panel space per I/O point is the primary constraint

Confirm specific TM3xx module part numbers and firmware compatibility with your Schneider application documentation or your LeadTime.ca distributor contact before finalizing the expansion bill of materials.

Wrong-Part Prevention Checklist

Before issuing a purchase order for the TM251MESE, verify each item on this checklist. These are the checks that prevent costly reorders and 2 to 4 week delivery delays on automation projects.

  1. Verify dual Ethernet requirement — TM251MEL has single Ethernet if secondary port not needed
  2. Confirm 24V DC supply availability — this model has no 24V AC option; confirm plant voltage standard
  3. Check maximum I/O module count needed — verify 7 local + 14 remote expansion meets expansion roadmap (not undersized)
  4. Confirm panel space availability — 95mm depth requires clear mounting clearance; verify DIN rail or panel slot space
  5. Validate Modbus TCP vs EtherCAT requirement — this model uses Modbus TCP (not EtherCAT); if EtherCAT master needed, different model required
  6. Confirm 8MB program memory sufficient for application logic size — large applications may approach memory limits
  7. Verify terminal torque tolerance (0.5 Nm) acceptable for site standard practice

If any item on this checklist cannot be confirmed before ordering, contact LeadTime.ca directly — our team provides pre-sales technical support to validate your specification before the order is placed.

Frequently Asked Questions

Can the TM251MESE run both SCADA communication and remote I/O polling simultaneously on the two Ethernet ports without performance degradation?

Yes — the dual Ethernet ports operate as two independent network interfaces, allowing Port 1 to carry plant-level SCADA or MES traffic and Port 2 to manage Modbus TCP communication with up to 14 remote I/O modules concurrently. The 64MB system RAM and dedicated processing support this distributed topology without requiring external switching hardware between the two networks.

What happens when the total local I/O expansion reaches the 7-slot maximum — can I add more modules remotely without replacing the base unit?

Yes — when the 7 local module slots are fully populated, the TM251MESE supports up to 14 additional remote I/O modules connected via the Port 2 Ethernet interface using Modbus TCP. The total system ceiling is 21 modules (7 local plus 14 remote). If your application will exceed 21 modules, a different controller family or phased implementation strategy is required — confirm this before issuing the purchase order.

Is the 8MB program memory a practical constraint for mid-size machine automation, or will most applications stay well within it?

For typical machine-level automation — packaging lines, conveyor control, dispensing systems — 8MB of program memory is adequate in most deployments. Applications approaching the limit are typically those with very large structured text programs, extensive recipe management tables, or complex motion profiles with many coordinate datasets. If your application logic is unusually large, verify the estimated compiled program size against the 8MB limit with your programming tool before finalizing the platform choice.

Does the TM251MESE support hot-swap of the SD card during operation, and is the card required for normal operation?

The SD card slot supports up to 32GB and is optional — the TM251MESE operates fully without an SD card installed, using its 128MB flash memory for non-volatile program backup. The SD card is used for extended data logging, program versioning, and firmware backup. Consult the Modicon M251 Hardware Guide for the specific card insertion and removal procedure and whether hot-swap is supported during live operation on your firmware version.

Is the TM251MESE a direct replacement for an existing M251 installation, or are there firmware or wiring differences to verify?

Within the M251 family, base unit substitution between variants (TM251MESE, TM251MEL, TM251MEMU) involves verifying Ethernet port count and network configuration compatibility — the physical TM3xx module connectors and 24V DC power interface are consistent across the family. However, firmware version compatibility between the base unit and connected TM3xx expansion modules must be confirmed before substitution on a live system. Consult your Schneider Electric documentation or contact LeadTime.ca for pre-swap verification support.

Why Order the TM251MESE Through LeadTime.ca

  • Global shipping — LeadTime.ca fulfills orders worldwide, not limited to any single region or country
  • Real-time stock visibility — sourcing confirmation on availability before your purchase order is issued
  • Pre-sales technical support — I/O module compatibility and configuration validation before the order ships, reducing wrong-part returns
  • Volume and project pricing — available for integrators and facility teams on multi-unit or repeat orders; not available through generic online retail channels
  • Hard-to-source fulfillment — specialist distributor access to parts that standard e-commerce channels cannot reliably stock or confirm on short lead times

At-a-Glance Summary

  • Model: TM251MESE — Logic Controller Modicon M251 2x Ethernet
  • Supply voltage: 24V DC rated, operating range 20.4V to 28.8V; no AC input option
  • Power consumption: 32.6W to 40.4W with maximum I/O expansion connected
  • System RAM: 64MB; Program Memory: 8MB; Flash Backup: 128MB; Optional SD Card: up to 32GB
  • Dual RJ45 Ethernet ports with embedded Modbus TCP, web server, and FTP server support
  • Maximum I/O expansion: 7 local modules plus 14 remote modules via Ethernet — 21 total
  • USB 2.0 Mini-B port for programming (up to 3m); RS232/RS485 serial interface on RJ45 connector at 1.2 to 115.2 kbps
  • Dimensions: 95mm x 54mm x 90mm; Weight: 0.22 kg; IP20 protection rating with cover
  • Operating temperature: -10°C to 55°C; Inrush current at power-on: 50A
  • Terminal torque: 0.5 Nm — do not exceed; use calibrated torque wrench only
  • Certifications: CE, CSA, CULus, RoHS 2, REACH, UL 1604, UL 508, ANSI/ISA 12-12-01, EN/IEC 61131-2
  • Compatible expansion modules: TM3xx series (digital input, digital output, analog input, analog output, mixed I/O)
  • Wrong-fit signals: single Ethernet sufficient → specify TM251MEL; managed switching needed → specify TM251MEMU; EtherCAT required → different controller family
