Schneider Electric ZB4BS844 — Emergency Stop Head Buyer Review

By Abdullah Zahid
12 min read

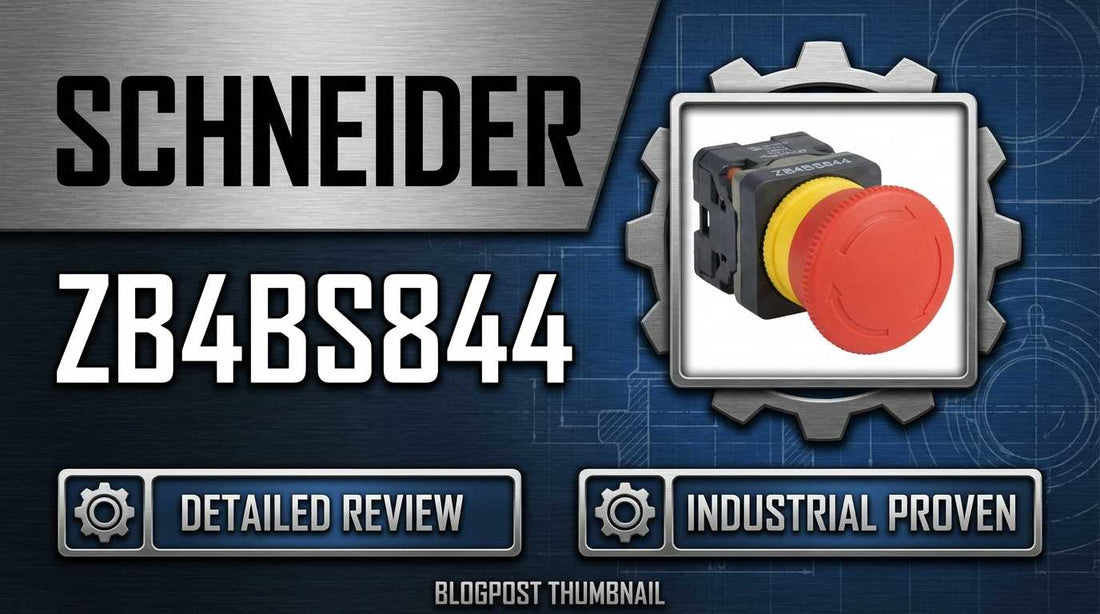

Schneider Electric ZB4BS844 red 40mm mushroom emergency stop button head for 22mm industrial control panels

Schneider Electric ZB4BS844 Harmony 22mm Push Button Emergency Stop Head, Trigger and Latching Turn Release, Red 40mm Mushroom — Specifications, Applications and Ordering Guide

Controls engineers specifying a certified 22mm emergency stop operator for a Harmony XB4-based control panel face one critical decision: confirm the exact part number matches the mounting diameter, reset mechanism, and certification requirements before the order ships. The Schneider Electric ZB4BS844 is a red 40mm mushroom-head actuator designed for 22mm panel cutouts, rated IP66/IP69K and NEMA 4/4X, with trigger-action latching and turn-to-release reset — triple-certified to CE, UL File E164353, and CSA File LR44087 for direct use in North American and EU facilities without re-certification. It pairs exclusively with Harmony XB4 switch bases, sold separately, to complete the emergency stop circuit.

If you have already confirmed this is the correct part, check current pricing and availability at LeadTime.ca — ships worldwide.

Who Should Buy the ZB4BS844 — and Who Shouldn't

The ZB4BS844 is the right choice for engineers and panel builders who need a certified, washdown-rated, latching emergency stop head in a 22mm mounting format. Confirm all of the following before ordering:

  • Control panel mounting hole is exactly 22mm — this head will not fit 30mm or 40mm openings
  • Application requires a maintained/latching operation (trigger-action, non-momentary) as mandated for emergency stop circuits under ISO 13850
  • Turn-to-release reset is acceptable per facility SOP — key-release variants require a different model
  • Environmental rating of IP66/IP69K and NEMA 4/4X meets or exceeds site requirements for washdown, outdoor, or corrosive exposure
  • CE, UL, and CSA triple certification is required or preferred for compliance documentation
  • Existing or specified switch base is in the Harmony XB4 series — this head is not compatible with XB5 or other Harmony families

If your panel has a 30mm or 40mm hole, order from the ZB4BJ or ZB4BK series instead. If LED status indication is required, specify the ZB4BV844. If key-release reset is mandated by facility policy, the ZB4BS944 is the correct model.

On this page:

What the ZB4BS844 Actually Does in a Control Circuit

The ZB4BS844 is an actuator head — the physical interface that an operator presses in an emergency. It is not a complete switch. When paired with a compatible Harmony XB4 switch base (purchased separately), it forms a finished emergency stop operator that interrupts the control circuit, de-energizing downstream machinery until a deliberate manual reset is performed. The trigger-action mechanism latches the head in the depressed position on actuation; the turn-to-release reset requires a conscious twist from an operator to restore the circuit path, a design requirement under ISO 13850 for emergency stop devices. The 40mm red mushroom head with chrome-plated metal or zinc aluminum alloy bezel provides the tactile profile and visual identification that safety standards require at every emergency stop station.

This is a maintained-action device only. There is no spring-return or momentary configuration available in this model. If existing circuitry was designed for a momentary input on the emergency stop position, this part is not a compatible replacement without circuit redesign.

Typical System Architecture for a Harmony XB4 Emergency Stop Station

The ZB4BS844 sits at the operator interface layer of the safety circuit, between the control enclosure panel face and the XB4 switch base that carries the electrical contacts. Here is how a typical deployment looks from top to bottom:

  • Safety relay or safety PLC — receives the contact signal from the emergency stop switch base and controls the machine safety circuit
  • Harmony XB4 switch base (sold separately) — mounted inside the panel or enclosure, carries normally-closed contacts wired into the safety circuit
  • ZB4BS844 actuator head — mounts on the front face of the panel through a 22mm cutout, snaps or twist-locks onto the XB4 base
  • Panel or enclosure — provides the IP66/NEMA 4X or higher environmental barrier; mounting enclosure must independently meet the rated IP requirement
  • Downstream controlled devices — motors, solenoids, drives — de-energize when the contact opens on actuation

Where the ZB4BS844 Is Deployed: Industries and Use Cases

Food and beverage processing lines represent one of the highest-density applications for this model. Washdown protocols require IP66 or IP69K ratings at every operator interface point, and the ZB4BS844's confirmed IP69K rating supports high-pressure spray cleaning without seal compromise. The chrome-plated metal bezel resists the caustic cleaning agents common in sanitary processing environments.

Pharmaceutical and chemical processing facilities specify this model for similar environmental reasons combined with the compliance documentation advantage of the CE/UL/CSA triple certification. A single certified part eliminates dual-sourcing for North American and EU production lines operated by the same OEM.

Machine tool builders and packaging machinery OEMs integrate the ZB4BS844 as a standard emergency stop head across product lines sold into North American markets, where UL File E164353 and CSA File LR44087 certifications are often required by end-user facility safety audits. The temperature range of -25 to +70°C covers the full span of indoor and outdoor industrial deployment without thermal de-rating concerns.

Retrofit and compliance remediation projects frequently specify this exact part number when maintenance teams replace degraded or non-certified emergency stop operators. The head separates from the base without rewiring, making field replacement a 2–3 minute task that does not require an electrician if the base remains in good condition.

Application Typical Deployment
Food and beverage processing Washdown-rated emergency stop stations on conveyor, filling, and packaging lines
Pharmaceutical and chemical facilities IP66/NEMA 4X certified stations on process equipment requiring dual CE/UL documentation
Automotive and machine tool manufacturing OEM-specified replacement heads on robotic cells and CNC machine panels
Outdoor and marine equipment NEMA 4X rated stations on outdoor conveyors, marine deck controls, and water treatment pump panels
Compliance audit remediation Direct like-for-like replacement of non-certified or damaged emergency stop operators
Multi-machine OEM production lines Standardized redundant emergency stop stations across all machine types in a facility

ZB4BS844 Key Specifications and Variant Comparison

Specification Value
Mounting Diameter 22mm
Actuator Color Red
Mushroom Head Diameter 40mm
Operation Type Maintained / Latching (Trigger Action)
Reset Mechanism Turn-to-Release
Bezel Material Chrome-Plated Metal / Zinc Aluminum Alloy
IP Rating IP66, IP69, IP69K
NEMA Rating NEMA 4, 4X, 12, 13
Operating Temperature -25 to +70°C
Certifications CE, UL File E164353, CSA File LR44087

Full technical specifications are available on the product page at LeadTime.ca.

The table below compares the ZB4BS844 against its most commonly specified alternatives across reset type, indication, and mounting:

Feature ZB4BS844 (This Model) ZB4BV844 (Illuminated) ZB4BS944 (Key Release)
Mounting Size 22mm 22mm 22mm
Color Red Red Red
Operation Latching Latching Latching
Reset Type Turn-to-Release Turn-to-Release Key Release
LED Indication None Red LED (24V DC) None
IP Rating IP66/IP69K IP66/IP69K IP66/IP69K
NEMA Rating 4/4X/12/13 4/4X/12/13 4/4X/12/13
Certifications CE/UL/CSA CE/UL/CSA CE/UL/CSA
XB4 Compatible Yes Yes Yes

If your facility SOP requires key-release-only access control on emergency stop reset, the ZB4BS944 is the correct selection — check current availability and pricing at LeadTime.ca and contact the team to confirm the right variant for your application.

Expert Verdict: Is the ZB4BS844 the Right Part for Your Project?

The ZB4BS844 is the correct specification when you need a 22mm Harmony XB4 emergency stop head with certified washdown performance and no ambiguity about compliance documentation. The CE, UL File E164353, and CSA File LR44087 triple certification is a genuine operational advantage: a single part number covers North American and EU facility requirements simultaneously, which matters for OEMs shipping identical machines into multiple markets and for integrators consolidating approved-parts lists across clients. The trigger-action latching mechanism satisfies ISO 13850 requirements by holding the de-energized state until a deliberate manual twist-to-release is performed — a real-world safeguard against vibration-induced false resets on high-speed packaging or machine tool equipment. For control systems integrators, maintenance teams replacing OEM-specified parts, and panel builders working in food, pharmaceutical, or chemical environments where IP66 and NEMA 4X are baseline requirements, this is a specification-driven buy with clear technical justification.

The limits of this model are equally clear. If the control panel already has 30mm or 40mm mounting holes, the ZB4BS844 physically cannot be installed — order from the ZB4BJ or ZB4BK series instead and do not attempt to adapt the opening. If operator-visible LED status indication is part of the HMI design requirement, the ZB4BV844 with integrated 24V DC red LED is the correct choice; the ZB4BS844 provides no illumination. For facilities where access-controlled reset is mandated by safety policy — preventing unauthorized restart after an emergency stop event — the ZB4BS944 with key-release mechanism is the appropriate selection. Budget-constrained projects should note that non-certified generic alternatives create compliance and warranty risk that typically outweighs any per-unit cost saving once audit or incident costs are factored in.

On the procurement side, the ZB4BS844 is an active catalog item manufactured in the Czech Republic, with typical North American lead times in the 1–3 week range depending on distributor stock position. For time-sensitive panel builds or maintenance shutdowns, sourcing through a specialist distributor with verified Canadian or North American inventory can eliminate that lead time entirely. Pricing is available on the ZB4BS844 product page at LeadTime.ca — volume pricing is available on request, and the team can confirm current stock before you commit to a build schedule.

For volume pricing, lead time confirmation, or help validating the correct variant for your application, contact the LeadTime.ca team directly — we ship worldwide.

What Engineers Need to Know Before Ordering the ZB4BS844

Because the ZB4BS844 is a specification-driven component ordered from equipment documentation or engineering BOMs rather than through community recommendation, the most valuable pre-order intelligence comes from understanding the ordering mistakes that appear in distributor return queues — not forum threads. The single most common error is mounting size mismatch: a buyer pulls a part number from a drawing without physically verifying the panel cutout, and the 22mm head arrives for a 30mm opening. The ZB4BS844 will not fit a 30mm hole, and distributors typically cannot accept returns on opened or field-installed components. Measure first.

The second category of ordering error involves the reset mechanism. Turn-to-release and key-release look similar in catalog listings and are sometimes confused when a buyer searches by description rather than part number. The ZB4BS844 uses turn-to-release. The ZB4BS944 uses key-release. If the facility safety procedure requires a key to reset an emergency stop — common in high-access-control environments like pharmaceutical clean rooms — ordering the ZB4BS844 means the panel will not meet SOP requirements, regardless of how well it is installed. Confirm the reset type against your safety procedure document before ordering.

A third area requiring attention is the XB4 base compatibility requirement. The ZB4BS844 head is compatible exclusively with Harmony XB4 switch bases. It does not fit XB5 series bases or other Harmony families. If the existing base is unknown or if this is a new panel build, identify the base model number explicitly and confirm it carries an XB4 designation before the head is specified. LeadTime.ca's technical team can assist with base-to-head compatibility verification when the base model number is provided at the time of inquiry — a useful checkpoint before committing to a panel build schedule.

Installation and Commissioning Overview

The following is an overview of the installation and commissioning process for the ZB4BS844. For full step-by-step wiring procedures and circuit diagrams, refer to the Schneider Electric Harmony XB4 product manual available from the manufacturer.

  • De-energize the control circuit and verify zero voltage at the switch base terminals before touching any components — the base carries the live electrical contacts, not the head
  • Confirm the panel mounting hole is 22mm diameter and that the existing XB4 base is clean and free of debris or corrosion on the mounting threads or snap-fit tabs before inserting the new head
  • Insert the ZB4BS844 head onto the XB4 base and twist clockwise until snug — do not over-torque; verify the latching mechanism engages by pressing the mushroom head firmly and confirming it holds in the depressed state
  • After installation, re-energize and functionally test by actuating the emergency stop and confirming the controlled circuit de-energizes; then verify the turn-to-release reset restores normal circuit operation
  • Inspect the bezel seal for visible damage or improper seating, particularly in washdown or outdoor installations where IP69K integrity is required, and document part number, installation date, and test results in the maintenance log

Wrong-Part Prevention Checklist

Before submitting a purchase order for the ZB4BS844, run through each of these verification points. Returning an incorrect part after installation is rarely possible — get the specification right before the order ships.

  1. Verify mounting diameter: ZB4BS844 is 22mm only. If control panel already has 30mm or 40mm holes, order ZB4BJ or ZB4BK series instead.
  2. Check if illumination is required: ZB4BS844 is non-illuminated. For LED indication, specify ZB4BV844.
  3. Confirm turn-release operation is acceptable: this model uses turn-to-release, not key-release. If key-release is required by facility SOP, order ZB4BS944.
  4. Verify compatibility with XB4 base: this head works only with Harmony XB4 switch bases (not XB5 or other series).
  5. Check IP/NEMA rating: ZB4BS844 is rated IP66/IP69K/NEMA 4/4X. If IP69K or higher washdown rating is required, confirm this rating meets the application.
  6. Confirm color: red is standard. If different color is needed (yellow, green, white), order the appropriate ZB4 variant (ZB4BY, ZB4BG, ZB4BW).

If any item on this checklist raises a question about your specific application, contact the LeadTime.ca team before ordering — confirming the correct part number takes minutes and avoids a costly wrong-part scenario on a live build schedule.

Frequently Asked Questions

Is the ZB4BS844 compatible with all Harmony XB4 bases, or only specific models?

The ZB4BS844 is compatible with Harmony XB4 series switch bases as a 22mm actuator head. It is not compatible with XB5 or other Harmony series bases. When specifying a new installation, confirm the base model number carries an XB4 series designation. If you are replacing an existing head, locate the base model number on the installed equipment or in the panel documentation before ordering.

Can the ZB4BS844 be configured for momentary operation rather than latching?

No. The ZB4BS844 is a trigger-action latching device only — it cannot be configured for momentary (spring-return) operation. Once pressed, it holds in the de-energized state until the operator manually twists the head to release. If a momentary emergency stop input is required for a specific circuit design, consult your automation engineer and Schneider Electric technical support to identify an appropriate alternate head model.

Can the button head be replaced in the field without rewiring the base?

Yes. The ZB4BS844 head separates from the XB4 base without rewiring — the head untwists or unsnaps from the base depending on base design, and the replacement process takes approximately 2–3 minutes. The base terminals and wiring remain undisturbed. Confirm the circuit is de-energized before removing or installing the head.

What is the difference between the ZB4BS844 and the ZB4BS944?

Both are 22mm latching emergency stop heads rated IP66/IP69K and NEMA 4/4X with CE/UL/CSA certification. The ZB4BS844 uses a turn-to-release reset mechanism, while the ZB4BS944 uses a key-release mechanism for applications where access-controlled reset is required by facility safety procedure. If your SOP mandates that only authorized personnel can reset an emergency stop using a physical key, specify the ZB4BS944.

Does the ZB4BS844 meet the requirements for outdoor installation?

Yes. The IP66 and IP69K ratings support outdoor and washdown installations, and the NEMA 4X rating covers corrosive outdoor environments. The operating temperature range of -25 to +70°C accommodates most outdoor industrial locations. The mounting enclosure or panel must independently achieve the required IP or NEMA rating — the button head alone does not seal the enclosure.

Is the ZB4BS844 RoHS compliant?

Yes. The ZB4BS844 has no SVHC (Substances of Very High Concern) as of 15-Jan-2018, confirming RoHS-compliant materials including lead-free construction. Verify current RoHS status documentation through the Schneider Electric official product page or request a compliance declaration through your distributor for current audit requirements.

Why Order From LeadTime.ca

  • Global shipping on all orders — the ZB4BS844 ships worldwide, not limited to any single region
  • Verified stock status and lead time confirmation before you commit to a build schedule
  • Technical support for base-to-head compatibility verification and variant selection when specifications are unclear
  • Volume and consolidated invoicing available for OEM and multi-branch procurement programs
  • Authorized distributor access to certification documentation (CE, UL, CSA) for compliance audit packages

ZB4BS844 At-a-Glance Summary

  • 22mm mounting diameter — does not fit 30mm or 40mm panel openings
  • Red 40mm mushroom head with chrome-plated metal or zinc aluminum alloy bezel
  • Trigger-action latching operation — maintained, non-momentary, ISO 13850 compliant reset design
  • Turn-to-release reset — for key-release, order ZB4BS944 instead
  • IP66, IP69, IP69K and NEMA 4, 4X, 12, 13 rated — washdown, outdoor, and corrosive environment approved
  • Operating temperature: -25 to +70°C
  • Triple certified: CE, UL File E164353, CSA File LR44087 — valid for North American and EU facilities
  • Harmony XB4 series compatibility only — not compatible with XB5 or other Harmony families
  • RoHS compliant — no SVHC as of 15-Jan-2018
  • Manufactured in Czech Republic — typical North American lead time 1–3 weeks; verify current stock at LeadTime.ca
