Schneider Electric ZB4BZ009 — 22mm XB4 Mounting Collar Review

By Abdullah Zahid
12 min read

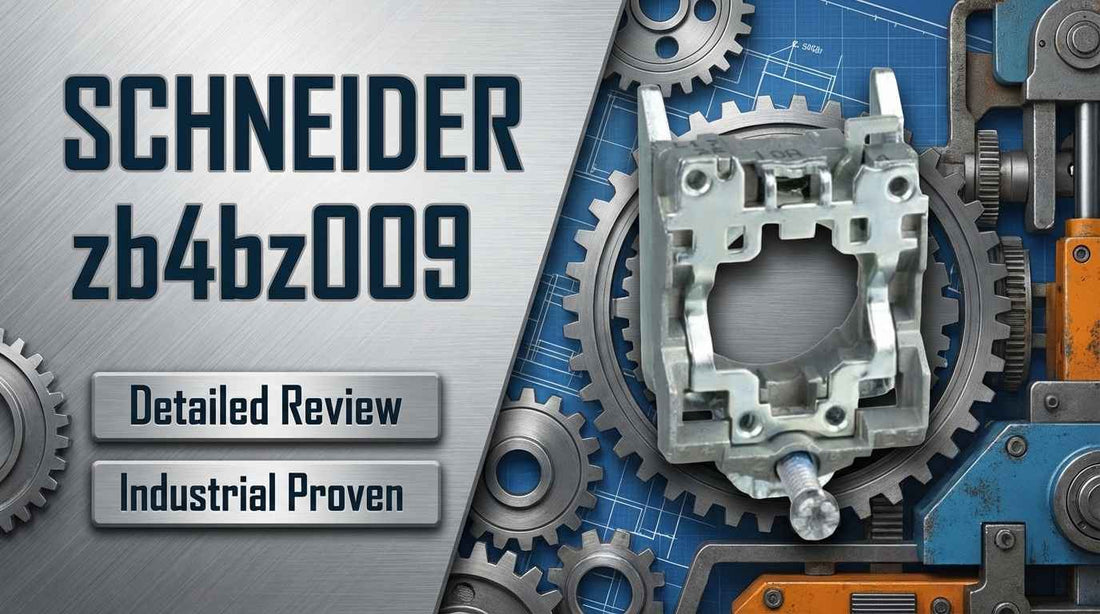

Schneider Electric ZB4BZ009 Harmony XB4 metal mounting collar for 22mm push button panel installation

Schneider Electric ZB4BZ009 Harmony 22mm Push Button XB4B Operators Metal Mounting Collar for Electrical Blocks — Specifications, Price, and Installation Guide

Controls engineers and panel builders searching for the Schneider Electric ZB4BZ009 are typically at the final confirmation stage — BOM locked, panel design complete, and one mounting accessory standing between them and a purchase order. The ZB4BZ009 is the metal body-fixing collar that anchors Harmony XB4 push button operators into a standard 22mm round panel mounting hole, preventing rotation under vibration and maintaining alignment for contact blocks and light modules throughout the service life of the assembly. It is a commodity component in the best sense: low cost, well-defined fit, and no surprises — provided you have confirmed your hole diameter and verified XB4 series compatibility before ordering.

If you have already confirmed this is the correct part, check current pricing and availability for the ZB4BZ009 at LeadTime.ca — ships worldwide.

Who Should Buy the ZB4BZ009 — and Who Should Not

The ZB4BZ009 is the right choice for engineers and buyers who meet all of the following criteria:

  • Your panel mounting hole is a standard 22mm round diameter — this is non-negotiable for proper fit and is not adjustable by the collar design
  • You require metal collar construction for durability, vibration resistance, and electrical grounding continuity between the panel and contact block
  • Your installation is within the -25 to +70 degrees C operating temperature range for the component
  • You are working within the Harmony XB4 component ecosystem — this collar is verified compatible with XB4 contact blocks and standard XB4 light modules
  • You need a body-fixing mounting collar only — not a complete mounting base with integrated terminal blocks
  • Front-fixing orientation is acceptable — no alternative or reverse mounting angles are available with this component

If your mounting hole is 30mm, non-standard, or a custom diameter, the ZB4BZ009 will not secure properly. If you require integrated terminal connectivity, you need a contact block ordered separately — the ZB4BZ009 is mounting hardware only. Engineers specifying a completely new push button system for the first time should begin with the full XB4 operator assembly before selecting individual collar components.

On this page:

What the ZB4BZ009 Actually Does in a Control Panel

The Schneider Electric ZB4BZ009 is not a push button operator, a contact block, or a light module — it is the structural interface that holds all of those components in place. In the Harmony XB4 modular system, push button assemblies are built from discrete parts: an operator head, a mounting collar, and one or more electrical blocks snapped into the rear of the collar. The ZB4BZ009 is that middle layer. It slides into a 22mm round panel cutout from the front face of the panel, locks against the panel surface via its body-fixing mechanism, and provides the stable platform onto which contact blocks and standard XB4 light modules attach.

The metal construction serves two practical functions beyond physical rigidity. First, it resists the rotational forces that occur when operators are actuated repeatedly in high-cycle manufacturing environments — a plastic or inferior-material collar would loosen over time, causing misalignment and eventually electrical disconnection. Second, the metal-to-metal contact between the collar and the panel maintains electrical grounding continuity between the panel structure and the attached electrical block, which is relevant for enclosure bonding in installations where panel grounding integrity is required by local electrical standards.

One important boundary to draw: the ZB4BZ009 has no terminal blocks and carries no wiring connections itself. Electrical connectivity is provided entirely by the contact block or light module attached to the collar. Buyers who arrive at this part number expecting built-in terminals will need to add the appropriate XB4 contact block to their order.

Where the ZB4BZ009 Fits in the XB4 Assembly Chain

The ZB4BZ009 sits at the panel interface layer of the Harmony XB4 push button assembly, bridging the mechanical panel structure and the electrical contact elements. Understanding its position in the component chain prevents ordering errors and simplifies commissioning planning.

  • The control panel enclosure or door provides the 22mm round mounting hole into which the ZB4BZ009 collar is inserted from the front face
  • The ZB4BZ009 metal collar locks into the hole via its body-fixing mechanism, securing against the panel surface and preventing rotation
  • The XB4 push button operator head (ordered separately) mounts through the front of the collar, providing the physical actuation interface for the operator
  • XB4 contact blocks or standard XB4 light modules attach to the rear of the collar, providing the electrical switching or indication function
  • Panel wiring connects to the terminals on the contact block or light module — not to the collar itself, which carries no wiring connections

Typical Applications and Deployment Scenarios

The ZB4BZ009 appears most frequently in two distinct purchasing contexts: MRO replacement of worn or damaged collars in existing XB4 panels, and bulk procurement for new panel builds or retrofit projects where Harmony XB4 has been specified as the control standard. In MRO scenarios, production stoppages drive urgency — a loose or cracked mounting collar in a high-cycle assembly line panel can cause intermittent contact faults that are difficult to diagnose without understanding the mechanical root cause.

Panel builders specifying new control surfaces for manufacturing machinery, packaging lines, and process monitoring systems use the ZB4BZ009 as a standard line item wherever 22mm XB4 push button operators are specified. The low per-unit cost makes it practical to include spare collars in a build kit without meaningfully affecting project cost, reducing future downtime risk.

Facilities undergoing XB4 standardization retrofits — replacing older or mixed-brand push button systems with a unified Harmony XB4 ecosystem — will typically purchase ZB4BZ009 collars in volume alongside operators and contact blocks. Systems integrators assembling multi-operator control surfaces for robotics, HVAC, or water treatment control panels follow the same procurement pattern.

Application Typical Deployment
MRO replacement in manufacturing Single-unit or small-quantity orders to replace worn or damaged collars in production panel pushbuttons
New panel build for assembly line controls Bulk quantity procurement alongside XB4 operators and contact blocks for standard 22mm panel cutouts
XB4 standardization retrofit project Volume orders replacing mixed-brand collars across multiple control panels in a facility upgrade
OEM panel pre-assembly Integrated into BOM for machinery OEMs pre-assembling control panels with validated XB4 specifications
Packaging and robotics controls High-cycle environments where metal collar durability and vibration resistance justify XB4 specification
HVAC and water treatment facilities Indoor control panels within -25 to +70 degrees C operating temperature range

Key Specifications and Compatibility Reference

Parameter Value
Manufacturer Schneider Electric
Model / Part Number ZB4BZ009
Product Family Harmony XB4 Series
Material Metal
Mounting Hole Diameter 22mm round
Mounting Method Front-fixing body collar
Operating Temperature Range -25 to +70 degrees C
Compatible Contact Blocks 3-contact XB4 elements
Compatible Light Modules Standard Harmony XB4 modules
Country of Origin France

Full technical specifications are available on the product page at LeadTime.ca.

ZB4BZ009 Compatibility Reference

Component Type Compatible Notes
XB4 Push Button Operators Yes 22mm diameter only
Contact Blocks (3-contact) Yes Verify specific XB4 block model before ordering
Standard XB4 Light Modules Yes Confirm module type matches XB4 family
Integrated Terminal Blocks No Collar has no terminals; connectivity via contact block only
Panel Grounding Continuity Yes Metal construction enables electrical grounding between panel and contact block

If your application requires integrated terminal connectivity or a different hole diameter, review the full XB4 accessory range at LeadTime.ca to confirm the correct component for your assembly.

Expert Verdict: Is the ZB4BZ009 Right for Your Project?

The ZB4BZ009 is exactly the right part for operations and maintenance teams standardized on Harmony XB4 push button systems, panel builders and systems integrators assembling or replacing XB4-based control surfaces, and OEM manufacturers with validated XB4 specifications already in their BOMs. Its metal construction, -25 to +70 degrees C operating temperature rating, and front-fixing design make it a reliable long-term mounting solution in the high-cycle, high-vibration environments typical of manufacturing, packaging, and process automation. The low per-unit cost reinforces its value as a bulk standardization component — when one collar model covers every 22mm XB4 position in a facility, procurement simplifies considerably.

Where the ZB4BZ009 is the wrong answer is equally clear. Engineers evaluating push button technology for the first time should not start here — this collar is only useful as part of a complete XB4 operator assembly, not as a standalone product. Installations with non-standard mounting holes — 30mm diameters, square cutouts, or custom panel configurations — will find the ZB4BZ009 incompatible regardless of other specification matches. Applications with temperature extremes beyond -25 to +70 degrees C require a different component grade entirely. Buyers attempting to pair XB4 collars with contact blocks or light modules from other manufacturers should not assume cross-brand compatibility — the ZB4BZ009 is verified for use within the Harmony XB4 ecosystem only.

From a procurement standpoint, the ZB4BZ009 is the kind of component that rarely causes problems when sourced correctly and consistently causes problems when treated as a commodity available from any generic catalog. In MRO scenarios especially, availability at the moment of need matters more than the per-unit cost. A specialist distributor can confirm current stock levels, provide transparent lead-time data, and bundle ZB4BZ009 collars with related XB4 operators and contact blocks at better total cost than assembling orders piecemeal across multiple generic vendors. Check current ZB4BZ009 pricing and availability at LeadTime.ca — we stock industrial control accessories and ship worldwide.

For volume pricing or to confirm lead time before committing to a build, contact the LeadTime.ca team directly — we ship worldwide.

What Engineers Need to Know Before Ordering the ZB4BZ009

Because the ZB4BZ009 is a compact mounting accessory rather than a complete push button system, it generates very little standalone discussion in industrial automation communities. Engineers on PLC forums and panel-building groups talk about XB4 contact blocks, operator durability, and wiring configurations — the collar itself rarely surfaces as a topic because, when correctly specified and installed, it simply works without drawing attention. That absence of community noise is actually a signal: the component is straightforward enough that experienced XB4 users treat it as a consumable line item. The ordering mistakes happen before the part ships, not after.

The most consequential pre-order mistake is assuming all industrial push button holes are the same size. Controls technicians retrofitting older panels that were originally drilled for 30mm operators have ordered ZB4BZ009 collars only to discover on installation day that the 22mm collar does not fill the existing cutout. Measuring the panel hole with a caliper before placing the order eliminates this failure mode entirely. Related to this, buyers new to the XB4 modular system sometimes expect the mounting collar to include terminal connections — the ZB4BZ009 is mechanical mounting hardware only, and electrical connectivity is provided exclusively by the contact block or light module attached to the rear of the collar.

When community data is thin and product documentation is technical rather than application-focused, the most reliable pre-purchase resource is a specialist distributor who can cross-reference your existing XB4 configuration, confirm compatibility with your specific contact block model, and provide accurate stock and lead-time data before your order is placed. LeadTime.ca maintains current inventory data for Harmony XB4 accessories and can bundle collars with operators and contact blocks for a single consolidated shipment — which matters when a production stop is waiting on one missing component.

Installation and Mounting Overview

The ZB4BZ009 installs without specialist tooling. The following points cover the key requirements and checks for a successful installation. Engineers requiring detailed procedures should refer to Schneider Electric's official Harmony XB4 installation documentation.

  • Confirm your panel cutout measures 22mm round using a caliper or hole gauge before attempting installation — the collar will not seat or secure correctly in an oversized or non-round hole
  • Insert the ZB4BZ009 from the front face of the panel, aligning the body-fixing mechanism with the contact block or light module attachment point before engaging the fixing collar
  • Attach the XB4 contact block or light module to the rear of the collar, ensuring the component seats fully against the collar's internal surface before tightening
  • Tighten the body-fixing mechanism by hand until firm resistance is felt — hand-tightening is sufficient for proper mounting, and over-tightening risks stripping the internal fixing threads
  • After installation, verify the collar does not rotate within the panel hole and that the contact block or light module sits flush against the panel mounting surface; if metal-to-panel grounding continuity is required, confirm electrical contact between the collar and the panel structure

Wrong-Part Prevention Checklist Before You Order the ZB4BZ009

Before placing your order, verify every item on this checklist. The ZB4BZ009 is a precisely specified component and none of these criteria are adjustable after the part arrives on site.

  1. Confirm your XB4 push button operator assembly uses a 22mm round mounting hole (not 30mm or square)
  2. Verify you need body-fixing collar only (not the complete mounting base with integrated terminals)
  3. Check that this component is for contact blocks or light modules, not for a different XB4 accessory type
  4. Confirm metal collar material is acceptable (not plastic or other substitute materials)
  5. Verify the -25 to +70 degrees C temperature range matches your installation environment
  6. Ensure mounting orientation is front-fixing (no alternative or reverse mounting angles needed)

If any item on this list raises a question about fit, contact the LeadTime.ca team to verify compatibility before ordering — it is faster than returning the wrong part.

Frequently Asked Questions

What is the difference between the ZB4BZ009 mounting collar and a full XB4 mounting base?

The ZB4BZ009 is a body-fixing collar only — it secures the push button operator into the panel hole and provides the interface for attaching contact blocks or light modules, but it contains no terminal blocks or integrated electrical connections. A full mounting base with integrated terminals is a separate product category in the XB4 family. If you need wiring terminals built into the mounting component, the ZB4BZ009 is not the correct part; you need an appropriate XB4 contact block ordered alongside the collar.

Is the ZB4BZ009 included with a Harmony XB4 push button operator, or must it be ordered separately?

The ZB4BZ009 is sold as a separate accessory component. Harmony XB4 push button assemblies are modular by design — operator heads, mounting collars, contact blocks, and light modules are each ordered individually. Check your XB4 operator product documentation to confirm which accessory components are included with the operator purchase and which must be added to your BOM separately.

Can the ZB4BZ009 be used with XB4 light modules as well as contact blocks?

Yes — the ZB4BZ009 is compatible with standard Harmony XB4 light modules as well as 3-contact XB4 contact blocks. Confirm that your specific light module model is within the Harmony XB4 family before ordering; modules from other product families or manufacturers cannot be assumed compatible with this collar.

Can I reuse a ZB4BZ009 collar after replacing a worn contact block?

Yes, provided the collar body-fixing threads are undamaged and the collar itself shows no signs of deformation or wear. The ZB4BZ009 is a mechanical mounting component with no wear mechanism of its own under normal use — collars are typically replaced only when physically damaged, when the panel hole has enlarged due to wear, or when the body-fixing threads have been stripped by over-tightening during a previous installation.

What happens if my panel mounting hole is slightly larger than 22mm?

The ZB4BZ009 is designed for a standard 22mm round mounting hole. If the panel hole has been enlarged through wear or was originally drilled oversize, the collar will not seat securely — rotation during operation and eventual loss of electrical continuity are the likely results. Measure the existing hole with a caliper before ordering. If the hole is non-standard or oversized, contact Schneider Electric or a specialist distributor to identify the correct accessory for your actual hole dimension.

Does the ZB4BZ009 metal construction provide panel grounding continuity?

Yes — the metal collar maintains electrical contact between the panel structure and the attached contact block, which supports enclosure bonding where panel grounding integrity is required. This is one of the practical reasons metal construction is specified over plastic alternatives for industrial control panels operating under applicable electrical installation standards.

Why Order the ZB4BZ009 from LeadTime.ca

  • Current stock data and transparent lead-time confirmation for Harmony XB4 accessories before your order is placed
  • Volume pricing available for bulk ZB4BZ009 orders on panel builds or standardization projects — contact for current pricing
  • Bundle ZB4BZ009 collars with XB4 operators, contact blocks, and light modules in a single consolidated shipment
  • Ships worldwide — no regional restrictions on order placement or fulfillment
  • Specialist distributor support for compatibility verification when your XB4 configuration requires cross-referencing before purchase

ZB4BZ009 At-a-Glance Summary

  • Schneider Electric ZB4BZ009 is a metal body-fixing mounting collar for the Harmony XB4 push button series
  • Designed for standard 22mm round panel mounting holes — no adjustment or alternative sizing available
  • Operating temperature range: -25 to +70 degrees C, confirmed across multiple authorized distributor sources
  • Compatible with 3-contact XB4 contact blocks and standard Harmony XB4 light modules; no integrated terminal blocks
  • Metal construction verified by official Schneider Electric documentation — provides vibration resistance and panel grounding continuity
  • Front-fixing only — no reverse or alternative mounting orientations
  • Country of origin: France
  • Typical applications: MRO replacement, new panel builds, XB4 standardization retrofits, OEM pre-assembly
  • Pricing available on the product page — verify current pricing and availability before BOM finalization
