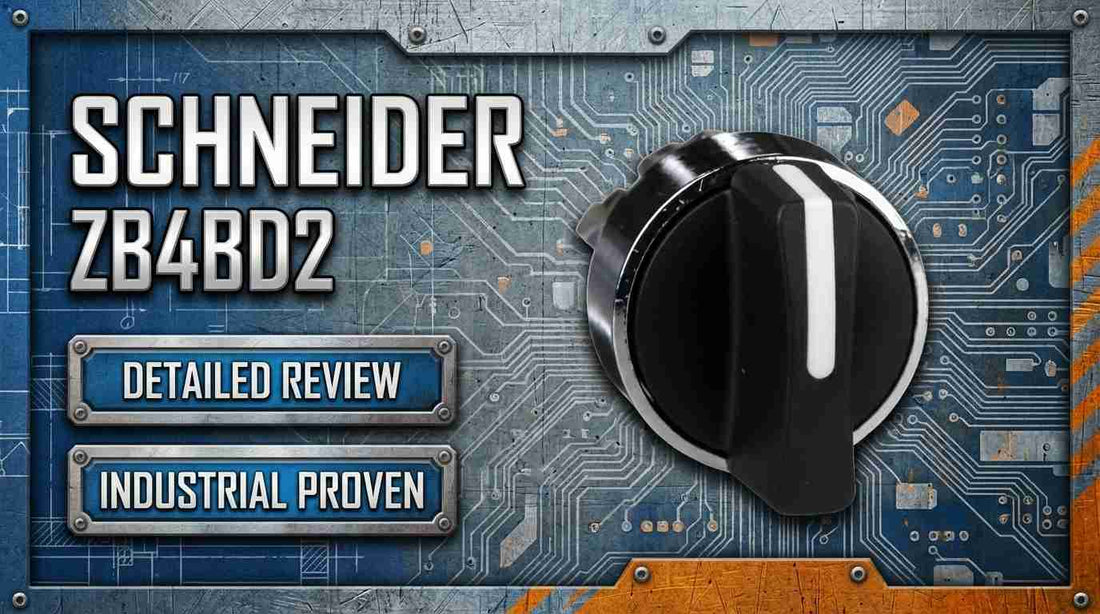

Schneider Electric ZB4BD2 Harmony XB4 22mm black 2-position maintained selector switch operating head for industrial control panels

Schneider Electric ZB4BD2 Selector Switch: Specifications, Pricing, Compatibility and Alternatives Guide for the Harmony 22mm Selector Switch Operating Head, 2-Position Maintained, Black

If you are searching for the Schneider Electric ZB4BD2 selector switch, you are most likely doing one of two things: replacing a worn or failed selector handle in a live Harmony XB4 panel installation, or specifying this operating head as part of a new control cabinet build. Either way, the purchase decision hinges on three fast checks — panel cutout diameter, base series compatibility, and whether you need maintained or momentary action. The ZB4BD2 is a non-illuminated, black, 2-position maintained selector switch operating head rated for over 1 million mechanical cycles, carrying IP69K and NEMA 4X environmental credentials, and sized to the universal 22mm industrial standard.

If you have already confirmed this is the correct part for your installation, check current pricing and availability for the ZB4BD2 at LeadTime.ca — ships worldwide.

Who Should Buy the ZB4BD2 — and Who Should Not

The ZB4BD2 is the right choice for panel builders, maintenance technicians, and controls engineers who are already working within a Schneider Electric Harmony XB4 architecture and need a reliable black 2-position maintained selector head. It is an equally strong fit for OEM machine builders standardizing operator interface components on the Harmony XB4 platform.

  • Your panel uses a 22mm cutout — no adapters, no modifications required
  • You need exactly 2-position, maintained (stay-put) lever action — the switch holds its selected position without spring return
  • Your existing base is confirmed Harmony XB4 series — this operating head is not cross-compatible with other Schneider switch families
  • A black, non-illuminated lever handle matches your panel visual standard or safety color coding
  • You have or will separately order a compatible Harmony XB4 contact block — the ZB4BD2 does not include the base unit or contact blocks

If your application requires illuminated indication, the ZB4BV is the correct model. If you need 3 or more positions, or spring-return (momentary) action, the ZB4BD2 is the wrong variant and a different model number must be specified.

On this page:

What the ZB4BD2 Actually Does in a Control Panel

The Schneider Electric ZB4BD2 is the operating head — the lever handle and chrome-plated metal bezel assembly — of a modular selector switch system. It is not a standalone switch. The operating head is the component the operator touches: rotating the black lever left or right routes control signals through the contact block that sits behind it on the Harmony XB4 base unit. In maintained operation, the lever stays wherever it is placed, making the ZB4BD2 appropriate for mode selection, pump start/stop commands, or any application where the operator's last input must persist until deliberately changed.

Understanding the modular architecture matters before ordering. The ZB4BD2 head alone does not switch any electrical circuit. It only closes or opens contacts when paired with a Harmony XB4 contact block. The base unit provides the mechanical mounting interface to the panel. All three components — operating head, base, and contact block — must be present for a functional selector switch assembly. If you are replacing a failed handle on an existing installation, you likely only need the ZB4BD2 head. If you are building from scratch, budget for all three pieces.

Where the ZB4BD2 Sits in a Typical Control System

The ZB4BD2 sits at the operator interface layer — between the human hand and the control circuit. Understanding the component chain helps verify what else must be ordered or confirmed before the head arrives on site.

  • PLC or relay control circuit — receives the discrete ON/OFF signal from the contact block terminals
  • Harmony XB4 contact block — provides the electrical contacts (NO, NC, or changeover) that are actuated by the selector head
  • Harmony XB4 base unit — mounts through the 22mm panel cutout and accepts both the operating head from the front and the contact block from the rear
  • ZB4BD2 operating head — installs into the front face of the base unit; the operator rotates the black lever to change circuit state
  • Panel enclosure — must have a standard 22mm cutout prepared to accept the Harmony XB4 base

Industries and Applications Where the ZB4BD2 is Specified

The ZB4BD2 is a workhorse component in facilities that operate continuous industrial processes and cannot afford ambiguity in operator control states. Because the lever maintains position, operators and supervisors can confirm the switch state at a glance without powering up a display or reading an indicator — a practical advantage in noisy, fast-paced environments.

Packaging and assembly machine builders rely on 2-position maintained selectors for mode change functions: automatic versus manual, run versus setup. A maintained selector eliminates the need for a separate status lamp to confirm which mode the machine is in, since the lever position itself is the visual indicator.

Water and wastewater treatment facilities use maintained selectors to switch pump duty/standby states. The IP69K rating of the ZB4BD2 means the operating head can withstand high-pressure washdown cycles without compromising the seal — a specific compliance requirement in food and beverage processing lines where sanitizing protocols are applied directly to the panel face.

Maintenance teams in manufacturing plants stock the ZB4BD2 as a replacement handle for Harmony XB4 installations across the facility. Because the operating head is a separate component from the base and contact block, a worn or physically damaged handle can be swapped in minutes without rewiring or replacing the electrical components behind the panel.

Application Typical Deployment
Packaging machine control panel Auto/manual mode selector on operator station door
Water treatment pump control Duty/standby selection in NEMA 4X outdoor enclosure
Food and beverage processing line Line start/stop selector in IP69K washdown zone
Industrial HVAC system Hand/off/auto selector on air handling unit panel (2-position variant)
Maintenance parts inventory Stocked replacement head for Harmony XB4 panels facility-wide
OEM machine builder BOM Standardized selector component in new control cabinet design

Key Specifications and Environmental Ratings for the ZB4BD2

Specification Value
Product Series Harmony XB4
Catalog Number ZB4BD2
Component Type Selector Switch Operating Head (not a complete assembly)
Mounting Diameter 22 mm
Positions 2 (left and right)
Operation Type Maintained (stay-put lever)
Handle Color Black
Bezel Material Chrome-plated metal
Mechanical Cycle Rating Over 1 million cycles
IP Protection IP66, IP67, IP69, IP69K

NEMA ratings: NEMA 1, 2, 3, 4, 4X, 12, and 13. Applicable standards include IEC 947-1, IEC 60947-5-1, and IEC 947-5-4. Certifications include UL, CSA, and CE. Termination type on compatible contact blocks is screw clamp.

Full technical specifications are available on the product page at LeadTime.ca.

ZB4BD2 vs. Related Harmony XB4 Selector Variants: Which One Do You Actually Need?

Feature ZB4BD2 (This Model) ZB4BV (Illuminated) XB4 3-Position XB4 Momentary
Positions 2 2 3 or more 2
Operation Maintained (stay-put) Maintained Maintained Momentary (spring-return)
Illumination None Yes (LED compatible) None None
Handle Style Standard lever Standard lever Standard lever Spring-loaded
Handle Color Black Black Black Black
Typical Use Pump on/off, mode change Selection with indicator 3-way valve, complex modes Test, jog functions
Price Position Standard Premium (approximately 30–40% higher) Standard Standard
Availability Widely stocked Normally stocked Special order Normally stocked

If your application requires the lever to illuminate when selected, the ZB4BV is the correct model — not the ZB4BD2. If your machine needs a third position (for example, a 3-way valve with off/position A/position B), a different Harmony XB4 3-position model is required. If you need confirmation that you are on the right variant before committing to your order, check current availability and product details at LeadTime.ca.

Expert Verdict: Is the ZB4BD2 the Right Part for Your Project?

The ZB4BD2 earns its place as the default 2-position selector head for facilities running Harmony XB4 infrastructure. With over 1 million mechanical cycles rated and IP69K environmental protection confirmed in Schneider Electric's official documentation, this operating head covers the full range of North American industrial environments — from standard indoor machine panels to outdoor NEMA 4X enclosures and high-pressure washdown zones. The 22mm mounting standard means panel builders and maintenance technicians can source and install this head without dimensional uncertainty. For anyone performing a like-for-like replacement of a failed black maintained selector handle in an existing Harmony XB4 installation, the ZB4BD2 is the correct and fastest procurement path.

Where the ZB4BD2 falls short is equally clear. It carries no illumination, which eliminates it from any application where the operator panel requires a lit indicator to confirm switch state independently of lever position. The ZB4BV addresses that requirement. The ZB4BD2 is also strictly a 2-position device — if your application has evolved to need a third selection position (common in valve or mode sequencing upgrades), a different model from the Harmony XB4 family must be specified. And for applications where the switch must spring back to centre on release, a momentary-action variant replaces this model. None of these limitations are flaws; they are selection constraints that protect you from ordering the wrong part.

On the procurement side, the ZB4BD2 is normally stocked through authorized distributors with typical lead times in the range of 1 to 5 business days for in-stock units. Total system cost, when the operating head is combined with a Harmony XB4 base unit and one or two contact blocks, is modest. The single most important thing to confirm before ordering is base compatibility — if your panel has a Harmony XB4 base with a 22mm cutout and you need a black 2-position maintained head, this is a straightforward purchase. If you are unsure about your base series or which contact block suits your circuit requirements, consult a specialist before ordering. View current pricing and availability for the ZB4BD2 at LeadTime.ca — we ship worldwide.

For volume pricing, project bundling of head plus base plus contact block, or to confirm lead time before committing to a build schedule, contact the LeadTime.ca team directly — we ship worldwide.

What Engineers Need to Know Before Ordering the ZB4BD2

The ZB4BD2 generates very little troubleshooting discussion in the automation engineering community — a pattern that is entirely consistent with a mature, proven component that has a low failure rate, a straightforward installation process, and a clear modular architecture. Commodity-level industrial control components at this tier rarely generate forum threads precisely because they work as specified and install without surprises. That said, the absence of community debate does not mean the ordering process is foolproof. The most consequential errors with this product happen before the part ships, not after.

The most frequent ordering mistake with modular selector switch systems like the Harmony XB4 family is purchasing the operating head in isolation without confirming whether a compatible base unit and contact block are already in place. Technicians performing panel repairs often focus on the visible component — the handle — without verifying what sits behind the panel face. If the base unit is from a different Schneider family or an older Telemecanique-era mounting, the ZB4BD2 head will not mate correctly and the project stalls. A 2-minute check of the base part number before ordering eliminates this delay entirely.

A second source of ordering errors is conflating maintained and momentary selector actions. Both look similar in distributor catalogues and carry similar price points. Maintained selectors stay in position; momentary selectors spring back. Ordering the wrong action type for a mode selector application means rewiring the control logic or returning the part — neither of which is a good outcome on a live production line. When community data is sparse and the manufacturer's catalogue has multiple closely related part numbers, specialist distributor guidance fills the gap that forum searches cannot. LeadTime.ca's team is familiar with the Harmony XB4 component family and can confirm whether the ZB4BD2 matches your base, your action type, and your electrical requirements before you commit to the order.

Installation and Wiring Overview for the ZB4BD2

The following points summarize the installation process. For complete wiring diagrams and detailed installation procedures, refer to the Schneider Electric documentation supplied with your Harmony XB4 base unit and contact block. Engineers performing first-time installations or working in safety-critical circuits should consult manufacturer documentation directly.

  • The Harmony XB4 base unit must already be mounted in a 22mm panel cutout before the ZB4BD2 operating head is installed — do not force the head into an undersized or damaged cutout
  • Align the ZB4BD2 lever to the 12 o'clock position before inserting into the base; insert until the chrome bezel sits flush against the panel face, then secure the retaining ring if your base variant includes one
  • Contact blocks mount to the rear of the Harmony XB4 base unit and must be selected based on your required electrical function: Normally Open (NO), Normally Closed (NC), or changeover
  • Contact block terminals are marked per IEC standard (11, 12, 14 for NO; 21, 22, 24 for NC) — verify terminal labeling against the contact block diagram before wiring
  • After installation, verify maintained action by moving the lever left and right and confirming it holds position without spring return; test contact switching with a meter or connected load before restoring full system power

Compatible Harmony XB4 Bases and Contact Blocks

The ZB4BD2 operating head is one component in a three-part modular assembly. The following components are required to build a complete functional selector switch using the ZB4BD2 head:

  • Harmony XB4 base unit — provides the 22mm panel mounting interface; ZB4BD2 is compatible with Harmony XB4 series bases only
  • Harmony XB4 contact block (1 or 2 required) — determines the electrical function; available in NO, NC, and changeover configurations; contact block selection must match the current and voltage ratings of your control circuit
  • Retaining ring or snap ring — some Harmony XB4 base variants include a mechanical retaining element to secure the operating head; confirm your base variant includes this before installation

Contact LeadTime.ca to confirm which base unit and contact block combination is correct for your specific electrical function and enclosure requirements. Bundling all three components in a single order reduces shipping cost and ensures compatibility confirmation before parts are shipped.

Six Checks to Avoid Ordering the Wrong Part

Before placing your order for the ZB4BD2, work through this checklist. Every item reflects a real ordering error that results in project delays or return shipments.

  1. Confirm your existing base is Harmony XB4 series — ZB4BD2 head is NOT compatible with other Schneider switch families
  2. Verify panel cutout diameter is exactly 22mm; ZB4BD2 will not fit 16mm, 30mm, or non-standard holes
  3. Check that you need 2-position maintained (stay-put) action — if you need spring-return or 3+ positions, this is the wrong model
  4. Confirm black handle is your requirement; if red is needed, order different part number
  5. Ensure you have or will order a compatible Harmony XB4 contact block (determines electrical ratings and switching function)
  6. Verify this is the operating head only — you must have a base unit; ZB4BD2 does not include the base or contact blocks

If any of these checks raises uncertainty, contact the LeadTime.ca team before ordering — confirming compatibility takes minutes and prevents costly re-orders.

Frequently Asked Questions

Do I need to order the Harmony XB4 base and contact block separately, or does the ZB4BD2 include them?

The ZB4BD2 is the operating head only — the lever handle and chrome bezel assembly. It does not include the base unit or contact blocks. If you are replacing a failed handle in an existing Harmony XB4 installation, the ZB4BD2 head alone is what you need. If you are building a new selector switch assembly, you must also order a compatible Harmony XB4 base unit and at least one contact block to complete a functional switch.

How do I verify that my panel's existing base unit is compatible with the ZB4BD2?

Check the part number printed on your existing base unit and confirm it belongs to the Harmony XB4 series. The ZB4BD2 is not compatible with other Schneider switch families, older Telemecanique-era bases, or non-Schneider mounting interfaces. If you cannot locate the base part number, contact LeadTime.ca with a photo of the installed base and we can confirm compatibility before your order ships.

What is the difference between the ZB4BD2 and the ZB4BV?

The ZB4BD2 is non-illuminated — it has no LED or lamp function. The ZB4BV is the illuminated version of the same 2-position maintained selector head and is compatible with LED lamp modules. If your panel design requires the selector handle to light up to indicate switch state, the ZB4BV is the correct model. Both share the same 22mm Harmony XB4 mounting standard.

How long does the ZB4BD2 last in a high-cycle application?

Schneider Electric's official documentation rates the ZB4BD2 at over 1 million mechanical cycles. In typical industrial applications — mode selectors, pump duty/standby switches — cycle counts are low and the operating head will outlast most of the surrounding panel hardware. In very high-frequency switching applications, the contact block behind the head will typically reach its electrical cycle limit before the mechanical head shows wear.

Can the ZB4BD2 be used in a food processing or washdown environment?

Yes. The ZB4BD2 carries IP66, IP67, IP69, and IP69K environmental protection ratings, which cover high-pressure washdown with hot water — the specific condition present in food and beverage processing facilities. The NEMA 4X rating also confirms corrosion resistance suitable for sanitary environments. Ensure your Harmony XB4 base and contact block are rated to match the same environmental requirements for the complete assembly.

Is the ZB4BD2 approved for use in North American electrical installations?

Yes. The ZB4BD2 carries UL and CSA certifications, which are the applicable safety approvals for industrial control installations in the United States and Canada. CE marking is also present for European applications. The applicable IEC standards are IEC 947-1, IEC 60947-5-1, and IEC 947-5-4.

Why Order the ZB4BD2 Through LeadTime.ca

  • LeadTime.ca ships worldwide — no geographic restrictions on sourcing
  • Specialist industrial distributor with Harmony XB4 component family knowledge — we can confirm base compatibility, contact block selection, and bundle all three components in a single order
  • Fast response on availability and lead time confirmation — critical for live plant retrofit projects with tight maintenance windows
  • Volume pricing available for OEM machine builders and facilities stocking replacement inventory
  • Direct contact with a knowledgeable team — not a generalist channel that carries incomplete inventory or lacks system-level guidance

ZB4BD2 At-a-Glance Summary

  • Operating head only — requires Harmony XB4 base unit and contact block for a complete functional assembly
  • 22mm standard mounting diameter — fits the universal industrial panel cutout without modification
  • 2-position maintained (stay-put) lever action — black handle, chrome-plated metal bezel
  • Over 1 million mechanical cycle rating confirmed in official Schneider Electric documentation
  • IP66, IP67, IP69, and IP69K environmental protection — suitable for indoor panels, outdoor NEMA 4X enclosures, and high-pressure washdown zones
  • NEMA 1, 2, 3, 4, 4X, 12, and 13 ratings covering indoor and outdoor industrial applications
  • Certifications: UL, CSA (North America), CE (Europe)
  • Applicable standards: IEC 947-1, IEC 60947-5-1, IEC 947-5-4
  • For illuminated version: order ZB4BV; for 3-position: different Harmony XB4 model required; for momentary action: select non-maintained variant
  • Total selector switch assembly cost (head plus base plus contact block) is modest — verify current pricing on the product page
  • Normally stocked through authorized distributors with typical lead times of 1 to 5 business days for in-stock units
