Schneider Electric ZB2BE101 — 1 NO Contact Block Buyer Review

By Abdullah Zahid
13 min read

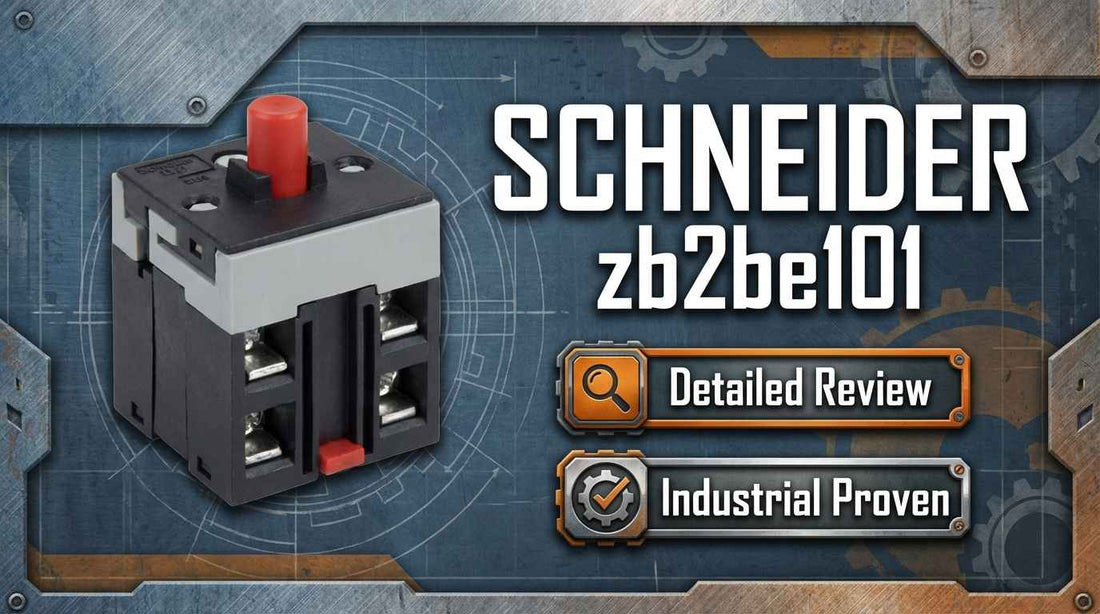

Schneider Electric ZB2BE101 Harmony 22mm 1 NO snap-on auxiliary contact block with screw clamp terminals for industrial control panels

Schneider Electric ZB2BE101 Harmony 22mm Push Button Add-on Contact Block, 1 NO, Screw Clamp Terminal: Specifications, Compatibility, and Selection Guide

When a controls engineer or panel builder searches for the Schneider Electric ZB2BE101, they are typically at the final stage of a specification decision — confirming contact configuration, verifying the 10A at 600 VAC rating, and checking that UL and CSA certifications are in order before committing to an order. This auxiliary contact block is a single-pole normally open snap-on module designed for 22mm Harmony operator devices, and getting the model right the first time prevents costly rework and project delays.

If you have already confirmed this is the correct part for your application, check current pricing and availability for the ZB2BE101 at LeadTime.ca — ships worldwide.

Who Should Buy the ZB2BE101 — and Who Shouldn't

The Schneider Electric ZB2BE101 is the right contact block if your application meets all of the following criteria:

  • Your Harmony base unit is exactly 22mm — not 16mm and not 30mm
  • Your circuit requires a single-pole normally open (1 NO) contact configuration only
  • Your peak load does not exceed 10A at 600 VAC for AC circuits, or 1.1A at 125V DC for DC signal switching
  • Screw clamp terminals are acceptable for your wiring gauge and installation method
  • UL Listed (File E164353) and CSA Certified (File LR44087) status is required for your facility or OEM specification
  • Your Harmony operator is from the XB4, XB5, XACA, or XAPS2 series

If you need both a normally open and a normally closed contact in a single block, the ZB2BE3 (1 NO + 1 NC) is the correct alternative. If your load exceeds 10A continuous or involves high motor inrush current without soft-start protection, specify a higher-rated contact block before ordering.

On this page:

What the ZB2BE101 Does in a Real Control System

The Schneider Electric ZB2BE101 is an add-on contact block — not a standalone switch. It snaps onto the back of a Harmony 22mm operator device (push button, selector switch, or similar) and provides the electrical switching element that the operator body on its own cannot. Without a contact block, the push button or selector switch has no electrical function. The ZB2BE101 adds one normally open contact pair rated at 10A at 600 VAC, which closes when the operator is actuated and returns to open when released.

The contact material is silver alloy, which provides reliable conductivity and arc suppression over a long electrical service life. The contact operation is snap action (slow break), meaning the transition is gradual rather than instantaneous — a characteristic that offers arc suppression benefits and is standard for auxiliary contact blocks in industrial control applications. This block is not a safety-rated device on its own; external overload protection sized to the 10A rating must be provided by a fuse or circuit breaker in the panel design.

The ZB2BE101 has been validated by Schneider Electric for use in automotive, textile, and timber manufacturing environments, reflecting broad OEM adoption across demanding industrial sectors. Its dual certification under UL (File E164353) and CSA (File LR44087) removes regulatory uncertainty for facilities in North America that require certified components in their control panels.

Typical System Architecture for Harmony Contact Blocks

The ZB2BE101 sits at the operator interface layer of a control system — between the panel-mounted push button and the downstream control circuit it switches. Understanding where it fits in the signal chain helps panel builders verify that the contact rating and configuration align with system requirements before installation.

  • PLC or control system: receives digital input signal from the contact block output, triggering logic for motor start, mode change, or alarm acknowledgment
  • Harmony 22mm base unit (XB4, XB5, XACA, or XAPS2): the operator device that the technician actuates — push button, selector switch, or emergency stop
  • ZB2BE101 contact block: snaps onto the back of the Harmony base, provides the 1 NO electrical contact pair that opens and closes with each actuation
  • Downstream control circuit: contactor coil, relay coil, PLC I/O terminal, or alarm circuit powered through the contact block output
  • External overload protection: fuse or circuit breaker sized to 10A, installed in the panel to protect the circuit and contact block from overcurrent conditions

Industries and Applications Where the ZB2BE101 Is Specified

In automotive assembly, the ZB2BE101 appears most frequently in conveyor start/stop circuits, paint system loop controls, and robotic arm enable buttons mounted on central operator panels. Its UL and CSA certification is a prerequisite in most automotive OEM facility standards, making it a direct-to-specification choice for panel builders working in that sector.

Textile machinery designers use this contact block for production mode switching — selecting manual versus automatic operation on looms, dyeing vat circulation systems, and thread tension monitoring circuits. The operating temperature range of -40°C to 70°C accommodates the thermal variation found in some textile plant environments without requiring a specialized block.

In food and beverage and material handling systems, the ZB2BE101 controls pump and valve solenoid circuits, provides position sensing feedback to the control system, and enables load gate interlock signals — applications where the 1 NO configuration and 10A rating are a natural fit for standard control circuit loads.

General industrial machine interfaces use this block for PLC I/O feedback and alarm circuit enabling, where a single normally open contact is the standard building block for operator panel control logic.

Application Typical Deployment
Automotive Assembly Start/stop control on conveyor lines, robotic arm enable circuits, paint system loops
Textile Machinery Manual/automatic mode selection on looms, dyeing vat circulation switching
Timber Processing Saw blade engagement push buttons, log feeder start circuits, safety relay feedback
Food and Beverage Filling line solenoid actuation, pump engagement, pressure monitoring feedback
Material Handling Belt drive start/stop, position sensing feedback, load gate interlock signals
General Industrial PLC I/O feedback signals, alarm circuit enabling, operator panel control

Key Specifications and the ZB2BE101 vs. Alternative Harmony Contact Blocks

Parameter Specification
Contact Configuration 1 Pole Normally Open (1 NO)
AC Contact Rating 10A at 600 VAC (NEMA A-600)
DC Contact Rating 1.1A at 125V DC
Contact Material Silver Alloy
Contact Operation Snap Action (Slow Break)
Mounting Type Front fixing snap-on, 22mm Harmony standard
Terminal Connection Screw Clamp (12–14 AWG typical)
Operating Temperature -40°C to 70°C
UL Certification UL Listed, File E164353
CSA Certification CSA Certified, File LR44087

Full technical specifications are available on the product page at LeadTime.ca.

Model Contact Configuration AC Rating Best For
ZB2BE101 1 NO 10A at 600 VAC Single start/stop, mode selection, PLC feedback — industry standard 1 NO block
ZB2BE3 1 NO + 1 NC 10A at 600 VAC Dual-state switching, feedback circuits requiring both NO and NC contacts simultaneously
ZB2-BE1 1 NC 10A at 600 VAC Normally closed logic circuits, inverted control applications
Higher-Rated Blocks Varies 20A+ available Motor circuits or high-inrush loads where 10A rating is insufficient

If your circuit requires both a normally open and a normally closed contact in a single block, the ZB2BE3 is the correct model — confirm the right variant and check current availability at LeadTime.ca.

Expert Verdict: Is the ZB2BE101 the Right Contact Block for Your Project?

The Schneider Electric ZB2BE101 is a dependable, well-validated auxiliary contact block for panel builders and controls engineers working in automotive, textile, timber, and general industrial machine automation. Its 10A at 600 VAC rating covers the vast majority of push-button and selector-switch control circuit loads, and its silver alloy contacts deliver consistent snap action response over a long electrical service life. The dual UL and CSA certification — with specific file numbers E164353 and LR44087 — eliminates regulatory risk for North American facilities and satisfies OEM certification requirements without additional documentation effort. For integrators already working within the Harmony XB4 or XB5 ecosystem, the snap-on compatibility means this is a true drop-in addition that reduces integration time on the panel floor.

There are real limits to this block that honest specification requires acknowledging. If your circuit needs both normally open and normally closed contacts, the ZB2BE101 is the wrong choice — order the ZB2BE3 instead. If your load involves motor inrush currents that push beyond the 10A rating without soft-start protection, this block will fail under stress and must be replaced with a higher-rated alternative. Engineers working in facilities where press-fit or crimp terminals are mandatory will find the screw clamp design incompatible with their wiring standards and should verify whether a press-fit variant is available for their Harmony base configuration before specifying this model.

From a procurement standpoint, the ZB2BE101 is officially described as normally stocked in distribution, which means predictable lead times in the 1–3 business day range for standard orders — an important detail when a panel build is on a fixed commissioning schedule. Ordering through a specialist industrial distributor rather than a generic marketplace gives you the added confidence of verified UL/CSA documentation, accurate stock confirmation, and access to technical support if a compatibility question arises during installation. View current stock status and pricing for the ZB2BE101 at LeadTime.ca — available to buyers worldwide.

For volume pricing, project-specific quantities, or to confirm lead time before a build commitment, contact the LeadTime.ca team directly — we ship worldwide.

What Engineers Need to Know Before Ordering the ZB2BE101

Community discussion specific to the ZB2BE101 is sparse in public forums, which is itself informative — this is a commodity-level component that experienced panel builders order without hesitation once they have confirmed the three critical variables: base unit size, contact configuration, and peak circuit load. The absence of widespread forum debate about this block is partly because it performs exactly as specified and partly because the ordering mistakes that do occur are rarely discussed publicly. Those mistakes, however, are well-documented through distributor technical support channels and are worth surfacing here for engineers who are specifying this part for the first time.

The most common pre-purchase error involves assuming that Harmony contact blocks are interchangeable across the 16mm, 22mm, and 30mm base sizes. They are not. The ZB2BE101 is engineered exclusively for the 22mm Harmony standard. A panel builder inheriting a bill of materials that specifies only "Harmony contact block" without a size designation may order this block for a 16mm or 30mm base, discover the physical incompatibility at installation, and face emergency reorder delays. The fix is simple: always verify the base unit diameter from the control panel drawing or the existing hardware before ordering. If the base unit part number begins with XB4 or XB5, the 22mm ZB2BE101 is the correct contact block family.

The second category of pre-purchase mistake involves contact configuration. The ZB2BE101 provides one normally open contact — full stop. Engineers designing circuits that require simultaneous normally open and normally closed switching sometimes order this block, attempt installation, and discover the circuit logic fails because there is no NC contact present. For those applications, the ZB2BE3 is the correct specification. For purely normally closed logic, the ZB2-BE1 is the appropriate model. Taking sixty seconds to cross-reference the circuit schematic against the contact configuration before adding to cart prevents the most common return and reorder scenario for this product family. When in doubt, the LeadTime.ca team can assist with compatibility confirmation before an order is placed.

Wiring and Installation Overview

  • Verify the Harmony base unit is de-energized and in the OFF position before beginning installation; align the ZB2BE101 snap-on tabs with the corresponding slots on the back of the 22mm base and press firmly until a distinct snap engagement is felt or heard
  • After snap-on mounting, gently tug the contact block to confirm it is fully seated with no gap at the mounting interface before proceeding to wiring
  • Strip 5–8mm of insulation from the control wire ends and insert into the screw clamp terminals; tighten screws firmly without crushing the wire, using an appropriate screwdriver — do not over-tighten
  • For DC control circuit applications, observe circuit polarity and use the 1.1A at 125V DC rating — not the AC rating — for current verification
  • With the circuit de-energized, manually actuate the operator to confirm smooth contact snap-action response before powering the system; verify all terminal connections are tight and no bare wire is exposed at the terminal entry point

Wrong-Part Prevention Checklist

Before placing your order for the Schneider Electric ZB2BE101, confirm each of the following points against your project documentation:

  1. Verify base unit is 22mm Harmony (not 16mm or 30mm) before ordering.
  2. Confirm 1 NO contact configuration matches circuit design (not 1 NC or 2NO2NC).
  3. Check that 10A at 600 VAC meets downstream load requirements; do not substitute with lower-rated blocks.
  4. Verify screw clamp terminals are acceptable for your wiring gauge and installation method; press-fit variants exist.
  5. Confirm UL and CSA certifications are required for your geographic market and facility standards.
  6. Check compatibility with existing selector switch or push button model (XB4, XB5, XACA, XAPS2 compatibility confirmed).

If any item on this checklist raises a question before you commit to an order, contact the LeadTime.ca team for compatibility confirmation — or review the full product details on the ZB2BE101 product page.

Frequently Asked Questions

Can I use the ZB2BE101 on a 16mm or 30mm Harmony base unit?

No. The ZB2BE101 is designed exclusively for 22mm Harmony base units. The snap-on tab geometry is specific to the 22mm standard, and the block will not physically mount on 16mm or 30mm Harmony bases. If your operator device is a different size, a different contact block model is required — verify the base unit diameter from your control panel drawing before ordering.

What is the DC rating of the ZB2BE101, and can I use it for DC control signal switching?

Yes, the ZB2BE101 can be used for DC control signal switching, but at a significantly reduced rating of 1.1A at 125V DC — not the 10A AC rating. For DC applications, verify that your signal current does not exceed 1.1A and observe circuit polarity during wiring. Do not apply the AC rating to DC circuit calculations.

Does the ZB2BE101 include internal overload protection?

No. The ZB2BE101 contact block has no integral circuit breaker or overload protection. External protection — a fuse or circuit breaker rated to the 10A nominal — must be provided by the panel design. Failure to include external protection risks contact damage or circuit failure under overcurrent conditions.

What is the difference between the ZB2BE101 and the ZB2BE3, and how do I know which one I need?

The ZB2BE101 provides one normally open (1 NO) contact only. The ZB2BE3 provides one normally open and one normally closed contact (1 NO + 1 NC) in a single block. If your circuit requires feedback in both states — for example, confirming a button is both pressed and released through separate logic branches — the ZB2BE3 is the correct choice. If you only need a single make contact for start/stop or mode selection, the ZB2BE101 is sufficient and is the more common specification.

Is the ZB2BE101 compatible with XB4 and XB5 Harmony push buttons?

Yes. Compatibility with Harmony XB4, XB5, XACA, and XAPS2 series 22mm base units is confirmed by Schneider Electric's official product documentation. If your existing operator devices are from one of these families, the ZB2BE101 is a direct snap-on addition without modification to the base unit.

What certifications does the ZB2BE101 carry, and are they sufficient for North American industrial facilities?

The ZB2BE101 is UL Listed under File Number E164353 (CCN NKCR) and CSA Certified under File Number LR44087 (Class 321103). It also carries CE marking for European markets and complies with IEC standards for control components. For the majority of North American industrial facilities — including automotive, textile, and machinery manufacturing — these certifications satisfy both facility and OEM electrical specification requirements.

Price, Lead Time, and How to Order From Anywhere in the World

The Schneider Electric ZB2BE101 is described by the manufacturer as normally stocked in distribution, which means it is a mainstream catalog item with predictable availability rather than a special-order or long-lead component. Current pricing is available directly on the product page — LeadTime.ca displays live pricing to visitors, so the number you see reflects current market conditions. For volume orders or project-specific quantities, contact pricing is available through the LeadTime.ca team.

LeadTime.ca ships the ZB2BE101 worldwide. Whether you are sourcing for a single panel build or a larger project requirement, the ordering process is the same: confirm the part number, verify current stock on the product page, and place your order or request a quote directly.

Why Order the ZB2BE101 Through LeadTime.ca

  • Global shipping on industrial automation components — no geographic restrictions on where your order can be delivered
  • Specialist distributor with access to certified stock and the ability to confirm UL/CSA documentation for regulated facilities
  • Direct technical support for compatibility questions before you order — prevents the wrong-base-size and wrong-contact-configuration mistakes that create rework on the panel floor
  • Volume and project pricing available on request — contact the team for quantities beyond standard catalog orders
  • Sourcing support for hard-to-find or discontinued variants in the Harmony ZB2 family

At-a-Glance Summary

  • Model: Schneider Electric ZB2BE101 — Harmony 22mm Push Button Add-on Contact Block, 1 NO, Screw Clamp Terminal
  • Contact configuration: 1 pole normally open (1 NO) only — not 1 NC, not 1 NO + 1 NC
  • AC rating: 10A at 600 VAC (NEMA A-600)
  • DC rating: 1.1A at 125V DC — use this figure for DC signal circuit calculations
  • Contact material: silver alloy with snap action (slow break) operation
  • Compatible base units: Harmony 22mm only — XB4, XB5, XACA, XAPS2 confirmed; 16mm and 30mm are not compatible
  • Terminal type: screw clamp, 12–14 AWG typical
  • Operating temperature: -40°C to 70°C
  • Certifications: UL Listed (File E164353), CSA Certified (File LR44087), CE Marked, IEC compliant, RoHS compliant
  • Stock status: normally stocked in distribution — typical lead time 1–3 business days for standard orders
  • External protection required: yes — fuse or circuit breaker rated to 10A must be provided in the panel design
  • Primary alternative models: ZB2BE3 (1 NO + 1 NC) for dual-contact applications; higher-rated blocks for loads exceeding 10A
