Schneider Electric XVUC21B — 24V Tower Light Base Unit Review

By Abdullah Zahid
14 min read

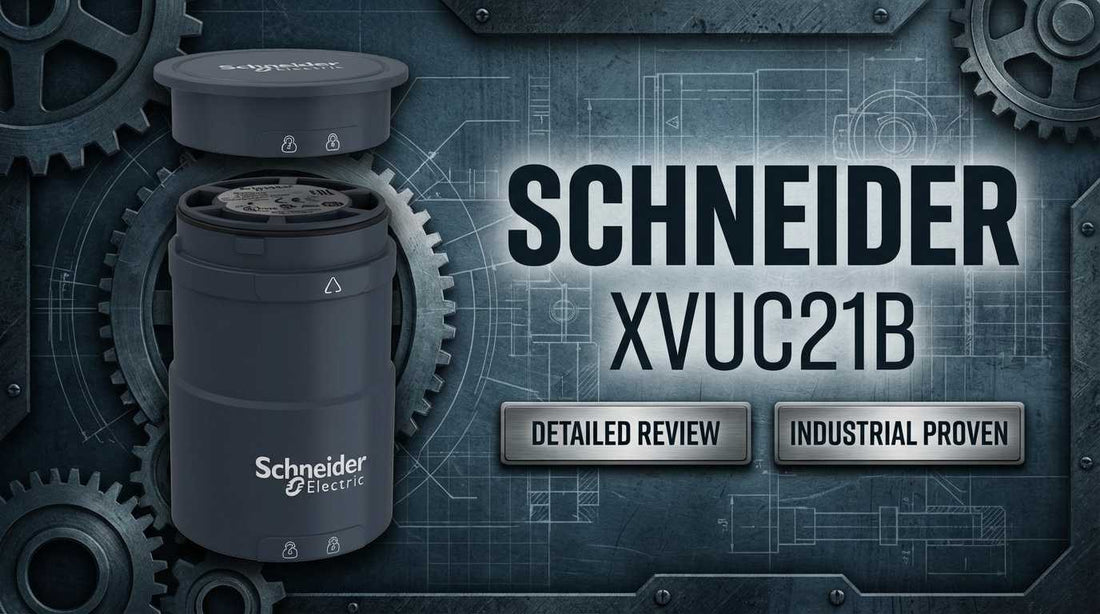

Schneider Electric XVUC21B Harmony XVU 60mm black modular tower light base unit for 24V AC/DC PLC-controlled signaling systems

Schneider Electric XVUC21B Harmony XVU Base Unit with Top Cover for Modular Tower Lights, Black, 60mm, 24V AC/DC — Specifications, Wiring & Comparison Guide

If you are specifying or replacing a tower light base unit for a 24V control system and need modular stack flexibility, the Schneider Electric XVUC21B is likely already on your shortlist. This is the mounting foundation and signal interface for the Harmony XVU modular tower light family — a 60mm diameter, 24V AC/DC base unit that accepts up to 5 snap-in light modules, connects directly to PLC discrete outputs, and supports programmable sounder patterns via SD card. The decision comes down to three things: voltage compatibility, form factor, and whether a modular system fits your project better than a fixed single-unit tower light.

If you have already confirmed this is the right part, check current pricing and availability for the XVUC21B at LeadTime.ca — ships worldwide.

Who Should Buy the XVUC21B — and Who Shouldn't

The XVUC21B is the right base unit if your application checks the following boxes:

  • Your control system operates on 24V AC or 24V DC — this unit is not compatible with 110V or 230V AC supplies
  • Your mounting infrastructure accommodates a 60mm diameter base footprint
  • You need the ability to stack between 1 and 5 Harmony XVU light modules on a single pole or surface without replacing the base
  • Your PLC or control device provides discrete 24V outputs for signal control
  • You require programmable sounder patterns configurable via SD card for plant-specific alarm tones

If your installation site has only 110/230V AC available and no 24V control supply, the XVUC11B is the correct model. If your application calls for a compact 40mm form factor or a non-modular fixed tower light to minimize spare parts inventory, other Harmony XVU variants or fixed-unit alternatives will better serve that requirement.

On this page:

What the XVUC21B Actually Does in a Running System

The XVUC21B is not a complete tower light — it is the base unit that makes a complete tower light system possible. It serves three simultaneous functions: it is the mechanical mounting interface that anchors the entire stack to a pole, wall, or surface; it is the power distribution spine that feeds 24V AC/DC to every light module snapped into it; and it is the signal entry point that receives discrete 24V inputs from a PLC and routes those signals to the correct module in the stack.

The Harmony XVU system is built around this modular philosophy. Rather than purchasing a pre-assembled fixed tower light with a set number of colors, an engineer selects the XVUC21B base and then populates it with whichever Harmony XVU LED modules the application requires — up to 5 total — choosing from 6 available colors plus a multi-color LED option. Each module can display one of 4 light patterns: steady, flashing, blinking, or rotating. When the signaling requirement changes six months after commissioning — a new production mode, an additional warning state, a maintenance indicator — the engineer adds or swaps a module rather than replacing the entire fixture.

The programmable sounder built into the base unit extends this flexibility to audio alerting. Using an SD card and the Schneider configuration tool, four sounder pattern types can be programmed to match plant-standard alarm tones, removing the need for a separate audible alarm device on the same machine.

Four mounting styles — flexible, wall, pole, and direct — mean the XVUC21B integrates into existing infrastructure without custom fabrication. This is a key advantage for retrofit projects where the goal is to replace a fixed tower light with a modular one without modifying the mounting post or enclosure.

Where the XVUC21B Sits in Your Control Architecture

The XVUC21B connects the PLC output layer directly to the physical signaling layer — it is the last device in the discrete output chain before visible and audible indication reaches the operator.

  • PLC or safety relay provides 24V DC discrete outputs — one output per light module signal state or sounder trigger
  • 24V power supply feeds the XVUC21B base unit via screw terminals on the base; the same 24V rail typically powers the PLC I/O
  • The XVUC21B base unit receives signal inputs and distributes power upward through the stack
  • Harmony XVU LED modules (XVUC, XVUL, XVUQ, XVUM, XVUP series) snap into the base and activate on their respective signal inputs
  • The sounder module, if included, is configured via the SD card slot on the base unit and activates on its dedicated signal input

Typical Applications and Deployment Scenarios

The XVUC21B is most frequently deployed on production line workstations in discrete manufacturing environments where green-yellow-red machine status signaling is required alongside an audible alarm. Automotive assembly, electronics manufacturing, and machinery OEM applications represent the core use case — a single base unit with three or four stacked modules communicates running, warning, stop, and maintenance states from a distance without requiring an operator to check an HMI.

In batch and process operations — food and beverage lines, pharmaceutical packaging, chemical dosing systems — the modular design addresses a common challenge: process states change as the system evolves, and a fixed tower light purchased at commissioning may not cover the signaling states added during process optimization. The XVUC21B base allows a module to be added to the existing stack without rewiring the enclosure.

Warehouse and logistics applications use the XVUC21B at material handling checkpoints and conveyor gateways where a high-visibility signal is needed to communicate zone status — pick ready, fault, or blocked — to operators moving through the facility. The flexible and pole mounting options make installation on conveyor frames or racking uprights straightforward.

Retrofit applications represent a strong use case. When aging fixed single-unit tower lights need replacement, the XVUC21B base with appropriate modules drops into the existing mounting point and connects to the existing 24V wiring, adding sounder programming and multi-color flexibility that the original fixed unit lacked.

Application Typical Deployment
Production line machine status signaling XVUC21B base with 3–4 color modules (green/yellow/red/blue) on vertical pole at workstation; PLC discrete outputs per module
Batch process phase indication XVUC21B base with 5-module stack showing run, transition, hold, fault, and maintenance states; sounder on fault trigger
Conveyor checkpoint signaling XVUC21B pole-mounted at material handling gateway; 2–3 modules for zone clear/fault/manual hold states
Emergency response visual/audio alert XVUC21B with rotating red module and programmed sounder; triggered by safety relay discrete output
Tower light retrofit on existing mast XVUC21B replacing fixed single-unit tower light; reusing existing 24V wiring and pole mount

XVUC21B Key Specifications and Variant Comparison

Specification Value Notes
Supply Voltage 24V AC/DC Not compatible with 110V or 230V AC supplies
Current Draw (Base Unit) Up to 400 mA Module current draw is additional; confirm total with distributor
Diameter 60mm Confirm mounting clearance at installation site
Color Black Light color provided by stacked LED modules
Modular Stack Capacity Up to 5 light units Per Schneider Electric official documentation
Mounting Styles 4 (flexible, wall, pole, direct) Per Schneider Electric official product page
Light Patterns 4 (steady, flashing, blinking, rotating) Per module type selected
Light Colors Available 6 colors plus multi-color LED Via Harmony XVU stacked modules
Sounder Programming Programmable via SD card 4 configurable patterns; requires configuration tool
Storage Temperature -40 to +70°C Operating temperature range: confirm via Schneider manual

Full technical specifications are available on the product page at LeadTime.ca.

The variant comparison below covers the most common decision point engineers encounter when specifying this part family:

Model Supply Voltage Diameter Mounting Styles Modular Capacity Sounder Programmable
XVUC21B (Schneider Electric) 24V AC/DC 60mm 4 Up to 5 modules Yes, via SD card
XVUC11B (Schneider Electric) 110/230V AC 60mm 4 Up to 5 modules Yes, via SD card
40mm XVU variants (Schneider Electric) 24V AC/DC 40mm Varies by model Varies by model Varies by model
Fixed single-unit tower light Varies Varies Typically 2–3 Not modular Varies

If your installation site has only 110/230V AC available and no 24V control supply, the XVUC11B is the direct voltage-matched alternative with the same 60mm diameter and 5-module stack capacity — check current availability for both models at LeadTime.ca before finalizing your order.

Expert Verdict: Is the XVUC21B the Right Call for Your Project?

The XVUC21B earns its place in 24V control system projects through a combination of practical flexibility and genuine integration simplicity. The four available mounting styles eliminate custom fabrication on retrofit jobs, and the ability to stack up to 5 Harmony XVU modules on a single base means the signaling configuration can grow with the process without requiring a new fixture. The direct PLC connection — discrete 24V inputs with no intermediate control module — reduces BOM complexity and cuts commissioning time. For manufacturing plants, automation integrators, and OEM equipment designers who standardize on 24V control voltage and need multi-state visual and audio signaling, this base unit is a well-structured choice that pays for its modular premium over the life of the installation.

The XVUC21B has real limits that matter at the specification stage. It is not the right answer for sites where only 110/230V AC is available at the tower light location — in that scenario, the XVUC11B is the direct replacement. It is also not the answer for applications requiring IP67 protection, outdoor-rated enclosures, or hazardous location certification; the standard unit does not carry those ratings, and Schneider should be consulted for rated variants if those are hard requirements. For projects where a fixed single-unit tower light is sufficient and spare parts simplicity is the priority, the modular approach adds cost and complexity that the application does not justify. Be honest at the application review stage about whether the flexibility of up to 5 stackable modules is a real requirement or a theoretical one.

On the procurement side, the XVUC21B is normally stocked in Schneider Electric distribution, with market-typical lead times running 1 to 3 weeks for stock units and 4 to 8 weeks for custom configurations. That means commissioning schedules with tight windows should confirm stock status before the purchase order is issued — not after. Buying through a specialist distributor like LeadTime.ca gives you stock confirmation in hours, field-experienced guidance on module selection, and volume pricing for multi-site deployments. Check current pricing and stock status for the XVUC21B at LeadTime.ca — we ship worldwide and can support procurement teams at any project stage.

For volume pricing or to confirm lead time before committing to a build, contact the LeadTime.ca team directly — we ship worldwide.

What Engineers Need to Know Before Ordering the XVUC21B

Specific community forum data for the XVUC21B is limited — this is a commercial-grade industrial accessory that gets specified and installed without generating much public discussion. What that means in practice is that the ordering mistakes that do occur tend to surface at commissioning rather than in a forum thread, and they are almost always preventable with a short pre-order checklist. The engineering team at LeadTime.ca fields these questions regularly, and the patterns are consistent.

The most common and costly mistake is ordering the XVUC21B for an installation site where 24V AC or DC power is not physically available at the tower light location. The base unit requires 24V — not 110V, not 230V. Plants that have 24V in the control panel but route only 110V AC to field device locations have caught this problem at commissioning when the unit simply does not power up. The fix — ordering the XVUC11B and waiting for delivery — can hold up a production line start date by weeks. Verify voltage at the physical installation location before ordering, not at the panel.

The second pattern is incomplete module ordering. The XVUC21B base is ordered without a confirmed list of Harmony XVU LED module part numbers, and the wrong color modules or incompatible module types arrive with the base unit. All stacked modules must be Harmony XVU series — part numbers beginning with XVU — and the specific color code module numbers (XVUC for red, XVUL for yellow/amber, XVUQ for green, XVUM for blue, XVUP for multi-color) need to be confirmed against the application's signaling requirements before the purchase order is submitted. Ordering the base and modules as a single confirmed kit, rather than separately across two purchase orders, eliminates this class of mistake entirely. The LeadTime.ca team can help verify module compatibility and bundle the correct parts in a single order — reach out before you finalize your BOM.

Wiring and Installation Overview for the XVUC21B

The following points summarize the key requirements for installing and wiring the XVUC21B. Engineers requiring full wiring diagrams, terminal layouts, torque specifications, and step-by-step procedures should refer to Schneider Electric's official installation documentation for the Harmony XVU product family.

  • Power connection is made via screw terminals on the base unit — 24V AC or 24V DC positive, negative, and ground; confirm polarity with a multimeter before energizing and verify external circuit protection (fuse or breaker) is installed in the positive leg
  • PLC discrete 24V outputs connect to the signal input terminals on the base unit; confirm the PLC output commons are bonded to the same ground reference as the 24V power supply feeding the base
  • Choose mounting method (flexible, wall, pole, or direct) based on available surface and stack clearance requirements; maximum stack height is determined by the number of modules installed — verify physical clearance before assembling the full stack
  • Light modules snap into the base unit connector and stack vertically; each module must be a Harmony XVU series part and must seat fully before the next module is added; total stack must not exceed 5 modules
  • Sounder programming is performed by copying the configuration file to an SD card and inserting the card into the SD slot on the base unit; reset the base unit after card insertion and test each sounder pattern trigger via PLC output before signing off on commissioning

Compatible Harmony XVU Modules for the XVUC21B Stack

All modules stacked on the XVUC21B must be Harmony XVU series parts. The following module types are documented as compatible with the XVUC21B base unit:

  • XVUC (Red) — Stop/Alarm indication; snaps directly to base or stacks above another module; standard position for fault state signaling
  • XVUL (Yellow/Amber) — Warning/Caution indication; typically positioned in the middle of the stack for warning state visibility
  • XVUQ (Green) — Running/OK indication; often positioned toward the bottom of the stack for line-of-sight visibility from the floor
  • XVUM (Blue) — Maintenance/Information indication; check current availability with distributor before specifying
  • XVUP (Multi-color) — Dynamic signaling applications requiring color changes from a single module; maximum one per stack; requires programming
  • Sounder/Buzzer module — Audio alerting; mounts at top of stack or as a separate unit; pattern configuration via SD card on the base unit

Wrong-Part Prevention Checklist for the XVUC21B

Before submitting a purchase order for the XVUC21B, work through the following checklist verbatim. Each item addresses a documented ordering or installation failure mode for this product family:

  1. Confirm 24V AC/DC supply is available at installation site (not 110/230V AC only)
  2. Verify mounting location accommodates 60mm diameter base footprint
  3. Check that Harmony XVU LED modules (XVUC, XVUL, XVUQ color codes) match application color requirements
  4. Confirm PLC or control device can provide discrete 24V inputs for signal control
  5. Verify modular stack height requirement does not exceed facility ceiling or clearance limits (max 5 modules)
  6. Check that SD card programming capability is available and customer team has access to sounder configuration tool
  7. Ensure mounting surface or pole is rated for tower light load
  8. Confirm power budget: total current draw of base plus all stacked modules does not exceed PLC/power supply capacity

If any item on this list cannot be confirmed before ordering, contact the LeadTime.ca team — we can help verify compatibility and prevent a costly part return or commissioning delay.

Frequently Asked Questions

Can I power the XVUC21B from a 110V or 230V AC supply?

No. The XVUC21B is rated for 24V AC/DC only. Connecting it to a 110V or 230V AC supply will damage the unit. If your installation site has only higher-voltage AC available, the XVUC11B — which operates on 110/230V AC — is the correct model to order. Both share the same 60mm diameter and up to 5-module stack capacity.

How many Harmony XVU modules can I stack on a single XVUC21B base?

Schneider Electric's official documentation states the XVUC21B supports customization up to 5 light units per base. Exceeding this count is outside the documented specification. Verify total stack height against your installation's physical clearance before assembly.

Does the XVUC21B require a separate sounder module, or is the sounder built in?

The sounder is described as programmable via SD card within the base unit — however, a dedicated sounder or buzzer module may be required depending on the specific audio alerting configuration. Confirm the exact sounder module part number required for your application with Schneider Electric documentation or the LeadTime.ca team before ordering.

What is the current draw I should budget for in my 24V power supply?

The XVUC21B base unit draws up to 400 mA. Each stacked Harmony XVU module adds to this total. Calculate the combined current draw of the base plus all selected modules and verify the total does not exceed the available capacity of your 24V power supply or PLC output module. Confirm module-level current figures with Schneider documentation.

Is the XVUC21B rated for outdoor or hazardous locations?

The standard XVUC21B is not documented as outdoor-rated or certified for hazardous locations in the available specifications. If your application requires IP67 protection or explosion-proof certification, consult Schneider Electric directly for rated variants before specifying this model.

What is the typical lead time when ordering the XVUC21B?

Stock units from North American Schneider Electric distribution typically ship within 1 to 3 weeks under current market conditions. Build-to-order or custom configurations run 4 to 8 weeks. These are market-typical estimates — confirm actual stock status and lead time with LeadTime.ca before committing to a project schedule.

Why Order the XVUC21B Through LeadTime.ca

  • Stock confirmation in hours — not days — so you can commit to commissioning schedules with confidence
  • Field-experienced team available to verify module compatibility, confirm power budgets, and help prevent wrong-part orders before they ship
  • Volume pricing available for multi-site deployments and repeat procurement programs
  • Global shipping — LeadTime.ca sources and ships industrial automation parts worldwide, not just within a single region
  • Sourcing support for hard-to-find configurations and associated Harmony XVU modules from a single order

XVUC21B At-a-Glance Summary

  • Supply voltage: 24V AC/DC — not compatible with 110V or 230V AC
  • Base unit current draw: up to 400 mA; total draw increases with each stacked module
  • Form factor: 60mm diameter, black housing
  • Modular stack capacity: up to 5 Harmony XVU light modules per base (per Schneider Electric official documentation)
  • Mounting styles: 4 — flexible, wall, pole, and direct (per Schneider Electric official product page)
  • Light patterns: 4 — steady, flashing, blinking, and rotating
  • Light colors: 6 plus multi-color LED, via stacked Harmony XVU modules
  • Sounder: programmable via SD card, 4 configurable patterns
  • PLC interface: direct connection via discrete 24V signal inputs
  • Storage temperature: -40 to +70°C; operating temperature range — confirm via Schneider manual
  • Voltage alternative: XVUC11B for 110/230V AC sites with same 60mm diameter and 5-module capacity
  • Market-typical stock lead time: 1–3 weeks; build-to-order 4–8 weeks — confirm before committing to schedule
