Schneider Electric XVBC9B — Tower Light Buzzer Buying Guide

By Abdullah Zahid
16 min read

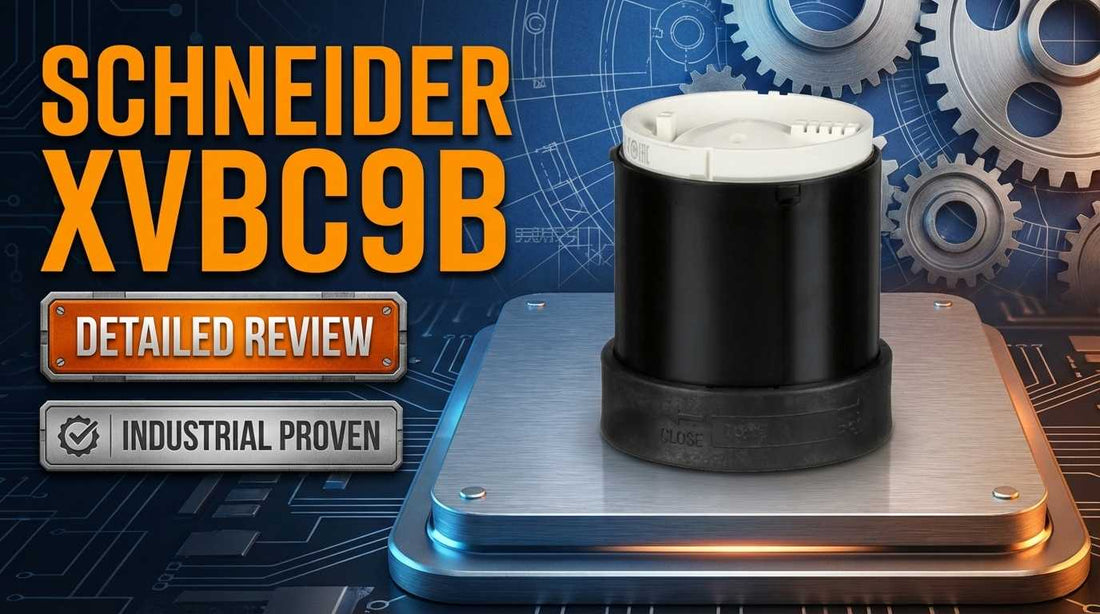

Schneider Electric XVBC9B 70mm audible buzzer unit for Harmony XVB modular tower lights in industrial automation

Schneider Electric XVBC9B Audible Unit for Modular Tower Lights: Specifications, Selection Criteria, and Procurement Guide

Controls engineers and plant maintenance teams searching for the Schneider Electric XVBC9B already know what they need — a compact, certified audible signaling unit that drops into an existing Harmony XVB tower light assembly without custom brackets, rewiring headaches, or compliance re-qualification. The XVBC9B is a 70mm diameter buzzer unit rated for 12 to 48 VAC/DC, delivering up to 90 dB of output at one meter, and carries active UL 508 and CSA certifications for North American panel and machinery installations. The only variables left to confirm are control voltage availability, ambient noise level, and whether IP65 environmental protection is adequate for your installation point.

If you have already confirmed this is the correct part for your system, check current pricing and availability for the XVBC9B at LeadTime.ca — we ship worldwide.

Who Should Buy the XVBC9B — and Who Shouldn't

The Schneider Electric XVBC9B is the right choice for engineers and procurement teams who can confirm all of the following:

  • Available control power on site is within the 12 to 48 VAC/DC operating range — this covers standard 12V, 24V, and 48V industrial PLC and relay outputs
  • Ambient noise at the installation point is below approximately 85 dB, where 90 dB buzzer output remains clearly audible to personnel
  • Mounting location accepts a 70mm diameter form factor and is compatible with Schneider XVB modular tower light bases or equivalent wall-mount configurations
  • Environmental exposure is at or below IP65 requirements — protection against low-pressure water jets and dust ingress in typical industrial washdown environments
  • The control signal source is a discrete hardwired output — PLC discrete I/O, relay contact, or manual switch supplying continuous or intermittent 12 to 48V
  • UL 508 and CSA certification coverage satisfies the compliance requirements of your facility, inspection authority, or export destination

If your application requires sound output above 90 dB, wireless or network-integrated alarming, or mounting on a non-Schneider tower light platform, the XVBC9B is not the right fit. Consider larger horn-type industrial sounders rated above 100 dB, or a full XVB modular tower light assembly if integrated visual and audible indication in a single stacked unit is what the application demands.

On this page:

What the XVBC9B Actually Does in a Machine Control System

The Schneider Electric XVBC9B is an audible signaling unit — a buzzer — belonging to the Harmony XVB modular tower light family. Its job is to generate a 70 to 90 dB alarm tone at 2.8 kHz, either as a continuous signal or in intermittent pulse mode, triggered entirely by the presence or absence of an external 12 to 48 VAC/DC control signal. The unit contains no internal logic, no programmable controller, and no timer — it sounds when voltage is applied and goes silent when voltage is removed. That simplicity is by design. In machine control environments, the XVBC9B is a passive output device wired downstream of a PLC discrete output or relay coil, where the machine's control logic owns the alarm decision.

The 70mm plastic body (ABS construction, rated UL 94 for flame resistance) is sized to match the XVB tower light base diameter exactly, which means field installation on an existing tower light column requires no adapters or additional hardware. The screw clamp terminal block accepts wire up to 2.5 mm² (approximately 14 AWG), matching the typical wiring gauge used in industrial control enclosures. The unit achieves its IP65 ingress protection rating in fixed-mount configuration, and can be upgraded to IP66 with the addition of a sealed base unit, without replacing the buzzer itself.

Two verified proof points are worth anchoring to at the specification level: first, the 90 dB output at one meter is maintained across the full 12 to 48 VAC/DC operating range, with variation to 70 dB only at extreme low-voltage conditions below 15V — meaning a facility running 24 VDC control circuits will see full-rated sound output without any derating. Second, the dual UL 508 and CSA certification means this component can be installed on North American control panels without supplemental approval testing or field engineering evaluation — a significant time saving during commissioning of new machinery or panel upgrades in regulated facilities.

Typical System Architecture for the XVBC9B

The XVBC9B sits at the output end of a discrete alarm circuit, downstream of the PLC or relay that makes the alarm decision and upstream of the operator or maintenance technician who needs to hear it. A typical deployment chain looks like this:

  • PLC or DCS system generates a fault or status condition — machine interlock tripped, process threshold exceeded, or maintenance call triggered
  • PLC discrete output or output relay closes, applying 12 to 48 VAC/DC control voltage to the XVBC9B signal input terminals
  • XVBC9B receives the voltage signal and activates the buzzer element, producing a 2.8 kHz tone at up to 90 dB at one meter
  • The buzzer unit is mounted on an XVB tower light base column on the machine or at a wall-mount signaling station visible and audible to the work area
  • When the fault is cleared and the PLC output de-energizes, the control voltage drops and the buzzer goes silent — no manual reset required unless interlocked upstream

Where the XVBC9B Gets Installed: Industries and Use Cases

In discrete manufacturing environments — automotive assembly, metal fabrication, plastics injection moulding — the XVBC9B is deployed most commonly as a machine fault alarm. When a safety interlock trips or a process error condition is detected, the PLC triggers the buzzer to call operator attention before production losses compound. The 90 dB output is well-suited to the typical ambient noise levels in these environments, where background machinery noise often runs between 70 and 82 dB.

Food and beverage and pharmaceutical facilities use the XVBC9B for process state signaling — end-of-batch indication, material jam alerts, and clean-in-place cycle notifications — where the IP65 rating holds up under regular washdown exposure and the CSA certification satisfies Canadian facility inspection requirements. The ABS construction and NEMA 4X corrosion resistance classification make it viable in moderate humidity and chemical spray environments common to these sectors.

OEM machinery builders specify the XVBC9B as a standard off-the-shelf component precisely because UL 508 certification eliminates the need for custom audible signaling solutions that would require additional qualification cycles. A single sourced part number, documented certifications, and a known distributor supply chain reduces BOM complexity and procurement risk on multi-unit machinery programs.

The XVBC9B also appears in backup redundancy roles — running in parallel with a visual XVB tower light stack in environments where lighting conditions are variable or operators work with their backs to visual indicators. The buzzer ensures alarm acknowledgment even when visual signals are obscured.

Application Typical Deployment
Machine fault alarm Mounted on XVB tower light column at CNC, press, or assembly cell; triggered by PLC safety relay output on interlock trip
Process state indicator Wall-mount station at batch processing unit; continuous tone signals end-of-cycle or part-ready condition from relay output
Safety call-to-operator Intermittent pulse mode activated from PLC output when maintenance response is needed; tower light base at machine perimeter
Low-level inventory alert Hopper or bin level switch triggers buzzer when raw material reaches minimum threshold; standalone wall mount
Backup audible redundancy Stacked with visual XVB light modules on same tower base; provides audible alarm in poor-visibility or high-ambient-noise zones

XVBC9B Specifications Every Buyer Needs to Verify

Parameter Specification Purchase Decision Note
Operating Voltage Range 12 to 48 VAC/DC Covers 12V, 24V, and 48V control circuits — confirm panel voltage before ordering
Current Draw 15 to 25 mA Varies by signal mode; verify PLC output or relay contact can supply this current
Sound Output 70 to 90 dB at 1 meter 90 dB nominal at full supply voltage; 70 dB floor only below 15V supply
Signaling Frequency 2.8 kHz Standard audible alarm frequency — audible range confirmed for industrial environments
Signal Modes Continuous or Intermittent Mode determined by external control signal wiring — confirm PLC output logic before installation
Mounting Diameter 70 mm Direct fit with XVB series tower light bases — verify fit if using non-Schneider mounts
Ingress Protection IP65 fixed mount / IP66 with sealed base XVBZ0 IP65 adequate for most industrial washdown; specify XVBZ0 for high-pressure environments
Operating Temperature -25 to +50°C (-13 to 122°F) No thermal derating within this range — suitable for unheated or outdoor-adjacent locations
Impulse Withstand Voltage 4 kV per IEC 60947-1 Surge protection level confirmed — no additional surge suppressor required for typical PLC circuits
Certifications UL 508, CSA, EN/IEC 60947-1, NEMA 4X Dual UL/CSA certification covers North American panel and machinery installations without supplemental testing

Full technical specifications are available on the product page at LeadTime.ca.

XVBC9B vs. Alternatives: Which Audible Signaling Unit Do You Actually Need?

Feature Schneider Electric XVBC9B Typical Horn-Type Buzzer Full XVB Tower Light External Speaker System
Operating Voltage 12 to 48 VAC/DC 12 to 48 VAC/DC 12 to 48 VAC/DC 24 VDC typically
Sound Output 90 dB at 1m 80 to 100 dB (higher option available) 90 dB (buzzer module) 85 to 100+ dB
Mounting Type Tower light compatible (70mm) Panel or post-mount Modular base stack Wall or ceiling bracket
IP Rating IP65 standard / IP66 optional IP54 to IP65 IP65 to IP66 IP54 to IP65
Compliance UL 508, CSA, EN/IEC UL 508, CSA (varies by model) UL 508, CSA, EN/IEC UL 508, CSA (varies)
Upgrade Path Buzzer element only — no visual output Limited modularity Highly modular — add light, beacon, buzzer modules System-dependent expansion
Relative Cost Baseline Similar to XVBC9B 2 to 4x XVBC9B (includes light modules) 3 to 6x XVBC9B

If your application requires more than 90 dB of output, or combined visual and audible indication on a single column, the full XVB tower light assembly or a horn-type sounder is the right direction — review the current XVBC9B product page at LeadTime.ca and contact the team to discuss the right configuration for your system.

Expert Verdict: Is the XVBC9B the Right Buzzer for Your Project?

The Schneider Electric XVBC9B is the correct call for any engineer or machine builder already working within the Harmony XVB ecosystem who needs a drop-in certified audible alarm unit. The 70mm modular form factor, screw clamp termination, and 12 to 48 VAC/DC voltage range make it a direct fit into existing tower light infrastructure without any additional mounting hardware or wiring redesign. The active UL 508 and CSA dual certification is the key value for North American panel builders — this part goes on the panel, gets documented, and passes inspection without supplemental field engineering evaluation. The 90 dB output at 2.8 kHz is adequate for discrete manufacturing environments where ambient noise typically falls in the 70 to 85 dB range, covering the majority of assembly, fabrication, food processing, and pharmaceutical applications. The IP65 fixed-mount rating handles standard industrial washdown exposure, and the upgrade path to IP66 via sealed base unit XVBZ0 is available without replacing the buzzer itself.

Where the XVBC9B runs out of runway: applications where ambient noise routinely exceeds 85 dB — hydraulic press rooms, compressor bays, heavy forging environments — will find 90 dB output insufficient. In those installations, a horn-type sounder rated above 100 dB is the correct specification. The XVBC9B is also strictly a hardwired, passive discrete device. It has no network interface, no IO-Link capability, and no internal logic — facilities implementing IoT-based alarm aggregation or cloud-connected maintenance systems will need an intermediate gateway or a fundamentally different alarm output device. And if the installation requires simultaneous visual and audible indication in a compact stacked unit, the complete XVB tower light assembly — which can include the XVBC9B buzzer module alongside visual LED modules in the same 70mm column — is the more appropriate system-level choice. The buzzer-only option makes the most sense when a visual tower light is already installed and audible redundancy is being added.

From a procurement standpoint, the XVBC9B is a stock industrial component with typical lead times of two to five business days through established distribution channels. Ordering through a specialist industrial automation distributor rather than a general electronics retailer matters here for one practical reason: pre-sale verification of control voltage and signal compatibility. The single most common ordering problem with passive buzzer units is a mismatch between available control circuit voltage and the 12 to 48 VAC/DC requirement — and that is a question a knowledgeable distributor resolves before the order ships, not after it arrives on site. View current pricing and availability for the XVBC9B at LeadTime.ca — we ship worldwide and can confirm compatibility before you commit to the order.

For volume pricing on multi-unit projects or to confirm lead time before a build schedule is locked, contact the LeadTime.ca team directly — we ship worldwide and can support procurement across North America and internationally.

What Engineers Need to Know Before Ordering the XVBC9B

The XVBC9B generates minimal discussion in public automation forums — not because of any adoption problem, but because it is exactly the kind of reliable, specification-confirmed component that experienced engineers order, install, and forget about. When it does come up in technical conversations, the issues are almost always pre-order specification gaps rather than post-installation failures. The recurring theme across distributor technical support interactions for this type of component is mismatched control voltage — a facility runs 120 VAC machinery control but uses 24 VDC logic for PLC outputs, and the procurement team orders based on machinery voltage rather than PLC output voltage. The XVBC9B operates on 12 to 48 VAC/DC; a 120 VAC control signal will not work and can damage the unit.

The second recurring issue is environmental rating assumption. IP65 is the standard fixed-mount rating and covers most industrial environments, but high-pressure washdown operations — food processing lines with frequent high-pressure sanitization cycles, for example — require the IP66 upgrade via sealed base unit XVBZ0. Ordering the buzzer unit alone for a washdown application and discovering the IP rating gap after installation is an avoidable delay. The sealed base is a separate order item and should be specified at the same time as the XVBC9B when the installation point is exposed to high-pressure water jets.

A third issue that does not generate community forum threads but does generate distributor callbacks: wire gauge and terminal torque. The screw clamp terminals on the XVBC9B are designed for wire up to 2.5 mm² (approximately 14 AWG). Installers occasionally use heavier gauge wire from available stock — 10 AWG or thicker — which creates poor terminal contact, vibration loosening, and intermittent faults within weeks of installation. If your standard panel wiring gauge is heavier than 2.5 mm², use a ferrule or terminal adapter rather than forcing a larger conductor into the screw clamp. These three issues — control voltage, IP rating, and wire gauge — account for the practical majority of specification and installation problems this product type generates in the field. The LeadTime.ca team can confirm all three before your order ships.

Wiring and Installation Overview

Installation of the XVBC9B is straightforward for a qualified electrician or controls technician. The following overview covers the key requirements — for full wiring diagrams and step-by-step procedures, refer to Schneider Electric's official product documentation available through se.com.

  • Confirm supply voltage at the intended connection point falls within 12 to 48 VAC/DC before energizing — use a multimeter to measure at the terminal location, not just at the panel bus
  • Prepare wire ends to approximately 8 to 10 mm of stripped insulation; insert into screw clamp terminals and tighten — recommended torque is approximately 0.5 to 0.7 N·m using a hand screwdriver, not a powered tool
  • Wire gauge must not exceed 2.5 mm² (14 AWG equivalent) — heavier conductors cause terminal contact gaps; use ferrules if your standard wiring gauge is larger
  • Verify control signal source before powering: the unit sounds only when 12 to 48V is actively applied to the control terminals — test by manually triggering the relay or PLC output to confirm continuous or intermittent tone activates as intended
  • For IP66 installation in high-pressure washdown locations, mount sealed base unit XVBZ0 first and connect the XVBC9B to the sealed base assembly — do not install the buzzer alone in high-pressure spray environments relying only on IP65 protection

Wrong-Part Prevention: Verify Before You Order

Before placing your order for the Schneider Electric XVBC9B, work through this checklist verbatim — these are the exact verification points that prevent mis-specification and post-delivery returns:

  1. Confirm available control power voltage on site matches 12-48VAC/DC (check electrical schematic or panel nameplate)
  2. Verify operating ambient noise level — 90 dB output may be insufficient in very loud environments (hydraulic presses, compressor rooms)
  3. Check mounting location for 70mm diameter fit and confirm IP65 protection is adequate (outdoor/wet areas may require IP66 alternative or sealed enclosure)
  4. Confirm signal source can supply intermittent or continuous control signal (PLC output, relay, discrete switch)
  5. Verify no conflict with existing audible alarms or interlocks that may cause nuisance activation
  6. Check country/region compliance requirements (verify UL/CSA certification is valid in your jurisdiction)

If any item on this checklist raises a question before you order, contact the LeadTime.ca team — we can verify compatibility against your control schematic or application details before the order is placed, ships worldwide.

Frequently Asked Questions

Will the XVBC9B work directly with a 24 VDC PLC discrete output — no interposing relay needed?

Yes. 24 VDC falls squarely within the 12 to 48 VAC/DC operating range of the XVBC9B, and the current draw of 15 to 25 mA is well within the output current capacity of standard PLC discrete output modules. No interposing relay is required for most PLC platforms. Verify your specific PLC output module's rated output current before direct connection to confirm it can sustain the load.

What happens if the XVBC9B is installed in a high-pressure washdown environment without the sealed base upgrade?

The fixed-mount IP65 rating protects against low-pressure water jets but is not rated for high-pressure washdown. In high-pressure spray environments, water can be forced past screw terminals and into the housing, causing corrosion and intermittent signal faults — typically within six months of regular high-pressure exposure. The correct configuration for high-pressure washdown is to add the sealed base unit XVBZ0, which upgrades the assembly to IP66 without replacing the XVBC9B buzzer element itself.

Can I achieve both continuous and intermittent pulse modes from the same XVBC9B unit?

Yes, but the mode is controlled entirely by the external control signal — the XVBC9B itself does not have an internal mode switch. Continuous voltage applied to the control input produces a continuous tone; an intermittent voltage signal (such as a PLC output with a timer block generating on/off cycles) produces an intermittent pulse. If you need both modes on the same installation, the logic must be implemented upstream in the PLC or relay timer circuit.

The buzzer is not producing sound — where do I start diagnosing?

Start at the terminal block with a multimeter. If voltage in the 12 to 48 VAC/DC range is present at the terminals and no sound is produced when the control signal is active, the internal buzzer element has likely failed and the unit requires replacement. If voltage is absent, the fault is upstream in the control circuit — check the relay contact continuity or PLC output status before condemning the buzzer unit. The XVBC9B is a passive device; if correct voltage is supplied, it will produce sound.

Is the XVBC9B a direct mechanical replacement for an existing buzzer on a non-Schneider tower light column?

Only if the non-Schneider tower light column uses a 70mm diameter mounting base. The XVBC9B is designed and dimensioned for the Schneider XVB series 70mm modular base, and will not mechanically fit tower light systems from other manufacturers that use different base diameters or proprietary mounting interfaces. Confirm the existing tower light base diameter and mounting method before ordering as a cross-brand replacement.

Why Order the XVBC9B Through LeadTime.ca

  • Global shipping capability — the XVBC9B ships worldwide from LeadTime.ca, not restricted to any single country or region
  • Pre-sale technical verification — the team can confirm control voltage compatibility and IP rating requirements against your application before the order ships
  • Specialist industrial automation focus — access to Schneider Electric product lines including XVB series accessories such as sealed base unit XVBZ0 for IP66 upgrades
  • Volume and project pricing available — contact for multi-unit orders tied to machinery builds or facility-wide standardization programs
  • Responsive lead time support — typical stock lead times for industrial signaling components are two to five business days; the team can provide current availability status before you commit

XVBC9B At-a-Glance Summary

  • Operating voltage: 12 to 48 VAC/DC — covers standard 12V, 24V, and 48V industrial control circuits
  • Sound output: 70 to 90 dB at one meter; 90 dB nominal at full supply voltage; 2.8 kHz signaling frequency
  • Current draw: 15 to 25 mA depending on signal mode (continuous versus intermittent)
  • Form factor: 70mm diameter, 70mm (W) x 70mm (D) x 63mm (H), ABS plastic body
  • Ingress protection: IP65 in fixed-mount configuration; IP66 available with sealed base unit XVBZ0
  • Degree of protection: NEMA 4X — corrosion-resistant classification for food, beverage, and outdoor-adjacent environments
  • Operating temperature range: -25 to +50°C (-13 to 122°F); storage to -40 to +70°C
  • Certifications: UL 508, CSA, EN/IEC 60947-1, NEMA 4X — dual North American certification eliminates supplemental panel approval testing
  • Impulse withstand voltage: 4 kV per IEC 60947-1; rated insulation voltage 250 VAC
  • Terminal type: screw clamp, maximum 2.5 mm² wire — do not exceed this gauge at the terminal
  • Product family: Schneider Electric Harmony XVB modular tower light series — direct mechanical and electrical compatibility with XVB bases
