Schneider XS618B1PAL2 — M18 Inductive Sensor Specs & Selection

By Abdullah Zahid
14 min read

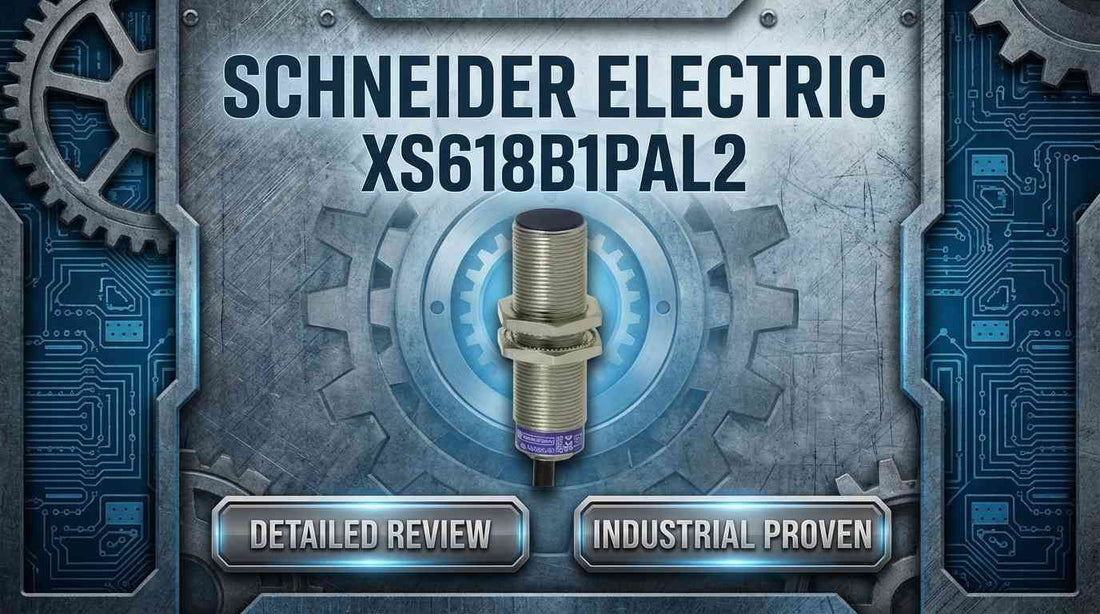

Schneider Electric XS618B1PAL2 OsiSense XS M18 inductive proximity sensor with 2m cable for factory automation washdown applications

Schneider XS618B1PAL2 OsiSense XS M18 Inductive Proximity Sensor, 8mm Range, PNP Output, 2m Cable — Specs and Selection Guide

Controls engineers specifying a replacement or new-build M18 inductive proximity sensor for a harsh washdown or general factory automation environment need to confirm three things fast: sensing range, output logic, and IP protection level. The Schneider XS618B1PAL2 answers all three — 8mm nominal detection range, PNP 1 NO discrete output, IP68 and IP69K dual certification — in a nickel-plated brass M18 cylindrical housing with a 2m shielded cable and 12–48 VDC supply compatibility. If you already know this is your part, check pricing and lead time before your project timeline closes.

If you have already confirmed this is the right part, check current pricing and availability at LeadTime.ca — ships worldwide.

Who Should Buy the XS618B1PAL2 — and Who Shouldn't

The Schneider XS618B1PAL2 is the right choice for engineers and technicians who need a compact, hardened metal-detection sensor and have already defined their system requirements. This part is a strong fit when:

  • Your mounting interface accepts an M18 cylindrical flush-mount sensor with 62mm overall length
  • Your target is a ferrous or non-ferrous metal object positioned within 8mm of the sensor face
  • Your control system supplies 12–48 VDC and accepts PNP discrete input signals
  • Your environment demands IP68 double-insulation or IP69K high-pressure washdown protection
  • A 2m pre-terminated shielded cable reaches your control panel, or you plan to add an extension
  • UL and CSA certification is required for North American equipment compliance

If your application requires detection of non-metallic targets, a supply voltage outside 12–48 VDC, NPN output logic without an adapter, or a sensing range beyond 8mm, this model is not the correct fit. The OsiSense XS family includes extended-range M18 variants for longer detection distances and AC-compatible variants for facilities without DC control power — confirm your requirements against those alternatives before ordering.

On this page:

What the XS618B1PAL2 Does in an Automation System

The Schneider XS618B1PAL2 is a non-contact metal detection device that generates a discrete PNP signal — a 1 Normally Open output — when a metallic object enters its sensing field. It does not measure distance, output an analog value, or detect non-conductive materials. Its job is binary: metal present or metal absent. That signal feeds a PLC digital input module, which triggers the next step in the control logic — actuating a gripper, releasing a conveyor latch, confirming a guard is closed, or incrementing a part counter.

The sensor draws power from a 12–48 VDC supply and switches up to 200 mA DC through its output stage. The 3-wire shielded cable — 2m standard length — carries power, ground, and signal in a single run to the control panel. Reverse polarity protection on the supply input means an inadvertently swapped power connection during installation will not destroy the sensor; this is a documented standard feature confirmed across multiple authorized distributor datasheets including Newark, Element14, and Farnell.

Within the OsiSense XS family, the XS618B1PAL2 sits in the general-purpose M18 cylindrical segment — designed for industrial environments where mechanical durability and environmental sealing matter as much as detection performance. The nickel-plated brass housing and dual IP68/IP69K rating reflect that positioning directly.

Typical System Architecture for M18 Inductive Sensors

The XS618B1PAL2 sits at the field device layer — the last node before the physical process — feeding a discrete digital signal upstream to the controller. Here is where it fits in a typical automation control chain:

  • PLC or safety controller — processes discrete input signals and executes control logic
  • Digital input module — receives the PNP signal from the sensor on a dedicated input channel, typically drawing 15–100 mA per channel
  • 24 VDC field power supply — distributes 12–48 VDC to sensor supply wires via terminal blocks or marshalling cabinets
  • 2m shielded cable run — routes from control panel to field mounting location; extensions or conduit required for longer distances
  • XS618B1PAL2 sensor — flush-mounted in M18 x 1.5 threaded hole, face aligned to metallic target at nominally 8mm travel distance

Typical Applications and Deployment Scenarios

On automotive assembly lines, the XS618B1PAL2 is frequently used to verify metal part orientation before a robotic gripper or welding cycle activates. The 8mm sensing range and M18 form factor fit the close-tolerance brackets common on transfer lines and rotary indexing tables, where the sensor must fire reliably every cycle without mechanical contact wear.

In food and beverage processing, the IP69K certification is the deciding factor. High-pressure washdown between product runs — using hot water and caustic cleaning agents — eliminates lower-rated sensors within months. The XS618B1PAL2's DIN 40050-compliant IP69K rating and nickel-plated brass housing are verified by manufacturer documentation to survive these conditions, making it a defensible specification in hygienic machine design.

Conveyor system integrators deploy this sensor for package presence detection and part counting where the product carrier or pallet includes a metallic feature — a steel frame, cam, or flag. The PNP discrete output connects directly to standard PLC input cards without signal conditioning, keeping wiring simple and commissioning fast.

Mobile equipment designers use the compact M18 form factor for hydraulic cylinder position sensing — detecting rod extension or retraction by sensing a machined collar or end cap at 8mm clearance. The -25 to +70°C operating temperature range covers most mobile hydraulic operating environments, and the reverse polarity protection on the supply input tolerates the variable polarity conditions common in vehicle electrical systems during maintenance.

In pharmaceutical and chemical processing plants, the XS618B1PAL2 serves as a limit switch replacement for detecting equipment position and guard closure, where UL and CSA certification is required for equipment approval and the IP rating ensures ingress protection against cleaning fluids and process splatter.

Application Typical Deployment
Automotive assembly line Metal part orientation and presence verification before robot cycle actuation
Food and beverage conveyor Pallet or carrier detection with IP69K protection for daily washdown cycles
Packaging machinery Product flow counting and downstream trigger for labeling or case-sealing stations
Mobile hydraulic equipment Cylinder rod position sensing mounted to frame brackets, -25°C to +70°C range
Pharmaceutical processing Guard closure confirmation and limit switch replacement, UL/CSA certified installation
Material handling system Metal fixture or pallet detection at transfer stations feeding PLC discrete input logic

Purchase-Decision Specifications and Variant Comparison

Specification Value
Product Family OsiSense XS
Form Factor M18 cylindrical, flush mountable, 62mm overall length
Detection Range (Nominal Sn) 8mm — ferrous and non-ferrous metals; not valid for plastic, ceramic, or non-conductive targets
Supply Voltage 12–48 VDC; reverse polarity protected
Output Configuration PNP, 1 Normally Open (NO); 3-wire discrete connection
Switching Capacity 200 mA DC maximum output; overload and short-circuit protected
Cable Shielded, 2m standard length
Operating Temperature -25°C to +70°C
IP Rating IP68 (IEC 60529) and IP69K (DIN 40050)
Compliance UL and CSA listed; M18 x 1.5 ISO metric thread; brass nickel-plated housing

Full technical specifications are available on the product page at LeadTime.ca.

Model Form Factor Detection Range Output Type Key Difference Application Fit
XS618B1PAL2 M18, 62mm 8mm PNP, 1 NO Standard general-purpose configuration Baseline compact applications, washdown environments
NPN M18 variant (XS6 family) M18, 62mm 8mm NPN, 1 NO Output logic reversed for NPN-compatible modules Legacy PLCs or input cards requiring NPN logic
XS6 Miniature M12 or smaller 4–6mm PNP Shorter length, smaller footprint Ultra-tight mounting spaces where M18 length conflicts
XS6 Extended Range M18 12–15mm PNP Greater clearance to target surface Applications requiring detection beyond 8mm
OsiSense XS AC Variant M18, 62mm 8mm AC-compatible Alternate supply voltage for AC-only control panels Facilities without available DC control power rail

If your target sits beyond 8mm or your panel lacks a DC supply rail, the extended-range or AC variants are the correct choice — check current availability and variant options at LeadTime.ca.

Expert Verdict: Is the XS618B1PAL2 Right for Your Application?

The Schneider XS618B1PAL2 is the right sensor for controls engineers and automation technicians building or maintaining equipment in demanding physical environments where durability is non-negotiable. The dual IP68/IP69K certification — verified across five authorized distributor sources — makes this sensor a defensible specification for food processing lines, pharmaceutical equipment, and automotive assembly cells that run daily washdown cycles. The 200 mA switching capacity with built-in overload and short-circuit protection, combined with reverse polarity protection on the 12–48 VDC supply, means installation errors that would damage an unprotected sensor are absorbed without field failure. For OEMs and integrators specifying sensors across production batches, UL and CSA listing removes a compliance obstacle that lower-cost alternatives cannot always clear.

This sensor has real limits that matter before you order. The 8mm nominal detection range is a typical switching distance — not a guaranteed ±0.5mm accuracy figure. Temperature variation across the -25°C to +70°C operating range and target material conductivity differences introduce real drift, typically in the ±10% range, that can cause inconsistent trigger points in tight-tolerance positioning applications. If your application demands sub-millimeter repeatability, an analog distance-measuring sensor is the correct specification, not this part. Equally, if your target is plastic, ceramic, or any non-conductive material, the XS618B1PAL2 will never trigger — inductive sensing requires metal. And if your PLC input cards accept only NPN logic, the standard XS618B1PAL2 PNP output will cause a logic inversion problem that an interface adapter or an NPN variant from the same OsiSense XS family must resolve before commissioning.

On the procurement side, lead times of 2–6 weeks are the market-typical range based on authorized distributor data — RSP Supply shows 6 weeks, while Element14 indicates variable stock. That window is tight enough to matter on projects with compressed commissioning schedules, which is exactly the scenario where ordering through a specialist distributor pays off. A specialist can confirm actual stock status, provide technical pre-order compatibility validation against your specific PLC input module, and support rapid returns if a field fault requires investigation — none of which a general-purpose electronics retailer can reliably offer. View current availability and pricing for the XS618B1PAL2 at LeadTime.ca.

For volume pricing or to confirm lead time before committing to a build, contact the LeadTime.ca team directly — we ship worldwide.

What Engineers Need to Know Before Ordering the XS618B1PAL2

Because this model does not generate significant public forum discussion — searches across Reddit automation communities, PLCTalk, PLCS.net, MrPLC, and several distributor Q&A platforms returned no indexed threads specific to the XS618B1PAL2 — the most useful pre-order intelligence comes from the technical constraints built into the product itself and the documented ordering mistakes that specialist distributors encounter at the quoting stage. The issues below are not edge cases; they are the exact scenarios that cause return requests, project delays, and emergency re-orders.

The single most reported category of ordering error for sensors in this class is output type mismatch. PNP and NPN are not interchangeable without an adapter or a different sensor variant. The XS618B1PAL2 is a PNP device — its output sources current to the load when a target is detected. If your PLC digital input module sinks current (NPN-compatible only), the logic state will be inverted or the input will never register. This is not a wiring fix; it requires either an NPN variant or a signal converter. Verify your input module's I/O specification document before placing the order, not after the sensor arrives on site.

The second category is target material assumption. Inductive proximity sensors detect metal by generating an electromagnetic field — the sensor responds to the eddy current losses induced in a conductive target. Plastic bottles, rubber gaskets, cardboard cartons, and ceramic components produce no eddy currents and are completely invisible to the XS618B1PAL2. If the automation task involves detecting a non-metallic object — even one that happens to pass near the sensor — this is the wrong technology. Capacitive sensors detect non-conductive materials; photoelectric sensors detect opaque objects regardless of material. Specifying the right sensing technology at the design stage is the only prevention. The third area where experienced engineers pause is cable length planning: the 2m standard cable is sufficient for many panel-to-field runs, but longer distances require ordering extension cables or shielded field wiring separately — a detail that is easy to overlook when the sensor itself is the focus of the specification review. Confirm the physical routing distance from sensor mounting point to terminal block before finalizing the order.

Wiring and Installation Overview

The XS618B1PAL2 uses a 3-wire shielded cable configuration. The key points engineers need to verify before and during installation are:

  • Confirm supply voltage at the panel terminal block is within 12–48 VDC before connecting the sensor; use a multimeter to verify polarity at the distribution point — reverse polarity protection is a safety net, not a substitute for correct wiring
  • Route the 2m shielded cable in a cable tray or conduit, separated from high-voltage power lines, with sufficient slack at the sensor connector for future maintenance access
  • The three wires carry positive supply (Brown), ground (Blue), and PNP signal output (Black) — connect the signal wire to the corresponding PLC digital input channel and confirm the input module expects a PNP sourcing signal before powering up
  • Mount the sensor in an M18 x 1.5 threaded hole with at least 62mm depth; flush-mount the sensor face flush with the panel surface and secure with the M18 lock nut — do not overtighten, as over-torquing risks cracking the sensor housing
  • After power-up, test with a known metallic target placed at approximately 8mm from the sensor face and verify the PLC input channel changes state; test at contact distance and beyond 8mm to confirm hysteresis behavior before full system commissioning

For complete wiring diagrams, pinout tables, and torque specifications, refer to the official Schneider Electric OsiSense XS installation manual available through your distributor or the Schneider Electric technical documentation portal.

Wrong-Part Prevention Checklist

Before submitting a purchase order for the XS618B1PAL2, verify every item on this checklist. These are the exact failure points that generate returns and commissioning delays:

  1. Verify supply voltage: Do not order if system uses only 24VAC or 110-230VAC (XS618B1PAL2 is 12-48VDC only; confirm rails before ordering)
  2. Confirm target material: Only detects metal objects; non-metallic targets require different sensor type
  3. Check output type: Verify PNP logic matches controller input (not NPN)
  4. Measure mounting depth: Confirm M18 flush-mount hole accepts 62mm sensor length (not flush-mount pocket shortening space)
  5. Test cable length: 2m cable must reach control panel; if longer run required, order extension or shielded cable separately
  6. Validate IP rating requirement: IP69K is suitable for washdown; standard IP68 sufficient for dry industrial use
  7. Distance tolerance: Confirm 8mm nominal range tolerates target position variation (typically ±10% drift over temperature)

If any item on this checklist cannot be confirmed before ordering, contact the LeadTime.ca team for pre-order technical validation — we can cross-reference your PLC input module specifications and confirm compatibility before the order ships.

Frequently Asked Questions

Does the XS618B1PAL2 work with both ferrous and non-ferrous metal targets, or only steel?

The XS618B1PAL2 detects both ferrous and non-ferrous metals as confirmed by the manufacturer datasheet. However, the 8mm nominal detection range is specified for a standard brass target — non-ferrous metals with lower electrical conductivity may reduce effective detection range. Test with your actual target material during prototype validation, and factor in the typical ±10% range variation over the -25°C to +70°C operating temperature envelope before finalizing mounting geometry.

Can I use the XS618B1PAL2 with a PLC that has NPN-only digital input modules?

Not without an interface adapter. The XS618B1PAL2 is a PNP output device — it sources current to the load when a metal target is detected. NPN input modules sink current in the opposite logic direction. Connecting a PNP sensor directly to an NPN-only input will produce inverted logic states or no valid signal. If your controller requires NPN logic, specify an NPN variant from the OsiSense XS family or use a PNP-to-NPN signal converter.

What is the actual sensing accuracy of the XS618B1PAL2, and can it be used for precision positioning?

The 8mm value is the nominal switching distance (Sn) — the typical distance at which the output changes state under standard conditions. It is not a positioning accuracy specification. Temperature changes across the -25°C to +70°C operating range, target material conductivity variation, and sensor hysteresis introduce drift typically in the ±10% range. For applications requiring sub-millimeter positioning repeatability, an analog distance-measuring sensor such as an ultrasonic or linear inductive displacement sensor is the correct technology. The XS618B1PAL2 is a presence/absence detection device, not a precision measurement instrument.

What does the reverse polarity protection actually protect against in the field?

Reverse polarity protection prevents sensor damage when the Brown (positive) and Blue (negative) supply wires are connected to the wrong terminals during installation — a documented common error when working quickly in a busy panel. Without this protection, an incorrect connection would immediately damage the sensor's internal circuitry. The XS618B1PAL2 includes this as a standard feature confirmed in manufacturer documentation, which reduces warranty returns and field service calls. It is a safety net for wiring errors, not a substitute for correct installation practice.

Is the 2m cable length extendable, and what type of cable is required for longer runs?

The 2m shielded cable is the standard factory-fitted length. For longer runs, use shielded extension cable matched to the sensor's 3-wire configuration — unshielded cable in electrically noisy industrial environments risks false triggering from electromagnetic interference. Route extension cables in a dedicated cable tray separated from power wiring. Confirm total cable run capacitance against the sensor's switching frequency requirement if the application involves high-speed counting or rapid target cycling.

What are the typical lead times for the XS618B1PAL2, and should I stock spares?

Based on authorized distributor data, North American lead times run 2–6 weeks depending on distributor and order quantity — RSP Supply shows 6 weeks lead time, while Element14 indicates variable stock status by region. For equipment with no spare sensor on-site, a 6-week replacement lead time during production downtime is a significant risk. For critical production lines or washdown environments where sensor lifespan may be shorter, holding one or two spare units is a practical recommendation. Contact LeadTime.ca for current stock status and volume pricing before your project's procurement cutoff.

Why Order the XS618B1PAL2 From LeadTime.ca

  • Global shipping — LeadTime.ca ships worldwide; no geographic restriction on orders
  • Stock visibility — current availability and lead time confirmed before order commitment, not after
  • Pre-order technical support — compatibility verification against your specific PLC input module and system voltage before the order is placed
  • Volume pricing — bulk and blanket order pricing available for OEMs, integrators, and maintenance stocking programs
  • Specialist sourcing — hard-to-locate industrial automation parts sourced through verified supply channels, not grey-market listings

XS618B1PAL2 At-a-Glance Summary

  • OsiSense XS family M18 cylindrical inductive proximity sensor — 62mm overall length, M18 x 1.5 thread, flush-mountable
  • 8mm nominal detection range (Sn) for ferrous and non-ferrous metal targets; ±10% drift typical over operating temperature range
  • 12–48 VDC supply with reverse polarity, overload, and short-circuit protection standard
  • PNP 1 Normally Open discrete output, 200 mA DC maximum switching capacity, 3-wire shielded 2m cable
  • IP68 (IEC 60529) and IP69K (DIN 40050) dual certification — confirmed for high-pressure washdown environments
  • Nickel-plated brass housing; -25°C to +70°C operating temperature range
  • UL and CSA listed for North American equipment compliance
  • Typical North American lead time 2–6 weeks; verify current stock before project commitment
  • Not suitable for: non-metallic targets, AC-only power supplies, NPN-only input modules without adapters, or applications requiring sub-millimeter positioning accuracy
