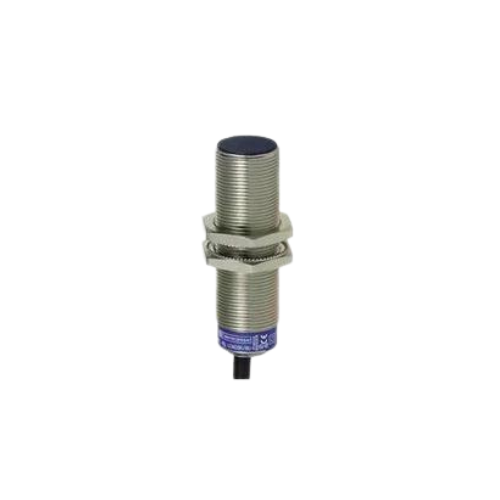

Overview of Schneider XS618B1PAL2 Inductive Proximity Sensor

The Schneider XS618B1PAL2 is a general-purpose inductive proximity sensor from the OsiSense XS6 series. It features a robust nickel-plated brass cylindrical body with a flush mount design and an 8 mm nominal sensing distance. Operating on a 12 to 48 V DC supply, this 3-wire PNP output sensor offers reliable metal object detection in harsh industrial environments, protected by IP68 and IP69K ingress ratings.

Key Features of Schneider XS618B1PAL2

  • Flush mountable M18 cylindrical sensor with an 8 mm sensing distance for precise detection.
  • Nickel-plated brass housing for durability and corrosion resistance in industrial applications.
  • 3-wire PNP discrete output with overload and short-circuit protection.
  • Wide rated supply voltage of 12 to 48 V DC with reverse polarity protection.
  • Ingress protection IP68 and IP69K compliant for dust-tight and waterproof operation.
  • LED indicator (yellow) for output state monitoring.
  • Operating temperature range from -25 to 70 °C.
  • Certified to international standards including UL, CSA, and CE.

Technical Specs of Schneider XS618B1PAL2

Parameter Value
Type Inductive proximity sensor
Series OsiSense XS6
Body Material Nickel-plated brass
Sensing Distance 8 mm
Output Type PNP, 3-wire discrete
Supply Voltage 12 to 48 V DC
Cable Length 2 m
Ingress Protection IP68, IP69K
Operating Temperature -25 to 70 °C
Length 62 mm
Diameter M18

Applications / Use Case

Ideal for metal detection, position sensing, and automation control in industrial manufacturing, material handling, and packaging industries.

Schneider Electric ensures this sensor meets demanding industrial standards for performance and durability.
