Schneider XS618B1PAM12 — M18 Inductive Sensor Buying Guide

By Abdullah Zahid
14 min read

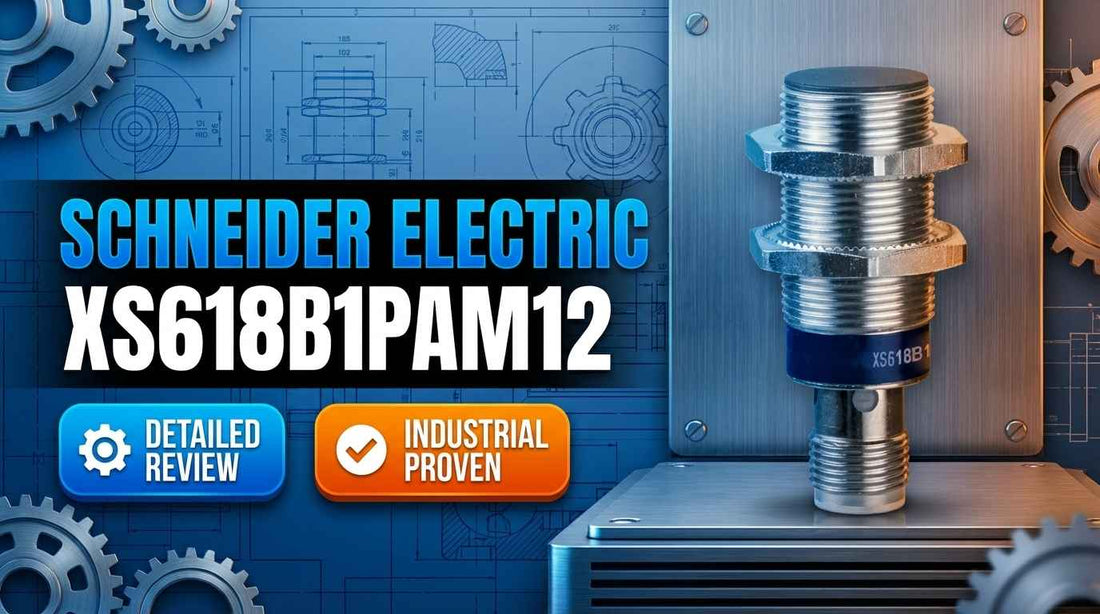

Schneider XS618B1PAM12 OsiSense XS M18 inductive proximity sensor with M12 connector for industrial automation applications

Schneider XS618B1PAM12 OsiSense XS General Purpose Inductive Proximity Sensor: 8mm M18 Specs, Wiring and Industrial Alternatives

When a controls engineer or maintenance technician searches for the XS618B1PAM12, the decision is almost always already narrowed: they need a reliable M18 inductive proximity sensor with PNP discrete output, an 8mm detection range, and a housing tough enough to survive wash-down or cold-storage environments. The Schneider XS618B1PAM12 — part of the Telemecanique Sensors OsiSense XS family — answers that spec precisely, with IP69K multi-level protection, a 12–48VDC supply range, and a nickel-plated brass body built for industrial duty. Before committing to this SKU, one detail settles everything: confirm your PLC input module expects PNP logic. If it does, this article gives you everything needed to order with confidence.

If you have already confirmed this is the correct part, check current pricing and availability for the XS618B1PAM12 at LeadTime.ca — ships worldwide.

Who Should Buy the XS618B1PAM12 — and Who Shouldn't

This sensor is the right choice for engineers and procurement teams who can check all of the following boxes:

  • Detection range of 8mm nominal is adequate for the application — this is a fixed calibration, not adjustable
  • PLC input module is configured for PNP 3-wire DC logic (not NPN)
  • Control system supply voltage falls within 12–48VDC
  • Field harness uses M12 A-coded 4-pin connectors — or connector stock is available to match
  • Application environment benefits from IP69K protection (wash-down, food processing, outdoor) or requires operation between -25°C and +70°C
  • Target material is metallic — ferrous or non-ferrous; not plastic, glass, or ceramic

If your application requires a detection range greater than 8mm, NPN output logic, or analog 4–20mA output, this is not the correct model. The XS630B1PAL12 covers 10mm range in the same family, and the XS618B1PAM14 provides the same 8mm range with NPN output — both are the correct redirect if one of those constraints applies.

On this page:

What the XS618B1PAM12 Actually Does in Your Control System

The XS618B1PAM12 is a non-contact inductive sensor that detects the presence of metallic objects — ferrous and non-ferrous — within an 8mm nominal range and converts that detection event into a discrete PNP switching signal. There are no moving parts, no physical contact with the target, and no mechanical wear. The sensor generates a 1 N.O. (Normally Open) output that transitions when a metal target enters the detection zone, feeding a clean digital signal directly to a PLC input channel.

The nickel-plated brass housing provides both corrosion resistance and magnetic shielding for the internal sensing coil. Four LED status viewports on the cylindrical body allow field technicians to verify power presence, output switching activity, and fault states without connecting diagnostic tools — a practical advantage when troubleshooting a sensor mounted in an enclosure or tight machine frame. The PPS (polyphenylene sulfide) sensing face resists abrasion and chemical exposure, which matters in food processing and pharmaceutical environments where cleaning agents are aggressive.

The 1000Hz maximum switching frequency means the XS618B1PAM12 can handle high-speed counting applications — packaging machinery running up to 60 cycles per minute, rotary indexers, or index position feedback loops — without signal loss at the PLC input. This is a verified specification from the manufacturer's authorized distributor network, not an estimated figure.

Typical System Architecture for the XS618B1PAM12

The XS618B1PAM12 sits at the field device layer of a discrete I/O chain, between the physical process and the PLC input module. Here is how a typical deployment looks from controller to target:

  • PLC or PAC controller (e.g., any platform with a 12–48VDC PNP-compatible discrete input module) provides regulated supply voltage and receives the switching signal
  • PLC digital input module connects to the sensor's M12 4-pin cable via field wiring or a pre-assembled M12 cordset — Pin 1 Brown (+V), Pin 3 Green (GND), Pin 2 White (signal output)
  • XS618B1PAM12 mounted flush in an M18 threaded socket on the machine frame, conveyor rail, or bracket fixture — M18 outer thread with twin nut lockdown
  • Metal target (workpiece, actuator flag, indexing gate, or floating ball) approaches the sensor face perpendicular to the sensing axis
  • Sensor output switches at 8mm nominal range, PLC input transitions, and process logic executes — part present confirmed, position verified, count incremented

Where This Sensor Gets Deployed: Applications and Industries

The XS618B1PAM12 is most commonly specified in food and beverage processing lines, where IP69K protection against high-pressure wash-down cycles eliminates the need for additional environmental sealing hardware. Bottling lines, filling stations, and conveyor transfer points rely on this class of sensor to verify bottle or can presence before filling, capping, or labeling operations without risking sensor contamination.

Automotive and metal parts assembly operations use the 8mm flush-mount detection range for mechanical stop confirmation and component arrival sensing at fixed index positions. The non-contact design eliminates wear from repeated part contact that would degrade a mechanical limit switch over millions of cycles. Stamping and pressing lines use the sensor for blank detection — confirming a metal sheet is correctly positioned before the press closes.

Cold-storage and outdoor automation present no thermal constraint for this sensor. The -25°C to +70°C operating range covers walk-in freezer conveyor systems and outdoor material handling equipment through winter operating conditions without thermal derating. Pharmaceutical manufacturing benefits from the same IP69K and flush-mount combination that makes this sensor attractive in food environments — sterile cleaning protocols do not compromise sensor integrity.

Rotary indexers and turntable position feedback loops take advantage of the 1000Hz switching frequency. At that bandwidth, the sensor can reliably resolve index positions at process speeds that would outpace slower sensors with 100–200Hz response limits.

Application Typical Deployment
Parts presence on conveyor Flush-mounted on conveyor rail, detects metal workpiece arrival before next operation triggers
Mechanical stop / index gate confirmation Mounted on machine frame at fixed position; confirms component arrival at index point
Stamping / pressing line blank detection Non-contact face detects sheet metal blank position before press cycle initiates
Food and beverage wash-down line IP69K housing survives daily high-pressure wash-down without sealing upgrade
Cold-storage conveyor -25°C rated operation in freezer environments without thermal derating
Rotary indexer position feedback 1000Hz switching frequency supports high-speed index position counting without signal loss

XS618B1PAM12 Key Specifications and Variant Comparison

Specification Value
Housing Diameter / Thread M18 cylindrical, nickel-plated brass
Housing Length 74mm (long case)
Detection Range (Sn) 8mm nominal (flush-mount, fixed calibration)
Output Type PNP, 3-wire DC, 1 N.O. (Normally Open)
Supply Voltage 12–48VDC
Switching Capacity 200mA DC (with short-circuit and overload protection)
Switching Frequency 1000Hz maximum
Connector M12 A-coded, 4-pin male
IP Rating IP69K, IP68, IP67 (multi-level per DIN 40050 and IEC 60529)
Operating Temperature -25°C to +70°C

Full technical specifications are available on the product page at LeadTime.ca.

The OsiSense XS family includes several variants that address the most common reasons engineers move away from this specific model. The table below covers the decision-relevant differences:

Model Detection Range Output Key Difference Choose When
XS618B1PAM12 8mm PNP 1 N.O. General purpose, standard range PNP logic, 8mm gap, standard industrial environment
XS618B1PAM14 8mm NPN 1 N.O. Same range, inverted logic NPN input module required; same mechanical installation
XS616B1PAL12 4mm PNP 1 N.O. Shorter range, tighter tolerance Precision thin-target verification where 8mm is too far
XS630B1PAL12 10mm PNP 1 N.O. Extended range, shielded Application gap exceeds 8mm or larger target required

If your mounting geometry means the closest you can position the sensor face to the target is beyond 8mm, the XS630B1PAL12 is the correct next step — check current availability and confirm the right variant at LeadTime.ca.

Expert Verdict: Is the XS618B1PAM12 the Right Sensor for Your Project?

The XS618B1PAM12 earns its place as a default specification sensor for a clear reason: it solves the most common industrial presence-detection requirement — 8mm non-contact metal detection in a 12–48VDC PNP system — with a housing that does not require environmental concessions. For integrators designing food processing lines, maintenance teams replacing sensors on installed Telemecanique equipment, or OEM engineers specifying greenfield conveyor systems, this is the sensor that fits without rework. The IP69K multi-level rating eliminates enclosure cost in wash-down environments, and the -25°C to +70°C operating range means the same SKU covers cold-storage conveyors and automotive press lines without a separate thermal variant. The UL and CSA certifications confirm it meets North American electrical safety standards without additional compliance investigation. For a commodity component at this price point, that combination of environmental capability and certification is the defining value argument.

The honest limits are straightforward. If the application gap exceeds 8mm — even by a small margin — this sensor will not reliably switch, and the XS630B1PAL12 at 10mm range is the correct substitution. If the PLC input module is configured for NPN logic, the XS618B1PAM14 is a direct swap that avoids rewiring the enclosure. Analog output requirements, ATEX or hazardous-area certification, cryogenic temperatures below -25°C, or non-metallic target materials (plastic, glass, ceramic) all redirect to different sensor families entirely. None of these are edge cases — they are the four most common reasons an engineer receives the XS618B1PAM12 on the bench and immediately has to return it.

From a procurement standpoint, this is a well-supported part across the global industrial distributor network. Stock signals from major authorized distributors suggest typical availability with lead times in the range of a few business days for in-stock orders, though regional variation and order volume affect this. For urgent field replacements on production lines or volume builds where lead time certainty matters, working with a specialist distributor provides inventory buffer visibility and technical confirmation that generic e-commerce channels do not. View current pricing and stock status for the XS618B1PAM12 at LeadTime.ca — available to order worldwide.

For volume pricing, lead time confirmation on a larger build, or to verify the correct variant before committing to a production specification, contact the LeadTime.ca team directly — we ship worldwide and can confirm regional availability before you finalize your BOM.

What Engineers Need to Know Before Ordering the XS618B1PAM12

The XS618B1PAM12 generates very little public discussion in automation forums — and that absence is informative. Components that fail unpredictably, have tricky integration requirements, or generate specification confusion accumulate community threads quickly. The silence around this sensor reflects its status as a plug-and-play commodity: it integrates cleanly, operates reliably once correctly specified, and rarely generates the kind of field troubleshooting that drives engineers to post in public forums. Support for this sensor typically flows through distributor technical lines and integrator resources rather than public channels.

What does surface consistently in the broader inductive sensor category — and applies directly to anyone ordering this model — is specification confusion at the point of purchase. The PNP versus NPN output-type error is the single most preventable ordering mistake in the inductive sensor category. A sensor that arrives with the wrong output type cannot be field-corrected; it must be returned and replaced. The XS618B1PAM12 is PNP only. Verifying the PLC input module datasheet before placing the order costs minutes; returning a wrong-output sensor on a production timeline costs significantly more. Similarly, the 8mm detection range is fixed and not adjustable — engineers specifying this sensor for an application with a target gap measured at 9–10mm at the machine drawing stage need to move to the XS630B1PAL12, not attempt to compensate by adjusting mounting position.

When community data is sparse and the specification decisions carry real rework risk, the practical answer is direct consultation with a specialist distributor before the order is placed. LeadTime.ca provides technical confirmation on output type, connector compatibility, and variant selection for the OsiSense XS family — available at no cost to buyers who contact us before ordering. That pre-order check eliminates the most common and most expensive mistakes associated with this class of component.

Wiring and Installation Overview for the XS618B1PAM12

The following overview covers the key requirements for installing and connecting the XS618B1PAM12. Full step-by-step wiring and installation procedures are provided in the official Telemecanique Sensors documentation available through the manufacturer's product page.

  • M12 4-pin A-coded connector pinout: Pin 1 Brown = supply +V (12–48VDC); Pin 2 White = PNP signal output to PLC input; Pin 3 Green = GND; Pin 4 Yellow = reserved (not used)
  • Mount the M18 body flush in a threaded socket perpendicular to the target approach path — approach angle beyond approximately 15 degrees from perpendicular reduces switching reliability at the 8mm nominal range
  • Secure with twin nut lockdown on the M18 outer thread; apply medium-strength thread-locking compound to prevent vibration-induced loosening after mechanical position is confirmed electrically
  • Route M12 signal cable away from high-current conductors and VFD output cables — minimum separation of 300mm is a practical guideline to reduce false triggering from electromagnetic interference
  • After power-up, verify four LED viewports on the sensor body: solid power LED confirms supply voltage present within rated range; pulsing output LED confirms the sensor is switching in response to a metal target within 8mm of the sensing face

Wrong-Part Prevention Checklist for the XS618B1PAM12

Before submitting a purchase order for the XS618B1PAM12, verify each of the following items against your application requirements and PLC documentation:

  1. Confirm output type: This model is PNP only. Do NOT order if NPN discrete output or analog 4-20mA required.
  2. Verify detection range: 8mm nominal range is fixed. If sensing at 10mm or deeper is needed, select alternate model.
  3. Check mounting orientation: This is flush-mountable with M18 thread and twin nuts. Confirm installation method (bracket vs. direct mount) before purchase.
  4. Validate supply voltage: Unit requires 12-48VDC. Confirm control system supplies voltage within this range.
  5. Confirm target material: Inductive sensors detect ferrous metals; verify application involves metal (not plastic, glass, or ceramic) target materials.
  6. Check connector availability: M12 4-pin is standard; ensure field technicians or spare connector stock matches this interface.
  7. Test IP rating match: IP69K rated; verify application does not demand lower ingress protection (e.g., sealed conduit only).
  8. Verify switching frequency: 1000Hz max switching frequency; if high-speed position detection or counter input needed, confirm sensor bandwidth meets application timing.

If any item on this checklist cannot be confirmed before ordering, contact the LeadTime.ca team — we can verify the correct variant against your PLC input module specifications before the order is placed.

Frequently Asked Questions

Can the XS618B1PAM12 be used directly with an NPN PLC input module?

No. The XS618B1PAM12 is a PNP output sensor only — it pulls the signal output to the positive supply voltage when a metal target is detected. NPN input modules expect the signal to pull to ground on activation, which is the opposite logic polarity. Using a PNP sensor on an NPN-configured input module will result in no signal recognition at the PLC. If your input module requires NPN logic, the correct replacement within the same family is the XS618B1PAM14, which provides the same 8mm range and M18 housing with NPN output.

What does each LED indicator on the XS618B1PAM12 signal, and how do I read a fault condition?

The sensor body has four LED viewports. The power LED (yellow) illuminates solid when supply voltage is present and within the 12–48VDC rated range — if this LED is off with power connected, verify voltage at the M12 connector terminals between Pin 1 and Pin 3. The output LED pulses when the sensor detects a metal target within the 8mm nominal sensing range. If the output LED does not pulse when a confirmed metal target is introduced within range, verify the target material is actually metallic and check the M12 cable for continuity. Consult the official Telemecanique Sensors datasheet for full LED state definitions and fault logic.

What is the maximum distance at which the XS618B1PAM12 will reliably switch?

The nominal sensing range (Sn) is 8mm, measured perpendicularly to the sensing face with a standard ferrous target. This is a fixed calibration — there is no sensitivity adjustment on this model. In practice, reliable switching is best confirmed with the target positioned at or slightly within the 8mm nominal distance. If your application gap is 9–10mm or greater, the XS630B1PAL12 with 10mm detection range is the correct selection within the OsiSense XS family.

Does the XS618B1PAM12 require any configuration or calibration after installation?

No software configuration or electronic calibration is required. The sensor is a fixed-output, fixed-range discrete switching device — install, wire, apply power, and verify LED switching behavior. Mechanical alignment (perpendicular approach, correct mounting distance) is the only setup variable. Full installation verification involves confirming the output LED pulses consistently when the metal target enters the 8mm zone and that the PLC input transitions from OFF to ON in the programming software at the same moment.

Is the XS618B1PAM12 suitable for use in food processing environments with daily wash-down cycles?

Yes. The IP69K rating per DIN 40050 means the sensor withstands high-pressure, high-temperature wash-down cycles — the protection level specifically referenced for food and beverage processing environments. The nickel-plated brass housing and PPS sensing face resist the cleaning agents and moisture typical in these environments. The -25°C to +70°C operating range also covers cold-storage areas within food facilities. Verify that specific cleaning chemical compatibility is not a concern for the housing material in your application before final specification.

Can I use the XS618B1PAM12 to detect non-metallic targets such as plastic containers or glass bottles?

No. Inductive sensors detect metallic targets only — ferrous and non-ferrous metals. Plastic, glass, ceramic, and liquid targets do not interact with the inductive sensing field and will not trigger the output regardless of proximity. For non-metallic target detection, a capacitive or optical sensor is the correct technology. If your application involves metallic caps or bands on non-metallic containers, test whether the metal component is sufficiently close to the sensor face to trigger detection at the 8mm nominal range.

Why Order the XS618B1PAM12 from LeadTime.ca

  • Ships worldwide — no single-region restriction on orders
  • Pre-order variant confirmation available: PNP vs. NPN, range selection, connector compatibility — contact the team before placing the order
  • Volume and project pricing available for production builds and OEM integrators
  • Access to broader OsiSense XS family inventory for full system builds or multi-sensor specifications
  • Fast response for urgent field replacement scenarios — contact directly for lead time confirmation before committing to a build schedule

XS618B1PAM12 At-a-Glance Summary

  • OsiSense XS General Purpose Inductive Proximity Sensor — M18 cylindrical, 74mm long case, nickel-plated brass housing
  • 8mm nominal detection range — fixed calibration, flush-mountable, perpendicular target approach required
  • PNP 3-wire DC output, 1 N.O. — not compatible with NPN input modules (order XS618B1PAM14 for NPN)
  • Supply voltage: 12–48VDC — wide range covers most industrial DC control systems
  • Switching capacity: 200mA DC with short-circuit and overload protection
  • Maximum switching frequency: 1000Hz — suitable for high-speed counting and rotary index feedback
  • IP69K, IP68, IP67 multi-level protection per DIN 40050 and IEC 60529 — wash-down and outdoor rated
  • Operating temperature: -25°C to +70°C — covers cold-storage and heated industrial environments
  • M12 A-coded 4-pin male connector — field-interchangeable with standard M12 industrial cordsets
  • UL and CSA certified — meets North American electrical safety standards
  • Four LED status viewports on sensor body — power presence and output switching visible without diagnostic tools
  • For range beyond 8mm: XS630B1PAL12 (10mm) — for NPN output: XS618B1PAM14
