Schneider Electric XB4BW33B5 — Illuminated Pushbutton Buying Guide

By Abdullah Zahid
15 min read

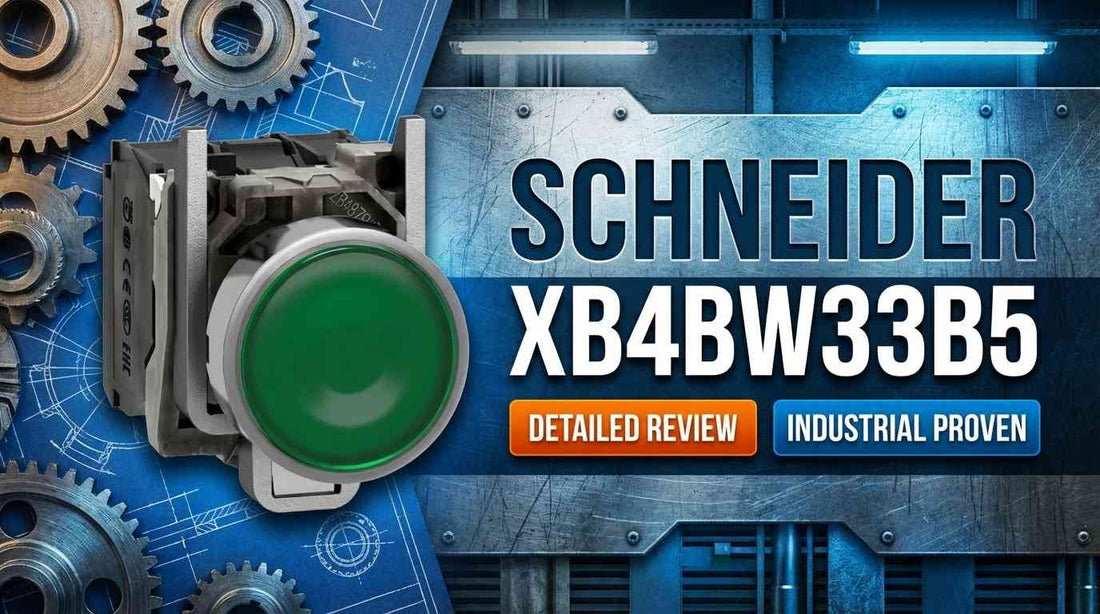

Schneider Electric XB4BW33B5 Harmony green flush illuminated pushbutton 22mm metal bezel for industrial control panels

Schneider Electric XB4BW33B5 Illuminated Push Button, Harmony XB4, Metal, Green Flush, 22mm, Universal LED, Plain Lens, 1NO + 1NC, 24V AC DC — Specifications, Applications, and Selection Guide

Controls engineers and panel builders searching for a single component that delivers both visual status feedback and dual-contact switching logic in a washdown-rated 22mm body consistently arrive at the Schneider Electric XB4BW33B5. This illuminated pushbutton combines a green flush metal operator, chromium-plated bezel, universal LED indicator block, and a 1NO + 1NC dual-contact configuration — all factory-assembled and ready for panel mounting. If you are specifying a 24V AC/DC control circuit for food processing, water infrastructure, or industrial automation and need simultaneous indication and switching in one compact package, this is the component to evaluate before placing your order.

If you have already confirmed this is the correct part, check current pricing and availability for the XB4BW33B5 at LeadTime.ca — ships worldwide.

Who Should Buy the XB4BW33B5 — and Who Should Not

The Schneider Electric XB4BW33B5 is the right choice when all of the following apply to your project:

  • Your control circuit operates at 24V AC/DC (50/60 Hz) — this model has no 110V or 230V equivalent
  • You require both a normally open and a normally closed contact in a single pushbutton body (1NO + 1NC dual-contact configuration)
  • Your installation environment demands IP66, IP67, or IP69K protection — washdown lines, outdoor enclosures, or chemical processing areas
  • You need a green round flush actuator with integrated LED indication, and a chromium-plated metal bezel for mechanical durability
  • Your application will see high cycle frequency — the XB4BW33B5 is rated for 500,000 mechanical cycles minimum
  • You are working within the Harmony XB4 modular ecosystem and want a universal LED block that supports color-lens swaps across your button inventory

If your site control voltage is 110V AC or 230V AC, this button will fail immediately on connection — order a voltage-appropriate model from the XB4 family or add a 24V step-down transformer to your control circuit. If you need a non-round actuator (square or lever-operated), or if only illumination without dual contact logic is required, a different Harmony variant is the correct choice.

On this page:

What the XB4BW33B5 Actually Does in a Control System

The Schneider Electric XB4BW33B5 is a modular illuminated pushbutton that solves a specific wiring and panel-space problem: running a separate indicator light alongside a control pushbutton requires two panel cutouts, two sets of terminals, and twice the wiring labor. The XB4BW33B5 consolidates both functions into a single 22mm assembly. When the operator presses the green flush button, the 1NO contact closes and the 1NC contact opens simultaneously — giving a PLC digital input one signal path and a safety or control loop a second, independent signal path, all through one component.

The universal LED block draws 24V AC or DC directly from the control supply. No external current-limiting resistor is needed. The LED illuminates steady green when voltage is applied, providing a visual status cue visible in harsh industrial lighting conditions. The chromium-plated metal bezel and IK05 impact-rated housing protect the assembly in environments where pushbuttons are routinely exposed to water jets, chemical spray, and mechanical contact. The 6kV impulse withstand rating per EN/IEC 60947-1 means nearby variable frequency drives and large contactors switching on the same panel will not corrupt the button's contact behavior or damage the LED block through conducted transients.

The dual-contact design is particularly valuable for controls engineers managing both indication and control logic from one button location. One contact powers the LED (or feeds back to the PLC as a status signal), while the second contact operates a pump starter coil, a safety interlock relay, or a PLC digital input — up to 10A at 24V per contact. This pilot-duty rating is the ceiling: loads exceeding 10A require an intermediate control relay wired to the button contact, with the relay output switching the main load.

Typical System Architecture: Where This Button Sits in Your Panel

The XB4BW33B5 connects at the operator interface layer of a 24V DC control circuit, sitting between the control power supply and the PLC or relay logic it feeds. Here is the typical component chain for a standard installation:

  • 24V DC power supply (DIN-rail mounted in main panel) feeds control circuit rail
  • Control circuit rail supplies 24V to XB4BW33B5 LED+ terminal — button illuminates when power is live
  • NO contact output wires to PLC digital input module — button press triggers process command (pump start, gate unlock, override request)
  • NC contact output wires to safety relay or interlock loop — contact opens on button press, generating a verifiable state change in the safety circuit
  • PLC or safety relay then drives downstream actuators (motor starters, solenoid valves, indicator towers) based on contact state received

Industries and Applications Where the XB4BW33B5 Is Specified

Food and beverage processing lines are among the most demanding environments for pushbutton hardware. The XB4BW33B5 is specified here because IP66 and IP69K ratings withstand direct water spray and chemical washdown cleaning cycles without seal degradation. Green illuminated start buttons on conveyor lines and filling stations use one contact to trigger the pump or conveyor drive via PLC, while the second contact feeds back to the HMI system as a run-confirm signal.

In water and wastewater infrastructure, lift station control panels mount the XB4BW33B5 at operator access points on outdoor enclosures. The -40°C to +70°C operating temperature range supports year-round outdoor service without supplemental heating or cooling. Dual contacts allow one path to illuminate the button when the pump is in standby (voltage applied to LED block through PLC output), while the second contact provides the operator's manual command input back to the PLC for tank-level override or manual pump cycle.

Packaging machinery and conveyor transfer stations use the XB4BW33B5 to indicate readiness states. A green illuminated button at a transfer point means the downstream station is ready to receive product. The operator or PLC presses the button to release the transfer — dual contacts provide both the confirmation signal and the trigger logic in one component, reducing panel complexity on high-volume OEM builds.

Equipment OEMs building multi-site control panels for HVAC zones, compressed air systems, or conveyor networks benefit from the universal LED block. When the same panel design serves multiple customer sites with different color conventions, the modular lens-swap capability means a single spare LED block supports all button colors without stocking separate assemblies. This is a measurable inventory reduction for companies managing spares across dozens of installed panels.

Application Typical Deployment
Food & Beverage Processing Green start button on washdown conveyor control station — IP69K rated for chemical spray cleaning
Wastewater Lift Station Outdoor pump control panel — dual contacts for standby indication and manual override input to PLC
Machine Safety Gate Access Guard unlock button — NC contact in safety interlock loop, NO contact logs unlock event to PLC
Packaging / Conveyor Transfer Ready-state indication at transfer station — illuminated green signals downstream readiness, button press advances material
Multi-Zone HVAC and Utility Zone status indication on building control panels — universal LED block simplifies multi-site spare parts inventory
Automotive Assembly Workstation Status indication at production station — dual contacts feed HMI status and initiate process step simultaneously

Key Specifications and Variant Comparison

Specification Value Buyer Note
Control Voltage 24V AC/DC, 50/60 Hz No 110V or 230V option — verify site standard before ordering
Contact Configuration 1NO + 1NC Dual-contact; wrong part if single NO or NC only is required
Contact Current Rating 10A maximum Pilot-duty rating — use control relay for loads above 10A
Mechanical Durability 500,000 cycles minimum Suitable for high-frequency operator environments
Impulse Withstand 6kV per EN/IEC 60947-1 Protection against transients from VFDs and large contactors nearby
Enclosure Rating NEMA 4/4X/13, IP66/IP67/IP69/IP69K Washdown and jet-spray rated; consider lower IP alternatives only if cost-critical and jet spray absent
Operating Temperature -40°C to +70°C Outdoor and refrigerated environments supported without supplemental cooling
Actuator Style Round, green, flush profile Fixed green — different part number required for red, amber, or white
Impact Protection IK05 per IEC 50102 Mechanical shock resistance; not rated for high-impact handling
Mounting / Terminal Panel mount, 22mm round hole, screw clamp 18–14 AWG Standard industrial panel terminal; spring-cage or M20 cable gland requires different assembly

Full technical specifications are available on the product page at LeadTime.ca.

XB4BW33B5 vs. Common Alternatives — Which Model Do You Actually Need?

Model / Type Contact Config Control Voltage Actuator Color Best For
XB4BW33B5 (this model) 1NO + 1NC 24V AC/DC Green flush Dual-function indication + control at 24V; washdown environments
XB4BR33B5 1NO + 1NC 24V AC/DC Red flush Same dual-contact function; red actuator for stop or fault indication per color code
XB4 120V AC variant 1NO + 1NC 120V AC Various Installations where site control voltage is 110V/120V AC standard
XB5 indicator-only series Indicator only 24V AC/DC Various Status light only — no switching contact; lower cost when control logic not required
XB4 single-contact NO variant 1NO only 24V AC/DC Various Applications where only one contact path needed; lower cost than dual-contact version

If your site operates on 110V or 230V AC control voltage, the XB4BW33B5 is the wrong model regardless of how closely everything else matches — check the product page at LeadTime.ca or contact the team to identify the correct voltage variant before placing your order.

Expert Verdict: Is the XB4BW33B5 the Right Part for Your Build?

The Schneider Electric XB4BW33B5 earns its place on the approved vendor list for controls engineers designing 24V DC panel infrastructure in food processing, water treatment, packaging automation, and industrial machine building. The 1NO + 1NC dual-contact configuration in a single 22mm body eliminates the panel real estate and wiring labor that separate indicator lights and pushbuttons require on high-volume OEM builds. Verified proof points back this up: 500,000 minimum mechanical duty cycles, a 6kV impulse withstand rating per EN/IEC 60947-1, and simultaneous IP66/IP67/IP69K certification make this a component that handles harsh environments without early failure. The universal LED block ecosystem is a genuine inventory advantage for systems integrators managing spare parts across multi-site equipment — one block part number covers all button colors in the Harmony XB4 family.

Where this model has real limits: the 24V AC/DC-only supply requirement is a hard constraint that trips up a meaningful share of orders placed against legacy 110V or 230V AC control panels. If your site has not yet standardized on 24V DC, budget for a control circuit power supply before specifying this button. For applications requiring only illumination without dual-contact switching, the XB5 series reduces cost and simplifies wiring. If the actuator must be non-round — square, rectangular, or lever-operated — a different XB4 variant is the correct answer. And if emergency stop function is on the requirements list, stop here: the XB4BW33B5 is a general-purpose control component, not an EN 60204-1 emergency stop certified device. Specifying it in an emergency stop application violates the applicable safety standard.

From a procurement standpoint, the XB4BW33B5 is a standard stocked item — not a custom or long-lead product. Major authorized industrial distributors carry Harmony XB4 inventory in local warehouses across North America and internationally, with typical 1–2 day turnaround for small quantities. The advantage of ordering through a specialist automation distributor over a generic electronics channel is twofold: you get technical pre-sales advice that catches wrong-voltage or wrong-contact-configuration orders before they ship, and you get accurate in-country stock confirmation rather than variable lead times from centralized drop-ship warehouses. Volume discount brackets typically apply at 50+ and 500+ unit thresholds — worth confirming with your distributor before finalizing a large build order. Check current availability and pricing for the XB4BW33B5 at LeadTime.ca — we ship worldwide.

For volume pricing or to confirm lead time before committing to a build, contact the LeadTime.ca team directly — we ship worldwide.

What Engineers Need to Know Before Ordering the XB4BW33B5

Because the XB4BW33B5 generates virtually no public community discussion — which is entirely normal for a mature, standardized industrial component integrated into larger systems rather than reviewed in isolation — the most useful guidance comes from the specification and ordering mistakes that show up at the distributor level before the part ships. The three patterns below account for the majority of incorrect orders placed against this model, and each has a straightforward prevention step.

The most common error is ordering a 24V AC/DC rated pushbutton for installation into a control panel running 110V or 230V AC. The XB4BW33B5 part number does not include a voltage identifier in the string itself, which means engineers relying on memory or verbal direction rather than a current design document routinely miss the mismatch. The result is immediate LED block failure on first power-up and a return order that delays commissioning. The fix is simple: before placing the order, pull the control schematic for the panel and verify the control supply voltage on the drawing. If the panel is being upgraded from 110V to 24V control logic, confirm the 24V power supply has been added to the design before ordering the buttons.

The second common point of confusion is the phrase "universal LED block." This terminology refers to the LED module's ability to accept drop-in color lens inserts — green, red, amber, or white — within the same block body. It does not mean the operator button itself changes color. The XB4BW33B5 has a fixed green actuator and bezel. If red is required for your color code (stop function, fault indicator, emergency status), you need to order the red actuator variant — for example, XB4BR33B5 or the appropriate equivalent — not attempt a lens swap on the green button body. Distributors who catch this before shipping save the buyer a return cycle and a project delay. When in doubt, state your required button color explicitly when requesting a quote.

The third issue arises at the wiring stage rather than the ordering stage: the 10A contact rating is a pilot-duty rating approved for control circuits and indicator light loads, not for direct switching of motor starter coils or solenoid valves with continuous current above 10A. Engineers who wire the NO contact directly to a 24V pump coil rated above 10A risk contact welding on the first activation cycle, which locks the circuit in a permanently closed state. The correct approach is to use the XB4BW33B5 contact to energize a 24V control relay, then wire the relay's heavier-duty output contact to the motor starter or solenoid coil. This is standard control circuit practice and adds minimal cost and panel space compared to the alternative of a welded contact and a stuck actuator.

Wiring and Installation Overview

The XB4BW33B5 arrives as a complete pre-assembled unit. No field assembly of the operator, bezel, or LED block is required before mounting. The following overview covers the key steps and requirements — for full procedure details including torque values and terminal identification, refer to the Schneider Electric installation instruction sheet supplied with the product.

  • Prepare a 22mm round cutout in the control panel using a standard knockout punch or hole saw; deburr the edge to prevent wire abrasion before inserting the bezel
  • Insert the bezel assembly from the front face of the panel, seat the operator flush, and secure with the metal retaining nut from the rear — hand-tighten then snug with a wrench; do not over-tighten or strip the bezel threads
  • Connect 24V supply positive to the LED+ terminal and negative to the LED- terminal on the indicator block; the universal LED block accepts 24V AC or DC directly with no external resistor required
  • Wire the NO terminal to the PLC digital input or pilot circuit path; wire the NC terminal to the safety interlock or second control logic path as required by your circuit design — verify terminal markings on the block before applying power
  • After wiring, apply 24V supply and confirm the LED illuminates; use a multimeter in continuity mode to verify NO opens and NC closes correctly when the button is pressed before completing panel closure

Wrong-Part Prevention Checklist

Run through each of these checks against your design documents before placing your order for the XB4BW33B5. This checklist is drawn verbatim from the product evaluation criteria and reflects the most common sources of incorrect orders for this model.

  1. Verify control voltage at installation: XB4BW33B5 rated 24V AC/DC only — confirm site standard is 24V, not 110V/230V
  2. Confirm contact configuration requirement: this model is 1NO + 1NC (dual) — if single contact (NO or NC only) needed, wrong part
  3. Check button color requirement: this model is green only — if red/amber/white required, order appropriate XB4 color variant
  4. Verify enclosure rating: confirm IP66 or IP67 is required — if IP65 sufficient, lower-cost alternatives exist
  5. Confirm actuator style: XB4BW33B5 is round flush — if square or lever required, different XB4 variant needed
  6. Validate operator mounting: this model is panel mount 22mm — if DIN-rail or cable terminal required, incompatible
  7. Check terminal type: screw clamp terminals only — if spring-cage or M20 cable gland required, different assembly needed
  8. Confirm LED universality requirement: this model includes universal LED block — if pre-wired single-color block preferred, different XB4 configuration available

If any item on this checklist raises a question about your specific installation, contact the LeadTime.ca team before ordering — we can verify part suitability against your application requirements and confirm stock availability worldwide.

Frequently Asked Questions

Can the XB4BW33B5 be used in outdoor control panels year-round in cold climates?

Yes. The operating temperature range of -40°C to +70°C supports outdoor and refrigerated environments without supplemental heating elements. The chromium-plated metal bezel and IP66/IP67/IP69K enclosure ratings provide corrosion and water-ingress protection in exposed installations. If the panel is in direct sunlight year-round, a metal or UV-resistant polycarbonate enclosure is recommended around the panel itself — the button assembly does not include UV protection for the surrounding structure.

Is the XB4BW33B5 certified for emergency stop duty?

No. The XB4BW33B5 is a general-purpose illuminated control pushbutton. Emergency stop applications require a dedicated EN 60204-1 rated emergency stop device — typically a larger, red mushroom-head button with positive-opening contacts and specific safety certification. Using the XB4BW33B5 in an emergency stop circuit violates the applicable safety standard and creates a compliance liability for the machine builder or integrator.

What happens if the contact load exceeds 10A — does the button derate or fail hard?

The 10A rating is a pilot-duty maximum, not a soft limit that triggers thermal derating. Exceeding this rating — particularly with inductive loads like pump motor coils or solenoid valves above 10A continuous — risks contact arc damage and contact welding, which can lock the circuit in a permanently closed state. The correct design practice is to wire the XB4BW33B5 contact to a 24V control relay rated for the actual load current, then use the relay output to switch the motor starter or solenoid coil.

Can I order just the LED block separately if it needs to be replaced?

Yes. The universal LED block in the Harmony XB4 series is designed as a field-replaceable modular component. Replacement blocks are available through Schneider Electric authorized distributors. Before ordering a replacement block, verify the exact cross-reference part number with your distributor to confirm compatibility with your installed operator and bezel assembly — block specifications can vary across XB4 sub-family generations.

Is there a 110V AC or 230V AC version of this exact pushbutton?

The XB4BW33B5 is rated 24V AC/DC only. There is no 110V or 230V variant sharing this exact model number. If your control voltage is 110V or 230V AC, contact Schneider Electric or your authorized distributor for the equivalent model number in the Harmony XB4 family at your required voltage. Operating the XB4BW33B5 on a higher voltage supply will immediately destroy the LED block internal circuitry.

Does the XB4BW33B5 require external fuse or circuit breaker protection?

The pushbutton itself contains no internal circuit protection. Whether external protection is required depends on your safety standard and circuit design. Per IEC 60204-1, control circuits in safety-critical applications typically require external overcurrent protection. Consult the electrical safety standard applicable to your machine or installation type and your local authority having jurisdiction to determine the correct protection requirement for your specific circuit.

Why Order From LeadTime.ca

  • Ships worldwide — no geographic restrictions on ordering the XB4BW33B5 regardless of your location
  • Specialist automation focus means technical pre-sales advice is available to verify part suitability before the order ships — catching wrong-voltage or wrong-configuration orders before they cost you time
  • Access to hard-to-source industrial components and fast response on lead time confirmation for project-critical timelines
  • Volume pricing available — contact the team for quote on 50+ or 500+ unit orders

At-a-Glance Summary

  • Model: Schneider Electric XB4BW33B5 — green flush illuminated pushbutton, 22mm, Harmony XB4 series
  • Contact configuration: 1NO + 1NC dual-contact — simultaneous status indication and control logic in one component
  • Control voltage: 24V AC/DC, 50/60 Hz only — no 110V or 230V equivalent at this model number
  • Contact current rating: 10A maximum pilot-duty — use control relay for loads exceeding this threshold
  • Mechanical durability: 500,000 cycles minimum — rated for high-frequency operator environments
  • Impulse withstand: 6kV per EN/IEC 60947-1 — electromagnetic transient protection for VFD-heavy panels
  • Enclosure ratings: NEMA 4/4X/13, IP66/IP67/IP69/IP69K — washdown and jet-spray rated
  • Operating temperature: -40°C to +70°C — outdoor and refrigerated environments supported
  • LED block: universal modular design — single spare supports all XB4 button colors via drop-in lens
  • Certifications: UL 508, EN/IEC 60947-1, EN/IEC 60947-5-1, RoHS compliant, DNV/GL/Lloyd's Register/RINA marine approval
  • Mounting: panel mount, 22mm round hole, screw clamp terminals 18–14 AWG
