Schneider Electric XB4BVM3 — Green LED Pilot Light Buyer Review

By Abdullah Zahid
13 min read

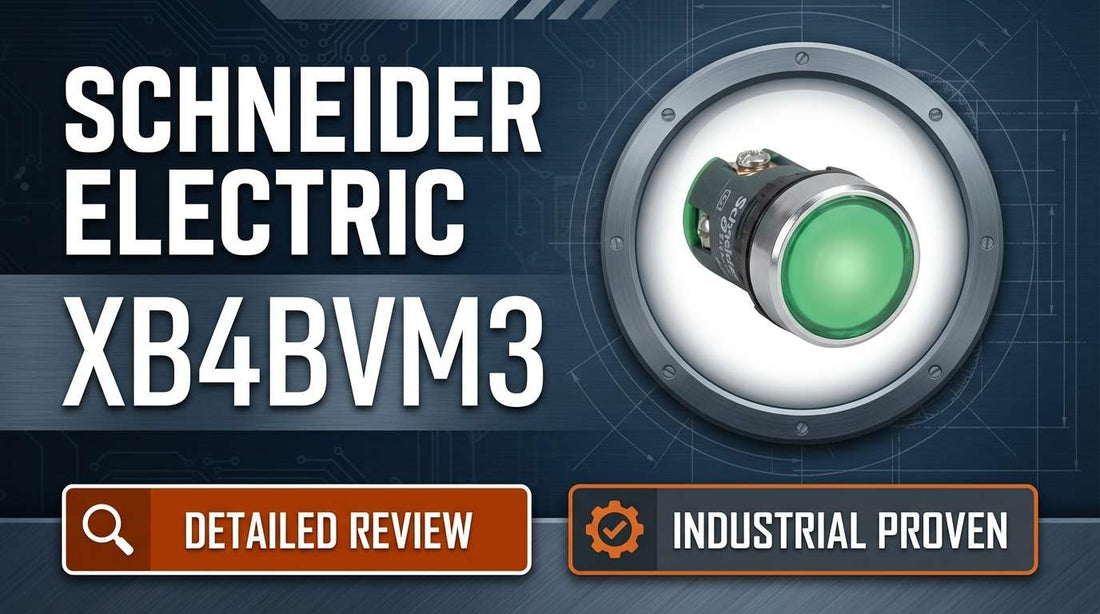

Schneider Electric XB4BVM3 Harmony XB4 22mm green LED pilot light for 230-240V AC industrial control panels

Schneider Electric XB4BVM3 Pilot Light — Specifications, Price, and Alternatives for 230-240V AC Control Panels

If you are a panel builder or maintenance technician looking at the Schneider Electric XB4BVM3, you already know what you need: a compact 22mm green LED pilot light rated for 230-240V AC, with screw clamp terminals and a metal housing that survives demanding industrial environments. The XB4BVM3 is a Harmony XB4 series illuminated indicator with a plain green lens, universal LED block, and a rated LED lifetime of 100,000 hours — verified in official Schneider Electric documentation. The question is whether this specific variant matches your panel voltage, terminal wiring, and enclosure requirements before you commit to an order.

If you have already confirmed this is the right part, check current pricing and availability for the XB4BVM3 at LeadTime.ca — ships worldwide.

Who Should Buy the XB4BVM3 — and Who Shouldn't

The XB4BVM3 is the right choice for control panel builders and maintenance teams whose installation meets all of the following conditions:

  • Panel supply voltage is confirmed at 230-240V AC, 50/60 Hz — not 24V DC, 12V DC, or 110V single-phase
  • Mounting hole is 22mm diameter with an M22 threaded collar available
  • Green lens color is required for your control logic — typically normal operation or standby status
  • Terminal wiring uses screw clamp connections compatible with M4 wire gauges
  • Operating environment requires -40 to 70°C range and NEMA 1/2/3/4/4X/12/13 or IP66/IP67/IP69K-rated enclosure performance

If your panel runs on 24V DC, 110V AC, or requires a spring terminal or Faston connector interface, you need a different XB4 variant — see the comparison table below for the correct alternatives.

On this page:

What the XB4BVM3 Actually Does in a Control Panel

The Schneider Electric XB4BVM3 is a panel-mount illuminated pilot light from the Harmony XB4 family. It installs into a 22mm diameter cutout on an operator-facing panel surface and lights up green to indicate machine state, circuit readiness, or confirmed operational status. It is not a pushbutton, not a selector switch — it is a visual signal device only, wired directly to the 230-240V AC supply through its X1 and X2 screw clamp terminals.

What distinguishes this model within the Harmony XB4 range is its universal LED block architecture. The LED block is a removable, interchangeable module that fits the same 22mm housing used across the Harmony XB4 product line. This means a panel builder can stock one mechanical housing type and swap LED colors — green, red, amber, blue, or white — without redesigning the panel or replacing the full assembly. For facilities running multiple panels with mixed indicator colors, this modularity can reduce spare parts inventory significantly compared to non-modular pilot light designs.

The XB4BVM3 draws 14 mA at rated voltage. Its LED is rated for 100,000 hours of continuous operation at 25°C ambient, which at 24/7 operation equates to more than 11 years of service before the LED reaches end of rated life. The housing uses a zamak metal fixing collar with polished chrome finish, and the lens is a plain flat green design with a 54mm mounting depth and 30mm face width.

Typical System Architecture

The XB4BVM3 sits at the operator interface layer of a control panel, wired in parallel with the load or directly from a discrete output circuit to provide visual status feedback to the operator without interaction.

  • Upstream: 230-240V AC panel supply, typically from a transformer secondary or building distribution bus
  • Control level: PLC discrete output or relay contact switching the 230V AC signal to the indicator circuit
  • Panel cutout: 22mm diameter hole in the operator panel door or face plate, M22 threaded collar engaged
  • XB4BVM3: Receives switched 230V AC at X1 (phase) and X2 (neutral) screw clamp terminals — LED illuminates green
  • Operator: Views green status from the panel face; no interaction required with the pilot light itself

Typical Applications and Where This Pilot Light Gets Specified

The XB4BVM3 is most commonly specified in machine tool control panels, automotive assembly line operator stations, and food and beverage processing enclosures where continuous operation demands LED longevity and environmental sealing is non-negotiable. The -40 to 70°C operating range and IP66/IP67/IP69K ratings make it a practical choice for washdown areas in food processing facilities and for outdoor-rated enclosures in municipal water treatment installations.

Maintenance teams replacing failed incandescent or older LED indicators in existing Harmony XB4 panels find the XB4BVM3 a direct-fit solution that avoids re-drilling panel cutouts or rewiring terminal blocks — provided the replacement panel voltage is 230-240V AC and the existing terminals accept the screw clamp format.

OEM equipment manufacturers building for European markets or for facilities running 240V AC industrial supply use this model as a standard BOM line item across multiple machine variants, leveraging its dual NEMA and IEC IP certification to satisfy both North American and international export documentation requirements without sourcing two separate pilot light SKUs.

Application Typical Deployment
Machine tool manufacturing CNC machine operator panel, power-on status indicator, 230V AC supply
Automotive assembly Line control station, cycle-complete indicator, high-vibration enclosure
Food and beverage processing Washdown-rated panel, IP69K enclosure, 24/7 continuous operation
Municipal water treatment Outdoor or semi-enclosed panel, NEMA 4X stainless enclosure, pump status indicator
Harmony XB4 panel retrofit Direct replacement of failed pilot light, no cutout modification required
OEM export equipment Multi-geography product line, single SKU satisfying NEMA and IP certification requirements

XB4BVM3 Key Specifications and Harmony XB4 Variant Comparison

Parameter XB4BVM3 Value
Rated Supply Voltage 230-240V AC, 50/60 Hz
Operating Voltage Range 195-264V AC
Current Consumption 14 mA at rated voltage
LED Lifetime 100,000 hours at rated voltage and 25°C ambient
Mounting Diameter 22mm (M22 threaded collar)
Lens Color and Type Green, plain flat lens
Terminal Type Screw clamp, X1-X2 PL, M4
Operating Temperature -40 to 70°C
IP Ratings IP20, IP66, IP67, IP69K
NEMA Enclosure Types 1, 2, 3, 4, 4X, 12, 13

Full technical specifications are available on the product page at LeadTime.ca.

Harmony XB4 Variant Comparison — Voltage, Color, and Terminal Type

Variant Consideration XB4BVM3 Alternative Required
Supply Voltage 230-240V AC Order 24V DC or 110V AC XB4 variant for lower-voltage panels
Lens Color Green Red, amber, blue, or white XB4 variants available for alarm/fault differentiation
Terminal Type Screw clamp (M4) Spring terminal or Faston XB4 variants for pre-built harness compatibility
Certifications UL File E164353, CSA File LR44087, CE, RoHS Same family — verify specific file numbers for project documentation
LED Block Universal — color-swappable within XB4 housing Single housing accepts all LED colors; only swap LED block, not full assembly

If your panel operates on 24V DC or 110V single-phase, the XB4BVM3 is not the correct part — selecting the matching voltage variant from the Harmony XB4 range is critical before ordering. Check current availability and confirm the correct variant at LeadTime.ca.

Expert Verdict: When to Choose the XB4BVM3 and When to Walk Away

The XB4BVM3 is the logical specification for panel builders and OEM engineers whose equipment runs on 230-240V AC industrial supply and requires a compact, long-life green indicator that will not generate service calls. The 100,000-hour LED lifetime is a real operational advantage in 24/7 production environments where even a single unplanned panel access costs more in downtime than the price of the component itself. The dual NEMA and IEC IP certification — NEMA 4X and IP69K from a single 22mm SKU — removes a genuine BOM headache for manufacturers exporting to multiple geographies. For maintenance teams replacing existing Harmony XB4 lights, the universal LED block architecture means the housing stays in the panel and only the LED block needs to be swapped, assuming the replacement unit matches the installed voltage.

Where the XB4BVM3 is genuinely the wrong choice: any panel running 24V DC logic supply, 120V AC North American standard, or 110V single-phase. These are common panel architectures in Canadian and US industrial facilities, and the 230-240V AC rating of the XB4BVM3 will not illuminate on those supplies — it will simply sit dark, and the misorder is not reversible. Similarly, if your wiring harness uses Faston clips or spring-push terminals, the screw clamp terminal on this model requires a harness rebuild. For applications requiring smart integration, PLC signal-linked dimming, or non-standard colors beyond the Harmony XB4 range, this is a straightforward status lamp and nothing more.

From a procurement standpoint, the XB4BVM3 is manufactured in France and is typically stocked by authorized Harmony XB4 distributors with standard lead times in the 2-4 week range for market-typical orders — though current stock levels vary and should always be confirmed before finalizing a build schedule. Buying through a specialist automation distributor rather than a generic electrical supply channel matters here because voltage and terminal type variants within the Harmony XB4 family look nearly identical in catalog listings, and an experienced distributor can confirm the exact configuration against your panel documentation before the order ships. View current pricing and stock status for the XB4BVM3 at LeadTime.ca — available to buyers worldwide.

For volume pricing, project-quantity quotes, or lead-time confirmation before committing to a build schedule, contact the LeadTime.ca team directly — we ship worldwide.

What Engineers Need to Know Before Ordering the XB4BVM3

Community data for this specific model number is limited in public automation forums, which is itself informative: the XB4BVM3 is a well-understood, catalogue-standard component that experienced panel builders specify without extensive troubleshooting discussion. However, the absence of community debate does not mean ordering is risk-free. The wrong-part mistakes that do occur with this model follow a consistent pattern, and they are almost entirely preventable with a pre-order documentation check.

The most consequential ordering mistake with the Harmony XB4 family is voltage mismatch. The XB4BVM3 is rated at 230-240V AC — but Harmony XB4 variants span from 12V DC to 240V AC, and they share identical housing dimensions, part number structures, and catalog page layouts. A buyer who specifies from memory or copies a BOM line item from a different project without verifying the voltage suffix can receive a physically identical unit that simply will not illuminate on their panel supply. Unlike a wrong-size part, a wrong-voltage pilot light has no obvious visual indicator of the mismatch before installation. The result is a non-returnable unit and a delay while the correct voltage variant is re-sourced.

Terminal type is the second failure point. The XB4BVM3 uses screw clamp terminals marked X1 and X2 for phase and neutral connections. If the existing panel wiring harness uses spring terminals or Faston connectors — both common in pre-built OEM harnesses — the screw clamp interface requires either re-crimping or building a new harness segment, adding days to the project. Checking the harness connector type before ordering, not after the part arrives, is the single most effective way to avoid this delay. When community data is sparse and the product is specification-critical, consulting a specialist distributor who stocks multiple Harmony XB4 variants and can cross-reference your harness type against available terminal options is the practical alternative to trial and error.

Wiring and Installation Overview

The XB4BVM3 wires directly to a 230-240V AC supply through its X1 (phase) and X2 (neutral) screw clamp terminals. The following points cover the key requirements for a correct installation — engineers requiring full step-by-step procedures should refer to official Schneider Electric Harmony XB4 installation documentation.

  • Confirm panel supply is 230-240V AC, 50/60 Hz, within the 195-264V AC operating range, before making any connections
  • The mounting hole must be 22mm diameter; the zamak fixing collar threads onto the M22 rear of the housing, secured with a mounting nut — do not over-torque against the panel face
  • Phase conductor connects to X1 terminal, neutral conductor to X2 terminal; both accept M4 screw clamp connections — verify wire gauge compatibility with your harness before stripping
  • Electrical shock protection is Class I (IEC 60536) — always de-energize the panel at the main disconnect before working on terminals
  • After installation, verify the green lens faces the operator and check sightlines for ambient light conditions — the XB4BVM3 is rated for industrial indoor environments; direct outdoor sunlight may reduce perceived LED brightness

Compatible Accessories and Expansion Options

The Harmony XB4 platform supports a range of compatible accessories that extend the functionality of the base pilot light housing. The following options are confirmed within the Harmony XB4 product family:

  • Universal LED block — interchangeable color modules (green, red, amber, blue, white) compatible with the XB4BVM3 22mm housing, enabling color swaps without panel modification
  • Contact blocks — low current and standard load configurations available as supplementary options for applications requiring integrated switching alongside the indicator function
  • Spring terminal and Faston terminal variants — alternative terminal configurations within the XB4 family for harnesses that do not use screw clamp connections

Wrong-Part Prevention Checklist — Verify Before You Order

Run through this checklist against your panel documentation before placing an order for the XB4BVM3. These are the six verification points that prevent the most common misorders with this model:

  1. Confirm panel supply voltage is exactly 230-240V AC, not 24V or 110V
  2. Verify mounting hole is 22mm diameter with M22 collar thread
  3. Check that green indicator color matches your control logic (not red for fault, not amber for warning)
  4. Confirm terminal preference is screw clamp for M4 wire gauges
  5. Ensure enclosure type matches rated NEMA/IP class of this unit
  6. Verify LED brightness is sufficient for your ambient light environment (not outdoor direct sunlight)

If any of these six points cannot be confirmed against your panel documentation, do not guess — contact the LeadTime.ca team with your panel voltage, enclosure type, and terminal details and we will confirm the correct XB4 variant before the order is placed.

Frequently Asked Questions

Will the XB4BVM3 work on a North American 120V AC panel?

No. The XB4BVM3 is rated for 230-240V AC with an operating range of 195-264V AC. A 120V AC supply falls outside this range and will not illuminate the LED. For 120V AC panels, a different Harmony XB4 voltage variant is required — confirm the correct catalog number with a distributor before ordering.

Can I swap just the LED block if the green lens fails, without replacing the full assembly?

Yes. The Harmony XB4 universal LED block is designed to be removable and interchangeable within the same 22mm housing. This means a failed or end-of-life LED block can be replaced without removing the housing from the panel or re-wiring the terminals, which reduces maintenance time in installed equipment. Stock the LED block separately as a spare if your facility requires immediate turnaround on indicator failures.

Is the XB4BVM3 suitable for outdoor installations with direct weather exposure?

The XB4BVM3 carries IP66, IP67, and IP69K ratings, making it suitable for washdown environments and weather-exposed enclosures rated to NEMA 3, 4, or 4X. However, direct sunlight exposure may reduce the perceived brightness of the green LED in high-ambient-light outdoor conditions. If the installation site involves direct sunlight viewing angles, verify LED visibility on site or consult the distributor about higher-brightness alternatives before finalizing the specification.

What certifications does the XB4BVM3 carry for North American panel documentation?

The XB4BVM3 is UL certified under File No. E164353 (CCN NKCR) to UL 508, and CSA certified under File No. LR44087 Class 3211 03 to CSA C22.2. It also carries CE marking and RoHS compliance. These certifications satisfy documentation requirements for both Canadian Standards Association inspections and US Underwriters Laboratories panel approval processes.

How do I confirm the XB4BVM3 is the correct replacement for an existing pilot light in my panel?

Physically inspect the existing unit for its model number label — Harmony XB4 units carry the catalog number on the housing or LED block. Confirm that the installed unit's voltage rating matches 230-240V AC, the terminal type is screw clamp, and the lens color is green. If the model number on the existing unit differs from XB4BVM3, cross-reference the voltage suffix and terminal suffix against the Harmony XB4 catalog before ordering. When in doubt, photograph the label and share it with your distributor for confirmation.

What does the XB4BVM3 warranty cover and for how long?

The standard manufacturer warranty period for the XB4BVM3 is 18 months. The warranty covers manufacturing defects under normal operating conditions at rated voltage and within the specified -40 to 70°C temperature range. Units damaged by incorrect voltage application or improper terminal wiring are not covered under standard warranty terms, which reinforces the importance of pre-installation voltage verification.

Why Order the XB4BVM3 Through LeadTime.ca

  • Ships worldwide — no geographic restriction on orders for Harmony XB4 products
  • Stocks multiple Harmony XB4 voltage and terminal variants, not just the most common 24V configuration
  • Technical team can cross-reference your panel voltage and harness type to confirm the correct XB4BVM3 configuration before the order ships
  • Volume pricing available for panel builders and OEMs ordering multiple units across a project BOM
  • Current pricing and live stock status visible directly on the product page — no quote required for standard orders

At-a-Glance Summary

  • Schneider Electric XB4BVM3: Harmony XB4 series, 22mm green LED pilot light, plain flat lens, polished chrome metal housing
  • Rated supply voltage: 230-240V AC, 50/60 Hz; operating range 195-264V AC; current draw 14 mA
  • LED lifetime: 100,000 hours at rated voltage and 25°C ambient — exceeds 11 years at continuous 24/7 operation
  • Terminal type: Screw clamp, X1-X2 PL, M4 — not compatible with Faston or spring terminal harnesses without modification
  • Mounting: 22mm diameter cutout, M22 threaded collar, 54mm mounting depth, 30mm face width
  • Operating temperature: -40 to 70°C ambient; storage -40 to 70°C
  • Environmental ratings: NEMA 1/2/3/4/4X/12/13; IP20, IP66, IP67, IP69K
  • Certifications: UL File E164353, CSA File LR44087, CE marking, RoHS compliant, EMC Class B
  • Vibration resistance: 5 gn at 12-500 Hz (IEC 60068-2-6); surge withstand: 1 kV (IEC 61000-4-5)
  • Universal LED block: color-swappable within XB4 22mm housing without panel modification
  • Country of origin: France; standard lead time: 2-4 weeks through authorized distribution channels
  • Warranty: 18 months standard manufacturer coverage
