Schneider XB4BW34B5 — Illuminated Push Button Buying Guide

By Abdullah Zahid
15 min read

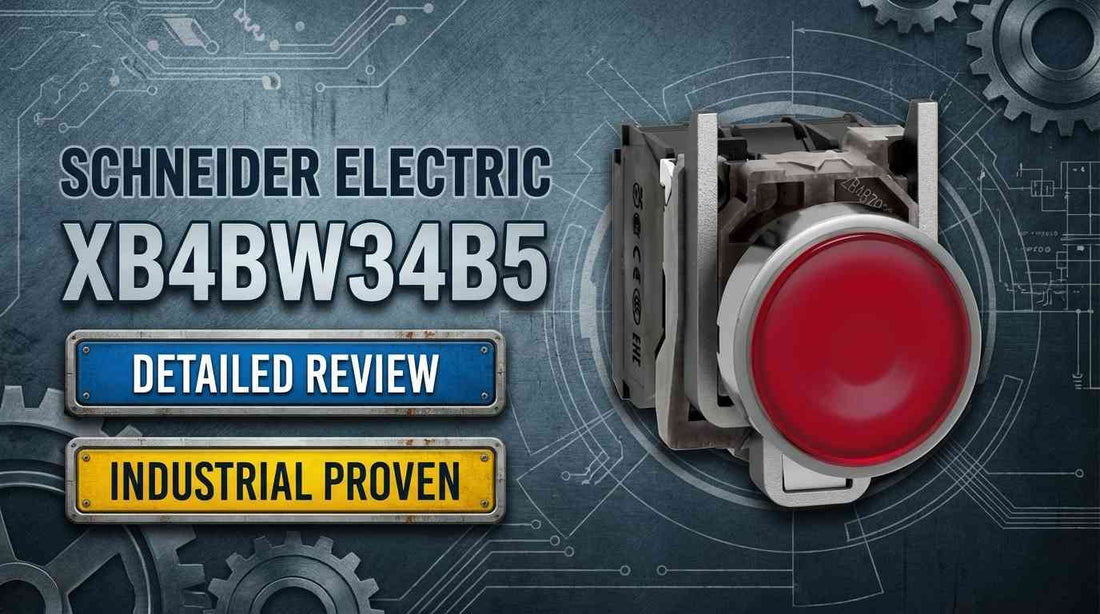

Schneider Electric XB4BW34B5 22mm red flush illuminated push button for washdown industrial control panels

Schneider Electric XB4BW34B5 Illuminated Push Button — Specifications, Price, and Where to Buy

If you are a controls engineer or procurement specialist searching for the Schneider XB4BW34B5, the decision is almost certainly already made at the family level — you are here to confirm the exact SKU before committing to a purchase or a replacement order. The XB4BW34B5 is a 22mm flush-mount illuminated push button from the Harmony XB4 series, featuring a chromium-plated metal housing, a red universal LED, 1 NO + 1 NC contacts, and a 24V AC/DC supply — with IP 69K and NEMA 4X ratings that make it a standard choice for washdown and harsh-environment control panels.

If you have already confirmed this is the right part, check current pricing and availability at LeadTime.ca — ships worldwide.

Who Should Buy the XB4BW34B5 — and Who Shouldn't

This button is the right choice if all of the following apply to your application:

  • Your control panel uses a 24V AC or 24V DC supply for indicator circuits — not 110V, 230V, or 440V
  • Your wiring diagram calls for 1 NO + 1 NC contact configuration for dual-state control logic
  • Your panel cutout is 22mm in diameter — not 30mm, which is a different Harmony series entirely
  • A flush-mount profile is specified — the button face sits level with the panel surface and does not protrude
  • Your environment requires IP 69K and NEMA 4X certification — washdown, high-pressure spray, outdoor, or chemical exposure
  • Red illumination is the correct panel color standard for your application

If your application requires an extended-profile button for heavy glove operation, a different voltage, a latching action rather than spring return, or a different contact configuration such as 2 NO, the XB4BW34B5 is not the right fit — see the variant comparison table below for the correct model numbers.

On this page:

What the XB4BW34B5 Actually Does in a Control System

The XB4BW34B5 serves two functions simultaneously: it is an input device that signals the control system when an operator presses it, and a visual indicator that confirms system state through its red LED. The 1 NO contact closes the enable path when the button is pressed; the 1 NC contact opens a supervision or safety loop at the same moment. The spring return mechanism automatically resets the button face after each press — there is no latching or sustained-action behavior. This is a momentary push-to-make device.

The flush profile means the button face sits level with the panel surface. This is deliberate design: in food processing or chemical environments, a protruding button is a contamination trap and an accidental-activation risk. The chromium-plated metal housing is corrosion resistant and meets the physical demands of daily cleaning cycles. The universal LED block is the feature that simplifies long-term maintenance — the same replacement module works across all Harmony XB4 color variants, meaning your maintenance team stocks one part number to cover red, green, yellow, and amber buttons across the entire installation.

The IP 69K certification means the XB4BW34B5 withstands high-pressure water spray — tested at up to 80 bar — without water ingress affecting electrical operation. Combined with NEMA 4X certification, this makes it one of the few standard push-button components rated for both stainless steel enclosure environments and high-pressure washdown without additional sealing modification. The UL 508 certification confirms compliance with industrial control panel safety standards for North American installations.

Typical System Architecture for the XB4BW34B5

The XB4BW34B5 sits at the human-machine interface layer of a control system — between the operator and the PLC or motor controller. Here is where it typically appears in the signal chain:

  • 24V DC or AC control power supply feeds the LED circuit through a series current-limiting resistor (typically 200–300 ohm) and supplies the contact circuit
  • The XB4BW34B5 is mounted in a 22mm panel cutout on the operator interface enclosure or machine control panel door
  • The NO contact is wired in series with the enable or start input of a PLC digital input card, soft starter, or VFD control terminal
  • The NC contact is wired in series with a safety supervision loop, fault detection circuit, or E-stop relay chain
  • The LED illumination confirms system state to the operator — lit during standby, extinguished when the machine transitions to run, or pulsed by PLC output logic depending on the application design

Industries and Applications Where This Button Is Specified

The XB4BW34B5 appears most frequently in food and beverage processing facilities where equipment must withstand daily high-pressure washdown cycles. Bottling lines, dairy processing equipment, baking and mixing machinery, and beverage filling stations all use IP 69K-rated components as a baseline specification — this button meets that requirement without requiring any additional waterproofing measures at installation.

Chemical and pharmaceutical manufacturing environments specify NEMA 4X-rated components for corrosive atmosphere resistance. The XB4BW34B5 carries that certification directly, making it a straightforward choice for chemical dosing panels, batch reactor controls, and process monitoring stations in facilities subject to chemical splash or vapor exposure.

Conveyor systems with operator stations commonly use the 1 NO + 1 NC configuration for start/stop logic — the NO contact enables the drive; the NC contact feeds back into the safety supervision relay. Water treatment plants, waste processing equipment, and outdoor enclosures represent additional deployment contexts where IP 69K and NEMA 4X ratings are mandatory rather than optional.

Application Typical Deployment
Bottling line conveyor start/stop Flush panel mount with NO contact to VFD enable input; LED confirms standby or active state
Dairy processing mode selection Manual/auto/test selector logic; IP 69K mandatory for daily sanitization washdown
Chemical dosing panel enable/disable NC contact feeds safety supervision relay; NEMA 4X for corrosive vapor environments
Operator station on washdown conveyor Flush mount in stainless steel enclosure; 24V DC supply from control panel PSU
Water treatment process control panel Outdoor enclosure; NEMA 4X and IP 69K protect against weather and cleaning cycles
Packaging machinery warm-up indicator LED illuminates during system warm-up via PLC output; button acts as manual override enable

Key Specifications for Purchase Decisions

Parameter XB4BW34B5 Notes
Contact Configuration 1 NO + 1 NC Normally Open closes on press; Normally Closed opens on press
Supply Voltage (LED) 24V AC or 24V DC Universal input; not compatible with 110V or 230V without separate PSU
Button Diameter 22mm Panel cutout: 22 ±0.5mm; 30mm Harmony buttons are a separate family
Profile Flush mount Button face sits level with panel surface; does not protrude
LED Color Red Universal LED block; same module design used across XB4 color family
Lens Type Plain Transparent polycarbonate; red illumination from LED block
IP Rating IP 69K High-pressure spray tested at up to 80 bar; suitable for washdown environments
NEMA Rating NEMA 4X Outdoor and stainless steel enclosure compatible; corrosive environment rated
UL Certification UL 508 Industrial control component standard; required for North American installations
Housing Material Chromium-plated metal Corrosion resistant; for extreme salt spray, consider stainless steel variant

Full technical specifications are available on the product page at LeadTime.ca.

XB4BW34B5 vs. Similar Harmony XB4 Models: Which One Do You Actually Need?

Model Color Profile Contact Config Supply Voltage Key Difference
XB4BW34B5 Red Flush 1 NO + 1 NC 24V AC/DC This model
XB4BW33B5 Green Flush 1 NO + 1 NC 24V AC/DC Color only; identical electrical and physical specs
XB4BW35B5 Yellow Flush 1 NO + 1 NC 24V AC/DC Color only; identical electrical and physical specs
XB4BW34 (extended variant) Red Extended 1 NO + 1 NC 24V AC/DC Button protrudes further from panel; preferred for heavy glove operation
XB4BW3 (double NO) Red Flush 2 NO 24V AC/DC Two normally open contacts; no NC contact — for dual-path enable logic

If your control logic requires two independent normally-open contacts for redundant start paths, or if your operators work in heavy gloves and need the extended profile for reliable actuation, the XB4BW34B5 is not the right variant — check the full Harmony XB4 range and current availability at LeadTime.ca to confirm the correct model for your system.

Expert Verdict: Is the XB4BW34B5 Worth Specifying?

The XB4BW34B5 earns its position on the approved parts list for food processing, beverage, and chemical control panels not through novelty but through consistency. The IP 69K and NEMA 4X dual certification removes the guesswork from washdown applications — you are not adapting a general-purpose button with additional sealing; you are installing a component that arrived rated for the environment. The universal LED block is a genuine operational advantage: a maintenance department managing a facility with 40 or 50 Harmony XB4 buttons in different colors can stock a single LED replacement module and service any button on the floor without a parts catalog lookup. The UL 508 certification and the chromium-plated metal housing give panel builders the compliance documentation they need for North American installations without additional testing.

Where the XB4BW34B5 has real limits: it is not the right choice for operators wearing heavy protective gloves who need a protruding button face for reliable actuation — the XB4BW34 extended variant serves that application. It is also not suitable for control systems running only 110V or 230V indicator supply rails without a dedicated 24V branch — adding a 24V power supply module to an existing cabinet is a solvable problem, but it is a real project cost that should be accounted for at specification stage. Buyers needing a latching or maintained-contact action rather than momentary spring return should specify a different contact type within the XB4 family. And for environments with extreme salt spray or chemical immersion demands beyond chromium plating capability, the stainless steel variant is the correct specification.

From a procurement standpoint, the Harmony XB4 series has a well-established supply chain through authorized Schneider Electric distributors globally. The XB4BW34B5 is not an exotic or long-lead component in most markets — it is a standard catalog item. That said, regional stock positions vary, and during high-demand periods or supply chain disruptions, in-stock availability at a given distributor is not guaranteed. Ordering through a specialist distributor that maintains verified Schneider-authorized inventory and can confirm stock status before you commit to a build schedule eliminates that uncertainty. Check current availability and pricing at LeadTime.ca — the product page shows live stock status and ships to facilities worldwide.

For volume pricing or to confirm lead time before committing to a build, contact the LeadTime.ca team directly — we ship worldwide.

What Engineers Need to Know Before Ordering the XB4BW34B5

Community discussion threads specifically targeting the XB4BW34B5 are sparse in publicly accessible industrial automation forums — which itself tells you something useful. This is a mature, well-understood component with a long deployment history in North American manufacturing. When a part generates few forum complaints, it typically means installers are not encountering unexpected surprises in the field. The challenges that do arise with the XB4BW34B5 are almost always pre-installation specification errors rather than product failures — and they cluster around the same few mistakes repeatedly.

The most consequential error is voltage mismatch on the LED supply. A control cabinet that runs 110V or 240V indicator rails is incompatible with the XB4BW34B5's 24V LED circuit. Applying the wrong voltage burns out the LED immediately, and the damage is not visible until the cabinet is energized. The second most common mistake is profile confusion: the flush mount of the XB4BW34B5 sits level with the panel surface, which is exactly correct for clean-room and washdown environments, but it is the wrong choice for operators in thick protective gloves who need a protruding button face. Ordering 50 flush buttons for a glove-intensive application is a costly rework that a single sample evaluation would have prevented. The third recurring issue is contact configuration mismatch — specifying 1 NO + 1 NC when the control diagram actually calls for two independent normally-open contacts. This is only discoverable by reading the wiring diagram before ordering, not after.

When community data is limited and the specification window is tight, consulting a specialist distributor who handles Harmony XB4 components regularly is the fastest way to confirm you have the right SKU. LeadTime.ca's team works with controls engineers and procurement specialists daily on exactly these kinds of pre-order verification questions — and can cross-reference compatible LED replacement blocks, alternative contact configurations, and regional lead times in a single conversation. Use the wrong-part checklist below as your pre-order verification tool, and contact LeadTime.ca if any item on that list raises a question you cannot resolve from the datasheet alone.

Wiring and Installation Overview

The following points cover the key requirements for installing the XB4BW34B5. Engineers needing full wiring diagrams or application-specific circuit integration should refer to Schneider Electric's official documentation and consult with their control system design engineer.

  • The panel cutout must be 22 ±0.5mm in diameter — measure with a caliper before insertion; an oversized cutout breaks the IP 69K seal
  • The NO contact is typically wired in series with the control enable input (VFD, soft-starter, or PLC digital input); the NC contact feeds the safety supervision or fault detection loop
  • The LED supply is 24V AC or 24V DC — include a series resistor (typically 200–300 ohm) on the positive leg for current limiting; confirm the exact value with your control system design engineer
  • Verify polarity before applying power — reverse polarity on the LED supply will block illumination; swap the positive and negative leads if the LED does not light after confirming voltage is present
  • After installation, verify 24V is present at the LED terminals using a multimeter before applying full panel power — this single step prevents the most common commissioning failure

Modular Assembly and Replacement Components

The XB4BW34B5 is designed as a modular complete assembly — it arrives fully assembled and ready to install, and individual components can be replaced in the field without tools beyond a coin or flat-head screwdriver. The following components are serviceable separately:

  • Universal LED block — replaceable red LED module with light pipe; the same physical LED block design is used across the entire Harmony XB4 color family, so one spare part number covers multiple button colors on the same installation
  • Housing and contact blocks — metal body with integrated spring-return mechanism and modular NO and NC contact blocks; field replaceable through authorized distributors
  • Lens retaining ring — screw-type fastener included with the assembly; hand-tightened only, no torque tools required; also included with replacement LED kits
  • Connector terminals — screw-type terminals for field wiring; accepts 16–22 AWG stranded or solid wire; integrated into the housing

Wrong-Part Prevention Checklist — Verify Before You Order

Run through each item below before placing your order. These checks prevent the most common and most costly XB4BW34B5 ordering errors:

  1. Confirm flush profile: XB4BW34B5 is flush; if panel edge installation requires extended profile, order XB4BW3 (extended) variant instead
  2. Verify 22mm size requirement: This is 22mm diameter; 30mm Harmony buttons are different models; check panel cutout dimension
  3. Confirm 1 NO + 1 NC contact configuration: If your control logic requires only NO or only NC contacts, or requires a different ratio, verify before ordering
  4. Check 24V AC/DC supply voltage: Confirm your control system power supply is 24V AC or 24V DC (not 110V, 230V, or 440V)
  5. Confirm red color is correct: Harmony XB4 available in red, green, yellow, amber, blue; verify panel color scheme and logic standards
  6. Verify IP 69 rating requirement: If environment is dry (indoor assembly line), IP 69 is overkill; if washdown or outdoor, IP 69 is mandatory
  7. Check universal LED block: Confirm plain lens (not magnified or different optical treatment) is acceptable for your visibility distance
  8. Confirm chromium-plated metal: If stainless steel (SS304) or brass is required for corrosion resistance in salt spray or chemical environments, specify variant

If any item on this checklist raises a question you cannot resolve from the datasheet, contact the LeadTime.ca team before ordering — we can confirm the correct variant and check current stock in one step.

Frequently Asked Questions

Can I use the XB4BW34B5 on a 110V AC control panel without adding a separate power supply?

No. The XB4BW34B5 LED circuit requires 24V AC or 24V DC. Connecting 110V or 230V directly to the LED terminals will cause immediate LED failure. If your control cabinet only has 110V or 230V supply rails, you must add a dedicated 24V power supply module before this button will operate correctly. This is the single most common commissioning error with this model — verify the supply voltage at the terminal block with a multimeter before applying full panel power.

What is the difference between the XB4BW34B5 and the XB4BW33B5?

The only difference between these two models is LED color. The XB4BW34B5 illuminates red; the XB4BW33B5 illuminates green. Both share the same 22mm flush profile, 1 NO + 1 NC contact configuration, 24V AC/DC supply, IP 69K rating, NEMA 4X certification, and universal LED block design. If you need to replace a green button in an existing Harmony XB4 installation, order the XB4BW33B5, not the XB4BW34B5.

Is the XB4BW34B5 flush profile compatible with gloved operation on a production line?

The flush profile is designed to sit level with the panel surface — this is ideal for washdown environments and prevents accidental activation, but it makes actuation harder for operators wearing thick protective gloves. If your application involves bulky gloves or low-visibility conditions, evaluate the XB4BW34 extended-profile variant instead, which protrudes further from the panel for easier tactile access. A one-sample evaluation before committing to a bulk order is strongly recommended for any glove-intensive application.

Can the LED block be replaced in the field, and does it require rewiring?

Yes. The XB4BW34B5 uses a modular universal LED block that can be replaced in the field by removing the lens retaining ring — no rewiring is required. The LED block lifts out and the replacement module inserts into the same housing with the same polarity orientation. The universal block design means the same replacement part services all Harmony XB4 color variants, which simplifies spare parts inventory for facilities with multiple button colors installed. Confirm the replacement part number with your distributor at the time of order.

What does the IP 69K rating mean in practice for washdown environments?

IP 69K is the highest water ingress protection rating in the IEC standard, covering high-pressure and high-temperature water spray. The XB4BW34B5 is tested to withstand high-pressure spray at up to 80 bar. This rating applies when the button is correctly installed in a 22mm panel cutout with the retaining nut properly secured — an improperly seated button will not maintain the seal. For food processing, dairy, and beverage facilities where CIP (clean-in-place) or high-pressure hose cleaning is used daily, IP 69K is a mandatory specification, and the XB4BW34B5 meets it without additional sealing at installation.

What is the correct panel cutout size and what happens if the hole is oversized?

The XB4BW34B5 requires a 22 ±0.5mm diameter panel cutout. If the hole is oversized beyond that tolerance, the button will not seat correctly against the panel surface, the IP 69K seal will be broken, and water ingress becomes likely in washdown environments. Always measure the cutout with a caliper before insertion. If the cutout is already oversized, the button cannot compensate — you will need to repair the panel or use a different mounting solution.

Why Order the XB4BW34B5 From LeadTime.ca

  • Schneider Electric-authorized inventory with verified certification compliance at receipt — not surplus stock of unknown vintage
  • Ships worldwide — no geographic restriction on order fulfillment; export documentation available
  • Volume pricing available for repeat orders and OEM builds — contact the team directly for current volume rates
  • Technical support for pre-order variant confirmation — the team can cross-reference contact configurations, LED block compatibility, and alternative models before you commit
  • Live stock status on the product page — no manual inquiry required to check availability

At-a-Glance Summary

  • Model: XB4BW34B5 — 22mm flush-mount illuminated push button, Harmony XB4 series
  • LED color: Red; universal LED block compatible with all Harmony XB4 color variants
  • Contact configuration: 1 NO + 1 NC — spring return momentary action
  • Supply voltage: 24V AC or 24V DC — not compatible with 110V or 230V without a separate 24V PSU
  • Panel cutout: 22 ±0.5mm — oversized cutout breaks the IP 69K seal
  • IP rating: IP 69K — high-pressure spray tested at up to 80 bar
  • NEMA rating: NEMA 4X — outdoor, stainless steel enclosure, and corrosive environment rated
  • Certification: UL 508 — industrial control panel component standard for North American installations
  • Housing: Chromium-plated metal — corrosion resistant; stainless steel variant available for salt spray or extreme chemical environments
  • Lens: Plain transparent polycarbonate — red illumination from LED block; no magnification or frosted treatment
  • Modular assembly: Field-serviceable LED block replacement without rewiring; lens retaining ring hand-tightened only
  • Primary applications: Food and beverage processing, chemical manufacturing, conveyor operator stations, water treatment panels, outdoor enclosures
