Schneider Electric XB4BS8444 — Emergency Stop Selection Guide

By Abdullah Zahid
15 min read

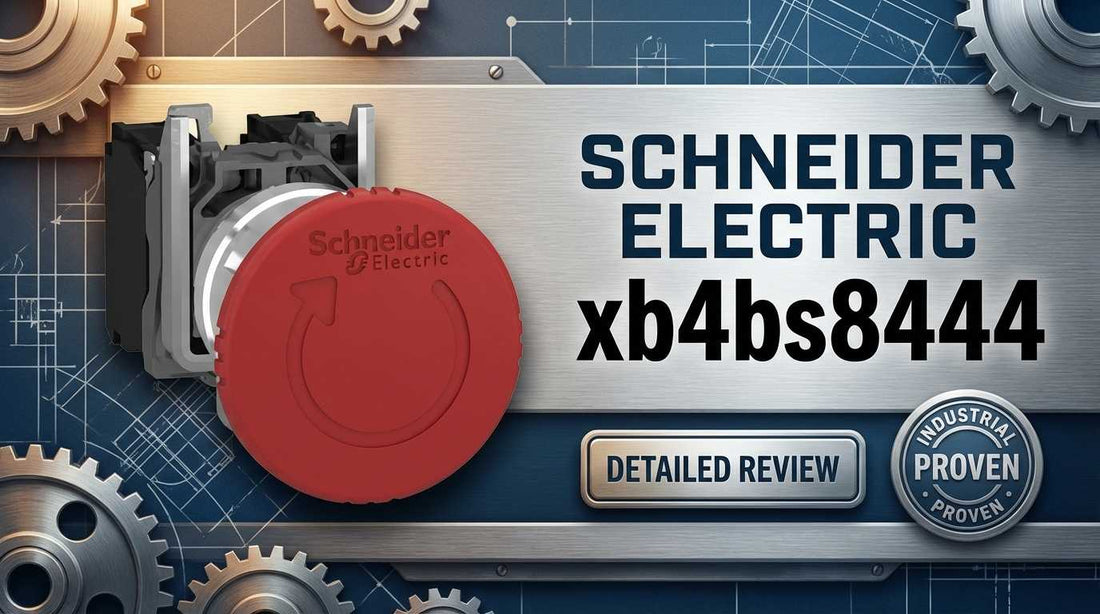

Schneider Electric XB4BS8444 red mushroom head 22mm emergency stop button Harmony XB4 series industrial control panel

Schneider Electric XB4BS8444 Emergency Stop Push Button, Harmony XB4, Metal, Red Mushroom 40mm, 22mm Trigger Latching Turn to Release, 2NC — Specifications, Pricing, and Selection Guide

Controls engineers and procurement specialists searching for the Schneider Electric XB4BS8444 are typically at the final verification stage — they have a 22mm panel cut-out, a fail-safe circuit requiring 2NC contacts, and a need to confirm voltage, current, and enclosure ratings before committing to the order. This device is a non-illuminated red mushroom-head emergency stop button from the Harmony XB4 modular control series, featuring trigger latching with turn-to-release operation, dual normally closed contacts, and a chromium-plated metal housing rated to NEMA 4/4X/13, IP66, IP67, IP69, IP69K, and IK06. If you are already running Harmony XB4 infrastructure, this unit is built to drop directly into your existing 22mm panel frames and control stations.

If you have already confirmed this is the right part, check current pricing and availability for the XB4BS8444 at LeadTime.ca — ships worldwide.

Who Should Buy the XB4BS8444 — and Who Should Not

The Schneider Electric XB4BS8444 is the correct choice when all of the following criteria are confirmed:

  • Your panel cut-out is exactly 22mm in diameter — not 16mm (XB2 family) and not 30mm or larger
  • Your fail-safe circuit requires 2NC (two normally closed) contacts that break simultaneously on actuation
  • Your control circuit is AC and your required current does not exceed 6A at 120V, 3A at 240V, 1.5A at 480V, or 1.2A at 600V
  • Your installation environment benefits from NEMA 4/4X/13 or IP66/IP67/IP69K washdown protection
  • Your operating environment falls within -40 to +70°C (-40 to +158°F)
  • You are using screw clamp terminal wiring and do not require crimp or DIN clip termination

If you need an illuminated mushroom head for power-on indication, the XB4BVM is the correct variant. If your available panel space is limited to a 16mm cut-out, the XB2 series is the appropriate choice. If your DC control circuit at 600V draws more than 0.1A, you will need a higher-rated variant such as XB4BA — the DC rating on the XB4BS8444 is extremely low and frequently surprises first-time specifiers.

On this page:

What the XB4BS8444 Does in a Control Circuit

The Schneider Electric XB4BS8444 is a trigger-latching emergency stop device from the Harmony XB4 modular control and signalling series. When the 40mm red mushroom head is pressed, both normally closed contacts open simultaneously, breaking the control circuit and commanding the downstream load — motor, solenoid, conveyor drive, or safety relay — to halt. The button remains physically latched in the depressed position until the operator rotates the head counterclockwise to release it. This deliberate latching action is by design: it prevents accidental restart and forces a conscious decision to re-energize the machine.

The slow-break contact operation is also intentional. Rather than snapping the circuit open instantaneously, slow-break contacts allow inductive loads such as solenoid coils and motor contactors to de-energize in a controlled manner, reducing arcing on the contact surfaces and supporting safer shutdown sequencing in machinery that requires a defined power-down order. The 2NC contact configuration is the standard fail-safe architecture: both contacts are closed at rest, so any wiring fault or contact failure that opens the circuit mirrors the emergency stop condition — the machine stops rather than runs uncontrolled.

The XB4BS8444 is UL 508 Listed and CSA certified, meeting EN/IEC 60947 industrial control standards and IEC 60204-1 machinery safety requirements. These certifications confirm the button is approved for emergency stop circuits in industrial machinery across North America and Europe — a non-negotiable requirement for machinery built to safety standards in manufacturing, food processing, and automation environments.

Typical System Architecture and Signal Chain

The XB4BS8444 sits in the operator interface layer of the control circuit, between the safety relay or PLC input module and the human operator on the machine panel or control station.

  • Safety PLC or safety relay module receives the NC contact signal from the XB4BS8444 and monitors for an open-circuit condition as the emergency stop trigger
  • Control circuit wiring (typically 24V DC or 120V AC control voltage) runs from the safety relay output through the XB4BS8444 NC contact pair to complete the enable loop
  • The XB4BS8444 is mounted in a 22mm panel cut-out on the operator control station, machine front panel, or Harmony XAPK control station frame
  • Downstream from the safety relay: motor drives, contactors, solenoid valves, or other actuators receive the stop command when the NC contacts open
  • For multi-zone or distributed emergency stop layouts, multiple XB4BS8444 units are wired in series through the control circuit, so any single unit pressed halts the entire controlled zone

Where the XB4BS8444 Gets Deployed

Injection molding machine builders use the XB4BS8444 as the primary operator-accessible emergency stop on control panels, where the 40mm mushroom head provides a high-visibility, ergonomic target for rapid actuation during a mold fault or operator hazard event. The metal housing and chromium-plated bezel withstand the oils and cleaning agents common in plastics manufacturing environments.

In food and beverage processing facilities, conveyor and packaging line operators benefit from the NEMA 4X and IP69K washdown ratings, which allow high-pressure hot-water cleaning without risk of water ingress to the contact chamber. This makes the XB4BS8444 a practical emergency stop choice for wet zones where stainless enclosures and washdown-rated components are standard.

Machine builders retrofitting legacy control panels to modern Harmony XB4 standards frequently specify the XB4BS8444 as a direct replacement for older 22mm emergency stop buttons. Because the Harmony XB4 series fits both standard 22mm panel holes and Harmony XAPK control station frames, the retrofit requires no panel modification — only rewiring to the screw clamp terminals.

Automation contractors building custom control enclosures for distributed assembly lines use multiple XB4BS8444 units wired in series to create zone-by-zone emergency stop coverage. The modular mounting and consistent terminal layout across the XB4 family standardize the wiring across all stop points on the line.

Application Typical Deployment
Injection molding machine Operator control panel front face, 22mm cut-out, washdown-rated enclosure
Food processing conveyor zone Zone emergency stop station, IP69K washdown environment, series-wired circuit
Legacy machine retrofit Direct 22mm hole replacement, Harmony XAPK frame, screw clamp rewire only
Distributed assembly line Multiple XB4BS8444 units in series, standardized across all operator stations
Custom automation enclosure Panel builder integration, NEMA 4X cabinet, 2NC fail-safe safety relay input
Outdoor or cold storage equipment -40°C rated installation, no thermal enclosure required within operating range

Electrical and Environmental Specifications for the XB4BS8444

Specification Value Notes
Contact Configuration 2NC (Normally Closed) Both contacts break simultaneously on actuation
Contact Current Rating AC 6A @ 120V; 3A @ 240V; 1.5A @ 480V; 1.2A @ 600V Verify your circuit voltage against required current
Contact Current Rating DC 0.1A @ 600V DC Very low DC rating — confirm DC operation requirements before ordering
Contact Break Type Slow-break Supports controlled shutdown of inductive loads
Switching Operation Trigger latching, turn to release Latches when pressed; rotate counterclockwise to release
Mounting Diameter 22mm cut-out Not compatible with 16mm XB2 or 30mm larger panels
Actuator 40mm diameter red mushroom head, non-illuminated Chromium-plated metal bezel and housing
Terminal Type Screw clamp Not crimp or DIN clip — confirm wiring method before ordering
Enclosure Rating NEMA 4/4X/13 / IP66/IP67/IP69/IP69K / IK06 Suitable for washdown, dust, and outdoor exposure
Operating Temperature -40 to +70°C (-40 to +158°F) Covers cold storage to outdoor equipment room mounting without derating

Full technical specifications are available on the product page at LeadTime.ca.

XB4BS8444 vs. Other Harmony XB4 Variants: Which One Do You Actually Need?

Model Key Difference Choose When
XB4BS8444 Non-illuminated, 2NC, trigger latching, 22mm, 40mm mushroom head Standard fail-safe circuit, existing Harmony XB4 platform, no indicator lamp needed
XB4BVM Illuminated variant — adds legend ring indicator showing system armed or powered Visual feedback required that system is energized; operator confirmation application
XB4BA Different contact configuration options; higher contact ratings available DC circuits above 0.1A; circuits requiring more than 1.2A at 600V AC; DPDT or 3-contact requirement
XB4BW Multiple contact configuration variants within same XB4 family Mixed contact type required (NC and NO combination) for specific logic circuit
XB2 Series (16mm) 16mm mounting diameter — physically incompatible with 22mm panels Compact panel with limited space; 16mm pre-drilled cut-out confirmed

If your control circuit at 480V or 600V AC requires more than 1.5A or 1.2A respectively, the XB4BS8444 is not rated for that load — check the current availability of the correct XB4 variant at LeadTime.ca and contact the team to confirm the right model before ordering.

Expert Verdict: Is This the Right Emergency Stop for Your System?

The Schneider Electric XB4BS8444 delivers exactly what a machine builder or automation integrator standardized on Harmony controls needs from an emergency stop device: a UL 508 Listed, CSA certified, NEMA 4X-rated latching mushroom-head button with 2NC slow-break contacts and a metal body that holds up in demanding industrial environments. The trigger latching mechanism is well-matched to emergency stop applications — the operator presses hard and the button stays engaged, preventing any possibility of accidental restart until a conscious turn-to-release action is taken. The operating temperature range of -40 to +70°C means this button functions reliably from cold storage facilities to outdoor enclosures without any thermal derating or special housing. For machine builders, automation contractors, and facilities managers already running Harmony XB4 components, the XB4BS8444 is a direct, standards-compliant drop-in that reduces SKU complexity and simplifies panel building across multiple machines.

The XB4BS8444 does have real limits that must be understood before ordering. The DC contact rating of 0.1A at 600V DC is surprisingly low and catches specifiers off guard when working with DC-heavy control architectures — for any DC circuit carrying more than 0.1A at that voltage, the XB4BA or a higher-rated variant is the correct choice. The unit is also non-illuminated; if your application requires a visual indicator confirming the system is armed or powered, you need the XB4BVM instead. And for OEMs or panel builders working with 16mm cut-outs, nothing in the 22mm XB4 family will fit — the XB2 series is the correct specification. Facilities with no existing Harmony ecosystem should also evaluate whether adopting the XB4 platform is the most cost-effective long-term decision, or whether a competing standard better fits their installed base.

From a procurement standpoint, the XB4BS8444 is a mature, stable product with distribution through authorized industrial suppliers worldwide. Lead times for standard units run from in-stock to approximately four weeks depending on distributor and season; custom variants with legend bezels or illumination add-ons can extend that to four to eight weeks, so ordering ahead of panel build schedules is advisable. Buying through a specialist distributor rather than a general marketplace reduces the risk of receiving incorrect variants — this is a product family with enough near-identical part numbers that a one-digit ordering error can mean the wrong contact configuration arrives on your dock. For confirmed availability and current lead time, check the XB4BS8444 product page at LeadTime.ca — we ship worldwide and can advise on variants before the order is placed.

For volume pricing or to confirm lead time before committing to a build, contact the LeadTime.ca team directly — we ship worldwide.

What Engineers Need to Know Before Ordering the XB4BS8444

Community data for the specific model XB4BS8444 is limited in public automation forums — this is not a component that generates widespread online debate, which itself reflects its maturity and straightforward application. However, the Harmony XB4 family as a whole has a consistent set of ordering pitfalls that surface repeatedly among controls engineers and technicians, and understanding them before the purchase is considerably less costly than discovering them during panel assembly.

The most frequently reported ordering mistake across the XB4 family is confusing the XB4BS8444 (non-illuminated) with the XB4BVM (illuminated variant). Buyers who expect a power-on indicator built into the mushroom head receive a plain red button with no light source — a functional button, but not the one they needed. The second recurring issue is contact polarity confusion: ordering a 2NO (normally open) variant for a fail-safe circuit that requires 2NC contacts. In a fail-safe architecture, the NC contacts are closed at rest and the safety relay monitors for an open-circuit as the stop condition; installing a 2NO button inverts this logic entirely and the machine will not respond correctly to an emergency stop press. A multimeter continuity check before wiring is the standard prevention measure — with the button at rest, you should read continuity across the NC contacts; press the button and continuity should break.

The DC rating surprise is the third pattern worth flagging. Engineers accustomed to AC-rated emergency stop buttons sometimes carry the same part number into a DC control circuit without checking the voltage-specific current table. At 600V DC, the XB4BS8444 is rated to only 0.1A — substantially lower than the AC ratings at comparable voltages. Any relay coil, pilot light, or control load requiring more than 0.1A at 600V DC will not operate reliably through this contact. Checking the full voltage-to-current matrix on the datasheet, not just the headline rating, is the habit that prevents this problem. For any of these selection questions, the LeadTime.ca team can confirm the correct variant before an order is placed — a ten-minute conversation that can prevent a two-week return cycle.

Wiring and Installation Overview for the XB4BS8444

  • Verify the panel cut-out is exactly 22mm diameter before starting installation; the XB4BS8444 will not seat correctly in a 16mm or 30mm hole, and forcing it will damage the housing or panel material
  • Insert the button assembly from the front of the panel and secure the retaining collar from the rear — hand-tighten only; over-torquing the collar can crack the mounting thread on the housing
  • The 2NC contact configuration uses four screw clamp terminals: terminals 1 and 2 form the first contact pair, terminals 3 and 4 form the second; both pairs open simultaneously when the mushroom head is pressed
  • Strip approximately 5mm of insulation from each control wire before inserting into the screw clamp terminal; confirm wire gauge is appropriate for the circuit current and tighten until the wire cannot be pulled free by hand
  • After wiring, perform a continuity test with power removed: confirm NC contacts are closed at rest and open when the button is pressed, then test the trigger-latch and turn-to-release function before energizing the panel

Full wiring diagrams and installation procedures are available in the Schneider Electric Harmony XB4 product documentation. Engineers requiring step-by-step commissioning guidance should refer to the manufacturer's instruction sheet supplied with the unit.

Wrong-Part Prevention Checklist Before Ordering the XB4BS8444

Before placing your order, verify every item on this checklist. A single mismatch on any point will result in a non-functional installation or a return that delays your build schedule.

  1. Confirm contact configuration is 2NC (2 normally closed) and not 2NO or mixed contact types
  2. Verify voltage rating: check if circuit is AC or DC, and confirm the button supports that (some models rated for AC only)
  3. Check current capacity at your specific voltage: label shows multi-voltage ratings; 6A @ 120V but only 1.2A @ 600V
  4. Measure panel cut-out size: XB4 requires exactly 22mm diameter; confusing with 16mm XB2 or 30mm larger units will cause install failure
  5. Confirm the latching operation style: XB4BS8444 is trigger latching with turn-to-release; non-latching variants exist
  6. Verify mounting terminal type: this model uses screw clamp; if you need DIN clip or crimp terminals, select a different variant
  7. Check IP/NEMA rating needed: this model is NEMA 4/4X/13/IP66/IP67/IP69/IP69K/IK06 which is suitable for washdown; verify your facility requirement matches
  8. Confirm no special legend or bezel required: this is red plain mushroom; if you need custom text or different color, order separately

If any item on this checklist raises a question, contact the LeadTime.ca team before ordering — we can confirm the correct variant and check current stock before you commit.

Frequently Asked Questions

Can the XB4BS8444 be used in a 600V DC control circuit?

Technically yes, but with a significant constraint: the DC contact rating is only 0.1A at 600V DC. This is far lower than the AC ratings and is insufficient for most relay coils, solenoid valves, or pilot lights that draw more current at that voltage. If your DC circuit load exceeds 0.1A at 600V DC, the XB4BS8444 is not the correct choice — select a variant with a higher DC contact rating such as XB4BA and verify the datasheet ratings against your specific load before ordering.

What is the difference between trigger latching and a momentary emergency stop?

A trigger-latching button like the XB4BS8444 stays physically depressed after it is pressed — it clicks and locks in the engaged position, opening the NC contacts and holding them open until the operator rotates the mushroom head counterclockwise to release. A momentary button returns to the rest position immediately when the operator releases hand pressure. Emergency stop buttons use the latching design so that the stop condition is maintained until a deliberate manual action is taken to release it, preventing accidental restart.

Is the XB4BS8444 a direct replacement for an existing 22mm Harmony XB4 emergency stop without rewiring the panel?

If the existing panel has a 22mm cut-out and the installed button is also from the Harmony XB4 family with 2NC contacts and screw clamp terminals, the XB4BS8444 is a direct physical and electrical replacement — no panel modification is required. If the previous button used a different contact configuration, a different terminal type, or a different mounting diameter, those differences must be resolved before installation. Always verify contact type and voltage/current ratings against your control schematic before treating any replacement as a straight swap.

What does slow-break operation mean and why does it matter for emergency stop circuits?

Slow-break contacts open at a controlled, relatively slower speed compared to snap-action contacts. This matters in machinery with inductive loads — motors, solenoid coils, and contactor coils generate a voltage spike when their circuit is suddenly interrupted. Slow-break operation allows the inductive energy to dissipate more gradually, reducing arcing on the contact surfaces and supporting a more controlled shutdown sequence. For machines where the order of power-down across multiple circuits matters for mechanical safety, slow-break emergency stop contacts are the correct specification.

Can the XB4BS8444 be mounted outdoors without an additional protective enclosure?

The IP67 and IP69K ratings mean the button itself is rated for water jet exposure and high-pressure washdown, making it suitable for outdoor and wet environment mounting. However, best practice is to mount the button within a weather-resistant enclosure that protects the surrounding wiring, terminals, and panel structure from direct precipitation and environmental accumulation over time. The button's ingress protection rating covers the actuator and contact chamber, not the wiring connections behind the panel.

How do I confirm the XB4BS8444 contacts are wired correctly before energizing the panel?

Use a multimeter set to continuity mode. With all power removed, place one probe on terminal 1 and the other on terminal 2. With the button in the rest (non-pressed) position, the meter should confirm continuity — the NC contact is closed. Press the mushroom head; continuity should break, confirming the contact opens on actuation. Repeat the test on terminals 3 and 4. Then test the latch: press the button and release hand pressure — it should remain depressed. Rotate the head counterclockwise and confirm it pops back to the rest position and continuity is restored on both contact pairs.

Why Order the XB4BS8444 from LeadTime.ca

  • LeadTime.ca ships the Schneider Electric XB4BS8444 and Harmony XB4 accessories worldwide — not limited to any single country or region
  • Specialist distributor focus means our team can confirm variant selection (XB4BS8444 vs. XB4BVM vs. XB4BA) before the order ships, reducing the risk of receiving the wrong contact configuration or terminal type
  • Real-time stock visibility and direct access to current lead time information — critical when production schedules cannot absorb a two-to-four-week sourcing delay
  • Volume pricing available for multi-unit orders across machine fleets or assembly line deployments — contact for current pricing tiers

At-a-Glance Summary

  • Official product: Emergency stop push button, Harmony XB4, metal, red mushroom 40mm, 22mm trigger latching turn to release, 2NC
  • Contact configuration: 2NC (two normally closed), both open simultaneously on actuation
  • AC contact ratings: 6A at 120V, 3A at 240V, 1.5A at 480V, 1.2A at 600V
  • DC contact rating: 0.1A at 600V DC — very low; verify before specifying for DC circuits
  • Contact break type: Slow-break — supports controlled shutdown of inductive loads
  • Mounting: 22mm panel cut-out only — not compatible with 16mm XB2 or 30mm larger formats
  • Actuator: 40mm diameter red mushroom head, non-illuminated, chromium-plated metal housing
  • Terminal type: Screw clamp — not crimp or DIN clip
  • Enclosure rating: NEMA 4/4X/13, IP66/IP67/IP69/IP69K/IK06
  • Operating temperature: -40 to +70°C (-40 to +158°F)
  • Certifications: UL 508 Listed, CSA certified, EN/IEC 60947, IEC 60204-1, RoHS compliant
  • Primary alternative if illumination needed: XB4BVM; if DC rating insufficient: XB4BA; if 16mm panel: XB2 series
