Schneider Electric XB4BVB1 — 24V Pilot Light Specs & Buying Guide

By Abdullah Zahid
15 min read

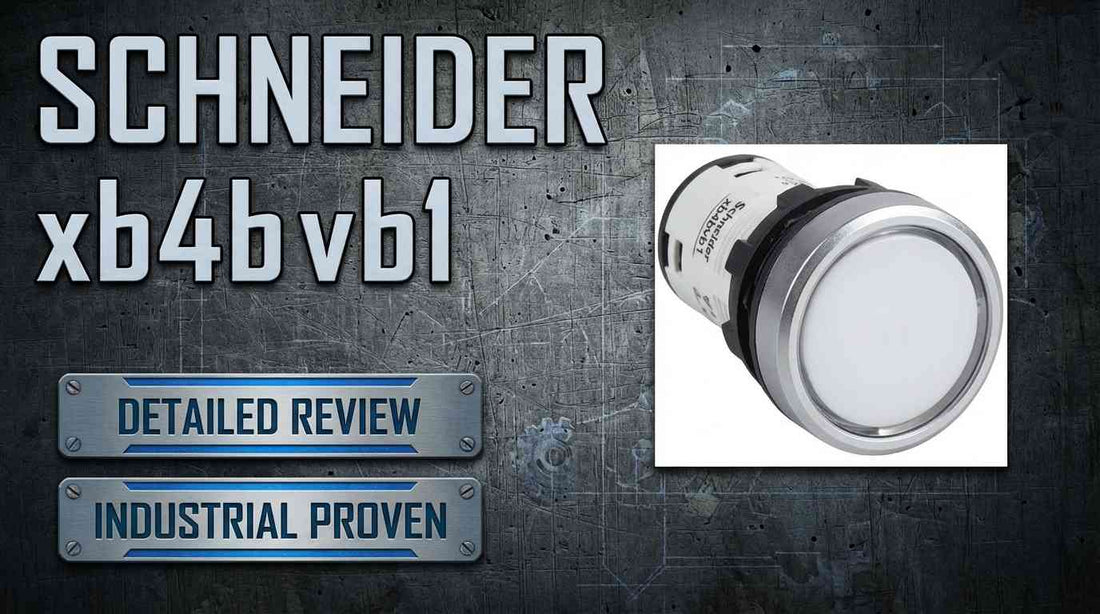

Schneider Electric XB4BVB1 white 22mm metal bezel pilot light for 24V industrial control panels

Schneider Electric XB4BVB1 Pilot Light, Harmony XB4, Metal, White, 22mm, Universal LED, Plain Lens, 24V AC/DC — Specifications, Price, and Selection Guide

If you have a model number in hand and a 24V control panel to populate, you are already most of the way through the decision. The Schneider Electric XB4BVB1 is a 22mm illuminated pilot light from the Harmony XB4 family — white LED, chromium-plated metal bezel, plain flat lens, screw clamp terminals, and a universal 24 VAC/VDC supply that covers the majority of modern control circuit architectures. With a rated current of 18 mA and a 100,000-hour average LED life, it is the configuration that control panel builders reach for first when specifying status indicators alongside XB4 push buttons and selector switches.

If you have already confirmed this is the right part, check current pricing and availability at LeadTime.ca — ships worldwide.

Who Should Buy the XB4BVB1 — and Who Should Specify a Different Variant

This pilot light is the right choice when all of the following conditions apply to your application:

  • Your control circuit operates at exactly 24 VAC or 24 VDC — not 12V, 48V, or 110V
  • You need a 22mm bezel diameter to fit standard panel cutouts — not 30mm or 16mm
  • A plain (flat) lens with direct forward viewing is acceptable for your operator panel layout
  • A chromium-plated metal bezel is specified — not a plastic alternative for cost reduction
  • NEMA 4/4X/13 environmental protection is required (wet, outdoor, or corrosive locations)
  • UL (E164353), CSA (LR44087), and CE certifications are needed for regulatory acceptance

If your panel requires a wider viewing angle, specify the XB4BVB31 with its domed lens instead. If plastic bezel construction is acceptable to reduce material cost, the XB4BVB4 is the correct alternative. For non-24V supply voltages, a different Harmony model rated for your actual circuit voltage is required.

On this page:

What the XB4BVB1 Actually Does in a Control Panel

The XB4BVB1 is a panel-mount status indicator — its job is to communicate equipment state to an operator at a glance, without requiring interaction with a display screen or monitoring system. It is wired directly to a PLC digital output, relay contact, or control circuit, and it illuminates when that circuit is energized. The white LED behind the plain flat lens signals a specific state — typically normal operation, power present, or cycle ready — depending on how the integrator assigns it within the panel's color-coding convention.

At 18 mA rated current on a 24 VAC/VDC supply, the XB4BVB1 draws negligible power. Its chromium-plated metal bezel provides the mechanical durability and corrosion resistance that NEMA 4/4X/13 and IP67 ratings demand. The screw clamp terminals accept 0.5 to 1.5 mm² wire, which covers the standard wire gauges used in control panel wiring. The bezel mounts through a standard 22mm panel cutout from the front face, and the mounting nut is supplied with the unit — no adapters or special tooling required.

What makes the XB4BVB1 particularly useful for panel builders is not the individual component but where it sits in the Harmony XB4 family. Push buttons, selector switches, and emergency stops from the same XB4 lineup share the same 22mm mounting standard and screw clamp terminal convention, which means a single technician familiar with any one XB4 component can install, wire, and troubleshoot every device on the panel without re-training or consulting separate documentation for each part number.

Typical System Architecture: Where the XB4BVB1 Sits in the Signal Chain

The XB4BVB1 sits at the output end of a control circuit — it is the final device in the chain that makes machine state visible to human operators. Here is the typical component path from controller to indicator:

  • PLC or relay controller issues a 24V digital output signal on a discrete output channel when a condition is met (motor running, pump active, process cycle complete)
  • The 24V signal travels through terminal blocks and control panel wiring to the XB4BVB1 screw clamp terminals
  • The XB4BVB1 LED illuminates while the 24V supply is present at its terminals
  • The chromium-plated metal bezel and plain lens transmit the white light through the panel face to the operator
  • Operator receives visual confirmation of equipment status without interacting with software, HMI, or monitoring systems

Industries and Applications Where This Pilot Light Is Specified

In motor control centers, the XB4BVB1 is one of the most common status indicators used for running, idle, and fault annunciation. A typical motor control center door carries several pilot lights in a column — green for running, red for fault, white for power present — and the XB4BVB1 fills the white position in that arrangement. Its NEMA 4/4X/13 rating means it remains reliable even when the MCC door faces wash-down spray or condensation in a plant environment.

Pump stations and water treatment facilities represent another high-frequency application. Operators walking a pump gallery need immediate visual confirmation that each unit is active — the XB4BVB1 provides that without requiring a control room consultation. Its IP67 ingress protection rating covers outdoor panel installations in these environments, where overnight condensation and periodic spray from adjacent piping are routine.

In food and beverage production, batch process state indication is a common role. A PLC output signals each stage of a batch cycle — fill, mix, heat, discharge — and a corresponding pilot light confirms that the PLC has acknowledged and activated each stage. The XB4BVB1's operating temperature range of -40 to +70°C covers both the cold-chain areas and the heated processing zones found in the same facility.

HVAC and building automation panels frequently use this model as a unit-running indicator on air handling units, chillers, and boiler controls. Commercial building panels rarely see the chemical or moisture exposure of heavy industrial environments, but they do require UL and CSA certification for code compliance, which the XB4BVB1 provides through UL File E164353 and CSA File LR44087.

Application Typical Deployment
Motor control center status indication Running/idle/fault display on MCC door, wired to PLC discrete output, paired with XB4 push buttons
Pump station operation confirmation Panel-mount indicator on outdoor or wet-location enclosure, 24VDC supply from pump controller
Batch process state signal Stage-complete indicator wired to PLC output, multi-light column on process control panel
HVAC unit status annunciation Unit-running indicator on air handler or chiller control panel, UL/CSA compliance required
Compressor status display Multi-panel scan indicator across compressor bank, 24V AC supply from compressor control circuit
Conveyor and machine line status Cycle-ready or power-on indicator on machine face panel, integrated with XB4 selector switch

Purchase-Decision Specifications and Compliance Data

Parameter Value Notes
Supply Voltage 24 VAC/VDC Universal AC or DC; other voltages require a different model
Rated Current 18 mA At nominal 24V; relevant for panel power budget calculations
LED Color White Other colors (red, green, amber) are separate part numbers
Lens Type Plain (flat) Narrower forward viewing angle; domed lens available as XB4BVB31
Bezel Diameter 22 mm Standard industrial cutout; not compatible with 30mm or 16mm panels
Bezel Material Chromium-plated metal Corrosion-resistant; plastic alternative available as XB4BVB4
Connection Type Screw clamp terminals Accepts 0.5–1.5 mm² wire; no tools required for field wiring
Protection Rating NEMA 4/4X/13 / IP67 Water-tight, dust-tight, corrosion-resistant; suitable for wash-down
Operating Temperature -40 to +70°C Covers outdoor, cold-chain, and heated process environments
Average LED Life 100,000 hours Equivalent to approximately 11 years continuous; 10x incandescent life

Full technical specifications are available on the product page at LeadTime.ca.

XB4BVB1 vs. XB4BVB31 vs. XB4BVB4: Which Variant Do You Actually Need?

Feature XB4BVB1 XB4BVB31 (Domed) XB4BVB4 (Plastic) Siemens 3SU1301
Bezel Size 22 mm 22 mm 22 mm 22 mm
Supply Voltage 24V AC/DC 24V AC/DC 24V AC/DC 24V AC/DC
Average LED Life 100,000 hours 100,000 hours ~100,000 hours ~100,000 hours
Bezel Material Metal Metal Plastic Metal
Lens Type Plain Domed Domed Domed
NEMA Rating 4/4X/13 4/4X/13 4/4X/13 4/4X/13
Typical Lead Time 2–3 weeks 2–3 weeks 1–2 weeks 2–4 weeks
Relative Cost Base +5–8% -10–15% +15–25%
Harmony XB4 Compatibility Full Full Full No

If your operator panel requires visibility from the side or at a significant vertical angle — common in high-traffic walkway panels and overhead-mounted controls — the XB4BVB31's domed lens is the more appropriate specification. The material cost difference is modest at 5–8% above the XB4BVB1 base price. If you are replacing legacy incandescent indicators in a cost-sensitive MRO context and metal construction is not a hard requirement, the XB4BVB4 plastic bezel variant typically arrives one week faster and at a lower unit cost. The Siemens 3SU1301 covers equivalent electrical and environmental performance but does not integrate into the Harmony XB4 modular ecosystem — relevant if your panel already mixes XB4 push buttons and selector switches. Check current availability for all variants at LeadTime.ca.

Expert Verdict: Is the XB4BVB1 the Right Part for Your Build?

The XB4BVB1 earns its place as the default specification for control panel builders who are already working within the Harmony XB4 ecosystem. Its 100,000-hour LED life rating — equivalent to approximately 11 years of continuous operation or roughly 22 years at 50% duty cycle — meaningfully reduces the maintenance labor burden on distributed equipment across large facilities. The NEMA 4/4X/13 and IP67 ratings are not marketing classifications; they are confirmed by UL File E164353 and CSA File LR44087, which matters when a facility audit or insurance inspection requires documentation. For OEM panel builders standardizing on a single 22mm product family across push buttons, selector switches, and indicators, the Harmony compatibility alone removes the need for adapter plates and separate spare parts inventories. The buyer profile this model fits most naturally is a controls engineer or panel builder who knows their supply voltage is 24V, has 22mm cutouts on the panel design, and needs multi-regional certification for a product destined for North American or European deployment.

The XB4BVB1 does have real limits that are worth stating plainly. It is the wrong choice for any control circuit not operating at exactly 24 VAC or 24 VDC — ordering for a 48V, 110V, or 220V system will produce a non-functioning or damaged unit. For operator panels mounted overhead, at angles, or in high-traffic walkway areas where operators are rarely directly in front of the panel, the plain flat lens of the XB4BVB1 delivers a narrower viewing angle than the situation demands — the XB4BVB31 with its domed lens is the correct specification in that scenario. Budget-constrained projects where plastic construction is acceptable should evaluate the XB4BVB4 first, which arrives faster and at a lower material cost. Applications requiring integrated audible alarm output need a different Harmony variant entirely. And if your facility has already standardized on a competing platform for push buttons and control devices, the cross-brand mixing adds support and spare parts complexity that may outweigh the product's individual merits.

From a procurement standpoint, the XB4BVB1 is a well-established component with consistent 2–3 week lead times through authorized distributors and a long supply chain history that reduces obsolescence risk. Its UL, CSA, and CE certifications in a single SKU simplify the sourcing process for organizations managing builds across multiple regions — one part number covers North American and European market requirements without design modification. Ordering through a specialist distributor rather than a generic channel ensures that variant selection questions — lens type, bezel color, voltage, terminal type — get resolved before the part ships rather than after the build deadline has passed. View current pricing and lead time for the XB4BVB1 at LeadTime.ca.

For volume pricing or to confirm lead time before committing to a build, contact the LeadTime.ca team directly — we ship worldwide.

What Engineers Need to Know Before Ordering the XB4BVB1

The XB4BVB1 rarely generates public forum discussion — not because it is obscure, but because it is mature and stable. A product that works consistently in standard applications, ships from established distributor stock, and carries multi-regional certifications does not accumulate troubleshooting threads. What it does accumulate, however, is a specific pattern of ordering mistakes that appear at the point of specification, not after installation. These mistakes are preventable with a single pre-order verification step, and they account for virtually all of the project delays and return orders associated with this model.

The most consequential mistake is voltage mismatch. The XB4BVB1 is rated for exactly 24 VAC or 24 VDC. Technicians working from memory or assuming that a Harmony pilot light is interchangeable across voltage variants will occasionally order this model for a 48V or 110V legacy circuit. The unit will not illuminate correctly — or will fail immediately after energization — and the correct model must be re-ordered while the project timeline slides. The fix is a 30-second check of the PLC output module datasheet or the power supply rating before placing the order.

The second pattern involves color coding. The XB4BVB1 is white — a color that many panel specifications assign to normal operation or power-present status. Technicians who treat Harmony pilot lights as interchangeable by part number prefix rather than full part number have inadvertently installed white indicators in alarm positions that should have been red, creating both a compliance issue and a shop-floor safety concern. Color-code assignments should be documented in the control panel specification before any component is ordered, and part numbers should be verified against that document line by line. When community feedback is sparse and forum guidance is unavailable for a specific model, this is exactly the type of verification where a distributor with technical depth in the Harmony XB4 family adds direct, practical value — confirming that the full part number on the order matches the functional and visual requirements of the application before the order ships.

Wiring and Panel Mounting: Installation Overview

  • Prepare a 22mm panel cutout and deburr the edges before inserting the bezel from the panel front face; the chromium-plated housing slides into the hole and is secured by the supplied mounting nut tightened from the rear
  • Wire gauge must be 0.5–1.5 mm²; strip insulation and seat wires into the screw clamp terminals — for DC circuits, connect the positive supply to terminal 1 and negative to terminal 2; for AC supply, polarity is not critical
  • Before panel closure, energize the circuit and verify LED illumination; use a multimeter to measure 24V at the terminals if the LED does not illuminate — a zero-volt reading indicates an upstream supply or circuit protection issue, not a faulty indicator
  • Route control wiring away from high-current power conductors inside the enclosure to minimize EMI coupling that can cause intermittent illumination
  • For outdoor or wash-down applications, confirm the bezel mounting nut is fully seated and that no visible gap exists between the bezel flange and the panel surface; the IP67 seal depends on correct mechanical seating, not on additional gaskets or sealant

Engineers requiring full step-by-step wiring diagrams and installation procedures should refer to Schneider Electric's official Harmony XB4 installation documentation.

Wrong-Part Prevention Checklist Before You Order

Run through every item on this checklist before placing your order. Each point corresponds to a documented ordering mistake with real project cost consequences:

  1. Confirm supply voltage is exactly 24 VAC/VDC; other voltages (12V, 48V, 110V) require different models
  2. Verify lens type: XB4BVB1 has plain (flat) lens; if domed lens needed, specify variant code ending in "4" or "5"
  3. Check bezel color requirement: XB4BVB1 is white; other colors (red, green, blue, amber) use different part numbers
  4. Confirm metal bezel is acceptable; plastic bezel alternatives exist for cost-sensitive applications
  5. Validate NEMA/IP rating matches application environment (this model is NEMA 4/4X/13)
  6. Ensure connection type is screw clamp; some systems require fast-disconnect or solder terminals
  7. Confirm size: 22mm diameter; do not confuse with 30mm Harmony models

If any item on this checklist raises a question before you order, contact the LeadTime.ca team — we can confirm the correct part number for your specific application and verify availability before your project deadline.

Frequently Asked Questions

Can the XB4BVB1 be used on a 24V AC supply from a control transformer, or is it DC only?

The XB4BVB1 is rated for universal 24 VAC/VDC operation, meaning it functions correctly on both AC and DC supplies at 24V nominal. A control transformer output feeding a 24V AC circuit is a fully supported configuration. Terminal polarity is not critical for AC wiring, though DC connections should observe the positive-to-terminal-1 convention described in the installation documentation.

Is the XB4BVB1 a direct drop-in replacement for an existing incandescent 22mm pilot light in an older panel?

Physical fitment depends on whether the existing panel was built with a 22mm cutout — if so, the XB4BVB1 mounts directly without modification. The electrical compatibility depends on the existing circuit voltage: if the legacy circuit runs at 24V, the swap is straightforward. If the original panel ran at 110V or another voltage, the XB4BVB1 is not a direct replacement and a voltage-appropriate variant must be sourced instead. Screw clamp terminal types are standard, so wiring does not typically require rework for same-voltage replacements.

What does the 100,000-hour LED life figure mean in terms of actual maintenance intervals?

At 100,000 hours, continuous operation equates to approximately 11 years before LED replacement would be expected at nominal conditions. For a typical industrial duty cycle of 12 to 16 hours per day, five days per week, that figure extends considerably further. This life expectancy is approximately 10 times longer than a traditional incandescent indicator, which has a meaningful impact on maintenance labor costs across large panels with many indicators or distributed equipment spread across a facility.

What certifications does the XB4BVB1 carry, and are they sufficient for Canadian and US project requirements?

The XB4BVB1 carries UL listing under File Number E164353 (CCN NKCR) and CSA certification under File Number LR44087 Class 321103, which covers both the US and Canadian markets. It also carries CE marking for European distribution. This single SKU satisfies the certification requirements for North American code compliance and Canadian market sales without requiring a separate regional variant. Confirm with your inspector or certifying body if project-specific documentation is required beyond the standard UL and CSA file references.

How do I identify a wiring fault versus a failed LED when the indicator does not illuminate?

Use a multimeter to measure voltage directly at the XB4BVB1 screw clamp terminals while the control circuit is energized. If the reading is 24V and the LED is still dark, the indicator itself is the fault — swap with a known-good unit to confirm before ordering a replacement. If the terminal reading is 0V or significantly below 24V, the fault is upstream in the control circuit (power supply, PLC output, circuit protection device, or wiring). Multiple dark indicators on the same panel simultaneously almost always point to an upstream supply or control logic fault rather than multiple simultaneous LED failures.

What wire gauge is required for the screw clamp terminals?

The XB4BVB1 screw clamp terminals accept 0.5 to 1.5 mm² wire. This covers the standard control panel wire gauges used in 24V indicator circuits. Wires outside this range — either too fine or too heavy — will not seat correctly in the screw clamp and risk intermittent contact. Use appropriate crimp ferrules on stranded wire ends for best terminal contact and long-term connection reliability.

Why Order the XB4BVB1 Through LeadTime.ca

  • Ships worldwide — North America, Europe, and beyond, with cross-border documentation support
  • Technical depth in the Harmony XB4 family — variant selection assistance before the order ships, not after the wrong part arrives
  • Volume pricing available for panel builders and OEM facilities — contact for current account pricing
  • Hard-to-find stock sourced from regional and international warehouses when local distributors are backordered
  • Expedited sourcing options for urgent MRO replacements and project deadline situations

XB4BVB1 At-a-Glance Summary

  • Supply voltage: 24 VAC/VDC universal — not compatible with 12V, 48V, or 110V circuits
  • Rated current: 18 mA at nominal 24V supply
  • LED color: White, plain (flat) lens — domed lens and other colors are separate Harmony XB4 part numbers
  • Bezel: 22mm chromium-plated metal — plastic bezel alternative available as XB4BVB4
  • Connection: Screw clamp terminals accepting 0.5–1.5 mm² wire
  • Protection: NEMA 4/4X/13 / IP67 — confirmed for wash-down, outdoor, and corrosive environments
  • Operating temperature: -40 to +70°C
  • Average LED life: 100,000 hours — approximately 11 years continuous at nominal conditions
  • Certifications: UL File E164353, CSA File LR44087, CE — single SKU covers North American and European markets
  • Harmony XB4 family compatibility: Full — shares 22mm standard with XB4 push buttons and control modules
  • Typical distributor lead time: 2–3 weeks for standard orders
