Schneider XB4BS8442 Emergency Stop Button — Specs & Buying Guide

By Abdullah Zahid
14 min read

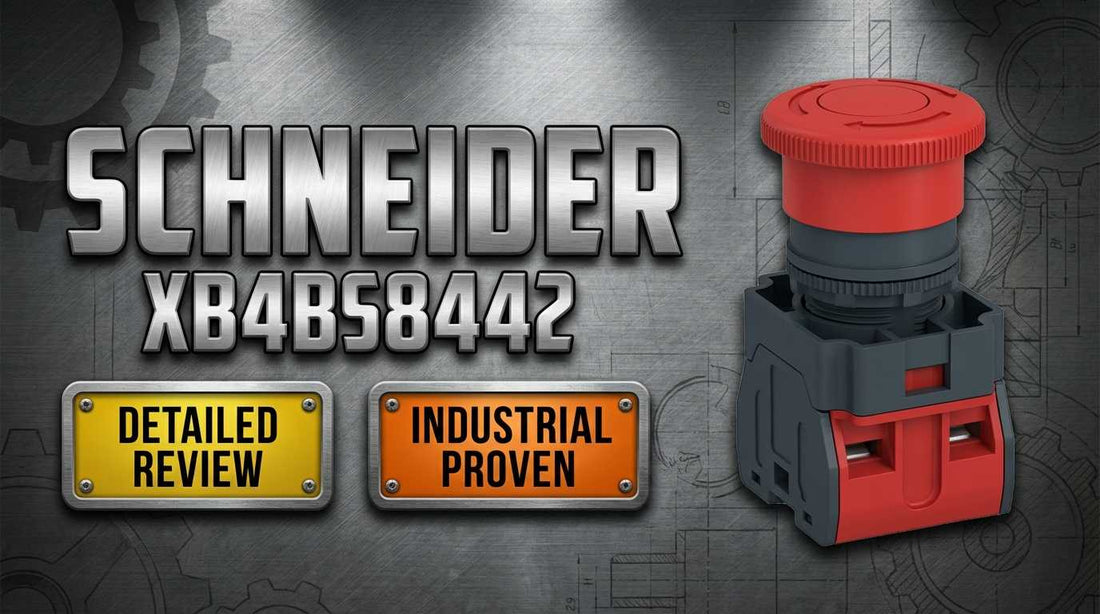

Schneider Electric XB4BS8442 red 40mm mushroom emergency stop push button with 22mm panel mount for industrial control panels

Schneider Electric XB4BS8442 Emergency Switching Off Push Button, Harmony XB4, Metal, Red Mushroom 40mm, 22mm, Trigger Latching Turn to Release, 1NC — Specs, Pricing & Selection Guide

If you have already located the Schneider Electric XB4BS8442 on a wiring diagram or parts requisition and need to validate the spec before ordering, this guide covers every purchase-critical detail: contact configuration, voltage limits, current rating, mounting requirements, and when to choose a different variant. The XB4BS8442 is a panel-mount emergency stop push button in the Harmony XB4 family, rated for 600V AC, featuring a 40mm red mushroom actuator with trigger latching turn-to-release reset, a 1NC slow-break contact, and IP66 environmental protection — all housed in a chromium-plated metal bezel that fits a standard 22mm panel cutout.

If you have already confirmed this is the right part, check current pricing and availability at LeadTime.ca — ships worldwide.

Who Should Buy the XB4BS8442 — and Who Shouldn't

The Schneider Electric XB4BS8442 is the correct choice when all of the following criteria apply to your application:

  • Your safety circuit requires a 1NC (normally closed) contact configuration — confirm this against your safety relay or motor starter pilot input wiring diagram before ordering
  • Your control system operates at 600V AC or less — this is a hard electrical limit and cannot be exceeded
  • Your panel cutout is exactly 22mm diameter (tolerance Ø22.3 ±0.4mm) — no adapter exists for 30mm or 40mm cutouts
  • Your application circuit current through the button contact does not exceed 1.2A — pilot relay or contactor must handle main motor loads
  • Your installation environment requires IP66 dust and water jet protection without a secondary enclosure
  • You need a component with 300,000-cycle mechanical durability and IEC 60947-1 certification for a production machinery application

If your safety circuit requires a normally open (NO) contact, the XB4BA8411 is the correct variant. If your control system operates above 600V AC, you need a different model entirely. If you require visual status indication on the button, look at the XB4BVM illuminated series.

On this page:

What the XB4BS8442 Actually Does in a Safety Circuit

The XB4BS8442 is not a general-purpose pushbutton. It is a safety-critical emergency switching off device — one that interrupts a normally-closed pilot control circuit the instant an operator applies force to the 40mm red mushroom actuator. The trigger latching mechanism locks the button in the depressed position on activation, meaning power to the downstream device — typically a motor starter coil, solenoid, or safety relay — stays interrupted until a deliberate turn-to-release reset action is performed. This is intentional and required by industrial safety logic: a machine that stopped due to an emergency must not restart automatically or without a human choosing to reset it.

The 1NC (normally closed) contact operates in its closed state during normal machine operation. When pressed, it opens that circuit. This is opposite to the NO (normally open) contact found in variants like the XB4BA8411, where pressing the button closes the circuit. Getting this distinction wrong results in a button that appears to function but provides no safety interruption — the single most dangerous ordering mistake in emergency stop specification. The XB4BS8442's 600V AC rating covers the vast majority of industrial control circuit voltages in North America, and its IP66 certification confirms dust-tight and water-jet resistant sealing per IEC 60529, validated at 7,000,000 Pa at 55°C from 0.1m distance per the official Schneider Electric datasheet.

The chromium-plated metal bezel and zamak fixing collar are not aesthetic choices — they reflect the Harmony XB4 family's positioning as a component for factory-floor installations where vibration, grime, and incidental liquid contact are routine. The 40mm red mushroom actuator face meets ISO 13850 emergency stop visual conventions, ensuring trained operators and safety auditors immediately recognize the control function.

Where This Button Sits in a Typical Control System

The XB4BS8442 sits in the pilot control circuit layer — between the control power supply and the coil of a motor starter or safety relay. It is never wired directly to main motor load terminals. A typical signal chain for this component looks like this:

  • Control power supply (120V AC or 600V AC maximum) feeds the pilot control circuit
  • XB4BS8442 1NC contact is wired in series in this pilot circuit — circuit is complete during normal operation
  • Pressing the button opens the NC contact, de-energizing the downstream motor starter coil or safety relay
  • Motor starter opens its main contacts, cutting power to the motor or actuator
  • Turn-to-release reset on the XB4BS8442 restores the NC contact closure, allowing the machine to be restarted per standard restart procedure

Typical Applications and Industries

The XB4BS8442 is specified most frequently in manufacturing automation where a panel-mounted, clearly identifiable emergency stop is required at a fixed operator station. Motor starter emergency shutdown on production line assembly machines is the most common deployment, with the button wired into the contactor coil circuit so activation immediately drops the load. Solenoid interlock shutdown on hydraulic and pneumatic press systems is another high-frequency use case, where the turn-to-release reset requirement prevents casual or accidental restart after a press guard opens.

In food and beverage processing, the IP66 rating makes this button usable on equipment that undergoes regular washdown cycles — the sealed mushroom head and chromium-plated bezel maintain ingress protection without secondary housing. Chemical and pharmaceutical plants running at 600V AC or below benefit from the same protection. Automotive assembly line operator stations and HVAC system main control panels represent secondary deployment environments where standardization on Schneider Harmony components simplifies spare parts inventory across the facility.

Application Typical Deployment
Motor starter emergency shutdown Wired in series with contactor coil in production line assembly machine panel
Hydraulic and pneumatic press interlock Pilot circuit shutdown with turn-to-release mandatory restart sequence
Food processing washdown environments IP66 sealed installation on equipment subject to regular water jet cleaning
Conveyor safety shutdown Operator-accessible panel stop at fixed station on material handling system
Automotive assembly line operator station Standardized Harmony XB4 emergency stop at line-side control panel
Maintenance access shutoff on large machines Lockout-adjacent shutdown button requiring deliberate manual reset before restart

Purchase-Critical Specifications

Parameter Value Notes
Contact Configuration 1NC (Normally Closed) Slow-break switching action; circuit opens on button press
Nominal AC Voltage 600V AC Hard maximum; not rated for 690V or 1000V systems
Maximum Contact Current 1.2A Pilot circuit only; external contactor required for motor loads
Actuator Red mushroom, 40mm diameter Trigger action with mechanical latching; unmarked face
Reset Mechanism Turn to release Requires deliberate manual rotation; not automatic reset
Mounting Hole Diameter 22mm (Ø22.3 ±0.4mm) Will not fit 30mm or 40mm cutouts without redrilling
IP Rating IP66 per IEC 60529 Dust tight; resistant to water jets at 7,000,000 Pa at 55°C
Operating Temperature -25°C to +70°C Full electrical and mechanical function across this range
Mechanical Durability 300,000 cycles Mechanical wear rating per official Schneider Electric datasheet
Certifications IEC 60947-1, Class I per IEC 60536, RoHS, CE Accepted in EU and North American markets

Full technical specifications are available on the product page at LeadTime.ca.

XB4BS8442 vs. Other Harmony XB4 Emergency Stop Variants

The Harmony XB4 emergency stop family covers several contact configurations, reset mechanisms, and feature sets. The table below covers the most common selection decisions buyers face when specifying this family.

Model Contact Type Reset Mechanism Key Difference vs. XB4BS8442 When to Choose It
XB4BS8442 1NC Turn to release This model Standard NC pilot circuit emergency stop at 600V AC or less
XB4BA8411 (or equivalent NO variant) 1NO Turn to release Normally open contact; circuit closes on press Safety circuit logic requires NO pilot input instead of NC
XB4BVM series (illuminated) NC (varies by model) Turn to release Integrated LED status indication on mushroom face Low-light environments or where visual status feedback is required

If your safety relay or motor starter pilot input specifies a normally open contact input, the XB4BS8442 is not the correct part — visit the product page at LeadTime.ca to confirm the correct variant for your application or contact the team for selection support.

Expert Verdict: Is This the Right Emergency Stop for Your Panel?

The Schneider Electric XB4BS8442 delivers exactly what a 600V AC industrial control circuit demands from a panel-mount emergency stop: a certified 1NC slow-break contact, IP66 environmental sealing that holds up on production floors with washdown cycles, and a 300,000-cycle mechanical durability rating that translates to roughly 12 to 15 years of operation in a machine that sees 10 emergency stop activations per shift. The turn-to-release latching mechanism is not a convenience feature — it is a deliberate safety architecture that forces human accountability before a machine can restart. The Harmony XB4 family's long market history means spare parts, matching accessories, and distributor familiarity are available worldwide, reducing the supply chain risk that comes with specifying obscure or single-source components into long-service machinery.

Where the XB4BS8442 has genuine limits: it is not the right choice for systems running above 600V AC — facilities operating 690V control systems will need a different model, and this is a non-negotiable electrical constraint. Buyers requiring a normally open (NO) contact for their safety logic must select the appropriate XB4BA variant; ordering the NC model and wiring it into an NO circuit will not interrupt power when the button is pressed, which is the worst possible outcome in a safety component. For ultra-high-cycle applications — machines stopping 50 or more times per shift — the 300,000-cycle rating should be evaluated carefully against the expected operational lifespan. And for buyers who want visual status feedback on the button itself, the XB4BVM illuminated series, which carries a cost premium of approximately 20 to 30 percent, is the appropriate step up.

From a procurement standpoint, the XB4BS8442 is a well-stocked component through North American automation distributors, with standard single-unit orders typically shipping within 3 to 5 business days from North American warehouse stock. Bulk orders of 10 or more units may require slightly longer lead times depending on warehouse allocation. For safety-critical components, ordering through a specialist distributor matters beyond price: a knowledgeable team can validate your part number against your wiring diagram at the quote stage, catching contact configuration mistakes before they reach the panel build. That single intervention pays for any price premium many times over. Check current pricing and availability for the XB4BS8442 at LeadTime.ca — worldwide shipping available.

For volume pricing or to confirm lead time before committing to a build, contact the LeadTime.ca team directly — we ship worldwide.

What Engineers Need to Know Before Ordering the XB4BS8442

Community discussion specific to the Schneider Electric XB4BS8442 is sparse across the major industrial automation forums. This is not unusual for a discrete safety component — engineers tend to discuss control system architecture at the machine or safety relay level, not at the individual button SKU level. What that means for buyers is that you are unlikely to find crowdsourced validation of this specific part number through forum searches. Instead, the most useful pre-order intelligence comes from the manufacturer's datasheet and from distributors who handle these components regularly and recognize the ordering patterns that lead to problems.

The ordering mistake that occurs most frequently with Harmony XB4 emergency stop buttons is contact configuration mismatch. The distinction between the NC model (this unit, suffix 8442) and the NO variant (suffix 8411) is easy to miss when reading a parts list quickly. Both models look identical in the panel. The functional difference is total: an NC contact opens the circuit when pressed; an NO contact closes it. If an NC button is installed where an NO contact is expected in the safety logic, pressing the emergency stop does not interrupt power. Verifying your safety relay or motor starter pilot input specification before placing the order is not optional — it is the single most important step in the buying process for this component.

Secondary issues that warrant attention before ordering: the 22mm mounting hole is not interchangeable with 30mm or 40mm cutouts — panels built to a different standard require redrilling, which is a significant rework cost on a finished enclosure. The 1.2A maximum contact current must be respected; this button is a pilot control device, not a load-switching device. And the turn-to-release reset mechanism, while a safety feature, requires that operators understand the restart procedure — a machine that will not restart after an emergency stop is often misdiagnosed as a button failure when the actual cause is an operator unfamiliar with the deliberate rotation reset. When community-level feedback is limited, the right resource is a specialist distributor who can confirm part suitability against your specific application before the order ships.

Wiring and Installation Overview

The following overview covers the key requirements for installing the XB4BS8442. For full step-by-step procedures, refer to the Schneider Electric datasheet and panel wiring documentation for your specific application.

  • Panel cutout must be drilled to 22mm diameter (Ø22.3 ±0.4mm tolerance); de-burr all edges before insertion to protect wire insulation
  • Fixing collar must be torqued to 0.8–1.2 N.m using a Phillips #1 screwdriver — do not use an electric driver; the zamak collar is brittle under excess torque
  • Terminal connections accept wire up to 1.5mm² with cable end lugs (ferrules); strip 5–8mm of insulation from each conductor before inserting into screw clamp terminals
  • Confirm NC contact continuity with an ohmmeter in the resting (un-pressed) position before energizing the circuit; the 1NC contact should show zero resistance at rest and open when the button is pressed and latched
  • Functional test after installation: press the button to engage the latch, verify the downstream motor starter or relay de-energizes, then perform a turn-to-release reset and confirm the circuit restores — document this test date and technician name in the panel maintenance log

Wrong-Part Prevention Checklist

Before finalizing your order for the Schneider Electric XB4BS8442, verify each of the following against your machine wiring diagram and plant specifications. These checks are critical for safety components where an incorrect part creates a safety failure, not just a functional inconvenience.

  1. Confirm contact type: Does your safety circuit require normally CLOSED (this unit) or normally OPEN? Verify with machine wiring diagram.
  2. Verify voltage: Is your control circuit 600V AC or less? Check motor starter coil voltage and control transformer secondary.
  3. Check mounting hole: Measure panel cutout diameter. This requires 22mm (0.87 in). Existing 30mm or 40mm cutouts will not fit without redrilling.
  4. Validate reset procedure: Turn-to-release mechanism requires human deliberate action to restart. Confirm operators understand this is not automatic reset.
  5. Load current: Confirm maximum circuit current does not exceed 1.2A per contact; oversizing will cause premature wear.
  6. Environmental check: IP66 is dust and water tight but not oil-resistant for food-grade applications. Verify end-use environment.

If any item on this checklist raises a question, contact the LeadTime.ca team before ordering — getting the right part confirmed at the quote stage costs nothing; getting the wrong part costs panel rework time and machine downtime.

Frequently Asked Questions

Can the XB4BS8442 be wired directly to a motor contactor at 5A, or does it require an external relay?

The XB4BS8442 is rated for a maximum contact current of 1.2A and is designed as a pilot control device only. It must not be connected directly to motor contactors or any load circuit exceeding 1.2A. Wire this button to the coil circuit of an external contactor or safety relay rated for the full motor load — typically 100 to 200 mA for standard contactor coils. Exceeding the 1.2A contact rating causes accelerated contact erosion and significantly shortens the electrical life of the button, well before the 300,000-cycle mechanical durability rating is reached.

Will this button work on a 690V control system?

No. The XB4BS8442 has a nominal AC voltage rating of 600V AC, and this is a hard design limit. Operating it on a 690V system exceeds the insulation design and may cause insulation breakdown under fault conditions. Facilities running 690V control circuits — common in European industrial plants and some North American sites — must specify a different model rated for that voltage. Confirm your control transformer secondary voltage before ordering.

What is the practical difference between turn-to-release and push-to-release reset mechanisms?

Turn-to-release requires an operator to physically rotate the mushroom head (approximately 30 to 45 degrees) to disengage the latch and allow the circuit to restore — no axial push is involved in the reset. Push-to-release requires a direct inward push on the mushroom head to disengage. Turn-to-release is generally considered the more deliberate action and is preferred in applications where accidental reset by a tool or clothing contact is a concern. The XB4BS8442 uses turn-to-release exclusively; if your application specifies push-to-release, a different Harmony XB4 variant is required.

How long will the XB4BS8442 last in a high-frequency emergency stop application?

The official Schneider Electric datasheet rates the XB4BS8442 for 300,000 mechanical cycles. In a machine that activates the emergency stop 10 times per operating shift, this represents approximately 30,000 shifts — or roughly 12 to 15 years of continuous operation — before mechanical wear becomes a factor. In higher-frequency applications (50 or more activations per shift), that lifespan compresses proportionally, and the component's electrical life — limited by contact arc erosion at 1.2A — may become the limiting factor before mechanical wear does. For ultra-high-cycle applications, consult Schneider Electric documentation for higher-rated alternatives.

Does the XB4BS8442 include a built-in circuit breaker or internal overcurrent protection?

No. The XB4BS8442 is a switching contact only — it contains no integrated circuit breaker, fuse, or overcurrent protection device. External fuse protection rated at 10A cartridge (gG per IEC 60947-5-1) is required for the main load circuit. The button's 1.2A contact rating applies to the pilot circuit current passing through the contact itself, not to the downstream motor load.

Is the XB4BS8442 rated for use in food processing environments with regular washdown?

The IP66 rating per IEC 60529 confirms the XB4BS8442 is dust tight and resistant to water jets at 7,000,000 Pa at 55°C from 0.1m distance, making it suitable for regular washdown environments such as food processing and automotive paint lines. However, IP66 does not indicate oil resistance. For food-grade applications where cleaning agents, oils, or aggressive chemicals contact the button surface directly, verify the specific chemical compatibility of the zamak collar and chromium-plated bezel against your cleaning protocol before specifying this model.

Why Order From LeadTime.ca

  • Worldwide shipping — single units and bulk orders shipped internationally from North American stock
  • Exact lead time confirmation before you commit — not just a generic "in stock" indicator
  • Technical part number validation at the quote stage — experienced team can cross-check contact configuration against your application before the order ships
  • Volume pricing available for 10+ unit orders — contact directly for project pricing on panel build quantities
  • Access to current Schneider Electric datasheets and application support for safety-critical component selection

At-a-Glance Summary

  • Model: Schneider Electric XB4BS8442 — Harmony XB4 family, panel-mount emergency stop push button
  • Contact configuration: 1NC (normally closed), slow-break — circuit opens when button is pressed
  • Maximum AC voltage: 600V AC — not rated for 690V or 1000V systems
  • Maximum contact current: 1.2A — pilot circuit only; external contactor required for motor loads
  • Actuator: Red mushroom, 40mm diameter, trigger latching with turn-to-release reset
  • Mounting: 22mm panel cutout (Ø22.3 ±0.4mm); fixing collar torque 0.8–1.2 N.m
  • Environmental protection: IP66 per IEC 60529 — dust tight, water jet resistant at 7,000,000 Pa at 55°C
  • Operating temperature: -25°C to +70°C
  • Mechanical durability: 300,000 cycles per official Schneider Electric datasheet
  • Certifications: IEC 60947-1, Class I per IEC 60536, RoHS compliant, CE marked
  • Terminal: Screw clamp, accepts wire up to 1.5mm² with cable end lugs
  • Wrong-part risk: NC vs. NO contact configuration mismatch is the single most critical ordering error for this component — verify before purchase
