Schneider XB4BG21 Key Switch Selector — Specs & Buying Guide

By Abdullah Zahid
15 min read

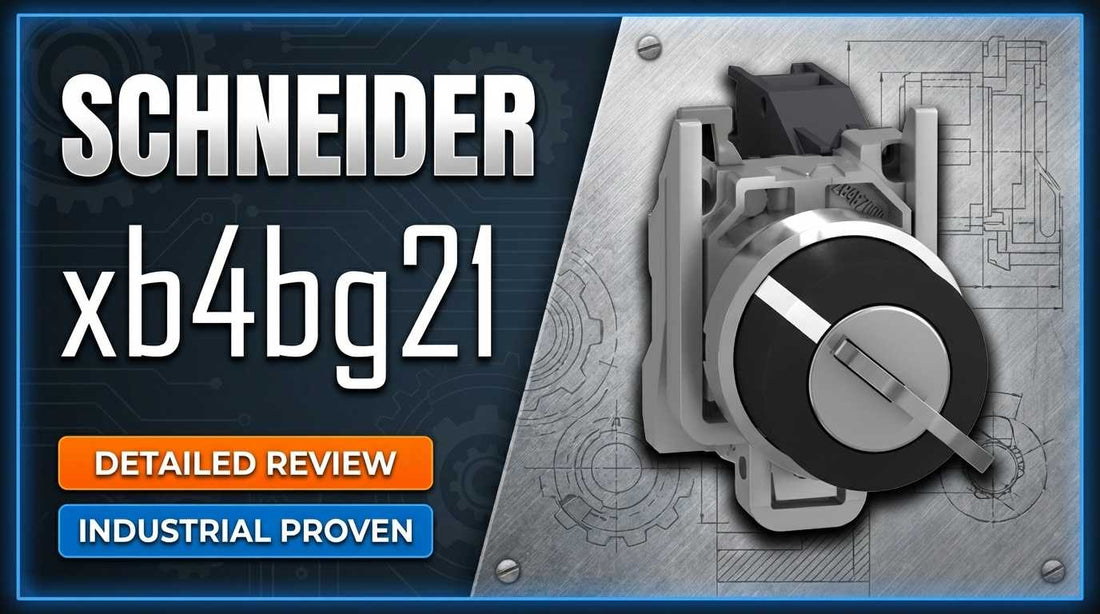

Schneider Electric XB4BG21 Harmony XB4 metal key switch selector 22mm panel mount 2-position stay-put industrial control

Schneider Electric XB4BG21 Key Switch Selector — Specifications, Pricing, and Selection Guide

When a controls engineer or panel builder searches for the Schneider Electric XB4BG21, the decision is rarely exploratory — they have a panel to build, a control circuit to close, and a specific requirement for keyed, two-position operator access. The XB4BG21 is a Harmony XB4 metal key switch selector with a Ronis key 455, 2-position stay-put mechanism, 1 NO contact, and a standard 22mm panel cutout. What settles the decision quickly is confirming that the key type, position count, and contact configuration match the application — this guide covers exactly that.

If you have already confirmed this is the right part, check current pricing and availability at LeadTime.ca — ships worldwide.

Who Should Buy the XB4BG21 — and Who Shouldn't

The Schneider Electric XB4BG21 is the correct choice for applications requiring two-position keyed control with a stay-put mechanism, standard 22mm panel integration, and a single normally open contact in the control circuit. It fits facilities already standardized on Ronis key 455 inventory.

  • Your application requires exactly two discrete operating positions — On/Off, Run/Standby, or authorized access versus lockout
  • Stay-put operation is required so the selected position holds until the operator deliberately turns and withdraws the key
  • Ronis key 455 is confirmed in your equipment manual or existing facility key inventory
  • Panel fabrication is planned for 22mm Ø cutout — not 25mm or other non-standard sizes
  • Control circuit requires 1 NO contact — not 1 NC, not a combined NO/NC configuration
  • Metal construction with chromium-plated finish meets the environmental and finish requirements for the installation

If your application requires three discrete operating positions, the XB4BG43 is the correct variant. If illuminated switch status indication is mandatory, specify the XB4BG21L. For momentary spring-return control, the XB4BR21 is the right model.

On this page:

What the XB4BG21 Actually Does in a Control System

The Schneider Electric XB4BG21 is a panel-mount key switch selector from the Harmony XB4 family. Its role in any control system is straightforward and deliberate: it gates operator access to a control function — mode selection, equipment startup authorization, or bypass operation — by requiring physical possession of a Ronis key 455 to change the switch state. Without the correct key, the switch stays where it is. With it, the operator turns 90° between positions and can only withdraw the key from the left position, which is the mechanism that enforces stay-put operation.

The 1 NO slow-break contact closes the control circuit in one position and opens it in the other. With a rated electrical life of 1,000,000 cycles per EN 60947-5-1, this is not a component that will wear out under normal industrial cycling. The AC-15 motor control certification at 2 A @ 230 V confirms the contact rating is appropriate for machinery startup and interlock circuits, not just signal-level switching. The metal body with chromium-plated components and black finish is consistent with panel-mount hardware designed to survive industrial floor environments rather than light commercial enclosures.

What distinguishes the XB4BG21 from a standard non-keyed selector switch is the layer of access control it adds at the panel face. Changing the operating mode requires deliberate intent — you need the key. This matters in food processing, pharmaceutical, and automated machinery environments where unauthorized or accidental equipment startup carries real safety and production consequences.

Where the XB4BG21 Sits in a Typical Panel Architecture

The XB4BG21 sits at the operator interface layer of the control panel, upstream of the control relay or PLC input it feeds, and downstream of the 24 VDC or AC control supply. Its 1 NO contact is wired in series with the control circuit it governs.

  • Control power supply (24 VDC or AC control voltage) feeds the panel's operator interface terminals
  • XB4BG21 key switch selector receives the control supply on one terminal of the NO contact
  • The NO contact output feeds a control relay coil, PLC digital input, or safety relay input depending on the circuit design
  • The keyed position determines whether the downstream circuit is energized (switch closed) or isolated (switch open)
  • Key withdrawal in the left position locks the selected state — preventing any change until the key is reinserted and deliberately turned

Typical Applications and Deployment Scenarios

In food and beverage processing, the XB4BG21 is commonly used to authorize mode changes between automatic production runs and manual maintenance access, where only a key-holding supervisor can switch the equipment into a service state. This prevents line operators from inadvertently placing equipment in a mode that bypasses safety interlocks.

In pharmaceutical manufacturing, keyed selector switches like the XB4BG21 are specified at points where process parameter changes — such as temperature setpoint mode selection in a controlled environment — require documented operator authorization. The key-withdrawal-locks-position behavior creates a physical audit trail of intent.

For plastics processing and conveyor systems, the XB4BG21 addresses the pump and motor startup authorization requirement. Equipment in hazardous or restricted zones is wired so that the key switch must be in the authorized position before the drive circuit can be energized — and only personnel with the Ronis key 455 can change that state.

OEM machinery builders and panel fabricators specify the XB4BG21 as a standard 22mm key selector because its form factor interchanges directly with other Harmony XB4 variants. If an application later requires three positions or illumination, the panel cutout and wiring can be reused with a direct variant swap — a practical benefit during machine design changes or retrofits.

Application Typical Deployment
Emergency stop bypass / override Keyed access required to authorize bypass of E-stop circuit during maintenance; key withdrawal locks bypass state
Operating mode selection (Run / Standby) Two-position selector controls mode relay or PLC input; supervisor key required to change operating state
Pump or motor startup authorization Key switch in series with motor contactor control circuit in restricted or hazardous zone equipment
Furnace / oven setpoint mode selection Key selector gates access to temperature profile change function; stay-put prevents accidental mode drift
Machine safety interlock Key withdrawal in locked position prevents equipment restart during maintenance window

Specifications That Matter at Purchase Time

Specification Value
Switching Mechanism 2-position, 90° rotation, stay-put
Key Type Ronis key 455
Contact Configuration 1 NO (Normally Open), slow-break
Rated Switching Capacity 10 A general / 2 A @ 230 V AC-15
Electrical and Mechanical Life 1,000,000 cycles minimum (EN 60947-5-1)
Panel Mount Standard 22 mm Ø cutout, ≥1.5 mm panel thickness
Terminal Type Screw clamp, maximum 1 x 1.5 mm² per terminal
Construction Metal, chromium-plated components, black finish
Operating Temperature -25°C to +60°C
Key Withdrawal Position Left position only

Full technical specifications are available on the product page at LeadTime.ca.

XB4BG21 vs. XB4BG43, XB4BG21L, and Other Harmony XB4 Variants

Model Positions Mechanism Contact Config Illumination Best For
XB4BG21 2 Stay-put 1 NO None Binary On/Off or Run/Standby mode selection
XB4BG43 3 Stay-put 1 NO None Three discrete operating states (Run/Standby/Manual)
XB4BG21L 2 Stay-put 1 NO LED indication Same as XB4BG21 with visible status indicator
XB4BR21 2 Return-to-center 1 NO None Momentary control; spring returns to neutral position
XB4BG41 2 Stay-put 1 NO / 1 NC None Applications requiring both NO and NC contacts

All five variants share the Ronis key 455 and 22mm panel cutout standard — meaning the panel fabrication is identical across models. If your application calls for a different contact count or position configuration, the swap requires only the switch body, not a new panel cutout. Check current availability of the XB4BG21 and its variants at LeadTime.ca.

Expert Verdict: Is the XB4BG21 the Right Switch for Your Build?

The Schneider Electric XB4BG21 is the right switch for controls engineers and panel builders who need exactly two operating positions, deliberate keyed access control, and a contact configuration that closes a single normally open circuit. The 1,000,000 cycle electrical and mechanical life rating per EN 60947-5-1 is meaningful in production environments where this switch may cycle several times per shift over years of operation. The AC-15 motor control certification at 2 A @ 230 V confirms suitability for machinery startup and interlock circuits. For facilities already using Ronis key 455 across their equipment inventory, the XB4BG21 integrates without creating a separate key management requirement — a real operational advantage in multi-machine environments.

Where the XB4BG21 is not the right answer: if your application requires three or more discrete operating states, the XB4BG43 is the correct model — the 2-position XB4BG21 cannot be wired to create a third stable position. If visual confirmation of switch state is required at the panel face, the XB4BG21L with LED indication is the correct specification. Applications requiring momentary keyed control — where the circuit should close only while the key is held — need the XB4BR21 return-to-center model, since the XB4BG21's stay-put mechanism will hold whatever position it was last turned to. And if your panel uses cable heavier than 1 x 1.5 mm² per terminal, the screw clamp terminals on this switch are a hard constraint — the wiring must be sized accordingly or routed through intermediate terminal blocks.

From a procurement standpoint, the XB4BG21 is a well-stocked industrial component with reliable distributor availability across North America and internationally. The Harmony XB4 modular family design means long-term parts availability is strong — a meaningful factor when specifying controls hardware for machinery with a 10-to-15-year service life. The single most important step before placing the order is written confirmation that Ronis key 455 is the required key type for your application. Ordering the wrong key type renders the switch temporarily inoperable until the correct key arrives, which is a commissioning delay entirely avoidable with one verification step. View current pricing and stock status for the XB4BG21 at LeadTime.ca — ships worldwide.

For volume pricing or to confirm lead time before committing to a build, contact the LeadTime.ca team directly — we ship worldwide.

Price, Lead Time, and How to Order From Anywhere in the World

The Schneider Electric XB4BG21 is carried by major industrial distributors internationally and is not a long-lead specialty item under normal supply conditions. Distributor stock is typically available with estimated lead times ranging from 1 to 7 business days depending on the channel and region. Pricing varies by order quantity, distributor, and current market conditions — current pricing is available directly on the product page at LeadTime.ca. For volume orders or project-level quantities, contacting a specialist distributor directly will give you the most accurate pricing and committed lead time.

LeadTime.ca ships the XB4BG21 worldwide. Buyers outside North America can order through the same channel with the same product page and contact process. If you are sourcing for an OEM build, a plant retrofit, or a spares inventory top-up, the ordering process is the same regardless of your location.

What Engineers Need to Know Before Ordering the XB4BG21

The Schneider Electric XB4BG21 does not generate much open forum discussion — and that is not surprising. This is a specification-driven industrial component. Engineers identify the requirement, confirm the model number against the datasheet, and source it through a distributor. There is no ongoing community debate about whether a 22mm key switch selector works. What does generate procurement problems — quietly, inside individual projects — are the ordering mistakes that happen when the specification is not fully verified before the purchase requisition goes out.

The most consequential of these is key type confusion. The XB4BG21 uses Ronis key 455. Other Harmony XB4 key switch models use different Ronis key numbers. If a buyer orders based on the product family without confirming the key number, they may receive a switch that is physically correct but functionally unusable because the facility's key inventory does not include a 455. This is not a theoretical risk — it is the kind of detail that causes commissioning delays when no one checks the equipment manual before placing the order. The prevention is simple: verify the exact Ronis key number in writing before ordering, and confirm that Ronis 455 keys are either already stocked or available from your key supplier with acceptable lead time.

The second common specification error is position count. The XB4BG21 provides exactly two positions. Engineers specifying mode control for a three-state system — Run, Standby, and Manual, for example — sometimes order the 2-position model because it appears first in a search or matches a physical description without the position count being explicitly checked. The XB4BG43 is the correct model for three-position applications. Comparing model numbers on the invoice against the control specification before receiving the shipment catches this error before it reaches the panel. Finally, the screw clamp terminal limit of 1 x 1.5 mm² per terminal is a hard constraint. Attempting to install 2.5 mm² or 4 mm² control cable into these terminals will result in either a crushed terminal or intermittent contact — both failure modes that are difficult to diagnose after the panel is assembled. Wire sizing must be confirmed against the datasheet before fabrication begins. When community guidance is sparse and the datasheet constraints are real, specialist distributors like LeadTime.ca serve as the technical checkpoint — contact us to verify specifications before ordering.

Wiring and Panel Installation Overview

  • Prepare the panel cutout to exactly 22 mm Ø; verify the panel material is at least 1.5 mm thick before drilling to ensure the mounting collar seats correctly
  • Strip and form cable ends per IEC 60947-1 requirements before attempting terminal insertion — do not insert untreated wire ends into screw clamp terminals
  • Maximum conductor cross-section per screw clamp terminal is 1 x 1.5 mm²; size all control wiring accordingly before fabrication
  • After mounting, manually cycle the switch through both positions with the key inserted to verify smooth 90° rotation and confirm the key withdraws only in the left position
  • Verify the NO contact transitions correctly using a digital multimeter set to resistance measurement before the panel is closed and energized — a continuity check in both positions takes under two minutes and eliminates uncertainty at commissioning

Compatible Modules and System Expansion Within Harmony XB4

The Harmony XB4 family is designed around a modular 22mm form factor, which means the XB4BG21 can be swapped with other XB4 variants at the same panel cutout without fabrication changes. The following variants are directly relevant to buyers who may need to upgrade or modify an existing installation:

  • XB4BG43 — 3-position stay-put key switch selector for applications requiring a third discrete operating state; same 22mm cutout and Ronis 455 key
  • XB4BG21L — Illuminated version of the XB4BG21 with integrated LED status indicator; identical mechanical form factor, adds visual feedback at the panel face
  • XB4BR21 — Return-to-center 2-position key switch for momentary control applications; direct swap for the XB4BG21 in the same cutout
  • XB4BG41 — 2-position stay-put variant providing both 1 NO and 1 NC contacts for circuits requiring both a closed and an open signal simultaneously

Wrong-Part Prevention Checklist

Before placing your order for the Schneider Electric XB4BG21, verify every item on this checklist against your control specification and equipment documentation:

  1. Verify Ronis key 455 is the correct key type — check equipment manual or existing key inventory before ordering
  2. Confirm 2-position stay-put operation matches your application requirement (not 3-position or return-to-center)
  3. Verify 1 NO contact count aligns with your control circuit (not 1 NC or 2 NO/NC)
  4. Check that 22mm panel cutout standard is available in your fabrication plan (not 25mm or other non-standard sizes)
  5. Confirm metal black finish meets environmental requirements (not stainless steel or alternative colors)
  6. Verify screw clamp terminal type accepts your control cable gauge (maximum 1 x 1.5 mm² per terminal)
  7. Confirm this model has no illumination — if indication light is required, specify XB4BG21L instead

If any item on this checklist cannot be confirmed before ordering, contact the LeadTime.ca team — we can verify specifications against your control drawing or equipment manual before the order is placed.

Frequently Asked Questions

What is the functional difference between the XB4BG21 and the XB4BG43, and how do I know which one my application needs?

The XB4BG21 provides exactly two operating positions with a 90° rotation and stay-put mechanism — suitable for binary On/Off or Run/Standby selection. The XB4BG43 provides three discrete positions, appropriate when your application requires three stable operating states such as Run, Standby, and Manual. If your control circuit has two wires going to the selector switch input, the XB4BG21 is likely correct; if you need three independent circuit states, the XB4BG43 is the right model. Verify the position count in your control specification before ordering.

Can I use a different Ronis key type — such as Ronis 782 — instead of the 455 that comes with the XB4BG21?

No — the XB4BG21 is supplied with and operates only with Ronis key 455. The key cylinder is not a field-interchangeable component on this model. If your facility key inventory or application requires a different Ronis key number, you must select an XB4 variant that specifies that key type. Verify the exact required key number in your equipment manual or against your facility key management system before placing the order.

What is the maximum cable size I can terminate at the XB4BG21 screw clamp terminals?

The screw clamp terminals on the XB4BG21 accept a maximum of 1 x 1.5 mm² per terminal, with cable ends prepared per IEC 60947-1. Attempting to insert 2.5 mm² or larger conductors will either prevent full insertion or crush the terminal, resulting in intermittent contact failures. If your control circuit design uses heavier-gauge wire, size down to 1.5 mm² for the final run to the switch or route through an intermediate terminal block in the panel.

Is the XB4BG21 rated for use in emergency stop circuits?

The XB4BG21 is an AC-15 rated industrial selector switch with a 1 NO slow-break contact — it is commonly used in emergency stop bypass and mode selection circuits where keyed authorization is required to change the equipment state. However, emergency stop circuit design must comply with the applicable machinery safety standard for your application and region. Consult the Schneider Electric documentation and your machinery safety specification to confirm whether this switch meets the safety integrity level required for your specific emergency stop architecture.

Does the XB4BG21 work as a direct replacement for an existing non-keyed Harmony XB4 selector switch in the same panel cutout?

Yes — the XB4BG21 uses the standard 22mm Ø panel cutout that is common across the Harmony XB4 family. The mechanical form factor is directly interchangeable with other 22mm XB4 selector switches. The wiring terminal configuration and contact count must also match your existing circuit design — confirm that the replacement requires 1 NO contact and 2-position operation before swapping out the existing switch.

What lead times should I expect when ordering the XB4BG21 from a distributor, and does LeadTime.ca ship internationally?

Under normal supply conditions, the XB4BG21 is stocked by major industrial distributors with estimated lead times of 1 to 7 business days depending on the channel and shipping destination. LeadTime.ca ships the XB4BG21 worldwide — there is no restriction to Canadian or North American orders. Current stock status and pricing are available on the product page, and the LeadTime.ca team can confirm committed lead times for project or volume orders on request.

Why Order the XB4BG21 From LeadTime.ca

  • Ships worldwide — no geographic restriction on orders, including Canada, the US, and international destinations
  • Specialist industrial automation distributor — technical team can verify key type, contact configuration, and panel compatibility before the order is placed
  • Current pricing and stock status visible on the product page — no quote request required for standard orders
  • Volume and project pricing available on request — contact LeadTime.ca for multi-unit or BOM-level quotes
  • Order the Schneider Electric XB4BG21 at LeadTime.ca

At-a-Glance Summary

  • Model: Schneider Electric XB4BG21 — 2-position stay-put key switch selector, Harmony XB4 family
  • Key type: Ronis key 455 — key withdrawal permitted in left position only
  • Contact: 1 NO slow-break, 10 A general rating / 2 A @ 230 V AC-15
  • Rated life: 1,000,000 cycles electrical and mechanical per EN 60947-5-1
  • Panel mount: 22 mm Ø cutout standard, minimum 1.5 mm panel thickness required
  • Terminal: Screw clamp, maximum 1 x 1.5 mm² per terminal, IEC 60947-1 cable end preparation required
  • Construction: Metal, chromium-plated components, black finish
  • Operating temperature: -25°C to +60°C
  • Direct variants: XB4BG43 (3-position), XB4BG21L (illuminated), XB4BR21 (return-to-center), XB4BG41 (1 NO + 1 NC)
  • One pre-order verification that matters most: confirm Ronis key 455 in writing before ordering
