Schneider Electric XB4BD33 — 3-Position Selector Switch Buying Guide

By Abdullah Zahid
13 min read

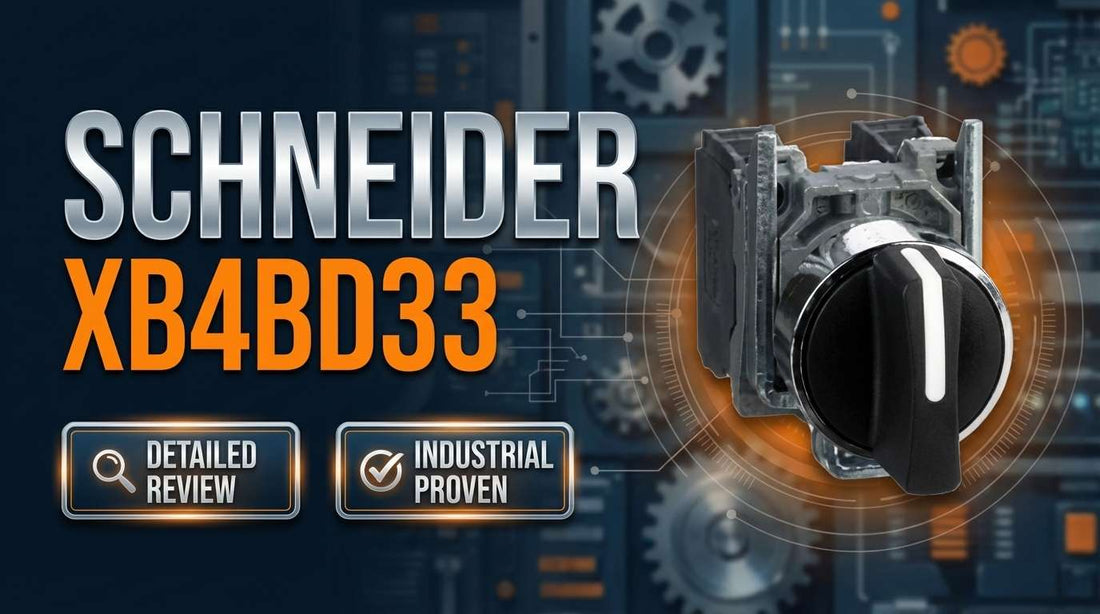

Schneider Electric XB4BD33 Harmony XB4 metal black 22mm 3-position maintained selector switch for industrial control panels

Schneider Electric XB4BD33 Selector Switch, Harmony XB4, Metal, Black, 22mm, 3 Positions, Stay Put, 2NO, Maintained Operation — Specifications, Selection Guide, and Alternatives

Controls engineers specifying a three-position maintained selector switch for a 600V AC control circuit have a short list of requirements: confirmed voltage rating, exact 22mm mounting diameter, screw clamp terminals, and a contact configuration that works with the ladder diagram already drawn. The Schneider Electric XB4BD33 hits all four, offering a 10A-rated, IP69K-sealed, silver alloy contact selector switch with 1,000,000-cycle mechanical durability inside the well-established Harmony XB4 platform. If your panel has 22mm cutouts and your circuit runs 600V AC, this is likely the part you are looking for — but read the variant comparison below before ordering, because several common mismatches drive unnecessary returns.

If you have already confirmed this is the right part, check current pricing and availability at LeadTime.ca — ships worldwide.

Who Should Buy the XB4BD33 — and Who Shouldn't

The Schneider Electric XB4BD33 is the right selector switch when all of the following are true for your project:

  • Your control circuit operates at 600V AC with a maximum contact current requirement of 10A
  • Your panel cutout is exactly 22mm in diameter — not 30mm or any other mounting standard
  • Your field wiring uses screw clamp termination without plug connectors or DIN adapters
  • Your ladder diagram requires two independent normally open (2NO) contact pairs, not a 1NO+1NC or any other configuration
  • Your application demands maintained (stay-put) operation — the switch must hold its selected position across power cycles without spring return
  • You need exactly three operator-selectable positions, such as Off/Manual/Auto or Stop/Jog/Run

If your circuit runs 24VDC, if the panel uses 30mm holes, if you need illuminated mode feedback, or if the application requires automatic spring return, the XB4BD33 is not your part. See the variant comparison table below for specific alternatives.

On this page:

What the XB4BD33 Actually Does in a Control System

The Schneider Electric XB4BD33 is a manual selector switch — its job is to give a human operator direct, positive control over which of three operating states a machine or process is currently in. When the operator turns the knob to position one, position two, or position three, the switch holds that selection indefinitely via maintained (stay-put) operation. There is no spring, no timer, and no automatic reset. The selected mode remains active until the operator physically moves the knob to another position, which is precisely the behavior needed for mode selections like Off, Manual, and Auto, where the system must not revert on its own.

The XB4BD33 achieves this through two independent normally open (2NO) silver alloy (Ag/Ni) contact pairs, each rated at 600V AC and 10A. The slow-break contact design extends contact engagement time during switching, which reduces arcing at full load current. The chromium-plated metal bezel and IP69K environmental rating per IEC 60529 make this switch suitable for wash-down, spray, and high-moisture environments — a meaningful advantage in food and beverage, water treatment, or chemical handling installations. The 6kV impulse withstand voltage per IEC 60947-1 provides protection against transient voltage spikes that are common during motor starting or inductive load switching in industrial environments.

Typical System Architecture for the XB4BD33

The XB4BD33 sits in the operator interface layer of a control panel, converting physical knob position into discrete contact signals that drive downstream control logic or directly energize output loads.

  • Control power source (600V AC) feeds the common terminal of the XB4BD33 through the panel's control transformer or distribution block
  • XB4BD33 contact pair 1 (NO1) closes in position one, sending a signal to the first control logic branch — typically a relay coil, PLC digital input, or contactor
  • XB4BD33 contact pair 2 (NO2) closes in position two, energizing the second control branch independently
  • Position three (center or opposite extreme) can be wired as the default open state where neither contact pair is energized, or through external relay logic to derive the third mode condition
  • Downstream devices — motor starters, pilot lights, VFD enable inputs, or PLC discrete inputs — respond to the closed contact signal and execute the corresponding operating mode

Where the XB4BD33 Is Deployed: Industries and Use Cases

Three-position maintained selector switches appear wherever an operator needs to consciously commit to an operating mode and have the machine hold that mode without re-intervention. The XB4BD33 is a common specification in pump and motor control panels, where operators must select between Off, Hand (manual), and Auto (remote or timer-controlled) operation — a configuration found across water treatment facilities, HVAC systems, and irrigation infrastructure.

In packaging and assembly equipment, the XB4BD33 is frequently used to select between Stop, Single Cycle, and Continuous Run modes. The stay-put behavior is essential here: the machine must not revert to stop automatically when the operator steps away. Similarly, in automotive and general manufacturing, the switch serves as a diagnostic or maintenance mode selector, allowing maintenance technicians to switch a line from production run to a safe-access maintenance state with a deliberate operator action that stays in place during the maintenance window.

The IP69K rating opens the XB4BD33 to food and beverage processing lines, chemical handling areas, and outdoor pump stations where the control panel is regularly exposed to wash-down water jets or heavy moisture. Standard-rated selector switches fail prematurely in these environments; the IP69K sealed construction eliminates that failure mode without requiring a separate protective enclosure for the switch itself.

Application Typical Deployment
Pump / motor control (Off, Hand, Auto) Water treatment, HVAC, irrigation control panels
Process mode selection (Stop, Single Cycle, Continuous) Packaging lines, assembly equipment, conveyor systems
Maintenance mode selector Manufacturing lines requiring safe-access interlock states
Pilot light / indicator activation by mode Operator interface panels with mode status indication
Wash-down environment control panels Food and beverage processing, chemical handling, outdoor stations
Safety interlock mode selection Applications requiring a deliberate operator action to exit run state

Key Specifications and Electrical Ratings

Parameter Value Notes
Contact Voltage (AC) 600V AC Nominal, pollution degree 3, IEC 60947-1
Contact Current (Max) 10A Cartridge fuse type gG, IEC 60947-5-1
Contact Configuration 2NO Two independent normally open contact pairs
Impulse Withstand Voltage 6kV Per IEC 60947-1
Contact Material Silver alloy (Ag/Ni) High conductivity, wear-resistant
Contact Type Slow-break Extended engagement reduces arcing
Operation Type Maintained (Stay-Put) Holds position without spring return
Mounting Diameter 22mm Panel cutout size
IP Rating IP69K Per IEC 60529; wash-down and spray rated
Mechanical Cycle Life 1,000,000 cycles Before wear performance reduces

Full technical specifications are available on the product page at LeadTime.ca.

XB4BD33 vs. Harmony XB4 Variants: Which One Do You Actually Need?

Model / Variant Positions Operation Contact Config Key Difference from XB4BD33
XB4BD33 3 Maintained (stay-put) 2NO This model — 600V AC, 22mm, black knob
XB4BD44 (illuminated variant) 3 Maintained 2NO Adds LED or lamp feedback for mode status indication
XB4 spring-return variants (XB4BZ series) 3 Momentary-return Varies Auto-resets to neutral when operator releases knob
XB4 low-voltage variants 3 Maintained Varies Rated for 24VDC control circuits, not 600V AC
XB4 4-position or 5-position variants 4 or 5 Maintained Varies More than three selectable states required

If your application requires illuminated mode feedback so operators can confirm the selected state at a glance, or if your circuit runs on 24VDC rather than 600V AC, the XB4BD33 is not the correct catalog number — visit the product page at LeadTime.ca or contact the team to identify the right Harmony XB4 variant for your exact requirements.

Expert Verdict: Is the XB4BD33 the Right Buy for Your Project?

The Schneider Electric XB4BD33 is a well-specified, straightforward selector switch for controls engineers who need a 600V AC, three-position, maintained-operation switch in a 22mm format with screw clamp terminals and proven environmental protection. The 1,000,000-cycle mechanical durability rating and IP69K sealed construction mean this part is not specced down — it is built to the same service life expectation as the broader control panel. The silver alloy (Ag/Ni) contacts and 6kV impulse withstand voltage reflect a switch designed to operate reliably in industrial environments with inductive loads and voltage transients, not just in light-duty switchgear rooms. The buyer profile for this part is clear: panel builders and controls engineers working on pump control, process mode selection, or machine operator interfaces where 600V AC is the control voltage and the 22mm mounting standard is already established.

Where the XB4BD33 falls short is equally clear. It does not support illuminated operation — if your operators need visual confirmation of which mode is active, you will need to specify the illuminated XB4BD44 or a similar illuminated Harmony XB4 variant. It does not offer a 24VDC contact rating, so any panel running a 24VDC control bus requires a different selection from the XB4 family. And if your application is a jog function or any other momentary-command use case, the maintained stay-put behavior of the XB4BD33 will cause problems — spring-return variants from the XB4BZ family are the correct choice for those applications. These are not edge cases; they are the three most common reasons engineers end up with the wrong part on the bench.

From a procurement standpoint, the XB4BD33 is a stocked item at major authorized distributors globally, with market-typical lead times in the range of 1 to 3 weeks for in-stock orders. As part of the established Harmony XB4 platform, it benefits from consistent catalog availability and straightforward replacement sourcing compared to niche or legacy switch formats. Pricing is available on the product page, and volume orders typically carry quantity pricing. For project builds requiring multiple units or time-sensitive delivery confirmation, check current availability directly on the LeadTime.ca product page — the team ships worldwide and can confirm lead time before you commit to a build schedule.

For volume pricing or to confirm lead time before committing to a build, contact the LeadTime.ca team directly — we ship worldwide.

What Engineers Need to Know Before Ordering the XB4BD33

Community discussion specific to the XB4BD33 catalog number is limited online — this is a well-understood, category-standard part that experienced controls engineers typically specify confidently from the datasheet without needing forum validation. That said, the absence of forum threads does not mean ordering this switch is without risk. The recurring specification errors that show up across the Harmony XB4 family — wrong mounting diameter, misread contact configuration, maintained versus momentary confusion — are precisely the kind of silent mistakes that generate project delays rather than public forum posts.

When community data is sparse, the practical guidance comes from distributor specialists who process these orders daily and see the return patterns firsthand. The most common avoidable issue is the 22mm versus 30mm mounting diameter mismatch: engineers or procurement buyers who assume a standard hole size without measuring before ordering receive a switch that physically cannot be installed without panel rework. A close second is the 2NO versus 1NO+1NC contact configuration question — buyers who skim the part number without reading the contact specification can find themselves with a switch that does not produce the expected logic behavior in the control circuit. Both errors are entirely preventable with a fifteen-minute pre-order check against the checklist below.

LeadTime.ca stocks and sources Harmony XB4 components globally and fields specification questions regularly from controls engineers who are not certain which variant applies to their panel. If you have a non-standard configuration — an unusual control voltage, a mixed contact requirement, or a panel with non-standard hole patterns — reaching out before ordering is faster than processing a return after the wrong part arrives. The wrong-part checklist below covers the eight verification points that should be confirmed before any XB4BD33 order is placed.

Wiring and Installation Overview

The XB4BD33 uses screw clamp terminals throughout — no plug connectors, no spring-clamp, no DIN adapter required. Field installation is straightforward for any qualified panel builder, provided the pre-installation checks are completed. The following overview covers the key requirements; always refer to the Schneider Electric wiring diagram and local electrical code for complete installation procedures.

  • Confirm the panel cutout is exactly 22mm in diameter and free of burrs before inserting the switch body; the chromium-plated bezel seats flush against the panel face when the mounting ring is tightened from the rear
  • Route 600V AC control power to the common (COM) terminal; each of the two normally open contact pairs (NO1, NO2) is then wired to its corresponding control logic branch per the ladder diagram
  • Use wire sized for 10A continuous current — typically 2.5 mm² (14 AWG) to 4 mm² (12 AWG) copper — and strip approximately 5–8mm of insulation before inserting into the screw clamp terminal
  • Tighten each terminal screw firmly; loose screw clamp connections at 10A are a common source of intermittent contact faults and heat buildup at the terminal block
  • After wiring, rotate the selector knob through all three positions and use a test lamp or multimeter to confirm each position activates only the correct downstream circuit with no cross-activation between positions

Wrong-Part Prevention Checklist

Before placing your order for the Schneider Electric XB4BD33, verify each of the following eight points against your project documentation:

  1. Confirm the control circuit voltage is 600V AC (not 24VDC, 120VAC, or 240VAC) before ordering
  2. Verify panel cutout diameter is exactly 22mm (not 30mm or other Harmony XB series mounting sizes)
  3. Check that field wiring termination uses screw clamp method (not DIN connectors or plug terminals)
  4. Ensure the application needs two independent normally-open contacts and not a different contact configuration (1NO+1NC, 3NO, etc.)
  5. Confirm the selector knob will be positioned during normal operation (maintained) not just during command input (momentary)
  6. Verify the operator needs exactly 3 positions (not 2-position or 4-position variants)
  7. Ensure the application does not require illumination or status feedback; if it does, specify XB4 illuminated variants instead
  8. Check that shipping lead time from authorized distributor aligns with project schedule before committing to purchase

If any item on this checklist raises a question, contact the LeadTime.ca team before ordering — confirming the right part number now is faster than processing a return after the wrong switch arrives on site.

Frequently Asked Questions

Does the XB4BD33 hold its selected position after a power loss and restoration?

Yes. Maintained (stay-put) operation means the selector knob physically holds its mechanical position regardless of whether control power is present or not. When power is restored, the switch will be in whatever position it was physically set to before the outage, and the corresponding contact pair will close immediately as the circuit re-energizes. If your application requires a safe default state on power restoration, that logic must be implemented in the circuit — not the switch itself.

Are the two 2NO contact pairs on the XB4BD33 electrically isolated from each other?

Yes. The XB4BD33 provides two independent normally open contact pairs, each independently rated at 600V AC and 10A. The pairs share no common internal electrical connection. You can wire each contact pair to a completely different control voltage source or logic branch if your application requires it, provided each pair's load remains within the 600V AC and 10A rating.

Can the XB4BD33 be used in a 24VDC control circuit?

The XB4BD33 is rated and specified for 600V AC at 10A. Operating it in a 24VDC control circuit is outside the primary design specification and may result in contact chatter, unreliable switching, or accelerated contact wear at low-voltage DC loads. For 24VDC control circuits, select a low-voltage rated variant from the Harmony XB4 family. Do not substitute the XB4BD33 as a direct replacement in 24VDC applications without consulting the Schneider Electric datasheet for DC application limits.

What does the IP69K rating mean in practical terms for panel installation?

IP69K per IEC 60529 indicates the switch is sealed against high-pressure, high-temperature water jets and wash-down conditions. In practical terms, this means the XB4BD33 can be installed in food processing, chemical handling, water treatment, or outdoor panels that are routinely cleaned with pressurized water without requiring a separate protective cover over the switch. Note that the broader control panel enclosure must also carry an appropriate IP rating for the installation environment — the switch's IP69K rating does not protect wiring or other components inside the panel.

What is the difference between the XB4BD33 and an illuminated selector switch like the XB4BD44?

The XB4BD33 is a non-illuminated selector switch — the knob provides no visual feedback beyond its physical position. The XB4BD44 adds an integrated LED or lamp module that allows the selected mode to be confirmed visually by an operator who cannot directly see the knob position, or in environments with multiple operators. If your HMI design requires mode status indication at the selector switch itself, specify the illuminated variant. If operator position visibility is sufficient and panel wiring simplicity is a priority, the XB4BD33 is the lower-complexity choice.

What is a realistic lead time for the XB4BD33 from an authorized distributor?

Market-typical lead time for in-stock orders from authorized distributors is 1 to 3 weeks. Lead times can vary based on distributor inventory levels, order volume, and supply chain conditions at the time of order. Always confirm current availability and lead time in writing with your distributor before finalizing a project schedule. For time-critical projects, contact LeadTime.ca directly to verify current stock and shipping timelines.

Why Order From LeadTime.ca

  • Ships worldwide — orders are not restricted to any single country or region
  • Specializes in industrial automation and controls components, including the full Harmony XB4 selector switch family
  • Provides lead time and availability confirmation before you commit to a build schedule
  • Supports volume pricing inquiries for panel builders and OEM manufacturers ordering multiple units
  • Accessible team for pre-order specification questions when the right part number is not immediately obvious

At-a-Glance Summary

  • Schneider Electric XB4BD33 — 3-position maintained selector switch, Harmony XB4 platform, 22mm mounting diameter
  • Contact rating: 600V AC, 10A maximum, two independent normally open (2NO) contact pairs
  • Silver alloy (Ag/Ni) contacts with slow-break operation and 6kV impulse withstand voltage per IEC 60947-1
  • IP69K environmental rating per IEC 60529 — suitable for wash-down, spray, and high-moisture installations
  • 1,000,000-cycle mechanical durability rating — matches typical industrial equipment service life expectations
  • Screw clamp terminals — accommodates wire sized for 10A continuous current, typically 2.5 mm² to 4 mm² (14–12 AWG)
  • Maintained (stay-put) operation — holds selected position indefinitely without spring return or automatic reset
  • Operator position range: ±45 degrees across three selectable positions
  • Bezel: chromium-plated metal; knob color: black; product family: Harmony XB4
  • Typical lead time from authorized distributors: 1 to 3 weeks — confirm current availability before committing to project schedule
