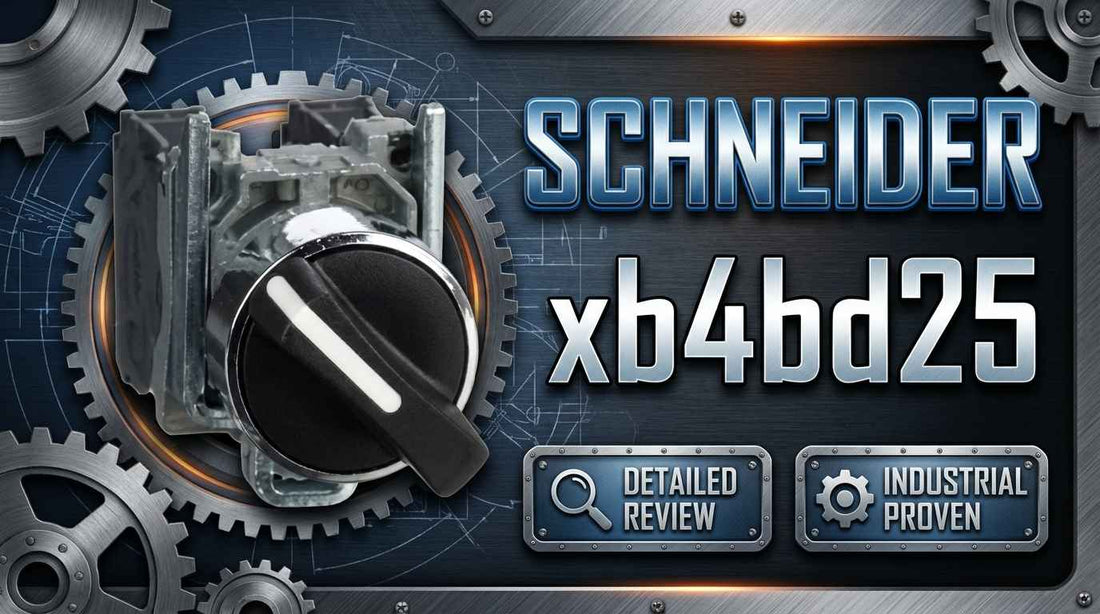

Schneider Electric XB4BD25 Harmony 22mm black non-illuminated 2-position maintained rotary selector switch for industrial control panel

Schneider Electric XB4BD25 Harmony 22mm Push Button 2-Position Selector Switch, Black, Maintained, 1 NO and 1 NC, 600 V — Specifications, Pricing, and Selection Guide

When a controls engineer or panel builder searches for the Schneider Electric XB4BD25 by part number, the decision is already close to final. The question at this stage is not what a 2-position selector switch does — it is whether this specific model fits the panel cutout, handles the load, and ships fast enough to keep the build schedule intact. The XB4BD25 is a 22mm diameter, 2-position maintained rotary selector switch rated at 600 VAC and 1.2 A, carrying a 1 NO and 1 NC contact configuration in the proven Harmony XB4 Series form factor. It earns IP69K ingress protection, making it a serious choice for wash-down, food processing, and water treatment environments where lesser switches fail early.

If you have already confirmed this is the correct part, check current pricing and availability for the XB4BD25 at LeadTime.ca — ships worldwide.

Who Should Buy the XB4BD25 — and Who Shouldn't

The XB4BD25 is the right choice for engineers and panel builders who need a straightforward, stay-put 2-position manual selector with no illumination, no bells, and no compromises on environmental sealing.

  • You require 2-position maintained (stay-put) operation — the handle holds its selected position until physically moved by the operator
  • Your control logic requires exactly 1 NO and 1 NC contact pair per position, not 2 NO or 2 NC
  • Your panel cutout is 22mm in diameter — standard for Harmony XB4 Series and most industrial control enclosures
  • Your application operates at or below 600 VAC and 1.2 A continuous load — confirmed against actual circuit current, including motor inrush
  • Screw clamp terminal connections are compatible with your wiring gauge and panel build standards
  • Non-illuminated operation is acceptable — position is confirmed mechanically, not visually via LED

If you need visual position indication, the XB4BW illuminated variant is the correct choice. If three operational states are required, the XB4BK 3-position selector is the right model. If panel space is critically constrained, the XB4BG 16mm compact version may be a better fit.

On this page:

What the XB4BD25 Actually Does in a Control System

The Schneider Electric XB4BD25 is a maintained rotary selector switch — meaning when the operator turns the black handle from one position to the other, it stays there. It does not spring back. It does not require the operator to hold it in place. That single mechanical characteristic — maintained, stay-put operation through a 90-degree rotation arc — defines where this switch belongs and where it does not.

Inside the switch body, a slow-break silver alloy (Ag/Ni) contact set delivers one normally open and one normally closed contact per position. This dual-contact configuration means a single XB4BD25 can simultaneously energize one circuit and de-energize another when the operator turns the handle, without requiring two separate switches and additional wiring. That simplification reduces panel real estate and eliminates one potential wiring error point per selector station.

The 22mm round body mounts in a standard panel cutout, secured by a Zamak fixing collar and locking nut at the rear of the panel. The chromium-plated metal bezel and polyamide body are built to survive the IK06 mechanical impact rating per IEC 50102, while the IP69K environmental seal per IEC 60529 means high-pressure water jets — the kind used in food plant wash-down or water treatment facilities — will not penetrate the switch housing. At 1,000,000 rated mechanical cycles, this is a switch designed to outlast the machine it is built into under normal industrial duty.

Typical System Architecture for the XB4BD25

The XB4BD25 sits at the human-machine interface layer of a control panel — between the operator's hand and the control logic that governs downstream equipment. It is a manual input device, not a powered switching device, and in most deployments it controls a coil circuit or PLC input rather than the main power load directly.

  • PLC or relay logic controller receives the switched signal from the XB4BD25 contact outputs
  • XB4BD25 mounts in the control panel door or operator station at the 22mm cutout location
  • NO contact wired to one PLC digital input (e.g., auto mode command); NC contact wired to a second input (e.g., manual mode active confirmation)
  • PLC output drives a motor starter contactor, VFD enable circuit, or solenoid valve based on the selector position
  • Main power load is switched by the downstream contactor or drive — not by the XB4BD25 directly — keeping the 1.2 A contact rating within safe operating margins

Where the XB4BD25 Gets Deployed: Applications and Industries

In factory automation, the XB4BD25 is most commonly found as a mode selector — auto versus manual, run versus bypass, normal versus test. On machine control panels, the operator needs to set a mode and have it stay set during a full production cycle without accidentally changing position due to vibration or incidental contact. The maintained mechanical detent satisfies this requirement without any additional locking mechanism.

Pump control panels in water treatment facilities and municipal infrastructure use the XB4BD25 as a local/remote or primary/backup pump changeover selector. The IP69K rating is essential in wet pump houses where spray and condensation are constant. Silver alloy contacts resist the oxidation that causes intermittent switching failures in humid environments.

In food and beverage processing, the same IP69K certification allows the switch to survive high-pressure caustic wash-down cycles that are routine in sanitary processing areas. The TH corrosion-resistant treatment on the fixing hardware adds another layer of protection. Facilities that run CIP (clean-in-place) procedures need switch hardware that tolerates both chemical exposure and jet-force water — the XB4BD25 is rated for both.

HVAC and building services applications use the XB4BD25 for heating/cooling mode selection, fan speed selection (two-speed fan motors), and isolation bypass selectors on air handling units. The switch's 600 VAC rating covers most North American three-phase and single-phase control circuits at standard industrial supply voltages.

Application Typical Deployment
Factory automation control panel Auto/manual mode selector wired to PLC digital input; maintained position holds mode through full production cycle
Water treatment pump station Primary/backup pump changeover selector; IP69K rating handles wet pump house environment
Food and beverage processing line Run/bypass or normal/sanitize mode selector surviving daily high-pressure wash-down cycles
Two-speed motor control High/low speed selector for conveyors, fans, or mixers; maintained position prevents accidental speed drift
HVAC air handling unit Heating/cooling mode or fan speed selection on local operator panel; 600 VAC rating covers standard control voltages
Electrical panel manual override Normal/bypass isolation selector in motor starter panel; NC contact provides confirmation signal to supervisory system

XB4BD25 Specifications and Variant Comparison

Specification XB4BD25 Value
Body Diameter 22 mm (standard panel cutout)
Electrical Rating 600 VAC, 1.2 A
Contact Configuration 1 NO + 1 NC per position
Operation Type 2-Position Maintained (stay-put, 90-degree rotation)
Contact Material Slow-break silver alloy (Ag/Ni)
Mechanical Life 1,000,000 cycles
Environmental Protection IP69K per IEC 60529
Impact Resistance IK06 per IEC 50102
Terminal Connection Screw clamp (solid or stranded wire)
Handle Type Black standard non-illuminated, stay-put detent

Full technical specifications are available on the product page at LeadTime.ca.

Model Positions Operation Rating Key Difference Best For
Schneider Electric XB4BD25 2 Maintained 600V / 1.2A Standard non-illuminated black handle Default choice for basic 2-way manual selection
Schneider Electric XB4BW33 2 Maintained 600V / 1.2A Illuminated LED yellow indicator ring Applications requiring visual confirmation of selector position
Schneider Electric XB4BK 3 Maintained 600V / 1.2A Three-position for three-way logic Off/low/high or three-state operational control
Schneider Electric XB4BG (16mm) 2 Maintained 600V / 1.2A Compact 16mm diameter body Space-constrained panels where 22mm cutout is not available

If your application requires three operational states or visual position indication, the XB4BK or XB4BW33 are the correct models — check current availability and confirm the right variant at LeadTime.ca.

Expert Verdict: Is the XB4BD25 the Right Part for Your Project?

The XB4BD25 is the correct choice for control system integrators, machinery OEMs, and maintenance technicians who need a reliable 2-position maintained selector with no complexity beyond what the application demands. Its 1,000,000-cycle mechanical life and IP69K environmental certification make it genuinely suitable — not just nominally rated — for water treatment, food processing, and chemical environments where cheap alternatives fail within the first year of service. The 1 NO plus 1 NC contact pair in a single 22mm body eliminates the need for two separate switches to achieve complementary logic switching, which matters when panel real estate and wiring hours are both on the budget. For any project that checks those boxes — 2-position, maintained, 600 VAC, 1.2 A, 22mm, non-illuminated — this switch delivers exactly what it promises without overcomplicating the build.

Where the XB4BD25 has genuine limits: it is the wrong model if your application requires three operational states (the XB4BK 3-position variant is the correct choice), if operators need illuminated visual confirmation of which position is active (the XB4BW illuminated series addresses that), or if your load current exceeds 1.2 A in continuous duty. Driving a motor or pump load directly through the XB4BD25 contacts without an intermediate contactor is a common field mistake — the switch is designed to control a coil circuit or PLC input, not the main power circuit. Applications with severe vibration environments that exceed IK06 impact resistance, or projects with 16mm panel cutout constraints, should evaluate the XB4BG compact variant instead.

From a procurement standpoint, the XB4BD25 is one of the better-stocked Harmony Series components in the distributor network, with lead times typically ranging from in-stock to two weeks for standard North American channels — though real-time availability must always be confirmed before locking a build schedule. Ordering through an authorized specialist distributor rather than a generic online channel matters here: genuine Schneider Electric product with full manufacturer warranty, accurate cross-referencing to catch variant mix-ups before shipment, and technical support to confirm the correct model before a purchase order is issued. For a component that sits on a machine panel for the life of the equipment, that verification step is worth the few minutes it takes. View current pricing and stock status for the XB4BD25 at LeadTime.ca — we ship worldwide.

For volume pricing, project-quantity quotes, or to confirm lead time before committing to a build schedule, contact the LeadTime.ca team directly — we ship worldwide.

What Engineers Need to Know Before Ordering the XB4BD25

Because community discussion specific to the XB4BD25 is sparse — this is a mature, well-understood component that rarely generates forum debate — the most useful pre-order intelligence comes from the field mistakes that show up repeatedly when engineers specify 2-position maintained selectors in the Harmony XB4 family. The wrong-part scenarios below represent the decisions most likely to cause a re-order, a panel rework, or a commissioning delay. They are worth reviewing against your project specifications before finalizing a purchase order.

The most common specification error is selecting between the XB4BD25 and illuminated variants without checking the suffix. The base model XB4BD25 carries no LED ring, no lamp circuit, and no additional wiring terminals for illumination. Buyers who assume all Harmony XB4 series switches are interchangeable sometimes receive an illuminated version — different SKU, different wiring requirements, higher cost — when they ordered non-illuminated. The fix is straightforward: reference the full model number XB4BD25 on every purchase order and confirm against the distributor's catalog image before checkout.

The second recurring issue is current rating misapplication. The 1.2 A contact rating is sufficient for controlling a contactor coil or a PLC digital input — which is the intended use. It is not sufficient for switching a motor load, a pump, or any inductive device with significant inrush current directly through the switch contacts. Engineers who wire the XB4BD25 directly into a main power circuit rather than a control circuit will see accelerated contact erosion and premature switch failure. The correct architecture is to use the XB4BD25 to switch the coil of a properly sized contactor, which then handles the main load. A specialist distributor who understands the application can help confirm this architecture before an order is placed — which is precisely the conversation LeadTime.ca is set up to have.

Wiring and Installation Overview

The following overview covers the key requirements for installing and wiring the XB4BD25. For full step-by-step procedures, refer to the Schneider Electric installation documentation supplied with the product.

  • Panel cutout must be 22mm in diameter — verify with a gauge before drilling; a 25mm or larger hole will prevent the IP69K seal from seating correctly and will allow the body to move under the locking nut
  • Strip 5 to 7mm of insulation from each conductor before inserting into screw clamp terminals; both solid and stranded wire are accepted
  • Identify the NO and NC contact pairs using the terminal diagram in the Schneider Electric product manual before making connections; incorrect contact assignment to PLC inputs is a commissioning-delay source
  • Tighten the rear locking nut to hand-snug, then add only a quarter-turn with a 24mm wrench — over-torque cracks the chromium-plated bezel or the plastic collar and voids the IP69K seal
  • After wiring, perform a continuity test on each terminal pair with the selector in each of its two positions before applying power; verify that the handle moves freely through the full 90-degree arc without binding

Wrong-Part Prevention Checklist

Before placing your order for the XB4BD25, verify each of the following items against your application requirements. This checklist captures the most common causes of wrong-part shipments and field installation failures for this model.

  1. Confirm 2-position maintained (stay-put) operation required, not 3-position or momentary
  2. Verify 90-degree rotary motion suits panel layout; not pushing buttons or paddle levers
  3. Check that 1 NO + 1 NC contact configuration matches logic (not 2 NO or 2 NC required)
  4. Confirm 600 VAC and 1.2 A load matches application; do not oversize current rating
  5. Verify screw clamp terminals are compatible with wire gauge and panel wiring; not DIN-rail mount
  6. Ensure 22mm diameter body fits panel cutout; measure actual hole before ordering
  7. Confirm black color and non-illuminated operation; illuminated versions are different SKUs

If any item on this checklist raises a question about whether the XB4BD25 is the right part, contact the LeadTime.ca team before ordering — confirming the correct model takes minutes and prevents costly re-orders.

Frequently Asked Questions

Can the XB4BD25 switch a motor load directly, or does it require an intermediate contactor?

The XB4BD25 is rated at 1.2 A continuous — sufficient for controlling a contactor coil (typically 100 to 500 mA at 24 VDC) or a PLC digital input, but not for switching a motor or pump load directly. For any inductive load with significant inrush current, wire the XB4BD25 to control the coil of a properly rated contactor, which then handles the main power circuit. Running motor current through the switch contacts directly will accelerate contact erosion and cause premature failure.

Is the XB4BD25 a direct drop-in replacement for other 22mm Harmony XB4 selectors already installed in the panel?

Yes, the XB4BD25 uses the standard 22mm Harmony XB4 Series form factor, which means the body mounts in the same 22mm panel cutout as other XB4 family members. However, the terminal wiring and contact configuration must be verified against the original switch being replaced — particularly whether the existing installation used an illuminated variant (different terminal count) or a 3-position selector (different contact arrangement). Do not assume all XB4 models are pin-compatible without checking the terminal diagram.

What does IP69K mean in practice for wash-down environments, and does the rating hold after installation?

IP69K per IEC 60529 means the switch is tested to resist high-pressure, high-temperature water jets directed at close range — the type of spray used in food processing CIP wash-down. The rating is valid as installed only if the 22mm panel cutout is accurately sized and the locking nut is properly tightened (hand-snug plus a quarter-turn). An oversized cutout or a loose locking nut will break the rear seal and allow water ingress regardless of the front-face IP69K rating.

What is the difference between the XB4BD25 and the XB4BW series, and how do I know which one to order?

The XB4BD25 is a non-illuminated selector — the black handle has no LED ring, no lamp, and no additional wiring terminals for illumination. The XB4BW series adds an illuminated indicator ring powered by a separate lamp or LED circuit, requiring additional wiring terminals and a pilot light power supply. If your application only needs the operator to feel the mechanical detent to confirm position, the XB4BD25 is correct. If the position must be visible from a distance or in low-light conditions, specify the appropriate XB4BW variant instead.

What happens if the panel cutout is drilled to 24mm or 25mm instead of 22mm?

A cutout larger than 22mm prevents the Zamak fixing collar from seating flush against the rear of the panel, which means the locking nut cannot create the compression seal required for IP69K protection. The switch body will also have lateral play inside the oversized hole, causing mechanical wear on the bezel over time. If an oversized cutout has already been drilled, a 22mm reducer bushing from the same product family may be available — contact LeadTime.ca to confirm compatibility before proceeding.

Why Order From LeadTime.ca

  • Ships worldwide — the XB4BD25 and Harmony XB4 family components are available to buyers globally, not restricted to a single region
  • Authorized distributor sourcing — genuine Schneider Electric products with full manufacturer warranty, not pull-stock or grey-market inventory
  • Pre-order technical support — confirm the correct variant (XB4BD25 vs. XB4BW vs. XB4BK) before the purchase order is issued, not after a wrong-part shipment arrives
  • Volume and project pricing available — contact for current quotes on multi-unit or panel build quantities
  • Real-time stock and lead time confirmation — availability changes; always verify current status before committing to a project delivery date

At-a-Glance Summary

  • Model: Schneider Electric XB4BD25 — 22mm 2-position maintained rotary selector switch, black, non-illuminated
  • Electrical rating: 600 VAC, 1.2 A continuous — sufficient for coil control and PLC input circuits; requires intermediate contactor for motor loads
  • Contact configuration: 1 NO + 1 NC per position — slow-break silver alloy (Ag/Ni) contacts
  • Mechanical life: 1,000,000 cycles under standard industrial switching duty
  • Environmental protection: IP69K per IEC 60529 — high-pressure jet and dust ingress resistant; IK06 impact rating per IEC 50102
  • Terminal connection: Screw clamp — accepts solid or stranded wire; 5 to 7mm strip length required
  • Panel cutout: 22mm diameter — measure actual hole before ordering; oversized cutouts break the IP69K seal
  • Product family: Harmony XB4 Series — industry-standard 22mm form factor with broad distributor availability worldwide
  • Key wrong-part risk: Illuminated variants (XB4BW) and 3-position variants (XB4BK) share the same form factor but are different SKUs — always order by full model number
