Schneider XB4BD21 — 22mm Selector Switch Specs & Selection Guide

By Abdullah Zahid
14 min read

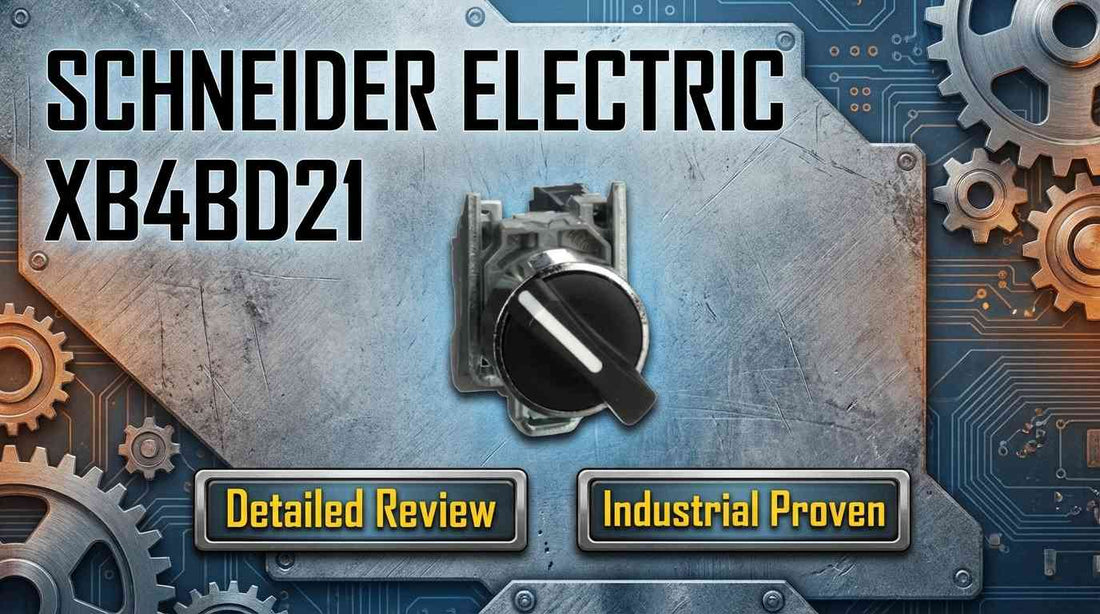

Schneider Electric XB4BD21 Harmony 22mm black maintained 2-position selector switch for industrial control panels

Schneider XB4BD21 — Harmony 22mm Push Button, 2-Position Selector Switch, Black, Maintained, 1 NO, 600 V: Specifications, Wiring & Selection Guide

Control panel builders and automation engineers searching for a maintained 2-position selector switch that carries both marine certification and IP69K washdown protection land on the Schneider XB4BD21 with good reason. This Harmony 22mm unit delivers a 600V rated, 1 NO contact configuration with screw clamp terminals and a 1,000,000-cycle mechanical durability rating — the kind of specification combination that handles solenoid coil circuits, motor starter interlocks, and manual override logic without fuss. If you are already past the research phase and have confirmed this is the right part, check current pricing and availability for the XB4BD21 at LeadTime.ca — ships worldwide.

Who Should Buy the XB4BD21 — and Who Shouldn't

The Schneider XB4BD21 is the right choice for engineers and panel builders who need a certified, maintained 2-position selector in a 22mm panel-mount format. This model fits your project if:

  • Your control circuit operates at up to 600V AC/DC and your load does not exceed 1.2A at 600V (AC-15 category)
  • A single 1 NO (normally open) contact is sufficient — your circuit logic closes the contact when the selector is rotated, and the contact remains open in the default position
  • Your panel cutout is 22mm diameter and your field wiring is no larger than 1.5mm² per terminal
  • Your application is in food processing, water treatment, marine, or any environment requiring IP69K or IP67 protection
  • You need certifications including LROS, Bureau Veritas, UL, CSA, or DNV without additional product qualification
  • You are maintaining or expanding an existing Harmony ecosystem panel and require mechanical and electrical footprint compatibility

If your application requires an illuminated position indicator, the XB4BVD21 is the correct variant. If you need a 3-position selector or a different contact configuration, look at the broader Harmony range including the XB4BW34. If the action needs to be momentary (spring-return), the XB4BD21 is the wrong family entirely.

On this page:

What the XB4BD21 Does in a Real Control System

The Schneider XB4BD21 is a maintained 2-position selector switch — meaning once an operator rotates the black metal knob to either of its two positions, the switch stays there. There is no spring return, no center neutral, and no momentary pulse. This is a deliberate design feature for applications where the control state must remain constant without continuous operator input.

The contact block carries a single 1 NO (normally open) pair identified as terminals 13-14 per ISO 1219 conventions. In its default position, no current flows through the contact. When the operator rotates the selector to the alternate position, the contact closes and current flows — activating a coil, solenoid, pilot light feed, or PLC input as the circuit demands. The slow-break contact action characteristic of this design reduces arcing on inductive loads compared to fast-break alternatives, which matters for solenoid coil longevity.

The 600V insulation voltage rating, confirmed at Pollution Degree 3 per EN 60947-1, means this part handles standard industrial control circuit voltages from 24VDC through 480VAC and beyond, up to the 600V ceiling. The 1.2A current rating at 600V (AC-15 per EN/IEC 60947-5-1) covers the vast majority of solenoid coils and motor starter auxiliary contacts in the field. At DC loads, the DC-13 category rating applies — 0.27A at 250V — so verify your DC load carefully before specifying for high-resistance DC-13 applications.

The physical form factor is the Harmony 22mm standard: a metal housing in black, 68mm deep behind the panel face, mounting through a 22mm cutout. The IP69K rating means this unit tolerates high-pressure steam and water jet cleaning without ingress — a non-negotiable requirement in food processing and marine splash zones. IP67 provides short-duration submersion protection up to 1 meter as a secondary rating.

Typical System Architecture for a 22mm Selector Switch

The XB4BD21 sits between the human operator and the control logic — it is the physical interface that translates a rotational input into a discrete electrical signal. In a typical panel, the signal path runs as follows:

  • Control power supply (24VDC or 120VAC typical) feeds the common terminal of the XB4BD21 contact block at terminal 13
  • Terminal 14 (NO output) connects to the PLC discrete input card, relay coil, solenoid coil, or contactor auxiliary input
  • The PLC or relay logic interprets the open or closed state as a mode selection — for example, AUTO versus MANUAL or RUN versus STOP
  • Downstream actuators (valve solenoids, motor starters, pump contactors) respond to the PLC output logic triggered by the selector state
  • For safety-critical circuits, the selector state may also feed a safety relay or safety PLC input, where the maintained contact provides a persistent signal the system can monitor continuously

Where the XB4BD21 Gets Installed: Industries and Applications

In process industries, the XB4BD21 handles pump and motor mode selection — giving operators a physical, lockable choice between manual run and automatic control mode on a process loop. A maintained selector is preferred over a momentary pushbutton here because the mode must persist through power cycling and operator changeovers without accidental reset.

In food and beverage processing lines, the IP69K rating is the deciding factor. Washdown protocols using high-pressure steam or chemical sprays are routine in these environments. Standard IP66 selector switches allow water ingress under sustained spray; IP69K prevents it. The XB4BD21 is a direct answer to hygiene-compliant panel design without replacing the entire Harmony infrastructure.

Marine installations on commercial vessels require Lloyd's Register of Shipping (LROS) and DNV or Bureau Veritas certification on control panel components. The XB4BD21 carries all three. For OEM equipment builders shipping machinery to marine clients, using pre-certified components eliminates a separate product qualification step that can add weeks and cost to a project schedule.

In pharmaceutical and water treatment facilities, the combination of IP67 submersion rating, CSA certification, and metal housing addresses both the environmental demands of cleaning protocols and the regulatory documentation requirements of validated systems. The XB4BD21's established certification matrix shortens the documentation burden on system integrators.

Application Typical Deployment
Pump and motor mode selection Manual/Auto selector on process loop control panel, maintained position persists through power cycle
Valve position selector 2-way manual diverter control for flow routing in water treatment or chemical dosing systems
Emergency stop acknowledgment Maintained contact forces operator acknowledgment before system restart after safety shutdown
Food and beverage washdown environments IP69K-rated selector for recipe or line selection on washdown-exposed control enclosures
Marine vessel control panels LROS/DNV-certified selector for bilge pump or ballast valve manual override circuits
Load bank and diagnostic stations Test 1 vs. Test 2 selector for load testing or diagnostic channel switching

Purchase-Decision Specifications and Variant Comparison

Parameter Value
Voltage Rating (Ui) 600V AC/DC (Pollution Degree 3 per EN 60947-1)
Contact Type 1 NO (Normally Open), terminals 13-14, slow-break action
Current Rating — AC-15 1.2A at 600V per EN/IEC 60947-5-1
Current Rating — DC-13 0.27A at 250V per EN/IEC 60947-5-1
Mounting Diameter 22mm panel cutout (Harmony standard)
Mounting Depth (behind panel) 68mm clearance required
Operation Type 2-position maintained (stay-put)
IP Protection Rating IP69K / IP67 / IP66 per IEC 60529
Operating Temperature -40 to +70°C
Mechanical Durability 1,000,000 cycles

Full technical specifications are available on the product page at LeadTime.ca.

Model Positions Action Contact Config Illuminated Best For
XB4BD21 2 Maintained 1 NO No Standard 2-position maintained selection, marine and washdown certified
XB4BVD21 2 Maintained 1 NO Yes Applications requiring visual position confirmation via integrated indicator light
XB4BW34 3 Maintained Dual contact No 3-position selection (e.g., Off/Manual/Auto) requiring broader angular range

If your application requires an indicator light to confirm which position the selector is in, the XB4BVD21 is the correct choice. If you need a 3-position selector with a wider contact configuration, the XB4BW34 addresses that requirement — check current availability and compare models at LeadTime.ca.

Expert Verdict: Is the XB4BD21 Worth the Premium?

The Schneider XB4BD21 earns its place in regulated and harsh-environment control panels by combining a certification portfolio that most commodity selector switches simply do not carry with an IP69K protection rating that covers the most demanding washdown protocols in food processing and marine environments. For automation engineers designing control panels for vessels requiring LROS or DNV sign-off, or for OEM builders supplying food and beverage lines where IP66 is no longer sufficient, this part eliminates a re-qualification step that carries real project cost. The 1,000,000-cycle mechanical durability rating translates to a reliable 5-7 year service life under typical 8-shift industrial conditions, which aligns with standard panel maintenance intervals. At the 600V/1.2A AC-15 rating, it handles the solenoid coils, motor starter auxiliary inputs, and PLC discrete channels that populate the majority of industrial control panels without requiring an intermediate relay interface.

The honest limitations are worth naming plainly. The XB4BD21 carries a single 1 NO contact — that is the full extent of its contact complement. Applications that require a normally closed contact in the default state, or a combined NO plus NC pair for interlock logic, need a different Harmony variant. The XB4BD21 is not illuminated; if operators require visible confirmation of the selected position, the XB4BVD21 is the appropriate upgrade. For environments where the marine and washdown certifications are irrelevant and the application is a clean indoor control room, a lower-cost non-certified equivalent within the Harmony range may be more appropriate for cost-conscious procurement. The panel-mount-only format also means this part has no place in DIN-rail or compact enclosure designs that require a different mounting philosophy.

From a procurement standpoint, the XB4BD21 is generally held in stock by major North American distributors for the standard variant; marine-certified configurations may require a lead time in the 2-4 week range depending on regional warehouse levels. Ordering through a specialist industrial distributor rather than a generic channel matters here: a specialist can confirm whether the specific certified variant is in regional stock, advise on terminal wire sizing compatibility for your site standard, and flag contact configuration mismatches before a purchase order is issued. For panels with urgent commissioning timelines, that pre-order consultation is the difference between on-time startup and a field rework. View current stock status and pricing for the XB4BD21 at LeadTime.ca — we ship worldwide.

For volume pricing on multi-unit orders or to confirm lead time before committing to a build schedule, contact the LeadTime.ca team directly — we ship worldwide and work with procurement teams across every region.

What Engineers Need to Know Before Ordering the XB4BD21

Community discussion volume for the XB4BD21 is sparse — a reliable indicator that this is a mature, well-understood commodity component with a low field failure rate and straightforward wiring. But low discussion volume does not mean low ordering risk. The most common problems with this part category are not failures in the field; they are specification mismatches at the point of order. The following represents the concentrated knowledge of engineers and distributors who work with the Harmony 22mm family regularly, and the mistakes that generate rework calls.

The single most recurring source of confusion is the "push button" designation that appears in some Schneider catalog listings. Engineers accustomed to momentary push buttons — press and release, action fires, contact springs back — occasionally specify the XB4BD21 expecting that behavior. It does not behave that way. Once rotated to either of its two positions, the contact stays there. If your control logic depends on a momentary pulse to trigger a one-shot output or a latch, a maintained selector will leave the circuit in an unintended continuous state. Clarify with the application engineer whether maintained or momentary action is required before the purchase order is written.

The second consistent specification trap is terminal wire sizing. Panel builders who standardize on 2.5mm² or 4mm² control wire for main runs sometimes attempt to use the same gauge at the XB4BD21 terminals. The screw clamp accepts a maximum of 1.5mm² per connection. Forcing a larger gauge results in an incomplete clamp seat, a loose connection that deteriorates under vibration and thermal cycling, and an intermittent contact fault that is difficult to diagnose during commissioning. If your site standard wire is larger than 1.5mm², plan a transition terminal block in the schematic before the selector switch — this is a documented design decision, not a workaround. And verify the contact requirement one final time: the XB4BD21 is 1 NO only. If the circuit schematic shows NC or a NO/NC pair at this selector position, a different model is required. Ordering the wrong contact type in a safety-critical interlock circuit creates a non-compliant condition that demands immediate panel shutdown and rework. The LeadTime.ca team can confirm contact configuration and variant availability before you commit to an order.

Wiring and Installation Overview

  • Verify the panel cutout is 22mm diameter before installation; the XB4BD21 requires exactly 22mm and the mounting sleeve must seat flush against the panel face before the back nut is tightened
  • Confirm all field wiring is 1.5mm² maximum per terminal; prepare wire ends with ferrule connectors (IEC 60947-1 compliant) for solid-core wire at or above 1.0mm² to ensure full clamp engagement
  • Connect the control power feed to terminal 13 (common) and the load or PLC input wire to terminal 14 (NO output) per ISO 1219 terminal identification; the contact is open in the default position and closes when the selector is rotated to the alternate position
  • Allow 68mm of clearance behind the panel face for the full depth of the XB4BD21 body; verify no bus bars, cable bundles, or DIN rail components occupy this space before mounting
  • Before energizing the circuit, confirm mechanical rotation is smooth through the full 90-degree travel and verify contact continuity in both positions with a multimeter — open circuit (infinite resistance) in default, closed circuit (near-zero resistance) in alternate position

Wrong-Part Prevention Checklist

Before issuing a purchase order for the XB4BD21, verify each of the following against your application documentation and panel schematic:

  1. Confirm 2-position maintained (stay-put) action is required — momentary 2-position selectors exist but operate differently
  2. Verify screw clamp terminal compatibility with existing panel wiring gauges (accepts up to 1.5mm² per terminal)
  3. Confirm 1 NO contact is sufficient — many applications require NC contact or NO + NC combination (XB4BD21 has NO only)
  4. Ensure 600V rating matches control circuit voltage (not load voltage)
  5. Check IP rating requirement — IP69K is highest; IP67 acceptable for most indoor industrial use
  6. Verify black knob/lever color is acceptable — no other color options available in this exact model
  7. Confirm 22mm diameter fits existing panel cutout and switch assembly space

If any item on this checklist raises a flag, do not proceed with the order until it is resolved. Review the full product details and confirm the XB4BD21 meets your spec at LeadTime.ca, or contact us directly and our team will help identify the correct variant.

Frequently Asked Questions

Is the XB4BD21 a momentary push button or a maintained selector switch?

It is a maintained 2-position selector switch. Despite the term "push button" appearing in some Schneider catalog listings, the XB4BD21 does not spring-return to a default position. Once rotated to either of its two positions, it stays there until the operator manually rotates it back. If your application requires a momentary pulse — press, fire, release, return — you need a different model family.

Can I use the XB4BD21 on a 24VDC control circuit?

Yes. The 600V rating is the maximum insulation voltage, not a minimum operating voltage. The XB4BD21 operates correctly on any control circuit voltage up to 600V, including 24VDC, 120VAC, and 240VAC. At DC loads, verify the current draw falls within the DC-13 category rating of 0.27A at 250V, as DC contact ratings are more restrictive than AC ratings for inductive loads.

Why does the DC current rating differ from the AC rating?

The AC-15 rating of 1.2A at 600V applies to alternating current loads such as solenoid coils on AC supply. The DC-13 rating of 0.27A at 250V applies to resistive and inductive DC loads. DC arcs are harder to interrupt than AC arcs, so DC contact ratings are inherently more conservative. If your load is a DC solenoid or coil drawing more than 0.27A, an intermediate relay is required; the XB4BD21 contact would be used to drive the relay coil rather than the load directly.

What happens if I use wire larger than 1.5mm² in the screw clamp terminals?

The terminal block will not achieve a full clamp on the wire conductor, leaving a mechanically incomplete and electrically unreliable connection. Under vibration or thermal cycling typical of industrial environments, this connection loosens over time, producing intermittent contact faults or complete open circuits. The solution is to install a transition terminal block in the panel and run 1.5mm² wire from that block to the XB4BD21 terminals — document this in the schematic as a deliberate wire size step-down.

Does the XB4BD21 meet IP69K or only IP66?

The XB4BD21 carries IP69K, IP67, and IP66 ratings per IEC 60529. IP69K is the highest water protection designation and confirms resistance to high-pressure, high-temperature water jet cleaning — the standard used in food processing washdown and marine spray zone environments. IP67 provides protection against temporary submersion up to 1 meter. Both ratings exceed the IP66 threshold that defines standard industrial splash protection.

Is the 1,000,000-cycle mechanical rating sufficient for high-frequency cycling applications?

At typical industrial duty — approximately 8 to 10 selector operations per 8-hour shift, 5 days per week — the 1,000,000-cycle rating provides between 5 and 7 years of service life before mechanical wear becomes a risk factor. For applications with much higher cycling frequency, such as automated test stations cycling the selector dozens of times per hour, calculate your actual cycle rate against this figure before specifying. High-frequency automated cycling may exhaust the mechanical rating significantly faster than a standard operator-actuated panel selector.

Why Order from LeadTime.ca

  • LeadTime.ca ships the XB4BD21 and Harmony family components worldwide — no geographic restriction on order fulfillment
  • Specialist industrial distribution means pre-order technical consultation on contact configuration, terminal compatibility, and variant selection — not available through generic online retailers
  • Marine-certified and specialty-certified variants of Harmony components are stocked or sourced through authorized channels, reducing lead time risk compared to non-specialist suppliers
  • Volume pricing is available for multi-unit orders — contact the team before placing large panel build orders
  • View the XB4BD21 product page at LeadTime.ca
  • Contact LeadTime.ca for a quote or lead time confirmation

At-a-Glance Summary

  • Model: Schneider XB4BD21 — Harmony 22mm, 2-position maintained selector switch, black metal housing
  • Contact: 1 NO (normally open), terminals 13-14 per ISO 1219, slow-break contact action
  • Voltage rating: 600V AC/DC (Pollution Degree 3, EN 60947-1)
  • Current rating: 1.2A at 600V (AC-15); 0.27A at 250V (DC-13)
  • Panel cutout: 22mm diameter; mounting depth: 68mm behind panel face
  • Wire terminal: Screw clamp, 1.5mm² maximum per terminal
  • IP protection: IP69K / IP67 / IP66 per IEC 60529
  • Operating temperature: -40 to +70°C
  • Mechanical durability: 1,000,000 cycles (approx. 5-7 years at 8-10 cycles per shift)
  • Certifications: LROS, Bureau Veritas, UL, GL, CSA, DNV
  • Key variants: XB4BVD21 (illuminated), XB4BW34 (3-position)
  • Wrong-part risk: NO-only contact — verify NC or dual-contact requirements before ordering
