Schneider Electric XB4BA42 — Red Pushbutton Buyer Review

By Abdullah Zahid
13 min read

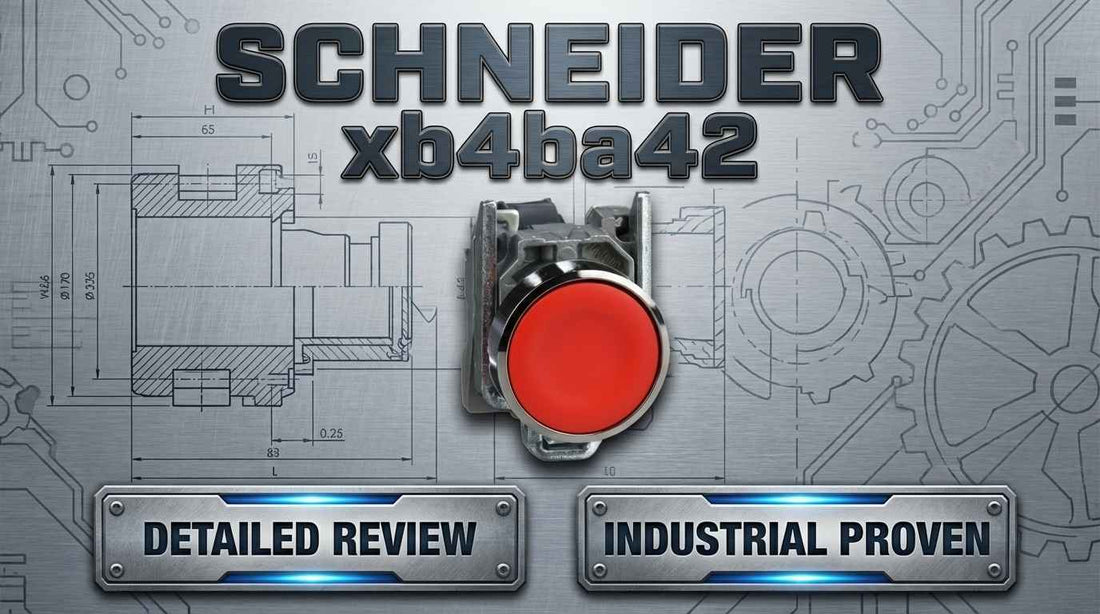

Schneider Electric XB4BA42 Harmony 22mm red flush pushbutton 1 NC spring return for industrial control panels

Schneider Electric XB4BA42 — Harmony 22mm Red Flush Pushbutton, 1 NC Spring Return: Specifications, Pricing, and Selection Guide

When a control panel builder or maintenance technician searches for the Schneider Electric XB4BA42 by exact catalog number, the decision is usually already made — what remains is confirming the contact configuration, verifying availability, and placing the order without a costly mix-up. The XB4BA42 is a 22mm diameter, red flush, spring-return pushbutton from the Harmony XB4 series, configured with one normally closed (1 NC) contact and rated to 600V AC. It ships as a complete modular assembly, ready to mount in a standard 22mm panel cutout without additional hardware or contact block sourcing.

If you have already confirmed this is the correct part for your panel, check current pricing and availability for the XB4BA42 at LeadTime.ca — we ship worldwide.

Who Should Buy the XB4BA42 — and Who Shouldn't

The XB4BA42 is the right choice when all five of the following conditions apply to your application:

  • Your circuit requires exactly 1 NC (normally closed) contact — not normally open, not dual-channel
  • The panel design calls for a flush (recessed) operator, not a projecting profile
  • Red is the specified operator color per your panel design standard or safety convention
  • The mounting cutout is 22mm diameter — neither 16mm nor 30mm
  • The action must be spring return (momentary) — not latching or maintained

If your design requires illuminated operator feedback, the correct choice is the XB4BV42 (LED-illuminated variant). If the contact configuration is 1 NO or 2 NO, the XB4BA41 or XB4BA45 respectively are the appropriate selections. Do not substitute without verifying your control schematic.

On this page:

What the XB4BA42 Does in a Real Control System

The XB4BA42 is the physical interface point where an operator's hand becomes a command signal in an industrial control circuit. Mounted in a panel door, it connects a human action — pressing a button — to a PLC input, relay coil, or safety circuit. The 1 NC contact means the circuit is closed at rest and opens when the button is pressed, which is the standard logic for stop and emergency functions: the control system sees a signal interruption as the command. Spring return ensures the contact automatically restores to the normally closed state the moment the operator releases pressure — no manual reset required.

The chromium-plated metal body and IP 69K rating mean this is not a light-duty panel component. Rated for high-pressure washdown environments, NEMA 4X corrosion-resistant installations, and UL 508 control circuit applications, the XB4BA42 is specified wherever the environment is aggressive and compliance is non-negotiable. The modular complete assembly design means the entire operator and contact block are integrated — no separate sourcing of contact blocks is required at order time.

Where the XB4BA42 Sits in a Typical Control Architecture

The XB4BA42 occupies the operator interface layer of a control circuit, sitting between the panel face and the control logic that governs machine or process behavior. Understanding its position helps commissioning engineers wire and test it correctly.

  • PLC or relay control logic — receives the discrete input signal from the pushbutton contact
  • Control circuit wiring — connects the XB4BA42 NC terminals to the PLC input card or relay coil
  • XB4BA42 pushbutton assembly — mounted flush in the 22mm panel cutout; the 1 NC contact opens on press
  • Upstream circuit protection — fused disconnect or circuit breaker rated for the control voltage; required per electrical code
  • Panel door or enclosure — NEMA 4X rated enclosure to match the IP 69K rating of the pushbutton in washdown or chemical environments

Typical Applications and Industries for the XB4BA42

Automotive assembly lines are among the highest-volume users of the XB4BA42. Stop and mode-selection buttons on conveyor lines, robotic cell perimeters, and assembly station control panels are routinely specified with red flush 22mm pushbuttons in the Harmony series. The NEMA 4X and IP 69K ratings satisfy the washdown and chemical resistance demands common to these facilities.

Food and beverage processing plants specify the XB4BA42 specifically because of its washdown certification. Panel enclosures in these environments are regularly hosed down with high-pressure water and sanitizing chemicals. IP 69K is not a marketing label — it is a functional requirement in these settings, and the XB4BA42 meets it.

Machine tool builders and OEM panel integrators use the Harmony XB4 series as a design standard. When the XB4BA42 appears on an existing bill of materials, replacement procurement is straightforward — the part number is known, the specifications are locked, and a direct swap requires no engineering review. This is why maintenance teams stock multiples for rapid field replacement rather than sourcing reactively when a failure occurs.

Modernization projects in textile mills, timber processing facilities, and chemical plants that are retrofitting older unbranded pushbuttons with certified Harmony components also represent a strong use case. The UL 508 and NEMA 4X certifications allow the retrofit to pass compliance inspection without additional engineering work on the enclosure rating.

Application Typical Deployment
Panel retrofit Replacing worn or failed pushbuttons in existing 22mm control enclosures; direct swap without rewiring if contact config matches
OEM new equipment build Integrated into control panel designs for automotive, packaging, or machine tool equipment shipped to end users
Spare parts inventory Maintenance teams stock multiples in facilities with high pushbutton density to minimize downtime during replacement
Food and beverage washdown panels IP 69K rating meets high-pressure hose-down requirements; NEMA 4X satisfies corrosive cleaning agent exposure
Emergency stop and mode selection circuits 1 NC spring return logic aligns with stop circuit convention; red color meets IEC 60417 panel color standards
Compliance modernization retrofit Replacing generic pushbuttons with UL 508-certified Harmony components to meet current facility compliance standards

XB4BA42 Electrical and Physical Specifications

Parameter Value Notes
Contact Configuration 1 NC (Normally Closed) Single contact, spring return; opens on press
Contact Rating @ 600V AC 1.2 A Maximum current at highest rated voltage
Contact Rating @ 240V AC 3 A Derating applies above 240V
Contact Rating @ 120V AC 6 A Highest current capacity at lowest rated voltage
Maximum Voltage 600V AC DC applications require separate consultation
Operator Diameter 22 mm Not compatible with 16mm or 30mm cutouts
Operator Type Flush Recessed profile; verify panel depth before ordering
IP Rating IP 69K High-pressure washdown rated
NEMA Rating NEMA 4X Corrosion resistant; suitable for wet and chemical environments
Certifications UL 508 Control circuit component certification; Made in France

Full technical specifications are available on the product page at LeadTime.ca.

XB4BA42 vs. Harmony Series Alternatives: Which One Do You Actually Need?

Model Operator Contact Config Illuminated Primary Use Case
XB4BA42 Red flush 22mm 1 NC spring return No Standard stop button; emergency circuit
XB4BV42 Red flush 22mm 1 NC spring return Yes (LED) Visual feedback required; mode selection with indicator
XB4BA41 Red flush 22mm 1 NO spring return No Start button; inverted logic from XB4BA42
XB4BA45 Red flush 22mm 2 NO spring return No Dual circuits or parallel redundancy applications

The contact rating derating pattern — 6A at 120V AC down to 1.2A at 600V AC — is critical when selecting the right variant for your system voltage. Confirm your installed control voltage before finalizing the order. If you need to verify which Harmony variant fits your schematic, check current availability for the XB4BA42 at LeadTime.ca or contact the team for part selection support.

Expert Verdict: Is the XB4BA42 Worth Specifying?

The XB4BA42 earns its place on panel bills of materials because it solves a specific problem cleanly: you need a certified, industrial-grade red stop button in a 22mm flush profile with 1 NC spring-return action, and you need it to meet UL 508 and NEMA 4X without any additional engineering effort. For control panel builders, OEM integrators, and maintenance teams who work in automotive, food and beverage, chemical, or textile environments, this is the component that passes compliance inspection, survives washdown, and requires no learning curve. The Harmony modular complete assembly means the contact block is already integrated — there is no additional sourcing step at order time. The 18-month contractual warranty and stable supply chain from authorized distributors reinforce this as a low-risk, high-confidence specification choice.

The XB4BA42 has real limits, and being direct about them builds better panels. If your design requires illuminated operator feedback — common in mode selection or status indication circuits — the XB4BV42 is the correct choice, not this model. If the contact configuration required is 1 NO rather than 1 NC, the XB4BA41 is the right part; ordering the XB4BA42 and rewiring the circuit logic is an avoidable and expensive mistake. For budget-constrained projects where a generic unbranded pushbutton is acceptable and compliance certification is not a hard requirement, the XB4BA42 will be priced higher than non-certified alternatives — that premium is the cost of the UL 508 and IP 69K ratings, and it is worth paying when those ratings matter.

From a procurement standpoint, the XB4BA42 is well-supported across the North American distribution network, with authorized distributors reporting consistent in-stock availability and same-day or next-day shipping for urgent replacement and retrofit projects. For facilities where production downtime carries real cost, sourcing through a specialist industrial distributor rather than a general-purpose retailer is the practical choice — lead time predictability and technical part-selection support reduce the risk of a costly reorder. View current pricing and stock status for the XB4BA42 at LeadTime.ca — we ship worldwide.

For volume pricing or to confirm lead time before committing to a build, contact the LeadTime.ca team directly — we ship worldwide.

What Engineers Need to Know Before Ordering the XB4BA42

Because the XB4BA42 is a catalog-number-specific component rather than a widely discussed forum topic, the most valuable guidance comes from the field knowledge of engineers who have made ordering mistakes on similar modular pushbutton assemblies — and from the pattern of errors that specialist distributors see repeatedly when customers place incorrect orders.

The single most consequential pre-order error is contact configuration confusion. The Harmony XB4 series uses a digit-based model number structure where a single digit change separates a 1 NC from a 1 NO configuration. The XB4BA42 and XB4BA41 look nearly identical in a search result or distributor catalog — the difference is that last digit, and the functional difference is whether your stop circuit opens or closes on press. Engineers who skim the datasheet rather than reading the contact diagram specification have reported receiving parts that force a complete rethink of their panel logic. The prevention is simple: verify contact configuration against your control schematic three times before placing the order.

The second recurring issue is operator profile confusion. Flush and projecting operators look similar in product images, particularly on distributor sites where multiple variants share the same photo. The flush profile of the XB4BA42 is specifically for recessed panel mounting — if the panel design calls for a projecting operator, the component will not seat correctly in the cutout. Measuring the panel cutout depth before ordering, and confirming flush vs. projecting in the datasheet dimension drawing, prevents a return cycle that can add days to a build schedule. When community feedback is sparse on a specific model and you are working from a first-time specification or an unfamiliar panel design, the most efficient path is to consult with a specialist distributor who can confirm the correct variant before the order ships.

Wiring and Installation Overview for the XB4BA42

  • Verify the panel cutout is exactly 22mm diameter and free of burrs or obstructions before inserting the flush operator assembly
  • Identify the NC contact terminals on the integrated contact block — the contact diagram in the Schneider Electric datasheet shows terminal marking; connect control wiring to the NC terminal pair only
  • Confirm that wire gauge is appropriate for the installed control voltage; at 600V AC the contact is rated for 1.2A, while at 120V AC it supports 6A — select conductor accordingly
  • Install an upstream fused disconnect or circuit breaker in the control circuit before energizing — this is a code requirement, not optional
  • Before powering the system, use a multimeter in continuity mode to confirm the NC contact reads closed at rest and opens when the button is pressed, then returns to closed on release

Wrong-Part Prevention Checklist Before Ordering the XB4BA42

Run through every item below before placing your order. One missed check is the difference between a clean install and a panel rewiring job.

  1. Confirm contact configuration is exactly 1 NC (one normally closed) — do not assume "N" means NO; verify in datasheet
  2. Verify operator is flush (recessed) not projecting; flush and standard look similar but mounting differs
  3. Check color is red; Harmony series offers multiple colors; wrong color can create panel design issues
  4. Confirm diameter is 22mm; common confusion with 16mm (smaller) and 30mm (larger) models
  5. Verify spring return (momentary); do not confuse with latching (maintained) operators
  6. Ensure non-illuminated specification matches design intent; illuminated variants have different part numbers
  7. Check 1 NC means single contact, not dual-channel; modular design can support stacking for additional contacts

If any item on this list raises a question about your specific panel design, contact the LeadTime.ca team before ordering — getting the right part the first time is faster and less expensive than processing a return.

Frequently Asked Questions

Can I use the XB4BA42 in a DC control circuit, or is it rated for AC only?

The electrical ratings published for the XB4BA42 reference AC voltages, with the highest rating being 600V AC at 1.2A. DC applications require separate consultation with Schneider Electric technical support or the distributor, as DC switching characteristics differ from AC and can affect contact life. Do not assume AC ratings apply directly to DC circuits.

Is the XB4BA42 a complete assembly, or do I need to order a separate contact block?

The XB4BA42 ships as a modular complete assembly — the operator and 1 NC contact block are integrated. No separate contact block sourcing is required for the standard 1 NC configuration. If you need additional contacts, the Harmony modular design supports stacking additional contact blocks, but the base assembly as ordered is ready to wire directly into a 22mm panel cutout.

What is the difference between the XB4BA42 and XB4BA41, and how do I know which one my panel needs?

The XB4BA41 is configured with 1 NO (normally open) contact — the circuit is open at rest and closes when pressed. The XB4BA42 has 1 NC (normally closed) contact — the circuit is closed at rest and opens when pressed. Your control schematic will show whether the pushbutton symbol is drawn with an NC or NO contact. Red flush stop buttons and emergency circuits typically use NC contacts; green start buttons typically use NO. If your schematic shows a stop or emergency function, the XB4BA42 is likely the correct choice — verify before ordering.

Does the IP 69K rating mean I can use the XB4BA42 in a high-pressure chemical washdown environment?

IP 69K confirms the XB4BA42 is rated for high-pressure washdown, and the NEMA 4X designation covers corrosion resistance for wet and chemically aggressive environments. However, the enclosure the pushbutton is mounted in must also carry a compatible rating — a NEMA 4X or IP 69K-rated enclosure is required for the system-level protection rating to be maintained. The pushbutton alone does not protect the panel interior if the enclosure does not match.

What happens if I press the XB4BA42 and the control system does not respond?

The most common causes are a wiring fault at the NC contact terminals, a failed contact due to wear or contamination, or a mismatch between the contact configuration and the control logic (for example, if the circuit was wired expecting a NO contact). Use a multimeter in continuity mode to verify the contact opens when pressed and closes when released. If the contact tests correctly but the PLC does not respond, the fault is in the wiring or input card, not the pushbutton. Replace the assembly if the contact does not switch cleanly.

What is the warranty on the XB4BA42 and what does it cover?

The XB4BA42 carries an 18-month contractual warranty from date of shipment. For specific coverage terms, conditions, and claims procedures, contact your authorized distributor or Schneider Electric directly. Extended support options may be available through OEM agreements.

Why Order the XB4BA42 From LeadTime.ca

  • Authorized distributor stocking the XB4BA42 with worldwide shipping — not limited to any single region or country
  • Specialist industrial automation focus means accurate part identification support and wrong-part prevention before the order ships
  • Volume pricing available for panel builders, OEMs, and maintenance stocking orders — contact for current rates
  • Rapid response for urgent replacement needs where production downtime carries real cost

XB4BA42 At-a-Glance Summary

  • Harmony XB4 series, 22mm red flush operator, 1 NC spring return — complete modular assembly, no separate contact block required
  • Contact rated at 1.2A @ 600V AC; derates to 3A @ 240V AC and 6A @ 120V AC — select wire gauge for your installed voltage
  • IP 69K and NEMA 4X ratings confirm suitability for high-pressure washdown and corrosive environments
  • UL 508 certified for control circuit applications; Made in France; 18-month contractual warranty
  • Direct alternatives: XB4BV42 for illuminated version, XB4BA41 for 1 NO contact, XB4BA45 for 2 NO dual-circuit applications
  • Consistent authorized distributor availability with same-day or next-day shipping reported across North American distribution network
  • Primary ordering risk: contact configuration mismatch (1 NC vs. 1 NO) — verify against control schematic before placing order
