Schneider Electric XB4BD33 — 3-Position Selector Switch Buying Guide

By Abdullah Zahid
14 min read

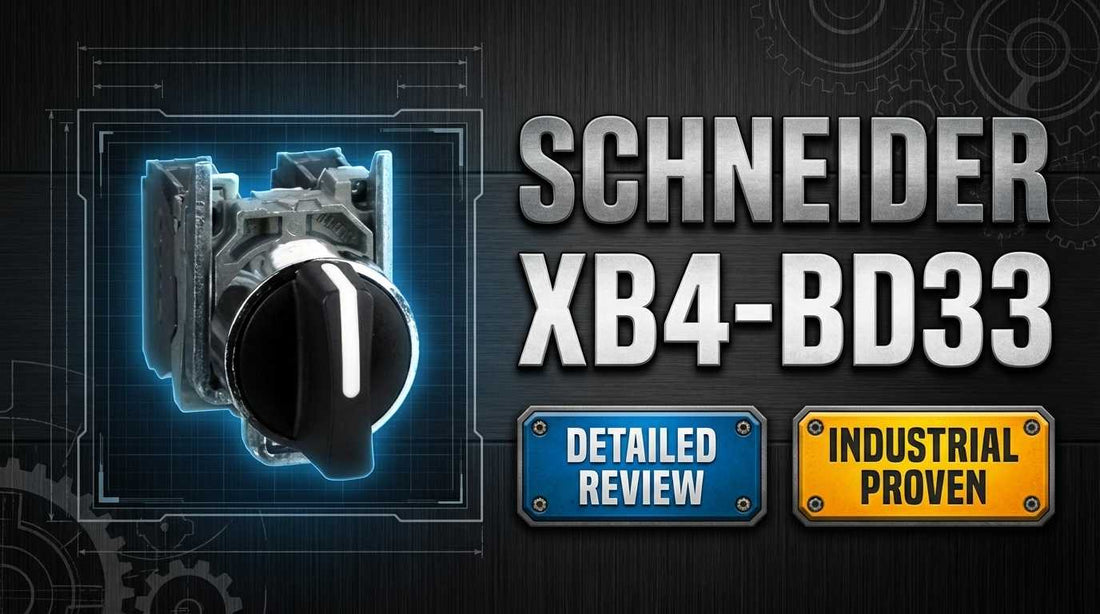

Schneider Electric XB4BD33 Harmony 22mm black 3-position maintained selector switch for industrial control panels

Schneider Electric XB4BD33 Harmony 22mm Push Button 3-Position Selector Switch, Black, Maintained, 2 NO, 600 V — Specifications, Wiring, and Selection Guide

Controls engineers and panel builders searching for a three-state mode selector with a maintained action and 600V rating in a 22mm form factor arrive at the Schneider Electric XB4BD33 from the Harmony XB4 series. This switch delivers exactly two normally open contacts across three latching positions — the workhorse configuration for Off/Manual/Auto logic in industrial control cabinets — with an IP69K environmental rating that holds up in food processing, pharmaceutical, and outdoor washdown applications. Before you finalize your purchase order, the single most important verification is contact current capacity at your actual operating voltage, not the 600V nominal rating: capacity is 1.2A at 600V, 3A at 240V, and 6A at 120V.

If you have already confirmed this is the right part, check current pricing and availability at LeadTime.ca — ships worldwide.

Who Should Buy the XB4BD33 — and Who Shouldn't

The XB4BD33 is the right selector switch when all five of the following are true for your application:

  • You need exactly three selectable positions — not two (XB4BD32) and not four (XB4BD34)
  • Your contact configuration requirement is 2 NO (normally open) — not NC, not 1 NO/1 NC
  • You need maintained (latching) action — the switch holds its selected position until the operator physically rotates it; if you need spring-return momentary action, this is the wrong part
  • Your panel uses a standard 22mm mounting hole — 30mm or 40mm cutouts will not accept this switch
  • Your load current at your actual operating voltage falls within rated limits: 1.2A at 600V, 3A at 240V, or 6A at 120V — and screw clamp terminals are acceptable for your wiring method

If any of the above does not match your requirements, the XB4BD32 (2-position), XB4BD34 (4-position), or a momentary-action variant from the Harmony XB4 family is the correct choice. See the variant comparison table below for specifics.

On this page:

What the XB4BD33 Does in an Industrial Control System

The XB4BD33 is a panel-mounted rotary operator that gives a machine or process three discrete, stable states. When an operator rotates the black chromium-plated metal bezel to any of the three positions — each separated by 45 degrees of rotation for a total mechanical travel of 135 degrees — the switch latches and holds that position. The two normally open contacts either close or remain open depending on which position is selected, feeding a contact closure signal to a PLC input, contactor coil, or relay logic circuit downstream. The switch itself does not contain control logic; it provides the physical interface between the operator and the wiring that drives the control system.

Unlike a momentary pushbutton that generates a pulse and returns to neutral, the XB4BD33's maintained action means the selected state is continuously signaled to the downstream device until the operator physically changes position. This is fundamental to Off/Manual/Auto or Low/Medium/High applications where the system must hold its operating mode between operator interventions. With a mechanical durability rating of 1,000,000 cycles and silver alloy contacts rated to IP69K, the XB4BD33 is suited for environments where ordinary switches would corrode or mechanically wear out prematurely.

Typical System Architecture for a 3-Position Selector Switch

The XB4BD33 sits at the operator interface layer — between the human operator and the logic controller or load device — converting a physical position choice into a wired discrete signal. A typical deployment looks like this:

  • Upstream branch circuit overcurrent protection device (breaker or fuse) — mandatory; the XB4BD33 has no internal protection
  • XB4BD33 selector switch mounted in panel door or front face via 22mm cutout — operator interface layer
  • Screw clamp terminal outputs from the 2 NO contacts wired to PLC discrete input module, relay coil, or contactor coil
  • PLC or relay logic reads contact state and executes the control program corresponding to the selected mode
  • Downstream actuators, drives, or motors respond to the logic output driven by the selector position

Typical Applications and Deployment Scenarios

The three-position maintained selector is most commonly encountered in manufacturing environments where an operator must choose between operating modes and the system must stay in the chosen mode hands-free. In a packaging line, the XB4BD33 typically controls Off/Manual/Auto selection, where Manual allows jogged operation for setup and Auto releases the machine to run its automatic cycle. The maintained action ensures the machine does not revert to Auto if the operator's hand is removed from the panel during a manual step.

In pump and fan control systems, the same switch handles Low/Medium/High speed reference selection, feeding a speed reference signal to a VFD or switching between contactor stages. In dual-feed electrical systems, the selector authorizes source switching between main power and backup generator, a function where the maintained position provides a clear, visible indication of which source is authorized — critical for lockout/tagout and handover procedures.

The IP69K rating specifically expands the XB4BD33's application range into food and beverage processing, pharmaceutical manufacturing, and outdoor utility enclosures where high-pressure washdown cleaning is routine. Standard selector switches in these environments typically require additional protective enclosures; the XB4BD33 mounts directly into the panel door without additional housing.

Application Typical Deployment
Manufacturing mode selection Off / Manual / Auto selector on packaging line, assembly machine, or press control panel
Fan, pump, or conveyor speed Low / Medium / High speed reference selector feeding VFD speed input or contactor stage switching
Dual-feed power source selection Main Power / Backup Generator / Isolated Test selector in generator switchover or load transfer bypass circuit
Equipment state and authorization System Enabled / Disabled / Test Mode selector for emergency stop circuit bypass or circuit testing authorization
Food and beverage washdown panels Direct panel-mount selector in IP69K-rated cabinet door; no additional protective enclosure required
Water and wastewater treatment Outdoor control panel mode selector exposed to humidity and spray; maintained action confirms operator selection

Electrical and Physical Specifications

Specification Rating / Value Purchase-Decision Note
Contact Configuration 2 NO (Normally Open) No NC contacts included; if NC or mixed 1 NO/1 NC required, different part number needed
Number of Positions 3 positions, ±45° each Total mechanical travel 135°; if 2 or 4 positions required, order XB4BD32 or XB4BD34
Voltage Rating (AC Nominal) 600V AC Contact current capacity varies inversely with voltage — verify at your system voltage
Contact Current at 600V 1.2A Absolute maximum at 600V; if load exceeds this, use relay or contactor as intermediate stage
Contact Current at 240V 3A Higher capacity at lower voltage; verify load current against this value for 240V systems
Contact Current at 120V 6A Highest capacity rating; typical for 120V control circuit coil energization
Action Type Maintained (Latching) Holds selected position until manually rotated; spring-return variants exist separately
Mounting Diameter 22mm Standard panel cutout; 30mm or 40mm panels require different product
Environmental Rating IP69K (IEC 60529) High-pressure jet and immersion resistant; supports NEMA 1, 2, 3, 4, 4X, 12, 13 enclosures
Mechanical Durability 1,000,000 cycles At nominal operating conditions; terminal corrosion typically limits life before mechanical wear-out

Full technical specifications are available on the product page at LeadTime.ca.

XB4BD33 vs. XB4BD32, XB4BD34, and Competitor Equivalents

Product / Variant Positions Contact Config Action Type Voltage Terminal Type Mounting Notes
XB4BD33 (This model) 3 2 NO Maintained 600V AC Screw clamp 22mm Standard three-state mode selector; established North American standard
XB4BD32 2 2 NO Maintained 600V AC Screw clamp 22mm Binary selector for Off/On or Manual/Auto logic; order this if 2 positions sufficient
XB4BD34 4 2 NO Maintained 600V AC Screw clamp 22mm Four-way selector; less common, may be special order; verify stock before specifying
XB4BD33 Momentary Variant 3 2 NO Momentary 600V AC Screw clamp 22mm Spring-return selector; use for pilot light or signal acknowledgment — not mode holding
Siemens 3SU1130-0AB20-0AA0 3 2 NO Maintained 230V AC Various 22mm Competitor equivalent; similar form factor and price range; lower voltage rating — verify suitability
Eaton M22-SR30P 3 2 NO Maintained 600V AC Various 22mm Alternative with same voltage rating; broader terminal options available in M22 family

If your application requires more than 3A at 240V or a different contact mix such as 1 NO/1 NC, the XB4BD33 is not the correct part — check available variants and current stock at LeadTime.ca.

Expert Verdict: Is the XB4BD33 the Right Selector for Your Project?

The XB4BD33 earns its place as a default choice for three-state mode selection in North American industrial control panels precisely because it offers nothing exotic — and that is its strength. The 22mm form factor fits standard panel cutouts without modification, the Harmony XB4 family's long market presence means distributor stock is predictable and replacement parts are not a sourcing risk, and the 1,000,000-cycle mechanical rating paired with IP69K protection covers the full range from climate-controlled machine tool cabinets to outdoor food-processing washdown stations. The buyer profile this part fits best is the controls engineer or panel builder who needs a reliable, code-compliant three-position maintained selector with broad distributor support and no supply chain uncertainty — and who is working at 120V to 600V AC with load currents that fall within the contact ratings at their operating voltage.

Where the XB4BD33 has genuine limits: the 2 NO contact configuration does not satisfy applications that require a normally closed contact for interlocking or fail-safe logic without adding an external relay stage. At 480V, the contact current capacity falls to an estimated 1.5A to 2A — between the published 600V and 240V ratings — meaning any load approaching 2A at 480V should be routed through a relay or contactor rather than directly through the selector contacts. And the screw clamp terminals, while reliable in most environments, represent the switch's most maintenance-sensitive point in high-humidity or washdown applications. If your project requires 1 NO/1 NC contacts, a spring-return momentary action, or a terminal type other than screw clamp, the XB4BD32, XB4BD34, or a Harmony XB4 momentary variant addresses those requirements within the same product family.

From a procurement standpoint, the XB4BD33 is one of the lower-risk parts to specify and stock. The Harmony XB4 family carries a long manufacturing commitment from Schneider Electric, authorized distributors worldwide stock it as a standard item, and lead times for typical quantities are short. For OEM panel builders ordering in volume, negotiated pricing and consignment stock arrangements are available through specialty distributors. To confirm current availability and pricing before releasing your purchase order, view the XB4BD33 product page at LeadTime.ca — we ship to industrial buyers worldwide.

For volume pricing or to confirm lead time before committing to a build, contact the LeadTime.ca team directly — we ship worldwide.

What Engineers Need to Know Before Ordering the XB4BD33

Community discussion specific to the XB4BD33 is sparse — this is a straightforward, well-understood component in the Harmony XB4 family that rarely generates forum threads because, when specified correctly, it simply works. That silence is itself informative: the ordering mistakes that do occur with this part are not subtle electrical failures discovered in the field, but specification errors caught at panel assembly. The most consequential of these is ordering a momentary variant when maintained action is required. A spring-return selector in a mode-selection application will not hold the operator's chosen state, causing immediate and obvious functional failure — but only after the part has been wired and energized.

The second category of pre-order errors involves contact configuration. The XB4BD33 has 2 NO contacts only. Engineers who need a normally closed contact for interlocking logic — a common requirement in safety-rated or failsafe circuits — sometimes discover this constraint after the switch is already mounted in the panel door. Retrofitting a different contact block at that stage means removing the switch, sourcing the correct part, and repeating installation, adding hours to panel completion time. The solution is straightforward: confirm contact type in writing on the purchase order, not just verbally or by catalog reference.

The third recurring area where specialist advice matters is voltage and current. The 600V AC nominal rating does not mean the switch handles any current at any voltage below 600V. At 480V the capacity falls between the published 1.2A at 600V and 3A at 240V values. Engineers sizing protection devices based on the 600V contact rating alone risk specifying a breaker that will not adequately protect the contacts under actual load conditions. When specifications are ambiguous or when the application sits between published voltage points, contacting a specialist distributor to cross-reference the manufacturer datasheet against your exact load conditions is the correct step — and faster than discovering a contact failure during commissioning.

Wiring and Installation Overview

  • Prepare a clean 22mm circular panel cutout perpendicular to the panel surface; deburr the edge to protect wire insulation; verify minimum 30mm of clearance depth behind the cutout for switch body and terminal access
  • Insert the XB4BD33 through the cutout from the front face; secure the rear mounting nut finger-tight then add one quarter turn with a wrench — do not overtorque, which can crack the bezel or deform the mounting shoulder
  • Strip approximately 5–8mm of insulation from each incoming wire; loosen the screw clamp terminal, insert the wire fully into the terminal bore, and retighten firmly; in outdoor or washdown environments, apply dielectric grease around the terminal base after connection
  • Verify wire gauge is appropriate for the load current at your operating voltage: the contact ratings are 1.2A at 600V, 3A at 240V, and 6A at 120V; size wiring and upstream overcurrent protection accordingly per applicable electrical code
  • Before energizing, rotate the selector manually through all three positions and confirm smooth detent at each position; after energizing, apply test voltage and measure continuity at each selector position to verify correct contact closure and opening sequence

Wrong-Part Prevention Checklist

Run through every item on this checklist before releasing your purchase order for the XB4BD33:

  1. Confirm exact number of positions required: this is 3-position; if 2-position or 4-position needed, part number suffix is wrong (XB4BD32 or XB4BD34)
  2. Verify contact type needed: this is 2 NO (normally open); if you need NC (normally closed) or mixed 1 NO/1 NC, select different part number
  3. Check action type: this is MAINTAINED (latching); if you need MOMENTARY (spring-return), order different variant
  4. Confirm voltage rating appropriately for your system. Check contact current at YOUR operating voltage, not the 600V rating: 1.2A @ 600V, 3A @ 240V, 6A @ 120V
  5. Verify contact current limit is sufficient for your load: if load current exceeds the rating at your voltage, use a relay or contactor as intermediate stage
  6. Verify 22mm mounting hole available; if panel uses 30mm or 40mm holes, selector switch will not fit
  7. Confirm IP69K rating is acceptable; if lower rating acceptable, cost may be lower with different model
  8. Check terminal type: this model uses screw clamp terminals; if you need quick-disconnect, solder, or crimp pin terminals, different part needed

If any item on this checklist raises a question, contact the LeadTime.ca team to verify the correct part number before committing to an order.

Frequently Asked Questions

Can I use the XB4BD33 in a 480V panel — and what is the actual contact current limit at that voltage?

The 600V AC nominal rating confirms the switch is rated above 480V, so dielectric insulation is not the concern. The relevant constraint is contact current capacity, which varies inversely with voltage. The XB4BD33 is rated 1.2A at 600V and 3A at 240V; at 480V the capacity falls between those values — approximately 1.5A to 2A by interpolation, though the exact value is not published in official materials. If your load current at 480V approaches or exceeds 1.5A, route the load through an intermediate relay or contactor and use the selector switch only to energize the relay coil, which draws a fraction of the load current.

What is the real difference between maintained and momentary action — and what happens if I get it wrong?

A maintained selector switch latches in whichever position the operator selects and holds that state until the operator rotates it to a different position. The XB4BD33 is maintained. A momentary selector springs back to the center position the instant the operator releases it. If a momentary variant is installed in an Off/Manual/Auto application, the switch will not hold the selected mode — the machine will revert to the center-position state the moment the operator's hand leaves the knob, causing immediate and obvious functional failure at first commissioning. Verify action type explicitly on your purchase order.

Does the XB4BD33 include circuit protection, or do I need an upstream breaker?

The XB4BD33 has no internal circuit protection of any kind. An upstream branch circuit overcurrent protection device — either a breaker or a fuse sized to the actual load current and wiring gauge — is mandatory. The contact current ratings (1.2A at 600V, 3A at 240V, 6A at 120V) are electrical performance ratings, not protection ratings. Size your protection device per the applicable electrical code for your jurisdiction, based on the actual load current in your circuit, not the switch's contact rating.

How long will the XB4BD33 last in a washdown environment before needing replacement?

The mechanical cycle rating of 1,000,000 operations means electromechanical wear-out is rarely the cause of replacement in any realistic application. In washdown and high-humidity environments, terminal corrosion at the screw clamp connections is the practical life-limiting factor. Without protective measures, service life may be 3 to 7 years before corrosion causes intermittent contact loss. Applying dielectric grease to terminal bases, maintaining panel door gaskets, and performing a visual inspection every 6 to 12 months in wet environments extends service life significantly.

Can I get the XB4BD33 with a different terminal type — quick-disconnect or crimp pin?

No. The XB4BD33 is available with screw clamp terminals only. No factory quick-disconnect, crimp-pin, or solder terminal variant exists for this part number. If your wiring method requires a different termination style, options include using a terminal adapter or wiring harness to bridge between the screw clamp and your preferred connector, selecting a different selector switch model that offers the required terminal type, or introducing an intermediate relay terminal block between the selector switch output and your field wiring. Confirm terminal compatibility before ordering to avoid installation delays.

Is the XB4BD33 a direct drop-in replacement for older Harmony XB4 selector switches of the same configuration?

Within the Harmony XB4 22mm family, physical form factor and mounting dimensions have remained consistent, making the XB4BD33 a straightforward mechanical replacement for prior-generation units with the same 3-position, 2 NO, maintained, 22mm specification. However, always verify the contact configuration, action type, and terminal arrangement of the unit being replaced against the XB4BD33 datasheet before treating it as a confirmed direct swap — particularly if the original part was installed more than ten years ago and catalog updates may have changed suffix designations.

Why Order from LeadTime.ca

  • LeadTime.ca ships industrial automation components worldwide — no regional restriction on orders
  • Specializes in sourcing hard-to-locate and standard Schneider Electric Harmony XB4 components with accurate availability information before you commit to a purchase order
  • Volume pricing available for OEM panel builders and integrators ordering in quantity — contact the team directly to discuss
  • Fast response to technical and procurement questions: confirm lead time, part number accuracy, and stock status before your PO is released

At-a-Glance Summary

  • Schneider Electric XB4BD33 — Harmony XB4 series, 22mm, 3-position, maintained (latching) action, 2 NO contacts
  • 600V AC nominal voltage rating; contact current is 1.2A at 600V, 3A at 240V, 6A at 120V — verify at your actual system voltage
  • IP69K environmental protection per IEC 60529; supports NEMA 1, 2, 3, 4, 4X, 12, 13 enclosure ratings
  • 1,000,000 mechanical cycle durability at nominal operating conditions; chromium-plated metal bezel; silver alloy contacts
  • Screw clamp terminals only — no quick-disconnect or crimp-pin variants available for this part number
  • 22mm panel cutout required; incompatible with 30mm or 40mm panel holes
  • Variant family: XB4BD32 (2-position), XB4BD33 (3-position, this model), XB4BD34 (4-position)
  • No internal circuit protection — upstream breaker or fuse mandatory per applicable electrical code
  • Primary applications: Off/Manual/Auto mode selection, Low/Medium/High speed control, dual-feed power source selection, equipment authorization selectors in food, pharma, water treatment, and manufacturing
