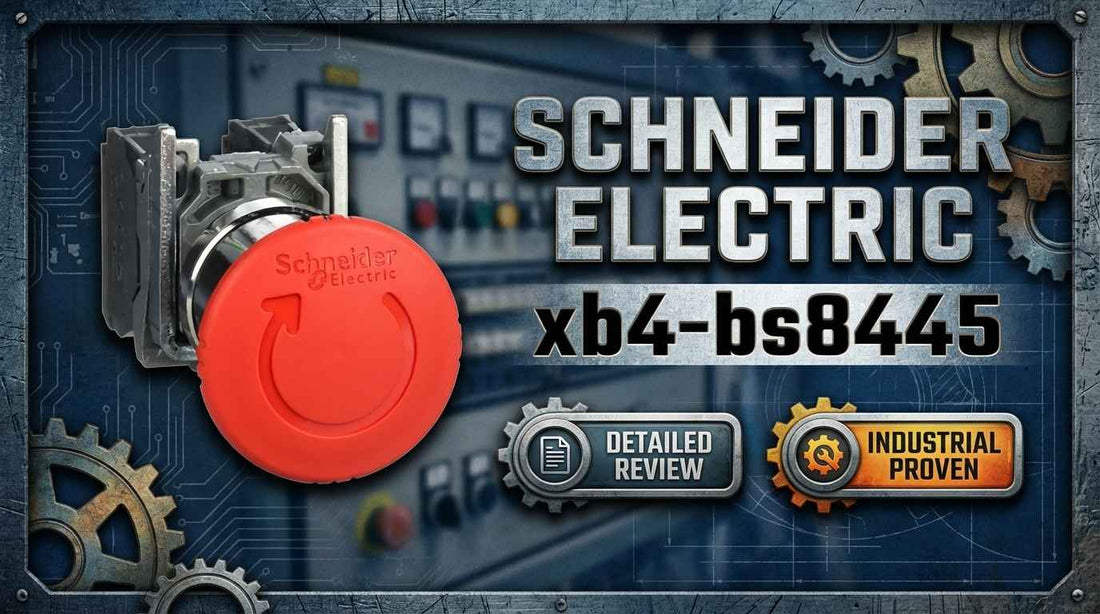

Schneider Electric XB4BS8445 Harmony 40mm red mushroom head emergency stop push-button switch for industrial safety panels

Schneider XB4BS8445 Harmony Emergency Stop Push-Button Switch, Red Mushroom Head Ø40mm, Latching Turn-to-Release, 1NO+1NC — Specifications, Selection Guide, and Alternatives

Controls engineers specifying emergency stop hardware for a new machine build or maintenance replacement arrive at the Schneider XB4BS8445 with one critical question: does this exact model match the contact configuration, panel cutout, and safety standard my circuit demands? The XB4BS8445 is a Harmony XB4 series emergency stop push-button switch featuring a 40mm red mushroom head, a push-turn latching release mechanism, dual contacts rated 1NO+1NC, and a 600V AC rating — all conforming to EN/ISO 13850 and certified under UL 508 and CSA C22.2 No. 14. If you are building or retrofitting a dual-circuit safety chain in a 22mm panel opening, this is the part that settles the spec sheet.

If you have already confirmed this is the correct part for your application, check current pricing and availability for the XB4BS8445 at LeadTime.ca — ships worldwide.

Who Should Buy the XB4BS8445 — and Who Shouldn't

The Schneider XB4BS8445 is the right choice for engineers and procurement specialists who need a fully compliant, dual-contact emergency stop with mechanical latching in a standard 22mm panel opening. It is the correct part if all of the following apply to your application:

  • Your panel cutout is exactly 22mm in diameter — not 30mm or any other size
  • Your safety circuit requires both a normally-open (NO) and normally-closed (NC) contact simultaneously for redundant shutdown and fault-indication logic
  • Your control circuit operates at up to 600V AC or DC with a maximum continuous contact current of 1.2A
  • Your application mandates EN/ISO 13850 emergency stop compliance and positive opening contacts per EN/IEC 60947-5-1 Appendix K
  • Your environment requires IP66 minimum protection — washdown lines, chemical processing, food production, or outdoor-adjacent installations
  • You require latching turn-to-release action to prevent accidental or unintentional reset

If your circuit only requires a single contact type, consider the XB4BS8241 (2NO) or XB4BS8431 (2NC) instead. If your load exceeds 1.2A continuously, route the switched load through an intermediate contactor rather than through the button contacts directly. If your existing panel has a 30mm opening, the XB4BS8445 will not mount — a different Harmony XB4 variant or bezel kit is required.

On this page:

What the XB4BS8445 Does in a Safety Circuit

The Schneider XB4BS8445 is a mechanically latching emergency stop push-button switch belonging to the Harmony XB4 modular control station family. When pressed, the 40mm red mushroom head travels 4.3mm total, physically driving apart the normally-closed contacts at 1.5mm of travel and engaging the normally-open contacts at 2.6mm — with positive opening action that ensures the NC contact path is physically separated before the NO path closes. This sequenced positive opening mechanism, conforming to EN/IEC 60947-5-1 Appendix K, is what distinguishes a compliant emergency stop contact block from a standard pushbutton: contact bridging during the transition is mechanically prevented, which is a hard requirement of the EN/ISO 13850 emergency stop standard.

The push-turn latching release holds the mushroom head in the depressed position after activation. The machinery cannot resume operation until an operator deliberately rotates the mushroom head to release the latch — a deliberate design choice that prevents nuisance resets in high-activity environments like automotive assembly or pharmaceutical packaging lines. The screw clamp terminals accept wire gauges up to 2x1.5mm² with ferrule or as small as 1x0.22mm² without ferrule, covering the range of control panel wiring gauges typically encountered in 24V DC or 120V AC safety circuits.

The 1NO+1NC dual contact configuration serves two distinct functions simultaneously: the NC contact opens to de-energize the safety relay or contactor chain (the actual shutdown signal), while the NO contact closes to provide a positive confirmation signal to PLC input logic or safety relay monitoring circuitry. This dual-signal architecture allows the control system to verify that the emergency stop was executed and not simply assumed, which is a core requirement in systems that must demonstrate safety circuit integrity under IEC 62061 or ISO 13849 assessments.

Typical System Architecture for Emergency Stop Integration

The XB4BS8445 sits at the operator interface layer of the safety chain, between the panel face and the safety relay or safety-rated PLC input module that evaluates its contact states. Here is how a typical deployment connects:

  • Safety-rated PLC or safety relay module (e.g., Schneider Harmony safety relay) receives NC and NO contact states from the XB4BS8445 and monitors circuit integrity
  • XB4BS8445 mounted in 22mm panel cutout — NC contacts wired to the safety relay monitoring channel, NO contacts wired to PLC input or auxiliary confirmation channel
  • Safety relay output drives one or more contactors or motor starters in the power circuit to de-energize machinery loads when NC opens
  • Downstream contactors and drives go to safe state; machine motion stops within the required stop category as defined by EN/IEC 60204-1
  • Operator turns the mushroom head to release the latch; safety relay resets after confirmation that all monitored channels have returned to normal state before machinery restart is permitted

Applications and Deployment Scenarios for the XB4BS8445

The XB4BS8445 is most commonly deployed in food and beverage processing facilities where IP66 protection is required and emergency stops are inspected regularly as part of HACCP and machine safety audits. The silver alloy contacts and sealed bezel tolerate high-pressure washdown cycles without the contact contamination that accelerates failure in standard copper contact switches.

In pharmaceutical and chemical manufacturing, the dual contact configuration supports the safety relay redundancy architectures mandated by process safety assessments. The NO contact feeds safety relay cross-monitoring logic that detects contact welding or open-circuit faults in the NC path — a capability that single-contact emergency stops cannot provide.

Automotive assembly integrators frequently specify the XB4BS8445 as a platform standard across multiple lines, leveraging the 300,000 mechanical cycle durability rating and the Harmony XB4 modular ecosystem. Standardizing on a single SKU across a facility reduces spare parts inventory and simplifies technician training. Packaging machinery, industrial robotics cells, and material handling conveyors represent additional high-frequency use environments where the latching mechanism prevents costly unintended restarts.

Retrofit applications are also a significant driver. When a legacy emergency stop fails an EN/ISO 13850 compliance audit — often because older buttons lack positive opening contacts or dual-contact redundancy — the XB4BS8445 is a straightforward upgrade for any panel with an existing 22mm cutout.

Application Typical Deployment
Food and Beverage Processing Washdown production lines requiring IP66; replacement of aged emergency stops on conveyor and filling equipment
Pharmaceutical Packaging Dual-contact safety relay circuits where contact integrity monitoring is required for GMP compliance
Automotive Assembly Multi-line standardization on Harmony XB4 platform; high-cycle robotic cell emergency stop stations
Chemical Manufacturing Harsh environment control panels; retrofit to meet updated EN/ISO 13850 and EN/IEC 60204-1 requirements
Packaging Machinery New machine builds integrating Harmony XB4 ecosystem for modular control station consistency
Industrial Robotics and Material Handling Safety perimeter emergency stop stations; 1NO+1NC configuration feeding safety-rated PLC inputs

XB4BS8445 Key Specifications: What Engineers Need to Confirm

Specification Value
Contact Configuration 1 NO + 1 NC (Slow-Break, Silver Alloy Ag/Ni)
Maximum Contact Current 1.2 A
Contact Voltage Rating 600 V AC / 600 V DC
Positive Opening Action Yes — EN/IEC 60947-5-1 Appendix K conforming
Actuator Red Mushroom Head, Ø40mm, Unmarked
Reset Mechanism Latching Push-Turn (Turn-to-Release)
Panel Cutout Diameter 22 mm (M22 x 1 mounting thread)
IP / IK Rating IP66 minimum / IK03
Operating Temperature -25 to +70°C
Mechanical Durability 300,000 cycles

Full technical specifications are available on the product page at LeadTime.ca.

XB4BS8445 vs. XB4BS8241, XB4BS8431, and XB4BS8245 — Which Contact Configuration Do You Actually Need?

The most common ordering error in the Harmony XB4 emergency stop family is selecting the wrong contact configuration. All four variants below share the same 40mm mushroom head, 22mm cutout, and latching push-turn mechanism — the only technical distinction is the contact arrangement, which determines what your safety circuit can and cannot do.

Model Contact Configuration Key Difference Typical Use Case
XB4BS8445 1 NO + 1 NC Standard dual contact for redundant monitoring and shutdown Dual-circuit safety chains; safety relay input monitoring
XB4BS8241 2 NO No normally-closed contact; no fault-indication channel Simple shutdown without redundancy feedback requirement
XB4BS8431 2 NC No normally-open contact; no positive shutdown confirmation Fault detection circuits without a separate shutdown line
XB4BS8245 1 NO + 2 NC Extended redundancy with additional NC monitoring channel High-safety-integrity applications; SIL-rated systems

If your safety relay requires separate input channels for the shutdown signal and the contact integrity monitor, the XB4BS8445 (1NO+1NC) is the correct choice. If your application demands higher safety integrity with three contact paths, the XB4BS8245 with 1NO+2NC is the next step up — confirm the right variant and check current availability at LeadTime.ca.

Expert Verdict: Is the XB4BS8445 the Right Emergency Stop for Your System?

The Schneider XB4BS8445 earns its place on the bill of materials for any safety-critical machine where dual-contact redundancy, positive opening action, and EN/ISO 13850 compliance are non-negotiable. The slow-break silver alloy (Ag/Ni) contacts are a meaningful technical differentiator — they reduce arc erosion compared to quick-break alternatives, extending service life well within the rated 300,000 mechanical cycles in real-world food processing and automotive environments where emergency stops are pressed dozens of times per shift. The 300,000-cycle rating combined with IP66 protection makes this a defensible long-term specification for harsh environments, not just a compliance checkbox. The push-turn latching mechanism adds genuine operational discipline: in high-activity areas with crowded panels, the deliberate turn-to-release step prevents technicians from accidentally restarting machinery before clearing a hazard. For organisations standardising on the Harmony XB4 platform across multiple lines or facilities, the XB4BS8445 reduces spare parts SKUs and eliminates certification re-validation when replacing worn units with identical hardware.

Where the XB4BS8445 has real limits: it is not the right choice if your circuit only needs a single contact type. If your safety relay has a single monitored input and no cross-fault detection requirement, the XB4BS8241 (2NO) or XB4BS8431 (2NC) will deliver the same mechanical performance at lower cost without the unused contact adding complexity. The 1.2A maximum contact current is adequate for pilot-duty switching into a safety relay or PLC input, but if your panel design routes the full motor contactor coil current directly through the button contacts rather than through an intermediate relay, you risk exceeding the rating. The XB4BS8445 is also not the correct fit if your existing panel has a 30mm cutout — the 22mm collar cannot bridge a 30mm opening, and this mismatch is the single most frequent cause of return shipments in the Harmony XB4 family. For applications where cost is the primary driver and safety compliance margins are not tightly audited, alternatives from Eaton or other manufacturers in the $100–$140 range may be evaluated, though they require separate certification verification for UL 508 and CSA C22.2 No. 14 compatibility.

From a procurement standpoint, the XB4BS8445 is a stock item at major authorised distributors with typical lead times of one to five business days for in-stock units — fast enough for most maintenance replacement scenarios. Buying through a specialist distributor like LeadTime.ca matters most when you need to confirm, before placing the order, that you are receiving the North American UL/CSA-certified variant rather than a European CE-only version, and when your project timeline cannot absorb a return shipment caused by a contact configuration or panel cutout mismatch. Check current XB4BS8445 pricing and stock status at LeadTime.ca — we ship worldwide and can confirm the exact variant before your order is placed.

For volume pricing or to confirm lead time before committing to a build schedule, contact the LeadTime.ca team directly — we ship worldwide and support procurement teams across every region.

What Engineers Need to Know Before Ordering the XB4BS8445

Because specific community discussions and forum threads for the XB4BS8445 are sparse — the Harmony XB4 family is a specialist product category where most field knowledge lives in plant documentation and distributor support conversations rather than public forums — the most valuable pre-order intelligence comes from the manufacturer datasheet and from experienced automation distributors who handle ordering errors on a daily basis. The following technical realities surface consistently when engineers work through compatibility verification for this model.

The most critical pre-order step is physically measuring the panel cutout with digital calipers. The 22mm requirement is not interchangeable with 30mm openings used by larger Harmony XB4 variants. A panel that was previously fitted with a 30mm head cannot accept the XB4BS8445 without modification — the collar will not grip, and the button will not mount securely. This single verification step prevents the majority of return shipments seen with this product family. Equally important is reading the contact diagram before placing the order rather than after receiving the part: the XB4BS8445 provides 1NO+1NC on terminals 1-2 and 3-4 respectively, and this is not the same electrical result as 2NO or 2NC models that share the same part number prefix and physical appearance.

The push-turn latching release mechanism is a deliberate safety feature, not a malfunction. Engineers commissioning this button for the first time sometimes interpret the latched-down position as a stuck button. The mushroom head will not release by pressing again — it requires a clockwise rotation to disengage the latch. During commissioning, this behaviour should be explicitly documented in panel startup procedures and communicated to any technician who will operate or reset the emergency stop. The operating force of 44N and the 4.3mm total travel are also worth knowing during first-power testing: the button requires a firm, direct press to seat the latch fully, and incomplete actuation can result in partial contact transition that a multimeter continuity check will reveal before the machine goes live.

The screw clamp terminals accept wire from 1x0.22mm² (without ferrule) up to 2x1.5mm² (with ferrule). If the control panel uses wire gauges outside this range or uses spring-cage or pluggable connector terminations, the XB4BS8445 in its standard form will not accommodate the wiring without adapter hardware. Verifying termination type compatibility at the design stage — not at installation — eliminates a common last-minute rework scenario. For applications in washdown environments, the IP66 rating protects against high-pressure water jets but does not cover sustained submersion; if the installation environment involves flood risk or extended water exposure, IP67 or IP69K variants should be evaluated through Schneider's Harmony XB4 extended range.

Wiring and Panel Installation Overview

The following points cover the key requirements for correctly mounting and wiring the XB4BS8445. Full installation procedures are documented in Schneider Electric's official installation manual — consult manufacturer documentation for complete step-by-step guidance.

  • Panel cutout must be exactly 22mm diameter with clean, deburred edges; the Zamak fixing collar engages a threaded M22x1 mounting thread and must seat flush against the panel surface on both inner and outer faces
  • NO contacts are identified on terminals 1–2; NC contacts are on terminals 3–4 — verify terminal identification against the datasheet contact diagram before wiring to avoid reversed logic in the safety chain
  • Strip wire to the correct length for the screw clamp terminal; use ferrules for wire gauges below 0.75mm² to prevent strand fraying inside the terminal cavity; tighten terminal screws firmly without over-torquing
  • Before applying power, use a multimeter to verify: NC terminals 3–4 show continuity at rest and open when button is pressed; NO terminals 1–2 show open at rest and continuity when button is pressed — reversed readings indicate a wiring or terminal identification error
  • After power-up, confirm that the turn-to-release mechanism requires deliberate clockwise rotation of the mushroom head to reset; if the button releases without turning, the latching collar may not be fully tightened or the trigger action mechanism requires inspection

Wrong-Part Prevention Checklist for the XB4BS8445

Before submitting your purchase order, verify every item on this checklist. These seven points represent the most common sources of ordering errors and return shipments for this model:

  1. Verify panel cutout diameter is exactly 22mm (not 30mm or other Harmony head sizes)
  2. Confirm required contact configuration is 1NO+1NC (not 2NO, 2NC, or mixed dual-contact combos)
  3. Check voltage/current rating: 600V AC, 1.2A max (not 400V models or higher current versions)
  4. Ensure "latching turn-to-release" mechanism is what you need (vs. momentary push-release alternatives)
  5. Verify screw clamp terminal compatibility with wire gauge used (up to 2x1.5mm² with ferrule, or 1x0.22mm² without ferrule)
  6. Check that mounting hole pattern and latch position match the control station enclosure
  7. Confirm standard red mushroom actuator is correct (not colored variant for different safety function)

If any item on this checklist raises a compatibility question before you order, contact the LeadTime.ca technical team — we can confirm the correct part number before your order ships, from anywhere in the world.

Frequently Asked Questions

Can the XB4BS8445 be used in a washdown or wet environment outdoors?

The XB4BS8445 carries an IP66 minimum rating, which means it is dust-tight and protected against high-pressure water jets from any direction — making it suitable for food processing washdown lines, dairy equipment, and similar wet industrial environments. IP66 does not cover sustained submersion; if the installation involves flooding risk or prolonged water exposure, consult Schneider's Harmony XB4 extended range for IP67 or IP69K variants. For outdoor exposure to the elements in addition to washdown, verify that the enclosure or control station housing provides supplementary UV and weathering protection.

Does the XB4BS8445 require a dedicated safety relay, or can it wire directly to a PLC input?

The XB4BS8445 can be wired directly to a PLC digital input for basic shutdown logic, but EN/ISO 13850 compliance in a safety-rated system typically requires the switch to interface with a dedicated safety relay or safety-rated PLC input module that monitors contact integrity and detects faults such as a welded contact or open-circuit condition. The dual 1NO+1NC contact configuration is specifically designed to support this monitoring architecture. For non-safety-critical applications or simple start/stop panels, direct PLC wiring is possible within the 1.2A maximum contact current limit.

What does the positive opening mechanism actually mean in practice, and why does it matter?

Positive opening means the normally-closed contact path is physically forced open by the actuator mechanism — it cannot remain closed due to contact welding or spring failure — before the normally-open contacts can close. This mechanical guarantee, conforming to EN/IEC 60947-5-1 Appendix K, ensures that pressing the emergency stop always results in an open NC circuit, regardless of contact condition. Without positive opening, a welded NC contact could prevent the de-energisation signal from reaching the safety relay, leaving machinery in a running state despite the button being pressed. This is why EN/ISO 13850 mandates positive opening action for emergency stop switches in safety-critical machinery.

How do I diagnose whether the XB4BS8445 contacts are failing versus a wiring fault?

With power off, use a multimeter in continuity mode on terminals 3–4 (NC): continuity at rest and open when the button is pressed confirms the NC contact is functioning correctly. Repeat on terminals 1–2 (NO): open at rest and continuity when pressed confirms the NO contact. If you get reversed readings or no change at all, first re-check that wires are connected to the correct terminal numbers before assuming contact failure. If continuity readings are intermittent under light mechanical pressure on the wiring, the most likely culprit is a loose screw clamp terminal rather than a failed contact. Visible pitting, discolouration, or a burned smell from the terminal cavity under load suggests contact erosion — at 300,000 cycles rated durability, premature failure in a low-cycle application typically points to overcurrent conditions rather than mechanical wear.

Is the XB4BS8445 a direct mechanical replacement for an older emergency stop with a 22mm cutout but a different brand?

The 22mm panel cutout and M22x1 mounting thread are industry-standard dimensions, so the XB4BS8445 will physically mount in any 22mm opening regardless of the previous brand. What requires verification is the terminal layout and contact sequencing of the replaced switch versus the XB4BS8445's terminal 1-2 (NO) and 3-4 (NC) arrangement — if the legacy wiring used a different terminal numbering convention, re-labeling or rewiring may be needed. Confirm that the existing control circuit logic matches the 1NO+1NC configuration and that the latching push-turn reset mechanism is acceptable to the operators who will use it, particularly if the replaced button used a key-release or pull-release mechanism.

Why Order the XB4BS8445 from LeadTime.ca

  • Global shipping — LeadTime.ca fulfils orders worldwide, not just in a single region or country
  • Pre-order technical confirmation — our team can verify the correct variant (contact configuration, certification, terminal type) before your order ships, preventing return shipments
  • Authorised channel sourcing — ensures you receive the North American UL 508 and CSA C22.2 No. 14 certified version, not a regional CE-only variant
  • Volume and project pricing available — contact for current pricing on multi-unit machine builds or blanket orders
  • Hard-to-find and alternative part support — if a variant is on extended lead time, we can identify compliant alternatives and confirm compatibility

XB4BS8445 At-a-Glance Summary

  • Contact configuration: 1 normally-open + 1 normally-closed, slow-break silver alloy (Ag/Ni) contacts
  • Electrical rating: 600V AC / 600V DC, 1.2A maximum contact current
  • Actuator: 40mm red mushroom head with push-turn latching release (turn-to-release required)
  • Panel cutout: exactly 22mm diameter, M22x1 mounting thread
  • Positive opening action: EN/IEC 60947-5-1 Appendix K conforming — NC opens before NO closes
  • Mechanical durability: 300,000 cycles rated
  • Environmental protection: IP66 minimum, IK03 impact rating, operating range -25 to +70°C
  • Terminal type: screw clamp, up to 2x1.5mm² with ferrule or 1x0.22mm² without ferrule
  • Safety standards: EN/ISO 13850, EN/IEC 60947-5-5, EN/IEC 60204-1, UL 508, CSA C22.2 No. 14, JIS C 4520
  • Key variants: XB4BS8241 (2NO), XB4BS8431 (2NC), XB4BS8245 (1NO+2NC) — same mechanical platform, different contact configurations
