Schneider Electric XB4BA31 — 22mm Sealed Pushbutton Buyer Review

By Abdullah Zahid
15 min read

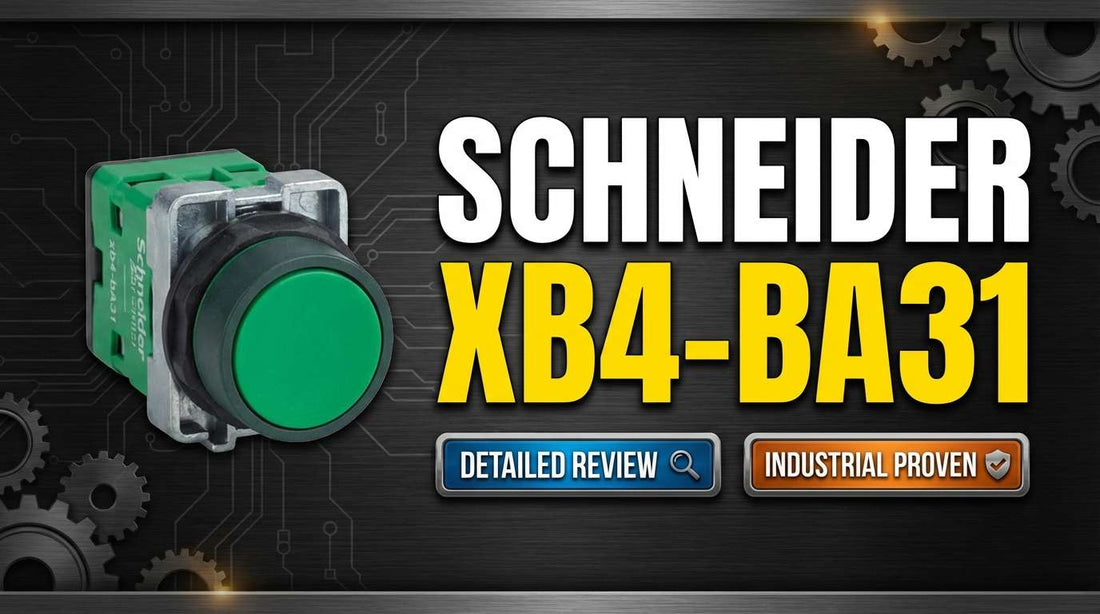

Schneider Electric XB4BA31 Harmony XB4 22mm green non-illuminated momentary pushbutton for industrial control panels

Schneider Electric XB4BA31 Harmony XB4 Non-Illuminated Pushbutton, 22mm, 1NO, Spring Return Operator, Green — Sealed Industrial Control with 10-Million-Cycle Durability

Controls engineers and panel builders searching for the Schneider Electric XB4BA31 are typically finalizing a build, replacing a worn operator, or confirming compatibility before committing a purchase order. This 22mm green momentary pushbutton carries a 1NO (normally open) contact configuration, NEMA 4/4X/13 environmental sealing, and a rated mechanical life of 10,000,000 cycles — specifications that make it the default Start control device across food processing, chemical, automotive, and water treatment facilities. If your control schematic calls for a sealed, spring-return, 1NO green pushbutton at 120VAC with screw terminals, this is almost certainly the part you need.

If you have already confirmed this is the right part, check current pricing and availability at LeadTime.ca — ships worldwide.

Who Should Buy the XB4BA31 — and Who Shouldn't

The XB4BA31 is the correct choice when all of the following conditions are true for your application:

  • Your control circuit requires a 1NO (normally open) contact — circuit open at rest, closes only when the button is physically pressed
  • Your panel or enclosure calls for green color coding consistent with ISO 1219-1 Start / Proceed / Continue operation
  • Your operating voltage is 120VAC and load current does not exceed 10A continuous
  • Your installation environment requires NEMA 4/4X/13 sealing — wash-down lines, chemical splash zones, or outdoor-exposed enclosures
  • Your panel wiring infrastructure uses screw-clamp terminals (not spring connector or cage clamp)
  • Your application is momentary (spring-return) — the button returns to neutral on release; the PLC or relay latches independently

If you need a 1NC (normally closed) contact for a Stop or E-stop circuit, the correct part is the XB4BD31. If you need illuminated operator feedback, order the XB4BW31. If your application requires latching operation without external relay logic, choose a dedicated latching pushbutton variant from the Harmony XB4 family.

On this page:

What the XB4BA31 Actually Does in a Control System

The XB4BA31 is a user input device — a physical interface between the operator and the control circuit. When an operator presses the green button, the internal silver alloy (AgNi) contact closes, completing the 1NO circuit and sending a signal to whatever is downstream: a PLC digital input module, a relay coil, or the next stage of hardwired logic. The moment the operator releases the button, the spring-return mechanism pulls the contact back to open, and the signal disappears. The PLC or relay is responsible for latching that signal if the application requires sustained activation.

The green color is not cosmetic. ISO 1219-1 specifies green as the standard color for Start, Proceed, and Continue operations. In any facility where operators work across multiple control stations, consistent color coding reduces error and speeds up response time. The XB4BA31 is the Harmony XB4 family's answer to that standard at 22mm diameter — a size that fits the vast majority of industrial panel cutouts without modification.

What separates this component from a generic pushbutton is the combination of NEMA 4/4X/13 environmental sealing and a 10,000,000-cycle mechanical rating. In food and beverage environments where operators press Start controls more than 100 times per shift, that mechanical rating translates to 5 to 10 years of service life before internal contact wear becomes a concern. The chromium-plated steel operator and Zamak zinc alloy fixing collar resist oxidation in chemical atmospheres that would corrode standard plated steel within months. This is why the XB4BA31 is specified by OEMs building equipment for wash-down and caustic cleaning environments rather than simply buying the cheapest 22mm button available.

Typical System Architecture for the XB4BA31

The XB4BA31 sits at the operator interface layer of a control system — between the human and the logic that governs machine behavior. Understanding its position in the signal chain helps clarify both its role and its wiring requirements.

  • Control power supply (120VAC) feeds the panel power distribution bus
  • A 10A gG cartridge fuse (required externally per EN/IEC 60947-5-1) protects the circuit ahead of the pushbutton
  • The XB4BA31 screw terminals connect the fused supply line to the PLC digital input module or relay coil input
  • When the button is pressed, the 1NO contact closes and the PLC reads a logic HIGH on its input channel, triggering the programmed machine sequence
  • Downstream: motor starter, solenoid valve, indicator light, or process logic — all controlled by what the PLC does with the input signal

Where the XB4BA31 Gets Installed: Industries and Use Cases

Food and beverage processing lines are among the most demanding environments for pushbutton switches. The XB4BA31's NEMA 4X sealing and 1015.26 psi pressure resistance rating make it a direct match for wash-down lines, bottling stations, and packaging machine control panels that receive daily chemical cleaning. The green Start button on a conveyor line or filling station is one of the most frequently pressed controls on a production floor — 10,000,000 cycles is not excess rating margin here; it is a genuine operating requirement.

Chemical processing and water treatment facilities specify the XB4BA31 for its corrosion resistance. Chromium-plated metal and silver alloy (AgNi) contacts hold up in the presence of caustic cleaning agents, chlorine atmospheres, and hydrogen sulfide environments that corrode standard zinc-plated or nickel-plated hardware within a single maintenance cycle. Outdoor pump and valve control stations in wastewater treatment meet the NEMA 4X outdoor compliance requirement directly.

In automotive assembly and material handling, cycle frequency is the critical factor. Robotic cell interlocking, jog control on conveyors, and manual mode selection buttons on transfer lines can accumulate millions of actuations within a few years. The XB4BA31's mechanical life rating provides procurement teams with documented evidence of service expectation rather than anecdotal field experience.

Replacement and retrofit applications represent a significant portion of XB4BA31 orders. Maintenance teams replacing corroded or worn pushbuttons in legacy Harmony XB4/ZB4 panels need drop-in compatibility — same 22mm panel hole, same screw terminal wiring, same modular contact block. The XB4BA31 delivers that without requiring panel modification or rewiring.

Application Typical Deployment
Food and beverage processing Start control on wash-down conveyor lines and filling station panels; daily chemical cleaning exposure
Chemical and pharmaceutical manufacturing Process enable control in corrosive atmosphere enclosures; caustic splash environments
Automotive assembly Jog and manual mode buttons on robotic cell interlocking panels; high-cycle assembly line operation
Water and wastewater treatment Outdoor pump and valve control stations; NEMA 4X enclosures in wet, exposed environments
Material handling and packaging Operator start control on conveyor, lift, and crane panels; frequent actuation under shift production
Brewery and distillery production CIP (clean-in-place) compatible control panels; high-pressure steam and chemical washdown rated

Purchase-Decision Specifications and Variant Comparison

Parameter Value
Contact Configuration 1NO (normally open) — closes only when button is pressed
Rated Operating Voltage 120VAC (standard); 600VAC rated insulation voltage per EN/IEC 60947-1
Rated Current 10A at 120VAC (conventional free air thermal current)
Mechanical Life 10,000,000 cycles at rated electrical loading
Environmental Sealing NEMA 4 / 4X / 13 — water-tight, dust-tight, corrosion-resistant
Pressure Resistance 1015.26 psi at 131 degrees Fahrenheit (high-pressure washer rated)
Operating Temperature -20 degrees Celsius to +65 degrees Celsius
Terminal Type Screw clamp; tighten to 0.8 to 1.2 N⋅m
Contact Material Silver alloy (AgNi) — per EN/IEC 60947-5-1
Certifications UL Listed (File E164353), CSA Certified (File LR44087), CE Marked

Full technical specifications are available on the product page at LeadTime.ca.

Model Contact Config Voltage Color Sealing Best Use Case
XB4BA31 1NO momentary 120VAC Green NEMA 4/4X/13 Start control, sealed environments, modular systems
XB4BD31 1NC momentary 120VAC Red NEMA 4/4X/13 Stop control, emergency stop, sealed environments
XB4BF31 2NO/2NC 120VAC Yellow NEMA 4/4X/13 Complex logic circuits, selector functions
XB4BW31 1NO momentary 120VAC Green NEMA 4/4X/13 Start control with integrated illuminated operator feedback

If your application requires visual confirmation that a start command has been accepted — for example, a light ring that illuminates when the machine is running — the XB4BW31 is the correct choice. Check current availability and pricing for the full XB4 family at LeadTime.ca.

Expert Verdict: Is the XB4BA31 Worth Ordering?

The XB4BA31 does one thing exceptionally well: it provides sealed, long-life, 1NO momentary Start control in environments where lesser components fail prematurely. The 10,000,000-cycle mechanical rating and NEMA 4/4X/13 certification are not marketing figures — they are verified against EN/IEC 60947-5-1 with silver alloy (AgNi) contacts and chromium-plated construction that has proven itself in food processing, chemical, and water treatment facilities across decades of production use. The buyer profile this part is right for is specific: an automation engineer or panel builder standardizing on the Harmony XB4/ZB4 modular platform, a maintenance team replacing corroded operators in legacy XB4 infrastructure, or an OEM integrating sealed human interface control into equipment destined for harsh process environments. For all of these buyers, the XB4BA31 is the part that requires no further justification once the contact type is confirmed.

Where the XB4BA31 has real limits is equally clear. It is non-illuminated — if the machine design requires the operator to receive visual confirmation of active state, the XB4BW31 is the correct order. It is momentary and spring-return only — applications that require the button to stay mechanically or electrically latched after release need either a dedicated latching variant from the Harmony XB4 family or external relay hold logic designed into the PLC program. Facilities already standardized on a different 22mm pushbutton platform — whether that is ABB M22-PR or Eaton M30 — face a genuine cost in training and spare parts management if they introduce a different brand's hardware, and for those buyers, the competitive alternatives are the honest recommendation. Budget-constrained projects where NEMA 4X sealing is not required may find a lower-cost generic pushbutton adequate, accepting that shorter mechanical life and reduced environmental protection are the trade-off.

On procurement reality: the XB4BA31 is generally in stock through major distributors serving North America, with typical fulfillment in 1 to 5 business days when inventory is available. For Canadian buyers ordering from US-based sources, customs clearance adds 1 to 3 business days to total lead time. If the primary distributor is out of stock, direct factory shipment from Schneider Electric can extend the wait to 4 to 8 weeks — a project-critical constraint for time-sensitive panel builds. Ordering through a specialist industrial distributor with real-time inventory visibility and technical verification during order entry reduces the risk of a wrong-part shipment and ensures compatible accessories — mounting frames, connector blocks, replacement operators — are sourced from the same platform in the same transaction. View current pricing and stock status for the XB4BA31 at LeadTime.ca.

For volume pricing, lead-time confirmation on multi-unit orders, or to verify compatibility before committing to a build, contact the LeadTime.ca team directly — we ship worldwide.

What Engineers Need to Know Before Ordering the XB4BA31

The XB4BA31 sits in a product category — mature 22mm industrial pushbuttons — where there is minimal public forum discussion precisely because the component is well understood and rarely creates troubleshooting problems in properly specified installations. What does generate real-world ordering errors is the breadth of the Harmony XB4/ZB4 family itself. The model numbering is similar enough across variants that a procurement agent skimming a line item can easily order a 1NO green operator when the schematic called for a 1NC red Stop button — or vice versa. These are not hypothetical errors; they are the most common class of wrong-part returns for this product family, and they result in field rewiring that costs far more in labor than the component itself.

A second recurring issue is the confusion between momentary and latching operation. Controls engineers who designed the circuit understand that the PLC latches the output relay — the pushbutton just triggers it. Technicians replacing a worn button in the field do not always have that context, and ordering a spring-return XB4BA31 for an application that was originally wired with a latching operator creates a system behavior change that can take hours to diagnose. The safest practice is to physically inspect the old component and confirm its operation type before sourcing the replacement.

Terminal torque is a third point of failure that rarely surfaces in community discussions but is consistently flagged in distributor technical support calls. The specified tightening range of 0.8 to 1.2 N⋅m is narrow by field standards, and over-torquing screw terminals beyond 1.2 N⋅m is a common cause of intermittent contact loss that mimics a defective pushbutton. When a newly installed XB4BA31 shows intermittent non-response in the first week of operation, check terminal torque before assuming the part is faulty. These are the practical realities that specialist distributors flag during order entry and post-installation support — and the reason buyers with complex multi-variant panel builds benefit from working with a technically capable source rather than a marketplace vendor.

Wiring and Installation Overview

  • De-energize the control circuit completely and verify voltage-free status with a calibrated multimeter before touching any terminals — the XB4BA31 operates at 120VAC, which is a shock hazard
  • Connect the COM terminal to the control circuit ground or negative supply reference; connect the NO terminal to the PLC digital input, relay coil input, or next stage of logic using appropriately sized wire for the 10A rating
  • Tighten both screw terminals to 0.8 to 1.2 N⋅m using a cross-head (Philips/Pozidriv #1) or flat-head (4mm or 5.5mm) screwdriver — over-torquing strips threads and causes intermittent contact loss; under-torquing causes loose connections that fail under vibration
  • For replacement installations, verify the existing panel hole is 22mm diameter before ordering; insert the Zamak fixing collar from the front, screw the operator into place until the collar sits flush, then reconnect existing wiring maintaining the same COM and NO polarity
  • After installation, install a 10A gG cartridge fuse externally in the circuit (required per EN/IEC 60947-5-1) and verify contact function with an ohmmeter — 0 ohms when pressed, infinite ohms when released — before restoring full circuit power

For complete wiring procedures, panel cutout dimensions, and installation diagrams, refer to the official Schneider Electric Harmony XB4 technical documentation available at se.com.

Compatible Modules and System Expansion Within the Harmony XB4 Platform

The XB4BA31 is part of the Harmony XB4/ZB4 modular ecosystem, where operator heads, contact blocks, light modules, and mounting collars are interchangeable across the platform. This modularity is a primary reason facilities standardize on the Harmony XB4 family — components can be mixed, matched, and customized without changing the panel cutout or contact wiring.

  • XB4BD31 — 1NC momentary red operator: identical mechanical footprint, used for Stop and E-stop circuits alongside the XB4BA31 in the same panel
  • XB4BW31 — illuminated 1NO green operator: same contact configuration and mounting as XB4BA31 but with an integrated light module for visual status feedback
  • XB4BF31 — 2NO/2NC operator: expanded contact configuration for panels requiring more complex switching logic within the same 22mm modular mounting collar
  • ZB4 operator blocks: replacement operator heads in various colors and styles that mount to the existing XB4 contact base — allows color or operator style changes without rewiring the contact terminals
  • Harmony XB4 mounting frames and legend plates: panel labeling and grouping accessories for multi-button stations, compatible with the standard 22mm collar of the XB4BA31

Wrong-Part Prevention: Seven Checks Before You Order

Before submitting a purchase order for the XB4BA31, verify all seven of the following against your control circuit documentation and panel design:

  1. Verify contact configuration from control circuit diagram: Is 1NO (normally open) correct, or do you need 1NC, 2NO/2NC? XB4BA31 is 1NO only.
  2. Confirm color matches facility safety standard and ISO 1219 color code (green = Start / Go / Continue operation).
  3. Check terminal type compatibility: XB4BA31 uses screw terminals. If your panel uses plug connectors or cage clamp, specify a different terminal option.
  4. Verify operating voltage: 120VAC is standard in North American controls. If your circuit runs 24VDC, 208VAC, or 480VAC, confirm voltage rating and check if a different model is needed.
  5. Confirm operator style: XB4BA31 is momentary (spring-return to neutral). If the application requires the button to stay active/latched, order a latching model instead.
  6. Check if illumination is required: XB4BA31 is non-illuminated. If you need visual feedback (LED or incandescent light), order XB4BW31 (illuminated variant) or a light module block.
  7. Validate mounting fit: Standard 22mm diameter fits most industrial panel cutouts. Verify your panel hole matches before ordering.

If any of the above checks raise a question, contact the LeadTime.ca team before ordering — we can verify the correct variant against your circuit documentation and confirm stock availability before you commit.

Frequently Asked Questions

What is the difference between the XB4BA31 and the XB4BD31 — and how do I know which one my circuit needs?

The XB4BA31 is 1NO (normally open): the contact circuit is open at rest and closes only when the button is physically pressed. The XB4BD31 is 1NC (normally closed): the contact circuit is closed at rest and opens only when the button is pressed. The choice depends entirely on your control schematic. Green Start buttons are typically 1NO (XB4BA31); red Stop and E-stop buttons are typically 1NC (XB4BD31). Physically and mechanically, both are identical at 22mm diameter with the same NEMA 4/4X/13 sealing. The contact type is the only functional difference — and ordering the wrong one requires field rewiring to correct.

Can the XB4BA31 be used as a direct replacement for a different brand's 22mm pushbutton in an existing panel?

If the existing panel hole is 22mm in diameter, the old wiring connects to two terminals (one common, one signal), the contact type is 1NO, and the control circuit operates at 120VAC, then the XB4BA31 is a direct mechanical and electrical drop-in replacement. Verify the old contact type from the original equipment documentation before ordering — substituting a 1NO where a 1NC was installed reverses circuit behavior and will require rewiring. If you cannot confirm the original part's contact type, inspect the old button physically or consult the machine's control schematic.

Does the XB4BA31 require an external fuse, and what type?

Yes. The XB4BA31 has no internal circuit protection. A 10A gG cartridge fuse conforming to EN/IEC 60947-5-1 must be installed externally in the control circuit. This fuse protects both the pushbutton's silver alloy (AgNi) contacts and downstream logic from overcurrent damage. Exceeding the 10A rating without this protection risks contact welding or burning open — both of which create either a stuck-on circuit or a permanent open that cannot be reset without component replacement.

Can I use the XB4BA31 in a high-pressure wash-down environment without additional protection around the button itself?

The XB4BA31 operator is rated for 1015.26 psi at 131 degrees Fahrenheit — the equivalent of direct exposure to commercial high-pressure wash equipment. The button itself can be sprayed directly. However, the screw terminals and any exposed wiring behind the panel must be protected with waterproof conduit, gasket seals, or potted connection blocks. The NEMA 4X sealing applies to the operator face and body — not to the terminal wiring in the rear of the panel cutout.

What is the correct torque for the XB4BA31 screw terminals, and what happens if I over-tighten them?

The specified tightening torque is 0.8 to 1.2 N⋅m (7.08 to 10.62 lbf⋅in) per EN 60947-1. The compatible screwdriver types are cross-head (Philips or Pozidriv #1) or flat-head (4mm or 5.5mm diameter). Over-torquing beyond 1.2 N⋅m strips the internal thread, crushes wire strands, and can crack the terminal block — resulting in intermittent contact loss that presents as a malfunctioning pushbutton rather than an installation error. Under-torquing causes loose connections that fail under panel vibration. Use a calibrated torque screwdriver preset to 1.0 N⋅m where available.

How long will the XB4BA31 last in a food processing environment with frequent daily actuation?

The rated mechanical life is 10,000,000 cycles at standard electrical loading of 10A at 120VAC. In food and beverage environments where operators press the Start button more than 100 times per shift, the mechanical life rating translates to approximately 5 to 10 years of service before internal wear begins to degrade tactile response or contact reliability. In lower-cycle applications — where the button is pressed once or twice per shift — the XB4BA31 will typically outlast the surrounding control cabinet components before any wear-related degradation is observed.

Why Order From LeadTime.ca

  • Global shipping — LeadTime.ca ships worldwide, including to regions where local Schneider Electric authorized distributor stock is limited or subject to extended lead times
  • Full Harmony XB4 family inventory — access to XB4BA31, XB4BD31, XB4BF31, XB4BW31, and compatible accessories in a single order, reducing consolidation delays on panel builds
  • Technical order verification — specialist team confirms contact type, terminal type, and voltage compatibility before order acceptance, reducing wrong-part shipments
  • Volume pricing available — contact for break pricing at 10, 25, 50, and 100+ unit quantities for OEM and project volume orders
  • Fast response on lead-time queries — current stock status and estimated delivery confirmed before you commit to the purchase

At-a-Glance Summary

  • Model: XB4BA31 — Harmony XB4 Non-Illuminated Pushbutton, 22mm, 1NO, Spring Return Operator, Green
  • Contact configuration: 1NO (normally open) — circuit closes only when button is physically pressed
  • Rated operating voltage: 120VAC; insulation voltage 600VAC per EN/IEC 60947-1
  • Rated current: 10A at 120VAC (conventional free air thermal current)
  • Mechanical life: 10,000,000 cycles at rated electrical loading
  • Environmental sealing: NEMA 4 / 4X / 13 — water-tight, dust-tight, corrosion-resistant
  • Pressure resistance: 1015.26 psi at 131 degrees Fahrenheit — direct high-pressure wash rated
  • Operating temperature: -20 degrees Celsius to +65 degrees Celsius
  • Contact material: Silver alloy (AgNi) per EN/IEC 60947-5-1
  • Terminal type: Screw clamp, 0.8 to 1.2 N⋅m tightening torque
  • Operator material: Chromium-plated steel with Zamak (zinc alloy) fixing collar
  • Certifications: UL Listed (File E164353), CSA Certified (File LR44087), CE Marked
  • Mounting: 22mm panel cutout, standard across Harmony XB4/ZB4 modular platform
  • Key alternative — 1NC Stop circuit: XB4BD31 | Key alternative — illuminated: XB4BW31
  • External fuse required: 10A gG cartridge fuse per EN/IEC 60947-5-1 — not included, must be installed externally
