Schneider Electric VW3A1111 — Altivar Terminal Buyer's Guide

By Abdullah Zahid
13 min read

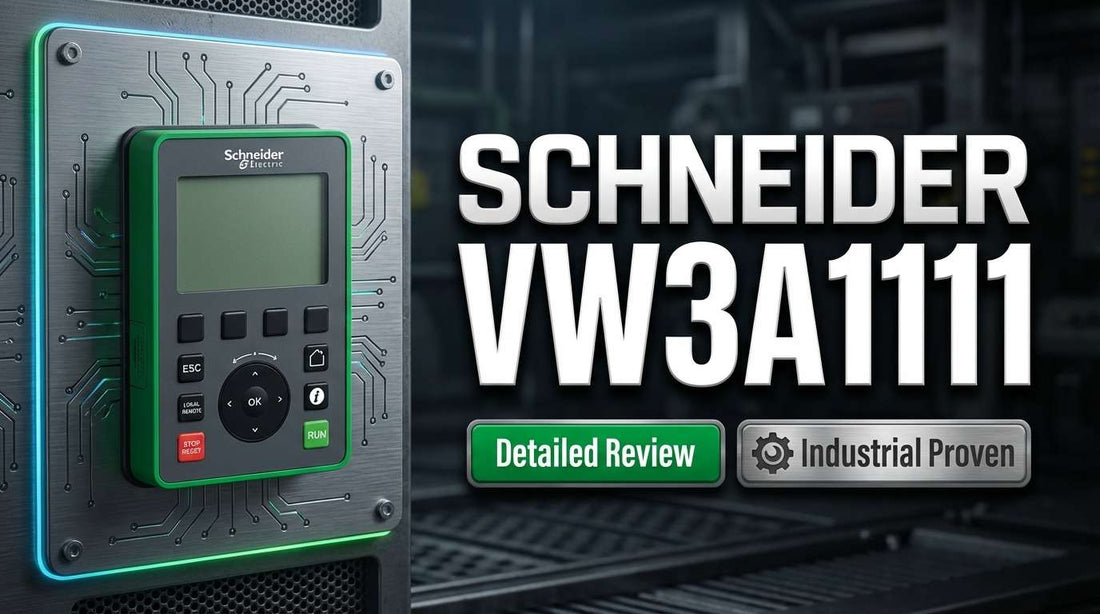

Schneider Electric VW3A1111 graphic display terminal IP65 backlit LCD panel for Altivar ATV340 ATV600 ATV900 VFD commissioning

Schneider Electric VW3A1111 Graphic Display Terminal, Altivar, 240 x 160 pixels, IP65 — Specs, Price and Altivar VFD Compatibility

Controls engineers specifying an operator interface for an Altivar VFD installation have a clear native option: the Schneider Electric VW3A1111, a backlit LCD graphic terminal rated IP65 with 240 x 160 pixel resolution and 16 MB of onboard configuration memory. If you are at the point of confirming part numbers and checking stock, this is the terminal that integrators reach for across ATV340, ATV600, and ATV900 drive families. The key qualification question is simple — is your drive explicitly one of those three Altivar series? If yes, the VW3A1111 is a low-risk, well-supported choice. If not, stop here and contact a specialist before ordering.

If you have already confirmed compatibility and want to check current pricing and availability, view the VW3A1111 product page at LeadTime.ca — we ship worldwide.

Who Should Buy the VW3A1111 — and Who Should Not

The VW3A1111 is the right choice when all of the following apply to your project:

  • Your VFD is explicitly an Altivar ATV340, ATV600, or ATV900 — not Altivar Compact, Altivar Micro, or the older ATV3000 series
  • Your installation environment calls for IP65 dust and water-jet protection
  • Your operating conditions fall within -15 to +50°C (5 to 122°F)
  • You need graphic visualization for commissioning, parameter review, or fault monitoring — not just basic speed adjustment
  • You need to store, duplicate, or transfer drive configurations across multiple drives using the terminal's 16 MB internal memory
  • Your terminal will be wired to the VFD via the drive's terminal port — no wireless or battery-operated handheld requirement

If your application only requires simple speed control with no graphical data review, the VW3A1112 alphanumeric keypad is a lower-cost alternative worth evaluating before committing to this model.

On this page:

What the VW3A1111 Actually Does in an Altivar System

The VW3A1111 is not a replacement for the Altivar drive's built-in interface — it is a remote extension of it. The terminal connects to the drive's terminal port and gives operators or commissioning technicians a physically separate, panel-mountable interface for configuration, real-time monitoring, parameter adjustment, and configuration file storage. This matters most in installations where the VFD is mounted inside a locked enclosure, a motor control center, or a location physically inaccessible during normal operation.

The backlit 240 x 160 pixel LCD is monochrome — red and white display — and delivers enough visual information density to review drive parameters, monitor motor speed and frequency, read fault conditions, and navigate configuration menus without returning to the drive's own interface. The 16 MB onboard memory is the feature that earns its place in multi-drive facilities: a technician can commission one Altivar drive, store the verified configuration file to the terminal, walk to the next identical drive, and load the same file. That configuration duplication workflow removes manual re-entry errors and accelerates commissioning significantly on sites running banks of identical pump or fan motors.

The IP65 enclosure rating means the terminal can be mounted on an operator panel exposed to dust and water jets — standard in food processing wash-down environments, water treatment facilities, and general manufacturing shop floors. The operating temperature window of -15 to +50°C accommodates most industrial indoor environments, including unheated mechanical rooms and plant floors with ambient heating.

Typical System Architecture for the VW3A1111

The VW3A1111 sits at the operator interface layer of the drive control chain — between the panel operator and the Altivar VFD. Here is how a typical installation is structured:

  • Plant control system or PLC communicates setpoints to the Altivar VFD over the primary fieldbus or hardwired I/O
  • The Altivar ATV340, ATV600, or ATV900 drive controls motor speed, torque, and frequency based on those setpoints
  • The VW3A1111 connects to the drive's terminal port via the Altivar terminal communication cable, providing a remote graphical operator window into the drive
  • The operator or commissioning technician uses the VW3A1111 to view real-time drive data, adjust parameters, read faults, and store configuration files to the terminal's 16 MB memory
  • Downstream: the motor and driven load (pump, fan, conveyor) receive speed commands from the drive as configured through the terminal

Where the VW3A1111 Gets Deployed: Industries and Use Cases

Water and wastewater facilities are among the most common deployment sites for the VW3A1111. Pump stations running multiple Altivar-driven motors benefit directly from the terminal's configuration storage — a single technician can walk through a pump gallery, connect to each drive sequentially, load a pre-validated configuration, and verify startup parameters without a laptop or additional software. The IP65 rating handles the damp environments these sites routinely present.

In food and beverage processing, the terminal's IP65 enclosure allows it to be mounted on machine panels that undergo routine wash-down. Conveyor and mixing applications where line speed must be adjusted by floor operators — without giving them access to the full VFD menu — benefit from the VW3A1111 as a configured operator panel with restricted parameter access.

HVAC and facilities management installations use the terminal for fan array control, where multiple Altivar ATV600 drives manage air handling units. The terminal's graphic display makes it straightforward to read frequency, load percentage, and fault history during building commissioning and scheduled maintenance without specialized drive software on a laptop.

OEM machine builders embed the VW3A1111 into packaged system operator panels, providing end-customers with a dedicated speed and torque control interface. The native Altivar integration means no gateway hardware, no communication protocol translation, and no third-party software license to maintain.

Application Typical Deployment
Pump station commissioning Technician connects terminal sequentially to each ATV600 or ATV900 to load validated configuration files from 16 MB memory
Food and beverage conveyor control VW3A1111 panel-mounted with IP65 rating for wash-down zones; operator adjusts conveyor speed without VFD menu access
HVAC fan array management Remote terminal in mechanical room allows maintenance team to monitor ATV340 drive parameters and adjust setpoints
OEM packaged machine integration Terminal embedded in control panel providing end-user speed and torque control via native Altivar interface
Mining and materials handling IP65 terminal mounted in dusty conveyor control station for ATV900 drive monitoring and fault review
Multi-drive facility commissioning Single VW3A1111 used portably across multiple Altivar drives to duplicate configurations and verify startup parameters

VW3A1111 Specifications: What Matters at Purchase

Specification Value
Display Type Backlit LCD, monochrome (red and white)
Display Resolution 240 x 160 pixels
Enclosure Rating IP65 (dust-proof, protected against water jets from any direction)
Operating Temperature 5 to 122°F (-15 to +50°C)
Memory Capacity 16 MB (stores multiple Altivar drive configuration files)
Compatible Drive Families Altivar ATV340, ATV600, ATV900
Overall Width 5.5 inches
Overall Height 2.3 inches
Overall Depth 7.4 inches
Weight 0.2 kilograms (7.0 ounces)

Full technical specifications are available on the product page at LeadTime.ca.

VW3A1111 vs. VW3A1112: Which Terminal Do You Actually Need?

Feature VW3A1111 (Graphic) VW3A1112 (Alphanumeric) Decision Logic
Display Type Backlit Graphic LCD Text-based display Use VW3A1111 if graphical parameter visualization is needed
Resolution 240 x 160 pixels Numeric/text only Use VW3A1111 for complex data review and commissioning
Configuration Storage 16 MB (multiple files) Limited storage Use VW3A1111 for multi-drive configuration duplication
Primary Use Case Full commissioning, monitoring, data review Quick speed adjustments only Use VW3A1112 if configuration tuning is infrequent
Operator Skill Required Moderate (graphics menu navigation) Simple (basic menu only) Use VW3A1112 in low-tech-literacy operator environments
Price Point Standard Lower cost Use VW3A1112 if budget is the primary constraint and graphics are not required

If your application genuinely requires only speed-up and speed-down control with no configuration storage or graphic fault review, the VW3A1112 is the appropriate and lower-cost choice. If you need to visualize drive parameters, store configuration files, or use one terminal across multiple Altivar drives, the VW3A1111 is the correct specification — check current availability at LeadTime.ca.

Expert Verdict: Is the VW3A1111 the Right Part for Your Build?

The VW3A1111 earns its place in Altivar system designs because it removes the compromises that come with third-party HMI alternatives: no protocol gateway, no custom communication drivers, no additional software license, and no integration risk from firmware mismatches between non-native hardware and an Altivar drive. For controls engineers and commissioning technicians working with ATV340, ATV600, or ATV900 drives, this terminal provides native compatibility, an IP65 enclosure that handles real industrial environments, and 16 MB of configuration memory that genuinely changes how multi-drive commissioning gets done. The 240 x 160 pixel backlit LCD is not a high-resolution color display — and it does not need to be for this application. The display resolves enough information to read parameters, navigate menus, review fault history, and confirm drive state without strain in typical shop-floor lighting.

Where the VW3A1111 is the wrong answer: any facility running non-Altivar variable frequency drives, any application requiring color graphics or real-time waveform trending, any operator scenario requiring battery-powered handheld portability, and any situation where the operator only needs basic speed adjustment and the VW3A1112 would be adequate at lower cost. If your facility runs mixed VFD brands alongside Altivar drives, you will need a separate interface solution for the non-Altivar equipment — this terminal does not bridge across brands or product families. For applications demanding historical data logging, alarm management, or integration with enterprise reporting systems, a full HMI or SCADA platform is the appropriate investment, not a drive terminal.

On the procurement side, the VW3A1111 is a mature, well-distributed product with a typical lead time pattern of 2 to 4 weeks depending on distributor stock levels. Ordering through a specialist industrial distributor rather than a generic marketplace channel matters specifically for this part because firmware compatibility verification — the single most important pre-order check — requires application-level knowledge that a general-purpose retailer cannot provide. A specialist can confirm whether your exact ATV firmware version is supported before the order ships, preventing the most common and costly integration failure. View current pricing and availability for the VW3A1111 at LeadTime.ca — we ship worldwide and can assist with compatibility verification before you commit.

For volume pricing or to confirm lead time before locking in your build schedule, contact the LeadTime.ca team directly — we ship worldwide and respond quickly to project-critical sourcing questions.

What Engineers Need to Know Before Ordering the VW3A1111

Community discussion for the VW3A1111 specifically — and for the Altivar graphic terminal family broadly — is sparse across the major automation forums and engineering communities. In mature, well-established industrial accessories that deliver predictable functionality within a defined compatibility envelope, limited forum activity typically reflects stable operation rather than obscurity. The issues that do arise with this class of product are almost always pre-purchase compatibility errors, not post-installation failures. That pattern makes the pre-order checklist more valuable than any volume of post-installation forum threads.

The compatibility boundary is sharp and unforgiving. The VW3A1111 communicates exclusively with Altivar ATV340, ATV600, and ATV900 drives. It does not negotiate partial connections with adjacent Schneider product lines or older Altivar series — it either communicates fully or it does not communicate at all. Engineers who have worked with this part across multiple Altivar deployments consistently report that the right firmware verification step before ordering eliminates integration problems almost entirely. The firmware check takes minutes; a return shipment takes weeks.

The cable question is the second most common gap in specifications. The terminal-to-drive communication cable may or may not be included depending on the specific purchase configuration and distributor. Assuming the cable is in the box without confirming the part number has caused real project delays. When contacting a distributor, ask explicitly whether the Altivar terminal communication cable is included or whether it needs to be ordered separately — and if separately, get the exact cable part number at the same time as the terminal order. LeadTime.ca can assist with that confirmation before your order is placed.

Wiring and Installation: Key Requirements Before You Connect

  • Confirm the correct Altivar terminal communication cable is in hand before powering down the drive — the cable may be sold separately and has a specific part number; do not substitute with generic serial cables
  • The VW3A1111 connects to the terminal port on the Altivar drive (typically labeled Port 2); verify this port is free and not already occupied by a communication module or other device before installing
  • Power down the Altivar drive fully before making the terminal connection — connect the cable to both the terminal and the drive port with the drive de-energized
  • On power-up, the terminal should display a welcome screen or drive model name within approximately 5 seconds, confirming successful communication; if not, check cable seating and port assignment before troubleshooting further
  • After confirming communication, navigate to the terminal's connection status or system menu to verify the drive model is correctly identified before proceeding with configuration download or parameter adjustment

Wrong-Part Prevention Checklist

Before placing your order for the VW3A1111, verify every item on this checklist. Each item represents a documented source of wrong-part orders and project delays:

  1. Confirm your VFD is Altivar series (ATV340, ATV600, or ATV900)—this terminal is NOT compatible with non-Altivar drives, PowerFlex, or other Schneider lines
  2. Verify your VFD firmware supports the VW3A1111 (some older ATV models may require firmware update)
  3. Check that you need a GRAPHIC terminal, not a basic alphanumeric keypad (VW3A1112 is cheaper if graphics not needed)
  4. Confirm the IP65 enclosure is adequate for your environment (if higher rating like IP67 required, confirm compatibility)
  5. Verify you have one free terminal port on the VFD (check your ATV datasheet or manual for port availability)
  6. Ensure your existing cable run to the drive is compatible with Altivar terminal communication protocol (confirm cable part number before ordering)
  7. Check that you do NOT need wireless capability (this model is wired only)
  8. Confirm this is for Altivar, not for ATV Compact, Altivar Micro, or older ATV3000 series (different terminals required)

If any item on this checklist raises a question you cannot answer from your drive documentation, contact LeadTime.ca before ordering — confirming compatibility takes minutes and prevents weeks of delay.

Frequently Asked Questions

Does the VW3A1111 work with ATV340, ATV600, and ATV900 equally, or are there differences in functionality across models?

The VW3A1111 is fully supported across all three Altivar families — ATV340 (Machine), ATV600 (Process), and ATV900 (Process). The terminal's core functions including parameter navigation, real-time monitoring, and configuration storage operate consistently across these drive families. The critical qualification in all three cases is firmware version — verify your specific firmware against Schneider's compatibility data before ordering, regardless of which Altivar model you are running.

Can I use one VW3A1111 terminal to configure multiple Altivar drives, or do I need a dedicated terminal per drive?

One terminal can be used across multiple drives sequentially. The 16 MB onboard memory allows you to store a validated configuration from Drive A, disconnect, connect to Drive B, and load the same configuration file. This portable commissioning workflow is one of the primary reasons integrators specify the VW3A1111 for multi-drive facilities. The terminal does not need to remain permanently connected to any single drive after commissioning is complete.

Is IP65 sufficient for outdoor installation or food processing wash-down zones?

IP65 provides protection against dust ingress and water jets directed from any angle, which covers most food processing wash-down applications and sheltered outdoor enclosures. It is not rated for temporary submersion or continuous water immersion, which would require IP67 or higher. For fully exposed outdoor installations with rain exposure, verify whether a protective enclosure is required around the terminal. Confirm your specific environment requirements against the IP65 specification before finalizing the installation design.

Is the communication cable included with the VW3A1111, or do I need to order it separately?

Cable inclusion depends on the specific purchase configuration and the distributor you are ordering from. Do not assume the cable is in the box. Before placing your order, confirm explicitly with the distributor whether the Altivar terminal communication cable is included, and if not, obtain the correct cable part number and order it at the same time. Ordering the terminal without securing the cable is a documented source of project delays.

What happens if my Altivar firmware is older than the version supported by VW3A1111?

The terminal will either fail to establish communication or will display an incompatibility warning on startup. The resolution is a firmware update on the Altivar drive, which in many cases can be performed using the terminal itself once a compatible connection baseline is established. The correct sequence is to verify firmware version before the terminal arrives on-site, plan the update during the commissioning window, and confirm the updated version is in the supported range. Contact Schneider technical support or your integrator to verify the specific firmware update path for your drive model.

Is the VW3A1111 a direct replacement for terminals used with older ATV3000 series drives?

No. The VW3A1111 is not compatible with the ATV3000 series or other older Altivar legacy lines. If you are retrofitting an older Altivar installation, confirm the exact drive model designation before ordering. Altivar Compact and Altivar Micro also require different terminal interfaces. The VW3A1111 is specifically designed for ATV340, ATV600, and ATV900 — any other Altivar designation requires a separate compatibility verification before ordering.

Why Order the VW3A1111 Through LeadTime.ca

  • Compatibility verification before purchase — our team can confirm ATV drive model and firmware support before your order is placed, not after it arrives
  • Global shipping — orders fulfilled to facilities and project sites worldwide, not limited to any single country or region
  • Accurate lead time communication — stock status and delivery expectations confirmed at order time, not estimated after the fact
  • Hard-to-source part support — when standard channels are showing extended lead times, specialist sourcing networks provide alternative fulfillment paths
  • Post-sale technical support — installation and connection questions answered by staff with industrial automation application experience

VW3A1111 At-a-Glance Summary

  • Official product designation: Graphic Display Terminal, Altivar, 240 x 160 pixels, IP65
  • Compatible Altivar drives: ATV340, ATV600, ATV900 — not compatible with ATV Compact, ATV Micro, or ATV3000 series
  • Display: Backlit monochrome LCD (red and white), 240 x 160 pixels
  • Enclosure rating: IP65 — dust-proof and protected against water jets from any direction
  • Operating temperature: -15 to +50°C (5 to 122°F)
  • Onboard memory: 16 MB for storing and duplicating multiple Altivar drive configuration files
  • Physical dimensions: 5.5 in. wide x 2.3 in. high x 7.4 in. deep; weight 0.2 kg (7.0 oz)
  • RoHS compliant; country of origin: Indonesia
  • Typical lead time: 2 to 4 weeks depending on distributor stock levels — confirm at time of order
  • Primary alternative: VW3A1112 alphanumeric keypad for applications not requiring graphical display or configuration storage
  • Number-one pre-order check: verify your exact Altivar firmware version supports the VW3A1111 before the order is placed
