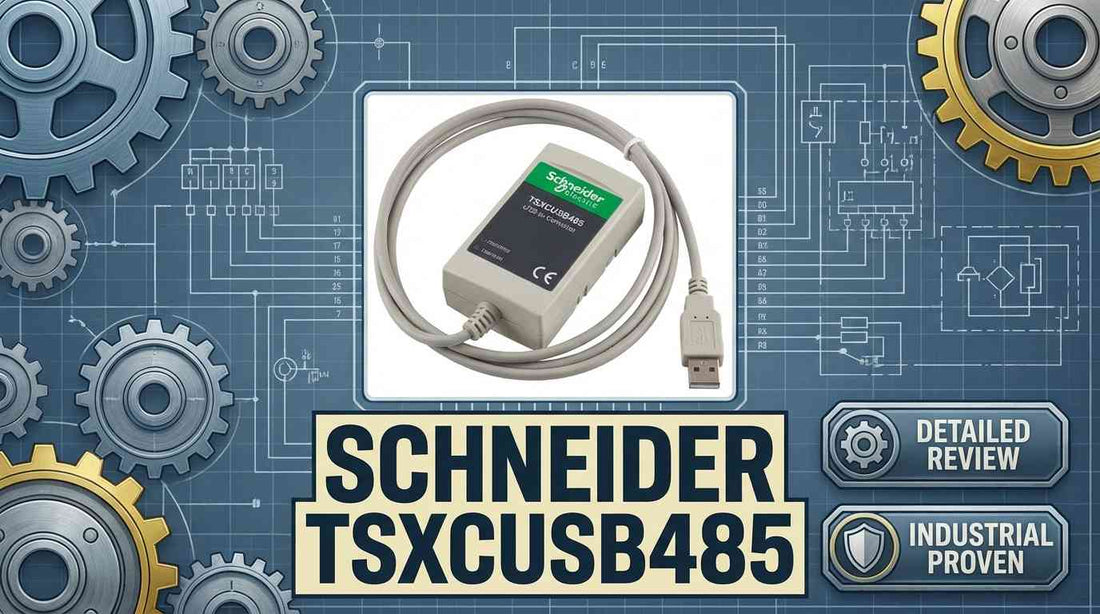

Schneider Electric TSXCUSB485 USB to RS485 connection cordset for Modicon Atrium safety controller commissioning

Schneider Electric TSXCUSB485 Connection Cord Set for PC Terminal for Atrium Premium — Specifications, Compatibility and Where to Buy

If you are searching for the Schneider TSXCUSB485 cable, you already know your system: a Modicon or Atrium safety controller that needs a USB link to a PC for programming, diagnostics, or commissioning. The TSXCUSB485 is a 0.4-meter, factory pre-assembled connection cordset with a USB Type-A connector on the PC side and an RS485 modular jack with mini DIN processor interface on the controller side — the only officially supported pre-assembled cable for this communication path. Although Schneider Electric discontinued this part on February 9, 2022, it remains supported through December 31, 2029 and is normally stocked in distribution facilities worldwide.

If you have already confirmed this is the right part, check current pricing and availability at LeadTime.ca — ships worldwide.

Who Should Buy the TSXCUSB485 — and Who Should Not

This cable is the correct choice for engineers and technicians working with Modicon or Atrium safety controllers who need a reliable, factory-tested USB-to-RS485 connection. You are in the right place if:

  • Your target controller is confirmed as a Modicon Atrium or Atrium Premium model — not a TSX Micro, TSX Nano, or any non-Schneider safety PLC
  • Your PC has a standard USB Type-A port (not USB Type-C or micro-USB)
  • The controller-side port is an RS485 mini DIN port — not an Ethernet or RJ45 port
  • A 0.4-meter cable length is sufficient for your bench setup or panel mounting distance
  • You need a factory-tested, EMC-compliant cable that eliminates the risk of miswiring a safety-critical RS485 interface

If your installation requires a cable longer than 0.4 meters, Ethernet connectivity, or interface with a non-Modicon controller, the TSXCUSB485 is not the right solution — a custom cable assembly from a system integrator or a Schneider Ethernet gateway module will be required instead.

On this page:

What the TSXCUSB485 Actually Does in a Safety Controller System

The TSXCUSB485 bridges the USB port of an engineering laptop or desktop PC to the RS485 serial port on a Modicon or Atrium safety controller. Without this cable — or an equivalent interface — there is no communication path between the PC-based engineering tool and the safety controller's program memory. It enables program downloads, configuration changes, and live diagnostics from tools such as Modicon Idea or Safe Designer without requiring a separate USB-to-RS485 interface card installed in the PC.

The cable's pre-assembled, factory-tested construction matters in this context. RS485 is a differential-pair interface, and a miswired connection to a safety controller carries real risk: incorrect polarity or pin assignments can damage the controller's communication port or prevent communication entirely. The TSXCUSB485 eliminates that variable by delivering a tested, shielded assembly with correct pinout for the Modicon and Atrium port specification.

The RS485 differential-pair interface also provides inherent noise rejection, making this cable suitable for the industrial electrical environments — motor drives, power distribution equipment, and panel wiring — where Atrium safety controllers are typically installed.

Typical System Architecture for Modicon Atrium Programming

The TSXCUSB485 sits at the final link in the programming chain, connecting the engineer's workstation directly to the safety controller's serial port. A typical deployment looks like this:

  • Engineering laptop or desktop PC running Schneider programming software — connected via USB Type-A to the TSXCUSB485 cable
  • TSXCUSB485 cable — 0.4 meters from PC USB port to the controller RS485 mini DIN port
  • Modicon Atrium or Atrium Premium safety controller — receives program downloads and returns diagnostic data via RS485
  • Safety controller outputs — wired to safety devices such as light curtains, e-stop relays, or safety interlocks in the machine
  • Main control panel or DIN rail assembly — houses the controller, power supply, and field wiring terminations

Where Engineers Deploy the TSXCUSB485

Commissioning engineers use the TSXCUSB485 to download safety logic programs to Atrium controllers during first-time installation on machine safety systems. The cable provides the only direct PC interface during the commissioning phase before the system is handed over to the production environment.

Maintenance technicians on automotive assembly lines and food and beverage processing facilities keep a TSXCUSB485 in their service kit for diagnostic access to live Atrium controllers. When a safety circuit trips unexpectedly, connecting via this cable to the engineering software allows the technician to read controller status without removing the controller from the panel.

Panel builders integrating Atrium safety controllers into larger machine control systems use the TSXCUSB485 during the build and test phase to verify program execution before shipment. In pharmaceutical manufacturing and packaging machinery, where safety PLC programming is part of validation documentation, the cable enables the controlled download and verification steps that the validation process requires.

Organizations managing legacy Atrium installations that will remain in service through 2029 rely on stocked TSXCUSB485 cables as critical spare parts — because a missing connection cable during an unplanned maintenance event can extend downtime significantly.

Application Typical Deployment
Machine safety commissioning First-time program download to Atrium controller from engineering laptop at installation
Automotive assembly line maintenance Diagnostic access to live Atrium safety controller via PC during fault investigation
Panel builder factory acceptance test Program verification and communication test before panel shipment to end customer
Food and beverage safety system service Replacement cable for worn or damaged cord on existing Modicon Atrium installation
Pharmaceutical manufacturing validation Controlled program download step as part of documented IQ/OQ validation procedure
Spare parts inventory for critical systems Stocked unit held on-site to minimize downtime if primary cable fails

Key Specifications and Connector Details

Specification Value / Detail
Cable Length 0.4 meters (only available length)
PC-Side Connector USB Type-A (standard USB 2.0)
Controller-Side Connector RS485 modular jack with mini DIN processor interface
Interface Protocol RS485 differential-pair serial
Shielding Shielded cable, EMC compliant
Jacket Material PVC, rated for industrial environment
Termination Style Factory pre-assembled and tested
Compatible Families Modicon Atrium, Modicon Atrium Premium
Not Compatible With TSX Micro, TSX Nano, third-party safety PLCs
Product Status Discontinued Feb 9, 2022; end-of-service Dec 31, 2029

Full technical specifications are available on the product page at LeadTime.ca.

TSXCUSB485 vs. TSXCUSB2 and Alternative Connection Methods

Several USB connection cables exist in the Schneider product line with similar part number prefixes, and selecting the wrong variant is one of the most common ordering errors technicians make. The table below clarifies the key differences.

Feature / Criterion TSXCUSB485 TSXCUSB2 Generic USB-to-RS485 Cable Schneider Ethernet Gateway
Pre-assembled and tested Yes Yes No — field risk N/A (separate module)
Modicon Atrium optimized Yes No — different product line Partial — generic pinout Yes
EMC compliance Yes (factory tested) Yes Varies by supplier Yes
Cable length options 0.4 m only Different fixed length Multiple available N/A — network based
Safety controller approved Yes For different Schneider family No guarantee Yes
Connector pinout Specific to Modicon/Atrium RS485 port Different connector spec Generic RS485 — mismatch risk Ethernet RJ45

The TSXCUSB2 carries a similar part number but serves a different Schneider product line with a different connector pinout — it will not fit the Atrium RS485 mini DIN port. A generic USB-to-RS485 cable risks pinout mismatch and carries no guarantee of compatibility with Schneider safety controllers. An Ethernet gateway is the correct long-term alternative for permanent connectivity, but requires additional hardware and network configuration. If your controller is confirmed Modicon Atrium and your PC has USB Type-A, the TSXCUSB485 is the only pre-assembled, factory-approved option — check current availability at LeadTime.ca.

Expert Verdict: Is the TSXCUSB485 Still Worth Ordering?

For any engineer or technician with a Modicon Atrium or Atrium Premium safety controller in the field, the TSXCUSB485 is the correct and only factory-approved direct answer. Its pre-assembled, factory-tested construction removes the one variable that causes the most grief with RS485 serial connections in safety applications: miswiring. The shielded, PVC-jacketed design delivers EMC compliance appropriate for the industrial panel environments where Atrium controllers live. Commissioning engineers who need to download a program and move on benefit from the fastest path to verified communication — no driver hunting for obscure generic adapters, no pinout guesswork, no warranty gray areas. This cable is right for organizations maintaining existing Atrium installations, integrators commissioning new systems, and panel builders who need a tested interface during factory acceptance testing.

The honest limits of the TSXCUSB485 are worth naming directly. The single 0.4-meter length is the most common installation constraint — if your panel layout places the controller more than 0.4 meters from where the programming laptop will sit, you need a custom cable assembly, not a longer version of this product. There is no longer version. Organizations planning to run Atrium systems beyond December 31, 2029 need a migration plan, because end-of-service means spare parts and support will not extend indefinitely. For new installations where permanent PC connectivity is a design requirement, a Schneider Ethernet gateway module is worth evaluating now rather than relying on a serial cable indefinitely. And for any system using TSX Micro, TSX Nano, or a non-Schneider safety PLC, the TSXCUSB485 is simply the wrong part — the TSXCUSB2 or the controller-specific cable for that family is what you need.

On the procurement side, the TSXCUSB485 is currently normally stocked in distribution facilities, which means availability is generally not an obstacle today — but that position will tighten as the 2029 end-of-service date approaches and remaining stock is consumed. Organizations running critical Atrium safety systems should treat this cable as a managed spare part: order at least one backup unit now, and consider two units if the system operates continuously and a cable failure would cause extended downtime. Buying through a specialist distributor matters here because a specialist can verify your exact controller model compatibility, confirm that the part shipped is genuine Schneider product with proper documentation, and provide escalation support if a communication fault arises after installation. View current TSXCUSB485 availability and pricing at LeadTime.ca — we ship worldwide.

For volume pricing or to confirm lead time before committing to a project build, contact the LeadTime.ca team directly — we ship worldwide.

What Engineers Need to Know Before Ordering the TSXCUSB485

Community discussion on the TSXCUSB485 is sparse by the nature of the product. This is a niche, discontinued interface cable used by specialist technicians and system integrators working on a specific family of safety controllers — the kind of part that rarely generates forum threads because the engineers who use it are experienced enough to know what they need, and the problems that do occur tend to get solved through direct distributor contact rather than public troubleshooting posts.

That specialist context is exactly why the ordering mistakes that do occur tend to be costly. The three scenarios that cause the most integration delays are: ordering the TSXCUSB485 for a controller that is not Modicon Atrium (the TSXCUSB2 exists for other Schneider product lines and the part numbers look similar enough to create confusion), assuming the 0.4-meter length will work without measuring the actual distance in the panel layout, and ordering a generic USB-to-RS485 cable as a lower-cost alternative without recognizing that the Atrium RS485 port has a specific mini DIN connector that generic cables do not match. In a safety controller environment, a pinout mismatch is not a minor inconvenience — it can damage the controller communication port or, at minimum, cost a full day of commissioning time tracking down why communication refuses to establish.

When community data is thin and official documentation is the primary resource, the practical value of a specialist distributor becomes most visible. The LeadTime.ca team can verify your exact controller model against the TSXCUSB485 compatibility matrix before the order ships, confirm that the product is genuine Schneider with proper testing documentation, and flag if your system would be better served by an alternative communication path. For a cable that is approaching end-of-service and serves safety-critical systems, that pre-order verification step is worth more than any price difference between channels.

Installation and Connection Overview

  • Connect the USB Type-A end of the TSXCUSB485 to an available USB 2.0 port on the engineering PC — confirm a new COM port appears in Windows Device Manager before proceeding
  • Align the mini DIN connector carefully with the RS485 port on the Modicon or Atrium controller, noting the orientation marker; the connector must be fully seated to establish reliable communication
  • Install USB drivers if prompted by the PC — drivers may be available from the Schneider support portal or the engineering software installation package
  • Open the Schneider engineering software (such as Modicon Idea or Safe Designer), navigate to communications settings, and select the correct COM port — verify the controller model and firmware version match the open project before attempting a program download
  • If no communication is established, check that the cable is fully seated at both ends, verify the COM port assignment in Device Manager, and confirm the target controller is a supported Modicon Atrium or Atrium Premium model — do not attempt to force communication with an unsupported controller family

Wrong-Part Prevention Checklist

Before placing your order, work through each item in this checklist. These are the six checks that prevent the most common TSXCUSB485 ordering mistakes:

  1. Confirm target controller is Modicon or Atrium model (not TSX Micro, TSX Nano, or third-party brands)
  2. Verify 0.4-meter length is sufficient for bench setup or panel mounting distance
  3. Check that target device has mini DIN RS485 port, not Ethernet port
  4. Confirm PC has standard USB Type-A port (not Type-C or micro-USB)
  5. Verify cable is not confused with TSXCUSB2 (different connector pinout for different Schneider products)
  6. Confirm product is not discontinued for the specific controller model you own (end-of-service is Dec 31, 2029)

If any item on this checklist raises a question you cannot resolve from your controller manual alone, contact the LeadTime.ca team before ordering — we can verify compatibility with your specific controller model and confirm current stock status.

Frequently Asked Questions

Will the TSXCUSB485 work with my TSX Micro or TSX Nano controller?

No. The TSXCUSB485 is designed specifically for Modicon Atrium and Atrium Premium safety controllers. TSX Micro and TSX Nano models use a different connector specification and are not compatible with this cable. Using it with the wrong controller family risks not establishing communication and potentially damaging the controller's communication port. Verify your controller model number on the label and cross-reference with Schneider's compatibility documentation before ordering.

The TSXCUSB485 is discontinued — can I still buy it, and for how long?

Yes, the TSXCUSB485 is currently normally stocked in distribution facilities and remains orderable. Schneider Electric discontinued the product on February 9, 2022, but the end-of-service date is December 31, 2029, meaning spare parts support continues through that date. Organizations with critical Atrium installations should order spare units now rather than waiting, as available stock will decrease as the end-of-service date approaches.

Can I use a generic USB-to-RS485 adapter cable instead of the TSXCUSB485?

This is not recommended for safety controller applications. The Atrium RS485 port uses a specific mini DIN connector with a defined pinout. Generic USB-to-RS485 cables carry pinout mismatch risk and no guaranteed EMC compliance for industrial environments. The TSXCUSB485 is factory pre-assembled and tested to the correct specification — substituting a generic cable introduces integration risk that is especially problematic in safety-critical systems where reliable communication is mandatory.

What do I do if the TSXCUSB485 is out of stock when I need it urgently?

Contact a specialist distributor such as LeadTime.ca to check current availability and, if needed, explore sourcing through the Schneider fulfillment network. If the cable is genuinely unavailable and your system requires immediate PC access, a Schneider Ethernet gateway module represents the most viable alternative communication path — though it requires additional hardware configuration. For longer-term planning, ordering spare TSXCUSB485 units while stock remains available is the most practical approach for organizations managing critical Atrium safety systems.

How do I tell if the TSXCUSB485 is the correct cable and not the TSXCUSB2?

Verify the exact part number digit by digit from your controller manual or system schematic — do not rely on memory or visual similarity of the packaging. The TSXCUSB485 has the RS485 mini DIN connector for Modicon Atrium controllers; the TSXCUSB2 has a different connector pinout for a different Schneider product line. When ordering through a distributor, read the part number aloud character by character and ask the distributor to confirm the connector type before shipment.

What happens to my Atrium system after the TSXCUSB485 end-of-service date of December 31, 2029?

After December 31, 2029, Schneider Electric's official support for the TSXCUSB485 ends. Organizations planning to continue operating Atrium safety systems beyond that date should either build sufficient spare cable inventory before the end-of-service date or migrate to alternative communication methods such as a Schneider Ethernet gateway module. Documenting the cable's connector specifications before end-of-service also allows a system integrator to fabricate a custom replacement cable if needed after that date.

Why Order the TSXCUSB485 Through LeadTime.ca

  • LeadTime.ca verifies compatibility with your specific Modicon or Atrium controller model before shipment — critical for a discontinued cable with a defined connector specification
  • Genuine Schneider Electric product with proper documentation, not gray-market or unverified stock
  • Global shipping capability — no restriction to a single region or country
  • Volume pricing available for organizations building spare parts inventory for critical safety systems
  • Specialist support for sourcing discontinued and hard-to-find industrial interface cables approaching end-of-service

At-a-Glance Summary

  • Cable length is 0.4 meters — the only available length; custom cables required for longer runs
  • PC-side connector is USB Type-A (standard USB 2.0); controller-side is RS485 modular jack with mini DIN processor interface
  • Compatible with Modicon Atrium and Atrium Premium safety controllers only — not TSX Micro, TSX Nano, or non-Schneider PLCs
  • Factory pre-assembled and tested with shielded, PVC-jacketed construction for EMC compliance in industrial environments
  • Discontinued February 9, 2022; end-of-service date is December 31, 2029 — currently normally stocked in distribution
  • The TSXCUSB2 uses a different connector pinout for a different Schneider product line — verify part number digit by digit before ordering
  • Pricing is available on the product page; contact LeadTime.ca for volume pricing and current lead times
  • Organizations with critical Atrium systems should order spare units while stock remains available ahead of the 2029 end-of-service date
