Schneider PowerLogic PM5320 — Class 0.5S Energy Meter Review

By Abdullah Zahid
14 min read

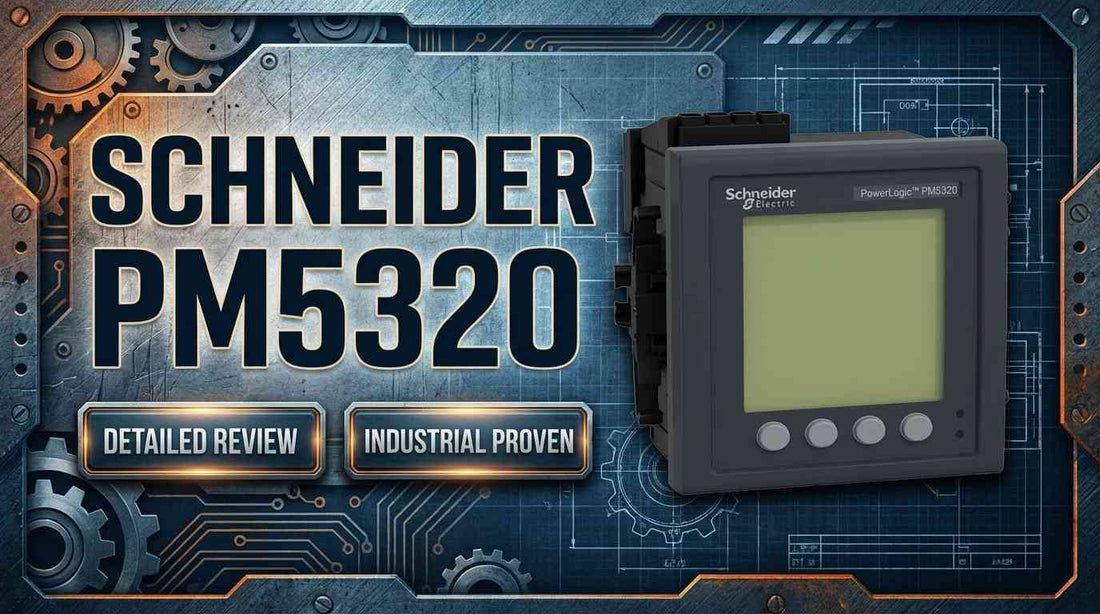

Schneider PowerLogic PM5320 flush-mount power meter with Ethernet and 31st harmonic analysis for three-phase facility monitoring

Schneider PowerLogic PM5320 — Power Meter with Ethernet, Up to 31st Harmonic, 256KB Memory, 2DI/2DO, 35 Alarms, Flush-Mount

Facility managers and controls engineers searching for a Class 0.5S certified energy meter with native Modbus TCP/IP connectivity have typically already narrowed the field before they arrive here. The Schneider PowerLogic PM5320 is a three-phase flush-mount power meter that measures voltage, current, power quality, and harmonics up to the 31st, logs data to 256KB onboard memory, and communicates directly over a 10/100 Mbps Ethernet connection — no serial gateway required. If you are at the point of confirming specs and checking availability, view current pricing and stock status for the Schneider PowerLogic PM5320 at LeadTime.ca — we ship worldwide.

Who Should Buy the Schneider PowerLogic PM5320 — and Who Shouldn't

The METSEPM5320 is the right meter for facilities that need legal-grade energy billing accuracy alongside real-time network integration. Specify it when all of the following apply:

  • Your installation is three-phase AC at 100–415V, 45–65 Hz, or single-phase with neutral at 20–400V AC — and you have confirmed the nameplate voltage before ordering
  • Your current transformers output a 1A or 5A secondary — the meter is ordered to match; confirm the CT secondary rating before placing an order
  • Your BMS, SCADA, or energy management platform communicates via Modbus TCP/IP over Ethernet — this meter does not natively replace an RS-485 RTU-only network
  • Class 0.5S accuracy per IEC 62053-22 is required — either for utility billing reconciliation, energy audit compliance, or chargeback to tenants
  • Your panel accommodates a 96mm front bezel and at least 72mm depth behind the cutout for terminal blocks and wiring clearance
  • You need onboard harmonic analysis to the 31st harmonic without adding a separate power quality analyzer

If your communication infrastructure is RS-485 serial only, the PM5310 is the correct variant. If you need single-phase sub-metering at lower accuracy, consider the PM5200. If advanced PLC logic must coexist with metering at the same node, a Modicon M241 controller with integrated metering functions is the more appropriate architecture.

On this page:

What the Schneider PowerLogic PM5320 Actually Does in a Real System

The METSEPM5320 is a point-of-use or main distribution energy data collector. It sits on your panel, connects to your existing current transformers via 1A or 5A secondary inputs, and pulls live voltage and current data from the monitored circuit. The 96mm x 96mm backlit LCD with 128 x 128 pixel resolution gives local operators a readable real-time display without a secondary screen or handheld device. Behind that display, the meter is continuously computing active energy to Class 0.5S accuracy per IEC 62053-22, capturing waveform data at 64 samples per AC cycle, and resolving harmonics from the fundamental through the 31st.

What makes this model distinct from simpler sub-meters is the native 10/100 Mbps Ethernet port with 2500V isolation. That isolation voltage is not a minor detail — it protects your control network from power disturbances on the measured circuit and is critical in environments where the metered bus carries significant harmonic or transient energy. Once connected, the meter speaks Modbus TCP/IP natively. No RS-485-to-Ethernet converter, no intermediate gateway, no additional hardware cost. The meter's two digital inputs and two digital outputs extend its role from passive data collector to active participant in demand-response or alarm annunciation logic — relay outputs can trigger load-shedding contactors or alarm circuits when configurable thresholds are crossed. Up to 35 alarms can be set, and up to four separate tariff periods are supported within a single unit, which is essential for facilities managing time-of-use energy costs.

The 256KB onboard memory stores data logs, event logs, min/max registers, alarm logs, and maintenance records. For most facilities logging at 15-minute intervals, this is sufficient for extended retention without external storage. Buyers with very high-frequency logging requirements — one-minute intervals across many parameters — should map out their memory budget before assuming 256KB covers their retention period.

Typical System Architecture: Where the PM5320 Fits in the Signal Chain

The METSEPM5320 sits between the current transformers on the monitored feeder and the facility's Ethernet-connected energy management or SCADA layer. Here is a typical component chain:

  • Utility feed or main distribution board — the circuit being monitored, carrying three-phase AC at 100–415V
  • Current transformers (1A or 5A secondary) clamped on each phase — feed the CT secondary signal to the meter's six-screw current input terminals
  • Schneider PowerLogic PM5320 — receives voltage and current inputs, processes data, displays locally on LCD, logs to onboard 256KB memory
  • RJ45 Ethernet cable (Cat5e or Cat6) from meter to facility network switch — carries Modbus TCP/IP data to BMS, SCADA, or energy management software
  • Digital output relay contacts — optionally wired to alarm annunciators, load-shedding contactors, or building automation controllers for automated response

Typical Applications and Deployment Scenarios

Manufacturing facilities use the PM5320 at sub-distribution panels to track energy consumption by production line or department, enabling accurate internal cost allocation and identifying energy-intensive equipment. The Class 0.5S certification means the data is defensible in budget disputes or utility reconciliation exercises — not just indicative.

Data centers deploy this meter at the PDU or feeder level where power quality monitoring is as important as consumption tracking. The 31st harmonic analysis, running at 64 samples per cycle, surfaces harmonic distortion from switched-mode power supplies and UPS systems that simpler meters would miss entirely. This data feeds capacity planning and cooling load analysis without requiring a dedicated power quality analyzer on every feeder.

Commercial buildings and hospitals with multi-tenant or multi-department energy chargeback requirements rely on the four-tariff support and 256KB logging to track consumption across time-of-use pricing periods. A single METSEPM5320 can serve multiple billing periods without being reprogrammed between billing cycles.

Retrofit projects replacing legacy analog meters or older RTU-based digital meters find the PM5320 fits standard 96mm x 96mm panel cutouts, and the native Ethernet eliminates the need to run RS-485 wiring or install protocol converters — particularly valuable when upgrading panels that already have IT network drops nearby.

Energy audit firms and demand-response program participants use the relay outputs to automate load shedding when measured demand crosses a threshold, integrating directly with building automation systems via Modbus TCP/IP without custom middleware.

Application Typical Deployment
Manufacturing sub-metering PM5320 at sub-distribution panel per production line; data to SCADA for cost allocation
Data center PDU monitoring Flush-mount at PDU feeder; harmonic and power factor data to energy management platform
Multi-tenant commercial building One unit per tenant feeder; four-tariff logging for time-of-use billing reconciliation
Hospital facility management Main distribution and critical branch metering; alarm relay triggers facility management alerts
Retrofit of legacy analog meters Drop-in to existing 96mm cutout; Ethernet replaces RS-485 run to BMS
Demand-response automation Digital outputs wired to load-shedding contactors; threshold alarms configured in meter

Schneider PowerLogic PM5320 Specifications: What Engineers Need to Confirm

Specification Value
Voltage Input (Three-Phase) 100–415V AC, 45–65 Hz
Voltage Input (Single-Phase + Neutral) 20–400V AC, 45–65 Hz
DC Input Option 125–250V DC
Rated Current (CT Secondary) 1A or 5A (ordered to match existing CTs)
Active Energy Accuracy Class 0.5S per IEC 62053-22 (±0.5%)
Harmonic Analysis Up to 31st harmonic; 64 samples per AC cycle
Communication Modbus TCP/IP; 10/100 Mbps Ethernet; RJ45 connector; 2500V isolation
Onboard Memory 256KB (data logs, event logs, alarm logs, min/max, maintenance logs)
Digital I/O 2 digital inputs, 2 digital outputs; up to 35 alarms; up to 4 tariff periods
Dimensions / Weight 96mm height, 72mm depth; 430g; IP52 front, IP30 body

Full technical specifications are available on the product page at LeadTime.ca.

PM5320 vs. PM5310 vs. PM5200: Which Variant Do You Actually Need?

Model Key Difference When to Choose Instead
Schneider PowerLogic PM5320 Modbus TCP/IP over Ethernet; Class 0.5S; 31st harmonic; 256KB; 2DI/2DO Your primary choice when Ethernet is available and billing accuracy is required
PM5310 Modbus RTU (RS-485) only; no native Ethernet Legacy installations or isolated substations without Ethernet infrastructure
PM5200 Single-phase; Class 1.0 accuracy (lower than 0.5S) Residential, small tenant, or cost-priority sub-metering where billing accuracy to 0.5S is not required
ABB A44 (competitor) Similar accuracy class; comparable Ethernet features Existing ABB installation ecosystem or competitive pricing scenario
Siemens PAC3200 (competitor) Higher data density; supports Profibus in addition to Modbus Large industrial sites where Profibus network is already deployed and extended logging is mandated

If your communication infrastructure is serial RS-485 only, the PM5310 is the correct order — specifying the PM5320 for an RTU-only environment will require an additional Ethernet-to-serial bridge that eliminates the cost advantage of the native Ethernet. Check current availability for the PM5320 and compare variant lead times at LeadTime.ca.

Expert Verdict: Is the Schneider PowerLogic PM5320 the Right Meter for Your Project?

The METSEPM5320 is the right specification for facility managers and systems integrators running three-phase distribution at 100–415V AC who need Class 0.5S certified accuracy — not for internal reporting, but for utility billing reconciliation, tenant chargeback, or energy audit compliance. The native Modbus TCP/IP over a 10/100 Mbps Ethernet port with 2500V isolation eliminates the gateway cost and configuration overhead that older RTU-based meters impose. The 31st harmonic analysis, running at 64 samples per cycle, gives integrators visibility into power quality issues caused by variable frequency drives, LED lighting systems, and switched-mode power supplies — all of which generate non-linear load signatures that a basic energy meter would never surface. This is a meter that reduces total system cost by replacing what would otherwise be two separate instruments: a billing-grade energy meter and a basic power quality analyzer.

Where this model has real limits: it is not the right tool for single-phase or residential applications — the PM5200 is the correct fit there. If your panel has no Ethernet drop and RS-485 is the only available communication medium, order the PM5310 instead and save the integration effort. The PM5320 also requires a dedicated 100–250V AC control power circuit separate from the measured circuit — projects with no available auxiliary power supply need to account for that before ordering. And for applications that require PLC logic alongside metering at the same node, a Modicon M241 or similar controller with integrated measurement capabilities is a more appropriate architecture than trying to work around the PM5320's fixed I/O configuration.

From a procurement standpoint, the METSEPM5320 is widely stocked through major North American distributors with typical lead times ranging from in-stock to two weeks, with specialty automation channels extending to four weeks in some cases. This is not a long-lead-time specialty item for most applications, but confirming current availability before committing to an installation schedule is always sound practice — particularly on multi-unit projects where staggered deliveries create commissioning delays. Buying through a specialist automation distributor provides pre-sales CT ratio and protocol validation, local stock commitment, and post-sale integration support if Modbus configuration or network commissioning issues arise — value that generic electronics channels typically do not offer. View current stock and pricing for the Schneider PowerLogic PM5320 at LeadTime.ca.

For volume pricing or to confirm lead time before committing to a build, contact the LeadTime.ca team directly — we ship worldwide.

What Engineers Need to Know Before Ordering the Schneider PowerLogic PM5320

Because the METSEPM5320 operates in a specialized B2B context — energy billing compliance, Modbus TCP/IP integration, and three-phase power distribution — public forum discussions for this specific model are limited. Engineers working with this meter typically receive feedback through integrator relationships, distributor technical support, and direct commissioning experience rather than through general automation forums. That reality makes pre-order specification validation more important, not less.

The ordering mistake that causes the most project disruption is the CT secondary rating mismatch. The PM5320 is ordered in either a 1A or 5A rated current configuration, and that choice is determined entirely by the secondary output of the current transformers already installed on your monitored circuit. If your existing CTs output a 5A secondary and you order the 1A version, the meter will not read correctly and cannot be reconfigured after the fact. Before placing the order, physically inspect the CT nameplate or request documentation from your electrical contractor. This single verification step prevents a rework scenario that adds weeks to the commissioning schedule.

A second area where integrators consistently encounter friction is the assumption that the PM5320's 256KB memory is effectively unlimited. At a 15-minute logging interval for the standard parameter set, 256KB provides extended retention — but facilities that need one-minute granularity across multiple parameter groups should calculate their actual memory budget before specifying this meter as a standalone data archive. If your retention requirement exceeds what 256KB can hold at your chosen interval, plan your data forwarding architecture to the BMS or energy management server before commissioning, not after. Similarly, ensure your BMS or SCADA platform supports Schneider's Modbus TCP/IP data schema — general Modbus TCP/IP support is confirmed, but specific BMS vendor register mapping should be tested before the meter goes live on a production circuit. Reaching out to a specialist distributor like LeadTime.ca before ordering is the fastest way to surface integration issues that are not documented in the datasheet.

Wiring and Installation: What to Verify Before You Mount This Meter

  • Voltage inputs connect via a four-screw terminal block (L1, L2, L3, N); use solid 14 AWG copper conductors and verify the measured circuit voltage falls within the rated range before energizing — three-phase 100–415V AC or single-phase 20–400V AC depending on configuration
  • CT secondary leads connect to a six-screw input terminal block; polarity must be correct — reversed CT polarity causes negative current readings, inverted power factor, and failed harmonic computation; verify polarity at the CT before tightening terminals
  • Control power circuit (two-screw block) requires a separate 100–250V AC or 125–250V DC supply independent of the monitored circuit; protect with a 10A breaker; meter display illuminates within five seconds of energization confirming correct connection
  • Digital output relay contacts (four-screw block) support dry-contact loads; verify your external load device operates within the relay's rated voltage and current before wiring alarm or load-shedding circuits to these terminals
  • Ethernet connection uses a standard RJ45 port; Cat5e or Cat6 cabling is recommended; the 2500V isolation on the Ethernet circuit protects the control network from power-side disturbances — do not bypass or defeat this isolation with non-isolated media converters

Wrong-Part Prevention: Six Checks Before You Confirm the Order

These six checks directly address the specification errors that cause the most costly rework on PM5320 installations. Work through each one before submitting a purchase order:

  1. Verify your supply voltage range matches (100–415V AC 45–65 Hz for three-phase, 125–250V DC, or 20–400V single-phase options) — confirm nameplate voltage before ordering
  2. Confirm Modbus TCP/IP and Ethernet are the required communication protocols; RTU-only users need PM5310 or equivalent
  3. Check current transformer ratios are available for your measured current range (1A or 5A rated primary, 10–9000 mA output range)
  4. Verify 256KB memory capacity is sufficient for your data logging interval and retention period (older systems may need external SD card logging)
  5. Confirm flush-mount 96mm x 96mm front bezel fits your panel cutout; verify depth (72mm) clears conduit and terminal blocks behind
  6. Ensure your integrator or BMS supports Modbus TCP/IP and Schneider's data logging schema; non-standard implementations may require adapter configuration

If any item on this checklist raises a question before you order, contact the LeadTime.ca technical team — confirming the specification takes minutes and prevents weeks of rework.

Frequently Asked Questions

Does the PM5320 require a separate Modbus TCP/IP gateway, or is Ethernet communication built into the meter?

Ethernet and Modbus TCP/IP are native to the METSEPM5320 — no external gateway or RS-485-to-Ethernet converter is required. The meter includes a standard RJ45 port operating at 10/100 Mbps with 2500V isolation on the Ethernet circuit. Connect a Cat5e or Cat6 cable directly from the meter to your facility network switch and configure the IP address through the front panel menu.

How do I know whether to order the 1A or 5A rated current version of the PM5320?

The rated current version must match the secondary output of the current transformers installed on your monitored circuit. Inspect the nameplate on your existing CTs — it will state the primary-to-secondary ratio (for example, 400:5 outputs a 5A secondary; 400:1 outputs a 1A secondary). If you cannot access the CT nameplate, ask your electrical contractor for the CT specification or measure the secondary output with a clamp meter at low load. This is the single most critical specification decision and cannot be corrected after purchase without replacing the meter.

Can the PM5320 integrate with non-Schneider BMS platforms such as Honeywell or Johnson Controls?

The PM5320 communicates via standard Modbus TCP/IP, which is a widely supported open protocol. Most BMS platforms from major vendors support Modbus TCP/IP device integration. However, the specific Modbus register mapping used by the PM5320 must be configured in your BMS software — this requires the Modbus register list from Schneider's integration guide, which is available through the distributor or Schneider technical support. Confirm your BMS vendor's Modbus TCP/IP implementation supports the register addresses used by the PM5320 before installation.

What happens to logged data if the meter loses power?

The PM5320 stores data in 256KB of onboard non-volatile memory, which retains logs, alarm records, min/max values, and event timestamps through power interruptions. When power is restored, the meter resumes data logging from the point of restoration. The data accumulated before the outage remains accessible via Modbus TCP/IP read functions once the network connection re-establishes.

Is the PM5320 certified for use in Canadian utility billing applications?

The METSEPM5320 is certified to Class 0.5S per IEC 62053-22, which meets legal metrological requirements for energy billing in North America, Europe, and most other jurisdictions. Verify regional certification requirements (CE, UL, CSA) for your specific jurisdiction with the distributor before final specification — documentation confirms CE compliance with UL/CSA status to be verified at time of inquiry.

What is the typical lead time for the PM5320 in Canada?

Based on distributor listings, the METSEPM5320 is typically available from in-stock to two weeks through major North American distributors, with specialty automation channels potentially extending to four weeks. Lead times vary by distributor and current demand — confirm availability directly with your distributor before committing to an installation schedule, particularly for multi-unit orders where staggered delivery creates commissioning risk.

Why Order the Schneider PowerLogic PM5320 Through LeadTime.ca

  • Global shipping — the PM5320 ships worldwide from LeadTime.ca; not restricted to any single region or country
  • Pre-sales technical validation — confirm CT ratio, communication protocol, and panel fit before the order is placed, not after delivery
  • Hard-to-source quantities and volume orders — contact directly for current lead time commitment on multi-unit projects
  • Volume pricing available — contact for current pricing on orders of 10 or more units; pricing is available on the product page and confirmed at time of inquiry
  • Post-sale integration support — commissioning questions on Modbus TCP/IP configuration and BMS integration answered by a team that knows the product

At-a-Glance Summary

  • Model: Schneider PowerLogic PM5320 — catalog number METSEPM5320
  • Accuracy: Class 0.5S per IEC 62053-22 — certified for legal energy billing and utility audit compliance
  • Voltage range: 100–415V AC three-phase (45–65 Hz); 20–400V AC single-phase with neutral; 125–250V DC option
  • Current input: 1A or 5A CT secondary — must be specified at time of order to match existing CTs
  • Communication: Native Modbus TCP/IP over 10/100 Mbps Ethernet with 2500V isolation; RJ45 connector
  • Power quality: Harmonic analysis to the 31st harmonic; 64 samples per AC cycle
  • Memory: 256KB onboard non-volatile memory for data logs, event logs, alarm logs, min/max, and maintenance records
  • I/O: 2 digital inputs, 2 digital outputs; up to 35 configurable alarms; up to 4 tariff periods
  • Form factor: 96mm height x 72mm depth; 430g; flush-mount; IP52 front / IP30 body
  • Operating temperature: -25 to +70°C; storage -40 to +85°C; relative humidity 5–95% at 50°C non-condensing
  • When NOT to specify: RS-485-only networks (use PM5310); single-phase low-accuracy applications (use PM5200); no available Ethernet or auxiliary control power at the panel
