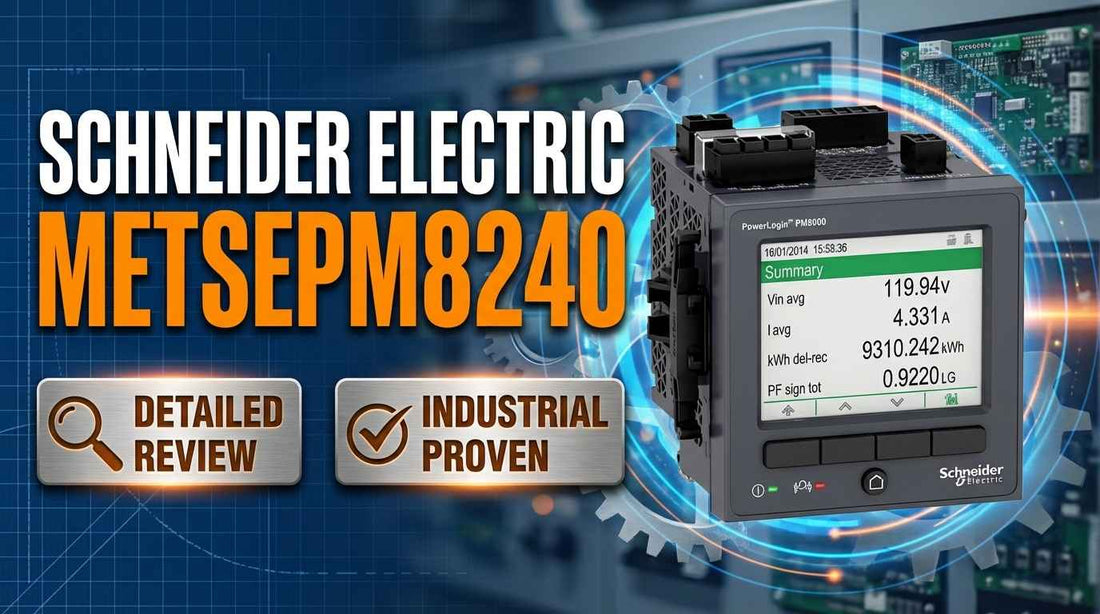

Schneider Electric METSEPM8240 PowerLogic PM8000 panel-mount power quality meter with integrated LCD TFT color display

Schneider Electric METSEPM8240 Power Quality Meter: Specifications, Deployment Guide and Alternatives

When a facility engineer or energy auditor is validating whether the PowerLogic PM8000 family is the right metering platform, the METSEPM8240 is typically the model on the short list. It delivers revenue-grade energy accuracy certified to IEC 62052-11, IEC 62052-22, and IEC 62052-24, combines Modbus RTU, Modbus TCP/IP, and DNP3 communication in a single unit, and adds an integrated LCD TFT color display with 512 MB of onboard data logging — all in a panel-mount footprint measuring 3.78 inches wide by 3.78 inches high by 3.05 inches deep. If you are at the point of confirming availability and pricing, check current stock and pricing for the METSEPM8240 at LeadTime.ca — ships worldwide.

Who Should Specify the METSEPM8240 — and Who Should Not

The METSEPM8240 is the right choice for engineers and procurement specialists who need certified billing-accuracy metering with integrated power quality analysis and flexible SCADA connectivity in a self-contained panel-mount unit. Confirm all of the following before ordering:

  • Your system voltage falls within 90 to 415 VAC (45–65 Hz) or 110 to 415 VDC for DC measurement inputs
  • Your current transformer secondary matches one of the three available factory-set input ranges: 1 A, 5 A, or 10 A — this selection cannot be changed after manufacture
  • Your SCADA or BMS platform communicates via Modbus RTU (2-wire serial, 115 kbaud), Modbus TCP/IP (10/100 Mbps Ethernet), or DNP3
  • You require harmonic analysis up to the 50th harmonic and disturbance direction detection per IEC 61000-4-30 Class S
  • Your installation environment is compatible with IP30 body / IP54 front panel protection — not suitable for washdown or continuously wet locations without additional enclosure measures
  • You need 512 MB onboard storage with 256 snapshots per cycle for audit trails and power quality trending

If your application requires only basic single-point energy accounting without harmonic or disturbance analysis, the PowerLogic PM6000 series is the lower-cost alternative. For pole-mounted or meter-socket form factors, a different physical variant is required — the METSEPM8240 is panel-mount only.

On this page:

What the METSEPM8240 Does in a Real Electrical System

The METSEPM8240 is a multifunction power quality analyzer and revenue-grade energy meter built on Schneider Electric's PowerLogic PM8000 platform. Its primary job is continuous real-time measurement of voltage, current, power factor, active energy, reactive power, and harmonic distortion in three-phase or single-phase AC circuits — with the certified accuracy that utility billing and ISO 50001 energy auditing programs require. Voltage accuracy is rated at plus or minus 0.1 percent, current accuracy at plus or minus 0.1 percent, and active energy accuracy at plus or minus 0.2 percent, all verified against IEC 62052-11, IEC 62052-22, and IEC 62052-24.

Beyond basic metering, the METSEPM8240 performs harmonic analysis up to the 50th harmonic per IEC 61000-4-30 Class S, and includes disturbance direction detection — a capability that identifies whether a power quality event originated upstream from the utility or downstream from facility equipment. That distinction is critical in manufacturing environments where production stoppages from voltage sags or harmonic distortion need to be traced to their source quickly. The integrated ION architecture means firmware and protocol capabilities can be extended without replacing the physical meter, protecting the hardware investment as communication requirements evolve.

The onboard 512 MB non-volatile data logging memory stores 256 snapshots per measurement cycle. That retention depth supports months to years of power quality trending depending on configured interval, giving energy auditors and maintenance engineers a defensible historical record for billing disputes, regulatory audits, or predictive maintenance analysis.

Typical System Architecture for the METSEPM8240

The METSEPM8240 sits at the measurement layer between the facility's electrical distribution and the supervisory monitoring platform — reading from current transformers on the load side and reporting upstream to SCADA or BMS over Modbus.

  • Upstream: Three-phase power distribution panel, MCC, or substation bus supplying 90–415 VAC to the voltage inputs
  • Current measurement: External current transformers (CT) with 1 A, 5 A, or 10 A secondaries wired to the meter's factory-set current input terminals
  • Auxiliary power: Separate 16 VA supply at 230 VAC connected to dedicated auxiliary terminals with upstream circuit protection
  • Communication layer: Modbus RTU via 2-wire RS-485 serial at 115 kbaud, or Modbus TCP/IP via built-in RJ45 at 10/100 Mbps, connecting to facility SCADA, BMS, or energy management software
  • Downstream visibility: Integrated LCD TFT color display on the front panel for local monitoring, plus web interface for remote configuration — no external display module required

Typical Applications and Deployment Scenarios

Revenue metering in utility billing environments is the anchor use case. Facilities charging back energy costs to tenants, production lines, or individual building zones require IEC 62052 certified accuracy to withstand billing disputes. The METSEPM8240's third-party certifications make its readings admissible as a billing reference without additional calibration hardware.

In manufacturing environments with sensitive process equipment — pharmaceutical cleanrooms, food and beverage filling lines, semiconductor fabrication — harmonic distortion from variable frequency drives and switching power supplies causes unexplained equipment faults and accelerated motor wear. The METSEPM8240's 50th harmonic analysis capability and disturbance direction detection give maintenance engineers the data to distinguish utility-side events from in-plant harmonic sources before initiating expensive equipment replacements.

Data centers and critical infrastructure facilities use the METSEPM8240 for predictive maintenance monitoring across multiple electrical feeds. The 512 MB onboard storage retains trending data through network outages, ensuring continuity of the monitoring record when connectivity to the SCADA platform is temporarily lost.

For ISO 50001 energy management programs and carbon auditing, the METSEPM8240 provides the granular consumption data — reactive power, power factor, and harmonic load profiles — that simplified pulse-output meters cannot deliver. BMS integration via Modbus TCP/IP allows energy data to feed directly into centralized dashboards without manual data extraction.

Application Typical Deployment
Revenue metering, multi-tenant facility Panel-mounted at individual tenant submetering panels; Modbus TCP/IP to central BMS
Power quality troubleshooting, manufacturing Installed at MCC feed to sensitive production equipment; harmonic and disturbance logging active
Predictive maintenance, data center Monitoring each UPS feed and PDU input; 512 MB logging for long-term trending without network dependency
ISO 50001 energy auditing Installed at facility main and sub-panel levels; reactive power and power factor data exported via Modbus RTU to energy management software
Utility substation integration DNP3 communication module connecting to utility SCADA; IEC 62052 certified readings for grid billing reconciliation
Co-generation facility monitoring Measuring import/export at point of common coupling; disturbance direction detection distinguishing grid events from on-site generation anomalies

Purchase-Decision Specifications for the METSEPM8240

Parameter Specification
Voltage Input (AC) 90 to 415 VAC, 45–65 Hz (±10%)
Voltage Input (DC) 110 to 415 VDC (±10%)
Current Input Range 1 A, 5 A, or 10 A — factory-set, not field-changeable
Voltage / Current Accuracy ±0.1% — IEC 62052-11 and IEC 62052-22 certified
Active Energy Accuracy ±0.2% — IEC 62052-24 certified
Harmonic Analysis Up to 50th harmonic, IEC 61000-4-30 Class S
Communication Protocols Modbus RTU (2-wire, 115 kbaud), Modbus TCP/IP (10/100 Mbps), DNP3
Data Logging 512 MB onboard non-volatile memory, 256 snapshots per cycle
Enclosure Rating IP30 body / IP54 front panel
Dimensions (W × H × D) 3.78 in × 3.78 in × 3.05 in — panel-mount, 35 mm DIN rail

Full technical specifications are available on the product page at LeadTime.ca.

METSEPM8240 vs. PM6000, PM3250, and Other Alternatives

Understanding where the METSEPM8240 sits in the wider metering landscape prevents over-specifying for simple applications and under-specifying for complex ones.

Model Accuracy Communication Display Power Quality Analysis Best For
METSEPM8240 (Schneider Electric) ±0.1% V/I, ±0.2% energy Modbus RTU, TCP/IP, DNP3 Integrated LCD TFT color Up to 50th harmonic, disturbance direction detection Revenue metering, power quality analysis, SCADA integration
PM6000 (Schneider Electric) ±0.2% Modbus Optional Basic only Simple energy accounting, budget-constrained projects
PowerLogic PM3250 (Schneider Electric) ±0.5% Modbus Yes Simplified Entry-level panel metering without advanced PQ requirements
ACE949F (ABB) ±0.5% Modbus, DNP3 External module required Networked SCADA focus Networked utility SCADA where display is not required locally
SENTRON PAC3100 (Siemens) ±0.5% Modbus, Ethernet DIN rail modules Modular multi-unit Multi-unit DIN rail systems; modular panel builds

If your application requires only basic energy totalization without harmonic or disturbance analysis, the PowerLogic PM6000 is the lower-cost path. If your existing SCADA uses proprietary communication protocols outside Modbus and DNP3, evaluate whether a communication module or gateway is needed before committing to the METSEPM8240 platform. For all other mid-to-large industrial or commercial metering applications, the METSEPM8240's combination of IEC 62052 accuracy, integrated display, and built-in dual-protocol communication is difficult to match in a single unit. Check current availability and pricing at LeadTime.ca.

Expert Verdict: Is the METSEPM8240 the Right Meter for Your Project?

The METSEPM8240 earns its position as the standard industrial choice for power quality metering through a combination of factors that matter specifically to facility engineers and control system integrators rather than general buyers. The IEC 62052-11, -22, and -24 certifications are not marketing designations — they are the technical foundation that makes meter readings defensible in utility billing disputes and ISO 50001 audits. The integrated LCD TFT color display eliminates the external display module that competing meters require, which matters in cramped electrical rooms where every terminal block position counts. The ION architecture means a facility that expands its SCADA communication requirements in three years can adapt the meter's protocol configuration without a hardware swap. For a facility manager overseeing a manufacturing plant, data center, or large commercial building where power quality events directly translate to production loss or equipment damage, this is the meter that addresses the full monitoring requirement in a single SKU.

There are real limits worth naming honestly. The METSEPM8240 is not the right tool when the application is straightforward energy totalization at a single metering point with no harmonic or disturbance analysis needed — the PowerLogic PM6000 series delivers that at lower cost. The IP54 front panel protection is adequate for standard electrical room and MCC environments but is genuinely insufficient for washdown zones, chemical processing areas with vapor exposure, or outdoor locations without a secondary enclosure. The panel-mount form factor also rules it out for pole-mounted, meter-socket, or compact outdoor installations where a different physical variant is required. And the current input range — 1 A, 5 A, or 10 A — is a factory-set specification with no field-modification path, making pre-order current measurement verification not optional but mandatory.

From a procurement standpoint, the METSEPM8240 is normally stocked in North American distribution and available through authorized Schneider Electric channels worldwide. Lead times are typical for industrial metering products at standard stock levels, though confirmation with your distributor before committing to a project schedule is the correct approach. The critical procurement value a specialist distributor provides for this product is pre-sales technical support: confirming the current input range against your CT secondaries, validating the communication protocol against your SCADA platform, and flagging enclosure rating concerns before the meter ships — not after it arrives on site. Ordering from a general channel at the lowest price is straightforward until the wrong current range arrives and the project sits idle for two to four weeks awaiting replacement. Review the METSEPM8240 product page at LeadTime.ca and contact the team if you need pre-order specification support.

For volume pricing, project-specific lead time confirmation, or help validating current range and protocol selection before committing to your purchase order, contact the LeadTime.ca team directly — we ship worldwide.

What Engineers Need to Know Before Ordering the METSEPM8240

The METSEPM8240 is a specialized industrial instrument rather than a commodity electrical component, and the absence of broad consumer forum discussion around this model reflects that reality. The engineers specifying it are working from manufacturer documentation, distributor application guides, and internal commissioning experience — not online community threads. That context makes pre-order technical verification more important, not less, because the typical mistakes with this product are specification-selection errors that occur before the meter leaves the warehouse.

The most consequential pre-order decision is the current input range. The METSEPM8240 is available with 1 A, 5 A, or 10 A factory-set current inputs, and that specification cannot be modified once manufactured. Engineers who measure their facility's typical load current, apply a 20 percent margin, and specify the result on the purchase order avoid the most common delay in METSEPM8240 deployments. A facility drawing 4.5 A on the CT secondary needs the 5 A input, not the 1 A input — and confirming that before the order is placed is the single most important step in the procurement process.

Communication protocol validation is the second area where specialist advice prevents project delays. The METSEPM8240 supports Modbus RTU and Modbus TCP/IP as standard; DNP3 is supported via module. If your SCADA platform uses a protocol outside this set — legacy 4-20 mA loops, proprietary industrial networks, or OPC-native drivers without a Modbus gateway — that compatibility gap needs to be addressed at the system design stage, not during commissioning. A specialist distributor with application engineering capability can run through your SCADA platform documentation before the order ships and flag the gap if one exists. For environments where enclosure IP rating is uncertain — particularly facilities with seasonal humidity variation, chemical vapor exposure, or intermittent water spray near electrical panels — confirming that IP54 front protection is adequate for the specific installation point is a step that protects both the meter and the data record it maintains.

Wiring and Installation Overview

The following summarizes the key requirements for installing the METSEPM8240. Engineers performing physical installation must reference the complete Schneider Electric METSEPM8240 installation manual for terminal block diagrams, wire gauge specifications, and CT burden calculations specific to their phase configuration.

  • Mount on a 35 mm DIN rail in a panel or electrical enclosure; confirm the 3.78 in W × 3.78 in H × 3.05 in D footprint is available with cable access clearance above and below the unit
  • Connect voltage inputs (L1, L2, L3, and neutral where applicable) to the designated voltage input terminals using wire gauges specified in the technical manual; phase configuration (1P+N, 3P, or 3P+N) must match the meter's ordered configuration
  • Connect CT secondary leads (1 A, 5 A, or 10 A matching the factory-set input) to current input terminals; verify CT burden against meter input impedance per the manual — do not leave CT secondary open circuit under any condition
  • Connect the 16 VA auxiliary power supply at 230 VAC to the auxiliary terminals and install a protective circuit breaker or fuse on this supply circuit upstream of the meter; the meter itself provides no supply-side protection
  • For Modbus TCP/IP, connect Category 5e or higher Ethernet cable to the built-in RJ45 port; for Modbus RTU, wire the 2-wire RS-485 serial connection at 115 kbaud to the serial communication terminals and configure the IP address and communication parameters via the front panel menu or web interface before putting the meter into service

Compatible Communication and Expansion Options

The METSEPM8240 includes Modbus RTU and Modbus TCP/IP communication as standard with no additional licensing or modules required. The following additional capabilities and integration paths are available within the PowerLogic PM8000 platform:

  • DNP3 protocol support — available via optional module for utility SCADA integration; confirm module availability and licensing with your distributor at time of order
  • Built-in web interface — standard on the METSEPM8240; accessible via the Ethernet port for remote configuration, live data viewing, and data export without additional software installation
  • Front panel local configuration — the integrated display and front panel menu allow full meter configuration without a networked computer; no desktop software is required for basic commissioning
  • External current transformers — the METSEPM8240 does not include CTs; source 1 A, 5 A, or 10 A secondary CTs matched to the meter's factory-set input range and the facility's primary current; CT selection must be confirmed at time of order
  • Upstream protective device — a circuit breaker or fuse for the 16 VA auxiliary supply circuit is required but not included; source separately to suit the enclosure's protection scheme

Wrong-Part Prevention Checklist Before Ordering

Before submitting a purchase order for the METSEPM8240, verify every item on this checklist. Skipping any step is the documented root cause of the most common ordering and installation errors for this model.

  1. Verify voltage specification: This model supports 90-415 VAC or 110-415 VDC + 10%; do NOT use for systems rated below 90 VAC or above 415 VAC without external step-down/step-up transformer
  2. Confirm current rating selection: Choose 1 A, 5 A, or 10 A input during order; cannot be field-changed without replacement
  3. Check phase configuration requirement: Specify 1-phase+neutral, 3-phase, or 3-phase+neutral at time of purchase; verify your facility layout
  4. Validate communication protocol: Confirm Modbus RTU, TCP/IP, or DNP3 compatibility with your SCADA/BMS before ordering; protocol licensing or module options may apply
  5. Confirm enclosure rating: IP30 body with IP54 front; verify environmental exposure (IP54 splash protection may be insufficient for wet locations)
  6. Check power supply availability: Unit requires 16 VA at 230 VAC; confirm availability of 110-415 VDC supply if used as measurement input
  7. Verify terminal block and wiring gauge compatibility: Review technical manual for maximum wire gauges; incorrect wire size is a major installation error
  8. Confirm data logging memory and refresh rate: 512 MB storage with 256 snapshots/cycle; validate this meets your audit and troubleshooting retention policy

If any item on this checklist cannot be confirmed before ordering, contact the LeadTime.ca team for pre-sales technical support — we can help verify the correct specification against your application requirements before your order ships.

Frequently Asked Questions

Can the current input range be changed after the METSEPM8240 has been manufactured and delivered?

No. The current input range — 1 A, 5 A, or 10 A — is factory-set at the time of manufacture and cannot be modified in the field. Specifying the wrong range requires the meter to be returned for replacement. Measure your facility's CT secondary output, apply a 20 percent margin, and confirm the required range on the purchase order before it is submitted.

Are Modbus RTU and Modbus TCP/IP both included as standard, or does one require an additional module or license?

Both Modbus RTU (2-wire RS-485 serial at 115 kbaud) and Modbus TCP/IP (10/100 Mbps Ethernet via built-in RJ45) are included as standard on the METSEPM8240 with no additional license or module required. DNP3 is supported via an optional module — confirm availability and ordering requirements with your distributor if DNP3 is needed for utility SCADA integration.

What does the METSEPM8240 require for an auxiliary power supply, and does it include supply-side protection?

The meter requires a 16 VA external power supply at 230 VAC connected to the auxiliary terminals. It does not include or function as a supply-side protective device. A circuit breaker or fuse must be installed on the auxiliary supply circuit upstream of the meter — this is a required installation step, not optional. Source the protective device separately to suit your enclosure's protection scheme.

How long will 512 MB of onboard storage retain power quality data before it fills up?

Retention duration depends on the configured snapshot interval. The METSEPM8240 stores 256 snapshots per measurement cycle. At longer logging intervals, storage capacity supports months to years of trending data; at shorter intervals for high-resolution fault capture, retention is reduced. Configure the snapshot frequency based on your specific audit and troubleshooting retention policy and validate the expected retention period during commissioning.

Is the METSEPM8240 suitable for an outdoor electrical enclosure or a washdown zone?

The METSEPM8240 carries IP30 body protection and IP54 front panel protection. IP54 provides splash resistance for standard electrical room and MCC environments but is not rated for continuous water exposure, washdown, or chemical vapor environments. For installation in those conditions, mount the meter inside a secondary enclosure rated at least IP65 and ensure all cable entries are sealed with appropriate cable glands.

What is the difference between the METSEPM8240 and the other meters in the PowerLogic PM8000 family?

All PowerLogic PM8000 meters share the same ION architecture and IEC 62052 accuracy certification. The METSEPM8240 designation specifically identifies the Standard configuration with integrated LCD TFT color display and 512 MB data logging. Other variants in the PM8000 family may differ in communication module options or display configuration — confirm the specific model descriptor against your requirements when ordering.

Why Order the METSEPM8240 Through LeadTime.ca

  • Global shipping: LeadTime.ca ships the METSEPM8240 and supporting accessories worldwide — not limited to any single region
  • Pre-sales specification support: Confirm current input range, phase configuration, and communication protocol against your application before the order is placed — preventing the delays that wrong-spec returns cause
  • Hard-to-source parts: Access to industrial automation and power metering products that are difficult to locate through general online channels, including optional communication modules
  • Volume and project pricing: Contact for current pricing on multi-unit project quantities or time-sensitive procurement requirements
  • Responsive team: Direct access to staff who understand the METSEPM8240 application context and can support SCADA integration questions at the ordering stage

METSEPM8240 At-a-Glance Summary

  • Official product name: Power quality meter, PowerLogic PM8000, Standard, integrated display, 512 MB, 256 s/c
  • Voltage input range: 90 to 415 VAC (45–65 Hz) or 110 to 415 VDC
  • Current input: Factory-set at 1 A, 5 A, or 10 A — specify at time of order, not field-changeable
  • Accuracy: ±0.1% voltage, ±0.1% current, ±0.2% active energy — IEC 62052-11, -22, -24 certified
  • Harmonic analysis: Up to 50th harmonic with disturbance direction detection — IEC 61000-4-30 Class S
  • Communication: Modbus RTU (2-wire, 115 kbaud) and Modbus TCP/IP (10/100 Mbps) standard; DNP3 via optional module
  • Display: Integrated LCD TFT color — no external display module required
  • Data logging: 512 MB onboard non-volatile memory, 256 snapshots per cycle
  • Auxiliary power: 16 VA at 230 VAC — external supply and upstream protective device required
  • Enclosure: IP30 body / IP54 front panel — panel-mount on 35 mm DIN rail, 3.78 in W × 3.78 in H × 3.05 in D
  • Certifications: IEC 62052-11/22/24, IEC 61000-4-30 Class S, UL 61010-1, CE, RoHS
  • Primary use cases: Revenue metering, power quality analysis, predictive maintenance, ISO 50001 energy management, BMS integration
