Schneider LC1G185KUEN — 185A TeSys Giga Contactor Buyer Review

By Abdullah Zahid
16 min read

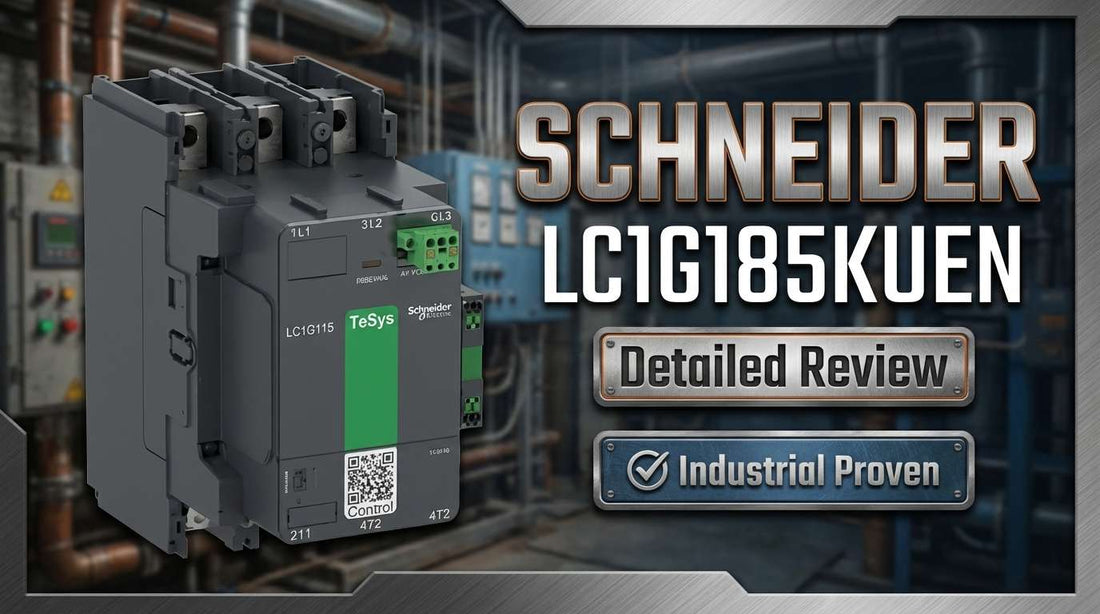

Schneider Electric LC1G185KUEN TeSys Giga 185A three-pole industrial power contactor for motor control panels

Schneider LC1G185KUEN High Power Contactor, TeSys Giga, 3 Pole (3NO), AC-3 <=440V 185A, Standard Version, 100-250V Wide Band AC/DC Coil — Specifications, Pricing, and Alternatives Guide

When a controls engineer or procurement specialist searches for the Schneider LC1G185KUEN by model number, the decision is usually already close to final. They have a motor nameplate, a panel schedule, or a failed contactor on a production floor — and they need to confirm current rating, coil voltage, breaking capacity, and lead time before committing to a purchase. This article delivers exactly that. The LC1G185KUEN is a three-pole, 185A AC-3 rated industrial power contactor from the TeSys Giga family, fitted with a 100-250V wide-band AC/DC coil and rated for motors up to 90 kW at 400V or 110 kW at 690V under standard duty conditions.

If you have already confirmed this is the right part, check current pricing and availability at LeadTime.ca — ships worldwide.

Who Should Buy the LC1G185KUEN — and Who Shouldn't

This contactor is the correct choice for engineers and buyers who can confirm all of the following against their application:

  • Three-phase motor load requiring AC-3 switching at 185A or below at 440V (up to 90 kW at 400V, 110 kW at 690V or 500V, 75 kW at 1000V)
  • Control signal voltage is within the 100-250V AC/DC wide-band range — no additional voltage conversion hardware required
  • Site maximum fault current does not exceed 1770A at 440V; fuse coordination achievable with a 200A aM fuse at 440V or 160A aM at 690V
  • Three-pole configuration is required; load is three-phase, not single-phase
  • Standard 1 NO + 1 NC auxiliary contact complement is sufficient, or additional auxiliary contact blocks will be ordered separately
  • Panel or enclosure mounting is acceptable; 35mm DIN rail compatibility is required (adapters not factory-supplied)

If your motor load is below 55 kW at 400V, the LC1G65 delivers the same TeSys Giga reliability at lower cost. If your required current rating exceeds 185A or fault current exceeds 1770A at 440V, step up to the LC1G330 or LC1G400. This model is not the right fit for those applications.

On this page:

What the LC1G185KUEN Actually Does in a Motor Control System

The LC1G185KUEN is the primary power switching device between a three-phase supply and a large AC motor load. When a control signal — from a PLC output, a push-button network, or an interlock relay — reaches the 100-250V AC/DC coil at terminals A1 and A2, the contactor closes its three main poles simultaneously, completing the power circuit from supply to motor. When the signal drops, the poles open and the motor supply is interrupted. That switching action, repeated across millions of cycles, is the entire mechanical and electrical mission of this device.

What distinguishes the LC1G185KUEN from generic contactors in this current class is the combination of the TeSys Giga family's 5 million mechanical cycle rating (extendable to 8 million with sub-assembly substitution) and the wide-band coil that accepts both AC and DC control signals across a 100-250V range without modification. In continuous-duty environments — conveyors, pumps, compressors — where the contactor may cycle dozens of times per hour for years, that durability rating translates directly to reduced unplanned downtime. In global manufacturing operations where control voltage standards differ between sites, the single-SKU coil eliminates the need to stock 110V and 230V variants separately.

The hold-in power once energized drops to just 12.4 VA on AC supply or 7.8 W on DC, compared to the 540 VA AC inrush during pickup. This efficiency characteristic is practically important: a control transformer sized for steady-state operation will see a momentary inrush demand roughly 43 times higher during coil pickup. Engineers sizing control circuit transformers for multi-contactor panels need to account for this ratio, not just the hold-in figure.

Where This Contactor Sits in a Typical Motor Control Architecture

The LC1G185KUEN occupies the power-switching position in the motor control chain — downstream of the supply fusing and upstream of the motor terminals and overload relay. Understanding its position in the system helps engineers verify compatibility with adjacent components before ordering.

  • Three-phase supply bus (230V, 400V, 440V, 500V, 690V, or 1000V AC) → 200A aM fuse set (at 440V) → LC1G185KUEN main terminals (1, 3, 5 in; 2, 4, 6 out)
  • Downstream of the main poles: thermal overload relay (sized to motor FLA + 25%) → motor terminal box
  • Control circuit: 100-250V AC/DC supply → PLC output or push-button interlock → coil terminals A1/A2 on the LC1G185KUEN
  • Auxiliary contacts (1 NO at terminals 11/12, 1 NC at terminals 21/22) feed back to the PLC or control panel for run confirmation and fault monitoring
  • Optional auxiliary contact blocks can be added to expand the feedback and interlock signal count beyond the standard complement

Industries and Applications Where the LC1G185KUEN Is the Standard Choice

The LC1G185KUEN is the correct specification for engineers sizing motor starters in the 75-110 kW range across a wide range of industrial sectors. Automotive stamping lines running large conveyor motors, water and wastewater treatment facilities switching pump motors of 90 kW and above, and food and beverage processing plants managing high-power refrigeration compressors all represent primary application environments for this contactor.

In soft-start bypass configurations, the LC1G185KUEN is installed in parallel with a soft starter. After the motor has ramped to full speed, the bypass contactor closes to route current directly through its main poles, eliminating continuous heat dissipation in the soft starter's thyristors during steady-state operation. This is a documented use case for this current class and one of the reasons the mechanical durability rating matters — the bypass contactor cycles on every motor start.

Replacement and MRO procurement represents a significant portion of orders for this model. When a contactor fails in an existing motor control center, maintenance teams frequently specify an identical part number to avoid enclosure rewiring, re-labeling, and re-commissioning costs. The LC1G185KUEN's form factor (193 mm height, 105 mm width, 193 mm depth, 3.6 kg) and terminal layout make it a direct replacement in panels where a previous-generation TeSys Giga unit was installed.

In VFD pre-contactor circuits for large pump motors, the LC1G185KUEN serves as the line-side isolation contactor. It is opened during VFD fault conditions or maintenance isolation procedures and closed again during normal run sequences. This application demands reliable mechanical operation over years of cycling, which the TeSys Giga durability rating is specifically designed to support.

Application Typical Deployment
Conveyor motor starter (automotive, logistics) Main contactor in DOL or star-delta starter for 90 kW motor at 400V AC-3
Pump motor control (water/wastewater) Primary switching device in MCC for 110 kW submersible or centrifugal pump at 690V
Soft-start bypass Bypass contactor closing at full speed to bypass soft starter thyristors; cycles on every motor start
VFD pre-contactor circuit Line-side isolation contactor for large pump or fan VFD; isolates drive during fault or maintenance
MCC replacement / MRO Direct drop-in replacement for failed contactor in existing panel; identical catalog number preserves wiring
Generator transfer panel Load-transfer contactor in standby generator switchover circuits handling three-phase critical loads

Electrical Specifications That Drive the Purchase Decision

Specification Value
Pole Configuration 3 Pole, 3 NO
Rated Operational Current — AC-3 at 440V 185 A
Rated Operational Current — AC-1 at 440V 305 A
Motor Power Rating — AC-3 at 400V 90 kW
Motor Power Rating — AC-3 at 690V / 500V 110 kW
Motor Power Rating — AC-3 at 1000V 75 kW
Rated Breaking Capacity at 440V 1770 A
Control Voltage (Coil) 100-250V AC/DC, 50/60 Hz wide band
Coil Inrush Power (AC / DC) 540 VA AC / 380 W DC
Mechanical Durability 5 million cycles standard; 8 million with sub-assembly substitution

Full technical specifications are available on the product page at LeadTime.ca.

LC1G185KUEN vs. Smaller and Larger TeSys Giga Models: Which One Do You Actually Need?

Model Poles Rated Current Motor Power at 400V Mechanical Cycles Typical Use Case
LC1G32 3 NO 32 A 5.5-7.5 kW 5-8 million Smaller motors, pilot duty applications
LC1G65 3 NO 65 A 15 kW 5-8 million Mid-range motor control; cost-effective alternative below 55 kW
LC1G185KUEN 3 NO 185 A 90 kW 5-8 million Standard 75-110 kW three-phase motor control
LC1G330 3 NO 330 A 160 kW 5-8 million Very large motors; required when site fault current exceeds 1770A at 440V
LC1G400 3 NO 400 A 200 kW 5-8 million Largest in TeSys Giga family; utility-class and heavy industrial switching

If your motor load at 400V exceeds 90 kW AC-3, or if your site fault current exceeds 1770A at 440V, the LC1G330 is the correct next step — check current availability and pricing at LeadTime.ca and contact the team to confirm the right model for your current rating.

Expert Verdict: Is the LC1G185KUEN Worth the Price?

The LC1G185KUEN is the right contactor for OEMs designing motor control centers for pumps, conveyors, fans, and compressors in the 75-110 kW range, and for plant maintenance teams replacing a failed device in an existing switchboard where the original specification must be honored without enclosure modification. The 100-250V wide-band AC/DC coil is not a marketing footnote — it is a genuine operational advantage for global operations where control voltage standards vary by site or by region, collapsing what would otherwise be multiple SKUs into a single stocked part. The 5 million-cycle mechanical rating, extendable to 8 million with sub-assembly substitution, exceeds the typical 10-20 year plant equipment lifecycle at normal industrial cycling rates. For a device that sits in the critical path of motor control, that durability translates directly into avoided downtime and avoided emergency replacement labor.

The LC1G185KUEN does have real limits that buyers should acknowledge. It is not rated for single-phase loads — three poles only, no exceptions. Applications with motors below 55 kW at 400V are better served by the LC1G65, which carries the same TeSys Giga reliability at meaningfully lower cost. For heavy-duty plug-and-play or frequent-switching applications beyond the AC-3 duty envelope, the AC-4 ratings at each voltage must be consulted — they are lower than AC-3 figures, and the contactor must be derated accordingly or replaced with a higher-current model. And if your site fault current at 440V exceeds 1770A, the LC1G330 is not optional — it is mandatory for safe fuse coordination and contact protection.

From a procurement standpoint, the LC1G185KUEN is a part that benefits from ordering through a specialist industrial distributor rather than a generic channel. In-stock lead times of 1-2 weeks through authorized distributors contrast sharply with the 2-4 week delays or counterfeit risk associated with non-specialist channels — and for a mission-critical replacement in a facility where downtime carries real cost, that difference matters. Specialist distributors also provide fuse coordination guidance, auxiliary contact block compatibility confirmation, and warranty clarity that general retailers do not offer. View current pricing and stock status for the LC1G185KUEN at LeadTime.ca — available to buyers worldwide.

For volume pricing or to confirm lead time before committing to a build, contact the LeadTime.ca team directly — we ship worldwide.

Price, Lead Time, and How to Order From Anywhere in the World

The LC1G185KUEN is an actively stocked part at major authorized industrial distributors. Pricing varies by quantity tier and distributor channel; volume discounts are active at most authorized sources, with meaningful reductions available from 5 units and above. Pricing details are available directly on the LC1G185KUEN product page at LeadTime.ca, where live pricing is displayed. Always obtain a written quote before committing to a project purchase — regional pricing between North American distribution centers can vary, and currency differences apply for international orders.

For in-stock orders through authorized distributors, lead times of 1-2 weeks are typical. Special-order scenarios — custom auxiliary contact block combinations, non-standard coil configurations, or high-volume orders requiring factory production batches — can extend lead time to 3-6 weeks. If the LC1G185KUEN is backordered at your primary source, the LC1G330 is the next size up in the TeSys Giga family and may be available on shorter lead time depending on inventory levels; contact LeadTime.ca to check current availability across both models before making a substitute decision.

What Engineers Need to Know Before Ordering the LC1G185KUEN

Because public forum discussions for the LC1G185KUEN are limited — this is a specialized high-power industrial component specified within closed OEM design environments and maintained by experienced electricians rather than discussed in open communities — the most valuable pre-order guidance comes from the datasheet constraints and the ordering mistakes that specialist distributors encounter most frequently. The following points reflect the technical traps that are most likely to result in a wrong-part order, a failed commissioning, or a premature device failure.

The single most common sizing mistake involves the interaction between motor power, supply voltage, and duty category. An engineer familiar with the 185A current rating may assume the contactor is suitable for any 185A motor application regardless of voltage. It is not. At 1000V AC-3, the motor power ceiling is 75 kW — significantly lower than the 110 kW ceiling at 500V or 690V. A 90 kW motor running at 1000V requires the LC1G330, not the LC1G185KUEN. The motor power rating table must be consulted at the actual installation voltage, not at the rated current alone.

The coil inrush figure is consistently underestimated during control circuit design. The 540 VA AC inrush during pickup is not a momentary concern to ignore — it is a real demand on the control circuit transformer that must be sized accordingly. A control transformer shared between multiple contactors, indicator lamps, and relay coils can sag below the 0.8 Uc minimum coil operating voltage (80V at the bottom of the 100-250V range) if the transformer VA rating is insufficient. The result is a contactor that chatters, fails to pick up reliably, or trips protection relays in the control circuit — symptoms that are frequently misdiagnosed as a failed coil. Size the control transformer to handle 540 VA inrush plus a 25% margin before the rest of the control load is added.

Fuse selection based on contactor current rating rather than short-circuit coordination requirements is the third recurring error. The external fuse for the LC1G185KUEN at 440V is 200A aM — not 185A. At 690V it drops to 160A aM, or alternatively 315A gL (time-delay). These ratings are determined by the fault current the contactor must survive, not by the motor FLA. Installing an undersized or incorrectly typed fuse can allow fault clearing times that are too slow, permitting contact welding during a phase-to-phase fault. Verify fuse type and rating against the datasheet coordination table, not against the motor nameplate.

Wiring and Installation: Key Requirements Before You Commission

  • Main power terminals: Connect incoming three-phase supply to terminals 1, 3, 5 and motor load to terminals 2, 4, 6; wire gauge must be appropriate for 185A continuous current — typically 50-70 mm² copper
  • Coil terminals A1 (positive) and A2 (return/common) accept 100-250V AC or DC; route through PLC output, interlock relay, or push-button network; ensure control circuit transformer is sized for 540 VA AC inrush minimum before adding other loads
  • Auxiliary contacts are factory-assigned: NO at terminals 11/12 for run confirmation feedback, NC at terminals 21/22 for fault interlock or sequence logic; additional auxiliary contact blocks must be ordered separately and fitted before installation
  • External fuse coordination is mandatory before energization: 200A aM at 440V three-phase, 160A aM at 690V three-phase; verify site fault current does not exceed 1770A at 440V before selecting fuse type
  • After installation, verify coil voltage at terminals A1/A2 during energization reads within 0.8-1.1 Uc (80-250V); closing time is 45-60 ms and opening time is 15-45 ms — use these windows to confirm correct operation before commissioning the motor circuit

Full wiring diagrams, torque specifications, and commissioning procedures are available in the official Schneider Electric TeSys Giga installation manual. Always follow manufacturer documentation for complete procedures.

Compatible Accessories and System Expansion Options

The LC1G185KUEN supports system expansion through optional accessories that extend auxiliary contact availability and control circuit flexibility. Confirm compatibility with the specific accessory part numbers through Schneider Electric documentation or with the LeadTime.ca team before ordering.

  • Auxiliary contact blocks — add-on modules that increase the number of NO and NC auxiliary contacts beyond the standard 1 NO + 1 NC complement; required for applications with multiple interlock or feedback signals
  • 35mm DIN rail mounting adapters — not factory-supplied with the LC1G185KUEN; required for DIN rail installation in lieu of direct panel mounting
  • Thermal overload relays — sized to motor FLA plus 25% and wired in series with the motor load output; selection must match the current range of the LC1G185KUEN and the motor nameplate FLA
  • External fuse holders and 200A aM fuse sets — required for IEC short-circuit protection coordination at 440V; these are not integrated into the LC1G185KUEN and must be ordered and installed separately

Wrong-Part Prevention: Verify These Eight Points Before You Order

Before placing an order for the LC1G185KUEN, run through this checklist verbatim. Each point represents a confirmed ordering or commissioning mistake that results in a wrong-part return, a failed installation, or an unsafe condition.

  1. Verify maximum fault current at the installation site does not exceed 1770 A @ 440V; if it does, choose a higher-rated model like LC1G330
  2. Confirm available control voltage matches 100-250V range; if a fixed lower voltage like 24V DC is required, order a 24VDC variant instead
  3. Check that motor load is AC-3 category (normal motor switching); if the load involves frequent or heavy plug-and-play duty, AC-4 is required (this model supports AC-4 but at lower kW ratings)
  4. Ensure motor power does not exceed 75 kW @ 1000V, 110 kW @ 690V, or 90 kW @ 400V for AC-3 duty; oversized motors require the next contactor size
  5. Verify phase sequence and three-phase availability; this model is three-pole only and unsuitable for single-phase loads
  6. Confirm installation environment: this model is for panel or enclosure mounting; if wall-mounting or DIN-rail mounting is required, verify mounting adapters
  7. Check auxiliary contact requirement: this model includes 1 NO + 1 NC; if more auxiliary contacts are needed, order with optional auxiliary contact blocks
  8. Verify coil inrush current (540 VA AC or 380 W DC) can be supplied by the control circuit; undersized control circuits may cause sluggish operation or protection relay nuisance trips

If any item on this checklist raises a question before you order, contact the LeadTime.ca team for application support — available to buyers worldwide.

Frequently Asked Questions

Can the LC1G185KUEN handle a 110 kW motor at 1000V AC-3, or does that require a larger model?

At 1000V AC-3, the LC1G185KUEN is rated for a maximum of 75 kW. A 110 kW motor at 1000V exceeds this rating and requires the LC1G330 or a higher-current model in the TeSys Giga family. Always cross-reference motor power against the voltage-specific AC-3 table — the 185A current rating alone does not determine suitability across all supply voltages.

What happens if the site fault current at 440V is 2000A — can I still use this contactor?

The LC1G185KUEN has a rated breaking capacity of 1770A at 440V. A site fault current of 2000A exceeds this figure and requires the LC1G330, which carries a higher breaking capacity. Applying the LC1G185KUEN in a circuit where fault current exceeds 1770A at 440V risks contact fusion during a fault event — a condition that can leave the motor circuit permanently energized even after a de-energization command. A full short-circuit study with a qualified electrical engineer is recommended before selecting a contactor for sites with high available fault current.

The control circuit is only 24V DC — can I still use the LC1G185KUEN, or do I need a different coil variant?

The LC1G185KUEN's 100-250V wide-band coil does not accept 24V DC. The minimum coil operating voltage is 100V (with the operating limit at 0.8 Uc, which is 80V). For a 24V DC control circuit, a fixed 24VDC coil variant of the contactor is required. Ordering the wrong coil voltage is one of the most common wrong-part errors for this model — confirm control voltage before ordering.

My LC1G185KUEN energizes but chatters continuously — is the coil failing or is this a control circuit problem?

Continuous chatter on a TeSys Giga contactor is most often a control circuit voltage problem rather than a failed coil. The coil requires 0.8-1.1 Uc (80-250V) to hold in reliably. If the control transformer is undersized for the 540 VA AC inrush demand, the voltage at the A1/A2 terminals sags during pickup, causing the armature to flutter rather than seat firmly. Measure voltage at A1/A2 during energization — if it drops below 80V, upgrade the control circuit transformer before replacing the contactor.

Is the LC1G185KUEN a direct mechanical drop-in replacement for an older TeSys Giga contactor of the same current class?

In most panel configurations, yes — the LC1G185KUEN shares the TeSys Giga form factor (193 mm height, 105 mm width, 193 mm depth) and terminal layout with previous-generation units in the same current class. However, verify the auxiliary contact block configuration on the existing unit before ordering: the standard LC1G185KUEN includes 1 NO + 1 NC, and if the replaced unit carried additional auxiliary contact blocks, those blocks must be ordered and fitted separately to restore full panel functionality.

Why Order the LC1G185KUEN Through LeadTime.ca

  • Global shipping — LeadTime.ca fulfills orders worldwide, not limited to any single region or country
  • Authorized industrial distributor — access to genuine Schneider Electric product with full manufacturer warranty and documentation support
  • Live pricing and availability — the product page displays current stock status and pricing without requiring an account or quote request for standard quantities
  • Application support available — the LeadTime.ca team can assist with fuse coordination questions, auxiliary contact block compatibility, and variant selection before you commit to an order
  • Volume and project pricing — contact the team directly for multi-unit orders, project-specific lead time commitments, or BOM-level quotes

At-a-Glance Summary

  • Three-pole (3 NO) industrial power contactor, 185A AC-3 rated at 440V, from the Schneider Electric TeSys Giga family
  • Motor power ceiling: 90 kW at 400V, 110 kW at 500V and 690V, 75 kW at 1000V — all AC-3 standard duty
  • Wide-band 100-250V AC/DC coil eliminates multi-SKU stocking across sites with different control voltages
  • Rated breaking capacity: 1770A at 440V; external 200A aM fuse required at 440V for IEC coordination
  • Coil inrush: 540 VA AC / 380 W DC; hold-in: 12.4 VA AC / 7.8 W DC — control transformer must be sized for inrush, not hold-in
  • Mechanical durability: 5 million cycles standard, 8 million with sub-assembly substitution
  • Standard auxiliary contacts: 1 NO (11/12) + 1 NC (21/22); additional blocks available as accessories
  • Physical dimensions: 193 mm H × 105 mm W × 193 mm D; net weight 3.6 kg; panel-mount with DIN rail adapter option
  • Closing time 45-60 ms; opening time 15-45 ms; operating rate up to 300 cycles/hour at AC-1
  • Step up to LC1G330 if motor power exceeds 90 kW at 400V AC-3, or if site fault current exceeds 1770A at 440V
