Schneider LC1F185 Motor Contactor — Specs, Coil & Availability

By Abdullah Zahid
15 min read

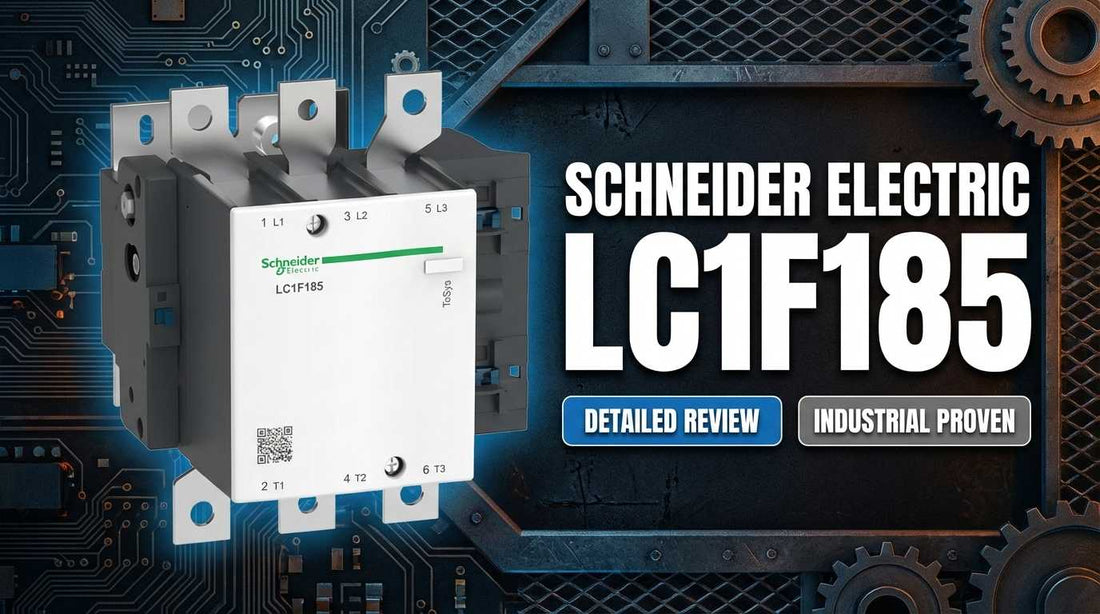

Schneider Electric LC1F185 TeSys F three-pole motor contactor body 185A 440V AC-3 industrial motor control

Schneider LC1F185 Contactor Body Without Coil, TeSys F, 3P(3NO), AC-3, 185A at <=440V: Specifications, Pricing and Selection Guide

If you are sourcing a replacement motor contactor for a 185A three-phase application — or specifying a new motor control cabinet around the TeSys F platform — the Schneider LC1F185 is almost certainly on your shortlist. This is the contactor body only: a three-pole, 3NO switching body rated 185A at 440V AC, classified AC-3 for induction motor loads up to 90 kW. The coil is a separate purchase. That single fact — body sold without coil — is the most common source of ordering errors and project delays, so it appears first here intentionally.

If you have already confirmed the LC1F185 is the correct part for your installation, check current pricing and availability at LeadTime.ca — we ship worldwide.

Who Should Buy the LC1F185 — and Who Should Not

The LC1F185 is the right choice if all of the following apply to your application:

  • Your installation is 440V AC class — not 690V (a separate TeSys F variant covers the 690V class)
  • Your motor full-load current does not exceed 185A and motor power does not exceed 90 kW at 400V three-phase
  • You need a 3NO (three normally open) contact configuration — not 2NO+2NC or 4NO
  • Your load is AC-3 duty: induction motor switching, not resistive or lighting loads
  • You will order the appropriate LC1D series coil separately, matched to your control circuit voltage (24V DC, 110V AC, 220V AC, or 380V AC)
  • You are retrofitting or standardizing on an existing TeSys F platform where parts commonality matters

If your motor is 75 kW or smaller, the LC1F150 is the more economical choice. If you need 690V switching capability, order the 690V TeSys F variant. If your application requires remote diagnostics or predictive maintenance, the TeSys U platform is the more appropriate path.

On this page:

What the LC1F185 Actually Does in a Motor Control System

The LC1F185 is the main power switching element in a three-phase motor control circuit. When the control coil is energized — by a PLC output, control relay, or manual pushbutton — all three normally open power contacts close simultaneously, connecting incoming three-phase supply to the motor terminals. When the coil de-energizes, the contacts open and the motor is disconnected. That is the complete mechanical function of this body.

What the LC1F185 is not: it is not a full motor starter, it does not include overload protection, and it does not include a coil. Thermal overload protection — required by electrical code — must be provided by a separate relay such as the Schneider LRD series installed in series between the contactor output terminals and the motor. The coil, which determines your control voltage, is ordered separately from the LC1D series and must be mechanically and electrically compatible with this body.

The AC-3 duty classification, per IEC 60947-4-1, means this contactor is specifically rated for motor loads where inrush current during starting can reach up to 5 times full-load current. This is the appropriate classification for standard across-the-line and reduced-voltage motor starting methods. It is not the correct duty class for resistive or lighting loads, which require AC-1 rated equipment.

The TeSys F platform modularity is a genuine operational advantage: all ratings in the TeSys F family — LC1F115, LC1F150, LC1F185, and LC1F225 — share the same LC1D coil series and have an identical DIN rail footprint. That means a facility standardized on TeSys F can swap between motor sizes without cabinet redesign or coil inventory changes.

Typical System Architecture: Where the LC1F185 Sits

The LC1F185 occupies the main power switching position in the motor branch circuit, downstream of branch protection and upstream of the motor terminals. A typical motor control assembly built around this contactor follows this component chain:

  • Three-phase supply bus → branch circuit fuse or motor circuit protector (upstream protection, sized for 185A branch)
  • Thermal overload relay (e.g., Schneider LRD series) → LC1F185 contactor body (power contacts) → motor terminal box
  • Control circuit transformer → LC1D series coil (24V DC, 110V AC, 220V AC, or 380V AC depending on control voltage) → coil terminals A1 and A2 on the contactor body
  • PLC digital output or control relay → control circuit wiring → start/stop logic feeding coil energization circuit
  • Optional auxiliary contacts on body → status feedback signal back to PLC or control panel for run confirmation

Applications and Industries Where This Contactor Is Specified

The LC1F185 is sized for motors in the 55 kW to 90 kW range at 400V three-phase — the bracket that covers a wide swath of heavy industrial motor applications. Pump motor control is one of the most common deployments: irrigation pump stations, wastewater lift stations, and industrial process pumps in the 75 to 90 kW range sit exactly in this contactor's operating window. Facilities running these applications know the TeSys F name well.

Fan and blower motor switching represents another high-volume application. Industrial HVAC systems, dust extraction fans, and combustion air blowers in the 90 kW class require exactly this level of AC-3 switching capacity. The LC1F185 handles these loads with the contact arc suppression built into the TeSys F body design.

Compressor motor control in chemical processing, mining, and food and beverage plants accounts for a significant share of LC1F185 installations. These applications often involve frequent motor starts — in some cases more than 15 starts per day in cycling compressor duty — which directly affects contact erosion rate and maintenance intervals. Crusher and conveyor motor switching in mining operations is another environment where the 185A rating and AC-3 classification are specified as a matter of course.

OEM panel builders designing motor control centers for automotive assembly, pulp and paper, and textile manufacturing standardize on the TeSys F family for its DIN rail footprint consistency across multiple motor ratings. A single cabinet design can accommodate LC1F115 through LC1F225 by changing only the contactor body, not the overall layout.

Application Typical Deployment
Industrial pump motor control Wastewater, irrigation, and process pump motors 75–90 kW at 400V, standard across-the-line starting
Fan and blower switching Industrial HVAC, dust extraction, combustion air blowers; AC-3 duty with moderate start frequency
Compressor motor control Chemical processing and food and beverage plants; cycling duty with up to 15+ starts per day
Crusher and conveyor drives Mining and aggregate handling; high inrush current on heavy mechanical loads
Motor control center standardization OEM panel builds using TeSys F family across multiple motor ratings with common coil and footprint
Retrofit and emergency replacement Urgent replacement of failed motor starters in existing TeSys F installations; same footprint swap

Electrical and Physical Specifications That Drive the Purchase Decision

Parameter Value Notes
Rated Continuous Current (Ie) 185A At <=440V AC, three-phase
Maximum Rated Voltage 440V AC 690V version available as a separate model
Contact Configuration 3NO (three normally open) 2NO+2NC variant is a different model number
Duty Classification AC-3 Induction motor loads; inrush up to 5x full-load current per IEC 60947-4-1
Rated Motor Power (400V, 3-phase) 90 kW (120 HP) Maximum continuous motor rating
Mounting Type DIN Rail or Screw Terminal Standard industrial cabinet mounting
Operating Temperature -25°C to +55°C ambient De-rated above 55°C
Storage Temperature -25°C to +70°C Dry indoor storage
IP Rating IP20 Suitable for control cabinet environments
Coil Not included — LC1D series ordered separately Available in 24V DC, 110V AC, 220V AC, 380V AC control voltages

Full technical specifications are available on the product page at LeadTime.ca.

LC1F185 vs. TeSys F Alternatives: Which Rating Do You Actually Need?

Model Current Rating Motor Power at 400V Contact Config Typical Use Case Relative Cost
LC1F115 115A 55 kW 3NO Smaller pump and fan motors Baseline (lower)
LC1F150 150A 75 kW 3NO Mid-size motor drives +15% vs LC1F115
LC1F185 185A 90 kW 3NO Large industrial motors +25% vs LC1F115
LC1F225 225A 110 kW 3NO Very large or harsh duty +40% vs LC1F115

All four models use the same LC1D coil series and share an identical DIN rail footprint — a direct body swap is possible when upgrading motor size without cabinet redesign. If your motor exceeds 90 kW or your full-load current approaches the 185A limit under service factor conditions, the LC1F225 is the correct choice. Check current availability for the LC1F185 at LeadTime.ca or contact us to confirm the correct variant for your load.

Expert Verdict: Is the LC1F185 Still the Right Contactor for Your Project?

The LC1F185 does exactly what it has always done: it provides reliable, proven 185A motor switching for three-phase industrial loads at 440V AC, in the AC-3 duty class that defines induction motor starting. For plant maintenance teams replacing a failed motor starter in an existing TeSys F installation, this is the straightforward answer — same footprint, same coil series, no cabinet modifications required. OEM panel builders who have standardized on the TeSys F family across multiple motor ratings will recognize the parts commonality advantage immediately: the LC1D coil series covers all four TeSys F body ratings, and the DIN rail footprint is identical from the LC1F115 through the LC1F225. That level of modularity has real value in facilities managing spare parts inventory across dozens of motor circuits.

Where the LC1F185 has genuine limits: it carries no onboard diagnostics, no remote monitoring capability, and no predictive maintenance data. For new installations where budget allows and remote visibility of motor circuit health is a priority, the TeSys U platform or smart contactor alternatives are worth evaluating. The LC1F185 is also not the right part if your installation is 690V class — that requires the separate 690V TeSys F variant. Buyers with motors in the 75 kW range should look at the LC1F150 first; specifying the LC1F185 is not wrong, but the LC1F150 is the more economical fit for that motor size. Availability is the other real consideration: one distributor source has flagged possible discontinuation, meaning this is not the time to defer availability verification to order day.

From a procurement standpoint, the most important step before committing the LC1F185 to a project BOM is confirming that both the body and the correct LC1D coil are in stock simultaneously. A contactor body without the matching coil does not energize — it is a complete assembly gap, not a partial one. Ordering the two line items from a distributor who understands the LC1D compatibility matrix eliminates the most common 2-4 week delay in these projects. Verify current stock and pricing for the LC1F185 at LeadTime.ca — a specialist distributor who can confirm both parts are available before your purchase order is raised.

For volume pricing or to confirm lead time before committing to a build, contact the LeadTime.ca team directly — we ship worldwide.

What Engineers Need to Know Before Ordering the LC1F185

Because authenticated community forum data specific to the LC1F185 is limited in published online discussions, this section draws directly from the most consequential pre-order knowledge gaps that specialist distributors encounter when buyers source this part — the mistakes that create project delays, wrong-part returns, and emergency re-orders in production environments.

The single most reported ordering error for this product category is receiving the LC1F185 body and attempting to commission it without a coil. The LC1F185 is explicitly described by Schneider Electric as a contactor body without coil — the product name says it plainly. But in fast-moving procurement, buyers often assume that a motor contactor ships as a complete, ready-to-energize assembly. It does not. The coil must be specified separately from the LC1D series, matched to your control circuit voltage, and verified for mechanical fit with the TeSys F body. A purchase order that lists only the LC1F185 body number is an incomplete order. Specialist distributors who know this part will ask the follow-up question at the point of sale; a generic marketplace will not.

The second area where engineers encounter friction is voltage class ambiguity. The LC1F185 is the 440V AC version. North American facilities operating at 460V nominal are within the 440V class tolerance. However, facilities with equipment sourced from European supply chains, or with dual-voltage installations, have been caught ordering the 440V body for a 690V installation — with immediate coil burnout as the result. Confirming the voltage class is not a formality; it is a safety and commissioning checkpoint. Write the installation voltage on the work order before sourcing begins.

Availability uncertainty adds a third layer of pre-order diligence. One distributor source has indicated possible discontinuation status for the LC1F185. This does not mean the product is unavailable today, but it does mean that lead times are less predictable than they were for an actively produced part. For urgent replacement projects — a failed motor contactor on a production line — the difference between confirmed stock and assumed stock is measured in production hours lost. Verifying availability with a distributor who has real-time inventory visibility before raising the purchase order is not optional for time-critical applications.

Wiring and Installation Overview

The LC1F185 installs in a standard industrial control cabinet on DIN rail or screw terminal mounting. Before connecting power terminals, verify that a thermal overload relay (such as the Schneider LRD series) is installed in series between the contactor output and the motor — this protection is required by electrical code and is not built into the LC1F185 body. Key installation points to confirm:

  • Power terminals L1, L2, L3 (incoming three-phase supply) and T1, T2, T3 (motor output) accept M5 screw clamp or spring clamp connections depending on the terminal variant ordered — verify terminal type before specifying cable lugs
  • Control coil terminals are marked A1 and A2; the LC1D coil connects here, energized by your control circuit voltage (24V DC, 110V AC, 220V AC, or 380V AC matched to the coil ordered)
  • Cable sizing for power terminals must be appropriate for 185A load current — consult NEC or CEC for minimum conductor gauge at your installation voltage
  • DC coil applications may require snubber or surge suppression circuits on the control circuit; verify coil datasheet for specific requirements before wiring
  • Operating temperature range for the installed body is -25°C to +55°C ambient; cabinet ventilation and thermal derating must be verified for installations at or above 55°C

Full wiring diagrams and installation procedures are provided in Schneider Electric's TeSys F installation manual. Always refer to the manufacturer documentation for complete commissioning procedures.

Coil Selection and Compatible LC1D Components

The LC1F185 body is supplied without a coil. The coil must be ordered separately from the LC1D series with the control voltage matched to your installation. Coil selection determines control circuit compatibility and must be verified before ordering.

  • Available control voltages include 24V DC, 110V AC, 220V AC, and 380V AC — each requires a different LC1D part number; confirm your control circuit voltage before specifying
  • Not all LC1D coils are compatible with all TeSys F body sizes — cross-reference the Schneider TeSys F coil compatibility matrix to confirm mechanical and electrical fit for the LC1F185 body specifically
  • AC coils typically draw 4–10 VA; DC coils typically draw 1–3 W — verify that your control circuit power supply or control transformer can deliver the required coil power
  • Latching coil variants are available for applications where the contactor must remain closed through a control circuit power interruption — verify your control logic before selecting latching vs. non-latching
  • Always include both part numbers on the purchase order: LC1F185 (body) and the specific LC1D coil part number matching your control voltage — submitting both to your distributor simultaneously eliminates the most common project delay associated with this product

Wrong-Part Prevention Checklist Before You Order

Before placing your order for the LC1F185, verify each of the following. This checklist is drawn directly from the most frequent ordering errors associated with this product:

  1. Confirm VOLTAGE CLASS: This is the 440V AC version. Verify your installation is not 690V.
  2. Confirm BODY-ONLY: Order the appropriate coil separately. Typical coil part numbers are LC1D09 through LC1D95 series.
  3. Confirm CONTACT CONFIG: LC1F185 is 3NO (three normally open). Verify you do not need 2NO+2NC or 4NO.
  4. Confirm MOTOR RATING: Verify your motor does not exceed 90 kW or 125 HP at your voltage.
  5. Confirm DUTY CYCLE: AC-3 is for motor loads. Not suitable for pure resistive or lighting loads (use AC-1).
  6. Confirm LEAD TIME: One source indicates possible discontinuation; verify current availability with distributor.
  7. Confirm COIL COMPATIBILITY: Not all coils fit all TeSys F bodies; cross-reference your coil voltage against LC1D compatibility matrix.

If any of the above items raise a question, contact the LeadTime.ca team before ordering — we can confirm availability, coil compatibility, and application fit before your purchase order is raised.

Frequently Asked Questions

Can I use a 690V coil with the 440V LC1F185 body?

No. The LC1F185 is the 440V AC version of the TeSys F contactor body. Coil voltage must match your control circuit voltage, and the body voltage class must match your installation. Mixing voltage classes creates control circuit malfunction and represents a fire and electrical hazard. If your installation is 690V, you need the 690V TeSys F body variant, not the LC1F185.

Is the LC1F185 a direct swap for the LC1F150 without any cabinet changes?

Mechanically yes — the DIN rail footprint is identical across the TeSys F family (LC1F115, LC1F150, LC1F185, LC1F225), and all use the same LC1D coil series. Electrically, the LC1F150 is rated 150A and 75 kW; the LC1F185 is rated 185A and 90 kW. Sizing up to the LC1F185 when replacing an LC1F150 does not create compatibility problems, provided the rest of the branch circuit protection is appropriately rated. Sizing down from LC1F185 to LC1F150 would mean the contactor is undersized for the motor load — do not do this.

Does the LC1F185 include built-in motor overload protection?

No. The LC1F185 is a switching body only — it has no overload detection or thermal protection. A separate thermal overload relay, such as the Schneider LRD series, must be installed in series between the contactor output terminals (T1, T2, T3) and the motor. This protection is required by electrical code and is not optional.

How do I find the right coil part number for my control voltage?

Coil part numbers are from the LC1D series. Use the Schneider TeSys F coil compatibility matrix available in the manufacturer's technical documentation to match your control voltage (24V DC, 110V AC, 220V AC, 380V AC) to the correct LC1D part number. Contact LeadTime.ca — our team can assist with coil compatibility verification at the time of your LC1F185 order to ensure both parts are correct before shipping.

Is the LC1F185 discontinued, and what is the replacement if it is?

Product availability status varies by distributor and region. One distributor source has indicated a possible discontinuation status for the LC1F185, which means availability may be tightening. Before specifying this part for a new project or time-critical replacement, verify current stock with your distributor rather than assuming availability. If the LC1F185 is confirmed unavailable, functional equivalents in the 185–190A class from other manufacturers exist but require cabinet rewiring due to different terminal layouts — this is not a plug-and-play substitution. Contact LeadTime.ca to check current availability before committing to a project timeline.

What is the difference between AC-3 and AC-1 duty, and does it matter for my application?

AC-3 is the IEC 60947-4-1 duty classification for motor loads, where inrush current during starting can reach up to 5 times the full-load current. AC-1 is for resistive and mildly inductive loads with low inrush current. The LC1F185 is rated AC-3 and is the correct choice for induction motor starting and switching. It is not rated for AC-1 loads such as resistive heaters or lighting circuits — using a motor-duty contactor on a resistive load is permissible in some cases, but using an AC-1 rated device on a motor load will result in premature contact failure.

Why Order the LC1F185 Through LeadTime.ca

  • Real-time inventory verification — we confirm actual stock status before you raise a purchase order, including flagging availability risk on parts approaching discontinuation
  • Coil compatibility guidance at the point of sale — we ask the coil question so you do not receive a body without the matching LC1D coil and face a 2–4 week re-order delay
  • Worldwide shipping — LeadTime.ca ships the LC1F185 globally; no geographic restriction on sourcing
  • Volume pricing available — contact for current pricing on multi-unit orders or bill-of-materials sourcing for motor control panel builds
  • Specialist distributor support — for industrial motor control components with availability uncertainty, sourcing through a distributor who understands the product reduces wrong-part risk and lead-time surprises

At-a-Glance Summary

  • Product: Schneider LC1F185 — contactor body without coil, TeSys F family, three-pole 3NO configuration
  • Rated continuous current: 185A at <=440V AC three-phase
  • Maximum motor rating: 90 kW (120 HP) at 400V three-phase
  • Duty classification: AC-3 per IEC 60947-4-1 — motor loads with inrush up to 5x full-load current
  • Coil: Not included — must be ordered separately from the LC1D series in 24V DC, 110V AC, 220V AC, or 380V AC control voltage
  • Mounting: DIN rail or screw terminal; IP20; operating temperature -25°C to +55°C ambient
  • TeSys F footprint: Identical across LC1F115, LC1F150, LC1F185, LC1F225 — direct body swap for motor size changes
  • Typical field life: 3–7 years depending on motor start frequency; contact erosion accelerates above 15 starts per day
  • Availability: Verify current stock before committing to project timeline — one source flags possible discontinuation
  • Critical ordering rule: Submit two line items — LC1F185 body AND the correct LC1D coil matched to your control voltage
