Schneider Electric LC1G225KUEN — 225A TeSys Giga Contactor Review

By Abdullah Zahid
15 min read

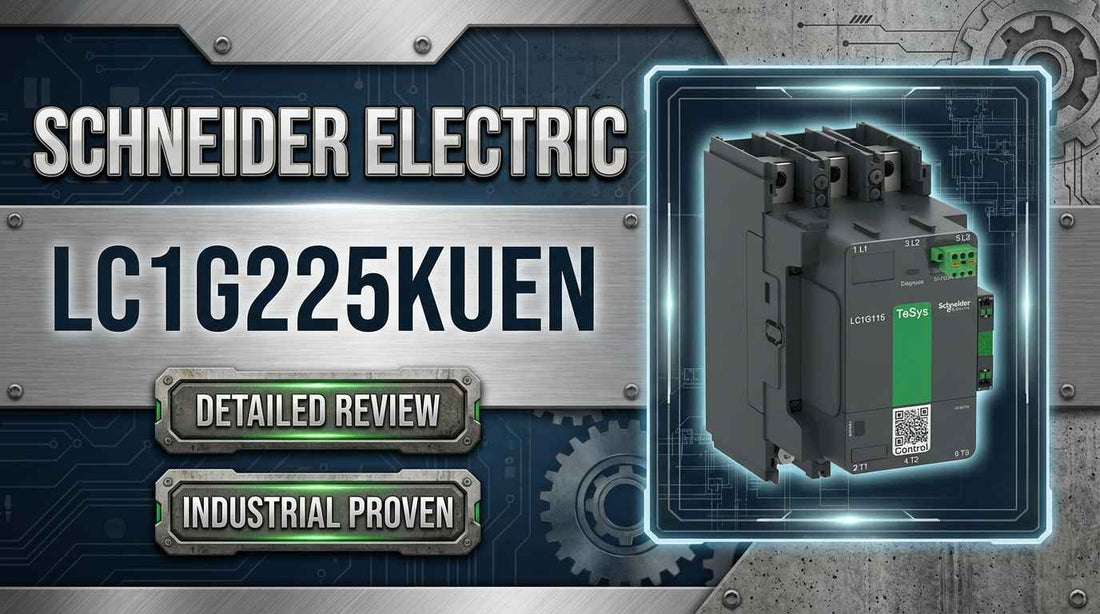

Schneider Electric LC1G225KUEN TeSys Giga 225A three-pole contactor for industrial motor control cabinet installation

Schneider Electric LC1G225KUEN TeSys Giga Contactor: 225A AC-3 Specifications, Selection, and Where to Buy

Controls engineers and procurement specialists searching for the Schneider Electric LC1G225KUEN already know what they need: a three-pole, 225A AC-3 power contactor with a 100–250V AC/DC wide-band coil, rated for motor loads up to 132 kW at 440V in demanding industrial environments. The question is whether this specific SKU matches your application, control voltage, and site certifications — and whether stock is available before your commissioning window closes. This article answers all three.

If you have already confirmed this is the right part, check current pricing and availability at LeadTime.ca — ships worldwide.

Who Should Buy the LC1G225KUEN — and Who Shouldn't

The LC1G225KUEN is the right contactor if all of the following are true for your project:

  • Your three-phase motor full-load ampere rating is at or below 225A at 440V in AC-3 (soft-start or infrequent switching) duty.
  • Your control circuit supplies between 100V and 250V AC or DC — this contactor does not operate on 24V DC control systems.
  • You require an embedded auxiliary contact block (1NO + 1NC) for status signaling or interlocking without adding a separate auxiliary module.
  • Your site or export certification path requires one or more of: cULus, CE, UKCA, CB, CCC, or EAC — all are present on this model.
  • Your switching duty does not exceed 300 cycles per hour sustained — this unit is AC-3 rated, not AC-4.
  • You are installing in a cabinet or enclosed panel environment — IP2X protection requires housing for outdoor or harsh-environment deployments.

If your motor FLA is at or below 115A, the LC1G115KUEN saves cost and panel space. If your cabinet runs on 24V DC control only, select the LC1G model variant with a 24V coil. If you need integrated overload protection built into the switching device, look to a combined starter unit rather than this standalone contactor.

On this page:

What the LC1G225KUEN Actually Does in a Motor Control System

The LC1G225KUEN is an electromechanical power contactor — a remotely operated switch that opens and closes three-phase power to a motor or other inductive load. It belongs to Schneider Electric's TeSys Giga family, which is designed and certified to IEC 60947-4-1 for industrial switching duty. In a motor starter cabinet, this contactor sits between the branch circuit disconnect and the motor terminals, energizing and de-energizing the motor load under the command of a control circuit signal at its coil terminals.

Three main power poles handle the load: the contacts are rated 225A at 440V in AC-3 duty (motor starting and stopping) and 330A at 1000V AC in AC-1 duty (non-inductive loads). The 2050A breaking capacity at 440V means the contactor can interrupt fault-level current without catastrophic contact damage — a critical margin when sizing for industrial distribution panels with high available short-circuit current.

The coil accepts any voltage between 100V and 250V AC or DC at 50/60 Hz, which is the design decision that sets this model apart from single-voltage alternatives. A controls engineer specifying a motor starter for a facility that runs 120V control in one building and 240V in another does not need two separate contactor SKUs. The coil technology includes built-in bidirectional peak limiting, which reduces the current spike at energization — the inrush power is 540VA AC (380W DC), dropping immediately to a 12.4VA AC (7.8W DC) hold-in level. That steep drop in steady-state consumption reduces cabinet heat load compared to legacy thermal contactors.

The embedded auxiliary contact block — 1NO and 1NC — is integrated into the contactor body. No external block is required for basic status signaling and interlocking. Both contacts are pilot-duty rated at 17V 1mA, suitable for 24V DC PLC inputs, indicator lamps, or small relay coils. Mechanical life is rated at 5 million cycles standard, extendable to 8 million cycles with a replacement sub-assembly kit.

Typical System Architecture for the LC1G225KUEN

The LC1G225KUEN sits between the branch circuit protection device and the motor terminals, in series with the overload relay that IEC 60947-4-1 and NEMA MG-1 Part 31 require as a separate component. A typical signal chain looks like this:

  • Three-phase supply (400–440V typical) → branch circuit fused disconnect or molded-case circuit breaker (sized to 2050A breaking capacity minimum coordination)
  • Fused disconnect → LC1G225KUEN main power terminals L1, L2, L3 (screw clamp M6 stud, tighten to 18 N⋅m)
  • LC1G225KUEN output terminals T1, T2, T3 → external thermal or electronic overload relay (required — not included in contactor)
  • Overload relay output → motor terminals (3-phase, 80–132 kW range at 440V AC-3)
  • Control circuit: 100–250V AC/DC source → pilot switch or PLC output → LC1G225KUEN coil terminals → neutral/return
  • Auxiliary 1NO contact → PLC digital input or motor-running pilot lamp; auxiliary 1NC contact → safety interlock or alarm suppression circuit

Industries and Applications Where This Contactor Is Specified

The LC1G225KUEN is most commonly specified for squirrel-cage motor direct-on-line (DOL) or soft-start switching in the 80–132 kW range at 440V. Conveyor drive systems in manufacturing plants running 60–150 kW continuous-duty motors are a primary use case, particularly where motors run for extended shifts with infrequent start/stop cycles that fall well within the 300 cycles per hour AC-3 limit.

HVAC engineers specify this contactor for chiller plant motor control, where multiple 80–110 kW centrifugal pump or fan motors operate on scheduled switching sequences. The wide control voltage band is particularly valuable in large commercial buildings where control power infrastructure varies floor by floor or zone by zone.

In mining and mineral processing, the LC1G225KUEN is used in motor switchyards controlling ball mills, jaw crushers, and conveyor drive motors in groups. The 2050A breaking capacity handles the high available fault current that comes with large industrial transformers feeding motor control centers.

System integrators frequently specify this model as a bypass contactor in soft-starter and VFD architectures, where the contactor is switched in parallel with the soft-starter after ramp-up completion. This configuration reduces energy losses through the power electronic stage during normal running and is a well-established design practice for pump and compressor applications. OEMs building packaged compressor units, pump stations, and extruder control panels also list this contactor in their approved component BOM due to its global certification coverage across CB, cULus, CE, UKCA, CCC, and EAC marks.

Application Typical Deployment
Conveyor drive motor control DOL or soft-start switching for 60–150 kW three-phase motors in manufacturing or logistics facilities
HVAC chiller plant Multiple 80–110 kW pump and fan motor starters in commercial building plant rooms
Pump and compressor station Main contactor plus bypass contactor in soft-starter architecture; process water and compressed air systems
Mining motor switchyard Ball mill, jaw crusher, and belt conveyor motor groups; high fault current environment requiring 2050A breaking capacity
Injection molding and CNC machine tool Main spindle motor and coolant pump switching; OEM-specified in packaged machine control panel
International OEM packaged equipment Single contactor SKU covering North America (cULus), Europe (CE), UK (UKCA), China (CCC), and Eurasian markets (EAC)

Key Electrical Specifications for Purchase Decisions

Parameter Value Notes
Rated Operational Current — AC-3 @ 440V 225 A Motor soft-start and infrequent switching duty; do not exceed for AC-3 applications
Rated Operational Current — AC-1 @ 1000V 330 A Non-inductive load switching; applies when supply voltage is lower
Conventional Thermal Current Ith @ 40°C 330 A Free air; derate above 50°C ambient
Rated Breaking Capacity @ 440V 2050 A Fault current interruption rating; size branch circuit protection to coordinate
Rated Insulation Voltage 1000 V Maximum system voltage; Overvoltage Category III
Rated Impulse Withstand Voltage 8 kV Surge immunity; Category III industrial supply
Control Coil Voltage 100–250 V AC/DC, 50/60 Hz Wide-band; does not operate on 24V DC — verify cabinet control voltage before ordering
Coil Inrush / Hold-in Power (AC) 540 VA inrush / 12.4 VA hold-in Inrush is momentary (~50 ms); steady-state draw is low
Auxiliary Contact Block 1NO + 1NC embedded, 17V 1mA pilot duty Suitable for PLC inputs, indicator lamps; not for main power switching
Mechanical Durability 5 million cycles standard; 8 million cycles with replacement kit Life expressed in operations, not years — duty cycle determines calendar life

Full technical specifications are available on the product page at LeadTime.ca.

LC1G225KUEN vs. Other TeSys Giga Models: Which One Do You Actually Need?

Model AC-3 Current Rating @ 440V Motor Power @ 440V Control Voltage When to Choose
LC1G115KUEN 115 A 55 kW 100–250V AC/DC Motor FLA is 90–115A; saves cost and panel space versus LC1G225KUEN
LC1G225KUEN 225 A 132 kW 100–250V AC/DC Motor FLA is 130–225A at 440V AC-3; this is the correct model
LC1G330KUEN 330 A 160+ kW 100–250V AC/DC Motor FLA exceeds 225A or motor power exceeds 132 kW at 440V
LC1G225KL7EN / LC1G225KM7EN 225 A 132 kW Varies by suffix Alternate auxiliary contact configuration or mounting variant required

If your motor nameplate FLA falls above 225A or your load exceeds 132 kW at 440V, the LC1G330KUEN is the correct next step — check current availability and compare models at LeadTime.ca.

Expert Verdict: Is the LC1G225KUEN the Right Call for Your Project?

The LC1G225KUEN earns its place as a reliable, low-risk specification for controls engineers designing motor starter cabinets for 80–132 kW industrial motors. Its 2050A breaking capacity at 440V sets a higher fault-tolerance ceiling than many comparable contactors in this current class, and the 100–250V AC/DC wide-band coil genuinely eliminates the regional re-specification burden that plagues OEM designs shipped across multiple geographies. The embedded 1NO + 1NC auxiliary block is a real wiring time-saver — engineers don't need to source, stock, or wire a separate auxiliary module for standard status and interlock functions. For integrators upgrading aging motor control centers, this contactor delivers a measurable efficiency improvement: the 12.4VA AC hold-in power versus much higher steady-state dissipation in legacy thermal contactors reduces panel heat load on a per-starter basis, which compounds across large multi-motor switchyards.

There are three situations where this model is genuinely not the right fit, and stating them clearly here saves expensive mistakes. First, if your application requires integrated overload protection within the switching device itself, this contactor does not provide it — a separate thermal or electronic overload relay is mandatory per IEC 60947-4-1 and NEMA MG-1 Part 31. Siemens 3RV or 3RH combined starter units include that function if your design requires it in a single device. Second, if your duty cycle exceeds 300 cycles per hour sustained, the AC-3 rating of this contactor is not the correct classification — specify an AC-4 rated variant instead. Third, if your cabinet control voltage is 24V DC only, this unit will not function. The 100–250V AC/DC coil range is a wide band, but 24V DC is definitively outside it. Ordering the wrong coil voltage is the most common and most avoidable mistake with this SKU.

From a procurement standpoint, the LC1G225KUEN is a standard stocking item for major authorized distributors, with typical lead times of one to four weeks in North America and similar availability in Europe. Buying through an authorized specialist distributor — rather than a generic online marketplace — protects against counterfeit risk, secures the manufacturer warranty, and gives you access to pre-sales technical verification before the order is placed. For volume requirements or projects where delivery timing is critical to the build schedule, check live availability at LeadTime.ca and confirm stock before committing your BOM.

For volume pricing or to confirm lead time before committing to a build, contact the LeadTime.ca team directly — we ship worldwide.

What Engineers Need to Know Before Ordering the LC1G225KUEN

Because the LC1G225KUEN is a specialized industrial SKU rather than a consumer or prosumer product, structured community review data for this specific model is sparse across the major automation forums and distributor Q&A platforms. That is not unusual for high-current IEC contactors in this class — engineers who work with them regularly tend to specify them by catalog number from manufacturer documentation, not from peer forum discussion. What exists in its place is a body of verified technical evidence and a certification track record that carries more weight than forum sentiment for a device of this type.

The global certification suite — CB Scheme, cULus, CE, UKCA, CCC, and EAC, all verified and listed on official Schneider Electric documentation — is the strongest available trust proxy for an industrial switching device. Each certification requires independent third-party testing against the relevant regional standard, and the EAC mark carries DNV-GL verification. The TeSys Giga family that houses this contactor is specified by major OEMs building compressor units, pump stations, HVAC systems, and mineral processing equipment across North America, Europe, and Asia-Pacific — a deployment footprint that represents years of field validation across diverse environmental and electrical conditions.

The practical implication for engineers and procurement specialists ordering this part for the first time is straightforward: the absence of community complaints is not a gap in knowledge — it reflects the stability of a mature product with a clear, well-documented application scope. Where specialist advice matters most is not in evaluating the contactor's general reliability, but in confirming the three or four application-specific variables that make the LC1G225KUEN the correct part for your specific cabinet: control voltage, motor FLA, duty cycle classification, and certification path. When those variables are ambiguous, a conversation with the LeadTime.ca technical team before ordering prevents returns and project delays more effectively than any forum thread.

Wiring and Installation Overview

  • Connect three-phase supply to power terminals L1, L2, L3 (screw clamp M6 stud); tighten to 18 N⋅m using a calibrated torque wrench — re-check torque annually on high-vibration sites.
  • Connect motor leads to output terminals T1, T2, T3; route through an external thermal or electronic overload relay in series (required by IEC 60947-4-1 — not included with the contactor).
  • Apply control voltage (100–250V AC or DC) to coil terminals; for DC supply, observe polarity markings on the contactor body — for AC, polarity is not critical.
  • Wire the 1NO auxiliary contact to a PLC digital input or motor-running indicator lamp; wire the 1NC contact to a safety interlock or alarm suppression circuit — both are pilot-duty rated at 17V 1mA only.
  • Confirm no integrated surge suppression is present on the coil circuit; if the control circuit switches inductive pilot loads or relay coils, install an external MOV or RC snubber to protect the LC1G225KUEN coil from transient spikes.

Wrong-Part Prevention: Verify These Eight Points Before You Order

Before placing any order for the LC1G225KUEN, confirm each of the following against your application documentation:

  1. Confirm motor nameplate voltage and FLA; LC1G225KUEN rated 225A AC-3 @ 440V (110 kW nominal). Higher voltage or lower current OK; lower voltage or higher current NOT OK.
  2. Check control circuit availability: this unit needs 100-250V AC/DC. Do NOT order if only 24V DC is available (select LC1G model with 24V coil).
  3. Verify duty category: LC-3 for motor starting/stopping (squirrel-cage motor, soft start, or inverter-fed). NOT suitable for continuous frequent on/off (use AC-4 variant if over 300 cycles/hour expected).
  4. Confirm no integrated overload protection needed in contactor itself; LC1G is switching device only — external overload relay is required (IEC 947-4-1, NEMA MG-1 Part 31).
  5. Audit auxiliary contact requirement: LC1G225KUEN includes 1NO+1NC. If more auxiliary contacts needed, select LC1G with multi-contact auxiliary block or add separate block.
  6. Check terminal connection type: LC1G225KUEN has screw clamp terminals (M6 stud). If DIN-rail mount or push-in quick-connect required, confirm compatibility or select different mount variant.
  7. Verify international certification path: cULus (North America), CE (Europe), UKCA (UK post-Brexit), CCC (China), EAC (Eurasian). Confirm your regional mark is present.
  8. Lead time: distributor stock levels vary by region. Canadian availability typically 2-4 weeks from stock; 4-8 weeks if special order. Verify before committing.

If any item on this checklist raises a question before your order is placed, contact the LeadTime.ca team to verify the correct part number — the cost of a conversation is zero; the cost of returning a wrong contactor is not.

Frequently Asked Questions

Can the LC1G225KUEN operate on a 24V DC control circuit?

No. The LC1G225KUEN coil requires 100–250V AC or DC. A 24V DC control signal is outside this range and will not energize the contactor. If your cabinet has only 24V DC available for control, you must either upgrade the control power supply to a voltage within the 100–250V range, or select a different LC1G model variant with a 24V coil. Attempting to step up 24V through a relay adds unnecessary complexity and additional failure points to the design.

Does the LC1G225KUEN include motor overload protection?

No. The LC1G225KUEN is a power switching contactor only — it does not protect the motor against sustained overload or phase loss. IEC 60947-4-1 and NEMA MG-1 Part 31 both mandate a separate external thermal or electronic overload relay in series with the motor circuit. This relay must be sized to the motor's full-load ampere rating and thermal class. The contactor and overload relay together form the motor starter; neither functions as a substitute for the other.

What is the difference between AC-3 and AC-4 duty, and does it affect which contactor I should order?

AC-3 (the duty category of the LC1G225KUEN) covers squirrel-cage motor starting and normal infrequent stopping, up to 300 cycles per hour. AC-4 covers more demanding operations such as plugging (counter-current braking) or rapid reversing at higher cycle rates. If your application operates the motor in frequent reversal or sustained switching above 300 cycles per hour, the LC1G225KUEN is not the correct specification and an AC-4 rated contactor must be selected. Confirm your actual duty cycle in the application before ordering.

How many auxiliary contacts are included, and can I add more to the LC1G225KUEN?

The LC1G225KUEN includes one 1NO (normally open) and one 1NC (normally closed) auxiliary contact, both embedded in the contactor body, pilot-duty rated at 17V 1mA. You cannot add auxiliary contacts directly to the contactor body on the standard LC1G225KUEN configuration. If your interlock or feedback scheme requires additional contacts, you must either use an external relay coil energized by the existing 1NO contact, or specify an LC1G model variant that supports a multi-contact auxiliary block.

Is the LC1G225KUEN suitable for installation in an outdoor enclosure or a wet environment?

The contactor itself is rated IP2X (finger-proof protection with shrouds per IEC 60529 and VDE 0106), which is a cabinet-mount rating designed for indoor industrial environments. For outdoor installations, dust-laden environments, or locations exposed to moisture, the contactor must be housed inside an enclosure rated NEMA 4X or IP66/IP67 minimum. Installing the LC1G225KUEN outside of a suitable enclosure in a harsh environment will degrade terminal insulation and coil integrity and is not covered by the product rating.

What does the 5 million cycle mechanical life rating mean in practical terms?

Mechanical life is a count of switching operations, not a calendar duration. At 300 cycles per hour continuous (the maximum AC-3 rate), 5 million cycles equates to approximately 1.5 years of operation. At a more typical rate of 10 cycles per hour in an HVAC or pump application, the same 5 million cycles represents over 50 years of theoretical life. In practice, most industrial contactors in this class are replaced due to operational changes, application reconfigurations, or preventive maintenance schedules — not mechanical exhaustion. The optional replacement sub-assembly kit extends the rating to 8 million cycles without full contactor replacement.

Why Order From LeadTime.ca

  • LeadTime.ca ships the LC1G225KUEN worldwide — no regional restrictions on sourcing.
  • Authorized distribution channel ensures product authenticity and manufacturer warranty coverage.
  • Technical pre-sales support available to verify correct model selection against your motor FLA, control voltage, and certification requirements before the order is placed.
  • Volume pricing available for multi-unit project orders — contact the team directly for current pricing on quantities above standard distributor minimums.
  • View the LC1G225KUEN product page for live availability and current pricing.
  • Contact LeadTime.ca for a quote, lead time confirmation, or technical pre-sales verification.

At-a-Glance Summary

  • Model: LC1G225KUEN — three-pole TeSys Giga electromechanical power contactor, IEC 60947-4-1 compliant.
  • AC-3 rated current: 225A at 440V; suitable for motors up to 132 kW at 440V (150 Hp at 460/480V).
  • AC-1 rated current: 330A at 1000V for non-inductive load applications.
  • Breaking capacity: 2050A at 440V — fault-tolerant rating for high available short-circuit current environments.
  • Control coil: 100–250V AC/DC wide-band; does not operate on 24V DC — verify cabinet voltage before ordering.
  • Coil efficiency: 540VA inrush dropping to 12.4VA hold-in (AC); 380W inrush to 7.8W hold-in (DC).
  • Embedded auxiliary block: 1NO + 1NC, pilot-duty rated 17V 1mA — suitable for PLC inputs and indicator lamps.
  • Mechanical life: 5 million cycles standard; 8 million cycles with replacement sub-assembly kit.
  • Dimensions: 193 mm H × 108 mm W × 193 mm D; net weight 3.6 kg; screw clamp M6 terminals tightened to 18 N⋅m.
  • Ambient operating range: −25 to +60°C; storage: −60 to +80°C; IP2X (cabinet-mount only).
  • Certifications: CB, cULus, CE, UKCA, CCC, EAC — covers North America, Europe, UK, China, and Eurasian markets in a single SKU.
  • External overload relay is mandatory — not included and not integrated into the LC1G225KUEN.
