Schneider Electric LC1D80M7 — 80A Contactor Selection Guide

By Abdullah Zahid
14 min read

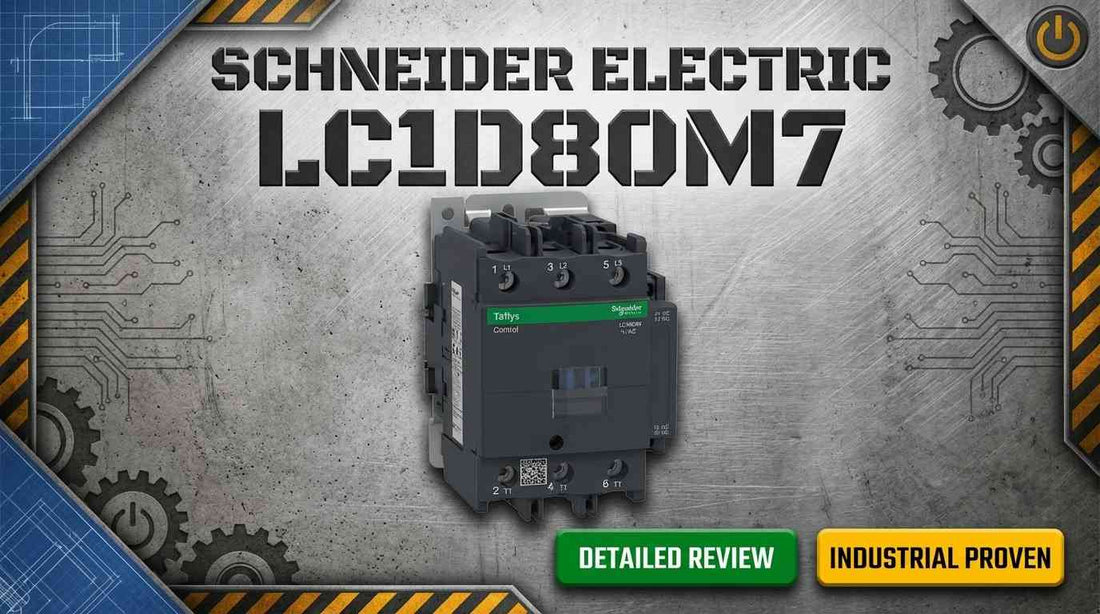

Schneider Electric LC1D80M7 TeSys Deca 80A 3-pole non-reversing IEC contactor with 220VAC coil for industrial motor starter panels

Schneider Electric LC1D80M7 IEC Contactor, TeSys Deca, Non-Reversing, 80A, 3-Pole, 220VAC 50/60Hz Coil — Complete Specs and Selection Guide

Controls engineers and panel builders searching for the Schneider Electric LC1D80M7 are typically at the final verification stage — they have a motor to switch, a panel to build, and a specific coil voltage in the control circuit. This is a 3-pole, non-reversing IEC electromechanical contactor rated 80A AC-3 for inductive motor duty, with a 220VAC 50/60Hz coil and a maximum load voltage of 600VAC. At 480VAC, it handles 60 HP — the most common heavy-motor scenario in North American industrial facilities. If those numbers match your application, this guide walks you through everything needed to order with confidence.

If you have already confirmed this is the right part, check current pricing and availability for the LC1D80M7 at LeadTime.ca — ships worldwide.

Who Should Buy the LC1D80M7 — and Who Should Not

The LC1D80M7 is the right choice for engineers and buyers who can confirm all of the following:

  • Motor full-load current does not exceed 80A continuous (AC-3 inductive duty rating)
  • Control circuit supplies exactly 220VAC 50/60Hz — this model has no other coil voltage option
  • Load voltage does not exceed 600VAC 3-phase (or 300VDC)
  • Motor horsepower is within the rated table: 60 HP at 480VAC, 30 HP at 240VAC, 50 HP at 400VAC
  • Installation allows for DIN rail (35 mm) or panel screw mount with screw clamp terminals accepting AWG 8 to AWG 2 wire
  • Base contacts of 1 NO and 1 NC are sufficient, or LADN auxiliary modules are budgeted for additional contact requirements

If your control circuit runs 110VAC, 24VDC, or any voltage other than 220VAC, stop here — you need a different coil variant. If your motor exceeds 80A, consider the LC1D95F7. For reversing motor control, the LC2D series is the correct path.

On this page:

What the LC1D80M7 Actually Does in a Motor Control System

The LC1D80M7 is an electromechanical AC contactor — it uses a 220VAC coil signal to magnetically close three main power contacts, connecting a 3-phase power supply to a motor or other heavy AC load. When the coil is de-energized, spring force opens those contacts and the motor loses power. The switching happens remotely and repeatedly, which is why contactors are the standard mechanism for motor starters, across-the-line starters, and remotely controlled panel circuits throughout industrial facilities.

In practical terms, a push-button, a PLC output, or a relay contact applies 220VAC between terminals A1 and A2. The contactor pulls in with an audible click, closing the L1–T1, L2–T2, and L3–T3 main contacts simultaneously. The motor runs. When the control signal drops, the contactor drops out and the motor stops. The built-in 1 NO and 1 NC auxiliary contacts change state simultaneously, allowing the control circuit to monitor motor status, drive pilot lights, feed permissive logic, or signal interlocks without any additional relay hardware — provided those two base contacts are sufficient for the application.

The IEC construction follows internationally recognized standards, confirmed by UL, CSA, IEC, CCC, EAC, and Marine certifications. That combination of certifications means this contactor can be installed in panels built to North American, European, and international standards without sourcing a region-specific variant.

Typical System Architecture for the LC1D80M7

The LC1D80M7 sits at the power switching layer — downstream of the motor branch circuit protection and upstream of the motor terminals. Here is where it fits in a typical starter assembly:

  • 3-phase power supply (480VAC or other, up to 600VAC) feeds through a disconnect switch and motor branch circuit fuses or breaker
  • The LC1D80M7 receives 3-phase power at main input terminals L1, L2, L3
  • A PLC digital output, control relay, push-button station, or safety relay applies 220VAC between coil terminals A1 and A2
  • When energized, the contactor closes and passes power through T1, T2, T3 to the motor terminals
  • A thermal overload relay (mounted downstream) monitors motor current and opens the control circuit if overload occurs
  • Auxiliary contacts on the LC1D80M7 feed status signals back to the control system — motor running confirmation, permissive interlock, or fault indication

Industries and Applications Where This Contactor Works

The LC1D80M7 is rated 60 HP at 480VAC, placing it squarely in the range of heavy-duty motor applications common across manufacturing, HVAC, water treatment, and process industries. Conveyor systems running continuous production lines typically use across-the-line starters in this amperage class, where the motor runs at full voltage from startup and the contactor handles millions of switching operations over the equipment's service life — the TeSys Deca class is rated for approximately 10 million mechanical operations, though actual life depends heavily on duty cycle and load type.

In HVAC installations, fan motors driving rooftop units, air handling units, and cooling towers frequently fall in the 30–60 HP range, making the LC1D80M7 a direct fit for remote magnetic starter assemblies controlled by building automation systems. The 220VAC coil aligns with transformer-fed control circuits common in commercial and industrial HVAC panels.

Water and wastewater pump stations, mining conveyors, oil and gas facility motor starters, and food processing lines all represent typical deployment environments. The IP20 rating means the contactor must be installed inside an enclosed panel or control cabinet — it is finger-safe but not suitable for open or wet environments.

Replacement scenarios are also a major purchasing driver. Facilities already running TeSys Deca-series starters can drop in the LC1D80M7 as a direct mechanical and electrical replacement, preserving panel layout and wiring without modification.

Application Typical Deployment
Production line conveyor motor Across-the-line starter, 480VAC 3-phase, 60 HP or below, continuous duty cycle
Industrial HVAC fan motor Remote magnetic starter in rooftop unit or AHU panel, BAS-controlled 220VAC coil
Water or wastewater pump station Motor Control Center (MCC) panel, multi-motor facility, 480VAC supply
OEM motor starter package Pre-engineered starter assembly for 30–60 HP motors, IEC-standard panel construction
Failed contactor replacement Direct TeSys Deca replacement in existing installation, same frame and terminal layout
Mining or oil and gas motor starter Heavy-duty inductive load switching in enclosed MCC or field-mounted panel

Key Specifications and Performance Ratings

Parameter Value Notes
Amperage Rating (AC-3, Motor Duty) 80A Use this rating for all motor selection decisions
Amperage Rating (AC-1, Resistive) 125A Resistive loads only — do not apply to motor circuits
Coil Voltage 220VAC 50/60Hz Only coil voltage available for this model number
Maximum Load Voltage 600VAC (3-phase), 300VDC 690VAC requires separate compliance verification
Poles 3 3-phase motor switching
Built-in Auxiliary Contacts 1 NO + 1 NC Expandable to 6 total via LADN modules
HP Rating at 480VAC 60 HP Most common industrial supply voltage in North America
HP Rating at 240VAC 30 HP Verify motor HP at your specific supply voltage
Mounting DIN rail (35 mm) or panel screw mount Hardware differs — verify before ordering
IP Rating IP20 Finger-safe; requires enclosed panel installation

Full technical specifications are available on the product page at LeadTime.ca.

Performance Ratings by Supply Voltage

Supply Voltage (3-Phase) Horsepower Rating Kilowatt Rating AC-3 Current
200–208VAC 25 HP 18 kW 80A
230–240VAC 30 HP 22 kW 80A
380–400VAC 50 HP 37 kW 80A
440–480VAC 60 HP 45 kW 80A
550–600VAC 60 HP 45 kW 80A

LC1D80M7 vs. Other TeSys Deca Variants: Which One Do You Need?

Model Amperage (AC-3) HP at 480VAC Coil (M7 suffix) Use Case
LC1D09M7 9A 3 HP 220VAC Small pump or fan motors
LC1D40M7 40A 20–25 HP 220VAC Mid-range motor starters
LC1D63M7 63A 40 HP 220VAC Larger motors below 80A
LC1D80M7 80A 60 HP 220VAC This model — heavy motor duty
LC1D95F7 95A 75 HP 110VAC (F7 suffix) Higher amperage; different coil voltage
LC2D80M7 80A 60 HP 220VAC Reversing motor control (forward/reverse)

Note that the suffix in the model number indicates coil voltage — M7 is 220VAC, F7 is 110VAC, and so on. If your motor load exceeds 80A or your horsepower requirement at your supply voltage pushes past this model's rating, the LC1D95F7 is the next step up — check current availability and confirm the right variant at LeadTime.ca.

Expert Verdict: Is the LC1D80M7 the Right Contactor for Your Project?

The LC1D80M7 is the benchmark IEC contactor for 60 HP motor control at 480VAC — the most prevalent heavy-motor scenario in North American industrial panels. It is right for controls engineers and integrators specifying motor starters for 3-phase conveyors, pumps, fans, and compressors; for maintenance teams replacing a failed TeSys Deca-series unit in an existing installation; and for OEMs embedding it in pre-engineered starter packages for the 30–60 HP motor range. The IEC construction, confirmed UL, CSA, IEC, CCC, EAC, and Marine certifications, and the standard 35 mm DIN rail footprint make it a familiar, trusted choice for panel builders who have used this platform before. The built-in 1 NO and 1 NC auxiliary contacts handle the majority of starter permissive and indication functions without additional relay hardware, and expanding to 6 total contacts via LADN modules keeps control circuits compact.

That said, there are situations where this is not the right part and ordering it anyway creates delays. If your control circuit supplies 110VAC, 24VDC, or any voltage other than 220VAC 50/60Hz, this model cannot be used without an external transformer — order the corresponding coil-voltage variant instead. If the motor full-load current exceeds 80A, the LC1D95F7 is the correct upsize. Applications requiring forward and reverse motor control need the LC2D80M7 reversing contactor or two contactors with mechanical interlock — a single LC1D80M7 cannot do that alone. And buyers replacing a unit on a machine that originally used a different amperage class (LC1D40M7 at 40A, for example) need to confirm the schematic before assuming a like-for-like swap.

On the procurement side, the LC1D80M7 is noted as normally stocked in distribution, with typical lead times ranging from immediate stock to 2–3 weeks for special orders — though stock confirmation before committing to a build schedule remains good practice, particularly during periods of elevated industrial demand. Buying through a specialist industrial distributor adds meaningful value at this stage: technical pre-sales verification of coil voltage and amperage fit, bundled availability of thermal overload relays and LADN auxiliary modules, and straightforward returns if a wrong variant arrives. View current pricing and stock status for the LC1D80M7 at LeadTime.ca — available to buyers worldwide.

For volume pricing, project-quantity quotes, or lead-time confirmation before committing to a build schedule, contact the LeadTime.ca team directly — we ship worldwide.

What Engineers Need to Know Before Ordering the LC1D80M7

Community forums and public discussion threads for the LC1D80M7 specifically are sparse — this is a standard, workhorse IEC component that experienced integrators specify from muscle memory and resolve application questions through manufacturer documentation or distributor pre-sales support rather than public forums. That pattern itself tells you something: engineers who have used the TeSys Deca platform before do not typically post about it because the product performs as documented. What they do call distributors about — and what comes up in technical support queues — falls into a predictable and preventable set of ordering situations.

The most consistent ordering error across this contactor class is coil voltage mismatch. The LC1D80M7 coil is 220VAC 50/60Hz exclusively, and the model numbering convention — where the suffix M7 designates coil voltage — is not intuitive to buyers who are not already familiar with the TeSys naming system. A buyer who finds this part number on an OEM schematic, searches it by model number, and orders without reading the coil spec can receive a part that will not operate in a 110VAC control circuit. There is no field modification. The part goes back, lead time resets, and the build stalls. The check takes thirty seconds: find the coil voltage on the nameplate or in the datasheet and match it against your control circuit voltage before clicking order.

A second area where specialist advice pays off is auxiliary contact planning. The base LC1D80M7 ships with 1 NO and 1 NC contact. That covers basic motor running indication and one interlock, but a typical motor starter with a fault output, a running permissive, a reset input, and a pilot light signal can require three or four auxiliary functions. If the LADN expansion modules are not budgeted and ordered with the contactor, installation stalls waiting for a separate line item. Distributors who know this product family will ask about auxiliary contact count before confirming your order — that is the kind of pre-sales friction that prevents downstream delay. If you are uncertain about your contact requirements, contact LeadTime.ca before placing the order and confirm the complete bill of materials for your starter assembly.

Wiring and Installation Overview

  • Main power terminals L1, L2, L3 accept incoming 3-phase supply; T1, T2, T3 connect to motor terminals — screw clamp terminals accept AWG 8 to AWG 2 copper conductors for the main circuit
  • Coil terminals A1 and A2 accept the 220VAC 50/60Hz control signal; verify coil voltage is within ±10% of 220VAC (approximately 198–242VAC) before energizing — below 85% of rated voltage (approximately 187VAC), the contactor will not reliably pull in per IEC requirements
  • Auxiliary contact terminals follow IEC marking conventions: NO contact uses A (common) and B (normally open); NC contact uses C (common) and D (normally closed) — wire gauge AWG 18 to AWG 12 is typical for auxiliary circuits
  • Mounting is either 35 mm DIN rail (internal clip on rear engages rail) or panel screw mount — the hardware required differs between the two methods; verify your panel layout before ordering
  • The LC1D80M7 carries an IP20 rating and must be installed inside an enclosed, protected panel or cabinet — it is not suitable for unenclosed or wet-area mounting

Full installation procedures, torque specifications, and wiring diagrams are available in the Schneider Electric TeSys Deca installation manual. Engineers performing first-time installations should consult manufacturer documentation before proceeding.

Compatible Auxiliary Modules and System Expansion

The LC1D80M7 supports side or top-mounted LADN auxiliary contact modules, allowing the base 1 NO + 1 NC configuration to expand to a maximum of 6 total contacts. The following modules are compatible with the TeSys Deca frame:

  • LADN04 — Adds 4 NO contacts; use when multiple permissive or indication outputs are required
  • LADN22 — Adds 2 NO + 2 NC contacts; common for control circuits requiring both permissive and interlock signals
  • LADN14 — Adds 1 NO + 4 NC contacts; used in safety or interlock-heavy applications
  • LADN31 — Adds 3 NO + 1 NC contacts; common when multiple parallel status signals are needed

Verify module compatibility with the specific TeSys Deca frame size before ordering. LADN modules are typically ordered alongside the contactor — retrofitting them after panel build is possible but adds labor time. Budget for modules upfront based on your control schematic's auxiliary contact count.

Wrong-Part Prevention Checklist Before Ordering the LC1D80M7

Run through each of these checks against your application requirements before placing an order. This checklist is drawn directly from known ordering errors for this contactor class:

  1. Verify coil voltage: this model is 220VAC only; check your control circuit does not use 110V, 24V DC, or other standard voltages before ordering
  2. Confirm load voltage class: 600VAC maximum; if using 690VAC equipment, verify IEC compliance with your regional standards
  3. Check amperage: 80A AC-3 is for inductive motor duty; if your load is resistive or different, verify AC-1 or AC-2 ratings
  4. Confirm DIN rail or panel mounting preference before purchase (both supported, but hardware differs)
  5. Verify screw clamp terminal compatibility with your wire gauges and cable lugs (typical: AWG 8–2 primary, AWG 18–12 auxiliary)
  6. Check that ordering model LC1D80M7 and not LC1D40M7 (40A) or LC1D95F7 (95A higher-rated variant)

If any item on this checklist raises a question, confirm with a specialist before ordering. View the LC1D80M7 product page at LeadTime.ca for current pricing, stock status, and to request a quote — or contact the team directly to verify your application before the order ships.

Frequently Asked Questions

Can I use a 110VAC control circuit with the LC1D80M7?

No. The LC1D80M7 coil is rated 220VAC 50/60Hz only — that is the only coil voltage available for this model number. If your control circuit supplies 110VAC, you either need to install an external 110V-to-220V step-up transformer in the control circuit or order a different TeSys Deca variant with an F7 (110VAC) coil suffix instead of M7.

What is the practical difference between the 80A AC-3 rating and the 125A AC-1 rating — and which one applies to my motor?

AC-3 is the inductive motor duty rating and is the number that applies to every motor selection decision. AC-1 is for resistive or lightly inductive loads such as heating elements — it does not apply to 3-phase motor circuits. Your motor's full-load current from the nameplate must not exceed 80A for this contactor to be correctly specified. The 125A AC-1 figure will appear in the datasheet but is irrelevant if your load is a motor.

The LC1D80M7 only comes with 1 NO and 1 NC — can I add more contacts without replacing the contactor?

Yes. LADN series auxiliary contact modules mount on the side or top of the LC1D80M7 and expand the total contact count to a maximum of 6. Common modules include the LADN04 (4 NO), LADN22 (2 NO + 2 NC), and LADN31 (3 NO + 1 NC). Count your required auxiliary functions on the control schematic and order the appropriate LADN module with the contactor to avoid a separate order and installation delay.

Is the LC1D80M7 a direct drop-in replacement for an existing TeSys D-series contactor at the same amperage?

The TeSys Deca series shares a compatible footprint and terminal layout with the earlier TeSys D series for most frame sizes, making physical replacement straightforward in most cases. However, always verify coil voltage, auxiliary contact configuration, and mounting hardware against the original schematic before assuming a like-for-like swap. Differences in coil voltage or auxiliary module type between what is installed and what is ordered remain a common source of avoidable delays.

What does it mean if the contactor chatters or fails to hold in during operation?

Chattering — where the contactor rapidly engages and releases — typically indicates that control circuit voltage is dropping below the coil's minimum pick-up threshold of approximately 85% of 220VAC (roughly 187VAC) under load. Check for undersized control circuit wiring, a failing control transformer, or a loose connection at the A1/A2 terminals. Persistent chattering accelerates contact wear significantly and should be resolved before returning the motor to service.

Does the LC1D80M7 ship outside North America?

Yes. The LC1D80M7 carries IEC, UL, CSA, CCC, EAC, and Marine certifications, making it suitable for international installations and globally compliant panel builds. LeadTime.ca ships worldwide — verify import and regional compliance requirements for your specific location before ordering if installation is outside North America.

Why Order the LC1D80M7 From LeadTime.ca

  • Global shipping — the LC1D80M7 and compatible LADN auxiliary modules are available to buyers worldwide, not limited to any single region
  • Specialist pre-sales support — technical questions about coil voltage, auxiliary contact selection, and compatible overload relays answered before the order ships
  • Volume and project pricing — contact for multi-unit quotes on starter panel builds or MCC projects
  • Hard-to-source parts — access to TeSys Deca accessories, LADN modules, and related motor starter components in one order
  • Transparent lead time communication — stock status confirmed before you commit to a project schedule

LC1D80M7 At-a-Glance Summary

  • 80A AC-3 inductive motor duty rating — 125A AC-1 resistive rating applies to non-motor loads only
  • 220VAC 50/60Hz coil — the only coil voltage for this model; M7 suffix designates 220VAC in TeSys naming convention
  • 3-pole, non-reversing IEC contactor; reversing applications require LC2D series
  • Rated 60 HP at 480VAC, 50 HP at 400VAC, 30 HP at 240VAC, 25 HP at 200–208VAC
  • Maximum load voltage 600VAC 3-phase; 690VAC requires separate regional compliance verification
  • Built-in 1 NO + 1 NC auxiliary contacts; expandable to 6 total contacts via LADN modules
  • DIN rail (35 mm) or panel screw mount; screw clamp main terminals accept AWG 8–2
  • IP20 rating — finger-safe; enclosed panel installation required
  • Certified to UL, CSA, IEC, CCC, EAC, and Marine standards; Green Premium (RoHS/REACH compliant)
  • Normally stocked in distribution; typical lead time is in-stock to 2–3 weeks for special orders — confirm before committing to build schedule
