Schneider Electric LC1D95M7 — 95A Contactor Buyer Review

By Abdullah Zahid
14 min read

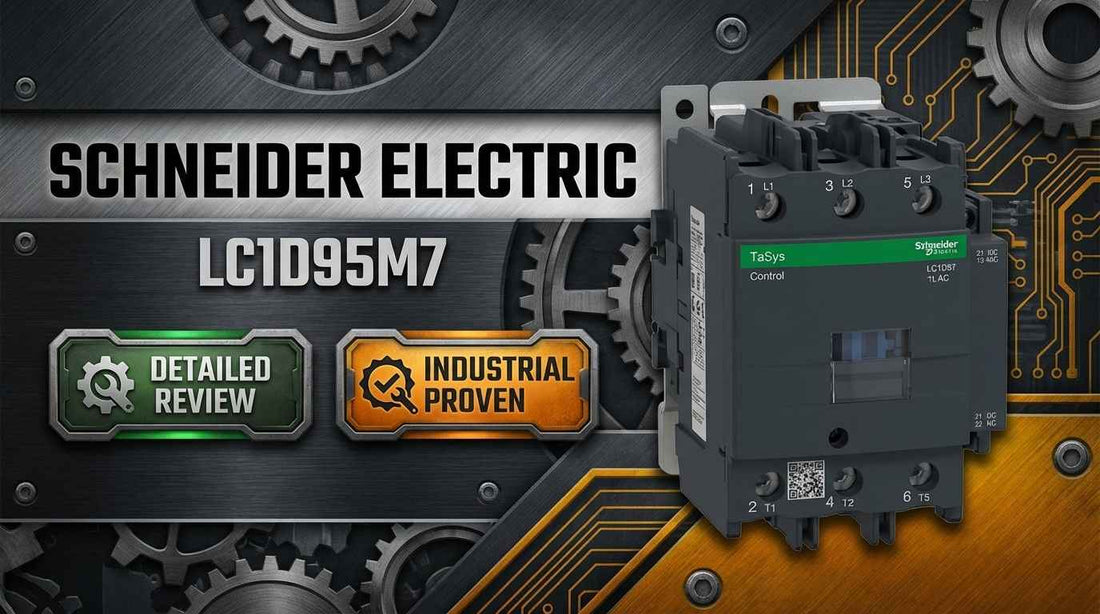

Schneider Electric LC1D95M7 TeSys Deca 95A 3-pole IEC non-reversing AC contactor 220V coil for industrial motor control panels

Schneider Electric LC1D95M7 IEC Contactor, TeSys Deca, Non-reversing, 95A, 60HP at 480VAC, 3-Phase, 3-Pole, 3 NO, 220VAC 50/60Hz Coil, Open Style — Specs, Alternatives & Selection Guide

If you have a motor control application in the 30–60 HP range and your panel runs a 220V AC control voltage, the Schneider Electric LC1D95M7 is likely the exact part you are looking for. This 3-pole, non-reversing IEC AC contactor carries a 95A rating at AC-3 duty and a 60 HP rating at 460V — two figures that cover the vast majority of pump, fan, and compressor drive applications in standard industrial panels. Before you finalize the order, one detail must be confirmed: the LC1D95M7 coil is 220V AC 50/60Hz exclusively, and it ships without any overload protection built in.

If you have already confirmed this is the right part, check current pricing and availability for the LC1D95M7 at LeadTime.ca — ships worldwide.

Who Should Buy the LC1D95M7 — and Who Shouldn't

The Schneider Electric LC1D95M7 is the right choice when all of the following are true for your application:

  • Your panel control voltage is 220V AC at 50Hz or 60Hz — the coil will not operate on 24V DC, 110V AC, or 380V AC
  • Your motor is rated at or below 60 HP at 460V supply, or at or below 30 HP at 230V supply
  • You are controlling an induction motor in a single direction only — no forward-reverse switching required
  • Your control circuit needs standard auxiliary feedback: one normally-open and one normally-closed contact are included at base level
  • Your panel has DIN rail or panel-mount space for a 127mm × 85mm × 130mm device, with adequate ventilation for operation up to 60°C ambient
  • You understand that external overload protection — such as the LRD33 thermal relay — must be added separately; the LC1D95M7 is a switching contactor only

If your motor exceeds 60 HP at 460V, look at the LC1D150M7 rated at 150A and 100 HP. If your control voltage is 24V DC, you need a different coil variant. If you need reversing capability, a contactor pair or dedicated reversible starter is required — the LC1D95M7 cannot provide that function.

On this page:

What the LC1D95M7 Actually Does in a Motor Control Circuit

A contactor is not a starter, not a soft starter, and not a variable frequency drive. The Schneider Electric LC1D95M7 performs one function with precision: it opens and closes three main power poles under remote electrical command, switching 3-phase current to an induction motor load on and off at the signal of its 220V AC coil. At AC-3 duty — the IEC rating class for frequent switching of induction motor loads — it is rated to handle 95A continuously. At AC-1 duty, covering low-switching resistive loads, the rating rises to 125A.

The TeSys Deca product family positions the LC1D95M7 as a proven, field-standardized component for industrial motor control. Its 45 kW switching capacity, 3600 cycles-per-hour mechanical duty rating, and 690V insulation voltage reflect the kind of specification that justifies its use in food processing lines, HVAC plant rooms, water treatment stations, and OEM machine cabinets alike. The base-mounted auxiliary contacts — one NO and one NC — are not an afterthought: they give the control engineer a ready-made feedback loop for PLC digital inputs or relay interlock logic without requiring a separate signaling relay for basic start/stop applications.

What the LC1D95M7 does not do is equally important to understand before ordering. It provides no overload detection, no thermal trip, no soft-start ramp, and no speed variation. Motor protection requires an external thermal overload relay such as the LRD33, or an upstream soft starter. An engineer who treats this contactor as a complete motor starter will leave the motor unprotected. That distinction, more than any other, is the single most important thing to communicate when specifying or procuring this part.

Typical System Architecture for the LC1D95M7

The LC1D95M7 sits in the main power path between the motor branch circuit protection device and the motor terminals, controlled by a low-energy 220V AC coil signal that originates from the panel logic. Here is how a typical installation chain looks:

  • 3-phase supply breaker or disconnect switch (upstream branch circuit protection) feeds L1, L2, L3 into the contactor main terminals
  • LC1D95M7 main contacts switch all three phases simultaneously when the 220V AC coil is energized via the start/stop control circuit
  • External LRD33 thermal overload relay (or soft starter) sits between the contactor output terminals T1, T2, T3 and the motor terminals — providing the motor overload trip function the contactor itself does not include
  • Auxiliary NO contact feeds a PLC digital input or relay logic as a "contactor closed / motor running" feedback signal
  • Auxiliary NC contact is wired into an interlock or safety circuit to confirm the contactor is open before issuing the next control command

Where the LC1D95M7 Gets Deployed: Industries and Use Cases

Pump motor control is among the most common applications for the LC1D95M7. In water and wastewater treatment plants, 3-phase induction pumps in the 30–60 HP range are started and stopped dozens of times per shift. The 95A AC-3 rating and 3600 cycles-per-hour duty handle this demand without nuisance wear, and the IEC 60947-4-1 certification satisfies the compliance requirements common in municipal utility procurement.

HVAC and refrigeration systems place similar demands on a contactor. Large air handling units, chiller compressors, and cooling tower fan motors operating at 460V 3-phase routinely fall in the 40–60 HP range that the LC1D95M7 covers. The -5°C to +60°C operating temperature range accommodates both indoor mechanical rooms and outdoor enclosures in temperate climates.

OEM machine builders integrating the LC1D95M7 into packaged motor starter cabinets benefit from UL 508 and CSA C22.2 No. 14 certifications, which simplify the UL-listed panel approval process for North American end customers. The DIN rail mounting style and standardized auxiliary contact footprint mean the part fits directly into established panel layouts without dimensional rework.

Conveyor systems requiring straightforward on/off motor switching — no reversing, no speed variation — are a natural fit. The same applies to compressor motor control in compressed air systems at 460V, where reliable make-and-break switching at the rated current is the only requirement.

Application Typical Deployment
Water / Wastewater Pump Drives 3-phase pump motor 30–60 HP, 460V supply, contactor + LRD33 thermal relay, DIN rail panel
HVAC Fan and Compressor Control Air handling unit or chiller fan motor, 460V 3-phase, simple on/off switching, panel-mount installation
Conveyor Belt Motor Switching Single-direction conveyor motor, 460V or 230V, no reversing requirement, basic PLC feedback via auxiliary NO contact
OEM Packaged Motor Starter Cabinets IEC-compliant starter assembly, UL 508 panel, contactor paired with external overload relay and disconnect
Compressor Motor Control Industrial compressed air system, 460V 3-phase, 50–60 HP motor, frequent start/stop duty cycles
Food and Beverage Processing Lines Mixer or conveyor drive motor, 230V or 460V 3-phase, IEC compliance required, CE and RoHS documentation needed

LC1D95M7 Specifications and Variant Comparison

Parameter Value
Current Rating (AC-3) 95A
Current Rating (AC-1) 125A
Horsepower @ 460V (3-phase) 60 HP
Horsepower @ 230V (3-phase) 30 HP
Coil Voltage 220V AC, 50/60Hz
Main Contact Configuration 3 NO (3-pole, normally open)
Auxiliary Contacts 1 NO + 1 NC (base-mounted)
Insulation Voltage 690V
Operating Temperature -5°C to +60°C
Physical Dimensions (H × W × D) 127mm × 85mm × 130mm

Full technical specifications are available on the product page at LeadTime.ca.

The table below compares the LC1D95M7 against closely related TeSys Deca variants and equivalent-class contactors from other manufacturers to help you confirm you are selecting the correctly sized part.

Model Current Rating HP @ 460V Coil Voltage Main Contacts Auxiliary Best For
LC1D95M7 95A 60 HP 220V AC 3 NO 1 NO + 1 NC Standard 220V control, 30–60 HP motors
LC1D150M7 150A 100 HP 220V AC 3 NO 1 NO + 1 NC Larger motors, 80–100 HP range
LC1D63M7 63A 40 HP 220V AC 3 NO 1 NO + 1 NC Smaller motors, 15–40 HP, cost-sensitive applications
ABB A16 (equivalent class) 95A 60 HP 220V AC 3 NO 1 NO + 1 NC Direct alternative where ABB ecosystem is preferred
Siemens 3RT2035 95A 60 HP 220V AC 3 NO 1 NO + 1 NC Siemens-standardized installations
Eaton DIL M32 95A 60 HP 220V AC 3 NO 1 NO + 1 NC Eaton ecosystem preference

If your motor exceeds 60 HP at 460V or your current draw exceeds 95A at AC-3 duty, the LC1D150M7 is the correct next step — check current availability and pricing at LeadTime.ca or contact us to confirm the right model for your load.

Expert Verdict: Is the LC1D95M7 the Right Contactor for Your Project?

The Schneider Electric LC1D95M7 delivers exactly what it is designed to deliver: reliable, IEC-standard 3-phase motor switching for small-to-medium induction drives in conventional panel control environments. The 95A AC-3 rating and dual horsepower range — 30 HP at 230V and 60 HP at 460V — covers a wide sweep of retrofit and new-build motor control applications without over-specifying or driving unnecessary cost. Its UL 508, CSA C22.2 No. 14, and IEC 60947-4-1 certifications make it a low-friction choice for panels that need to pass North American or European compliance checks. Plant electricians, OEM integrators, and maintenance teams standardized on Schneider Electric components will find the LC1D95M7 a proven, no-surprises workhorse for pump, fan, conveyor, and compressor drives where 220V AC panel supply and single-direction switching are the operating conditions.

The limits are real and worth stating plainly. The LC1D95M7 is not suitable for facilities running 24V DC, 110V AC, or 380V AC control systems — those applications require a different coil variant such as the LC1D95K7 for 24V DC. It is not appropriate for forward-reverse motor control without a dedicated reversing contactor pair or reversible starter. It provides no variable speed, no soft-start ramp, and no integrated diagnostics — applications requiring any of those functions belong with a soft starter or VFD. And it offers no built-in overload protection whatsoever: pairing it with the LRD33 thermal overload relay or an equivalent soft starter is not optional, it is a design requirement that protects the motor from thermal damage.

From a procurement standpoint, the LC1D95M7 is a widely stocked component with typical in-stock lead times of 1–3 business days through major distributors. Ordering through a specialist industrial automation distributor rather than a generic channel adds meaningful value at this decision point: coil voltage and horsepower rating can be verified against your motor nameplate before the order is placed, preventing the most common and costly ordering error in contactor procurement. Ensuring the external overload relay is included in the same purchase order is the kind of application check that separates a specialist supplier from a catalogue vendor. View the LC1D95M7 product page at LeadTime.ca for current pricing and availability — we ship worldwide.

For volume pricing, lead time confirmation ahead of a build schedule, or application guidance on pairing this contactor with the correct overload relay, contact the LeadTime.ca team directly — we ship worldwide.

What Engineers Need to Know Before Ordering the LC1D95M7

Because the LC1D95M7 is a mature, widely deployed component, detailed troubleshooting discussions specific to this model are sparse in public engineering forums. What does appear consistently in the broader IEC contactor and TeSys D family discussion is a set of recurring specification errors that show up at the ordering stage — and that cost time and money when they arrive at the job site undetected.

The most persistent issue is coil voltage mismatch. Buyers working across multi-site operations or dealing with inherited panel designs sometimes assume a "standard" contactor coil will match their control supply. The LC1D95M7 is fixed at 220V AC 50/60Hz. A panel running 24V DC logic or 110V AC control voltage cannot power this coil. The fix is straightforward — verify the control voltage on the panel door label or electrical schematic before placing the order — but it requires a deliberate check that is easy to skip under time pressure. Schneider Electric's TeSys D family offers the same physical form factor with different coil voltages, so the correct variant is available; the buyer simply has to specify it correctly from the start.

The second recurrent gap is the omission of overload protection. Engineers familiar with IEC motor control design know that a contactor and an overload relay are two separate line items on the bill of materials. But in retrofit projects, in procurement handoffs, and in time-pressed panel builds, the overload relay gets dropped. The result is a motor that runs without thermal protection until it fails. Pairing the LC1D95M7 with the LRD33 external thermal overload relay — or specifying a soft starter in its place — closes that gap completely. When there is any uncertainty about which protection device matches the motor FLA, a specialist distributor's application team can confirm the pairing before the order is placed, which is exactly the kind of pre-order verification that prevents field failures.

Wiring and Installation Overview

The LC1D95M7 mounts on a standard 35mm DIN rail or directly on a panel backplate. The following points cover the key requirements engineers and technicians need to verify before installation. For full wiring procedures and terminal torque specifications, refer to Schneider Electric's official installation documentation supplied with the unit.

  • Incoming 3-phase supply connects to L1, L2, L3 screw-clamp main terminals; motor leads connect to T1, T2, T3 output terminals — verify phase rotation against motor nameplate direction requirement before energizing
  • The 220V AC coil terminals must be connected to a fused or breaker-protected control circuit; verify that the control supply is 220V AC at 50Hz or 60Hz before making any coil connections
  • The NO auxiliary contact closes when the coil is energized and is typically wired to a PLC digital input for motor-running status feedback; the NC auxiliary contact opens on coil energization and is commonly used for interlock or stop-circuit logic
  • External overload relay (such as the LRD33) must be wired in series in the motor circuit between contactor output terminals and motor terminals — this is not optional and is not built into the contactor
  • Confirm ambient temperature at the installation location does not exceed 60°C and that panel ventilation is adequate; the operating temperature range is -5°C to +60°C

Overload Protection Options to Pair With the LC1D95M7

Selecting the right overload protection to complement the LC1D95M7 depends on the motor's start frequency, the control system's diagnostic requirements, and budget. The three principal options are summarized in the table below.

Protection Method Cost Inrush Reduction Integration Diagnostics Best Use Case
External Thermal Relay (LRD33) Low None Simple start/stop Basic Cost-sensitive applications, legacy panel retrofits
Soft Starter (Schneider ATS48) Medium Yes (smooth ramp) Advanced PLC/SCADA Good Reduced mechanical wear, smoother motor starts
VFD (Altivar series) High Yes (full control) Full SCADA Excellent Variable speed required, energy optimization priority

Wrong-Part Prevention Checklist

Before placing your order for the Schneider Electric LC1D95M7, work through each item on this checklist. These are the six checks that prevent the most common and costly mis-orders for this model.

  1. Verify coil voltage: LC1D95M7 is 220V AC 50/60Hz ONLY — do not order if panel control voltage is 24V DC, 110V AC, or 380V AC
  2. Check motor horsepower: Confirm motor nameplate HP and supply voltage (230V, 460V, or 575V) — LC1D95M7 handles 30 HP @ 230V or 60 HP @ 460V; larger motors require LC1D150M7 or higher
  3. Confirm auxiliary contact requirement: 1 NO + 1 NC is standard; if more signaling contacts needed, verify LADN auxiliary contact blocks can stack (mentioned as available)
  4. Verify mounting: DIN rail / panel mount only — this model cannot mount on wall or motor directly
  5. Check protection requirement: LC1D95M7 is a contactor ONLY — does NOT include overload relay; external LRD33 thermal relay or soft starter required for motor overload protection
  6. Confirm non-reversing operation: This model is single-direction only; reversing applications require a contactor pair or dedicated reversing starter

If any item on this checklist raises a question about your specific application, contact the LeadTime.ca team before ordering — our application team can verify the correct part number against your motor nameplate and panel specs.

Frequently Asked Questions

Does the LC1D95M7 include overload protection, or do I need to add it separately?

The LC1D95M7 is a contactor only — it performs no thermal monitoring, current sensing, or overload trip function. An external overload relay such as the LRD33 thermal relay must be added in series in the motor circuit, or a soft starter must be used in place of a contactor-only arrangement. Omitting overload protection leaves the motor without thermal defense and is a design error regardless of the contactor model.

My panel runs 24V DC control logic. Can I use the LC1D95M7?

No. The LC1D95M7 coil is rated 220V AC 50/60Hz exclusively and cannot operate on a 24V DC supply. The TeSys D family includes the same physical frame with different coil voltage options — for 24V DC control, the LC1D95K7 is the correct variant to specify. Verify your control voltage against the coil designation before placing any order.

What is the maximum motor HP the LC1D95M7 can safely handle at 460V?

The LC1D95M7 is rated 60 HP at 460V 3-phase and 30 HP at 230V 3-phase. For motors above 60 HP at 460V, the LC1D150M7 — rated at 150A and 100 HP — is the correct next model. Always confirm the motor nameplate HP and supply voltage before finalizing the contactor selection; the ampere rating alone is not sufficient to confirm compatibility.

Is the LC1D95M7 suitable for forward-reverse motor control?

No. The LC1D95M7 is a non-reversing contactor — it switches the motor in one direction only. Forward-reverse motor control requires either a mechanically and electrically interlocked contactor pair or a dedicated reversible starter. Attempting to use a single non-reversing contactor for reversing duty is an incorrect application and a safety risk.

Can I add more auxiliary contacts to the LC1D95M7 if my control circuit needs additional feedback signals?

Yes. The base unit provides 1 NO and 1 NC auxiliary contact. If your control logic requires additional signaling or interlock contacts, LADN auxiliary contact blocks are available as stackable accessories for the TeSys D family. Verify the specific LADN block designation against your signaling requirement before ordering the expansion blocks.

Is the LC1D95M7 certified for use in North American UL-listed panels?

Yes. The LC1D95M7 carries UL 508 and CSA C22.2 No. 14 certifications in addition to EN 60947-4-1 and IEC 60947-4-1, covering both North American and European compliance requirements. It is also RoHS, WEEE, and REACH compliant, which satisfies documentation requirements for CE-marked machine assemblies and environmentally regulated procurement processes.

Why Order From LeadTime.ca

  • LeadTime.ca stocks and sources industrial automation components including the Schneider Electric LC1D95M7 and ships worldwide — not limited to any single country or region
  • Application verification before the order is placed: our team can confirm coil voltage, horsepower rating, and overload relay pairing against your motor nameplate to prevent mis-orders
  • Volume pricing and project quotes available on request — contact us directly for multi-unit builds or scheduled procurement
  • Hard-to-find and short-lead-time parts sourced through established distributor relationships across global supply chains

At-a-Glance Summary

  • Schneider Electric LC1D95M7 is a 3-pole, non-reversing IEC AC contactor rated 95A at AC-3 duty and 125A at AC-1 duty
  • Horsepower ratings: 60 HP at 460V 3-phase, 30 HP at 230V 3-phase
  • Coil voltage: 220V AC 50/60Hz only — not compatible with 24V DC, 110V AC, or 380V AC control supplies
  • Auxiliary contacts: 1 NO + 1 NC base-mounted; LADN expansion blocks available for additional signaling requirements
  • Physical dimensions: 127mm × 85mm × 130mm; mounts on 35mm DIN rail or panel — not wall or motor direct mount
  • Operating temperature: -5°C to +60°C; insulation voltage: 690V; switching capacity: 45 kW
  • No built-in overload protection — external LRD33 thermal relay or soft starter is required for motor protection
  • Certifications: UL 508, CSA C22.2 No. 14, EN 60947-4-1, IEC 60947-4-1, RoHS, WEEE, REACH
  • Typical in-stock lead time: 1–3 business days; 2–4 weeks if backordered — verify current availability before committing to a build schedule
  • Pricing is available on the product page — contact LeadTime.ca for current pricing and volume quotes
