Schneider LC1D65AM7 — 65A TeSys D Contactor Buyer's Guide

By Abdullah Zahid
14 min read

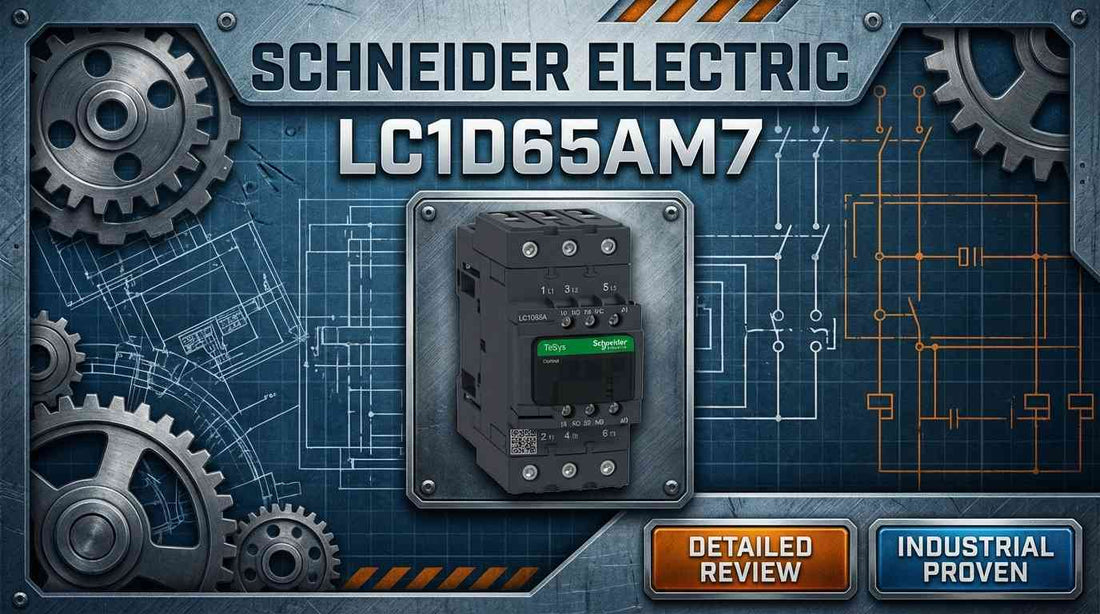

Schneider Electric LC1D65AM7 TeSys D 65A 3-pole IEC motor contactor for 40 HP at 480V industrial applications

Schneider LC1D65AM7 IEC Contactor, TeSys Deca, Nonreversing, 65A, 40HP at 480VAC, 3-Phase 3 NO, 220VAC 50-60Hz Coil — Complete Specifications and Buying Guide

If you have a part number in hand and a 40 HP motor to control at 480V AC with 220V AC control power, the Schneider LC1D65AM7 is almost certainly the contactor on your bill of materials. This 3-pole IEC direct-on-line contactor handles 65 amps of inductive motor load, carries a 220V AC 50/60Hz coil for seamless integration with standard North American control circuits, and arrives from a product family that facility electricians and system integrators have been specifying for decades. The remaining question before you order is straightforward: confirm coil voltage, confirm load current, confirm reversing or nonreversing duty — then proceed with confidence.

If you have already confirmed this is the right part, check current pricing and availability for the LC1D65AM7 at LeadTime.ca — ships worldwide.

Who Should Buy the LC1D65AM7 — and Who Shouldn't

The LC1D65AM7 is the correct choice for engineers and technicians specifying a nonreversing motor contactor for 3-phase loads with the following confirmed constraints:

  • Control circuit voltage is 220V AC 50/60Hz — not 24V DC, 110V AC, or 480V AC
  • Motor full-load current (nameplate FLA) does not exceed 65A at operating voltage
  • Horsepower requirement falls within rated range: 20 HP at 230V, 40 HP at 480V, or 50 HP at 600V
  • Application is simple nonreversing start/stop duty — no forward/reverse motor control required
  • Installation must meet UL 508, CSA, and/or IEC 60947-1/4-1 standards
  • Enclosure provides clearance for 122mm height x 55mm width x 120mm depth mounted footprint

If your application requires forward/reverse control, specify the LC1D65AR instead. If motor current is consistently below 40A, the LC1D40AM7 offers a more cost-effective fit. If load current exceeds 65A or expansion headroom is needed, step up to the LC1D85AM7.

On this page:

What the LC1D65AM7 Actually Does in a Motor Control Circuit

The LC1D65AM7 is a 3-pole IEC motor contactor from Schneider Electric's TeSys D series, rated for direct-on-line switching of inductive motor loads up to 65A at 440V AC. Its primary function is remote automated start/stop control of three-phase motors — replacing manual disconnects or expensive soft-starter installations in standard motor control applications. When the 220V AC coil receives its control signal, all three main poles close simultaneously, connecting the motor to line power. When the coil de-energizes, the poles open and the motor coasts to a stop.

The base configuration ships with three normally-open main contact poles and one 1NO + 1NC auxiliary contact pair for status monitoring and interlock signaling. Switching capacity is rated at 30 kW under AC-3 inductive duty per IEC 60947-4-1 — the industry-standard duty classification for squirrel-cage induction motor starts and stops. The contactor achieves a mechanical life rating of 16,000,000 operating cycles and supports a maximum switching rate of 3,600 cycles per hour, making it suitable for both standard cycling and moderate high-frequency control applications.

The open-frame design supports both DIN rail and surface screw clamp mounting. Terminal type is screw clamp with IP 2X finger-safe protection, accepting wire gauge from 0.5 to 4 mm² per IEC 60947-1. The coil voltage tolerance is +10% to -15% per IEC 60947-1, which means the acceptable operating range for the 220V AC nominal coil runs from 187V to 242V AC — sufficient margin to handle typical control circuit voltage variation without nuisance dropout.

Typical System Architecture for the LC1D65AM7

The LC1D65AM7 sits between the control logic layer and the motor power circuit, acting as the switching interface that translates a low-energy 220V AC control signal into a controlled 65A motor switching event.

  • Three-phase supply (230V, 480V, or 600V AC) feeds upstream motor branch circuit protection (motor circuit protector or fused disconnect)
  • Line side feeds into contactor main terminals L1, L2, L3 — the contactor holds this path open until commanded to close
  • LC1D65AM7 main contacts close on coil energization, connecting the motor to line power through load terminals T1, T2, T3
  • Control circuit (220V AC) runs through stop/start push-button station or PLC relay output to coil terminals A1 and A2, with a thermal overload relay wired in series on the load side for motor protection
  • Auxiliary contacts (1NO + 1NC) feed back contactor status to PLC input modules or indicator light circuits for remote monitoring

Where the LC1D65AM7 Gets Specified: Industries and Equipment

Pump station automation is one of the most common deployment scenarios for the LC1D65AM7. Municipal water distribution systems, wastewater transfer stations, and industrial process cooling loops all rely on remote start/stop of 40 HP centrifugal or positive displacement pumps — exactly what the 65A nonreversing contactor handles at 480V.

Compressed air systems in manufacturing plants routinely use this contactor for automated on/off cycling of rotary screw and reciprocating piston compressors. The 3,600 cycles per hour switching capability and 16,000,000 mechanical life rating align well with the cycling demands of demand-controlled compressor automation.

Conveyor system motor control on production lines uses the LC1D65AM7 for integrated start/stop with PLC or push-button operator control. HVAC engineers specify it for large commercial rooftop packaged units and ground-source heat pump chiller loops where 40 HP motors at 480V are standard. Mining operations apply it to pump station motors, ventilation fan drives, and ore conveyor systems where IEC-compliant contactors are required and site standardization on the TeSys D family is common.

Application Typical Deployment
Pump station automation Remote start/stop of 40 HP centrifugal pump at 480V, PLC-controlled, 220V AC control panel
Air compressor motor control Automated cycling of rotary screw compressor motor, demand-based on/off control
Conveyor system motor Production line start/stop integration via PLC relay output, nonreversing duty
HVAC chiller loop Large commercial rooftop unit or ground-source heat pump motor switching at 480V
Industrial production equipment Spindle motor, hydraulic pump drive, or material handling system motor control
Mining and utilities Ventilation fan motor, pump station, ore conveyor IEC-compliant motor starter

Purchase-Decision Specifications

Specification Value
Rated operational current (AC-3 at 440V) 65A
Switching capacity 30 kW at 400V (AC-3, IEC 60947-4-1)
Horsepower equivalence 20 HP @ 230V / 40 HP @ 480V / 50 HP @ 600V
Coil voltage 220V AC 50/60Hz
Coil voltage tolerance +10% / -15% (187–242V AC acceptable)
Main contact configuration 3 NO (three normally-open poles)
Auxiliary contacts (base) 1NO + 1NC
Insulation voltage 690V AC maximum
Mechanical life 16,000,000 operating cycles
Dimensions (H x W x D) 122mm x 55mm x 120mm

Full technical specifications are available on the product page at LeadTime.ca.

LC1D65AM7 vs. LC1D40AM7 vs. LC1D85AM7 — Which Contactor Do You Need?

Model Rated Current HP at 480V Coil Voltage Duty Type Best For
LC1D40AM7 40A Up to 25–30 HP 220V AC 50/60Hz Nonreversing Motor FLA under 40A, budget-sensitive projects
LC1D65AM7 65A 40 HP @ 480V 220V AC 50/60Hz Nonreversing Standard 40 HP North American motor control at 480V
LC1D85AM7 80A 45–60 HP at 480V 220V AC 50/60Hz Nonreversing Motor FLA 65–80A, heavy industrial or future expansion
LC1D65AR 65A 40 HP @ 480V Dual coil (forward/reverse) Reversing Forward/reverse motor control: cranes, hoists, reversible conveyors

If your motor nameplate FLA is approaching or above 65A, or if you anticipate load growth, the LC1D85AM7 provides the necessary headroom — check current availability and pricing at LeadTime.ca and contact the team to confirm the correct variant for your load.

Expert Verdict: Is the LC1D65AM7 Worth Ordering?

The LC1D65AM7 occupies one of the most well-proven positions in industrial motor control: it is the standard specification for 40 HP nonreversing DOL motor starters at 480V in North American facilities. The 65A AC-3 rating, 30 kW switching capacity, 220V AC 50/60Hz coil, and dual UL/CSA certification make it a direct fit for the majority of pump, compressor, conveyor, and HVAC motor control applications where engineers are working with standard North American three-phase infrastructure. The TeSys D family's 16,000,000-cycle mechanical life and 3,600 cycles/hour switching rate back up the long-term reliability reputation this product family carries in manufacturing and utilities environments. If your motor FLA is between 40A and 65A at 480V, your control circuit runs at 220V AC, and your application is nonreversing duty, this is a low-risk, well-validated choice.

Where the LC1D65AM7 has genuine limits: it does not provide motor overload protection on its own — a thermal overload relay must be added to the starter assembly to protect the motor from sustained overcurrent. It is also strictly nonreversing; applications requiring forward/reverse control must use the LC1D65AR. Buyers with 24V DC PLC outputs as the only available control source cannot use this coil variant and should specify an LC1D model with the appropriate DC coil instead. And if your motor FLA consistently sits below 40A, the LC1D40AM7 is the more cost-efficient option — there is no benefit to oversizing a contactor's current rating when the application doesn't need it.

From a procurement standpoint, the LC1D65AM7 is a well-stocked SKU across North American distribution channels with typical lead times of 2–5 business days from regional hubs. Buying through an authorized specialist distributor matters for two reasons: first, you get accurate coil voltage variant confirmation before the order ships — not after — and second, volume pricing for multi-unit orders requires direct engagement with a distributor who knows the product line. Check current pricing and stock status for the LC1D65AM7 at LeadTime.ca — the team ships worldwide and can confirm availability before you commit to a build schedule.

For volume pricing or to confirm lead time before committing to a build, contact the LeadTime.ca team directly — we ship worldwide.

What Engineers Need to Know Before Ordering the LC1D65AM7

Community feedback specifically for the LC1D65AM7 is limited in public forums, but the broader TeSys D family generates consistent discussion in industrial automation communities — and the reliability signal is clear. Technicians in manufacturing and utilities environments routinely report TeSys D contactors running continuously for extended periods without replacement, and the closing action of the series is praised for being smooth and quiet compared to older contactor generations. The 220V AC coil variant specifically draws positive commentary from North American system integrators, who note that it works directly off existing control transformers without requiring adapters or voltage conditioning — a practical advantage when retrofitting or expanding panels already designed around 220V AC control power.

The most consistent mistake engineers and technicians report in distributor Q&A sections and automation forums is coil voltage selection error. Multiple buyers across platforms have documented ordering the wrong coil variant — receiving a 24V DC coil when their panel runs 220V AC, or vice versa — and absorbing restocking fees and project delays as a result. The suffix in the catalog number is the coil identifier: the M7 in LC1D65AM7 designates the 220V AC 50/60Hz coil. A different suffix means a different coil voltage, and the contactors are not field-recoilable. Verify your control circuit voltage with a multimeter at the control relay or PLC output terminal before placing the order, not after the package arrives.

A second recurring caution from experienced practitioners: the contactor provides no motor overload protection. The LC1D65AM7 switches the motor on and off — it does not monitor or limit sustained overcurrent. Pairing it with a thermal overload relay sized to the motor nameplate FLA is not optional in a compliant installation; it is required under both NEC and CEC motor branch circuit protection rules and is critical to preventing motor winding damage from locked-rotor or overload conditions. When community is sparse and the spec sheet doesn't volunteer this context, specialist distributor guidance fills the gap — and it's the kind of pre-order conversation that prevents expensive post-installation corrections.

Wiring and Installation: What to Verify Before You Start

  • Confirm three-phase supply lines L1, L2, L3 connect to upper main terminals and motor leads connect to lower terminals T1, T2, T3; all three poles must close simultaneously — a pole that fails to close indicates a defective unit
  • Coil terminals A1 (hot/phase) and A2 (neutral/return) accept 220V AC 50/60Hz control signal; verify measured control voltage falls within the 187–242V AC tolerance band before energizing
  • Standard control circuit architecture runs 220V AC source through a slow-blow fuse, normally-closed stop button, and normally-open start button in series to coil terminals A1/A2 — this configuration ensures stop button always overrides start
  • Wire gauge for main power circuit should be selected for 65A continuous load in the installation's ambient temperature; use copper conductors and verify terminal tightening torque against the manufacturer installation manual for M4 screw terminals
  • Auxiliary contact wiring (18 AWG typical for low-current signaling circuits) connects status NO/NC contacts to PLC input modules or indicator circuits; do not exceed the auxiliary contact's rated current in monitoring circuits

Engineers requiring complete wiring diagrams and step-by-step installation procedures should refer to the Schneider Electric TeSys D installation manual available from the manufacturer's documentation portal.

Auxiliary Contact Expansion and Compatible Accessories

The LC1D65AM7 ships with a base auxiliary contact block providing 1NO + 1NC contacts. The TeSys D modular architecture supports optional add-on contact blocks that expand signaling capability without requiring external relay modules:

  • 2-pole auxiliary contact blocks: Add additional NO or NC contacts for multi-point status monitoring or interlock logic in complex control circuits
  • 4-pole auxiliary contact blocks: Provide expanded feedback signaling capacity for applications requiring multiple independent status outputs from a single contactor
  • Thermal overload relays: Must be specified separately and sized to motor nameplate FLA for compliant motor protection — not included with the contactor
  • Mechanical interlock accessories: Required when two LC1D contactors are used in a reversing starter assembly built from individual nonreversing units

When ordering, specify the auxiliary contact block part numbers at the same time as the contactor to avoid a second order and second lead time for signaling components.

Wrong-Part Prevention Checklist Before You Order

Before submitting your order for the LC1D65AM7, verify each item on this checklist. These are the exact conditions that cause wrong-part returns and project delays:

  1. Confirm control circuit voltage is 220V AC 50/60Hz (not 24V DC, 110V AC, or 480V AC) by measuring with multimeter at control relay or PLC output terminal
  2. Verify motor full-load current (from nameplate) does not exceed 65A at operating voltage; use NEC Table 430-250 (USA) or CEC Table D16 (Canada) if nameplate unavailable
  3. Check horsepower requirement: 20 HP @ 230V, 40 HP @ 480V, 50 HP @ 600V — confirm application voltage and HP fall within this range
  4. Confirm application is non-reversing duty (simple start/stop, not forward/reverse); if reversing required, order LC1D65AR instead
  5. Verify auxiliary contact requirement: this model includes 1NO + 1NC base contacts; if additional monitoring needed, specify contact kit part numbers when ordering
  6. Confirm mounting space: 122mm height x 55mm width x 120mm depth fits DIN rail or panel surface mounting available in enclosure
  7. Confirm standards compliance meets facility code: verify UL 508, CSA, IEC 60947-1/4-1 markings are required and present on product

If any item on this checklist raises a question before you order, contact the LeadTime.ca team to confirm the correct variant — getting it right before the order ships is faster and cheaper than a return.

Frequently Asked Questions

Does the LC1D65AM7 include motor overload protection, or do I need a separate overload relay?

The LC1D65AM7 is a contactor only — it provides no motor overload protection. A separate thermal overload relay sized to the motor's nameplate full-load amperage is required for NEC/CEC-compliant motor branch circuit protection. This is a mandatory addition to the starter assembly, not optional equipment.

My control circuit runs 24V DC from a PLC output. Can I use the LC1D65AM7?

No. The LC1D65AM7 has a 220V AC 50/60Hz coil (designated by the M7 suffix). A 24V DC control circuit requires a different coil variant from the LC1D product family. Order the appropriate LC1D model with a 24V DC coil suffix instead. Applying 24V DC to a 220V AC coil will result in failure to energize; applying 220V AC to a 24V DC coil will destroy the coil instantly.

What is the acceptable control voltage range for the 220V AC coil, and will normal panel voltage fluctuation cause nuisance dropout?

Per IEC 60947-1, the LC1D65AM7 coil operates reliably within +10% to -15% of its 220V AC nominal rating, giving an acceptable range of 187V to 242V AC. Standard North American industrial panel voltage variation is well within this band, making nuisance dropout under normal conditions unlikely. Measure actual control circuit voltage at the coil terminals if dropout is suspected.

What is the difference between the LC1D65AM7 and the LC1D65AR, and how do I know which one I need?

The LC1D65AM7 is a nonreversing contactor — it provides simple on/off start/stop control for a motor running in one direction only. The LC1D65AR is a reversing contactor with dual coil windings for forward and reverse motor control. If your application requires the motor to run in both directions (cranes, hoists, reversible conveyors), specify the LC1D65AR. If the motor only needs to start and stop in one direction, the LC1D65AM7 is correct.

Can I add more auxiliary contacts to the base LC1D65AM7 configuration, and what options are available?

Yes. The TeSys D modular architecture supports optional 2-pole and 4-pole auxiliary contact blocks that mount directly to the contactor without external relay modules. The base unit includes 1NO + 1NC. If your PLC feedback or interlock logic requires additional status contacts, specify the appropriate auxiliary contact block part numbers when placing your order to avoid a second procurement cycle.

What certifications does the LC1D65AM7 carry, and is it acceptable for both Canadian and US installations?

The LC1D65AM7 carries UL 508 listing and CSA certification, making it compliant for use under both NEC (USA) and CEC (Canada) codes. It also carries IEC 60947-1 and IEC 60947-4-1 compliance and CE marking for international industrial sites. These certifications eliminate code review delays and reduce the risk of inspection rejection on both sides of the border.

Why Order the LC1D65AM7 Through LeadTime.ca

  • Global shipping — the LC1D65AM7 is available for worldwide delivery, not restricted to a single region
  • Authorized distribution with product expertise — coil voltage variant confirmation before the order ships, not after
  • Volume pricing available for multi-unit orders — contact the team directly for project quantities
  • Hard-to-find and fast-moving industrial automation components sourced from verified supply channels
  • Responsive team for lead time confirmation before you commit to a build or maintenance schedule

At-a-Glance Summary

  • Model: LC1D65AM7 — IEC motor contactor, TeSys D series, Schneider Electric
  • Rated current: 65A AC-3 at 440V; switching capacity 30 kW at 400V per IEC 60947-4-1
  • Horsepower: 20 HP at 230V / 40 HP at 480V / 50 HP at 600V three-phase
  • Coil: 220V AC 50/60Hz, tolerance +10% / -15% (187–242V AC acceptable range)
  • Contact configuration: 3 NO main poles + 1NO + 1NC auxiliary contacts (base-mounted, expandable)
  • Mechanical life: 16,000,000 operating cycles; maximum switching rate 3,600 cycles/hour
  • Dimensions: 122mm H x 55mm W x 120mm D; DIN rail or surface mountable
  • Certifications: UL 508, CSA, IEC 60947-1/4-1, CE — compliant for NEC and CEC installations
  • Duty type: Nonreversing only — specify LC1D65AR for forward/reverse applications
  • Motor overload protection: Not included — thermal overload relay must be specified separately
