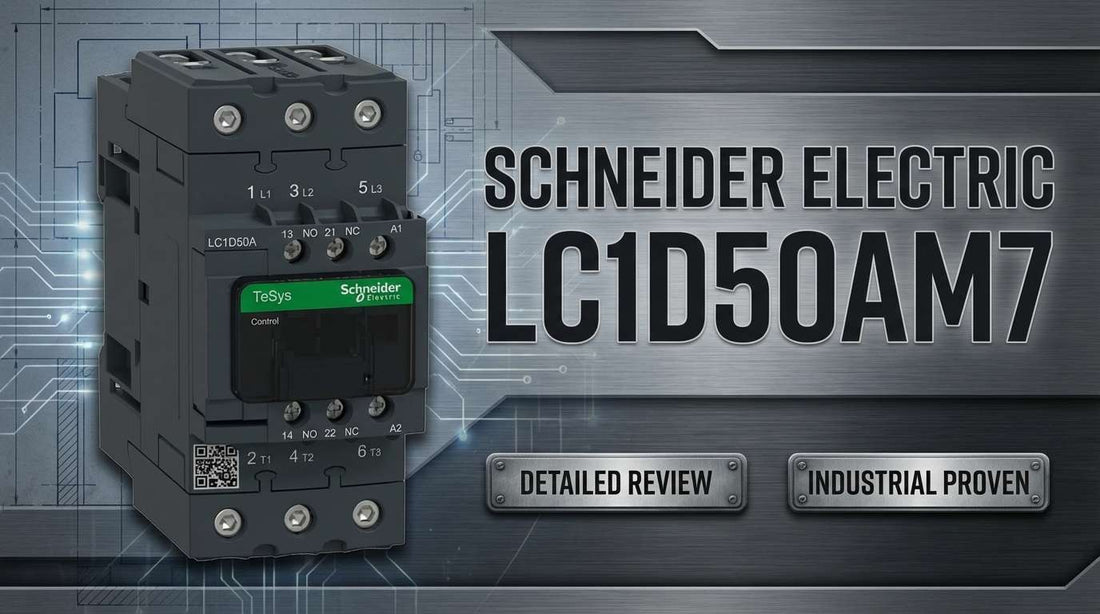

Schneider Electric LC1D50AM7 TeSys D 3-pole 50A non-reversing industrial motor contactor front view

Schneider LC1D50AM7 TeSys D Non-Reversing 3-Pole Contactor: Complete Specifications, Pricing and Selection Guide

Controls engineers and plant electricians searching for the Schneider LC1D50AM7 are typically at one of two points: replacing a failed unit in an existing TeSys D motor control center, or specifying a new panel build where the 50A, 220V AC coil configuration matches the facility's established control infrastructure. Either way, the decision comes down to three hard numbers — 50 amps, 220V AC, and 40 horsepower at 460V — and whether this non-reversing, 3-pole contactor fits the motor and control circuit on the drawing. The LC1D50AM7 carries full IEC, UL, CSA, and CE certification, rated to 100kA SCCR at 480V AC, which means it holds up in demanding North American industrial distribution environments without de-rating.

If you have already confirmed this is the correct part for your application, check current pricing and availability for the LC1D50AM7 at LeadTime.ca — we ship worldwide.

Who Should Buy the LC1D50AM7 — and Who Should Not

This contactor is the right choice when all of the following conditions are true for your application:

  • Your control circuit supply is 220V AC 50/60Hz — the coil operates within a tolerance range of 187V to 242V and is not interchangeable with 110V or 380V systems
  • Motor full-load current (FLC) does not exceed 50A continuously under any operating condition
  • Motor horsepower is within the AC-3 duty ratings: 15 HP at 230V, 40 HP at 460V, or 50 HP at 600V three-phase
  • The application is non-reversing only — motor runs in one direction and requires on/off switching, not forward/reverse control
  • Your installation environment stays within -5°C to +55°C ambient and does not involve corrosive gases or excessive moisture
  • Your system requires no more than one auxiliary NO and one auxiliary NC contact for status monitoring or interlocking — additional pairs require optional auxiliary contact blocks ordered separately

If your motor requires reversing control, order the LC1D50AR7 instead. If motor FLC approaches or exceeds 45A and operational headroom is a concern, the LC1D65AM7 at 65A is the appropriate next step up.

On this page:

What the LC1D50AM7 Actually Does in a Motor Control System

The LC1D50AM7 is a TeSys D non-reversing 3-pole industrial motor contactor. Its function is straightforward: it electrically switches three-phase motor loads on and off in response to a control signal applied to its 220V AC coil. When the coil is energized, the three main normally open contacts close simultaneously, connecting the motor to the power supply. When the coil is de-energized, the contacts open and the motor is disconnected. This replaces manual switching with a compact, electronically actuated element that can be controlled by push buttons, PLCs, or relay logic from a remote location.

The contactor carries three normally open main contacts for phase switching and one auxiliary NO plus one auxiliary NC contact for signaling, status indication, or circuit interlocking. Insulation voltage is rated at 690V per IEC 60947-1, and the impulse withstand voltage is 8kV, which provides protection against transient voltage spikes common in industrial environments. The switching capacity is 22kW under AC-3 duty, the standard rating category for across-the-line induction motor starting and stopping. Critically, this contactor provides no overload protection on its own — a separate thermal overload relay must be externally mounted or added via an optional module for complete motor protection.

With 16,000,000 mechanical durability cycles at rated coil voltage and 30,000,000 cycles under no-load conditions per IEC 60947-4-1, the LC1D50AM7 is built for long-term deployment in high-cycle industrial environments. Its IP 2X finger-safe terminal design reduces the risk of accidental contact with live conductors during maintenance, and the 55mm wide DIN-rail or panel-mount footprint fits standard TeSys D motor starter assemblies without modification.

Where the LC1D50AM7 Sits in a Typical System Architecture

The LC1D50AM7 sits between the branch circuit protection upstream and the motor downstream, receiving its switching command from the control circuit. Here is the typical component chain for a motor starter application:

  • Upstream: Three-phase power distribution panel or MCC bus providing 230V, 460V, or 600V AC to the contactor's main power terminals
  • Branch protection: Fuses or motor circuit protector (MCP) upstream of the contactor for short-circuit fault isolation
  • Control source: PLC digital output, relay logic, or push-button station delivering 220V AC to the contactor coil terminals A1 and A2
  • The LC1D50AM7 closes its three main NO contacts on coil energization, passing three-phase power to the motor via the output terminals
  • Downstream: Thermal overload relay (external, not integrated) mounted in series between the contactor output and the motor terminal box, providing overload protection

Typical Applications and Deployment Scenarios

The LC1D50AM7 is most frequently deployed as a replacement contactor in existing TeSys D motor control centers, where the standardized 55mm form factor and 220V AC coil allow direct drop-in substitution without panel modification. Maintenance teams stocking this unit as a standard spare benefit from the coil voltage consistency that eliminates cross-compatibility errors across the motor control lineup.

New panel builds for manufacturing facility upgrades rely on this contactor where three-phase loads in the 15 to 40 horsepower range need IEC and UL/CSA dual-certified switching elements. OEM equipment designers specifying compact motor control for pumping systems, HVAC compressors, conveyor drives, and material handling equipment frequently select TeSys D contactors for their combination of certified compliance and predictable footprint dimensions.

In food processing, textile, and plastics molding environments, where equipment is cycled frequently throughout the production day, the 16,000,000 mechanical durability cycle rating provides a quantifiable basis for maintenance interval planning. Water treatment facilities and mining operations running high-duty pump motors at 460V typically find the 40 HP rating sufficient for primary pump drives in this class.

Application Typical Deployment
Motor control center replacement part Direct swap into existing TeSys D starter footprint; 220V AC coil matches panel control transformer
Conveyor drive control panel (new build) 3-pole non-reversing switching for single-direction belt conveyor motors up to 40 HP at 460V
Pumping station motor starter On/off control of 3-phase pump motor with auxiliary NO contact wired to SCADA running status indicator
HVAC compressor control IEC/UL-certified contactor switching compressor motor with external overload relay for protection
OEM equipment build Panel builder specifies LC1D50AM7 for IEC compliance and standardized spare parts across equipment fleet
Emergency replacement stock Stocked unit pulled for same-day swap during unplanned motor starter failure, minimizing downtime

Key Specifications and How the LC1D50AM7 Compares to Adjacent Models

Parameter Value
Motor Rating (AC-3 duty) 15 HP @ 230V AC / 40 HP @ 460V AC / 50 HP @ 600V AC
Continuous Current Rating 50A
Coil Voltage 220V AC 50/60Hz
Coil Operating Range 187V to 242V AC (tolerance: +10% / -15%)
Contact Configuration 3 poles, 3 NO main contacts + 1 auxiliary NO + 1 auxiliary NC
Insulation Voltage 690V (UL/CSA per IEC 60947-1)
Impulse Withstand Voltage 8kV
SCCR 100kA at 480V AC (UL/CSA)
Mechanical Durability 16,000,000 cycles at rated voltage; 30,000,000 cycles no-load
Operating Temperature -5°C to +55°C ambient

Full technical specifications are available on the product page at LeadTime.ca.

LC1D50AM7 vs. Adjacent TeSys D Models: Which Amperage Is Right?

Model Current Rating HP @ 460V AC Coil Voltage (This Variant) Best For
LC1D40AM7 40A Up to 30 HP 220V AC 50/60Hz Motors with FLC comfortably below 40A; smaller drive applications
LC1D50AM7 50A 40 HP 220V AC 50/60Hz Standard 40 HP motors at 460V; direct TeSys D replacement applications
LC1D65AM7 65A Higher horsepower ceiling 220V AC 50/60Hz Motors where FLC approaches the upper range of 50A or exceeds it under any condition

If motor FLC is approaching the upper limit of the 50A rating, the LC1D65AM7 provides the operational headroom that eliminates nuisance trips under load transients — check current availability and pricing for the full LC1D range at LeadTime.ca.

Expert Verdict: Is the LC1D50AM7 Worth Buying?

The LC1D50AM7 is the correct contactor for facilities running three-phase motor loads in the 15 to 40 horsepower range where the control infrastructure is already built around 220V AC. Its 16,000,000-cycle mechanical durability rating at rated coil voltage and 100kA SCCR at 480V AC mean it is not a marginal product — it is a full-specification industrial contactor that meets the demands of high-cycle manufacturing, pumping, and material handling environments without compromise. The standardized 55mm TeSys D footprint makes it a direct replacement in existing motor starters, which is exactly why plant maintenance teams and panel builders favor it as a stocked spare. IEC 60947-1, IEC 60947-4-1, UL, CSA, and CE certifications across the same device removes the compliance verification burden for both North American and international OEM applications.

Where this contactor is not the right answer is equally clear. If the motor requires forward and reverse operation, the LC1D50AM7 is the wrong model — order the LC1D50AR7 reversing variant and do not attempt to adapt a non-reversing unit. If control voltage at the site is 110V or 380V AC, this model will not function correctly; coil voltage selection is the single most common ordering error in this product family and it cannot be corrected in the field. If motor FLC sits at 45A or above with any load transient risk, move to the LC1D65AM7 rather than operating the 50A unit at its ceiling. And if integrated overload protection is expected — it is not here. A separate thermal overload relay is required for complete motor protection in any code-compliant installation.

From a procurement perspective, the LC1D50AM7 is a genuinely straightforward buy when the specifications are verified correctly. Typical stocking at major distributors supports same-day to 2-day fulfillment for in-stock orders, which matters for emergency breakdown response. Ordering through a specialist industrial distributor rather than a generic channel gives you pre-sale technical verification of coil voltage and amperage against your motor data — the kind of check that prevents the costly re-ordering cycle that comes from a wrong-part shipment. Review current availability and pricing for the LC1D50AM7 at LeadTime.ca before committing to your order quantity.

For volume pricing or to confirm lead time before committing to a build schedule, contact the LeadTime.ca team directly — we ship worldwide.

What Engineers Need to Know Before Ordering the LC1D50AM7

Community feedback specific to the LC1D50AM7 model is sparse in the forums and discussion boards typically used by controls engineers — no Reddit threads, PLCTalk discussions, or distributor Q&A entries surfaced for this specific catalog number during research. That absence is not unusual for a product that performs as expected and rarely generates troubleshooting conversations. What it does mean is that the ordering mistakes and pre-purchase checks that matter most here come directly from technical documentation and distributor experience rather than crowdsourced failure stories.

The TeSys D contactor family is one of the most widely deployed IEC contactor lines in North American industrial facilities. Its prevalence means engineers and purchasing agents ordering the LC1D50AM7 are often working from memory or from a previous successful order — and that familiarity can create blind spots. The three mistakes that trip up otherwise experienced buyers are coil voltage mismatch (ordering a 220V unit for a 110V control panel), reversing versus non-reversing confusion (the suffix difference between -M7 and -R7 is easy to misread under time pressure), and FLC borderline cases where a 45A motor is matched against the 50A contactor without headroom consideration. None of these mistakes are obvious during a rapid procurement cycle, and none of them are correctable after installation without a replacement order.

When community data is thin and the specification stakes are high, the right move is to verify the three critical parameters — coil voltage, motor FLC, and reversing requirement — with a specialist distributor before the order is placed. LeadTime.ca's team works with controls engineers and procurement specialists globally to confirm part suitability against motor and panel data before shipment, which is exactly the kind of pre-sale check that prevents costly ordering errors on a part that looks straightforward until it isn't.

Wiring and Installation Overview for the LC1D50AM7

The following points cover the key requirements and configurations for installing the LC1D50AM7. Engineers requiring complete wiring procedures and terminal torque specifications should refer to the Schneider Electric TeSys D installation manual available from the manufacturer.

  • Coil terminals A1 and A2 accept the 220V AC control supply via screw clamp terminals; flexible wire in the 1 to 2.5 mm² range is the specified conductor size for control circuit connections
  • Main power terminals connect the three-phase supply on the input side and the motor on the output side; the IP 2X finger-safe terminal design must be maintained — verify terminal covers are in place before energizing
  • Auxiliary contact terminals provide one NO pair and one NC pair; the NO contact is typically wired to a running status indicator and the NC contact to a fault alarm or interlock circuit on a separate low-voltage supply
  • If additional auxiliary contact pairs are needed beyond the built-in 1 NO + 1 NC, optional auxiliary contact blocks must be ordered separately and stacked onto the main contactor body — they are not included with the base unit
  • A thermal overload relay must be installed in series between the contactor output and the motor — the LC1D50AM7 provides no overload protection and cannot substitute for a dedicated overload protective device in a code-compliant installation

Wrong-Part Prevention Checklist Before You Order the LC1D50AM7

Run through every item on this checklist against your motor nameplate and panel schematic before placing the order. Each point addresses a confirmed category of ordering error for this product family.

  1. Confirm coil voltage = 220V AC (this model is NOT suitable for 110V, 380V, or 415V systems)
  2. Count motor phases and verify 3-phase motor application (not single-phase)
  3. Check motor FLC (full load current) against 50A rating — motor current must not exceed this continuously
  4. Verify installation environment is rated for -5 to +55°C ambient (no high-temperature or outdoor uninsulated locations)
  5. Confirm auxiliary contact requirement: does system need only status monitoring or interlocking? (This unit has 1 NO + 1 NC; additional pairs require optional auxiliary contact blocks)
  6. Check for reversing requirement — LC1D50AM7 is NON-reversing only (if reversing needed, order LC1D50AR7 instead)
  7. Verify panel/DIN-rail space: 55mm width with side-by-side mounting constraints
  8. Confirm no requirement for integrated motor protection relay (thermal overload relays must be externally mounted or added via optional module)

If any item on this checklist raises a question before you commit to the order, contact the LeadTime.ca team — we can verify the specification against your application before shipment, anywhere in the world.

Frequently Asked Questions

Is the LC1D50AM7 the same as the LC1D50AR7 — can I substitute one for the other?

No. The LC1D50AM7 is a non-reversing contactor with three normally open main contacts for single-direction motor switching. The LC1D50AR7 is the reversing variant with an interlocked contact configuration that allows forward and reverse motor control. The two models are not interchangeable. If your application requires reversing motor control, only the LC1D50AR7 is the correct choice.

My control panel runs 110V AC — can I still use the LC1D50AM7 with a step-up transformer?

The LC1D50AM7 coil is rated for 220V AC 50/60Hz with an operating range of 187V to 242V. While a step-up transformer is technically possible, the correct solution is to order a TeSys D contactor with the coil voltage that matches your control supply. Using a transformer adds cost, complexity, and a potential failure point. Verify the correct coil voltage variant is available from your distributor before designing around a transformer workaround.

Does the LC1D50AM7 include motor overload protection, or do I need a separate relay?

The LC1D50AM7 does not include integrated overload protection. It is a switching device only. A separate thermal overload relay is required for complete motor protection and is mandatory in virtually all code-compliant motor starter installations. The overload relay must be specified and ordered separately and installed in series with the contactor output.

How do I know if my motor's full-load current is within the 50A rating?

Read the motor nameplate FLC value directly and compare it against the 50A contactor rating. The motor FLC must not exceed 50A continuously under any operating condition. If the motor FLC is at or above 45A and the application involves frequent starts, high-inertia loads, or elevated ambient temperatures, the LC1D65AM7 at 65A provides the additional headroom that prevents nuisance trips and premature wear.

What does the 16,000,000 cycle mechanical durability rating mean in practical terms?

Per IEC 60947-4-1, the LC1D50AM7 is rated for 16,000,000 mechanical durability cycles with the coil energized at rated voltage. For typical industrial applications switching at 2 to 5 cycles per minute, this translates to approximately 5 to 10 years of average service life before mechanical wear becomes a consideration. Higher switching frequencies will reduce that interval proportionally, while lower-cycle applications will extend it.

Can I add more auxiliary contacts to the LC1D50AM7 if I need more than 1 NO and 1 NC?

Yes. The built-in auxiliary contact configuration provides one NO and one NC pair. If additional auxiliary contacts are required for more complex interlocking or signaling schemes, optional auxiliary contact blocks are available for the TeSys D family and stack onto the main contactor body. These must be ordered separately — they are not included with the base LC1D50AM7 unit.

Why Order the LC1D50AM7 From LeadTime.ca

  • Global shipping — LeadTime.ca fulfills orders worldwide, not limited to any single region or country
  • Specialist pre-sale support — our team verifies coil voltage, amperage rating, and contact configuration against your application before shipment, catching wrong-part errors before they become costly returns
  • Hard-to-source parts — for non-standard quantities, bulk orders, or regional availability gaps, LeadTime.ca provides sourcing support that generic online channels cannot match
  • Volume pricing available — contact us for pricing on quantities beyond standard single-unit orders

LC1D50AM7 At-a-Glance Summary

  • 3-pole non-reversing TeSys D contactor rated at 50A continuous current with 220V AC 50/60Hz coil
  • Motor ratings under AC-3 duty: 15 HP at 230V, 40 HP at 460V, 50 HP at 600V three-phase
  • Coil operating voltage range: 187V to 242V AC (tolerance +10% / -15%); coil power consumption 220VA at 20°C
  • Contact configuration: 3 NO main contacts + 1 auxiliary NO + 1 auxiliary NC; additional contacts require optional add-on blocks
  • Insulation voltage 690V per IEC 60947-1; impulse withstand 8kV; SCCR 100kA at 480V AC (UL/CSA)
  • Mechanical durability: 16,000,000 cycles at rated voltage (Uc); 30,000,000 cycles no-load per IEC 60947-4-1
  • Physical dimensions: 55mm wide, 122mm tall; DIN rail or panel mount; screw clamp terminals for 1–2.5 mm² flexible wire
  • Certifications: IEC 60947-1, IEC 60947-4-1, EN 60947-1, EN 60947-4-1, VDE 0660, UL, CSA, CE
  • Operating temperature: -5°C to +55°C ambient; no integrated overload protection — external thermal overload relay required
  • Reversing variant: LC1D50AR7; next amperage up: LC1D65AM7; next amperage down: LC1D40AM7
