Schneider Electric LC1D40AM7 — TeSys D 40A Contactor Buying Guide

By Abdullah Zahid
15 min read

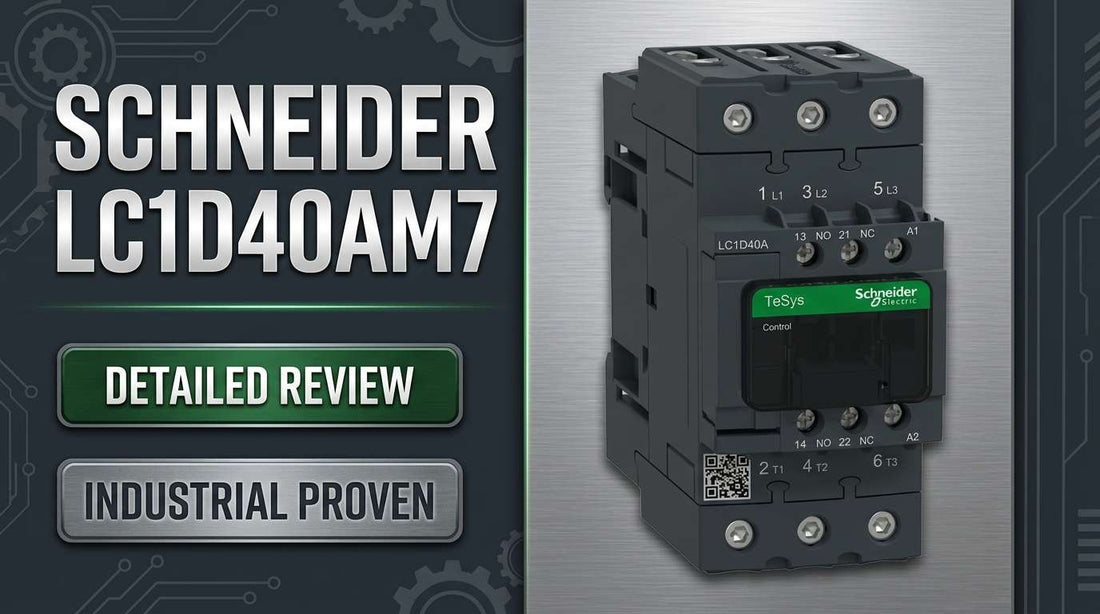

Schneider Electric LC1D40AM7 TeSys D 3-pole 40A IEC power contactor with 220V AC coil for motor starter panels

Schneider Electric LC1D40AM7 TeSys D Contactor, 3P (3 NO), AC-3/AC-3e, up to 400–440 V 40 A, 220 V AC 50/60 Hz Coil, Screw Clamp Terminals — Specs, Price, and Alternatives

Controls engineers and maintenance teams searching for the Schneider Electric LC1D40AM7 are usually at the same decision point: a 40 A three-phase motor or load circuit needs a contactor, and the TeSys D family is already on the panel or the BOM. The LC1D40AM7 is a 3-pole, 3 NO IEC power contactor rated at 40 A AC-3, fitted with a 220 V AC 50/60 Hz coil and screw clamp terminals — a configuration that covers a wide range of pump, fan, conveyor, and HVAC motor starters in standard industrial control panels. The critical question before ordering is always the same: does your control supply match the 220 V AC coil, and does the 40 A AC-3 rating align with your motor's full-load current at its operating voltage?

If you have already confirmed this is the right part, check current pricing and availability at LeadTime.ca — ships worldwide.

Who Should Buy the LC1D40AM7 — and Who Shouldn't

The LC1D40AM7 is the right contactor when all of the following are true for your application:

  • Your motor full-load current and power falls within the 40 A AC-3 rating at your operating voltage (up to 400–440 V)
  • Your control system runs on 220 V AC 50/60 Hz — the coil code "M7" specifies this voltage and it cannot be field-changed
  • Three power poles in a 3 NO configuration are sufficient — no neutral switching pole or 4-pole arrangement is required
  • You are working within the TeSys D / TeSys Deca accessory ecosystem and need compatibility with standard add-on auxiliary contact blocks and overload relays
  • DIN rail or screw mounting with screw clamp terminals fits your panel standard and cabinet layout

If your control supply is 24 V DC, 110 V AC, or any voltage other than 220 V AC, this is the wrong coil variant. Look instead at LC1D40 variants with the appropriate coil suffix, or step up to LC1D50 / LC1D65 if your motor current exceeds the 40 A AC-3 rating.

On this page:

What the LC1D40AM7 Actually Does in a Motor Control Circuit

The LC1D40AM7 is the main switching element in a motor starter or power control circuit. When the 220 V AC coil is energized by the control signal, the three main NO contacts close simultaneously, connecting the three-phase power supply to the motor or load. When the coil de-energizes, the contacts open and the load is isolated. This switching action is what makes the LC1D40AM7 — and IEC contactors in general — the backbone of direct-on-line (DOL) starters, star-delta transition circuits, and general load switching in industrial panels.

What the LC1D40AM7 does not provide on its own is fault protection. It is not a circuit breaker, it has no internal overload trip function, and it requires an upstream circuit breaker or fuses and a downstream thermal or electronic overload relay to form a complete, coordinated starter assembly. The contactor's role is frequent ON/OFF switching within its rated endurance — the protection and isolation functions belong to the other components in the starter group. Schneider's coordination tables exist precisely to document which breakers, fuses, and overload relays are matched to each LC1D40 contactor size, and those tables should always be consulted before finalizing the full starter BOM.

The LC1D40AM7 is part of the TeSys D / TeSys Deca platform, which complies with IEC 60947 standards. The platform is widely adopted in industrial automation, HVAC, and OEM machine building globally, and its accessory ecosystem — auxiliary contact blocks, suppressor modules, mechanical interlock kits — is one of the reasons engineers standardize on it across multiple projects.

Typical System Architecture for a TeSys D Motor Starter

The LC1D40AM7 sits between the upstream protective device and the motor terminals in the power circuit, while its coil is driven by a lower-level control signal at 220 V AC. A typical DOL starter assembly using this contactor looks like this:

  • Upstream circuit breaker or fuse assembly (sized per Schneider coordination tables for the LC1D40 frame) → provides short-circuit and isolation protection
  • LC1D40AM7 contactor (3-pole main contacts) → performs ON/OFF switching of the three-phase power to the load
  • Thermal or electronic overload relay (selected from Schneider pairing tables for the 40 A current range) → provides overload and phase-loss protection
  • Three-phase motor or load → pump, fan, conveyor drive, HVAC compressor, or other AC motor load
  • Control circuit → 220 V AC supply energizes the LC1D40AM7 coil via pushbuttons, PLC output relay, or another switching element; the built-in 1 NO + 1 NC auxiliary contacts provide feedback and seal-in functions in the control logic

Where the LC1D40AM7 Gets Installed: Industries and Use Cases

The 40 A AC-3 rating covers a broad slice of the motors found in everyday industrial and commercial facilities. Pump skids used in water treatment, process plants, and building services are among the most common installations — a mid-size three-phase pump motor running at 400–440 V fits naturally within this rating tier. Fan assemblies in HVAC air handling units and packaged chillers are another primary market, where consulting engineers frequently specify TeSys contactors by family and size.

OEM machine builders working on conveyor lines, packaging equipment, and material handling systems often standardize on LC1D40 contactors as the 40 A frame within their BOM, covering multiple motor sizes with a single stocked component. This simplifies spare parts management and reduces the number of unique contactor variants held in inventory across a fleet of machines.

Maintenance and MRO teams in manufacturing plants represent a high-frequency buyer group for this model. When a TeSys D contactor reaches end of electrical life in an existing motor control center, the LC1D40AM7 is the natural like-for-like replacement — provided the coil voltage suffix is matched carefully against the panel's control supply.

Application Typical Deployment
Three-phase pump skid DOL starter with overload relay and upstream fuse, 400–440 V motor circuit
HVAC air handling unit Fan motor starter in packaged or built-up AHU panel, 220 V AC control circuit
Conveyor and packaging line OEM panel with multiple LC1D40 contactors for standardized 40 A motor range
Motor control center (MCC) replacement Direct replacement of failed TeSys D unit in existing MCC bucket, matching coil code
Water and wastewater treatment Pump motor starter in wet-area panel, coordinated with thermal overload and MCCB
Industrial chiller or compressor panel Compressor motor starter, frequently cycled, paired with electronic overload relay

Key Specifications and How the LC1D40AM7 Compares Within the TeSys D Range

Parameter Value / Detail
Rated current — AC-3 40 A at up to 400–440 V operational voltage
Utilization category AC-3 / AC-3e (motor loads); AC-1 (resistive/lightly inductive loads — higher rating applies)
Number of poles / contact type 3 poles, 3 NO main contacts
Coil voltage 220 V AC 50/60 Hz (coil code M7)
Built-in auxiliary contacts 1 NO + 1 NC
Terminal type Screw clamp (EverLink on TeSys Deca)
Mounting DIN rail or screw mounting
Standards compliance IEC 60947; UL and CSA listings where applicable — verify on product documentation
Approximate height 122 mm
Approximate width 55 mm

Full technical specifications are available on the product page at LeadTime.ca.

The table below shows how the LC1D40AM7 sits within the TeSys D current range, to help engineers decide whether to step up or down:

Model AC-3 Current Rating Coil (M7 variant) Typical Motor Range Choose When
LC1D25M7 25 A AC-3 220 V AC Smaller motors below 40 A FLC Motor FLC is well below 40 A and right-sizing matters for panel economy
LC1D32M7 32 A AC-3 220 V AC Mid-range below LC1D40 Motor current fits 32 A and a smaller frame is preferred
LC1D40AM7 40 A AC-3 220 V AC Common mid-size industrial motors at 400–440 V Motor FLC aligns with 40 A AC-3 and control supply is 220 V AC
LC1D50M7 50 A AC-3 220 V AC Larger motors exceeding 40 A FLC Motor current exceeds 40 A AC-3 limit or derating is required
LC1D65M7 65 A AC-3 220 V AC Larger motor loads in the 65 A tier Higher current or severe duty pushes beyond LC1D50 capacity

If your motor's full-load current sits above the 40 A AC-3 rating, the LC1D50M7 or LC1D65M7 is the correct step up — check current availability for the LC1D40AM7 and related variants at LeadTime.ca.

Expert Verdict: Is the LC1D40AM7 Worth Standardizing On?

From a technical standpoint, the Schneider Electric LC1D40AM7 performs exactly as expected for the application it is designed for. The 40 A AC-3 rating with a 3-pole, 3 NO contact arrangement covers an enormous proportion of the mid-size three-phase motors found in everyday industrial and HVAC service — pump, fan, conveyor, and compressor starters where the motor full-load current fits this frame and the control supply is 220 V AC 50/60 Hz. The TeSys D / TeSys Deca platform's compliance with IEC 60947 and its wide acceptance across industrial panels globally means engineers standardizing on this contactor benefit from a well-documented accessory ecosystem, consistent coordination data, and broad replacement availability. OEMs building machine panels, plant engineers managing MRO spares, and HVAC panel builders specifying by family will all find the LC1D40AM7 a defensible standard choice.

The limits of this contactor are not hardware deficiencies — they are application boundaries. If your control system uses 24 V DC or 24 V AC coils, the LC1D40 frame is still available but the M7 coil variant is the wrong catalog number; you need the BD, BL, or other coil suffix. If your motor current exceeds the 40 A AC-3 rating, the LC1D50M7 or LC1D65M7 is the correct step. Applications requiring a fourth pole for neutral switching, or integrated reversing configurations, need a different variant or accessory arrangement entirely. And any project where a non-IEC contactor is mandated by specification falls outside the LC1D40AM7's scope — this is an IEC-rated device and IEC / UL / CSA applicability should always be verified against project requirements before committing to it in a North American panel.

On the procurement side, the TeSys D family benefits from wide distribution globally, which generally means the LC1D40AM7 is a stocked item at most industrial automation distributors rather than a long-lead-time special order. That said, supply conditions change, and for builds where downtime risk is high or quantities are significant, confirming current stock and lead time before committing a build schedule is always the right call. A specialist distributor adds value here beyond a generic channel — they can verify the coil code, confirm coordination accessory part numbers, and check whether the IEC certification set on the product matches your project's compliance requirements before the order ships. For pricing and current availability, visit the LC1D40AM7 product page at LeadTime.ca — we stock and ship this product worldwide.

For volume pricing or to confirm lead time before committing to a build, contact the LeadTime.ca team directly — we ship worldwide.

What Engineers Need to Know Before Ordering the LC1D40AM7

Community discussion around the TeSys D family — sourced from forums including Reddit r/PLC, r/automation, r/industrialautomation, PLCTalk, PLCS.net, MrPLC, and distributor Q&A sections — is generally positive, though most of it applies to the TeSys D range broadly rather than the LC1D40AM7 catalog number specifically. Engineers describing TeSys D contactors as reliable workhorses that run for years in harsh industrial environments when correctly sized and protected is the dominant sentiment. Panel builders in particular note that the terminal layout and mounting options are straightforward, reducing assembly time compared with less standardized alternatives. Broad distributor availability and the ease of sourcing TeSys replacement units are recurring points of praise, especially for maintenance teams who need to minimize downtime when a contactor fails in service.

The complaints and warnings that do appear in community channels are almost entirely about selection and specification errors rather than hardware failure. Premature contact wear in applications where the contactor is heavily cycled near its maximum AC-3 rating, or where upstream protection is improperly coordinated, is the most cited performance concern. Heat buildup in densely packed panels — where several contactors operate at high load without adequate ventilation clearance — comes up repeatedly as a real-world installation issue that panel designers need to account for during layout. Neither of these reflects a product defect; both reflect what happens when the application pushes against the boundaries of the specification without fully accounting for them.

The ordering mistake that generates the most discussion in both forum threads and distributor Q&A sections is the coil voltage mismatch. The LC1D40 frame is available with multiple coil voltages, each identified by a different catalog suffix. Buyers who focus on the frame size and current rating — "LC1D40" — without confirming the coil code — "AM7" for 220 V AC — regularly receive a contactor that will not operate on their control supply. When ordering a replacement for an existing unit, physically reading the label on the failed contactor before placing the order is the single most effective prevention step. Given that community data for this specific model number is limited, the guidance of a specialist distributor who reviews your application before confirming the order is a practical substitute for the peer experience that a higher-profile product would have accumulated online.

Wiring and Installation Overview for the LC1D40AM7

  • Isolate and lock out all power sources before mounting or wiring — the LC1D40AM7 handles line voltage on its main terminals and 220 V AC on the coil circuit, both of which require full LOTO compliance before work begins.
  • Mount on DIN rail or with screws as suits the panel layout, confirming adequate ventilation clearance around the contactor body — heat dissipation is especially important in high-load or high-cycling applications.
  • Connect the three-phase incoming and outgoing power conductors to the main terminals, tightening to the torque values specified in the Schneider datasheet for the LC1D40AM7; do not exceed the maximum conductor size for the screw clamp terminals.
  • Wire the 220 V AC coil terminals (A1 and A2) from the control circuit supply through the appropriate control switching elements — pushbuttons, PLC relay output, or timer contact — and include correct control circuit protection as required by IEC 60947 and your applicable standard; the contactor itself does not provide control circuit protection.
  • Before energizing the motor load, verify all connections against the control schematic, check insulation resistance, and perform a no-load functional test to confirm the contactor closes and opens correctly on the control signal, and that the built-in 1 NO + 1 NC auxiliary contacts operate as expected in the control logic.

What Engineers Get Wrong When Ordering This Part

Use this checklist before placing any order for the LC1D40AM7. Every item below corresponds to a real ordering or application error that creates delays, rework, or compliance issues:

  1. Confirm motor full-load current and utilization category; verify that a 40 A AC-3 contactor is correctly sized.
  2. Verify control supply is 220 V AC 50/60 Hz; if your control system uses 24 V or 110 V, this coil will not be suitable.
  3. Check that three power poles (3 NO) are sufficient; applications requiring a neutral switching pole or 4-pole arrangement need another model.
  4. Confirm coordination requirements with the upstream circuit breaker or fuse and downstream overload relay; use Schneider pairing tables to avoid mis-coordination.
  5. Ensure cabinet space allows the contactor footprint and clearance for wiring and heat dissipation.
  6. Verify that local standards accept IEC contactors and that certifications on the LC1D40AM7 (IEC, UL, CSA where applicable) meet project requirements.
  7. Check that your environment does not exceed the contactor's temperature and altitude limits.
  8. Ensure any required auxiliary contacts beyond the built-in 1 NO + 1 NC are included as add-on blocks and ordered separately.

If any item on this list raises a question about your specific application, contact the LeadTime.ca team before ordering — we can review your requirements and confirm the correct catalog number, accessories, and coordination components.

Frequently Asked Questions

Can I directly replace an older TeSys D contactor with the LC1D40AM7 if the current rating matches?

A like-for-like replacement within the TeSys D / TeSys Deca family is generally straightforward when the current rating and coil voltage match — but always verify the exact coil code suffix on the existing unit before ordering. The frame size and terminal layout within the TeSys D range are consistent, but the coil voltage is encoded in the catalog suffix (M7 = 220 V AC), and ordering the wrong suffix is the most common cause of replacement errors. Also confirm that any existing auxiliary contact blocks or accessories are compatible with the current TeSys Deca variant.

How do I select the correct overload relay to pair with the LC1D40AM7?

Overload relay selection should always be based on Schneider Electric's published coordination and pairing tables for the LC1D40 contactor frame, not on general current matching alone. The pairing tables specify which Schneider overload relay models are coordinated with the LC1D40AM7 for Type 1 or Type 2 coordination under IEC 60947-4-1, taking into account the contactor's breaking capacity and the relay's trip characteristics. Guessing based on current range alone risks mis-coordination and potential damage to the contactor or motor in a fault condition.

Is the LC1D40AM7 suitable for use in UL or CSA-listed North American panels?

The LC1D40AM7 is part of the TeSys D / TeSys Deca platform, which is designed to comply with IEC 60947 and for which UL and CSA listings exist for applicable variants. However, the specific certifications and listing marks present on a given catalog number should always be verified against the product documentation and Schneider's se.com product page before specifying for a North American panel. Project specifications and the Authority Having Jurisdiction (AHJ) may have specific requirements that need to be confirmed independently.

What happens to contactor lifespan when switching frequency is high?

Electrical endurance — the number of on-load switching operations before contact erosion requires replacement — decreases as switching frequency and load current increase. The TeSys D family has manufacturer-specified mechanical and electrical endurance ratings that define this relationship. Applications with very high start/stop frequency or motors that are regularly started at or near the 40 A AC-3 limit should be assessed against these endurance figures. In high-cycling applications, selecting the next frame size up (LC1D50) or using a solid-state or variable-speed solution may extend the maintenance interval significantly.

Does the LC1D40AM7 provide short-circuit protection on its own?

No. The LC1D40AM7 is a switching device rated for the load-breaking duties defined by IEC 60947; it does not provide short-circuit protection. An upstream circuit breaker or fuse, selected from Schneider's coordination tables for the LC1D40 contactor frame, is required to provide fault protection. The contactor must always be used as part of a coordinated starter assembly that includes upstream protection and a downstream overload relay — neither protection element is built into the contactor itself.

Why Order From LeadTime.ca

  • LeadTime.ca ships the Schneider Electric LC1D40AM7 and compatible TeSys accessories worldwide — not limited to any single region
  • Our team reviews application details before confirming orders, reducing the risk of wrong coil voltage or accessory mis-matches that cause delays
  • Volume pricing is available for OEM builds and MRO standing orders — contact us to discuss framework pricing
  • Hard-to-source variants and coordination accessories can be located and quoted even when standard channels show extended lead times

At-a-Glance Summary

  • Catalog number: LC1D40AM7 — TeSys D / TeSys Deca IEC power contactor from Schneider Electric
  • Main contact rating: 40 A AC-3 / AC-3e at up to 400–440 V, 3-pole, 3 NO configuration
  • Coil: 220 V AC 50/60 Hz (coil code M7) — must match control supply exactly
  • Built-in auxiliaries: 1 NO + 1 NC; additional auxiliaries require separately ordered add-on blocks
  • Terminals: Screw clamp (EverLink on TeSys Deca); DIN rail or screw mounting
  • Approximate dimensions: 122 mm H × 55 mm W × 120 mm D — verify panel clearance before ordering
  • Standards: IEC 60947 compliant; UL and CSA listings applicable — verify on product documentation for North American projects
  • Requires external upstream protection and overload relay — not a standalone protective device
  • Primary applications: pump and fan motor starters, HVAC panels, OEM conveyor and packaging lines, MRO replacement in existing TeSys D MCCs
  • Step up to LC1D50M7 or LC1D65M7 if motor current exceeds 40 A AC-3; step down to LC1D32M7 or LC1D25M7 for smaller motors
  • Pricing is available on the product page at LeadTime.ca; contact for volume or project pricing
