Schneider Electric LC1D32P7 — 32A IEC Contactor Buying Guide

By Abdullah Zahid
14 min read

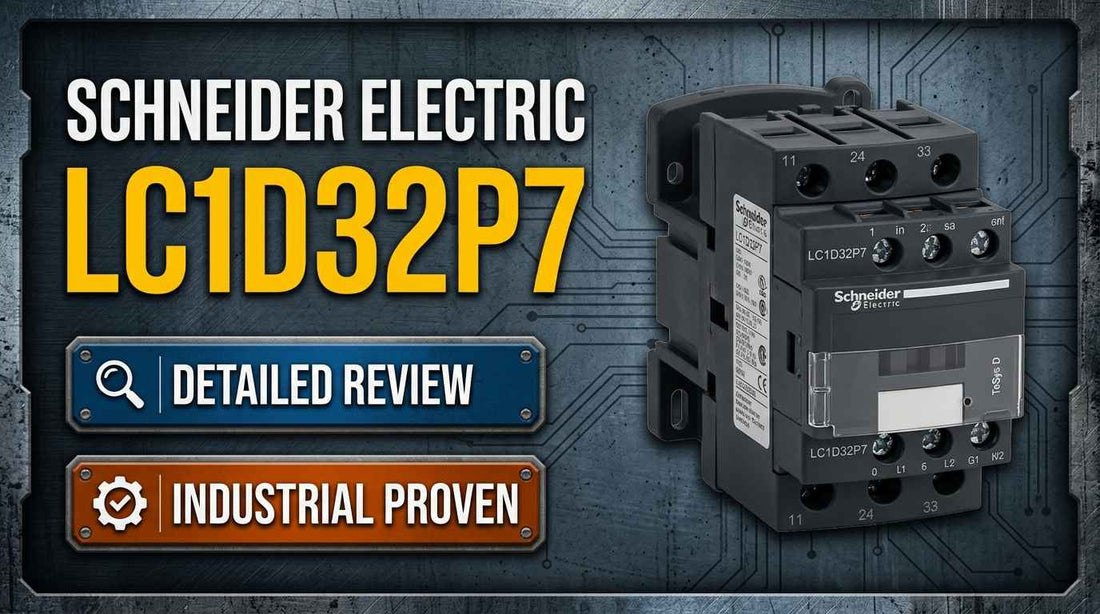

Schneider Electric LC1D32P7 TeSys D 32A IEC contactor with 230V AC coil mounted on DIN rail in motor control panel

Schneider Electric LC1D32P7 TeSys D IEC Contactor, Nonreversing, 32A AC-3 Rated, 230V AC 50/60Hz Coil — Specifications, Review, and Ordering Guide

When a controls engineer or panel integrator searches for the Schneider Electric LC1D32P7, the decision is almost always already narrowed: they need a 32A AC-3 IEC contactor with a 230V AC coil, and they want to confirm specs, check stock, and avoid an ordering mistake before committing. This is the TeSys D IEC Contactor, nonreversing, 32A AC-3 rated, 230V AC 50/60Hz coil — a three-pole electromechanical switch capable of controlling motors up to 20 HP at 460V or 10 HP at 230V, with a 100 kA short-circuit current rating and a compact DIN rail footprint that fits space-constrained enclosures.

If you have already confirmed the LC1D32P7 is the right part, check current pricing and availability at LeadTime.ca — ships worldwide.

Who Should Buy the LC1D32P7 — and Who Shouldn't

The LC1D32P7 is the correct choice for engineers specifying a direct-on-line, non-reversing motor starter with a 230V AC control circuit. It is right for you if all of the following apply:

  • Your control circuit operates at exactly 230V AC 50/60Hz — not 24V DC, not 120V AC, not 480V AC
  • Your motor full-load current at operating voltage does not exceed 32A in AC-3 (induction motor) duty
  • Your application is 20 HP or below at 460V three-phase, or 10 HP or below at 230V three-phase
  • You are mounting on a 35mm DIN rail and have space for the contactor's physical footprint
  • Your system fault level is at or below 100 kA SCCR
  • One NO and one NC auxiliary contact at the base is sufficient for your interlock and indicator wiring

If your application requires reversing action for bidirectional motor control, a different coil voltage, or a higher current rating, the LC1D32P7 is not the correct unit. Specific alternatives are addressed in the variant comparison and expert verdict sections below.

On this page:

What the LC1D32P7 Does in a Motor Control Circuit

The LC1D32P7 is a three-pole electromechanical switch that connects and disconnects three-phase power to a motor or resistive load on command from a control signal. When the 230V AC coil is energized — by a pushbutton, relay output, or PLC discrete output — the three main contacts close, allowing current to flow to the load. When the coil is de-energized, a return spring opens the contacts and interrupts the load circuit. The coil draws 7.5 to 7.7 VA in operation, generating minimal heat and requiring no active cooling.

This model is rated for AC-3 duty at 32A, meaning it is approved for starting and stopping squirrel-cage induction motors under full-voltage, direct-on-line conditions. For purely resistive or heating loads (AC-1 duty), the main contacts are rated up to 50A. The rated operating cycles reach 3,600 per hour, reflecting the TeSys D design's capacity for frequent switching in production environments. The 100 kA SCCR rating makes it compatible with most industrial panel configurations without requiring additional current-limiting fusing in typical installations.

It is important to understand what the LC1D32P7 does not do: it does not provide overload protection, it does not reverse motor direction, and it does not incorporate any solidstate logic. It is a contact switching device intended to be paired with an overload relay, fused disconnect, and control circuit appropriate to the application.

Typical System Architecture for the LC1D32P7

The LC1D32P7 sits between the branch circuit protection and the motor terminal box, acting as the controlled switching element in the motor starter chain. A typical deployment looks like this:

  • Upstream: Main panel branch circuit breaker or fused disconnect providing short-circuit protection at or below 100 kA fault level
  • Control transformer or 230V AC control supply feeding coil terminals A1 and A2 on the LC1D32P7
  • LC1D32P7 main contacts (terminals L1/T1, L2/T2, L3/T3) switching three-phase power to the load
  • TeSys D overload relay (such as an LRD-series unit) mounted directly to the contactor's downstream terminals for motor protection
  • Downstream: Motor terminal box connected to the overload relay output, with auxiliary contacts wired to control circuit for run indication and interlock logic

Typical Applications and Deployment Scenarios

The LC1D32P7 covers a broad range of three-phase motor control tasks up to 20 HP at 460V. In manufacturing environments, it most commonly serves as the main switching contactor in direct-on-line starters for conveyor drives, compressors, coolant pumps, and machine tool spindle motors operating in the 10 to 20 HP range at 460V. The 32A AC-3 rating is well matched to the full-load currents typical of these machines without requiring the larger and more expensive LC1D38 or LC1D40 series.

In HVAC and building automation, the LC1D32P7 is used to switch rooftop fan motors, chilled water pump motors, and cooling tower fan drives where control logic operates on a 230V AC signal. Water treatment facilities use it for booster pump motor control where operators energize pumps via hardwired pushbutton stations, and the 100 kA SCCR rating meets typical utility service entrance fault levels found in municipal infrastructure panels.

The AC-1 rating of 50A also makes the LC1D32P7 useful for resistive load switching — electric duct heaters, industrial immersion heaters, and infrared heating zones where load current falls within the 50A ceiling and control operates from a 230V AC thermostat or relay output.

Application Typical Deployment
Direct-on-line motor starter 15–20 HP induction motor at 460V in manufacturing, paired with LRD overload relay
HVAC fan motor switching Three-phase rooftop unit fan motor, 230V AC control from building automation controller
Pump motor control Water treatment booster pump, operator pushbutton station wired to coil A1/A2
Resistive heating load control Electric duct heater up to 50A AC-1 duty, thermostat-controlled 230V AC signal
VFD bypass circuit Bypass contactor in soft-start or variable frequency drive system for manual motor energization
Agricultural and processing equipment Feed auger or grain conveyor motor control in light industrial packaging environments

LC1D32P7 Key Specifications and TeSys D Variant Comparison

Parameter LC1D32P7 Rating
Catalog Number LC1D32P7
Rated Current (AC-3 duty) 32A
Rated Current (AC-1 duty) 50A
Coil Voltage 230V AC 50/60Hz
Motor HP Rating at 460V 20 HP
Motor HP Rating at 230V 10 HP
Main Contacts 3 Normally Open (NO)
Auxiliary Contacts (base) 1 NO + 1 NC
SCCR 100 kA
Mounting 35mm DIN rail, screw clamp terminals

Full technical specifications are available on the product page at LeadTime.ca.

The TeSys D series spans a wide current range, and selecting the wrong adjacent model is a common ordering error. The table below clarifies where the LC1D32P7 sits relative to nearby variants:

Model AC-3 Rating Coil Voltage (P7 suffix) Motor HP at 460V Use When
LC1D25P7 25A 230V AC 15 HP Motor FLA is below 25A at your system voltage
LC1D32P7 32A 230V AC 20 HP Motor FLA is 25–32A at 460V, 230V AC coil control
LC1D38P7 38A 230V AC 25 HP Motor FLA exceeds 32A or duty cycle is particularly heavy
LC1D40P7 40A 230V AC 30 HP Load current exceeds 38A AC-3 or motor exceeds 25 HP at 460V

If your motor's full-load current exceeds 32A in AC-3 service, the LC1D38P7 or LC1D40P7 is the correct next step — check current availability at LeadTime.ca and contact the team to confirm the right variant for your load.

Expert Verdict: Is the LC1D32P7 the Right Contactor for Your Build?

The LC1D32P7 earns its place in North American industrial panels for one simple reason: it delivers reliable, code-compliant three-phase motor switching at the 20 HP / 460V class without unnecessary complexity or cost. The 230V AC coil is a natural fit for facilities with a 230V control transformer already installed — the most common configuration in legacy panel retrofits and new builds using standard control voltage schemes. The 100 kA SCCR rating, 3,600 operating cycles per hour, and the broad TeSys D accessory ecosystem make this a low-risk choice for any panel integrator or controls engineer specifying a direct-on-line starter for motors in the 10 to 20 HP range. Controls engineers who value a consistent, well-documented IEC contactor with decades of field history and a known replacement part pathway will find the LC1D32P7 delivers exactly that.

There are honest limits to this model that buyers should not overlook. The LC1D32P7 provides no overload protection on its own — it must be paired with an appropriately sized overload relay such as an LRD-series unit to form a compliant motor starter. It is strictly non-reversing; any application requiring bidirectional motor control will need two separate contactors wired in a mechanically and electrically interlocked reversing configuration, not this single unit. Engineers operating with 24V DC control circuits, 480V AC coil requirements, or 120V AC control systems will need a different coil suffix entirely — the P7 designation is fixed at 230V AC and is not field-convertible. If the application demands integrated solidstate protection or soft-starting capability, the TeSys U or Altistart product families are the appropriate upgrade path.

From a procurement standpoint, the LC1D32P7 is a well-stocked standard item in the TeSys D line, making it one of the more reliable contactors to source on short lead times through authorized distribution. Specialty coil voltages, modified auxiliary configurations, or reversing assemblies built from TeSys D components may extend delivery windows significantly — so confirming the exact variant before purchasing is worth the extra step. View current stock and pricing for the LC1D32P7 at LeadTime.ca — we ship worldwide and can confirm availability before you commit to your build schedule.

For volume pricing or to confirm lead time across multiple line items in a panel build, contact the LeadTime.ca team directly — we ship worldwide and respond to technical sourcing inquiries promptly.

What Engineers Need to Know Before Ordering the LC1D32P7

Because the LC1D32P7 is a high-volume, catalog-standard part, it attracts orders from buyers who are specifying quickly under project pressure — and that speed occasionally produces mismatched orders that require returns, project delays, and rework. The coil voltage suffix is the most frequent source of confusion. The P7 suffix designates 230V AC 50/60Hz specifically. Engineers who work across multiple sites with different control voltages have ordered the LC1D32P7 expecting a 24V DC coil (B7 suffix) or a 120V AC coil (U7 suffix) and only discovered the error at startup. A contactor with the wrong coil voltage will not energize — or worse, will energize partially and fail to hold under load, creating intermittent faults that are difficult to diagnose.

A second recurring issue is the reversing assumption. The LC1D32P7 is a direct-on-line, non-reversing contactor. Some buyers assume that two LC1D32P7 units can be wired together for a reversing starter without additional components — they can, but only with properly designed mechanical and electrical interlocking, correct wiring sequence, and appropriate control logic. Ordering just one LC1D32P7 for a reversing application is a configuration error. The auxiliary contact count is a third sticking point: the base 1 NO / 1 NC auxiliary configuration satisfies most simple run-indication and interlock schemes, but multi-zone or multi-interlock circuits will require LADN-series side-mounted auxiliary contact blocks ordered separately. These are not included and are not optional for those applications.

Finally, engineers specifying for high-available-fault-current installations — particularly those near utility service entrances or in facilities with large transformer capacity — need to verify their panel's available fault current against the 100 kA SCCR rating. Installations where the available fault current exceeds this threshold may require additional upstream current-limiting protection to remain within the contactor's approved ratings. Consulting the manufacturer's SCCR coordination tables and your panel's short-circuit study is the correct approach before finalizing the specification.

Wiring and Installation Overview for the LC1D32P7

The LC1D32P7 mounts on a standard 35mm DIN rail using the integrated rail locking mechanism. Wiring connects at screw clamp terminals using appropriately sized conductors. Key points to verify before and during installation:

  • Confirm the 35mm DIN rail is properly installed and grounded in the panel enclosure before mounting the contactor — do not mount on ungrounded or improvised rail
  • Verify all branch circuit power and control circuit wiring is fully de-energized and locked out before making any terminal connections
  • Confirm with a calibrated meter that the control supply voltage at terminals A1 and A2 is 230V AC 50/60Hz before energizing the coil
  • Screw clamp terminals require conductors sized appropriately for the load current — verify conductor sizing against the circuit's rated current and applicable electrical code for your jurisdiction
  • After landing all conductors, verify terminal tightness and confirm auxiliary contact wiring matches the intended interlock and indication scheme before applying power

For full wiring diagrams, torque specifications, and configuration procedures, refer to the Schneider Electric TeSys D installation and user manual available from the manufacturer.

Compatible Accessories and TeSys D Expansion Modules

One of the LC1D32P7's practical advantages is its position within the TeSys D ecosystem. A range of accessories mount directly to the contactor body or alongside it on the DIN rail without requiring additional wiring harnesses or adapters:

  • LRD-series overload relays — direct-mount thermal overload relays that snap onto the contactor's downstream terminals to form a complete IEC motor starter; size selection is based on motor full-load current range
  • LADN-series auxiliary contact blocks — side-mounted contact blocks providing additional NO and NC auxiliary switching contacts beyond the base 1 NO / 1 NC; available in multiple contact configurations
  • LA1DN-series front-mounted auxiliary contact blocks — front-mounting additional auxiliary contacts for installations where side-mounting is not possible due to panel space
  • LAD9-series surge suppressors — coil voltage suppression modules that reduce inductive voltage spikes when the 230V AC coil is de-energized, protecting control circuit components
  • LADN11-series interlock accessories — mechanical interlocking kits used when two LC1D-series contactors are assembled into a reversing starter configuration

Wrong-Part Prevention Checklist — Verify Before You Order

Before placing your order for the LC1D32P7, run through every item on this checklist. Skipping any one of these is the most common reason for returns, project delays, and field commissioning failures:

  1. COIL VOLTAGE: Confirm control voltage is exactly 230V AC 50/60Hz — not 24V DC, not 480V AC, not 120V
  2. CURRENT RATING: Verify motor full-load current does not exceed 32A AC-3 (32A for induction motor duty, 50A only for resistive/non-motor loads)
  3. HORSEPOWER: Confirm motor HP rating at your system voltage (10 HP @ 230V three-phase OR 20 HP @ 460V three-phase — do NOT mix)
  4. MOUNTING: Verify 35mm DIN rail is installed and grounded properly in panel
  5. CONTACTS: Confirm 3 NO main contacts and 1 NO / 1 NC auxiliary contacts meet your wiring scheme (no reversing function on this model)
  6. SCCR / SYSTEM FAULT LEVEL: Verify system short-circuit current does not exceed 100 kA — higher fault levels may require de-rating or larger contactor
  7. FREQUENCY: Confirm 50Hz or 60Hz coil frequency matches your regional supply
  8. AUXILIARY SWITCHING: Confirm you do not need additional contact groups beyond 1 NO + 1 NC (if yes, order LADN side-mounted auxiliary packages separately)

If any item on this checklist raises a flag, contact the LeadTime.ca team before ordering — we can help confirm the correct variant, accessory requirements, or alternative model for your application.

Frequently Asked Questions

Can I use the LC1D32P7 with a 24V DC PLC output directly driving the coil?

No. The LC1D32P7 coil is rated for 230V AC 50/60Hz only — it is not a switchable or dual-voltage coil. A 24V DC control signal will not energize the contactor. For 24V DC coil operation, the correct suffix is B7 (for example, LC1D32B7). Verify your control circuit output voltage before ordering.

Does the LC1D32P7 include overload protection, or do I need to add a separate relay?

The LC1D32P7 provides no overload protection. It is a contact switching device only. To form a compliant direct-on-line motor starter, it must be paired with an appropriately sized LRD-series overload relay mounted directly on the contactor's downstream terminals. The overload relay selection is based on the motor's full-load current range.

My motor FLA is 34A at 460V — can I still use the LC1D32P7 if I derate it?

No. The AC-3 rating of 32A is the rated operating current for induction motor duty. A motor drawing 34A full-load current exceeds this rating and will accelerate contact wear and reduce contactor service life. The correct selection for this load is the LC1D38P7 or LC1D40P7, depending on your exact current and duty cycle requirements.

Can two LC1D32P7 units be used together to build a reversing starter?

Two TeSys D contactors can be assembled into a reversing configuration, but this requires proper mechanical interlocking using LADN-series interlock accessories, appropriate electrical interlock wiring through the auxiliary contacts, and correct control circuit sequencing. The LC1D32P7 alone is strictly non-reversing. Ordering a single unit for a reversing application is a common specification error — consult the TeSys D wiring documentation and verify the full reversing starter assembly before ordering components.

What does the P7 suffix mean, and what other coil voltages are available in the LC1D32 series?

The P7 suffix designates a 230V AC 50/60Hz coil. The LC1D32 series is available with multiple coil voltage suffixes for different control circuit standards — common options include B7 for 24V DC, U7 for 120V AC, and others for different regional control voltages. The coil suffix is critical: ordering the wrong suffix produces a contactor that will not operate correctly on your control circuit and is not field-convertible.

What is the SCCR rating of the LC1D32P7, and does it meet NEC panel requirements?

The LC1D32P7 carries a 100 kA short-circuit current rating (SCCR). For most industrial and commercial panel applications, this rating is sufficient. However, installations near large utility transformers or with high available fault current must verify that the panel's available short-circuit current does not exceed 100 kA at the contactor's installation point. If it does, upstream current-limiting fusing or a higher-rated device is required to maintain code compliance.

Why Order the LC1D32P7 From LeadTime.ca

  • Global shipping — LeadTime.ca fulfills orders worldwide, not limited to any single country or region
  • Specialist sourcing — access to standard and harder-to-find TeSys D variants, coil configurations, and accessory packages from a single source
  • Technical support before you order — the team can confirm coil suffix, accessory compatibility, and alternative models when specifications are uncertain
  • Volume and project pricing available — contact directly for multi-line panel builds or repeat purchase programs
  • Fast response on lead time inquiries — confirm stock status before committing to a project schedule

LC1D32P7 At-a-Glance Summary

  • Catalog number: LC1D32P7 — TeSys D IEC Contactor, nonreversing, 32A AC-3 rated, 230V AC 50/60Hz coil
  • Main contact rating: 32A AC-3 for induction motor duty, 50A AC-1 for resistive loads
  • Motor capacity: 20 HP at 460V three-phase, 10 HP at 230V three-phase
  • Coil: 230V AC 50/60Hz only — P7 suffix is not field-convertible to other voltages
  • Auxiliary contacts: 1 NO + 1 NC at base; LADN modules available separately for additional contacts
  • SCCR: 100 kA — verify against panel available fault current before installation
  • Mounting: 35mm DIN rail, screw clamp terminals
  • Coil power consumption: 7.5–7.7 VA — no active cooling required within rated temperature range
  • Operating temperature: -5 to +60°C standard range
  • Non-reversing design — reversing applications require two contactors with interlocking accessories
  • Compatible with TeSys D LRD-series overload relays, LADN auxiliary contact blocks, and LAD9 surge suppressors
