Schneider LC1D32M7 — TeSys D 32A Contactor Selection Guide

By Abdullah Zahid
14 min read

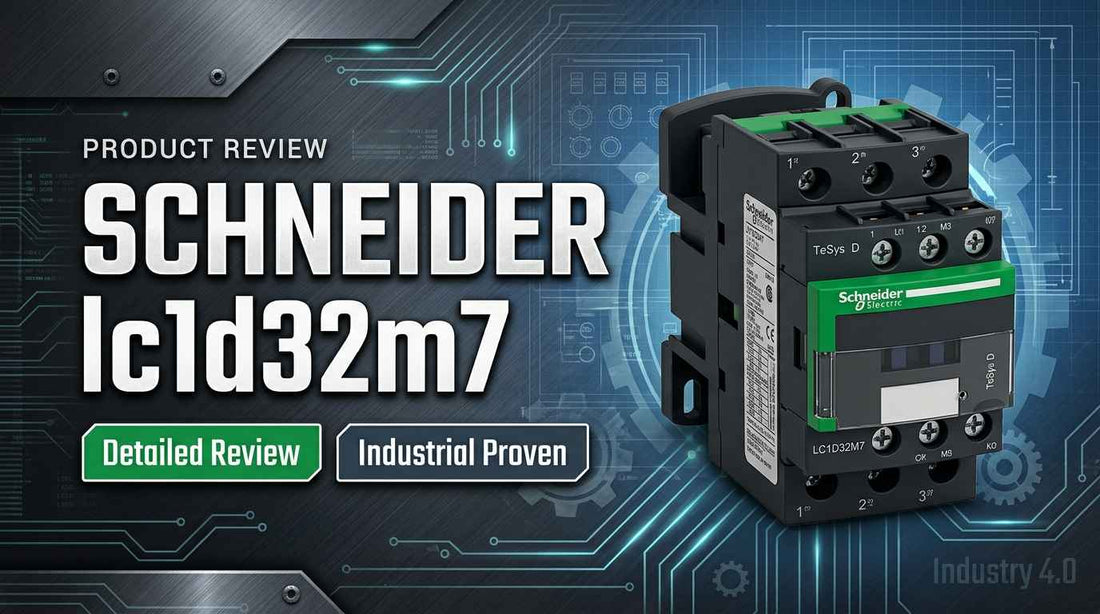

Schneider Electric LC1D32M7 TeSys D 32A nonreversing IEC contactor for 3-phase direct-online motor control

Schneider LC1D32M7 – IEC Contactor, TeSys D, Nonreversing, 32A Direct On-Line Standard: Specs, Pricing, and Selection Guide

When a controls engineer or procurement buyer searches for the Schneider LC1D32M7 contactor, the decision is almost always already narrowed: they know they need a 32A IEC-rated, direct-online contactor for a 3-phase motor application, and they need to confirm specs, coil voltage, and availability before committing. The LC1D32M7 is a 3-pole, 32A nonreversing power contactor from Schneider Electric's TeSys D family, rated for AC-3 motor duty at 440V with a standard 220V AC 50/60 Hz coil — a field-proven switching device used across pump stations, conveyor lines, HVAC systems, and production machinery worldwide.

If you have already confirmed this is the correct part for your application, check current pricing and availability for the LC1D32M7 at LeadTime.ca — ships worldwide.

Who Should Buy the LC1D32M7 — and Who Shouldn't

The LC1D32M7 is the right contactor for engineers and buyers whose motor-control application hits the following criteria exactly:

  • Motor full-load amperage (FLA) falls within the 32A AC-3 rating at 440V — covering 3-phase motors up to 15 kW at 380–440V or 7–11 kW at 200–240V
  • Plant control-circuit voltage is 220V AC 50/60 Hz — the standard coil for this model; other voltages (24V DC, 110V AC) require a different variant
  • Application is nonreversing direct-online motor starting — LC1D32M7 cannot reverse motor direction on its own
  • Cabinet is designed for DIN rail or surface-panel mounting with clearance for screw-clamp terminal wiring
  • External overload relay and upstream circuit breaker are already specified separately — this contactor carries no built-in protection
  • IEC 60947-4-1 and UL 508 / CSA dual certification is required for project compliance

If your motor FLA exceeds 32A, or if you need reversing control, the LC1D32M7 is not the correct choice. Consider the LC1D40M7 (40A, up to 22 kW) for larger motors, or plan a reversing contactor pair if forward-reverse operation is required.

On this page:

What the LC1D32M7 Does in a Motor Control Circuit

The LC1D32M7 is a switching device — not a starter, not a drive, and not a protection device. Its role is narrow and well-defined: receive an energize signal from a control circuit (PLC output, pushbutton station, or relay), close three main power contacts simultaneously, and connect an incoming 3-phase supply to a motor load. When the control signal drops, the coil de-energizes, a return spring opens the main contacts, and the motor is disconnected. That sequence happens reliably for up to 15 million mechanical operating cycles — a durability rating that places it firmly in the heavy-duty industrial category, well above the 5–8 million cycle ratings typical of light-commercial contactors.

The TeSys D family, of which the LC1D32M7 is part, is Schneider Electric's IEC-standard AC contactor line. This model ships with 1NO and 1NC auxiliary contacts as standard — useful for status signalling to a PLC input, seal-in circuits, or permissive interlock logic — without requiring an add-on auxiliary block for basic applications. The 220V AC coil draws 7.5 VA at 50/60 Hz during energization, making it compatible with standard control transformers and dual-frequency plant supplies. The terminal design is screw-clamp throughout, which suits field wiring environments where push-in terminals would be impractical.

One constraint that must be understood before ordering: the LC1D32M7 provides no overload protection and no short-circuit protection. It is a contactor, not a combination motor starter. An external thermal overload relay sized to the motor's FLA and an upstream circuit breaker are mandatory system components — not optional additions.

Typical System Architecture for Direct-Online Motor Starting

The LC1D32M7 sits mid-chain in the motor-control signal path — downstream of the protective devices and upstream of the motor terminals. A typical direct-online installation places it as follows:

  • Main distribution panel — upstream circuit breaker (sized per NEC Article 430 or IEC equivalent) provides short-circuit protection for the feeder
  • LC1D32M7 main contacts (L1/L2/L3 in, T1/T2/T3 out) — the primary switching element closing on coil energization
  • External thermal overload relay — wired in series with motor leads downstream of the contactor; trips on sustained overcurrent and opens a normally-closed contact in the control circuit
  • Control circuit — PLC digital output, pushbutton station, or relay coil drives A1/A2 terminals at 220V AC; auxiliary contacts (1NO, 1NC) feed status signals back to control logic
  • 3-phase motor load — receives switched power through T1/T2/T3 terminals; motor FLA must be within 32A for correct contactor sizing

Where the LC1D32M7 Is Used: Applications and Industries

The most common deployment is a 3-phase pump or compressor motor start in a manufacturing or water-treatment facility — a 7–15 kW motor at 440V, switched by the LC1D32M7 under PLC control with a downstream thermal overload relay for soft fail-safe protection. This is the textbook application the contactor was designed for, and it represents the majority of installed units in the field.

Conveyor line replacements are the second most frequent use case. When a contactor fails in an existing motor control cabinet, the LC1D32M7's DIN rail mounting and screw-clamp terminals allow direct substitution in most Schneider-equipped enclosures without cabinet redesign. The 45 mm width and standard auxiliary contact configuration simplify like-for-like replacement when the original unit was also a TeSys D.

OEM machine builders frequently specify the LC1D32M7 as part of packaged industrial equipment — production lines, food-processing conveyors, HVAC chillers, and agricultural pump systems — where the combination of IEC 60947-4-1 and UL 508 / CSA dual certification simplifies compliance approval in multiple regulatory jurisdictions without requiring a regional variant for each market.

Facility standardization projects are also a strong driver. Plants consolidating spare-parts inventory across multiple motor-control cabinets gain significant benefit from standardizing on a single contactor model: fewer SKUs in the storeroom, predictable lead times, and a single supplier relationship for technical support.

Application Typical Deployment
Industrial pump station 3-phase motor 7–15 kW at 440V, LC1D32M7 with thermal overload relay and upstream breaker, PLC-controlled
Conveyor line replacement Direct DIN-rail substitution in existing Schneider cabinet; matches auxiliary contact configuration without redesign
HVAC chiller or boiler starter Facility infrastructure motor starting; 220V AC coil driven from building management control output
Food and beverage processing Packaged OEM machine with IEC/UL dual certification required; screw-clamp terminals suited for food-grade enclosure wiring
New production line cabinet Fresh cabinet design integrating LC1D32M7 with thermal relay, circuit breaker, and PLC I/O for complete DOL starter assembly
Spare-parts standardization Single-SKU consolidation across multiple motor-control panels in a plant; reduces storeroom inventory and simplifies procurement

LC1D32M7 Key Specifications

Parameter Value Notes
Rated current (AC-3, 440V) 32A Motor-duty class; IEC 60947-4-1
Rated current (AC-1, 440V) 50A Non-inductive or slightly inductive load
Coil voltage (standard) 220V AC, 50/60 Hz 7.5 VA; dual-frequency compatible
Maximum motor power (380–440V 3-phase) 15 kW Verified across manufacturer product documentation
Maximum motor power (200–240V 3-phase) 7–11 kW Lower voltage standard
Insulation voltage 690V IEC 60947-4-1 rated
Auxiliary contacts (base) 1NO + 1NC Standard; no add-on block required for basic signalling
Mechanical durability 15 million operating cycles Heavy-duty industrial class
Operating cycles per hour 3600 cycles/hr Heavy-duty rating
Certifications IEC 60947-1, IEC 60947-4-1, UL 508, CSA C22.2 No. 14, CE Dual IEC/North American certification confirmed

Full technical specifications are available on the product page at LeadTime.ca.

LC1D32M7 vs. LC1D40M7 and the Full TeSys D Range

The TeSys D family covers a wide range of motor-control applications. Choosing the correct current rating requires matching the contactor's AC-3 rating directly to the motor's full-load amperage — not to the circuit-breaker rating or motor horsepower label alone.

Model Current Rating (AC-3) Motor Capacity (440V 3-phase) Primary Use Case
LC1D18M7 18A Up to ~5 kW Small motor, compressor
LC1D25M7 25A Up to ~11 kW Mid-range motor
LC1D32M7 32A Up to ~15 kW Standard motor — this product
LC1D40M7 40A Up to ~22 kW Larger motor, pump
LC1D65M7 65A Up to ~37 kW Heavy-duty, large pump
LC1D95M7 95A Up to ~55 kW Extra-large motor

If your motor's full-load amperage is above 32A, the LC1D40M7 is the correct next step — do not attempt to run a 35–40A motor through the LC1D32M7. Check current availability for all TeSys D variants at LeadTime.ca or contact the team to confirm the right model for your motor nameplate data.

Expert Verdict: Is the LC1D32M7 Worth Specifying?

The LC1D32M7 earns its place in industrial motor-control cabinets through sheer reliability and specification clarity. The 15 million mechanical cycle rating is not marketing language — at 3600 cycles per hour, it represents more than 4,000 operating hours before mechanical wear-out threshold, which translates to years of uninterrupted service in demanding continuous-process environments. The dual IEC 60947-4-1 and UL 508 / CSA certification eliminates the compliance headache that comes with single-standard contactors when a machine crosses regulatory jurisdictions. The right buyer is a plant electrical engineer or maintenance team already standardized on the TeSys D family, an electrical contractor specifying UL/CSA-certified components for a North American installation, or an OEM building packaged equipment where the same unit must satisfy multiple international approvals without redesign. For any of these profiles, specifying the LC1D32M7 is a low-risk, well-supported decision backed by proven field availability.

The honest limits are worth stating plainly. The LC1D32M7 is a nonreversing contactor — it cannot reverse motor direction under any configuration; a separate reversing contactor pair is required for forward-reverse applications. It carries no built-in protection of any kind: thermal overload relay and upstream circuit breaker are mandatory additions that must be specified and purchased separately. Plants standardized on 24V DC control coils will find the standard 220V AC coil incompatible without a transformer or a separate order for the 24V DC coil variant. And for motors above 32A full-load amperage — anything pushing toward 22 kW at 440V — the LC1D40M7 is the correct choice, not this unit.

From a procurement standpoint, the LC1D32M7 is one of the more straightforward purchasing decisions in the IEC contactor category. It is a mature, widely stocked model with typical distributor lead times of 1–2 weeks for the standard 220V AC coil configuration. Non-standard coil voltages (24V DC, 110V AC) may extend that to 4–8 weeks depending on regional stock levels, which is a meaningful project-timeline consideration if you are mid-build. Buying through a specialist industrial distributor rather than a generic marketplace ensures you receive the correct coil voltage variant, get pre-sales sizing confirmation against your motor nameplate, and have a real point of contact for warranty or technical questions after delivery. View current pricing and stock status for the LC1D32M7 at LeadTime.ca — available to buyers worldwide.

For volume pricing, lead-time confirmation before committing to a build schedule, or help selecting the correct coil voltage variant, contact the LeadTime.ca team directly — we ship worldwide.

What Engineers Need to Know Before Ordering the LC1D32M7

Community forum discussion for the LC1D32M7 is minimal — and that silence is itself informative. Mature, well-proven industrial contactors from established OEM families rarely generate troubleshooting threads because, when correctly specified and installed, they simply work. The questions that do reach distributor technical support teams are almost always pre-purchase specification questions, not post-installation complaints. That pattern tells an experienced distributor everything: this product's failure modes are almost exclusively selection errors, not product defects.

The three ordering mistakes that distributor technical teams encounter most often with the LC1D32M7 follow a consistent pattern. First, buyers size the contactor against the circuit-breaker amperage rather than the motor nameplate FLA — the circuit breaker is always sized larger than the motor FLA by design, and using that number selects an undersized contactor that chatters, overheats, and fails prematurely. Second, buyers assume all contactors use a 24V DC coil because that is common for control relays; the LC1D32M7 standard is 220V AC, and a unit ordered without confirming plant coil voltage arrives and does not energize. Third, buyers treat the contactor as a complete motor starter and omit the external thermal overload relay and circuit breaker — an error with real safety consequences when a motor stalls or jams under load.

When community intelligence is sparse, the right move is to consult a specialist distributor with technical pre-sales capability. LeadTime.ca's team can confirm your motor nameplate FLA against the 32A AC-3 rating, verify the correct coil voltage variant for your plant standard, and cross-reference the external overload relay sizing before the order is placed. That five-minute conversation saves the procurement delay and downtime cost of receiving the wrong part.

Wiring and Installation Overview

The following points summarize the key requirements for installing the LC1D32M7. For full wiring diagrams and step-by-step procedures, refer to Schneider Electric's official installation documentation for the TeSys D family.

  • Main power terminals accept 3-phase supply on L1/L2/L3 (top) and deliver switched output to motor on T1/T2/T3 (bottom); all connections are screw-clamp type — no push-in terminals
  • Control coil terminals A1 and A2 must be wired to a confirmed 220V AC 50/60 Hz source; verify coil voltage at terminals with a multimeter before energizing for the first time
  • Auxiliary contacts (1NO at pins 13–14, 1NC at pins 11–12) are available for status signalling, seal-in circuits, or permissive interlock logic; verify correct contact logic against your ladder diagram before wiring
  • Contactor mounts on standard 35 mm DIN rail or surface panel; ensure terminal clearance behind the unit (92 mm depth) is available before cabinet layout is finalized
  • External thermal overload relay must be wired in series with motor leads downstream of T1/T2/T3; upstream circuit breaker is required in the main distribution panel — neither protection device is built into the contactor

Wrong-Part Prevention Checklist

Before submitting your order for the LC1D32M7, verify each item on this checklist. These are the exact conditions that cause wrong-part returns, project delays, and installation rework.

  1. Confirm motor nameplate FLA and verify 32A rating matches your application; undersizing causes nuisance trips, oversizing risks motor damage.
  2. Verify plant coil-power voltage is 220V AC 50/60 Hz; if 24V DC, 110V AC, or 480V coil is standard in your facility, select correct variant or add transformer.
  3. Check if motor is 3-phase AC (standard for this contactor); single-phase motors require different contactor type.
  4. Confirm whether reversing (reversible) or direct-online (nonreversing) control is needed; LC1D32M7 cannot reverse motor direction alone.
  5. Inspect cabinet design for mounting space (DIN rail vs. surface); ensure terminal access for screw-clamp wiring is clear.
  6. Verify external overload relay (thermal or electronic) and circuit-breaker protection are specified separately; this contactor has no built-in protection.
  7. Check local electrical code and plant documentation for compliance; IEC 60947 and CSA/UL certification confirmed, but site-specific approvals required.

If any item on this checklist raises a question before you order, contact the LeadTime.ca team for pre-sales technical confirmation — or view the product page for full specification details.

Frequently Asked Questions

Does the LC1D32M7 include overload protection, or do I need to buy a thermal relay separately?

The LC1D32M7 is a switching contactor only — it has no built-in thermal overload or short-circuit protection of any kind. An external thermal overload relay, sized to the motor's full-load amperage, must be wired in series downstream of the contactor's T1/T2/T3 output terminals. An upstream circuit breaker is also required in the distribution panel. These are mandatory system components, not optional accessories.

My plant control voltage is 24V DC. Can I use the LC1D32M7, or do I need a different variant?

The LC1D32M7 standard coil is 220V AC 50/60 Hz. A 24V DC plant coil supply will not energize this unit. You need to either order the 24V DC coil variant of the TeSys D 32A contactor or add a step-up control transformer in your circuit. Confirm your plant coil voltage before ordering — coil voltage mismatch is one of the most common reasons this model is returned. Contact LeadTime.ca to confirm the correct variant for your coil supply.

Can I use the LC1D32M7 for a reversing (forward-reverse) motor application?

No. The LC1D32M7 is a nonreversing contactor — it closes main contacts in one fixed direction and cannot reverse motor rotation on its own. Forward-reverse control requires either a reversing contactor pair (two interlocked contactors) or a soft-starter or VFD with built-in reversing capability. Ordering the LC1D32M7 for a reversing application will require replacement of the unit before commissioning.

My motor nameplate shows 30A FLA at 440V. Is the 32A contactor the correct size, or should I go to the 40A?

A motor with 30A FLA at 440V falls within the LC1D32M7's 32A AC-3 rating — this is the correct size for that application. The LC1D40M7 would be a valid conservative choice but is not necessary if the motor FLA is confirmed at 30A. The critical rule is to use the motor nameplate FLA, not the circuit-breaker amperage (which is always larger) and not the motor's horsepower label alone. If the FLA is 33A or above, specify the LC1D40M7.

What is the expected service life of the LC1D32M7 under continuous industrial duty?

The LC1D32M7 is rated for 15 million mechanical operating cycles and 3600 cycles per hour. At 3600 cycles per hour continuous operation, that represents over 4,000 operating hours before the mechanical wear-out threshold. In typical industrial motor-control applications — where the contactor starts and stops a motor many times per shift rather than cycling at maximum rate — service life in field conditions is commonly measured in years, not months. Periodic inspection of contact surfaces and terminal tightness is recommended as part of annual maintenance.

What coil voltage alternatives are available, and are they in stock in Canada?

The TeSys D 32A contactor is available with coil voltages including 24V DC, 110V AC, 380V AC, and 690V AC in addition to the 220V AC standard of the LC1D32M7. Availability of non-standard coil variants in Canada varies by distributor and may require special order with lead times of 4–8 weeks. Confirm stock status and lead time for any non-standard coil variant with LeadTime.ca before committing to a project schedule.

Why Order the LC1D32M7 from LeadTime.ca

  • Global shipping: LeadTime.ca ships the LC1D32M7 and TeSys D family variants to buyers worldwide — not limited to any single region
  • Technical pre-sales support: confirm motor FLA match, coil voltage variant, and external overload relay sizing before the order ships
  • Authorized sourcing: genuine Schneider Electric product with full warranty and compliance documentation — no counterfeit or grey-market risk
  • Hard-to-find variants: non-standard coil voltages and auxiliary configurations sourced through the authorized supply chain
  • Volume and project pricing: contact the team directly for quantity orders or BOM-level pricing on complete motor-control assemblies

At-a-Glance Summary

  • Model: LC1D32M7 — IEC Contactor, TeSys D, Nonreversing, 32A Direct On-Line Standard from Schneider Electric
  • Rated current: 32A AC-3 at 440V; 50A AC-1 at 440V
  • Motor capacity: up to 15 kW at 380–440V 3-phase; 7–11 kW at 200–240V 3-phase
  • Coil voltage (standard): 220V AC 50/60 Hz; 7.5 VA coil power draw
  • Auxiliary contacts: 1NO + 1NC standard, no add-on block required for basic applications
  • Mechanical durability: 15 million operating cycles at up to 3600 cycles per hour
  • Mounting: DIN rail (35 mm standard) or surface panel; 45 mm width
  • Terminal type: screw clamp throughout — no push-in connections
  • Certifications: IEC 60947-1, IEC 60947-4-1, UL 508, CSA C22.2 No. 14, CE
  • Built-in protection: none — external thermal overload relay and circuit breaker are mandatory
  • Typical distributor lead time: 1–2 weeks for 220V AC standard coil; 4–8 weeks for non-standard coil variants
  • Nonreversing only: cannot reverse motor direction — reversing applications require a separate contactor pair
